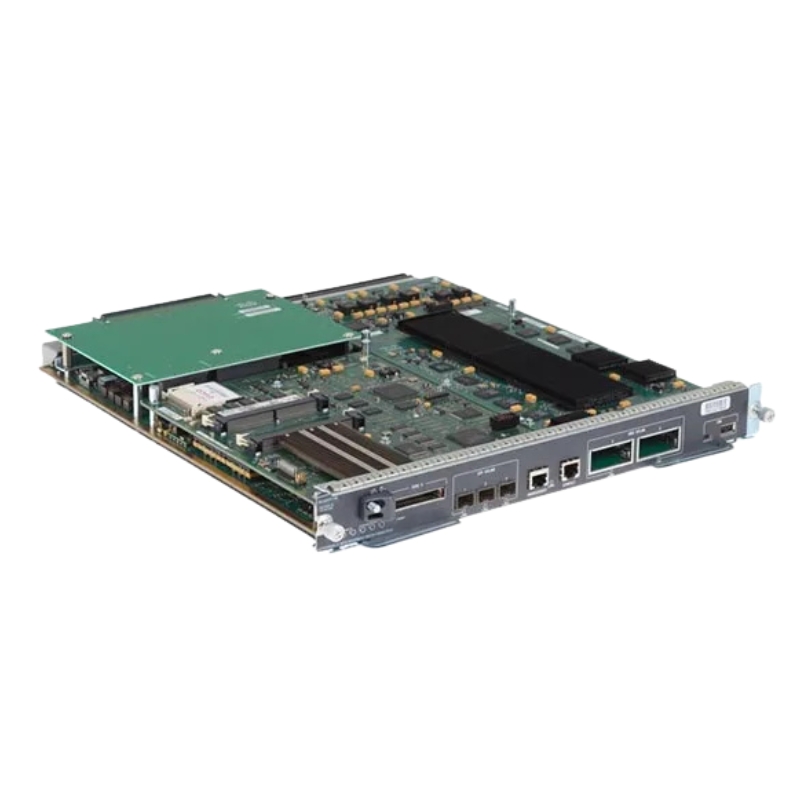

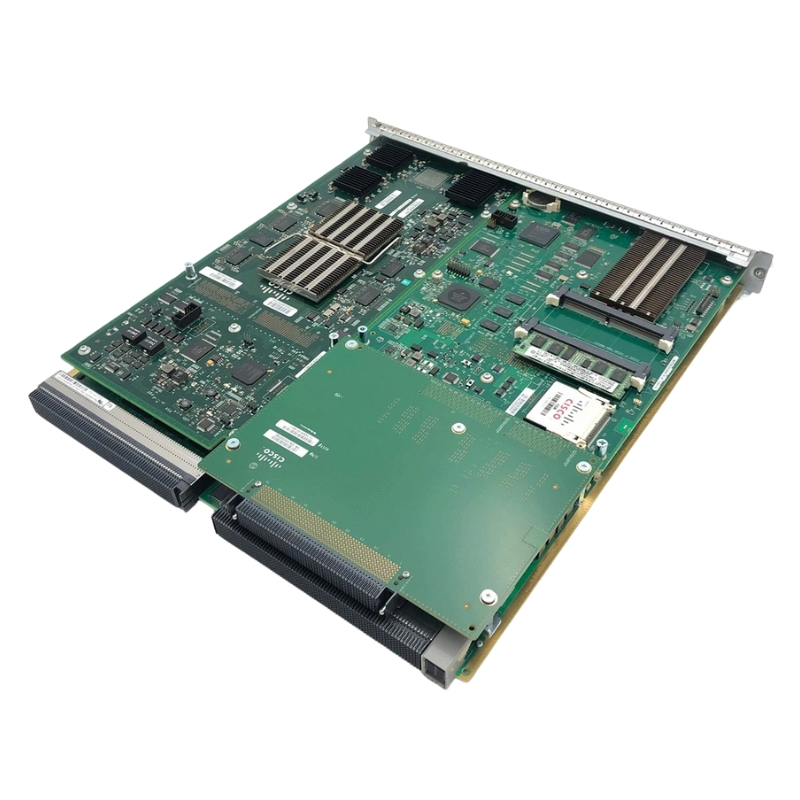

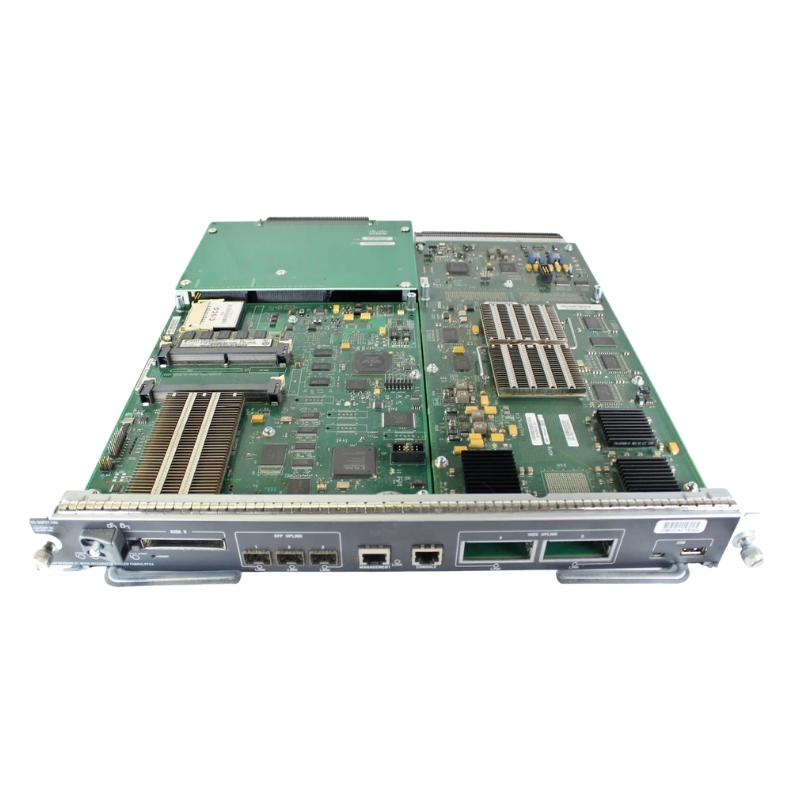

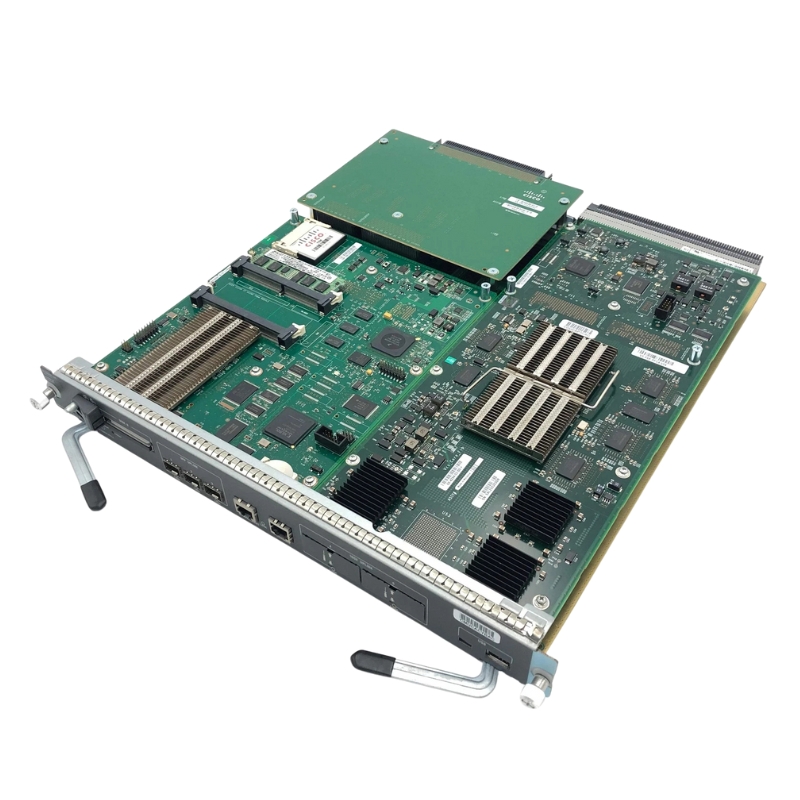

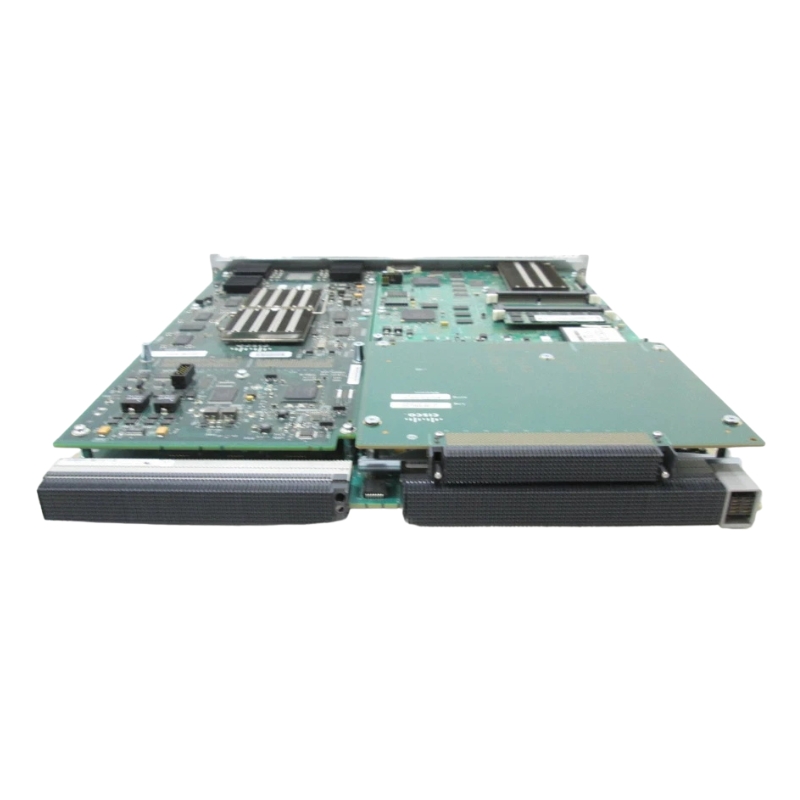

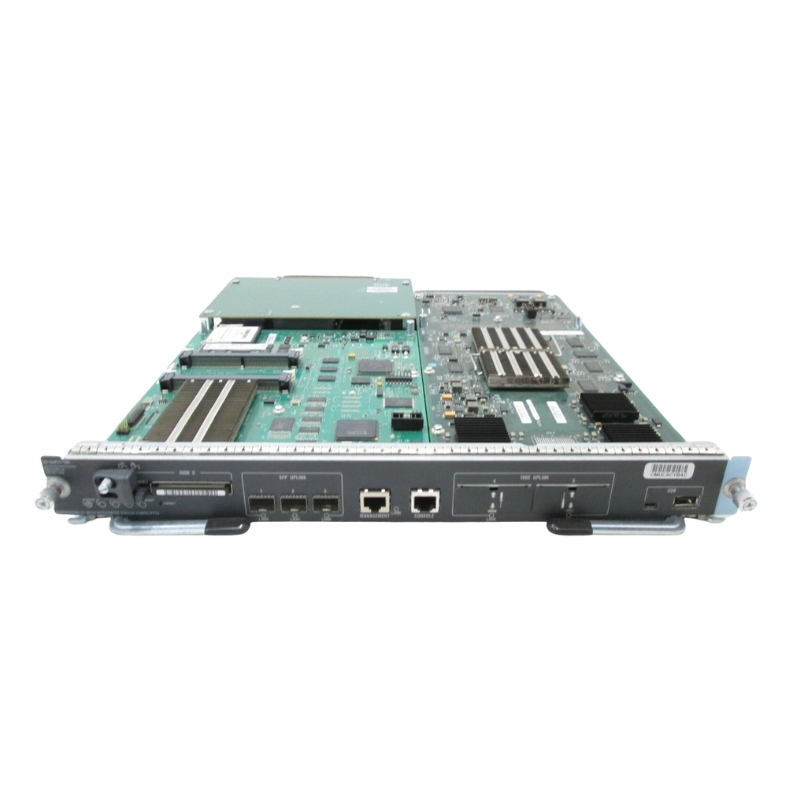

VS-S2T-10G= Cisco Catalyst 6500 Supervisor Engine Control Processor

Cisco VS-S2T-10G= Catalyst 6500 Series Supervisor Engine

The Cisco VS-S2T-10G= is a high-performance supervisor engine built for Cisco Catalyst 6500 Series switches, delivering advanced control processing, intelligent traffic management, and scalable networking capabilities. Designed for enterprise and service provider environments, this supervisor engine supports high-speed uplink connectivity, reliable network management, and enhanced system availability for demanding data center and campus infrastructures.

Core Product Information

• Manufacturer: Cisco
• Model: VS-S2T-10G=
• Product Category: Supervisor Engine
• Device Type: Control Processor
• Port Configuration: 2-Port Design
• Series Compatibility: Cisco Catalyst 6500 Series

Engineered for Enterprise Network Performance

Key Performance Advantages

• Optimized switching intelligence for enterprise networks
• Reliable control processing for mission-critical applications
• Supports high-bandwidth uplink connectivity
• Designed for scalable campus and data center deployments
• Enhances overall switching efficiency and network stability

Technical Specifications

Product Details

• Product Type: Supervisor Engine
• Primary Applications: Data Networking and Optical Networking
• Architecture: Intelligent Control Processor

Interface and Management Connectivity

The integrated management interface enables administrators to configure, monitor, and troubleshoot network operations with ease.

• 1 × RJ-45 10/100/1000Base-T asynchronous console management port
• RS-232 console interface for administrative access
• Dedicated management connectivity for simplified network maintenance

Expansion Capabilities

Flexible Expansion Slots

The Cisco VS-S2T-10G= provides multiple expansion options, allowing network administrators to adapt the switch to evolving infrastructure requirements.

• 1 × PCMCIA expansion slot
• 2 × X2 uplink expansion slots
• 3 × SFP (Mini-GBIC) uplink slots

Benefits of Multiple Uplink Options

• Supports flexible network expansion
• Simplifies migration to higher-speed connectivity
• Accommodates various optical networking requirements
• Improves deployment versatility across enterprise environments

Integrated Daughter Card

Performance Acceleration

• 1 × PFC4 daughter card included
• Supports advanced forwarding operations
• Enhances hardware-based packet processing
• Improves overall switching performance

Ideal Deployment Environments

Recommended Applications

• Enterprise campus networks
• Large corporate infrastructures
• Data center switching environments
• Optical networking deployments
• Service provider network architectures
• Business-critical network cores

Choose the Cisco VS-S2T-10G= Supervisor Engine

Business Benefits

• Built specifically for Cisco Catalyst 6500 Series switches
• Provides dependable control plane functionality
• Offers flexible expansion with X2 and SFP uplink interfaces
• Supports enterprise-grade network reliability
• Simplifies network administration through dedicated management connectivity
• Designed to support scalable and high-performance networking infrastructures

Highlights at a Glance

• High-performance Cisco Supervisor Engine
• Enterprise-class control processor architecture
• RJ-45 Gigabit management console interface
• Multiple uplink expansion options
• Integrated PFC4 daughter card
• Optimized for data networking and optical networking applications

Cisco VS-S2T-10G= 2 Ports Control Processor

The Cisco VS-S2T-10G= 2 Ports Control Processor Catalyst 6500 Series Supervisor Engine is an enterprise-class networking component designed for organizations that require advanced switching intelligence, exceptional scalability, and long-term infrastructure stability. Built specifically for Cisco Catalyst 6500 Series switches, this supervisor engine enhances network performance by integrating powerful processing capabilities, high-speed forwarding architecture, and intelligent traffic management into a single module.

Modern enterprise networks demand consistent performance across data centers, campus environments, service provider infrastructures, and mission-critical business applications. The Cisco VS-S2T-10G= Supervisor Engine addresses these requirements by providing improved Layer 2 and Layer 3 functionality, hardware-assisted forwarding, advanced security features, and comprehensive virtualization support. Organizations upgrading existing Catalyst 6500 platforms often select this supervisor engine to extend the lifespan of their network infrastructure while supporting increased bandwidth requirements and modern networking protocols.

The dual 10 Gigabit Ethernet uplink interfaces integrated into the supervisor engine provide reliable, high-capacity connectivity for aggregation and backbone environments. Combined with Cisco's robust operating system support, comprehensive routing capabilities, and extensive network management features, the Cisco VS-S2T-10G= continues to be a preferred solution for enterprises seeking dependable network performance.

Enterprise-Class Architecture for Catalyst 6500 Series

The Cisco VS-S2T-10G= Supervisor Engine represents one of the most advanced supervisory modules developed for the Catalyst 6500 Series platform. It combines control plane processing, management functions, packet forwarding, security enforcement, routing intelligence, and switching capabilities within a centralized architecture.

Unlike traditional switching modules that rely on separate processing resources, this supervisor engine integrates multiple networking functions to reduce latency, simplify deployment, and improve overall network efficiency. Organizations benefit from centralized management while maintaining the flexibility required to accommodate future growth.

Integrated Control Plane Intelligence

The control processor performs essential networking functions including routing table management, protocol processing, system monitoring, policy enforcement, network convergence, and hardware resource allocation. This centralized intelligence enables efficient communication between connected devices while maintaining network stability during changing traffic conditions.

Hardware-Based Packet Processing

High-speed forwarding hardware significantly reduces CPU utilization by processing packets directly through specialized forwarding engines. This hardware acceleration enables the Catalyst 6500 platform to maintain predictable performance even under demanding enterprise workloads.

Scalable Switching Infrastructure

Organizations expanding their campus or data center infrastructure can leverage the scalability of the supervisor engine to support additional users, applications, VLANs, and network services without requiring complete infrastructure replacement.

Key Features of Cisco VS-S2T-10G=

Dual 10 Gigabit Ethernet Ports

The integrated two-port 10 Gigabit Ethernet interfaces provide high-bandwidth uplink connectivity for distribution and core network deployments. These interfaces support aggregation, redundancy, and high-performance backbone connectivity while reducing congestion between switching layers.

High-Performance Switching Capacity

The supervisor engine delivers substantial switching capacity capable of supporting enterprise-scale traffic loads across multiple departments, buildings, and campus locations. High switching throughput ensures smooth application delivery and reduced packet loss.

Advanced Routing Support

The Cisco VS-S2T-10G= supports comprehensive routing technologies suitable for enterprise, government, healthcare, education, manufacturing, and financial environments. Dynamic routing protocols enable efficient path selection while maintaining optimal network performance.

Hardware Redundancy

Business continuity remains a priority in enterprise networking. The supervisor engine supports redundancy configurations that help minimize downtime during maintenance events or unexpected hardware failures.

Benefits for Enterprise Networks

Improved Network Performance

Organizations implementing the Cisco VS-S2T-10G= benefit from faster packet forwarding, lower latency, and improved application responsiveness. Performance improvements become particularly noticeable in environments supporting virtualization, unified communications, cloud connectivity, and large-scale data transfers.

Investment Protection

Many enterprises continue operating Cisco Catalyst 6500 Series switches due to their reliability and modular architecture. Upgrading to the VS-S2T-10G= Supervisor Engine extends the useful life of existing chassis while introducing enhanced processing capabilities.

Reduced Infrastructure Costs

Replacing an entire switching platform often requires significant investment in hardware, installation, migration, and staff training. Installing a new supervisor engine allows organizations to modernize network capabilities while preserving existing infrastructure investments.

Enhanced Reliability

Mission-critical environments depend on stable network operations. The Cisco VS-S2T-10G= delivers reliable performance through mature hardware design, advanced diagnostics, intelligent resource management, and support for redundant deployment models.

Applications Across Industries

Corporate Campus Networks

Large enterprise campuses require centralized switching infrastructure capable of supporting thousands of users simultaneously. The Cisco VS-S2T-10G= provides the processing power necessary for handling extensive traffic generated by office applications, collaboration platforms, voice communications, video conferencing, and cloud services.

Data Centers

Data center environments require consistent packet forwarding, minimal latency, and reliable connectivity between servers, storage systems, virtualization platforms, and external networks. The supervisor engine provides the performance needed to support demanding workloads.

Educational Institutions

Universities, colleges, and schools benefit from high-capacity switching capable of supporting digital classrooms, online learning platforms, research applications, wireless connectivity, and administrative systems.

Healthcare Organizations

Hospitals and healthcare providers require secure and uninterrupted access to patient information systems, imaging platforms, telemedicine applications, and medical devices. The supervisor engine contributes to dependable network availability across healthcare environments.

Financial Institutions

Banks, insurance companies, and financial organizations require low-latency communication, secure routing, and consistent application performance. The Cisco VS-S2T-10G= supports these requirements while maintaining enterprise-grade stability.

Layer 2 Switching Capabilities

VLAN Support

Virtual LAN implementation allows administrators to segment networks efficiently while improving security, reducing broadcast traffic, and simplifying network management.

Spanning Tree Enhancements

The supervisor engine supports modern spanning tree implementations that improve redundancy while minimizing convergence times after topology changes.

EtherChannel Support

Link aggregation technologies increase bandwidth availability while providing redundancy between network devices. Multiple physical connections operate as a single logical interface, improving both performance and resilience.

Advanced Layer 3 Routing Features

Dynamic Routing Protocols

Support for enterprise routing protocols enables intelligent route calculation and automatic adaptation to changing network conditions. This improves overall reliability and simplifies network administration.

Inter-VLAN Routing

Efficient communication between VLANs enables organizations to maintain segmented networks while allowing authorized traffic to move securely between departments and services.

Policy-Based Routing

Administrators can direct traffic based on predefined policies rather than relying solely on destination addresses, enabling greater flexibility for application optimization and network engineering.

Security Capabilities

Access Control Lists

Hardware-assisted Access Control Lists help enforce organizational security policies by filtering traffic based on source, destination, protocol, and application characteristics.

Control Plane Protection

The supervisor engine incorporates mechanisms designed to protect critical management functions against excessive traffic and malicious attacks targeting the control plane.

Secure Management

Secure administrative access supports encrypted management sessions, authentication mechanisms, logging capabilities, and centralized monitoring to protect network infrastructure.
