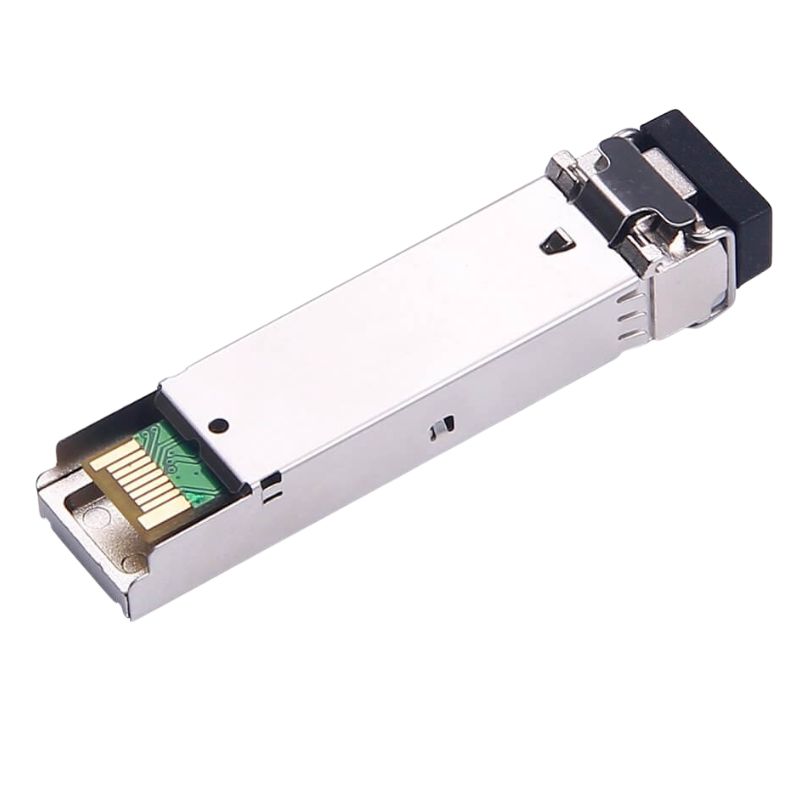

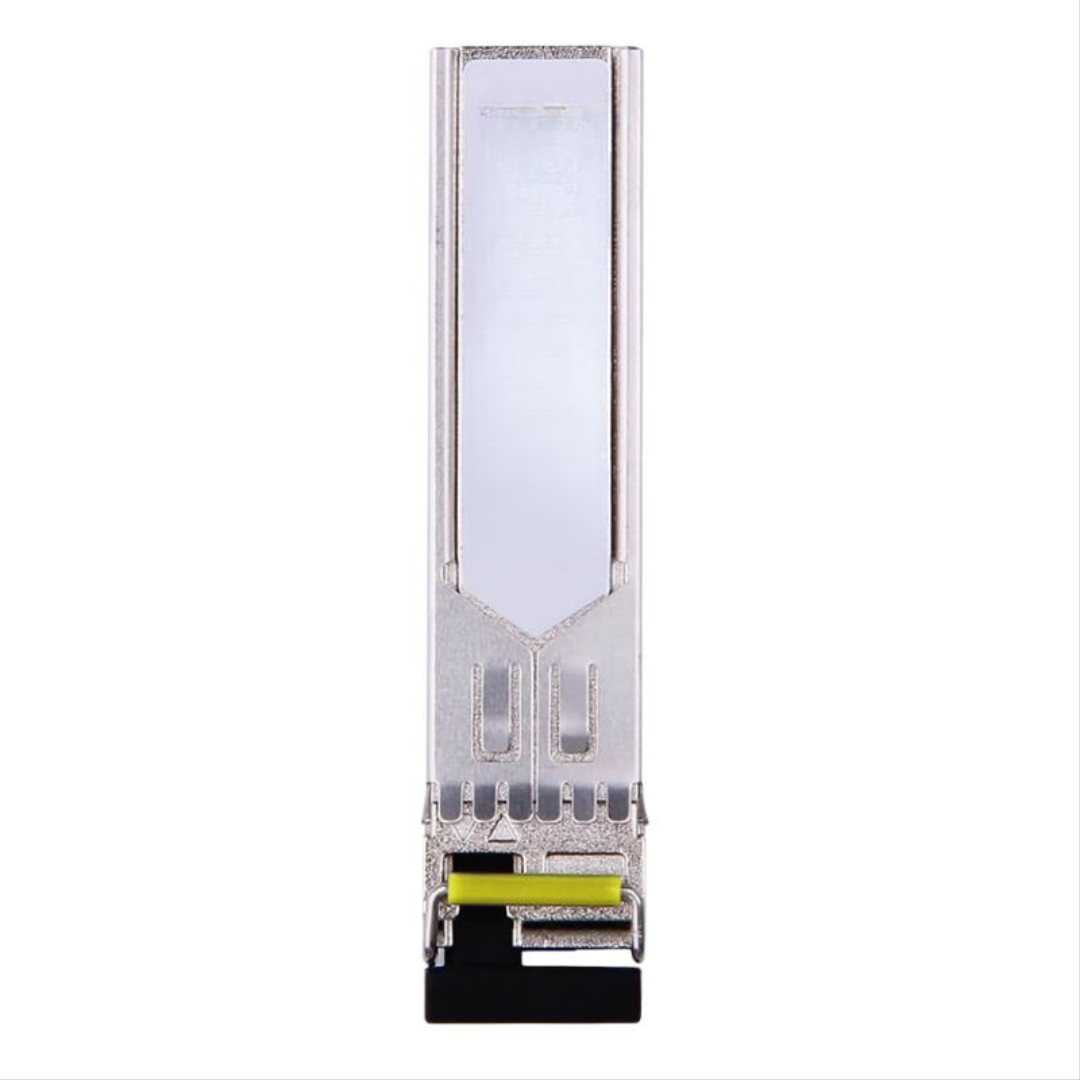

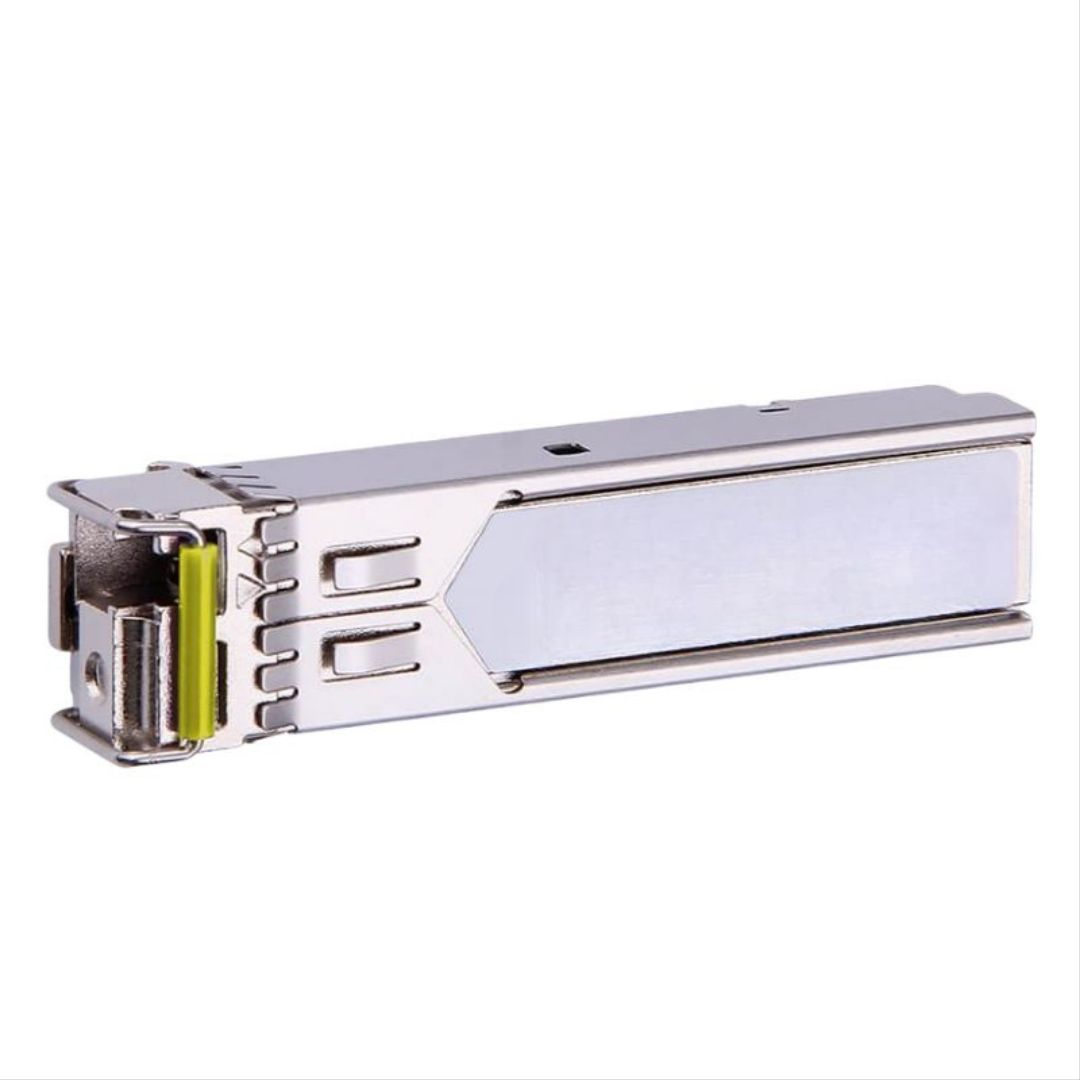

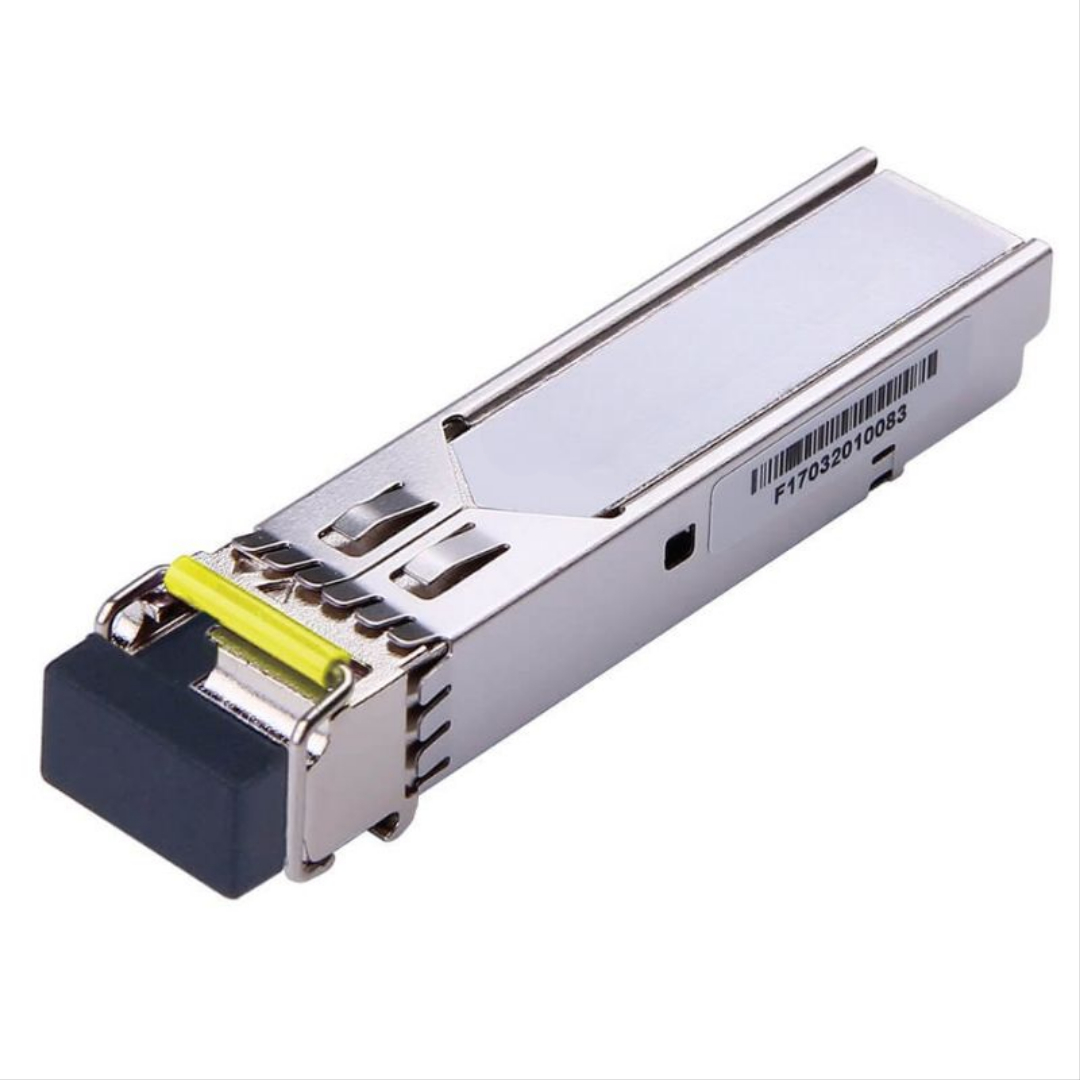

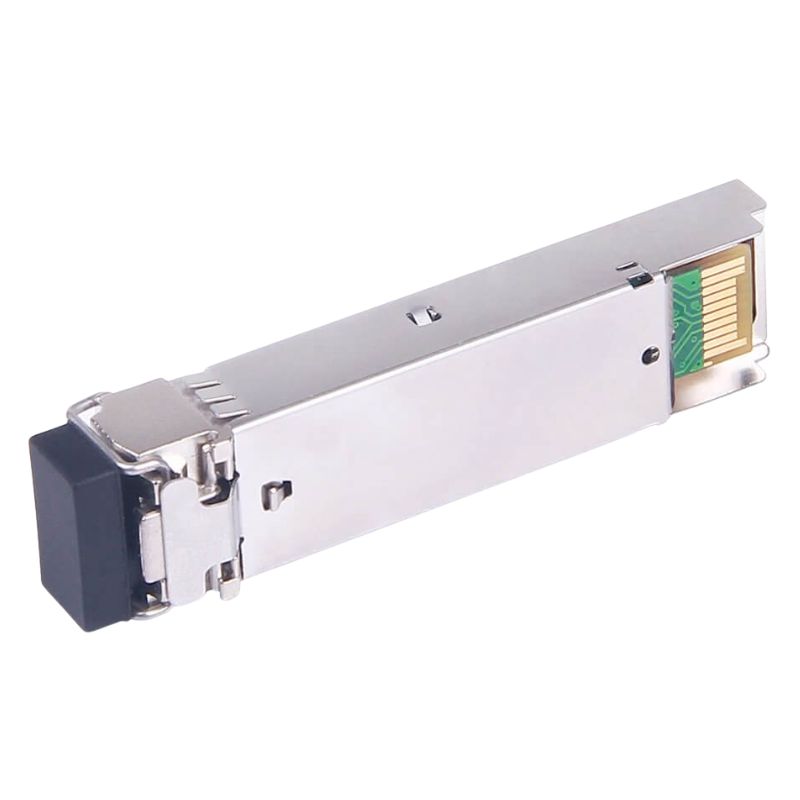

GLC-FE-100BX-D Cisco SFP Transceiver Module

Details of Cisco SFP 100MBPS Transceiver

The Cisco GLC-FE-100BX-D is a compact SFP transceiver module designed for 100Mbps Fast Ethernet connectivity. It provides dependable optical fiber communication, ensuring efficient data transfer across enterprise and telecom infrastructures.

Main Information

• Brand: Cisco
• Model Number: GLC-FE-100BX-D
• Product Type: Transceiver Module

Technical Highlights

• Data Networking
• Optical Fiber Communication
• Total Ports: 1
• Connector Type: LC
• Port Details: 1 x LC 100Base-BX10

Media and Performance

• Optical Fiber
• Single-mode

Ethernet and Network Technology

• Fast Ethernet
• 100Base-BX10 Standard
• Maximum Distance: 10 km

Physical Characteristics

• Hot-swappable design

Dimensions

• Height: 0.3"
• Width: 0.5"
• Depth: 2.2"

Miscellaneous Information

• Spare product availability
• Wavelength: 1310 nm
• Surge Current: 30mA
• 1550 nm TX3 / 1310 nm RX4 wavelength, 10 km over single-strand fiber
• Supports pay-as-you-populate model
• Interchangeable with other 100BASE-X SFPs
• Cisco quality ID feature for authentication
• Optical interoperability with 100BASE-X Ethernet interfaces

Transmit Power (dBm)

• -8 minimum
• -14 maximum

Receive Sensitivity (dBm)

• -7 maximum
• -28.2 minimum

Compatibility and Platform Support

• Catalyst 6500 Series
• Catalyst 4500 Series
• Catalyst 2960 Series

Overview of Cisco GLC-FE-100BX-D SFP 100MBPS Transceiver

The Cisco GLC-FE-100BX-D SFP 100Mbps Ethernet Transceiver Module represents a highly specialized optical networking component engineered for Fast Ethernet connectivity over single-strand fiber infrastructure. Manufactured under the advanced optical networking ecosystem of this transceiver module is widely deployed in enterprise access networks, metropolitan fiber links, and telecommunications environments where reliable, low-latency, and cost-efficient fiber transmission is required.

This category of Small Form-Factor Pluggable (SFP) modules is designed specifically for 100BASE-BX applications, enabling bidirectional communication over a single optical fiber strand using wavelength-division multiplexing (WDM) technology. The GLC-FE-100BX-D variant typically functions as the downstream (D) unit in a paired system, ensuring seamless full-duplex communication when combined with its corresponding upstream counterpart.

In modern networking infrastructures, this class of Fast Ethernet SFP modules continues to serve legacy systems and specialized deployments that require stability over speed upgrades. The GLC-FE-100BX-D remains relevant in structured cabling environments where existing fiber investments must be leveraged efficiently without migrating to higher-cost Gigabit or 10 Gigabit upgrades.

Technical Architecture and Functional Design Principles

Optical Transmission Methodology

The GLC-FE-100BX-D module is built on bidirectional optical transmission principles that utilize a single strand of single-mode fiber (SMF) to carry both transmit and receive signals. This is achieved through wavelength multiplexing, where two distinct wavelengths are used for upstream and downstream communication paths. Typically, the downstream module operates at a specific wavelength such as 1550 nm while receiving at 1310 nm, depending on pairing configuration.

This architecture reduces fiber infrastructure requirements by half compared to dual-fiber Fast Ethernet modules. The efficiency gained from single-fiber operation is particularly beneficial in environments where fiber availability is limited or costly to expand.

Electrical and Optical Conversion Layer

At the core of the GLC-FE-100BX-D module lies an integrated optical-electrical conversion system. Incoming electrical Ethernet signals are converted into modulated optical signals through a laser diode transmitter. Conversely, received optical signals are converted back into electrical form using a photodiode receiver.

This conversion process is optimized for minimal latency and signal distortion, ensuring that Fast Ethernet frames are transmitted with high integrity across long distances. The module is designed to maintain stable signal performance even under varying environmental conditions.

Data Rate and Protocol Support

The module supports a nominal data transmission rate of 100 Mbps, compliant with IEEE 802.3u Fast Ethernet standards. It is optimized for full-duplex operation, enabling simultaneous transmission and reception without bandwidth contention.

Despite being a legacy speed standard, Fast Ethernet modules like the GLC-FE-100BX-D remain essential in industrial automation systems, legacy enterprise switches, and service provider edge networks where upgrading to higher-speed interfaces is not operationally feasible.

Physical Interface and Hardware Design

Small Form-Factor Pluggable Structure

The SFP form factor is a compact, hot-swappable interface standard that allows network devices to support multiple types of connectivity modules without requiring hardware replacement. The GLC-FE-100BX-D adheres to this standardized footprint, ensuring compatibility with a wide range of networking switches, routers, and media converters.

The hot-swappable capability allows network administrators to replace or install modules without powering down the system, significantly improving network uptime and maintenance efficiency.

LC Connector Interface

The module utilizes an LC duplex connector mechanism adapted for single-fiber bidirectional communication. The LC interface is widely recognized for its compact design and high precision alignment, making it suitable for dense networking environments where multiple fiber connections must be managed efficiently.

The connector ensures minimal insertion loss and stable optical alignment, which is critical for maintaining signal quality over long-distance fiber links.

Build Quality and Thermal Management

Engineered for enterprise-grade deployment, the module incorporates robust thermal dissipation mechanisms. Passive cooling through metal housing allows efficient heat distribution during continuous operation. The design ensures stable performance even in high-density switch environments where multiple SFP modules operate simultaneously.

Network Compatibility and Deployment Scenarios

Enterprise Access Layer Integration

The GLC-FE-100BX-D is commonly deployed at the access layer of enterprise networks, where end devices such as IP phones, surveillance cameras, and legacy computing systems require Fast Ethernet connectivity. Its compatibility with a wide range of switches makes it a flexible solution for hybrid network architectures.

Telecommunication Fiber Extensions

Telecommunication providers often utilize this module to extend network services across metro fiber rings or customer premises connections. Its single-fiber design significantly reduces fiber consumption, making it ideal for last-mile connectivity solutions.

In these deployments, the module is often paired with a complementary BX-U or BX-D counterpart to establish a complete bidirectional communication link.

Industrial and Surveillance Networks

Industrial environments such as manufacturing facilities, transportation hubs, and surveillance networks frequently rely on Fast Ethernet transceivers for stable device connectivity. The GLC-FE-100BX-D is particularly suitable for IP-based camera systems where bandwidth demands remain within Fast Ethernet thresholds but reliability is critical.

Legacy Network Infrastructure Support

Many organizations continue to operate legacy switching systems that were deployed before the widespread adoption of Gigabit Ethernet. The GLC-FE-100BX-D provides a seamless integration path for maintaining these infrastructures without requiring expensive hardware overhauls.

Key Characteristics and Signal Integrity

Transmission Distance Capabilities

Depending on fiber quality and installation conditions, the module can support transmission distances typically extending up to 10 kilometers or more over single-mode fiber. This makes it suitable for campus networks, metropolitan links, and distributed enterprise facilities.

Signal Stability and Error Reduction

The module incorporates advanced signal conditioning techniques to ensure minimal bit error rates during transmission. Optical filtering and wavelength precision control contribute to maintaining data integrity across extended distances.

Stable performance is particularly important in environments where electromagnetic interference is prevalent, as fiber-based communication inherently provides immunity to such disruptions.

Wavelength Division Multiplexing Efficiency

Wavelength Division Multiplexing (WDM) technology is a core feature of this module category. By separating transmit and receive channels into distinct wavelengths, the system eliminates the need for separate fiber pairs. This significantly reduces infrastructure complexity while maintaining full-duplex communication capability.

Auto-Negotiation and Interface Detection

The module supports automatic interface detection in compatible networking equipment. This ensures that link establishment occurs without manual configuration in most deployment scenarios.

Link Establishment Sequence

Upon connection, the module performs a handshake process that includes optical signal alignment, wavelength verification, and link integrity testing. Once validated, the Fast Ethernet link becomes active and ready for data transmission.

Reliability Standards and Environmental Tolerance

Operating Temperature Range

The GLC-FE-100BX-D is engineered to operate within a broad temperature range suitable for both indoor and controlled industrial environments. Its thermal tolerance ensures stable performance under varying load conditions.

Humidity and Environmental Resistance

The module is designed to withstand moderate humidity levels, ensuring consistent optical performance even in environments where moisture fluctuations occur. Proper enclosure within networking equipment further enhances its durability.

Long-Term Operational Stability

The optical components used in the module are selected for long operational lifespans, minimizing degradation in signal quality over time. This makes it suitable for long-term deployments in mission-critical infrastructure.

Integration with Modern and Legacy Networking Systems

Hybrid Network Architectures

In modern network environments, Fast Ethernet modules such as the GLC-FE-100BX-D are often integrated alongside Gigabit and 10 Gigabit interfaces. This hybrid architecture allows organizations to balance cost, performance, and compatibility requirements.

Network Expansion Strategies

Organizations frequently deploy this module to extend existing fiber networks without replacing core switching infrastructure. This approach enables gradual scalability while preserving legacy investments.

Use Case Optimization and Deployment Efficiency

Cost Optimization in Fiber Networks

By utilizing single-fiber transmission, the GLC-FE-100BX-D significantly reduces fiber installation costs. This makes it a preferred solution for organizations seeking to maximize existing fiber infrastructure.

Bandwidth Allocation Efficiency

While limited to 100 Mbps, the module provides sufficient bandwidth for control systems, monitoring applications, and low-to-medium traffic enterprise environments.

Scalability in Distributed Systems

The modular nature of SFP-based systems allows organizations to scale networks incrementally. Additional GLC-FE-100BX-D modules can be deployed as needed without restructuring the entire network architecture.

Strategic Importance in Modern Networking Ecosystems

Role in Transitional Network Architectures

Despite the dominance of high-speed Ethernet technologies, Fast Ethernet modules remain strategically important in transitional environments where legacy systems coexist with modern infrastructure.

Infrastructure Sustainability

The continued use of modules like the GLC-FE-100BX-D contributes to sustainable networking practices by extending the life of existing fiber deployments and reducing electronic waste associated with full system replacement.

Operational Continuity

In mission-critical environments, stability and continuity often outweigh raw speed requirements. This module category ensures uninterrupted connectivity for essential services.
