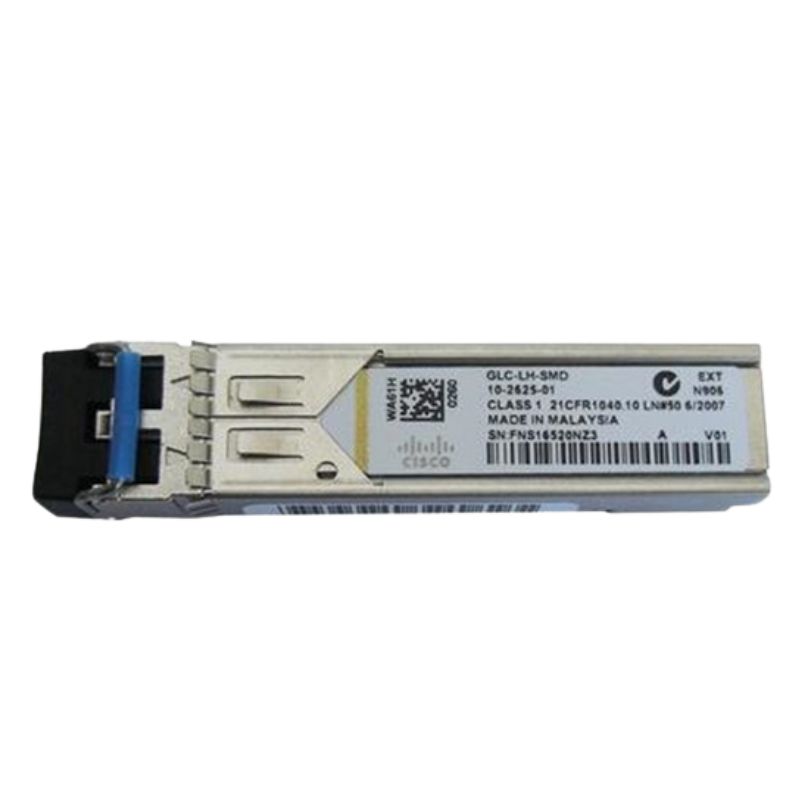

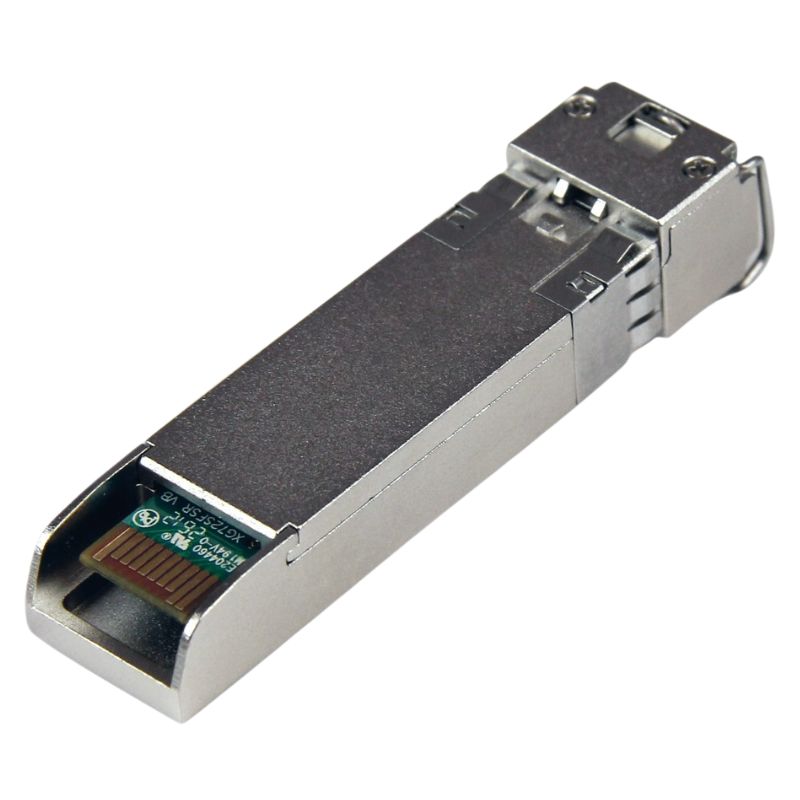

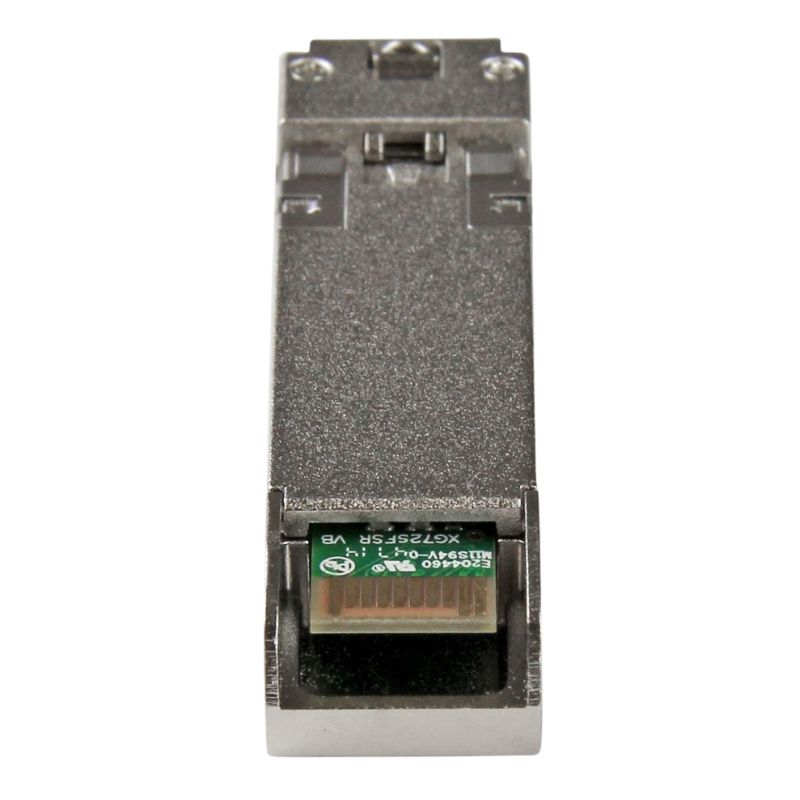

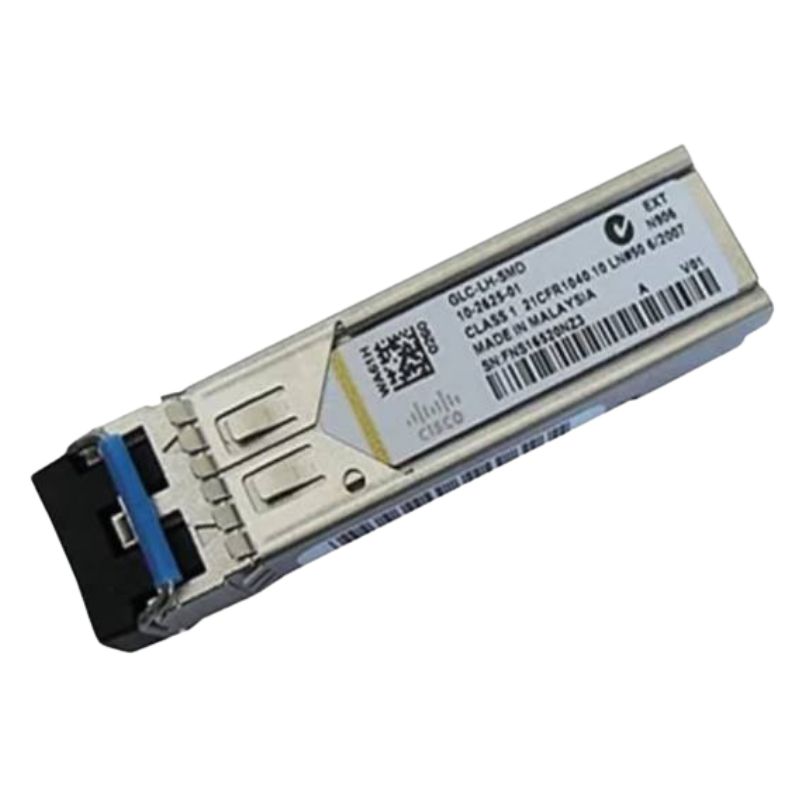

GLC-LH-SMD= Cisco 1GBPS SM Optical Fiber Transceiver Module

Cisco GLC-LH-SMD= 1GBPS Single Mode Transceiver Module

The Cisco GLC-LH-SMD= is a high-performance 1Gbps Small Form-Factor Pluggable (SFP) optical transceiver module engineered for reliable Gigabit Ethernet connectivity across single-mode and multimode fiber infrastructures. Designed for enterprise, campus, metropolitan, and data center networking, this hot-swappable plug-in module supports 1000BASE-LX/LH standards and operates at a 1310 nm wavelength to deliver dependable long-distance optical communication. Its compact Mini-GBIC form factor simplifies installation while ensuring seamless integration into compatible Cisco networking equipment. With Digital Diagnostic Monitoring (DDM) support, low power consumption, IEEE and SFF industry compliance, and exceptional reliability, the Cisco GLC-LH-SMD= provides an efficient solution for expanding high-speed fiber network deployments while maintaining consistent network performance.

General Information

• Manufacturer: Cisco
• Part Number: GLC-LH-SMD=
• Product Category: Optical Fiber Transceiver Module

Technical Specifications

• Form Factor: Plug-in SFP (Mini-GBIC)
• Connectivity Technology: Wired
• Cabling Standard: 1000BASE-LX / 1000BASE-LH

Optical Performance

• Optical Wavelength: 1310 nm
• Data Link Protocol: Gigabit Ethernet
• Maximum Data Rate: 1.25 Gbps
• Fiber Mode: Full-Duplex
• Optical Fiber Support: Single-Mode and Multi-Mode Fiber
• Maximum Distance: Up to 10 km over Single-Mode Fiber
• Maximum Distance: Up to 1 km over Multi-Mode Fiber
• Compatible Fiber Sizes: 9/125 µm, 50/125 µm, 62.5/125 µm

Network Interfaces

• 1 × 1000BASE-LX/LH Interface

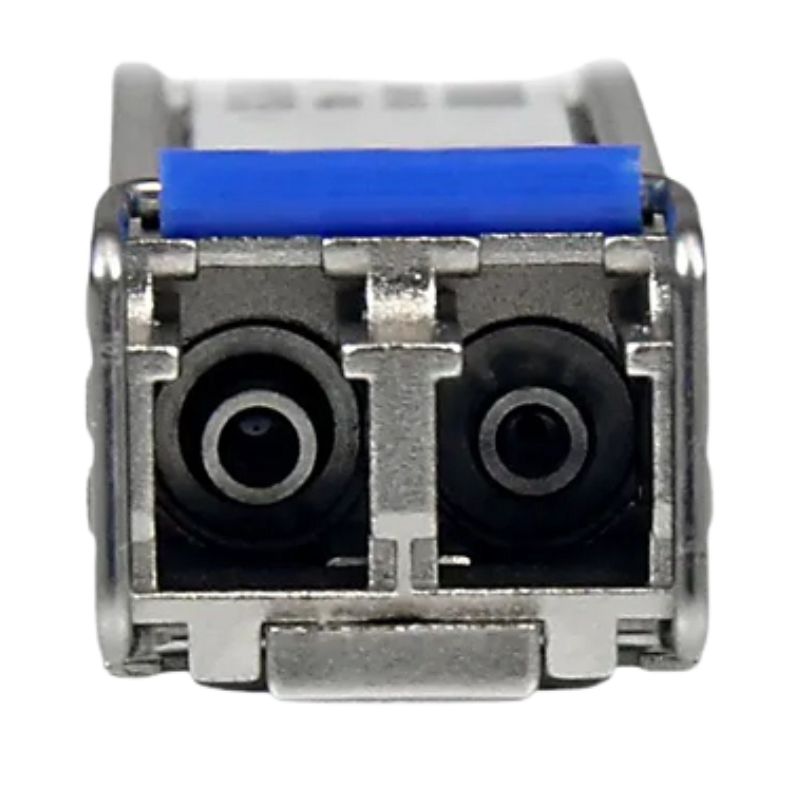

• 1 × Duplex LC Optical Connector
• Supports Gigabit Ethernet optical communication

Power Specifications

• Minimum Transmit Power: -9 dB
• Maximum Transmit Power: 3 dB
• Power Consumption: Approximately 1 Watt

Protocols and Standards

• IEEE 802.3ah-2004 Compliant
• SFF-8472 MSA Compliant
• Digital Diagnostic Monitoring (DDM) Supported
• Compatible with 1000 Mbps Gigabit Ethernet networks

Environmental Specifications

• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 5% to 95% RH
• MTBF: 200,000 Hours

Ideal Use Cases

• Enterprise LAN infrastructure
• Campus networking
• Metropolitan area networks
• Data centers
• Server connectivity
• Distribution layer switching
• Core network aggregation
• Optical backbone deployments
• Business continuity networks
• Telecommunications infrastructure

Cisco GLC-LH-SMD= Compatibility

Compatible Cisco Catalyst Switches

• Catalyst 2960 Series
• Catalyst 2960-S Series
• Catalyst 2960-X Series
• Catalyst 2960-XR Series
• Catalyst 3560 Series
• Catalyst 3560-E Series
• Catalyst 3560-X Series
• Catalyst 3750 Series
• Catalyst 3750-E Series
• Catalyst 3750-X Series
• Catalyst 3850 Series
• Catalyst 4500 Series
• Catalyst 4500-X Series
• Catalyst 6500 Series
• Catalyst 6800 Series
• Catalyst 9200 Series
• Catalyst 9300 Series (1G SFP uplinks)

Compatible Cisco Industrial Ethernet Switches

• Industrial Ethernet IE 2000 Series
• Industrial Ethernet IE 3000 Series
• Industrial Ethernet IE 4000 Series
• Industrial Ethernet IE 5000 Series

Compatible Cisco Routers

• Cisco 1900 Series ISR
• Cisco 2900 Series ISR
• Cisco 3900 Series ISR
• Cisco 4300 Series ISR
• Cisco 4400 Series ISR
• Cisco ASR 1000 Series

Compatible Cisco Network Devices

• Cisco Nexus switches supporting 1G SFP ports
• Cisco ME Series Ethernet Switches
• Cisco Small Business managed switches with standard Cisco 1G SFP slots

Cisco GLC-LH-SMD= 1GBPS Single Mode Transceiver Module

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module is an important networking component designed to deliver dependable Gigabit Ethernet connectivity across enterprise, campus, and metropolitan optical infrastructures. As organizations continue expanding their digital operations, fiber optic communication has become an essential foundation for supporting reliable data transmission between switches, routers, servers, storage platforms, security appliances, and numerous network-connected devices. This transceiver module category enables efficient optical communication while maintaining compatibility with a wide variety of enterprise networking environments.

Businesses increasingly rely on high-quality optical communication to support cloud applications, virtualization platforms, unified communications, business analytics, digital collaboration, enterprise databases, storage networks, and mission-critical operational systems. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports these requirements by providing stable optical signal transmission over single mode fiber infrastructure while maintaining consistent Gigabit Ethernet performance.

Enterprise information technology departments seek networking components capable of supporting long operational lifecycles, dependable communication, and simplified infrastructure management. Optical transceiver modules continue serving as one of the most important building blocks within modern networking because they enable flexible connectivity between network devices without requiring extensive hardware modifications.

Fiber optic communication also contributes to improved network efficiency by reducing electromagnetic interference, supporting longer transmission distances, maintaining signal integrity, and providing consistent communication quality across interconnected facilities. These advantages make single mode optical networking an attractive solution for organizations planning long-term infrastructure growth.

Optical Fiber Communication Fundamentals

Optical fiber networking uses light signals rather than electrical impulses to transmit digital information between networking devices. This communication method provides numerous operational advantages for enterprise environments where stable connectivity, transmission consistency, and infrastructure scalability are primary objectives.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module converts electrical data generated by networking equipment into optical signals that travel through fiber optic cabling. Upon reaching the receiving device, the optical signals are converted back into electrical information, allowing routers, switches, servers, and other network devices to exchange information efficiently.

This optical communication process supports high-quality transmission while minimizing many of the physical limitations associated with traditional copper networking infrastructure. Reduced signal degradation over extended distances allows organizations to connect geographically separated facilities while maintaining dependable communication performance.

Fiber optic technology has become increasingly important for organizations operating distributed offices, university campuses, healthcare systems, manufacturing complexes, financial institutions, research facilities, transportation networks, and government agencies.

Advantages of Single Mode Fiber Infrastructure

Single mode fiber provides numerous operational benefits compared with other transmission media. The smaller fiber core enables light to travel with minimal dispersion, allowing communication across considerably longer distances while preserving signal quality. Organizations selecting single mode fiber often prioritize infrastructure longevity, expansion flexibility, and dependable long-distance communication.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module category supports deployments where long-distance connectivity is essential for maintaining communication between multiple facilities. Administrative offices, branch locations, production facilities, distribution centers, educational campuses, healthcare institutions, and regional data centers frequently benefit from single mode optical communication.

Single mode infrastructure also simplifies future network planning because fiber installations often remain operational for many years while networking equipment evolves through hardware upgrades and technology refresh cycles.

Gigabit Ethernet Network Integration

Gigabit Ethernet continues serving as a reliable networking standard across countless enterprise environments. While higher-speed networking technologies continue expanding within hyperscale environments, Gigabit Ethernet remains widely deployed throughout enterprise offices, branch locations, educational facilities, retail operations, healthcare organizations, industrial sites, and government institutions.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports Gigabit Ethernet communication while enabling seamless integration into existing networking infrastructures. Organizations appreciate the flexibility of deploying optical connectivity without requiring complete infrastructure redesign.

Gigabit Ethernet supports numerous daily operational activities including secure file transfers, enterprise resource planning, customer relationship management platforms, accounting software, collaboration applications, database communication, cloud service access, authentication services, monitoring platforms, backup operations, and storage synchronization.

Reliable Gigabit connectivity remains sufficient for many enterprise workloads, allowing organizations to balance network performance, infrastructure investment, and operational requirements effectively.

Enterprise Switch Connectivity

Network switches serve as central communication platforms within enterprise environments. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module enables optical communication between switches located throughout office buildings, campus environments, remote facilities, and distributed operational sites.

Switch-to-switch communication forms the foundation of enterprise networking by connecting access switches with distribution layers and linking distribution switches with network core infrastructure. Reliable optical communication between these devices ensures efficient data movement throughout the organization while supporting business applications, communication systems, and cloud connectivity.

Scalable switch connectivity also allows network administrators to expand infrastructure gradually without introducing unnecessary complexity into the overall architecture.

Router Communication

Routers connect enterprise networks with branch offices, internet service providers, cloud environments, remote users, and external business partners. Optical transceiver modules enable reliable communication between routing platforms and other infrastructure components while supporting efficient traffic management throughout the enterprise.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module contributes to stable router connectivity by supporting dependable optical communication across backbone networks, regional facilities, and campus deployments. Reliable routing communication helps maintain application availability while supporting secure information exchange across organizational boundaries.

LC Duplex Connector Design

The LC duplex connector has become one of the most widely adopted optical connector standards throughout enterprise networking. Its compact size allows increased port density while maintaining precise fiber alignment and dependable optical performance. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module utilizes LC connectivity to support modern switching and routing platforms that require efficient cable management and high-density installations.

Compact connector designs become increasingly valuable as organizations deploy larger numbers of networking devices within data centers, campus facilities, telecommunications rooms, and enterprise server environments. Efficient use of rack space supports simplified infrastructure organization while improving maintenance accessibility.

Standardized LC connectivity also simplifies replacement procedures, infrastructure upgrades, and ongoing maintenance because compatible components can be deployed consistently throughout the enterprise network.

Cable Management Efficiency

Effective cable management contributes significantly to network reliability and operational efficiency. Organized fiber installations simplify maintenance activities, reduce accidental cable damage, improve airflow within network cabinets, and allow technicians to identify connections quickly during infrastructure modifications.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports structured cabling environments where network administrators prioritize organization, documentation, scalability, and long-term infrastructure management.

Well-managed fiber installations reduce operational risks associated with crowded network cabinets while supporting efficient expansion as organizational requirements continue evolving.

Enterprise Data Center Connectivity

Data centers serve as the operational foundation for many enterprise organizations. Servers, storage platforms, virtualization hosts, backup systems, security appliances, cloud gateways, monitoring platforms, and application infrastructure depend upon dependable network communication to deliver continuous business services.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports optical connectivity within enterprise data centers by enabling reliable communication between critical infrastructure components. Stable fiber communication contributes to application responsiveness, storage accessibility, and operational continuity.

Enterprise data center environments frequently require optical communication connecting server clusters with storage arrays, virtualization platforms with management systems, network cores with aggregation switches, backup systems with production infrastructure, and monitoring platforms with centralized administration tools.

Virtualization Infrastructure

Virtualization technologies allow organizations to consolidate computing resources while improving infrastructure utilization and operational flexibility. Reliable network communication is essential because virtual machines continuously exchange information with storage platforms, application servers, authentication systems, and management software.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports virtualization environments requiring dependable Gigabit Ethernet communication across optical infrastructure. Stable connectivity contributes to consistent workload performance while supporting efficient resource allocation throughout the virtualized environment.

Virtualization also enables rapid deployment of new business applications, disaster recovery solutions, testing environments, and development platforms, all of which benefit from dependable optical networking.

Storage Network Communication

Enterprise storage environments continue growing as organizations generate increasing volumes of structured and unstructured information. Reliable communication between storage devices, backup platforms, database servers, virtualization clusters, and business applications supports efficient information management throughout the enterprise.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module contributes to storage infrastructure by providing stable optical connectivity between networking devices supporting storage communication. Consistent network performance helps maintain backup operations, file accessibility, database synchronization, disaster recovery planning, and long-term information preservation across distributed enterprise environments.

Campus Network Infrastructure and Multi Building

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module plays a valuable role in campus networking environments where multiple buildings require dependable optical communication through a centralized network architecture. Universities, hospitals, corporate headquarters, research institutions, manufacturing campuses, logistics centers, and government facilities often depend upon fiber optic backbone connections that provide reliable communication between distributed network segments. Single mode optical technology enables organizations to extend network connectivity over significant distances while maintaining stable Gigabit Ethernet performance.

Campus networking requires a balanced approach that combines scalability, operational stability, simplified management, and efficient resource sharing. Optical fiber connections between buildings allow centralized data centers, authentication platforms, security systems, and application servers to deliver services throughout the entire organization without introducing communication bottlenecks. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports these deployments by providing dependable optical transmission suitable for enterprise-grade networking infrastructures.

As organizations continue expanding their physical facilities, network architects seek infrastructure components capable of supporting future growth without requiring major redesign efforts. Single mode optical communication provides an effective foundation because installed fiber infrastructure often remains useful through multiple generations of networking equipment upgrades.

Centralized Network Management

Modern enterprise environments increasingly rely on centralized management platforms that simplify monitoring, configuration, maintenance, and operational oversight. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports communication between centralized management systems and distributed networking equipment located across large campuses or geographically separated facilities.

Network administrators benefit from consistent visibility into switching infrastructure, routing platforms, wireless deployments, security appliances, and connected endpoints. Reliable optical communication allows management applications to collect operational information while supporting software updates, configuration synchronization, performance monitoring, and fault identification throughout the enterprise network.

Centralized administration also improves operational efficiency by reducing manual intervention while allowing technical teams to manage complex infrastructures from unified management platforms.

Inter Building Optical Communication

Communication between multiple buildings frequently requires transmission distances beyond the practical capabilities of traditional copper cabling. Single mode optical fiber addresses this requirement by supporting long-distance communication while maintaining high signal integrity and dependable performance. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module enables organizations to establish stable optical links connecting administrative offices, educational facilities, healthcare buildings, manufacturing operations, warehouses, and regional service centers.

Reliable inter building connectivity supports enterprise applications, unified communications, surveillance systems, building automation, centralized storage, cloud connectivity, and disaster recovery operations. Stable fiber communication ensures that users across multiple locations experience consistent access to shared resources regardless of physical separation.

Business Continuity and Network Availability

Continuous network availability remains a primary objective for organizations operating mission critical applications. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module contributes to dependable communication infrastructures by supporting stable optical transmission between essential networking devices. Reliable connectivity helps organizations maintain productivity, customer service, operational management, and information accessibility during routine business activities.

Network interruptions can affect communication platforms, business applications, financial systems, inventory management, customer support services, cloud connectivity, and collaborative workflows. High-quality optical communication reduces infrastructure risks by providing dependable signal transmission within enterprise environments designed for continuous operation.

Organizations frequently incorporate fiber optic networking into comprehensive business continuity strategies because optical infrastructure supports reliable long-distance communication while offering strong resistance to environmental interference commonly encountered in complex facilities.

Operational Stability

Operational stability depends upon consistent communication between interconnected infrastructure components. Servers, switches, routers, storage platforms, wireless controllers, monitoring systems, authentication services, and security appliances all rely on dependable network connectivity to function efficiently. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports this operational stability by maintaining reliable optical communication throughout enterprise infrastructures.

Stable communication improves application responsiveness while minimizing disruptions that could affect daily business operations. Information technology departments appreciate networking components capable of supporting continuous workloads while simplifying maintenance activities and long-term infrastructure planning.

Disaster Recovery Connectivity

Disaster recovery planning requires dependable communication between production environments and secondary recovery locations. Enterprise organizations frequently replicate critical information to alternate facilities where applications and services can be restored if primary infrastructure becomes unavailable. Optical communication provides the bandwidth and reliability necessary to support these business continuity initiatives.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module assists disaster recovery deployments by supporting communication between geographically separated facilities connected through single mode fiber infrastructure. Reliable transmission contributes to effective backup synchronization, data replication, application recovery, and operational resilience.

Cloud Computing and Hybrid Infrastructure

Cloud computing has transformed enterprise networking by allowing organizations to distribute workloads across private infrastructure, hosted services, and public cloud environments. Reliable network connectivity forms the foundation of successful cloud integration because applications, databases, storage resources, and management platforms continuously exchange information across interconnected environments.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports enterprise networks that connect local infrastructure with cloud gateways, internet edge devices, security platforms, and regional data centers. Stable optical communication contributes to consistent cloud service accessibility while supporting business application performance.

Organizations adopting hybrid infrastructure often maintain critical workloads within local facilities while utilizing cloud platforms for collaboration, analytics, backup services, application hosting, and disaster recovery. Optical networking supports these strategies by providing dependable communication pathways between internal resources and external service providers.

Cloud Application Performance

Business applications increasingly rely on cloud-based platforms for communication, collaboration, productivity, customer management, accounting, analytics, and information sharing. Consistent network performance directly influences user experience because cloud applications require uninterrupted communication with enterprise infrastructure.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module helps maintain reliable optical communication supporting cloud connectivity across enterprise networking environments. Stable communication contributes to efficient application access while reducing delays associated with inconsistent network performance.

Hybrid Network Expansion

Enterprise organizations frequently expand infrastructure gradually by integrating cloud services alongside existing networking environments. This approach allows technology teams to modernize operations while protecting previous infrastructure investments. Optical networking supports hybrid expansion by providing dependable connectivity between legacy systems and modern cloud architectures.

The flexibility offered by optical communication enables organizations to adapt to changing business requirements while maintaining operational continuity throughout ongoing technology modernization initiatives.

Enterprise Security Infrastructure

Network security depends upon reliable communication between firewalls, intrusion detection systems, authentication platforms, endpoint management solutions, monitoring software, and centralized administrative systems. The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports secure enterprise infrastructures by providing dependable optical connectivity between critical security components.

Organizations implementing layered security strategies require networking components capable of maintaining consistent communication across multiple infrastructure segments. Reliable optical transmission supports centralized visibility while enabling coordinated security monitoring throughout distributed enterprise environments.

Information technology departments increasingly integrate security monitoring into network operations, allowing rapid identification of operational anomalies, performance concerns, and infrastructure events. Stable optical connectivity contributes to the effectiveness of these integrated monitoring solutions.

Network Monitoring Platforms

Comprehensive monitoring enables organizations to evaluate infrastructure health, identify performance trends, detect communication issues, and optimize network utilization. Monitoring systems continuously collect operational information from switches, routers, servers, wireless controllers, storage systems, and security appliances.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module supports reliable communication between monitored infrastructure and centralized monitoring platforms. Consistent connectivity improves data collection accuracy while supporting proactive infrastructure management and long-term capacity planning.

Authentication Services

Enterprise authentication platforms validate user identities before granting access to applications, network resources, wireless services, and administrative systems. Reliable communication between authentication servers and networking devices contributes to secure access management while supporting efficient user experiences.

The Cisco GLC-LH-SMD= 1GBPS Single Mode Optical Fiber Transceiver Module provides dependable optical connectivity that supports communication between authentication infrastructure and enterprise networking equipment. Stable communication ensures that identity verification processes operate efficiently across distributed organizational environments.
