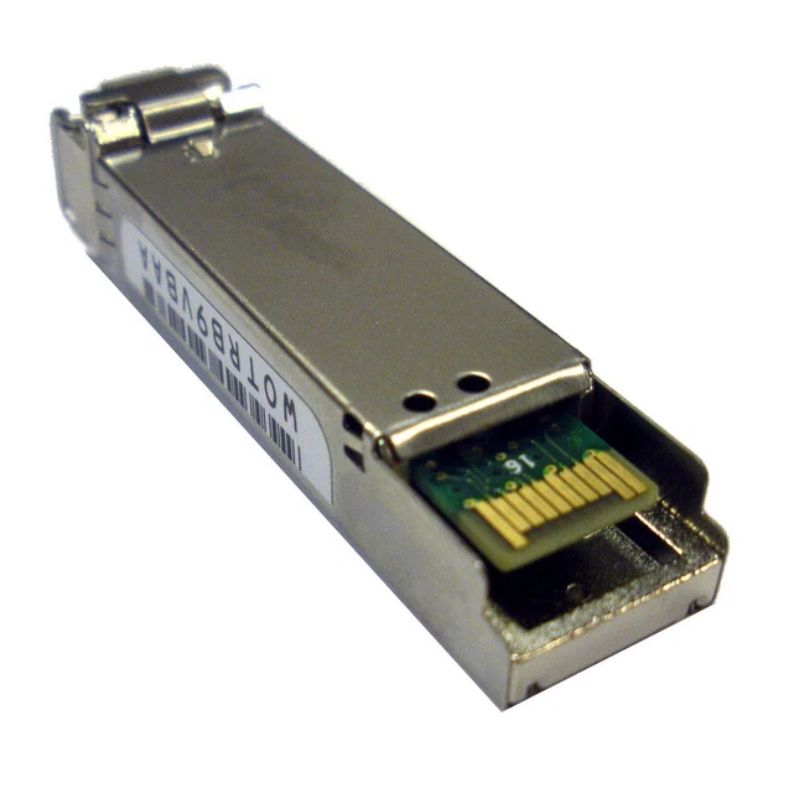

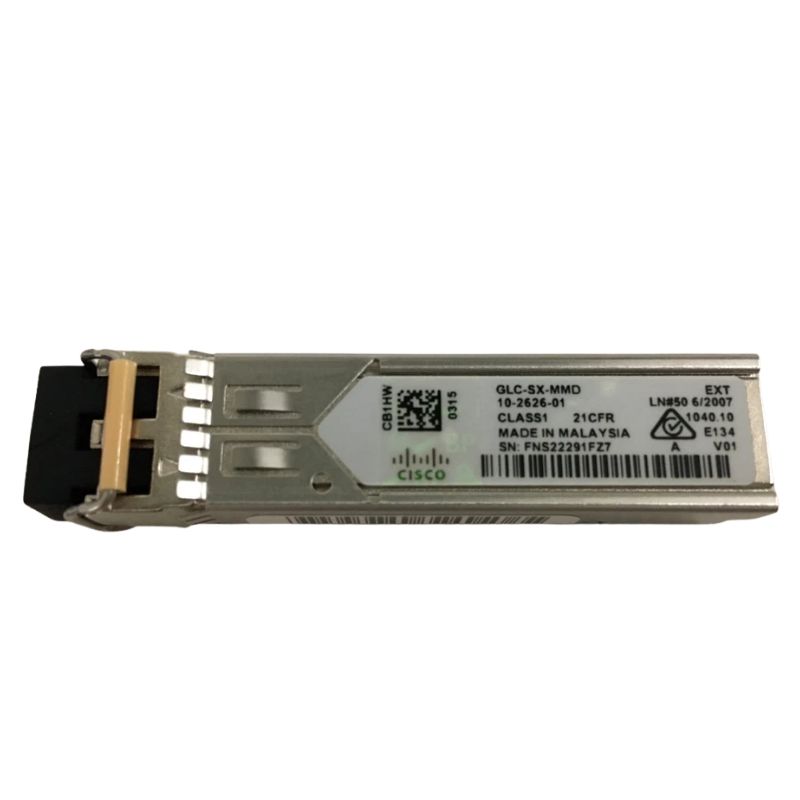

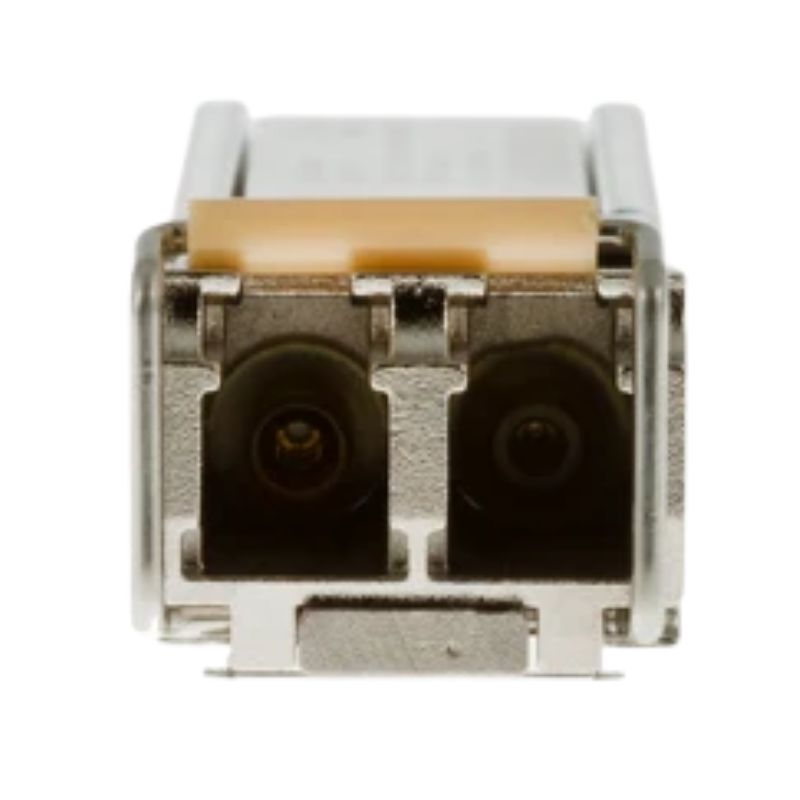

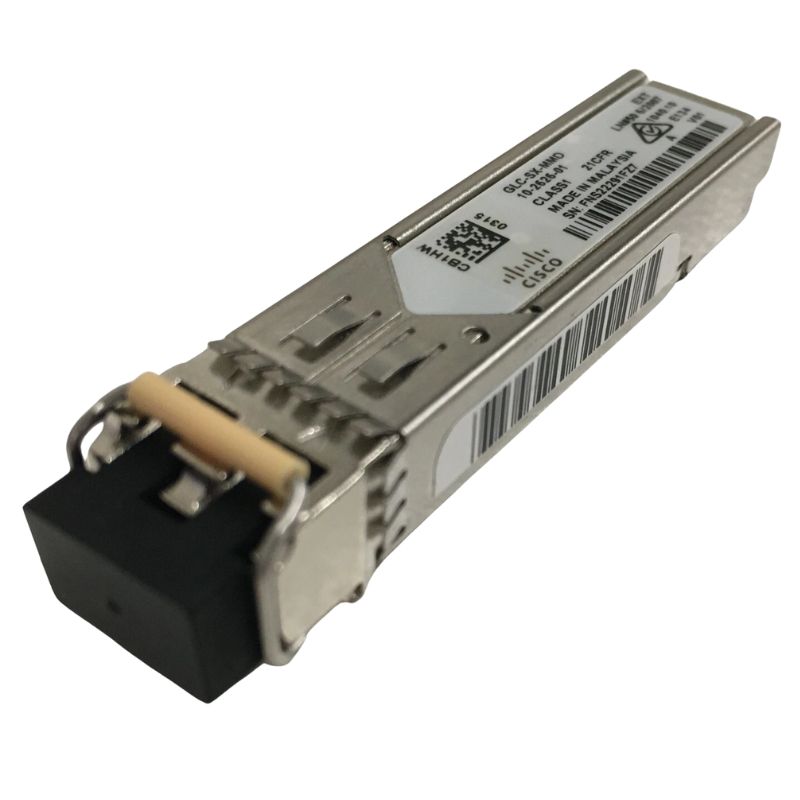

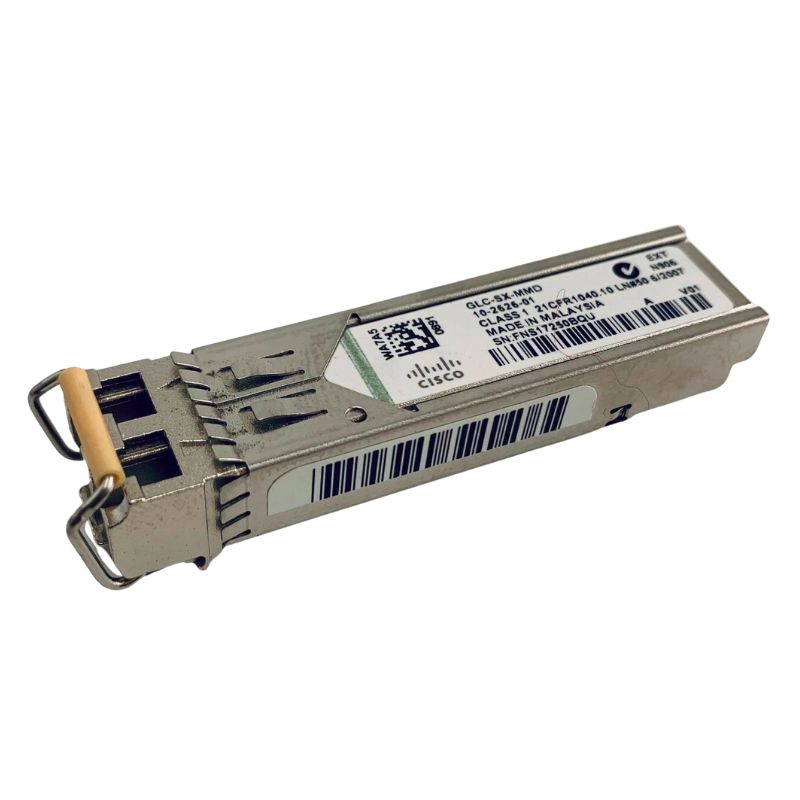

GLC-SX-MMD Cisco 1000Base SX Fiber Duplex SFP Transceiver Module

Cisco 1000Base SX Fiber Duplex SFP Transceiver

The Cisco GLC-SX-MMD is a high-performance Gigabit Ethernet transceiver designed to deliver reliable connectivity and seamless integration with Cisco networking equipment. This compact plug-in module ensures efficient data transmission over fiber optic cabling.

General Information

• Manufacturer: Cisco
• Part Number: GLC-SX-MMD
• Device Type: Transceiver

Technical Specifications

• Enclosure Type: Plug-in Module
• Dimensions: 0.5 in x 2.2 in x 0.4 in
• Weight: 2.6 oz
• Cabling Type: 1000BASE-SX
• Data Transfer Rate: 1 Gbps
• Optical Wavelength: 850 nm
• Data Link Protocol: Gigabit Ethernet
• Maximum Transmission Distance: 1800 ft

Compliance Standards

• IEEE 802.3z
• IEEE 802.3ah
• Laser Class 1
• IEC 60825-1

Compatibility

• Cisco 3825
• Cisco 3825 V3PN
• Cisco 3845
• Cisco 3845 V3PN
• Cisco 7301
• Cisco 7301 VAM2+

Switches

• Catalyst 2950, 2950ST
• Catalyst 2960, 2960G, 2960S
• Catalyst 2970G
• Catalyst 3560, 3560E, 3560G, 3560V2, 3560X
• Catalyst 3750, 3750G
• Catalyst 4500
• Catalyst 4948
• Catalyst Express 500, 500G

Additional Supported Hardware

• CSS 11503, 11506
• ME 3400
• Cisco 4924
• Cisco 6524
• Supervisor Engine 720
• II-Plus-TS

Cisco GLC-SX-MMD 1000Base SFP Transceiver Module Overview

The Cisco GLC-SX-MMD 1000Base SX Fiber Duplex SFP Transceiver Module represents a widely used optical networking solution designed for high-speed data communication across fiber optic infrastructures. This category includes small form-factor pluggable transceiver modules that deliver reliable Gigabit Ethernet connectivity while supporting modern enterprise networks, data centers, telecommunications environments, and advanced IT infrastructures. The Cisco GLC-SX-MMD module is engineered to provide seamless integration with compatible networking hardware, allowing organizations to expand their network capabilities with efficient fiber-based connections.

As part of the optical transceiver category, the Cisco GLC-SX-MMD belongs to the 1000Base-SX family of Gigabit Ethernet modules. These transceivers use short-wavelength optical technology and are optimized for multimode fiber applications, making them ideal for short to medium-distance network links. The module operates using duplex fiber connectivity, meaning it uses two separate fiber strands for transmitting and receiving data simultaneously. This duplex communication approach improves network performance, reduces latency, and supports stable data transmission between switches, routers, servers, and other network devices.

The Cisco GLC-SX-MMD 1000Base SX Fiber Duplex SFP Transceiver Module category is commonly selected by businesses and network professionals looking for dependable optical networking components that combine compact design with enterprise-grade performance. These modules provide a practical upgrade path for organizations transitioning from copper-based connections to fiber optic networking while maintaining compatibility with existing Cisco infrastructure.

Understanding the Cisco GLC-SX-MMD Fiber Optic Transceiver Technology

Fiber optic transceiver technology plays a critical role in modern communication networks by enabling high-speed data transfer through pulses of light transmitted over optical fiber cables. The Cisco GLC-SX-MMD module converts electrical signals from networking equipment into optical signals and then converts incoming optical signals back into electrical data. This conversion process allows devices located across different areas of a network to communicate efficiently without relying on traditional copper cabling limitations.

The GLC-SX-MMD uses shortwave optical technology, which operates at approximately 850 nanometers. This wavelength is commonly associated with multimode fiber networks because it provides an effective balance between performance, cost efficiency, and installation flexibility. Multimode fiber allows multiple light paths to travel through the core of the cable, making it suitable for environments where communication distances are typically within buildings, campuses, server rooms, and data centers.

Role of 1000Base-SX Gigabit Ethernet Standards

The 1000Base-SX standard defines Gigabit Ethernet communication over multimode fiber optic cables. The Cisco GLC-SX-MMD follows this standard to provide reliable 1 Gigabit per second network connectivity. This capability makes the module suitable for applications that require consistent bandwidth for demanding workloads such as cloud access, virtualization platforms, enterprise applications, storage systems, and high-volume data transfers.

Compared with older Ethernet technologies, Gigabit Ethernet provides significantly improved network speeds while maintaining compatibility with many existing infrastructure designs. The 1000Base-SX specification allows organizations to deploy fiber links that deliver fast communication without requiring a complete replacement of their network architecture. The Cisco GLC-SX-MMD module helps bridge the gap between current networking needs and future expansion requirements.

Duplex Multimode Fiber Compatibility

The Cisco GLC-SX-MMD is designed for duplex multimode fiber connectivity. Duplex fiber cables contain two separate optical fibers, with one fiber dedicated to transmitting data and the other dedicated to receiving data. This configuration enables simultaneous two-way communication, improving overall network efficiency.

Multimode fiber compatibility makes this module an excellent choice for short-range network connections. It is frequently used for connecting switches between floors, linking servers within data centers, and establishing communication between network distribution points. The combination of Gigabit Ethernet performance and multimode fiber support provides a cost-effective solution for many enterprise networking environments.

Applications of Cisco GLC-SX-MMD Optical Transceiver Modules

The Cisco GLC-SX-MMD 1000Base SX Fiber Duplex SFP Transceiver Module category serves a broad range of networking applications. These modules are commonly deployed in enterprise networks where reliable high-speed connectivity is required between different areas of an organization. From office environments to large-scale data centers, fiber optic transceivers provide the performance and stability needed for modern digital operations.

Enterprise Network Infrastructure

In enterprise environments, the Cisco GLC-SX-MMD module is frequently used to connect network switches, routers, and communication equipment. Businesses depend on these connections to support daily operations such as file sharing, video conferencing, cloud applications, database access, and internal communication systems.

Fiber optic connections help reduce interference and signal degradation compared with traditional copper solutions. This makes the Cisco GLC-SX-MMD particularly useful in environments where consistent performance and network reliability are essential. The module supports stable communication between network devices while helping organizations maintain efficient IT operations.

Data Center and Server Room Connectivity

Data centers require dependable networking components capable of handling continuous data movement between servers, storage systems, and network infrastructure. The Cisco GLC-SX-MMD provides a compact and efficient solution for connecting compatible equipment within these environments.

Because data centers often contain high concentrations of networking hardware, the small size of SFP modules offers significant advantages. Multiple optical connections can be installed within limited rack space, allowing administrators to build flexible and scalable network architectures. The module’s fiber-based communication capability supports fast and reliable connections required for virtualization, cloud services, and enterprise applications.

Advantages of Using Cisco GLC-SX-MMD Fiber SFP Modules

The Cisco GLC-SX-MMD 1000Base SX Fiber Duplex SFP Transceiver Module provides several advantages compared with traditional networking solutions. Fiber optic technology offers higher resistance to electromagnetic interference, making it suitable for environments where electronic noise may affect copper-based connections. This results in cleaner signal transmission and improved network stability.

Another advantage is the ability to achieve longer transmission distances compared with standard copper Ethernet connections. While the exact supported distance depends on fiber type and network conditions, multimode fiber solutions such as the Cisco GLC-SX-MMD are commonly used for building-wide and campus-level communication links.

The modular nature of SFP technology also allows organizations to customize their network infrastructure. Administrators can select appropriate transceiver types based on distance requirements, fiber type, and equipment compatibility. This flexibility helps reduce unnecessary hardware costs while supporting future network expansion.
