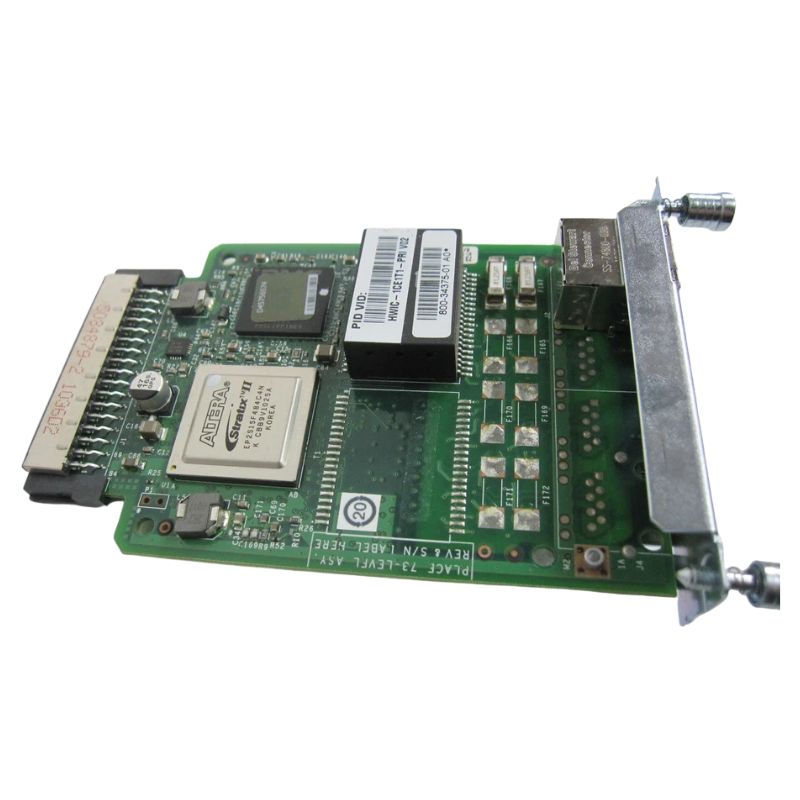

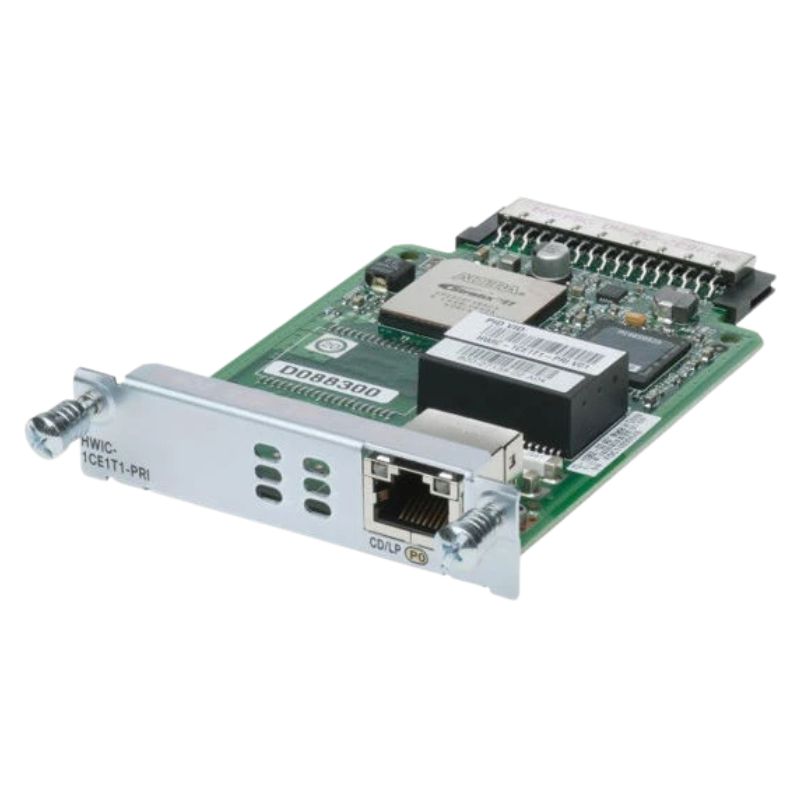

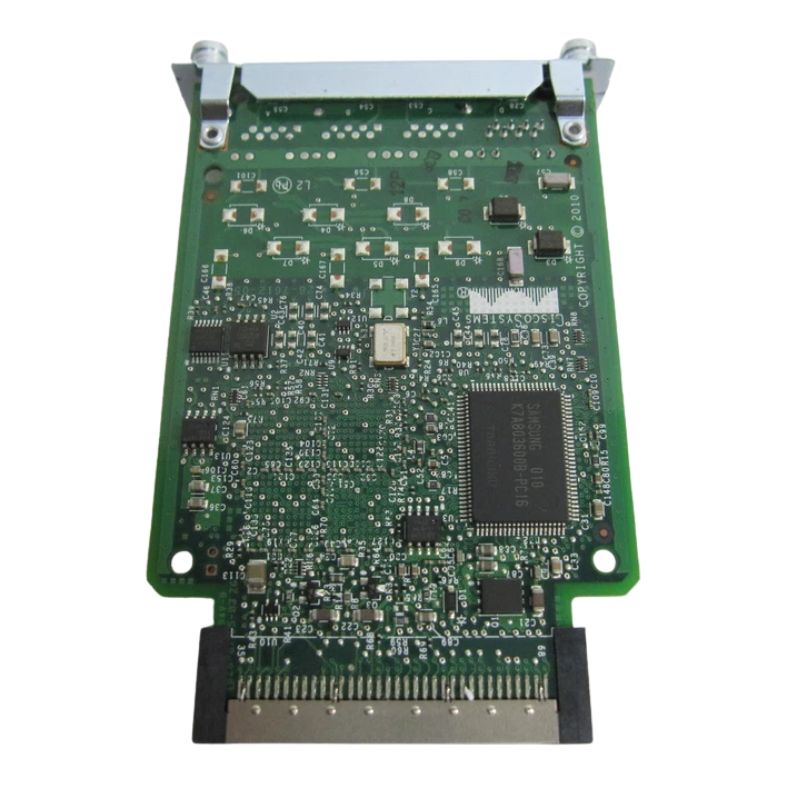

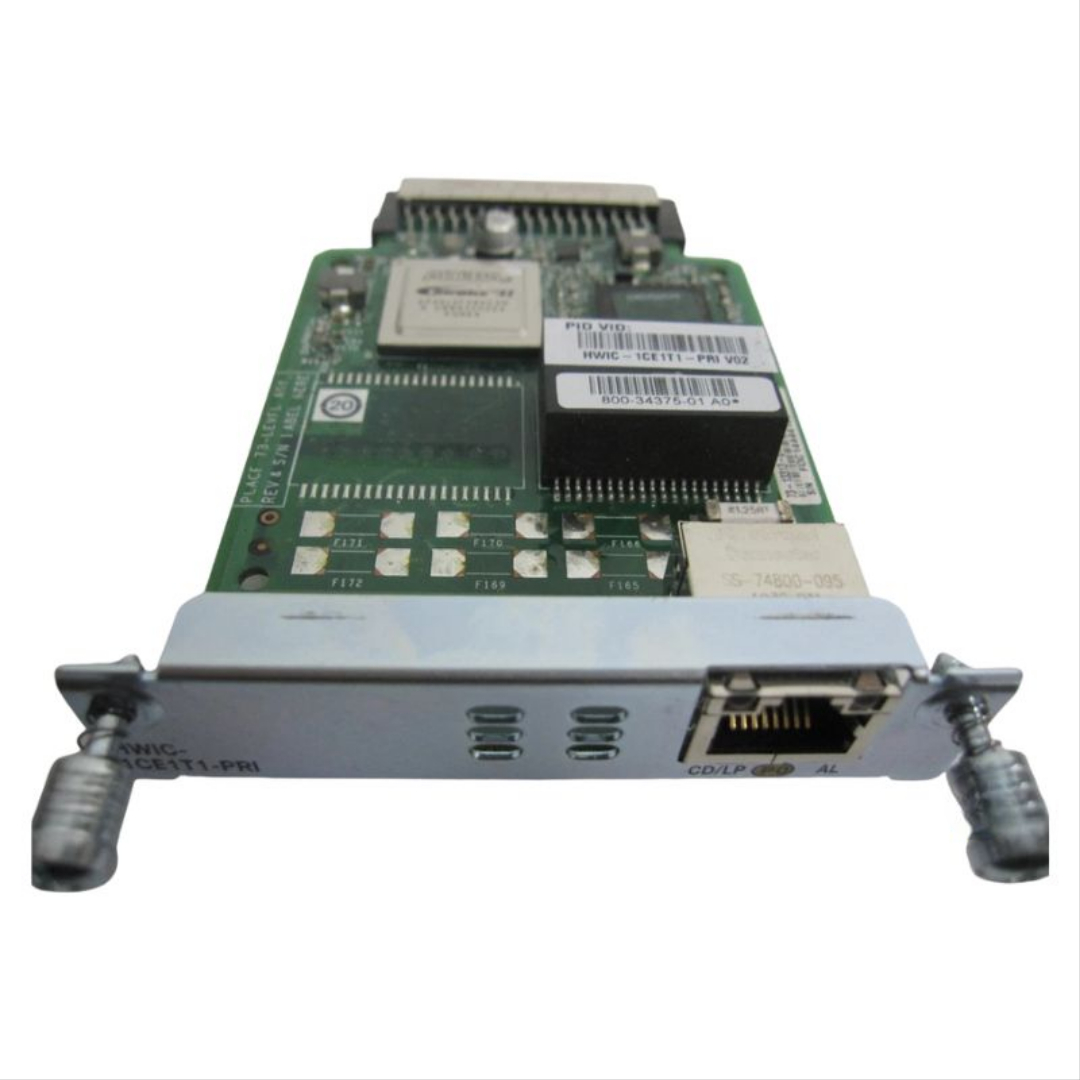

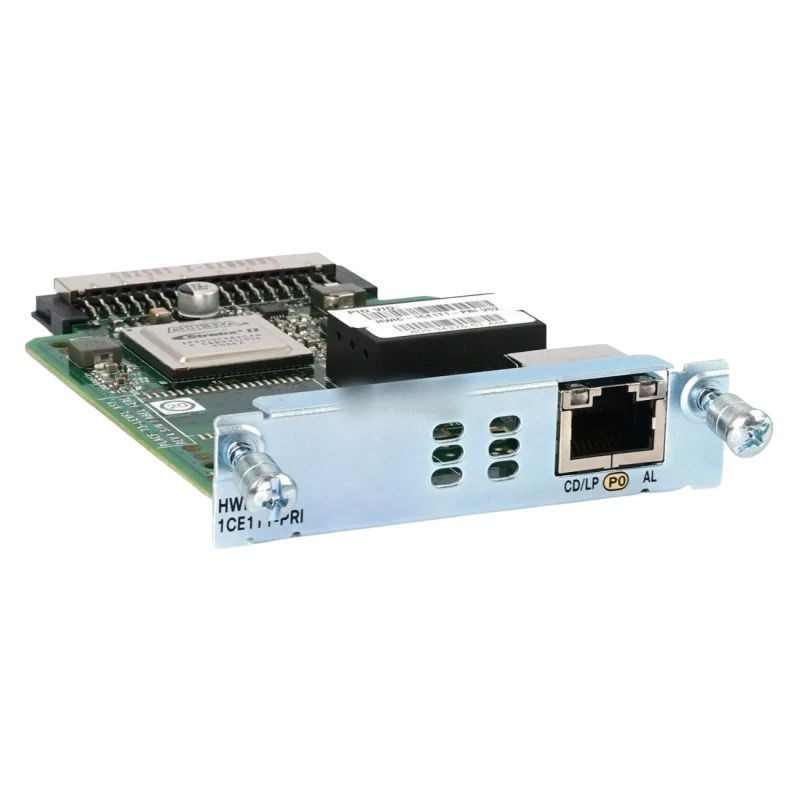

HWIC-1CE1T1-PRI Cisco 1 Port Channelized WAN Interface Card

Cisco HWIC-1CE1T1-PRI 1-Port Channelized WAN Interface

The Cisco HWIC-1CE1T1-PRI is a high-performance Wide Area Network (WAN) Interface Card designed for Cisco Integrated Services Routers (ISR). It provides reliable and scalable T1/E1 connectivity, enabling enterprises to build robust voice and data communication infrastructures. This channelized WAN module is widely used in enterprise networking, ISP backbones, and legacy telecom integration environments where stable WAN performance is essential.

Core Product Details

• Manufacturer: Cisco Systems
• Part Number: HWIC-1CE1T1-PRI
• Product Type: Channelized WAN Interface Card
• Interface Standard: HWIC (High-Speed WAN Interface Card)
• Port Configuration: 1 x RJ-48C WAN Port

Line Rate Specifications

• T1 Speed: 1.544 Mbps
• E1 Speed: 2.048 Mbps
• Software-configurable line switching

Encoding and Framing Standards

• HDB3 line coding for E1 networks
• AMI and B8ZS encoding for T1 connections
• CRC4 framing for E1 environments
• SF (Super Frame) and ESF (Extended Super Frame) support for T1

Channel Capacity Features

• Up to 32 multiplexed channels per card
• Fractional and full T1/E1 support
• DS0-based channel aggregation

CSU/DSU Benefits

• Reduces external device dependency
• Improves signal reliability over WAN links
• Optimized for enterprise-grade connectivity

Supported Standards

• ITU-T G.703 standard compliance
• ITU-T G.704 framed and unframed E1 support
• Carrier-grade WAN interoperability

Primary Use Cases

• Full or fractional T1/E1 WAN connectivity
• Frame Relay and Multilink PPP configurations
• ISDN PRI-based backup and failover links
• Remote site connectivity and aggregation

Dial Access and Traffic Aggregation

• Consolidates remote user connections
• Supports legacy dial-up and digital access networks
• Enhances WAN scalability for enterprise routers

First Generation Cisco ISR Support

• Cisco 1841 Router
• Cisco 2801, 2811, 2821, 2851
• Cisco 3825 and 3845 Series

Cisco ISR G2 Compatibility

• Cisco 2911, 2921, 2951
• Cisco 3925, 3945, 3945E

Physical Design Features

• Single-wide HWIC module structure
• RJ-48C physical WAN interface port
• Hot-swappable compatible deployment (platform dependent)

Key Advantages

• Stable T1/E1 WAN performance
• Reduced network hardware complexity
• Scalable channelized communication support
• Seamless integration with Cisco ISR platforms

Summary of Technical Highlights

• 1 x RJ-48C WAN port interface
• Supports T1 and E1 line rates
• Up to 32 channel multiplexing capability
• Integrated CSU/DSU functionality
• Frame Relay and PPP protocol support
• Compatible with Cisco ISR and ISR G2 routers

Cisco HWIC-1CE1T1-PRI 1 Port WAN Interface Card Overview

The Cisco HWIC-1CE1T1-PRI 1 Port Channelized WAN Interface Card is an enterprise-grade networking module designed to deliver flexible and scalable WAN connectivity for Cisco Integrated Services Routers (ISR) platforms. This hardware interface card provides a single high-performance channelized T1/E1 port with support for Primary Rate Interface (PRI) services, enabling organizations to integrate traditional telephony infrastructure with modern IP-based networks.

Built for mission-critical enterprise environments, the Cisco HWIC-1CE1T1-PRI card enhances WAN expansion capabilities by allowing voice, data, and signaling traffic to be efficiently transmitted over a single physical interface. It is widely used in branch offices, enterprise data centers, telecom infrastructures, and service provider environments where legacy circuit-switched connectivity must be integrated into converged networking architectures.

Enterprise WAN Connectivity Architecture

The Cisco HWIC-1CE1T1-PRI module is designed to support channelized WAN communication through T1 and E1 interfaces, offering flexibility for global deployment scenarios. It enables businesses to connect remote offices and branch locations using traditional telecom carrier circuits while maintaining compatibility with modern Cisco routing platforms.

This interface card plays a crucial role in hybrid network environments where legacy PSTN systems and IP-based communications coexist. It ensures seamless interoperability between voice and data services, making it an essential component for organizations undergoing network transformation.

Channelized T1 and E1 Support

The module supports both T1 and E1 standards, allowing deployment in different geographical regions. T1 is commonly used in North America, while E1 is widely deployed in Europe, Asia, and other international markets. This dual compatibility ensures global usability across enterprise networks.

Channelization allows the single physical link to be divided into multiple logical channels, enabling simultaneous transmission of voice and data traffic over the same interface. This improves bandwidth utilization and operational efficiency.

Primary Rate Interface (PRI) Integration

The Cisco HWIC-1CE1T1-PRI card supports PRI functionality, which is widely used for ISDN-based voice and data services. PRI enables multiple digital channels over a single physical line, making it ideal for enterprise telephony systems.

PRI integration allows businesses to connect legacy PBX systems with modern IP telephony infrastructure, supporting smooth migration to unified communications platforms without disrupting existing services.

Unified Communications Compatibility

The interface card integrates with Cisco Unified Communications architectures, allowing organizations to combine voice, video, and data services into a single converged network. This enhances communication efficiency and reduces infrastructure complexity.

WAN Optimization and Network Efficiency

The Cisco HWIC-1CE1T1-PRI module is engineered to optimize WAN performance by enabling efficient traffic distribution across channelized circuits. It reduces congestion and improves bandwidth utilization by intelligently managing multiple data streams over a single physical connection.

Improved Bandwidth Utilization

By dividing the WAN link into multiple logical channels, the interface card ensures that network resources are used efficiently. This is particularly important in enterprise environments where multiple applications compete for bandwidth.

The ability to manage voice and data traffic simultaneously improves overall network performance and reduces latency for time-sensitive applications.

Reliable Data Transmission

The module ensures stable and consistent data transmission across WAN links. It is designed to minimize packet loss and maintain synchronization with carrier networks, ensuring reliable connectivity for enterprise operations.

Hardware Architecture and Engineering Design

The Cisco HWIC-1CE1T1-PRI card is built using robust hardware engineering principles designed for continuous operation in enterprise routers. It is optimized for installation in Cisco ISR platforms, providing seamless integration with existing network infrastructure.

Compact Form Factor Design

The hardware is designed as a High-Speed WAN Interface Card (HWIC), allowing it to be inserted directly into compatible Cisco router slots. Its compact design ensures efficient use of router expansion capacity while maintaining high performance.

This modular approach enables organizations to scale WAN connectivity without replacing entire routing systems, reducing capital expenditure and improving operational flexibility.

Carrier-Class Reliability

The interface card is engineered for carrier-grade reliability, ensuring stable operation under continuous network loads. It is suitable for environments where uptime and service continuity are critical, such as financial institutions and telecommunications networks.

Network Deployment Scenarios

The Cisco HWIC-1CE1T1-PRI module is widely deployed across various enterprise and service provider environments where reliable WAN connectivity is required.

Enterprise Branch Connectivity

Branch offices often rely on WAN interface cards to maintain connectivity with central data centers. This module enables secure and stable communication between distributed enterprise locations.

It supports centralized network management, allowing IT teams to monitor and control branch communications efficiently.

Telecommunications Infrastructure

Telecom operators use PRI-based interfaces to support voice trunking and legacy circuit-switched services. The Cisco HWIC-1CE1T1-PRI card provides a reliable bridge between traditional telecom systems and IP-based infrastructure.

Service Provider Networks

Service providers leverage channelized WAN interfaces to deliver managed network services to enterprise customers. The module supports scalable service delivery models and flexible bandwidth allocation.

Security and Network Control

Security is an essential aspect of WAN connectivity. The Cisco HWIC-1CE1T1-PRI module supports secure communication channels within Cisco routing environments, helping organizations maintain data integrity and network protection.

Controlled WAN Access

The interface card enables controlled access to WAN circuits, ensuring that only authorized network traffic is transmitted through the channelized interface. This reduces exposure to unauthorized access and potential network vulnerabilities.

Integration with Cisco Security Framework

The module integrates with Cisco security features such as access control lists and routing policies, allowing administrators to enforce security rules at the network edge. This enhances overall network protection and governance.

Operational Efficiency and IT Management

The Cisco HWIC-1CE1T1-PRI card improves IT operational efficiency by simplifying WAN management through centralized routing platforms. It eliminates the need for separate dedicated WAN devices, reducing infrastructure complexity.

Centralized Network Administration

Network administrators can manage WAN connectivity directly from Cisco ISR routers, allowing for unified control of routing, switching, and WAN services. This simplifies network operations and reduces administrative overhead.

Reduced Infrastructure Complexity

By consolidating WAN connectivity into modular interface cards, organizations reduce the number of standalone devices required in their network architecture. This lowers maintenance costs and improves system reliability.

Performance Optimization Features

The module is optimized for high-performance WAN communication, ensuring efficient handling of voice and data traffic across channelized circuits.

Low-Latency Communication

The interface card ensures low-latency transmission of data and voice traffic, making it suitable for real-time communication applications such as VoIP and enterprise conferencing systems.

Stable Carrier Synchronization

The module maintains synchronization with carrier networks to ensure stable communication across T1 and E1 lines. This is critical for maintaining service continuity in enterprise WAN environments.
