HWIC-1CE1T1-PRI Cisco 1 Port Channelized WAN Interface Card

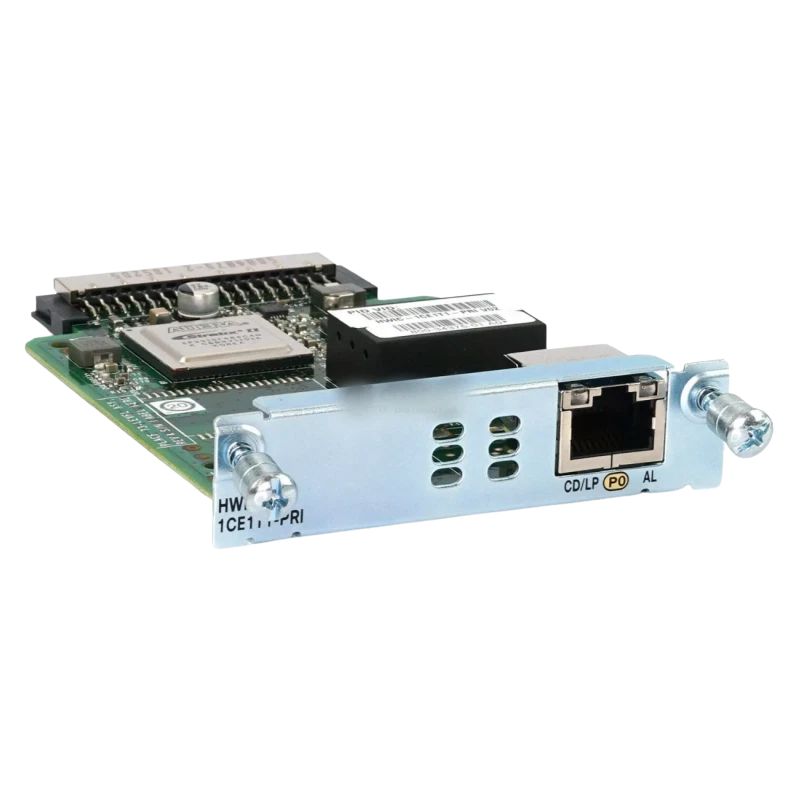

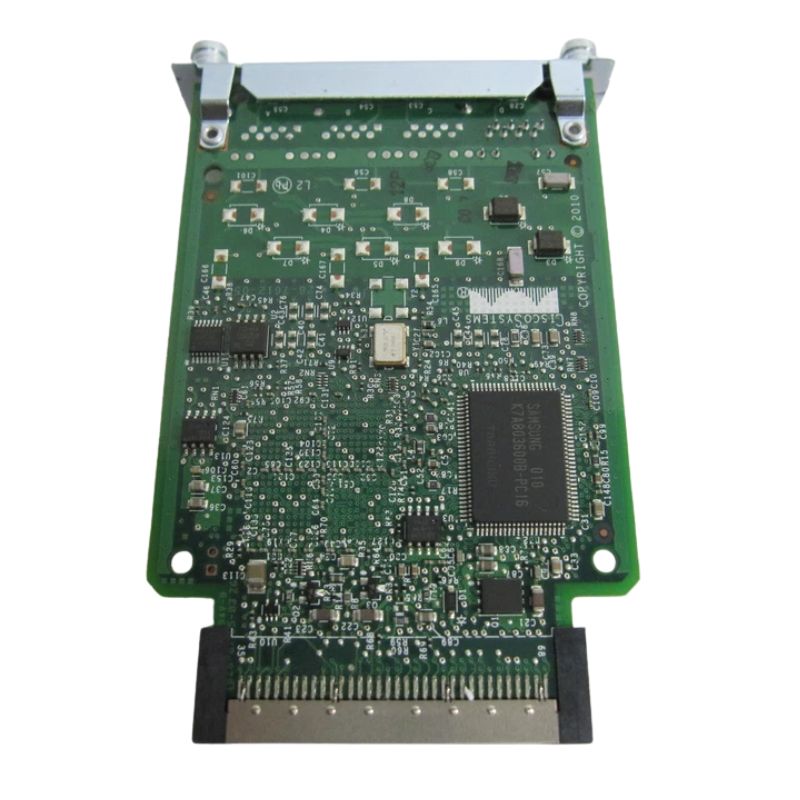

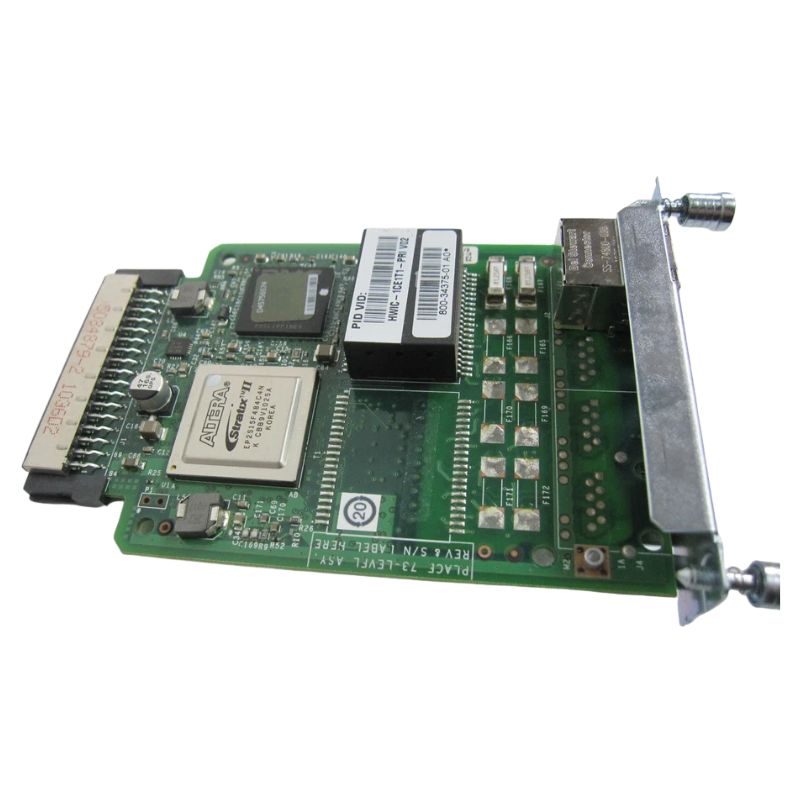

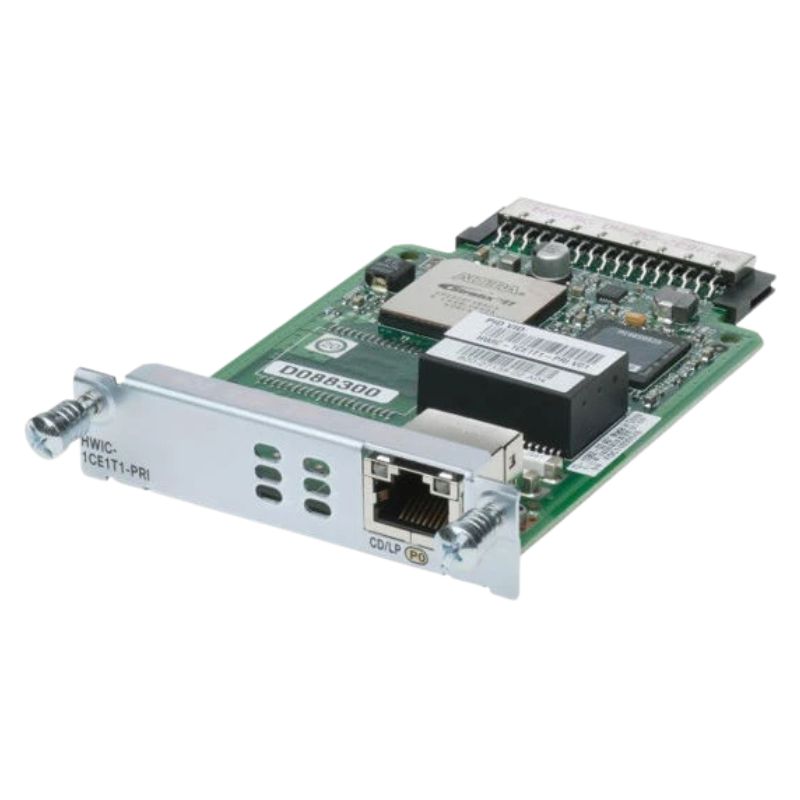

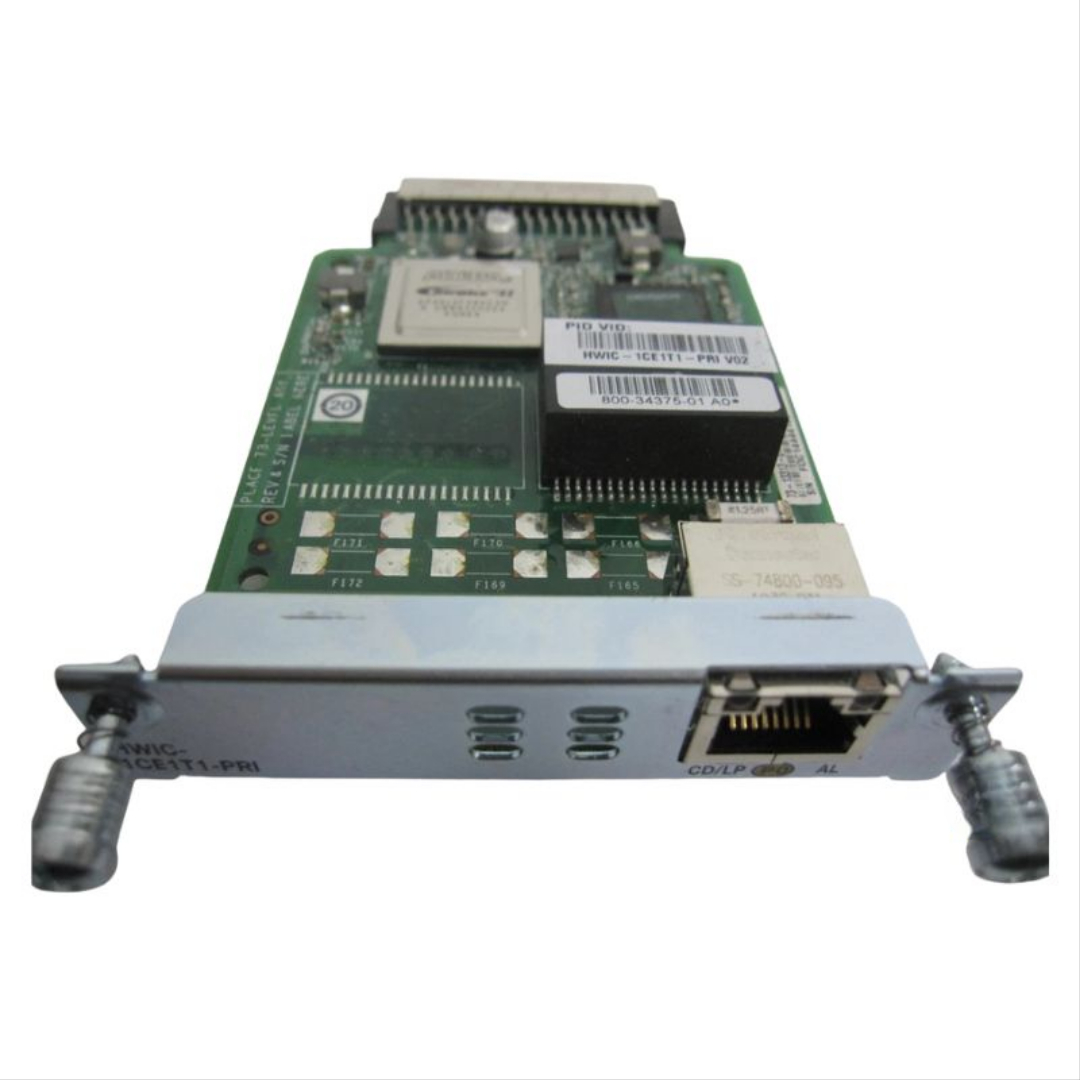

Cisco HWIC-1CE1T1-PRI 1-Port Channelized WAN Interface Card

The Cisco HWIC-1CE1T1-PRI is a high-performance Channelized WAN Interface Card designed to deliver reliable wide-area network connectivity for enterprise-grade Cisco routers. Engineered for flexibility and scalability, this interface module supports both T1 and E1 lines, making it an ideal solution for organizations requiring stable voice, data, and ISDN PRI communication over digital WAN infrastructures.

General Information

• Manufacturer: Cisco Systems, Inc.
• Part Number: HWIC-1CE1T1-PRI
• Product Type: WAN Interface Card (HWIC Module)
• Interface Standard: Channelized T1/E1 with PRI support

Line Rate Specifications

• T1 Speed: 1.544 Mbps
• E1 Speed: 2.048 Mbps
• Configurable support for fractional or full circuits

Channel Features

• Up to 32 multiplexed channels per interface card
• Supports n x DS0 channel allocation
• Optimized for WAN traffic segmentation

Signal Processing Features

• Integrated CSU/DSU per port
• Reliable digital signal conversion and termination
• Reduced hardware complexity in WAN setups

Coding and Framing Options

• E1 Line Coding: HDB3
• T1 Line Coding: AMI and B8ZS
• E1 Framing: CRC4
• T1 Framing: Super Frame (SF) and Extended Super Frame (ESF)

Standards Compliance

• ITU-T G.703 compliance
• ITU-T G.704 framed and unframed E1 support

Primary Applications

• Data WAN connectivity using Frame Relay and PPP protocols
• ISDN Primary Rate Interface (PRI) for high-speed voice and data
• Backup WAN links for redundancy and failover support

Operational Benefits

• Consolidation of remote access sessions
• Improved bandwidth utilization
• Enhanced network scalability for growing businesses

Compatibility and Hardware Integration

First Generation Cisco ISR

• Cisco 1841
• Cisco 2801, 2811, 2821, 2851
• Cisco 3825, 3845

Second Generation Cisco ISR G2

• Cisco 2911, 2921, 2951
• Cisco 3925, 3945
• Cisco 3945E

Key Advantages

• Stable WAN performance for enterprise networks
• Reduced infrastructure complexity with integrated CSU/DSU
• Flexible configuration for global telecom standards
• Efficient bandwidth utilization through channelization

Technical Highlights Summary

Key Specifications at a Glance

• 1 x RJ-48C WAN port
• Supports T1 (1.544 Mbps) and E1 (2.048 Mbps)
• Up to 32 channelized DS0 connections
• Integrated CSU/DSU functionality
• Supports Frame Relay, PPP, and ISDN PRI
• Compatible with Cisco ISR and ISR G2 routers

Cisco HWIC-1CE1T1-PRI 1 Port WAN Interface Card Overview

The Cisco HWIC-1CE1T1-PRI 1 Port Channelized WAN Interface Card is a high-performance networking module designed to deliver reliable digital voice and data connectivity in enterprise router environments. It belongs to Cisco’s modular WAN interface card family and is engineered to provide flexible integration of T1 and E1 circuit-switched networks into Cisco Integrated Services Routers. This interface card is widely used in enterprise branch offices, service provider networks, government communication systems, and legacy telephony infrastructures where channelized WAN connectivity is required.

This WAN interface card enables organizations to consolidate voice and data traffic over a single port while maintaining high reliability, scalability, and predictable performance. It supports channelized T1/E1 connections with PRI (Primary Rate Interface) capabilities, making it suitable for voice over IP (VoIP) gateways, PSTN integration, and traditional PBX interconnectivity.

Enterprise WAN Connectivity Architecture

The Cisco HWIC-1CE1T1-PRI module is designed to extend the WAN capabilities of Cisco routers by adding a single high-density channelized T1 or E1 interface. This allows organizations to connect to carrier-grade telecommunication networks while maintaining full control over voice and data channel allocation.

In enterprise networking environments, WAN interface cards play a critical role in bridging internal IP networks with external telecommunications infrastructure. The HWIC architecture ensures modular scalability, enabling businesses to upgrade or modify WAN connectivity without replacing entire routing systems.

Channelized T1 and E1 Support Structure

The module supports both T1 (commonly used in North America and Japan) and E1 (used in Europe, Asia, and other global regions) standards. This dual compatibility makes it suitable for multinational deployments where different telecom standards coexist within the same network architecture.

Channelized operation allows the single physical interface to be divided into multiple logical channels. Each channel can be used independently for voice or data transmission, offering flexibility in network design and resource allocation.

Primary Rate Interface (PRI) Functionality

PRI functionality enables the integration of ISDN-based services into Cisco routing platforms. This supports high-quality voice communication, video conferencing systems, and legacy telephony integration. PRI also provides robust signaling capabilities, ensuring efficient call setup, management, and termination across the WAN infrastructure.

High-Performance WAN Integration

The Cisco HWIC-1CE1T1-PRI module is engineered to deliver consistent and reliable WAN performance in enterprise environments. It ensures stable transmission of voice and data traffic over long-distance carrier networks while maintaining low latency and high availability.

Optimized Traffic Handling

The card supports intelligent channel allocation, allowing administrators to prioritize voice or data traffic depending on organizational requirements. This ensures that critical communication flows are maintained even during periods of heavy network usage.

Efficient traffic handling improves overall network performance and reduces congestion across WAN links, particularly in environments with high call volumes or data transfer demands.

Integration with Cisco Routing Platforms

The HWIC-1CE1T1-PRI card is designed to integrate seamlessly with Cisco Integrated Services Routers (ISR). This modular design allows organizations to enhance router functionality without replacing core routing hardware.

Modular Expansion Capability

Cisco HWIC slots provide a flexible expansion architecture where WAN interface cards can be added or replaced based on evolving network requirements. This modularity reduces capital expenditure while extending the lifecycle of existing routing infrastructure.

Organizations can deploy multiple WAN interface cards across different routers to scale connectivity as business demands grow.

Unified Communication Transport

The module allows organizations to carry voice, fax, and data traffic over a unified digital interface. This simplifies network architecture and reduces the need for separate voice and data circuits.

Unified transport also improves operational efficiency by consolidating multiple communication services into a single managed WAN link.

Support for Legacy Telephony Systems

Many enterprises continue to rely on legacy PBX systems for internal communication. The HWIC-1CE1T1-PRI module enables seamless integration between legacy telephony infrastructure and modern IP-based networks.

Network Performance and Reliability Features

Enterprise WAN environments require high reliability and predictable performance. The Cisco HWIC-1CE1T1-PRI module is engineered to maintain stable connectivity even under demanding operational conditions.

Low Latency WAN Communication

The interface card ensures minimal latency during data transmission across WAN links. This is particularly important for real-time applications such as voice communication, video conferencing, and financial transactions.

Signal Stability and Error Correction

Built-in error detection mechanisms help maintain data integrity across channelized circuits. This ensures that transmitted voice and data signals remain accurate and reliable even over long-distance connections.

Hardware Design and Engineering Reliability

The Cisco HWIC-1CE1T1-PRI module is built with robust engineering standards designed for continuous enterprise operation. Its compact form factor allows it to fit into Cisco router HWIC slots while maintaining optimal thermal and electrical performance.

Compact Modular Design

The card’s compact structure enables efficient use of router expansion slots. This allows organizations to deploy multiple interface cards within a single routing system, maximizing hardware utilization.

Thermal Management Efficiency

The module is designed to operate efficiently within Cisco router chassis airflow systems. This ensures stable temperature regulation during continuous operation in data center or branch office environments.

Operational Efficiency and Network Management Benefits

The Cisco HWIC-1CE1T1-PRI interface card enhances network operational efficiency by simplifying WAN management and consolidating communication services.

Centralized WAN Administration

Network administrators can manage multiple WAN connections through Cisco router management interfaces. This centralized control simplifies configuration, monitoring, and troubleshooting tasks across distributed networks.

Reduced Infrastructure Complexity

By combining voice and data transport into a single interface, the module reduces the need for multiple physical connections and external communication devices. This simplifies network architecture and reduces maintenance overhead.

Security and Network Control Capabilities

Security is a critical requirement in enterprise WAN environments. The Cisco HWIC-1CE1T1-PRI module supports secure communication pathways by integrating with Cisco router security frameworks.

Controlled WAN Access

The interface card ensures that WAN traffic is properly managed and controlled through router-level security policies. This helps protect enterprise networks from unauthorized access and external threats.

Secure Voice and Data Transmission

PRI-based communication channels provide secure and reliable transmission paths for voice and data traffic. This enhances confidentiality and reduces the risk of communication interception.

Telecommunications Infrastructure

Service providers deploy this interface card to manage voice and data traffic across PSTN and ISDN networks, supporting large-scale communication services.
