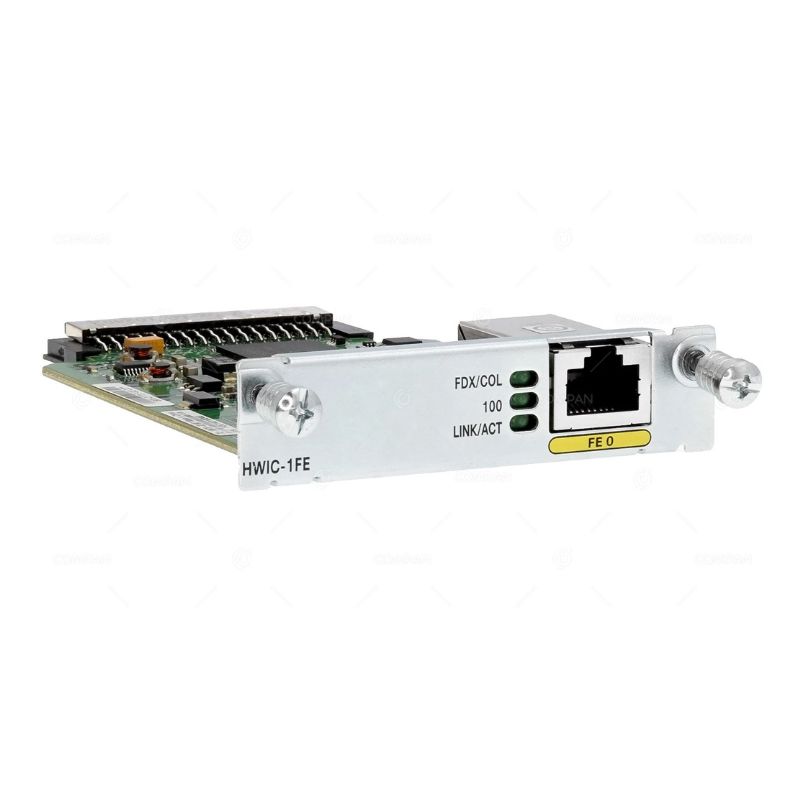

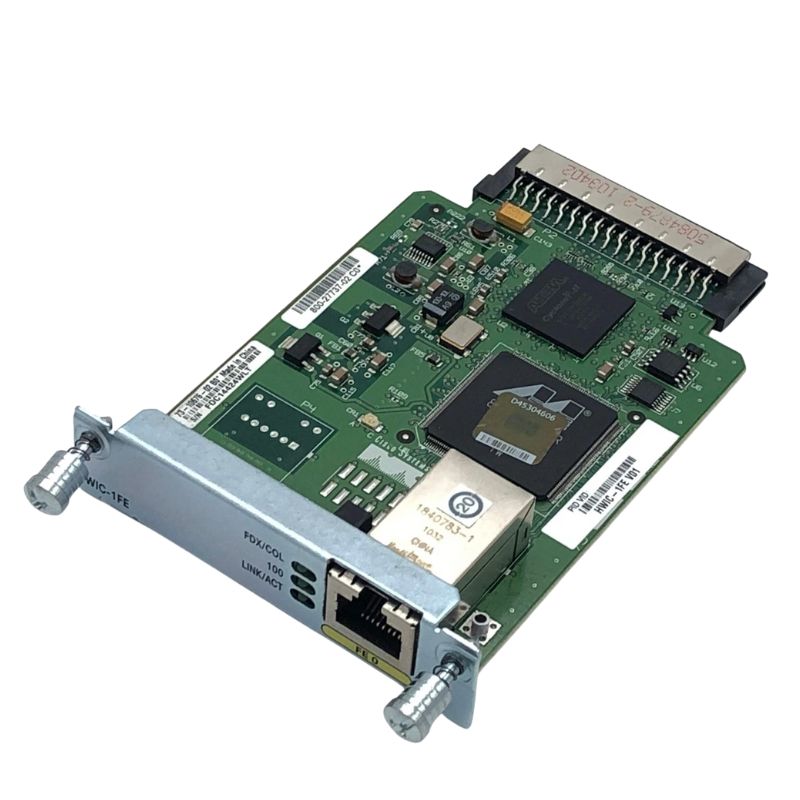

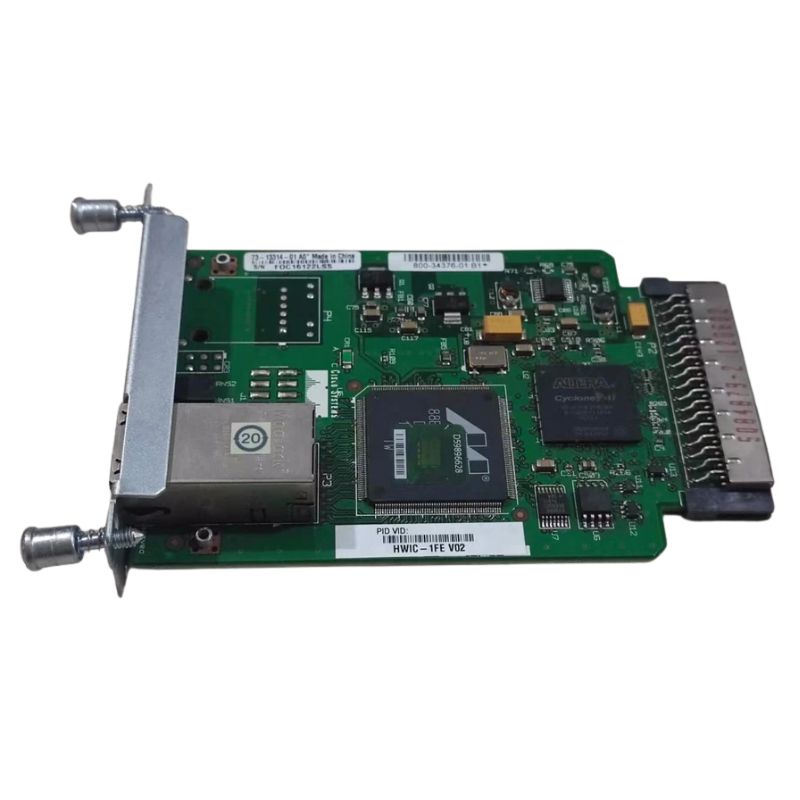

HWIC-1FE Cisco 1-Port Fast WAN Interface Card

Cisco HWIC-1FE 1-Port High-Speed WAN Interface Card

The Cisco HWIC-1FE (High-Speed WAN Interface Card) is a reliable and scalable networking expansion module designed to enhance connectivity for Cisco modular routers. Built for enterprise-grade networking environments, this Fast Ethernet interface card delivers stable Layer 3 routed connectivity, making it a strong solution for WAN termination, network segmentation, and advanced routing architectures.

General Product Details

• Manufacturer: Cisco
• Part Number: HWIC-1FE
• Product Type: High-Speed WAN Interface Card
• Form Factor: Single-wide HWIC expansion slot module

Interface Specifications

• Port Type: 1 x RJ-45 Ethernet interface
• Speed: 10/100 Mbps Fast Ethernet
• Duplex Modes: Full-duplex and half-duplex support
• Auto-negotiation or manual configuration available

Cabling Requirements

• Supported Cable Type: Category 5 or higher UTP
• Optimized for stable long-distance enterprise LAN/WAN links

Supported Networking Features

• IEEE 802.1Q VLAN trunking support
• IEEE 802.1p Quality of Service (QoS)
• MAC address filtering capabilities
• Direct IP addressing on routed interfaces

Routing Behavior

• Operates as a Layer 3 routed port (not a switchport)
• Supports direct IP assignment using standard router configuration commands
• Compatible with subinterface-based VLAN routing (router-on-a-stick)

Router Compatibility

Cisco ISR G1 Series Compatibility

• Cisco 1841
• Cisco 2801
• Cisco 2811
• Cisco 2821
• Cisco 2851
• Cisco 3825
• Cisco 3845

Cisco ISR G2 Series Compatibility

• Cisco 1921
• Cisco 1941
• Cisco 2901
• Cisco 2911
• Cisco 2921
• Cisco 2951
• Cisco 3925
• Cisco 3945

Slot and Power Considerations

• Requires standard HWIC expansion slot
• Check router power budget when using multiple modules
• Some compact routers may have slot limitations

Operational Differences

• Acts as a routed interface (not a Layer 2 switchport)
• Direct IP address assignment supported
• No native switchport mode configuration

Configuration Notes

• Uses standard "ip address" configuration commands
• Does not support VLAN database switching features
• Supports VLAN routing via subinterfaces using 802.1Q encapsulation

Primary Use Cases

• Broadband WAN termination (DSL, cable, fiber modem connections)
• Dedicated DMZ interface for secure public services
• Inter-VLAN routing in router-on-a-stick architectures
• Branch office network expansion and segmentation

Network Design Advantages

• Improves traffic segmentation and security control
• Enables flexible WAN connectivity options
• Supports scalable enterprise routing designs

Key Advantages

• Stable Fast Ethernet connectivity for WAN links
• Efficient routing performance in modular Cisco routers
• QoS support for traffic prioritization
• Flexible VLAN and segmentation support

Cisco HWIC-1FE 1-Port High-Speed WAN Card Overview

The Cisco HWIC-1FE 1-Port High-Speed WAN Interface Card is a specialized networking expansion module designed to enhance WAN connectivity within Cisco Integrated Services Routers (ISR) platforms. It enables enterprise-grade routing devices to support high-speed Fast Ethernet WAN connections through a modular and scalable hardware architecture. This interface card plays a critical role in modern enterprise networking environments where reliable, flexible, and high-performance WAN access is essential for business continuity, cloud integration, and distributed network communication.

Engineered for integration into Cisco modular router systems, the HWIC-1FE provides a single Fast Ethernet interface that significantly expands WAN connectivity capabilities. It is widely used in branch offices, enterprise edge deployments, service provider environments, and managed network infrastructures where scalable WAN expansion is required without replacing entire routing systems.

Enterprise WAN Connectivity Expansion Technology

The Cisco HWIC-1FE module is part of Cisco’s Hardware Interface Card (HWIC) ecosystem, which allows organizations to extend router functionality through modular add-ons. This approach provides flexibility for businesses that need to scale network capacity without investing in entirely new routing hardware.

By adding a dedicated Fast Ethernet WAN port, the module enables routers to connect to external networks, service provider links, and enterprise WAN infrastructures with improved bandwidth efficiency. This is particularly beneficial for organizations transitioning from legacy WAN systems to modern IP-based communication networks.

Flexible Modular Network Architecture

The modular architecture of the HWIC-1FE allows IT administrators to customize router configurations based on specific network requirements. Instead of relying on fixed-interface routers, enterprises can deploy modular systems that adapt to evolving bandwidth needs and network expansion strategies.

This flexibility ensures that organizations can upgrade WAN capabilities incrementally, reducing infrastructure costs and extending the lifecycle of existing Cisco ISR platforms.

Scalable WAN Interface Deployment

Scalability is a key requirement in enterprise networking environments where bandwidth demands continue to increase due to cloud computing, remote work, and data-intensive applications. The Cisco HWIC-1FE supports scalable WAN expansion by adding dedicated Ethernet connectivity to existing router systems.

This scalability enables businesses to deploy additional WAN links as required, ensuring consistent network performance even as traffic loads increase across distributed environments.

High-Speed Ethernet WAN Performance

The HWIC-1FE module delivers Fast Ethernet connectivity designed for stable and efficient WAN data transmission. It supports high-speed packet forwarding between local network segments and external WAN environments, ensuring smooth communication across distributed systems.

Performance optimization is a critical aspect of WAN interface design, especially in enterprise environments where latency, jitter, and packet loss must be minimized. The Cisco HWIC-1FE is engineered to maintain consistent throughput while supporting mission-critical applications such as VoIP, cloud services, and enterprise resource planning systems.

Reliable Data Transmission Efficiency

The module ensures efficient handling of network traffic through optimized hardware-based forwarding mechanisms. This reduces processing load on the main router CPU, allowing improved overall system performance and network responsiveness.

Reliable data transmission is essential for maintaining stable communication between branch offices, data centers, and cloud service platforms. The HWIC-1FE supports consistent packet delivery even under variable network conditions.

Low-Latency WAN Communication

Low-latency communication is essential in enterprise WAN environments where real-time data exchange is required. The Cisco HWIC-1FE helps minimize transmission delays, supporting applications such as video conferencing, remote desktop access, and cloud-based collaboration tools.

By reducing latency in WAN communication paths, organizations can improve user experience and enhance productivity across geographically distributed teams.

Cisco ISR Integration and Compatibility

The Cisco HWIC-1FE is designed for seamless integration with Cisco Integrated Services Routers, enabling organizations to expand WAN capabilities without modifying existing infrastructure. It is compatible with a wide range of ISR platforms that support HWIC slots, making it a versatile solution for enterprise network expansion.

Plug-and-Play Hardware Integration

The module is designed for straightforward installation into supported Cisco routers. Once installed, it becomes an integrated part of the routing system, allowing administrators to configure WAN interfaces through standard Cisco IOS software tools.

This plug-and-play compatibility reduces deployment time and ensures minimal disruption to existing network operations during upgrades or expansions.

Unified Network Management

Integration with Cisco IOS allows centralized configuration and monitoring of WAN interfaces. Network administrators can manage routing policies, traffic prioritization, and interface settings through a unified command-line or management interface.

This simplifies network operations and ensures consistent policy enforcement across all WAN connections within the enterprise infrastructure.

Enterprise Network Architecture Optimization

The Cisco HWIC-1FE plays a vital role in optimizing enterprise network architecture by enabling efficient WAN connectivity at the edge of the network. It supports distributed network models where branch offices require reliable communication with centralized data centers or cloud environments.

Branch Office Connectivity Enhancement

Branch offices often require dedicated WAN connections to maintain secure and reliable communication with headquarters or cloud services. The HWIC-1FE provides a stable Fast Ethernet interface that supports these connectivity requirements effectively.

This ensures that remote locations can operate with the same level of network reliability and performance as central offices, improving overall business continuity.

Edge Network Performance Optimization

Edge computing environments require efficient WAN interfaces to support data exchange between local processing systems and centralized cloud platforms. The Cisco HWIC-1FE enhances edge network performance by providing dedicated high-speed connectivity for data transfer operations.

This contributes to improved application responsiveness and reduced network congestion in distributed environments.

Security and Network Reliability Features

Security is a fundamental requirement in WAN connectivity solutions. The Cisco HWIC-1FE supports secure communication pathways by integrating with Cisco’s advanced routing and security frameworks.

Secure WAN Data Transmission

The module operates within Cisco’s secure networking architecture, ensuring that WAN traffic is processed through established security protocols. This helps protect sensitive business data during transmission between network endpoints.

Secure WAN connectivity is essential for industries such as finance, healthcare, government, and enterprise IT services where data protection is a top priority.

Reliable Network Uptime Performance

Network reliability is critical for enterprise operations. The HWIC-1FE is designed to support continuous WAN connectivity with minimal downtime, ensuring that business-critical applications remain accessible at all times.

This reliability reduces operational risks and enhances service availability across distributed network environments.

Scalability for Growing Network Demands

As enterprises expand, network infrastructure must scale accordingly. The Cisco HWIC-1FE provides a scalable solution for increasing WAN capacity without requiring full router replacement or major infrastructure redesign.

Incremental Network Expansion

Organizations can deploy additional WAN interface cards as network demands grow, enabling incremental expansion strategies that align with business growth. This reduces capital expenditure and improves infrastructure flexibility.

Incremental expansion also ensures that network upgrades can be implemented without disrupting ongoing operations.

Future-Ready WAN Architecture

The modular nature of the HWIC-1FE ensures compatibility with evolving network technologies and enterprise requirements. It supports long-term infrastructure planning by allowing organizations to adapt WAN capabilities as new networking standards emerge.

Performance Efficiency in Distributed Networks

The Cisco HWIC-1FE is optimized for performance efficiency in distributed networking environments where multiple sites must communicate over WAN connections. It ensures consistent throughput and stable connectivity across all network endpoints.

Optimized Traffic Flow Management

Efficient traffic flow management helps reduce network congestion and improves data transmission efficiency. The HWIC-1FE supports structured routing pathways that optimize WAN bandwidth utilization.

This contributes to improved application performance and reduced latency across distributed systems.

Enterprise Branch Networking

Branch offices require reliable WAN connections to maintain communication with central systems. The HWIC-1FE provides the necessary connectivity to support secure and efficient branch networking operations.

Service Provider Infrastructure

Service providers use modular WAN interface cards to scale network services efficiently. The HWIC-1FE supports flexible deployment in managed network environments where scalability and reliability are essential.

Long-Term Operational Stability

The Cisco HWIC-1FE is designed for long-term operational stability in enterprise networking environments. Its robust architecture ensures consistent performance under continuous usage conditions.

This durability reduces maintenance requirements and supports long lifecycle deployment strategies in enterprise IT infrastructure planning.
