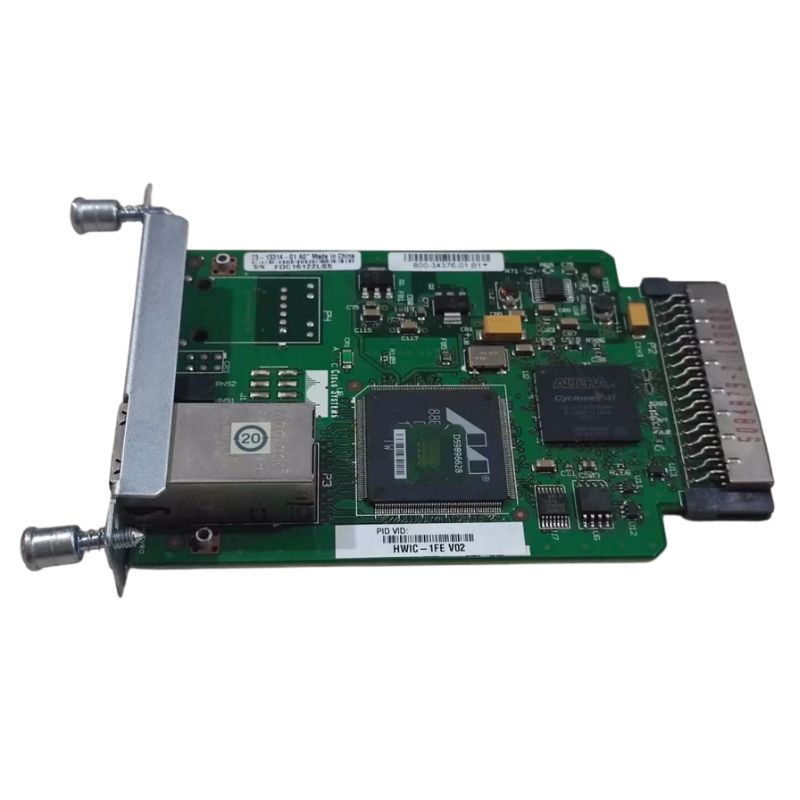

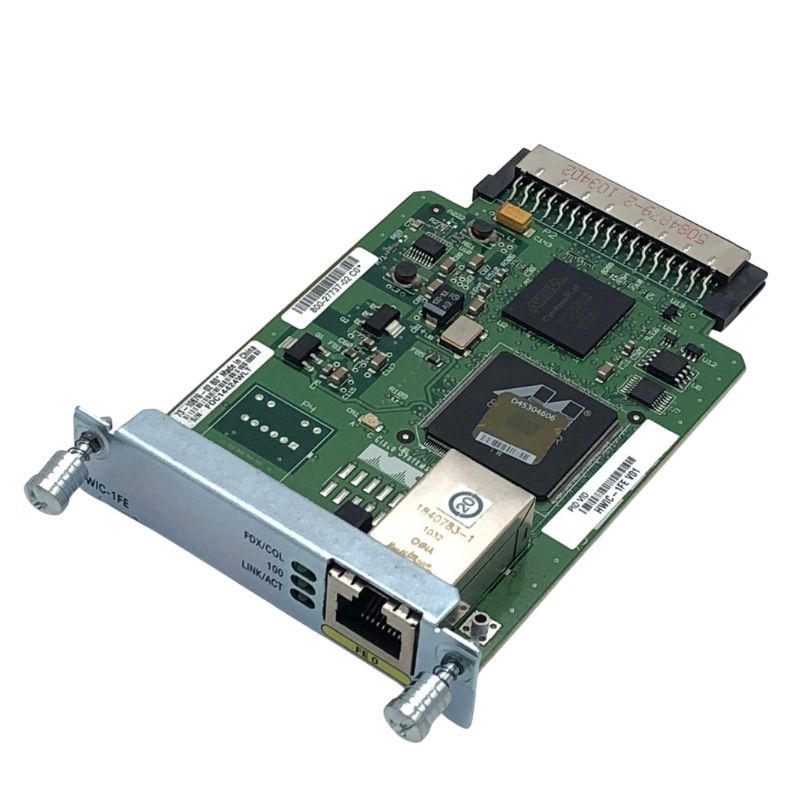

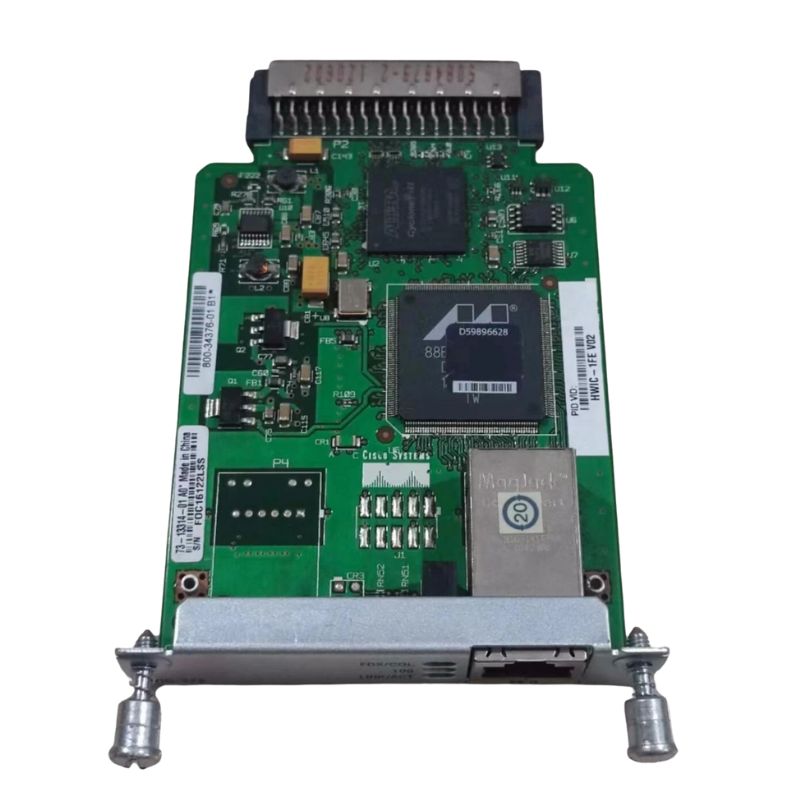

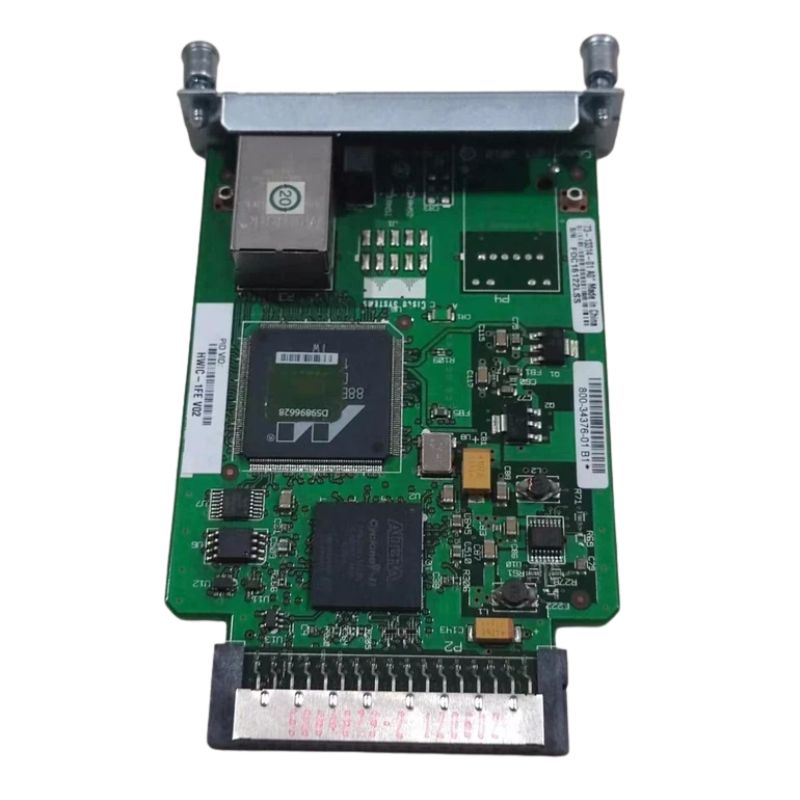

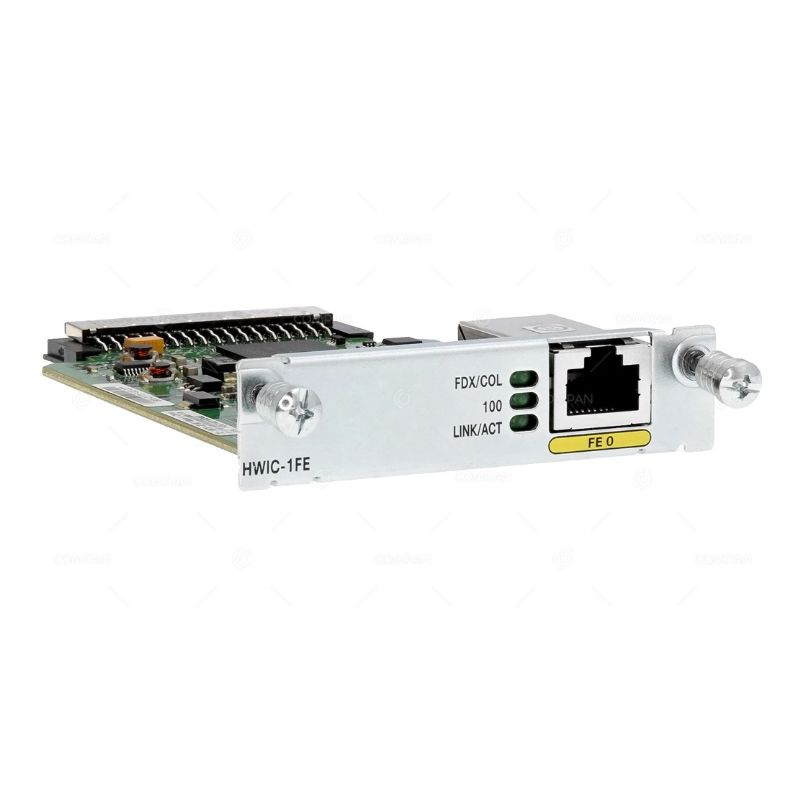

HWIC-1FE Cisco High-Speed WAN Interface Card (1-Port)

Cisco HWIC-1FE 1-Port High-Speed WAN Interface Card

The Cisco HWIC-1FE WAN Interface Card is a high-performance modular networking component designed for Cisco Integrated Services Routers (ISR). Built to deliver reliable Fast Ethernet connectivity, this interface card enhances WAN and LAN integration through a dedicated 10/100 Mbps RJ-45 port. It is widely used in enterprise branch networks, edge routing, and secure segmentation architectures.

Manufacturer and Core Details

• Manufacturer: Cisco
• Part Number: HWIC-1FE
• Product Type: High-Speed WAN Interface Card (HWIC)
• Interface Category: Fast Ethernet Network Module

Key Interface Specifications

• Interface Type: 1 x RJ-45 Fast Ethernet port
• Speed: 10/100 Mbps with auto-negotiation support
• Duplex Modes: Full-duplex and half-duplex operation
• Cabling Standard: Category 5 or higher UTP cable

Physical Design Attributes

• Form Factor: Single-wide HWIC module
• Installation: Plug-in HWIC slot compatible design
• Architecture: Routed Ethernet interface module

Supported Protocol Features

• IEEE 802.1Q VLAN trunking support
• IEEE 802.1p Quality of Service (QoS) prioritization
• MAC address filtering for enhanced security

Traffic Optimization Capabilities

• Improved bandwidth utilization through QoS tagging
• Secure segmentation using VLAN tagging
• Efficient traffic classification and prioritization

Router Compatibility

Compatible Router Models

• Cisco ISR G1 Series: 1841, 2801, 2811, 2821, 2851, 3825, 3845
• Cisco ISR G2 Series: 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945

Deployment Considerations

• Check HWIC slot power limitations on compact routers
• Ensure compatibility when using multiple high-power modules
• Verify router IOS support for Layer 3 interface configuration

Operational Characteristics

• Acts as a dedicated routed Ethernet port
• Supports direct IP address assignment
• Configured using standard IOS interface commands

Primary Use Cases

• Broadband WAN termination for DSL, cable, or fiber connections
• Dedicated DMZ port for secure public-facing services
• Inter-VLAN routing using router-on-a-stick architecture

Performance Enhancements

• Full-duplex communication for improved bandwidth usage
• QoS support for traffic prioritization
• VLAN tagging for structured network segmentation

Key Benefits of Cisco HWIC-1FE

• Reliable 10/100 Mbps Fast Ethernet connectivity
• Flexible deployment across Cisco ISR router platforms
• Layer 3 routed interface functionality
• Advanced VLAN and QoS support
• Compact and scalable HWIC modular design
• Ideal for WAN, DMZ, and enterprise segmentation use cases

Cisco HWIC-1FE 1-Port High-Speed WAN Card Overview

The Cisco HWIC-1FE 1-Port High-Speed WAN Interface Card is a specialized networking expansion module designed to enhance the WAN connectivity capabilities of Cisco integrated services routers. It provides a single high-performance Fast Ethernet interface that enables enterprises to extend their network infrastructure with reliable, scalable, and secure wide area network communication. This interface card is widely used in branch offices, enterprise edge deployments, service provider environments, and remote site connectivity scenarios where stable and efficient data transmission is essential.

Built on Cisco’s modular hardware architecture, the HWIC-1FE enables organizations to adapt their networking infrastructure according to evolving bandwidth requirements. It is designed to support seamless integration into compatible Cisco router platforms, offering flexible deployment options without requiring full system replacement. This makes it a cost-effective solution for businesses seeking to improve WAN performance while maintaining existing infrastructure investments.

Enterprise WAN Connectivity Architecture

The Cisco HWIC-1FE module plays a critical role in enterprise WAN architectures by providing a dedicated Fast Ethernet interface that connects remote networks, branch offices, and centralized data centers. It enhances network segmentation, improves traffic flow efficiency, and ensures stable communication between geographically distributed systems.

Modern enterprises rely heavily on WAN connectivity to support cloud applications, VoIP services, remote collaboration tools, and real-time data exchange. The HWIC-1FE supports these requirements by delivering consistent throughput and dependable connectivity for mission-critical applications.

Modular Network Expansion Design

The modular design of the HWIC-1FE allows organizations to expand router functionality without replacing entire systems. By inserting the interface card into a compatible Cisco router slot, administrators can quickly add WAN capabilities to existing infrastructure. This flexibility is particularly valuable in growing enterprises where network requirements evolve over time.

This modular approach reduces capital expenditure and allows IT teams to deploy targeted upgrades based on specific network demands, rather than investing in new routing hardware.

High-Speed Ethernet Integration

The HWIC-1FE provides a Fast Ethernet interface that supports high-speed data transmission across WAN links. This enables efficient handling of network traffic between branch offices and central data centers. It ensures stable performance for bandwidth-sensitive applications such as file transfers, database synchronization, and cloud service access.

Optimized Data Transfer Efficiency

The interface card is engineered to reduce latency and improve packet forwarding efficiency. This ensures smoother communication between distributed systems and reduces delays in data exchange across WAN links. It is particularly useful in environments where real-time data processing is required.

WAN Optimization and Network Performance

Network performance is a critical factor in enterprise WAN deployments. The Cisco HWIC-1FE is designed to optimize traffic flow, improve routing efficiency, and maintain stable connectivity under varying network loads. It supports consistent performance even in high-demand environments where multiple applications share bandwidth.

Traffic Management and Routing Efficiency

The interface card enhances routing efficiency by ensuring smooth data transfer between LAN and WAN segments. It supports intelligent traffic handling, allowing routers to prioritize critical business applications and maintain balanced network performance.

This improves overall network responsiveness and ensures that essential services remain unaffected during peak traffic conditions.

Reliable Branch Connectivity

Branch offices depend heavily on stable WAN connections for daily operations. The HWIC-1FE ensures uninterrupted connectivity between remote sites and central systems, enabling seamless access to shared resources, enterprise applications, and cloud-based platforms.

Integration with Cisco Router Platforms

The Cisco HWIC-1FE is designed for seamless compatibility with Cisco integrated services routers that support HWIC slots. This allows organizations to extend router functionality without introducing additional standalone networking devices.

Plug-In Expansion Capability

The interface card can be installed directly into supported Cisco routers, enabling rapid deployment of WAN capabilities. This plug-in architecture simplifies network upgrades and reduces downtime during installation.

IT administrators can enhance router functionality without reconfiguring the entire network infrastructure, making it a practical solution for scalable deployments.

Network Security and Data Protection

Security is a fundamental requirement in WAN connectivity. The Cisco HWIC-1FE integrates with Cisco router security features to ensure secure data transmission across wide area networks. It supports encrypted communication protocols and secure routing configurations.

Secure WAN Communication

The interface card enables secure data exchange between remote sites and central networks by leveraging Cisco’s built-in security frameworks. This helps protect sensitive business information during transmission over public or private WAN links.

Organizations benefit from enhanced data protection when connecting multiple locations across distributed network environments.

Policy-Based Traffic Control

Network administrators can implement policy-based routing and traffic control mechanisms to manage WAN traffic effectively. This ensures that critical applications receive priority bandwidth allocation while maintaining overall network stability.

Scalability

The Cisco HWIC-1FE is designed to support scalable network expansion strategies. As organizations grow, their WAN requirements increase, necessitating flexible and adaptable networking solutions.

Expandable Network Infrastructure

By using modular interface cards, enterprises can expand WAN connectivity without replacing core networking equipment. This allows for incremental upgrades based on business needs and budget constraints.

This scalability ensures that network infrastructure can evolve alongside organizational growth without major disruptions.

Consistent Data Throughput

The interface card maintains stable data throughput across WAN connections, ensuring uninterrupted communication between remote systems and central infrastructure. This stability is essential for enterprise applications that rely on continuous network access.

Branch Office Connectivity

Branch offices rely on stable WAN connections to access centralized resources and corporate applications. The HWIC-1FE provides a reliable connection path that ensures smooth business operations across distributed locations.

Enterprise Network Backbone

In enterprise environments, the module supports backbone connectivity between departments, data centers, and remote sites. This ensures efficient communication and data exchange across the organization.

Cloud and Remote Access Integration

The interface card supports modern cloud-based architectures by enabling secure and efficient access to remote services. It ensures seamless connectivity between on-premises infrastructure and cloud environments.

Future-Ready WAN Expansion Capability

The HWIC-1FE supports future-ready networking strategies by allowing organizations to scale WAN infrastructure as technology evolves. Its modular architecture ensures compatibility with evolving Cisco networking platforms and enterprise requirements.

This adaptability ensures that businesses can continue expanding their network capabilities without requiring complete infrastructure replacement, protecting long-term technology investments.
