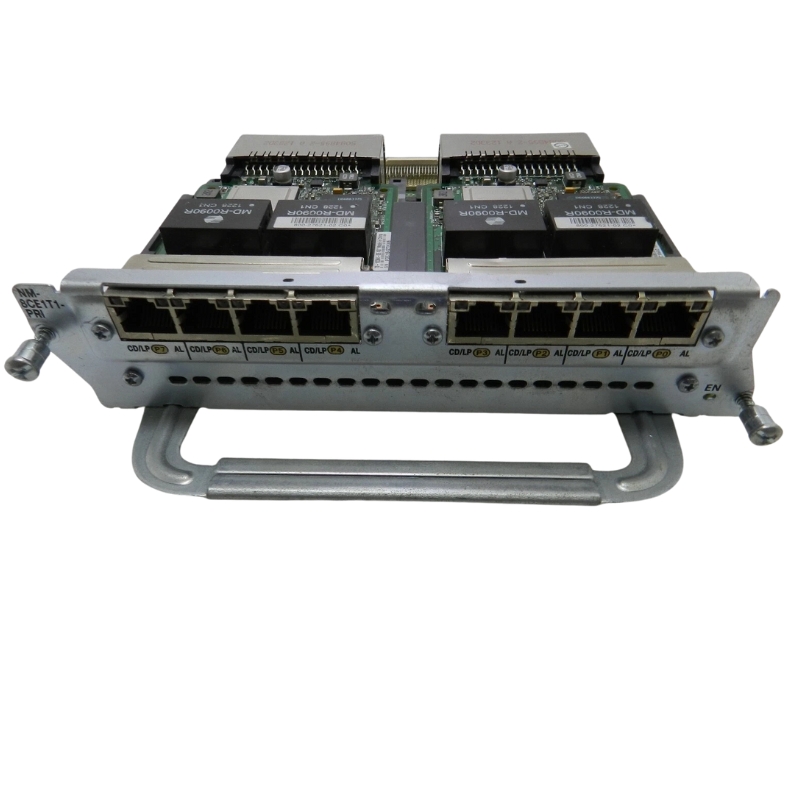

NM-8CE1T1-PRI Cisco 8 Ports Network Module

Cisco NM-8CE1T1-PRI 8 Ports Network Module Overview

The Cisco NM-8CE1T1-PRI 8 Ports Network Module is a highly versatile and scalable solution designed for enterprise-grade connectivity. It provides eight channelized E1/T1 Primary Rate Interface ports, enabling organizations to integrate voice, data, and multimedia traffic across wide area networks with efficiency and reliability. This module is engineered to support demanding communication infrastructures, offering seamless integration with Cisco 2600, 3600, and 3700 series routers, ensuring compatibility with legacy systems while delivering advanced networking capabilities.

Hardware Specifications

The Cisco NM-8CE1T1-PRI module is built with robust hardware architecture that ensures high performance and durability. Each of the eight ports can be configured for either E1 or T1 operation, providing flexibility for global deployment. The module supports channelized configurations, allowing administrators to allocate bandwidth efficiently across multiple services such as voice trunks, data circuits, and signaling channels.

Interface Flexibility

With support for both E1 and T1 standards, the NM-8CE1T1-PRI module adapts to diverse telecommunication environments. E1 interfaces operate at 2.048 Mbps, commonly used in Europe and Asia, while T1 interfaces operate at 1.544 Mbps, widely deployed in North America. This dual compatibility makes the module ideal for multinational organizations requiring standardized connectivity across regions.

Channelization Capabilities

The module’s channelization feature allows each port to be subdivided into multiple logical channels. This enables granular control over bandwidth allocation, ensuring that mission-critical applications receive priority while optimizing overall network utilization. Channelized T1/E1 support is essential for integrating voice services such as ISDN PRI, enabling enterprises to deploy advanced telephony solutions without additional hardware.

High-Density Connectivity

By offering eight ports in a single module, the Cisco NM-8CE1T1-PRI provides high-density connectivity that reduces the need for multiple modules or external devices. This consolidation minimizes hardware costs, simplifies cabling, and streamlines network management, making it an efficient solution for medium to large enterprises.

Scalability for Enterprise Networks

The module is designed to scale with growing organizational needs. Enterprises can deploy multiple NM-8CE1T1-PRI modules across their router infrastructure to expand connectivity as required. This scalability ensures that businesses can adapt to increasing traffic demands without overhauling their existing network architecture.

Optimized Bandwidth Utilization

Through intelligent channelization and traffic management, the module optimizes bandwidth utilization across all eight ports. This ensures that resources are allocated efficiently, reducing congestion and improving overall network performance. Enterprises benefit from enhanced service delivery, particularly in environments where voice and data traffic coexist.

Integration with Cisco Routers

The NM-8CE1T1-PRI module is fully compatible with Cisco’s 2600, 3600, and 3700 series routers. This integration allows organizations to leverage existing router infrastructure while enhancing connectivity capabilities. The module seamlessly integrates into the router chassis, providing plug-and-play functionality that simplifies deployment.

Unified Voice and Data Networks

By supporting ISDN PRI and channelized E1/T1 interfaces, the module enables the convergence of voice and data networks. Enterprises can deploy unified communication solutions that integrate telephony, video conferencing, and data services over a single infrastructure. This convergence reduces operational costs and enhances collaboration across distributed teams.

Enhanced Routing Capabilities

When integrated with Cisco routers, the NM-8CE1T1-PRI module enhances routing capabilities by providing additional WAN interfaces. This allows organizations to implement advanced routing protocols, redundancy mechanisms, and traffic engineering strategies, ensuring reliable and efficient network operations.

Enterprise Telephony

The module is widely used in enterprise telephony deployments, particularly for connecting PBX systems to public switched telephone networks via ISDN PRI. This enables organizations to manage large volumes of voice calls with high reliability and quality of service. The NM-8CE1T1-PRI supports both inbound and outbound call traffic, making it ideal for call centers and customer service operations.

Data Circuit Integration

Beyond voice, the module supports data circuit integration, allowing enterprises to establish dedicated WAN links for mission-critical applications. Channelized E1/T1 circuits can be allocated for secure data transmission, ensuring that sensitive information is transferred reliably across distributed locations.

Multimedia and Collaboration Services

With support for converged voice and data traffic, the NM-8CE1T1-PRI module facilitates multimedia services such as video conferencing and unified messaging. Enterprises can deploy collaboration platforms that leverage the module’s connectivity to deliver seamless communication experiences across geographically dispersed teams.

High Availability Features

The Cisco NM-8CE1T1-PRI module is engineered for high availability, ensuring continuous network operations even under heavy traffic loads. Its robust design minimizes downtime, while advanced error detection and correction mechanisms enhance reliability. Enterprises benefit from consistent service delivery, reducing the risk of communication disruptions.

Redundancy

By deploying multiple modules across router infrastructure, organizations can implement redundancy and failover strategies. In the event of a port or module failure, traffic can be rerouted through alternate interfaces, ensuring uninterrupted connectivity. This redundancy is critical for mission-critical applications where downtime is unacceptable.

Quality of Service

The module supports advanced QoS mechanisms, enabling administrators to prioritize traffic based on application requirements. Voice traffic can be assigned higher priority to ensure clear and uninterrupted communication, while data traffic is managed to prevent congestion. QoS support enhances overall user experience across the network.

Secure WAN Connectivity

The NM-8CE1T1-PRI module provides secure WAN connectivity by supporting encryption and authentication protocols. Enterprises can safeguard sensitive data transmitted across E1/T1 circuits, ensuring compliance with industry regulations and standards. Secure connectivity is essential for organizations operating in sectors such as finance, healthcare, and government.

Regulatory Compliance

The module is designed to meet global telecommunication standards, ensuring compliance with regulatory requirements across regions. Its support for both E1 and T1 standards makes it suitable for deployment in diverse environments, enabling organizations to maintain consistent communication infrastructures worldwide.

Integration with Security Policies

By integrating with Cisco routers, the module aligns with enterprise security policies, enabling administrators to enforce access controls, firewall rules, and intrusion prevention mechanisms. This integration enhances overall network security, protecting against unauthorized access and cyber threats.

Call Centers

Call centers benefit significantly from the NM-8CE1T1-PRI module’s high-density connectivity. With eight PRI ports, organizations can manage thousands of simultaneous voice calls, ensuring efficient customer service operations. The module’s reliability and QoS support enhance call quality, improving customer satisfaction.

Multinational Enterprises

Multinational enterprises require standardized connectivity across regions. The module’s support for both E1 and T1 standards makes it ideal for global deployment, enabling consistent communication infrastructures across diverse geographies. Enterprises can streamline operations and enhance collaboration across international offices.

Emerging Technologies

The NM-8CE1T1-PRI supports integration with emerging technologies such as VoIP, video conferencing, and cloud services. This ensures enterprises remain competitive in a rapidly evolving digital landscape.

Service Providers

Telecommunication service providers can leverage the NM-8CE1T1-PRI module to deliver managed voice and data services to enterprise customers. Its scalability and reliability make it suitable for carrier-grade deployments, enabling providers to offer high-quality services with minimal downtime.

Ease of Deployment

The module’s plug-and-play design simplifies deployment, reducing installation time and effort. Administrators can easily integrate the module into existing router infrastructure without complex configurations, accelerating time-to-service for new communication solutions.
