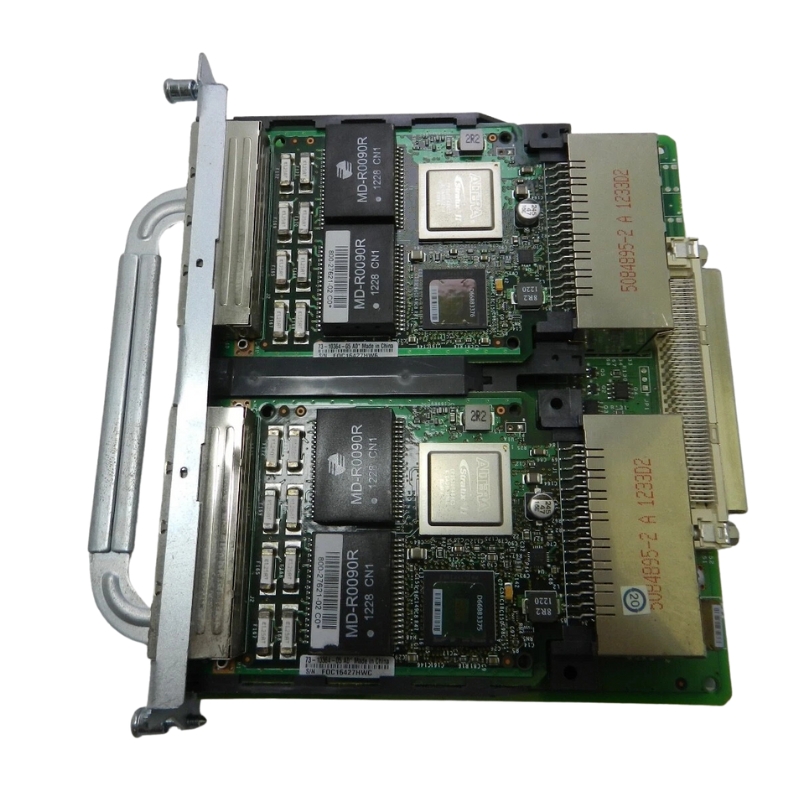

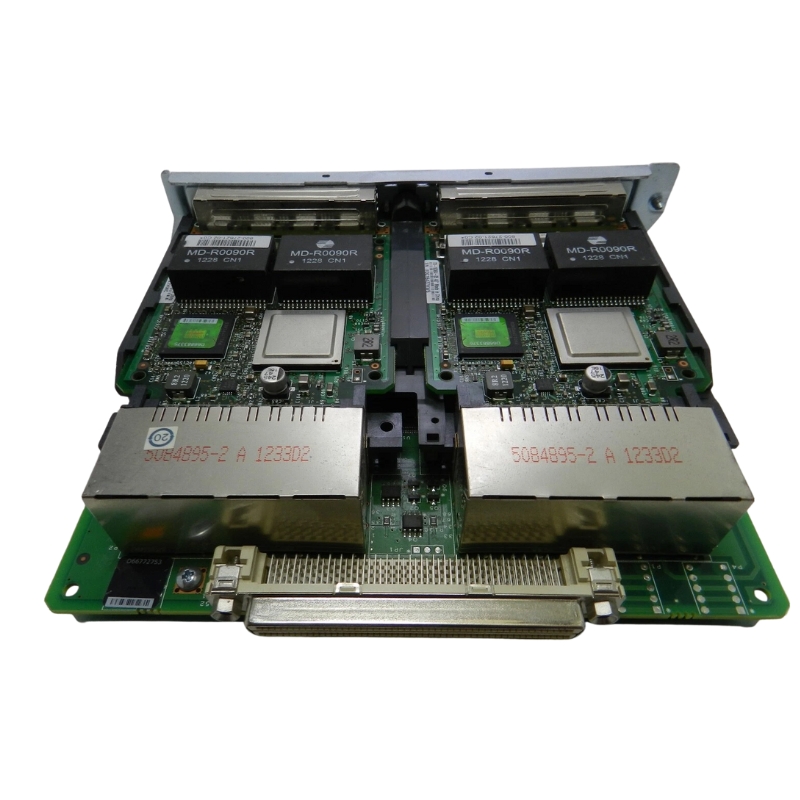

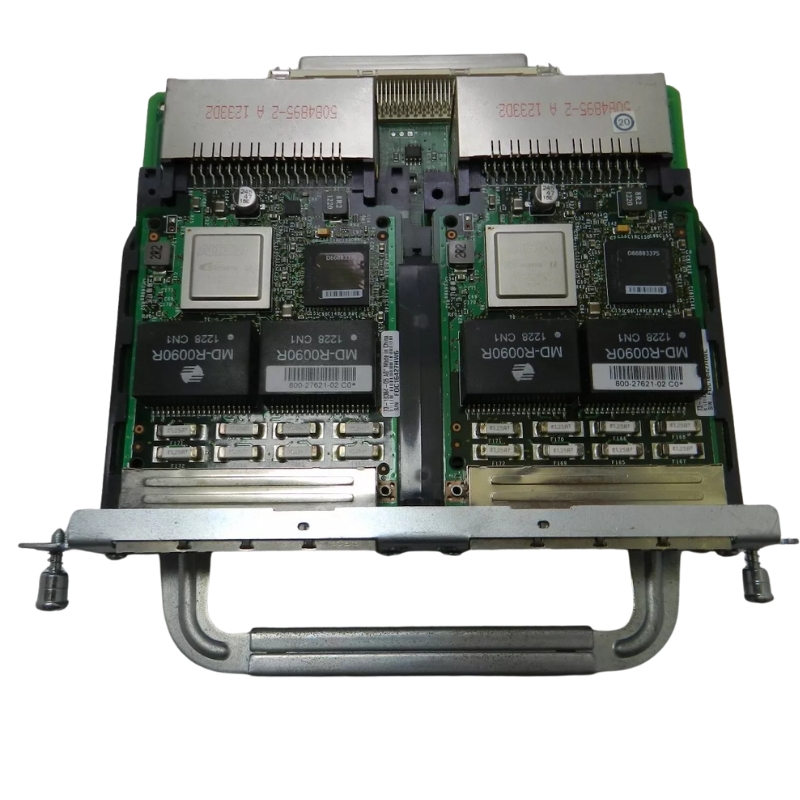

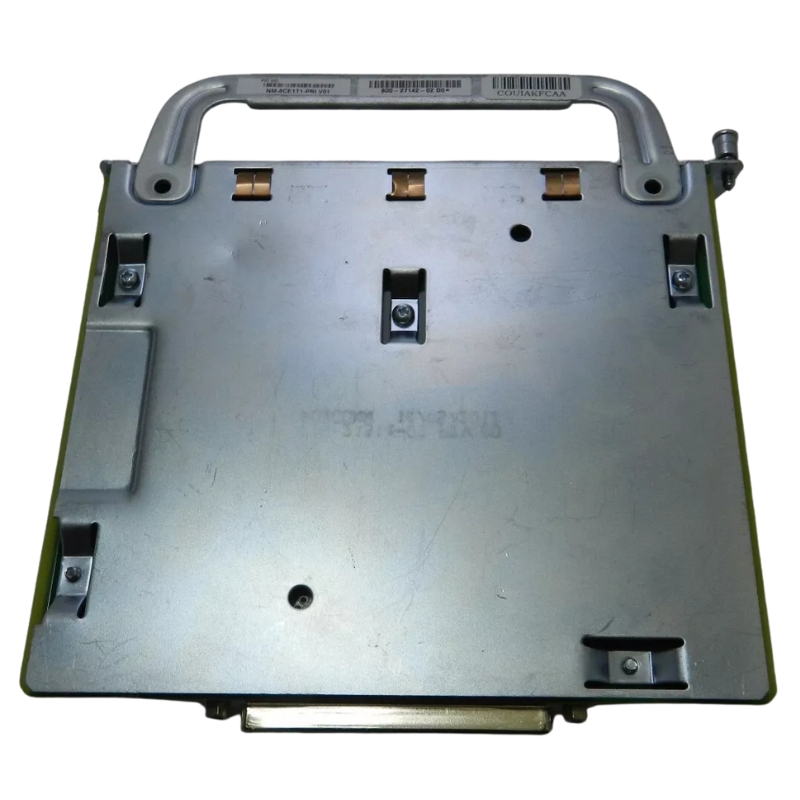

NM-8CE1T1-PRI Cisco 8 Ports WAN Network Module

Cisco NM-8CE1T1-PRI 8 Ports WAN Network Module Overview

The Cisco NM-8CE1T1-PRI 8 Ports WAN Network Module is a high-capacity interface designed to support enterprise-grade connectivity requirements. It provides eight channelized E1/T1 Primary Rate Interface (PRI) ports, enabling organizations to consolidate multiple WAN connections into a single modular solution. This module is engineered for Cisco 2600, 3600, and 3700 series routers, offering scalability, flexibility, and reliability for businesses that demand robust WAN integration.

Port Configuration

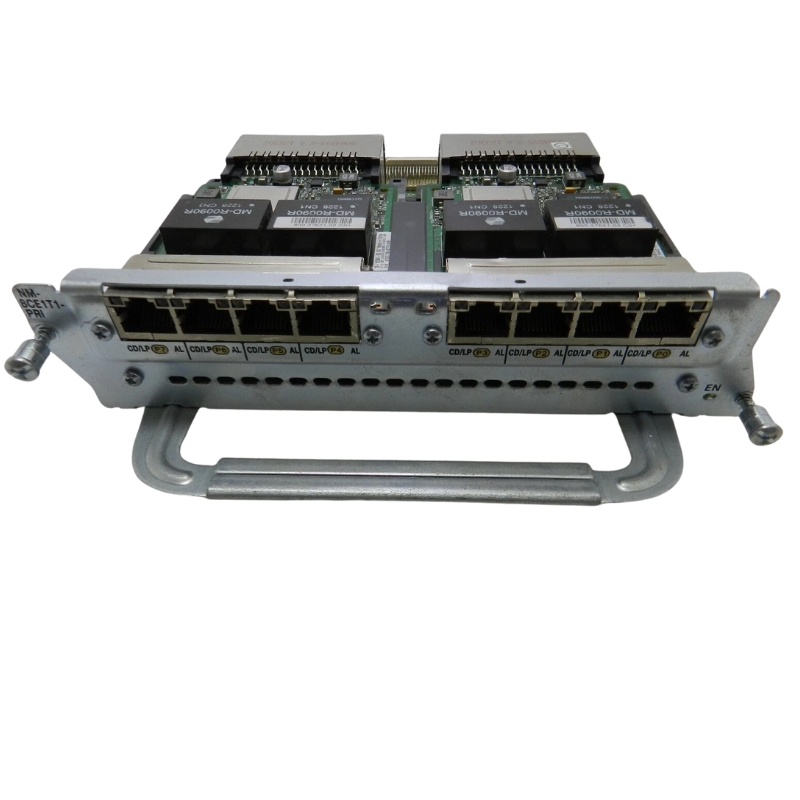

The module features eight E1/T1 ports, each capable of supporting PRI signaling. This configuration allows enterprises to deploy multiple digital circuits simultaneously, ensuring high availability and redundancy across WAN infrastructures.

Data Throughput

Each T1 port supports 1.544 Mbps, while each E1 port supports 2.048 Mbps. With eight ports, the module can deliver aggregated bandwidth suitable for large-scale voice, video, and data applications. This makes it ideal for organizations with demanding communication requirements.

Compatibility

The Cisco NM-8CE1T1-PRI is compatible with Cisco 2600XM, 3600, and 3700 series routers. Its modular design ensures seamless integration into existing Cisco architectures, enhancing scalability and investment protection.

Enterprise WAN Connectivity

Enterprises can leverage the NM-8CE1T1-PRI to connect branch offices, data centers, and headquarters through reliable E1/T1 circuits. This ensures consistent communication across geographically dispersed locations.

Voice Integration

The module supports PRI signaling, making it suitable for integrating with PBX systems and VoIP gateways. This enables businesses to deploy unified communications solutions that combine voice and data over a single infrastructure.

Service Provider Deployments

Telecommunication providers can utilize the NM-8CE1T1-PRI to deliver managed WAN services to customers. Its multi-port design allows providers to offer scalable connectivity solutions tailored to enterprise needs.

Scalability

With eight ports, the module provides scalability for growing businesses. Organizations can start with fewer circuits and expand as their bandwidth requirements increase.

Reliability

Redundant port configurations ensure high availability. Enterprises can configure failover mechanisms across multiple ports, minimizing downtime and ensuring business continuity.

Corporate Headquarters

Large enterprises can deploy the NM-8CE1T1-PRI at headquarters to manage multiple WAN links connecting to branch offices. This ensures centralized control and monitoring of WAN traffic.

Branch Office Connectivity

Branch offices can utilize the module to establish dedicated E1/T1 connections to headquarters or data centers. This provides secure and reliable communication channels for mission-critical applications.

Data Center Integration

Data centers can integrate the NM-8CE1T1-PRI to support high-capacity WAN links required for cloud services, storage replication, and disaster recovery solutions.

Channelized Support

The module supports channelized E1/T1 circuits, enabling granular control over bandwidth allocation. Enterprises can dedicate specific channels for voice, video, or data traffic, optimizing performance across applications.

PRI Signaling

With PRI signaling, the module ensures compatibility with ISDN services. This allows businesses to deploy advanced telephony solutions that leverage digital signaling for improved call quality and reliability.

QoS Capabilities

Quality of Service features ensure prioritization of critical traffic. Enterprises can configure policies to prioritize voice and video traffic, minimizing latency and jitter across WAN connections.

Encryption Support

When integrated with Cisco IOS security features, the NM-8CE1T1-PRI supports encryption protocols to secure WAN traffic. This ensures data confidentiality and integrity across public and private networks.

Access Control

Enterprises can configure access control lists to restrict unauthorized access to WAN resources. This enhances network security and protects sensitive business data.

Redundancy

Redundant port configurations allow enterprises to implement failover mechanisms. In case of circuit failure, traffic is automatically rerouted to available ports, ensuring uninterrupted connectivity.

Router Compatibility

The NM-8CE1T1-PRI integrates seamlessly with Cisco 2600XM, 3600, and 3700 series routers. This ensures consistent performance and compatibility across Cisco’s modular router platforms.

Unified Communications

By supporting PRI signaling, the module integrates with Cisco Unified Communications Manager and other telephony solutions. This enables enterprises to deploy converged voice and data networks.

Network Management

Enterprises can leverage Cisco IOS management tools to monitor and configure the NM-8CE1T1-PRI. This provides centralized visibility and control over WAN connections, simplifying network operations.

Scalable Architecture

The modular design ensures scalability for future growth. Enterprises can expand WAN capacity by adding additional modules as business requirements evolve.

Investment Protection

Compatibility with Cisco’s modular router platforms ensures long-term investment protection. Businesses can upgrade routers without replacing existing modules, reducing upgrade costs.

Emerging Technologies

The NM-8CE1T1-PRI supports integration with emerging technologies such as VoIP, video conferencing, and cloud services. This ensures enterprises remain competitive in a rapidly evolving digital landscape.
