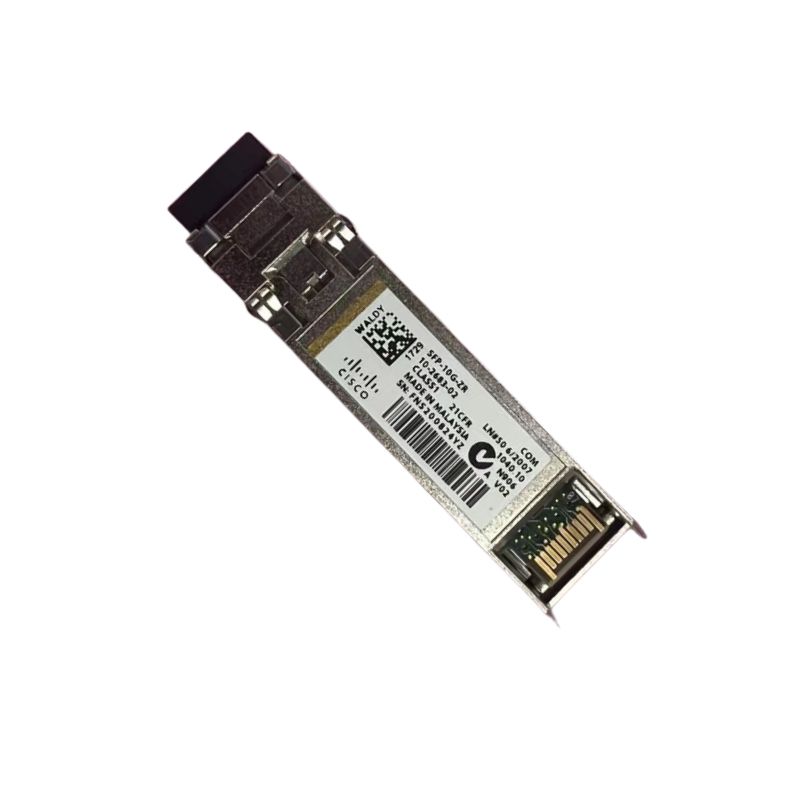

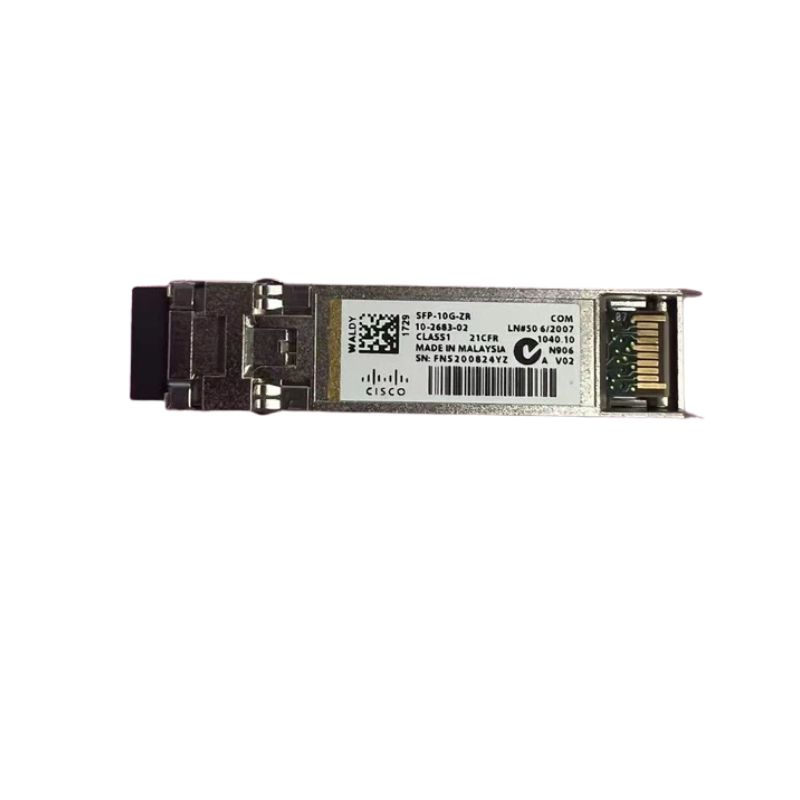

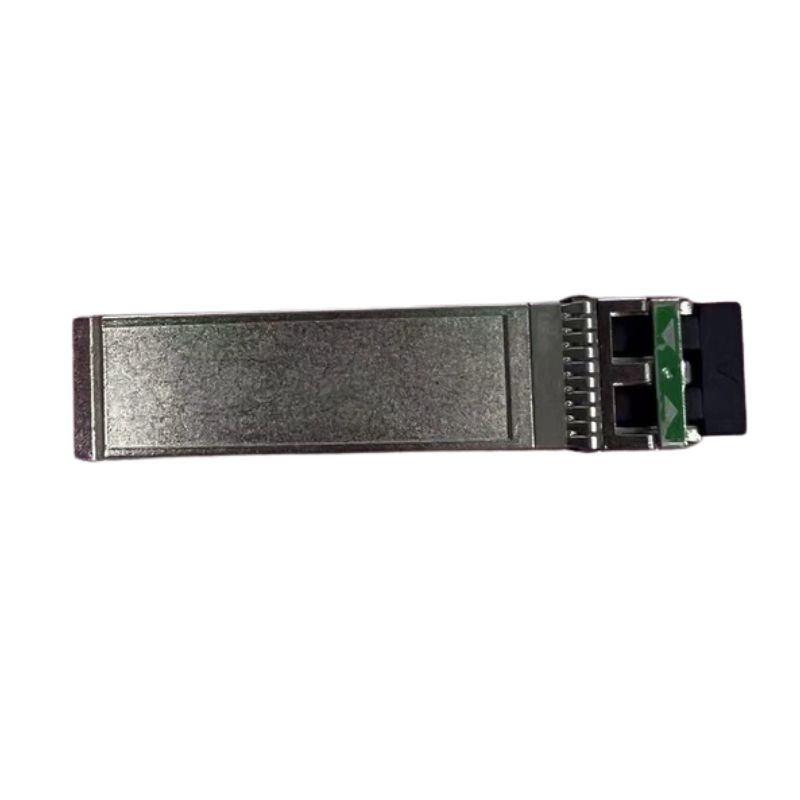

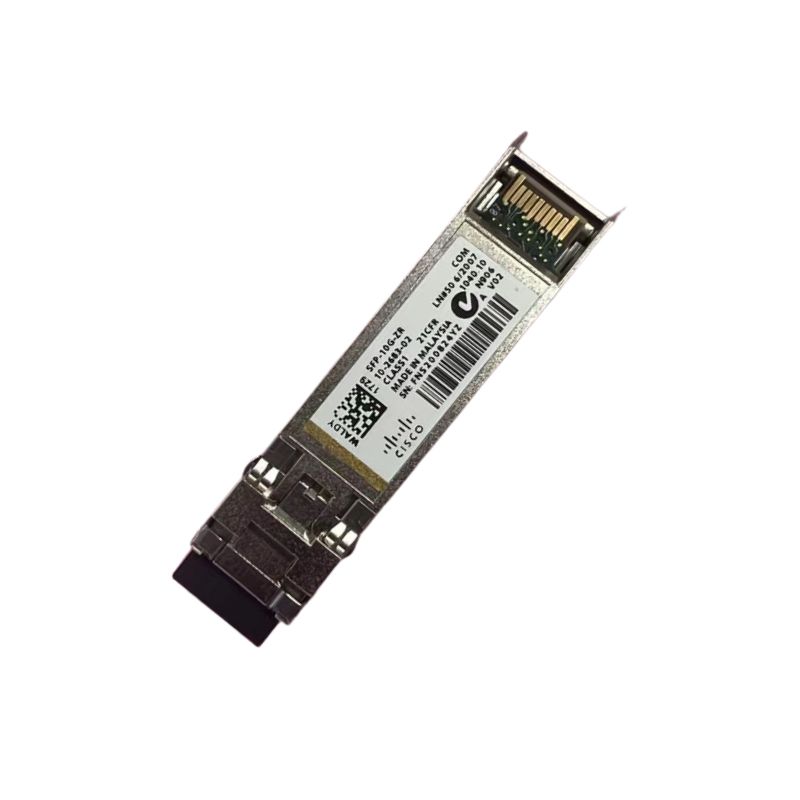

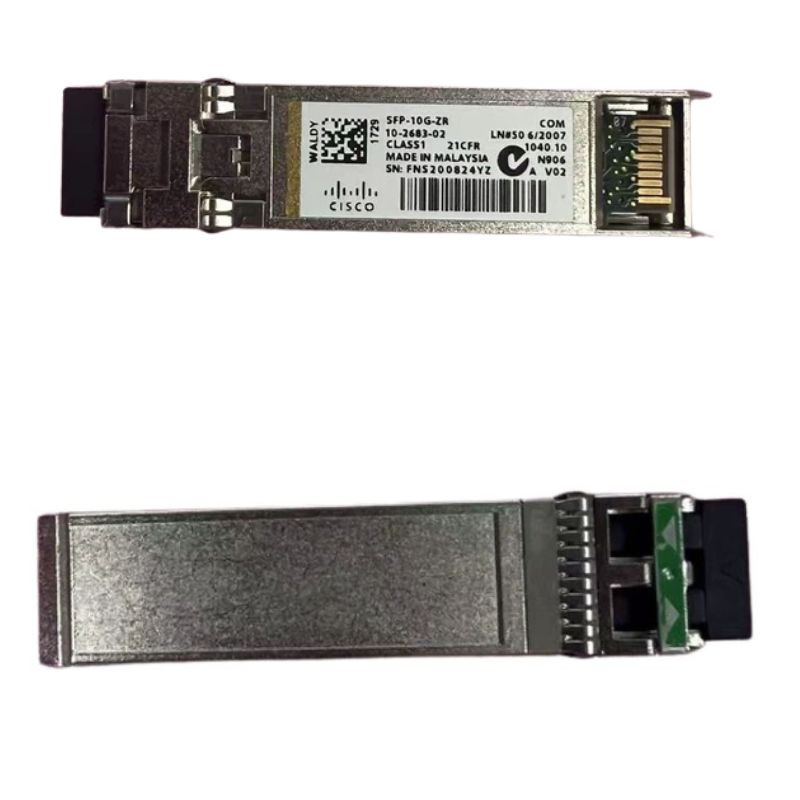

SFP-10G-ZR Cisco GBIC-SFP Transceiver Module

Product Overview of Cisco SFP-10G-ZR Transceiver Module

The Cisco SFP-10G-ZR Transceiver Module is designed to provide high-speed connectivity for network devices. With a speed of 10G, this transceiver module offers blazing-fast data transfer rates, making it ideal for applications that require high bandwidth.

General Specifications

• Manufacturer: Cisco
• Model Number: SFP-10G-ZR
• Device Type: Optical Transceiver Module

Technical Characteristics

• Compact SFP+ footprint
• Hot-swappable design for seamless integration
• High-speed throughput: 10 Gigabits per second
• Operating wavelength: 1550 nm
• Extended transmission range: up to 80 km (49.7 miles) over G.652 single-mode fiber

Connectivity Details

• Interface: LC/PC duplex connector
• Cabling: Single-mode fiber (SMF)

Optical Components

• Transmitter: Cooled EML laser for stable output
• Receiver: APD photodiode ensuring high sensitivity

Power & Environmental Ratings

• Transmission power: 0 to +4 dBm
• Reception sensitivity: -23 to -8 dBm
• Energy usage: below 1.5 W
• Temperature range: 0°C to 70°C (industrial variant SFP-10G-ZR-I supports -40°C to 85°C)

Compliance Standards

• IEEE 802.3ae
• SFF-8431
• SFF-8472

Application Scenarios

Metro Area Networks

• Reliable 10GbE connectivity across distant metropolitan sites

Enterprise Data Centers

• Supports distributed workloads with long-haul optical links

Telecom & Service Providers

• Ideal for high-bandwidth, long-distance transport applications

Key Advantages

• Energy-efficient design with low power draw
• Extended reach for diverse networking environments
• Robust compliance with industry standards

Cisco SFP-10G-ZR 10GBPS Single-Mode Fiber Transceiver

The Cisco SFP-10G-ZR 10Gbps 10GBase-ZR SFP+ transceiver module is engineered to support high-speed 10 Gigabit Ethernet connectivity across extended distances using single-mode fiber infrastructure. Designed for carrier-grade and enterprise networking environments, this SFP+ optical transceiver provides reliable long-haul communication over distances reaching up to 80 kilometers. Operating at a wavelength of 1550nm and utilizing a duplex LC optical connector, the module enables stable and efficient data transmission for mission-critical networking applications.

As organizations continue to expand their network footprints across campuses, metropolitan areas, and distributed data centers, the demand for high-performance optical networking solutions has increased significantly. The Cisco SFP-10G-ZR addresses these requirements by combining advanced optical technologies with compact SFP+ form factors, allowing network administrators to deploy long-distance fiber links without sacrificing switch port density or operational efficiency.

Advanced 10 Gigabit Ethernet Performance

High-Speed Data Transmission Capabilities

The Cisco SFP-10G-ZR transceiver delivers a full 10Gbps data rate that supports modern network infrastructures requiring substantial bandwidth. The module is optimized for 10GBase-ZR Ethernet standards and provides exceptional throughput for applications such as cloud computing, virtualization, enterprise storage, video streaming, disaster recovery, and high-capacity data transport.

With increasing demands for network bandwidth, organizations require transceivers capable of handling large volumes of traffic while maintaining low latency and superior reliability. The SFP-10G-ZR module ensures efficient data movement between geographically dispersed facilities, helping maintain seamless communication across long-distance fiber networks.

Consistent Signal Integrity

Signal integrity remains a critical factor in long-haul optical networking. The Cisco SFP-10G-ZR incorporates sophisticated optical components designed to maintain signal quality across extended fiber runs. This capability minimizes packet loss, transmission errors, and performance degradation while ensuring consistent network operation under demanding conditions.

Support for Bandwidth-Intensive Applications

The module supports applications requiring sustained high-speed connectivity, including large-scale database replication, storage area networking, virtual machine migration, media distribution systems, and cloud service connectivity. Its 10 Gigabit performance enables organizations to accommodate increasing workloads without requiring extensive network redesigns.

Single-Mode Fiber Technology

Optimized for Long-Distance Deployments

The Cisco SFP-10G-ZR is specifically designed for single-mode fiber environments where extended reach and minimal signal attenuation are essential. Single-mode fiber technology utilizes a smaller core diameter that allows light signals to travel in a single propagation path, significantly reducing modal dispersion and enabling transmission over much greater distances compared to multimode fiber alternatives.

By leveraging single-mode fiber infrastructure, organizations can establish reliable connections between distant facilities while maintaining high data rates and exceptional signal quality. This makes the module suitable for metropolitan area networks, carrier backbones, enterprise WAN extensions, and inter-building connectivity projects.

Reduced Optical Loss

Single-mode fiber deployments benefit from lower attenuation rates and improved optical efficiency. The Cisco SFP-10G-ZR takes advantage of these characteristics to maximize transmission performance over long distances while maintaining compliance with industry optical standards.

Enhanced Network Scalability

Networks built on single-mode fiber provide substantial room for future expansion. The SFP-10G-ZR module allows organizations to establish scalable infrastructure capable of supporting future bandwidth upgrades while preserving existing fiber investments.

80 Kilometer Transmission Distance

Extended Reach Connectivity

One of the most significant advantages of the Cisco SFP-10G-ZR transceiver is its ability to support transmission distances of up to 80 kilometers. This extended reach capability eliminates the need for intermediate repeaters or additional networking equipment in many long-distance deployment scenarios.

Organizations operating multiple facilities across large geographic regions can utilize the module to create direct fiber links between locations while maintaining full 10 Gigabit Ethernet performance. This simplifies network architecture, reduces infrastructure complexity, and lowers overall operational costs.

Metropolitan Network Applications

Metropolitan area networks frequently require connectivity between data centers, office complexes, telecommunications facilities, and service provider points of presence. The Cisco SFP-10G-ZR provides sufficient optical reach to accommodate these applications while ensuring dependable communication and high throughput.

Inter-Data Center Connectivity

Modern enterprises often distribute workloads across multiple data centers to enhance redundancy, business continuity, and performance. The 80km transmission capability enables seamless interconnection between facilities, supporting data replication, backup operations, and workload synchronization.

1550nm Optical Wavelength Technology

Long-Haul Optical Efficiency

The Cisco SFP-10G-ZR operates at a wavelength of 1550nm, which is widely recognized as the optimal wavelength for long-distance optical communications. This wavelength provides lower attenuation characteristics compared to shorter wavelengths, enabling signals to travel greater distances while preserving optical power levels.

Networks utilizing 1550nm optics benefit from improved transmission efficiency, enhanced reliability, and better overall performance across extended fiber spans. These characteristics make the wavelength particularly suitable for carrier-class and enterprise-grade optical infrastructures.

Superior Attenuation Characteristics

Fiber optic attenuation reaches some of its lowest levels within the 1550nm wavelength window. The Cisco SFP-10G-ZR leverages this property to maximize transmission reach while maintaining signal quality and minimizing optical degradation.

Compatibility with Existing Infrastructure

Many long-haul fiber networks are designed around 1550nm transmission technologies. The module integrates efficiently into these environments, allowing organizations to deploy high-speed optical connectivity without extensive modifications to existing infrastructure.

Duplex LC Connector Architecture

Industry-Standard Optical Connectivity

The Cisco SFP-10G-ZR utilizes a duplex LC connector interface, one of the most widely adopted connector standards in modern fiber optic networking. The compact LC design supports high-density deployments while providing secure and reliable optical connections.

Network engineers prefer LC connectors because they offer excellent performance characteristics, ease of installation, and broad compatibility with fiber patch panels, optical distribution frames, and structured cabling systems.

Space-Efficient Design

The small form factor of LC connectors allows higher port densities within switches, routers, and network appliances. This contributes to efficient rack utilization and supports scalable network growth.

Reliable Optical Coupling

Precision manufacturing ensures accurate fiber alignment within the connector assembly, helping maintain low insertion loss and dependable optical performance throughout the network lifecycle.

SFP+ Form Factor Advantages

Compact and Hot-Swappable Design

The SFP+ form factor has become a preferred solution for high-speed optical networking due to its compact dimensions and hot-swappable capabilities. The Cisco SFP-10G-ZR enables network administrators to install, replace, or upgrade transceivers without shutting down equipment or interrupting network services.

This flexibility supports efficient maintenance operations and reduces downtime associated with network upgrades or hardware replacement activities.

High Port Density Support

Modern switches and routers frequently incorporate numerous SFP+ slots to maximize connectivity options. The compact design of the Cisco SFP-10G-ZR allows organizations to deploy large numbers of long-haul optical links while conserving valuable rack space.

Simplified Network Expansion

As network requirements evolve, administrators can quickly add new optical connections by inserting additional SFP+ modules. This modular architecture facilitates incremental growth while minimizing infrastructure disruption.

Enterprise Network Deployment Applications

Campus Network Connectivity

Large educational institutions, corporate campuses, and government facilities often require high-capacity links between buildings and network aggregation points. The Cisco SFP-10G-ZR enables dependable long-distance communication while supporting bandwidth-intensive applications across campus environments.

Data Center Networking

Data centers depend on robust optical connectivity to maintain efficient operations. The module provides the performance necessary for storage networking, virtualization traffic, cloud computing services, and large-scale application delivery infrastructures.

Business Continuity Infrastructure

Organizations implementing disaster recovery strategies frequently replicate critical data to remote facilities. The Cisco SFP-10G-ZR supports these initiatives by providing high-speed connectivity over distances sufficient for geographic redundancy and risk mitigation.

Cloud Service Integration

Private and hybrid cloud environments require reliable transport between compute resources, storage platforms, and network gateways. The module delivers the bandwidth and reach necessary to support modern cloud architectures.

Optical Performance and Reliability

Precision Engineering

The Cisco SFP-10G-ZR incorporates advanced optical and electronic components designed to deliver stable operation across diverse networking environments. Precision manufacturing processes ensure consistent performance characteristics and dependable long-term operation.

Environmental Stability

Networking equipment frequently operates within variable environmental conditions. The module is engineered to maintain optical performance across specified operating temperature ranges, helping ensure uninterrupted network functionality.

Error Reduction Technologies

Advanced signal processing and optical design techniques contribute to reduced transmission errors and enhanced data integrity. These capabilities support mission-critical networking applications where reliability is a primary concern.

Compatibility with Cisco Networking Platforms

Integration with Cisco Infrastructure

The Cisco SFP-10G-ZR is engineered for compatibility with a broad range of Cisco networking platforms that support SFP+ transceiver technology. This integration enables seamless deployment across switches, routers, aggregation devices, and other network appliances within Cisco environments.

Compatibility with Cisco hardware simplifies deployment planning and helps organizations maintain consistent operational standards throughout their networking infrastructure.

Infrastructure Standardization

Organizations that standardize on Cisco networking equipment benefit from consistent hardware compatibility, simplified inventory management, and efficient operational procedures when deploying Cisco SFP-10G-ZR transceivers throughout their environments.
