WS-X4516-10GE Cisco Catalyst 4500 Supervisor Module Engine V-10GE

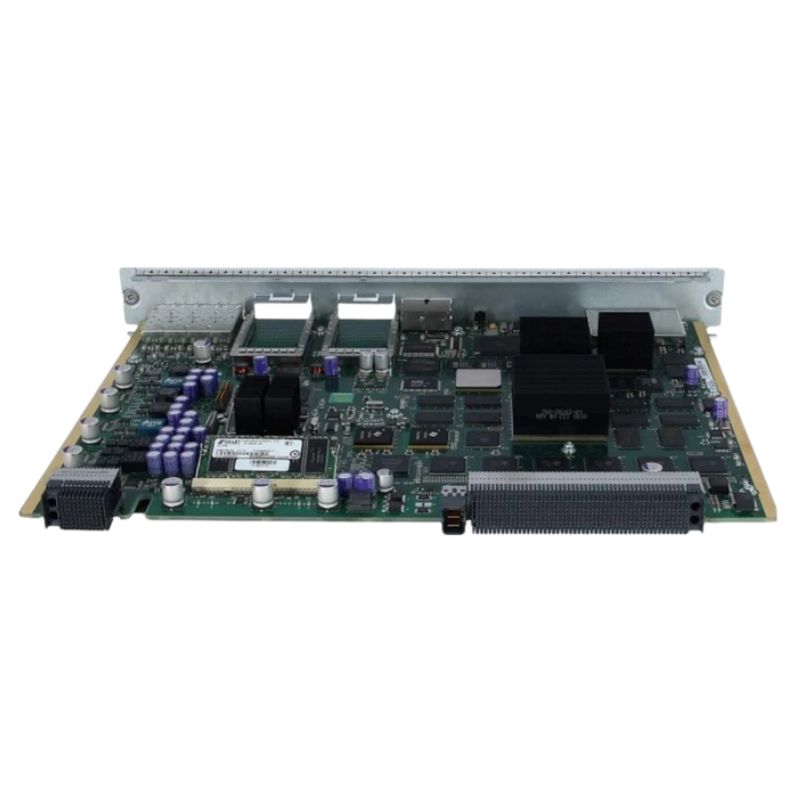

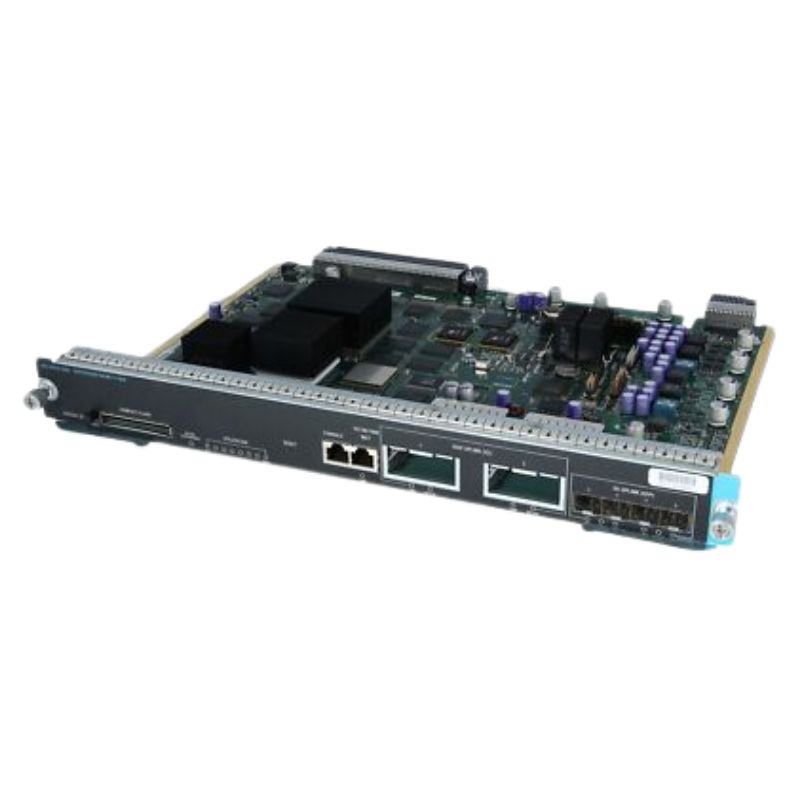

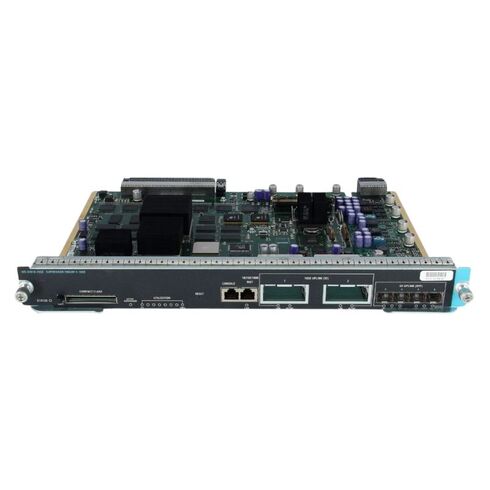

Cisco WS-X4516-10GE Catalyst Supervisor Engine V-10GE Management Module

The Cisco WS-X4516-10GE Catalyst Supervisor Engine V-10GE is a high-performance switching and management module engineered for enterprise-class network infrastructures. Designed to deliver advanced control, scalable switching capacity, and resilient network management, this module is a core component in large-scale Cisco Catalyst switching environments. this supervisor engine integrates powerful switching intelligence, robust interface expansion options, and enterprise-grade management protocols, making it ideal for data centers, campus networks, and mission-critical deployments.

General Information

• Manufacturer: Cisco
• Part Number: WS-X4516-10GE
• Product Type: Management Module
• Series: Catalyst 4500 / 4516 Platform

High-Speed Switching Architecture

• Switching Capacity: Up to 136 Gbps centralized throughput
• Forwarding Rate: 102 million packets per second (mpps)
• System Memory: 512 MB SDRAM for optimized processing
• Flash Storage: 64 MB onboard flash memory

Network Efficiency Benefits

• Low-latency packet forwarding for enterprise workloads
• Enhanced QoS handling for mission-critical applications
• Scalable architecture for growing network environments

Console and Management Ports

• Console Interface: 1 x RJ-45 RS-232 serial console port
• Management Port: 1 x RJ-45 10/100Base-TX Ethernet port

I/O Expansion and Connectivity Options

Expansion Slot Architecture

• 2 x X2 uplink module slots for high-speed optical connectivity
• 4 x SFP (mini-GBIC) slots for flexible fiber or copper networking
• 1 x CompactFlash slot for firmware storage and system upgrades

Supported Management Tools and Protocols

• CiscoWorks LAN Management Solution (LMS)
• CiscoView network visualization tools
• Cisco Network Assistant for simplified administration

Supported Protocol Stack

• IEEE 802.1Q VLAN tagging for network segmentation
• IEEE 802.1p QoS for traffic prioritization
• SNMP for network monitoring and alerting
• CLI-based configuration for advanced control
• DHCP support for dynamic IP assignment
• Telnet for remote management access

Temperature Range

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 104°F (40°C)

Humidity Tolerance

• Operating Humidity Range: 10% – 90% (non-condensing)

Enterprise Deployment Use Cases

Data Center Switching

• High-density server connectivity aggregation
• Centralized traffic management and routing
• High-speed backbone integration

Campus Network Infrastructure

• Core switching for multi-building environments
• Secure segmentation using VLAN architecture
• Scalable expansion for growing user demands

Service Provider Environments

• Carrier-grade packet forwarding performance
• High availability and redundancy support
• Advanced QoS traffic prioritization

Hardware Architecture and System Design

Processing and Memory Resources

• 512 MB SDRAM for system operations and routing tables
• 64 MB onboard flash for firmware and configuration storage

System Optimization Features

• Efficient packet processing pipeline
• Hardware-accelerated switching performance
• Optimized memory allocation for large-scale networks

Advanced Network Management Capabilities

Monitoring and Diagnostics

• SNMP-based performance tracking
• Real-time traffic monitoring tools
• Event logging and alert generation

Configuration Flexibility

• CLI-based advanced configuration options
• Graphical management via CiscoView
• Automated network management through LMS tools

Security and Protocol Integration

Network Security Features

• VLAN segmentation for isolated traffic domains
• Controlled management access via Telnet and SNMP policies
• QoS enforcement for secure traffic prioritization

Scalability and Future-Ready Networking

Modular Expansion Design

• Support for uplink module upgrades
• Flexible fiber and Ethernet connectivity options
• CompactFlash-based system expansion capabilities

Cisco WS-X4516-10GE Management Module Overview

The Cisco WS-X4516-10GE Catalyst Supervisor Engine V-10GE Management Module represents a high-performance switching control and management solution designed for modular Catalyst 4500 Series chassis environments. As a core supervisory component, this engine is responsible for centralized switching intelligence, advanced traffic management, system resiliency, and integrated hardware control functions across large-scale enterprise network infrastructures. It is engineered to support high-density deployments where scalability, redundancy, and operational efficiency are critical to maintaining uninterrupted network performance.

This supervisor engine is widely deployed in campus backbone environments, data aggregation layers, and enterprise distribution networks where predictable throughput and deterministic switching behavior are essential. By integrating 10 Gigabit Ethernet uplink capability, the module significantly enhances inter-switch communication performance while enabling high-bandwidth uplinks for aggregation and core routing layers.

Core Functional Role in Catalyst 4500 Series Architecture

Within the Cisco Catalyst 4500 ecosystem, the supervisor engine functions as the primary intelligence hub of the chassis. The WS-X4516-10GE module handles centralized forwarding decisions, MAC address learning, VLAN management, and routing protocol computation. It also coordinates hardware forwarding tables that ensure line cards operate under unified policies and consistent forwarding logic.

In addition to switching intelligence, the module manages system-level diagnostics, power allocation, redundancy coordination, and environmental monitoring. This integrated approach allows network administrators to maintain a single point of control over multiple distributed line cards, reducing operational complexity and increasing system reliability.

High-Speed 10GE Uplink Capabilities and Performance Optimization

Enhanced Bandwidth for Modern Network Demands

The inclusion of 10 Gigabit Ethernet uplinks in the WS-X4516-10GE Supervisor Engine V-10GE ensures that enterprises can meet the increasing demand for high-speed data transfer across converged network environments. These uplinks are optimized for backbone aggregation, enabling seamless communication between core switches, distribution layers, and data center interconnects.

This high-throughput architecture supports latency-sensitive applications, virtualization workloads, and real-time data processing environments. The supervisor engine ensures that packet forwarding is handled efficiently, minimizing bottlenecks while maintaining deterministic performance under heavy traffic loads.

Traffic Management and Switching Intelligence

Advanced traffic management capabilities are embedded into the supervisor engine’s architecture, allowing it to dynamically allocate bandwidth based on network conditions and policy-driven configurations. Quality of Service (QoS) mechanisms ensure that critical applications receive priority forwarding, while less time-sensitive traffic is managed appropriately to maintain overall network balance.

The switching engine also supports hardware-based forwarding, reducing CPU overhead and enabling line-rate performance across multiple ports. This ensures that even in large-scale deployments, packet processing remains efficient and consistent.

Scalability and Modular Chassis Integration

Designed for Cisco Catalyst 4500 Modular Systems

The WS-X4516-10GE Supervisor Engine is engineered specifically for integration within Cisco Catalyst 4500 Series modular chassis. This compatibility allows organizations to build scalable switching infrastructures that can evolve over time without requiring complete system replacement.

The modular architecture supports hot-swappable line cards, redundant supervisor configurations, and flexible uplink expansion options. This enables enterprises to adapt network capacity based on evolving business needs while maintaining operational continuity.

Chassis Resource Management and Optimization

Resource management is a core function of the supervisor engine, ensuring efficient distribution of system power, memory allocation, and backplane bandwidth utilization. The module continuously monitors chassis health, balancing workloads across available hardware components to maintain optimal performance.

This intelligent resource coordination minimizes downtime risks and ensures that all installed modules operate within defined performance thresholds. It also enhances fault tolerance by enabling rapid failover mechanisms in redundant configurations.

Advanced Network Services and Layer 2/Layer 3 Capabilities

Integrated Routing and Switching Functions

The Cisco WS-X4516-10GE Supervisor Engine supports both Layer 2 switching and Layer 3 routing capabilities, making it suitable for complex enterprise network topologies. It enables inter-VLAN routing, dynamic routing protocol support, and policy-based forwarding mechanisms.

By integrating routing intelligence directly into the supervisor engine, network performance is significantly improved, as traffic does not need to be offloaded to external routing devices for internal network communication.

VLAN and Segmentation Management

VLAN segmentation is a key feature supported by the supervisor engine, allowing administrators to logically divide network traffic into isolated broadcast domains. This improves security, enhances traffic control, and optimizes network efficiency in multi-department enterprise environments.

The system supports dynamic VLAN assignment, trunking configurations, and advanced tagging mechanisms that ensure seamless communication between distributed network segments.

Policy-Based Network Control

Policy-based network control allows administrators to define granular rules governing how traffic is processed, prioritized, and forwarded across the network. These policies are enforced at the hardware level, ensuring consistent application regardless of traffic load or network complexity.

Network Management and Operational Efficiency

Centralized Administration and Monitoring Capabilities

Network administrators benefit from centralized management capabilities provided by the supervisor engine. Through integrated management interfaces, operators can configure system parameters, monitor traffic patterns, and analyze performance metrics across the entire chassis.

The module supports remote management protocols, enabling secure access for configuration and monitoring tasks without requiring physical access to network hardware.

Diagnostics and Performance Monitoring Tools

Built-in diagnostic tools allow continuous monitoring of system performance, including CPU utilization, memory usage, port activity, and environmental conditions. These insights help administrators proactively identify potential issues before they impact network operations.

Performance monitoring features also support historical data analysis, enabling long-term capacity planning and optimization strategies for enterprise network environments.

Security and Access Control Integration

Enterprise-Grade Network Protection Mechanisms

Security is a fundamental component of the WS-X4516-10GE Supervisor Engine architecture. It integrates multiple layers of access control, authentication protocols, and traffic inspection mechanisms to safeguard network infrastructure from unauthorized access and malicious activity.

The module supports role-based access control, ensuring that administrative privileges are appropriately segmented based on user roles and responsibilities.

Secure Management and Protocol Support

Secure communication protocols are implemented to protect management traffic and configuration data. Encryption mechanisms ensure that sensitive network information remains protected during transmission and remote administration sessions.

These security features align with enterprise compliance requirements, making the supervisor engine suitable for regulated industries and high-security environments.

Deployment Scenarios and Enterprise Use Cases

Campus Networks and Enterprise Backbone Infrastructure

The WS-X4516-10GE Supervisor Engine is commonly deployed in enterprise campus networks where high-speed connectivity and centralized control are required. It serves as the backbone of large-scale switching architectures, connecting multiple access and distribution layers.

In these environments, the module ensures efficient traffic flow between departments, data centers, and external network connections while maintaining high availability and performance consistency.

Data Center Aggregation and High-Density Switching

In data center environments, the supervisor engine plays a critical role in aggregating traffic from multiple server racks and storage systems. Its high-speed uplink capabilities enable efficient data movement between compute resources and external networks.

This makes it suitable for virtualization environments, cloud infrastructure deployments, and high-performance computing clusters where bandwidth and reliability are essential.
