WS-X4516-10GE Cisco Catalyst Supervisor Engine V-10GE Module

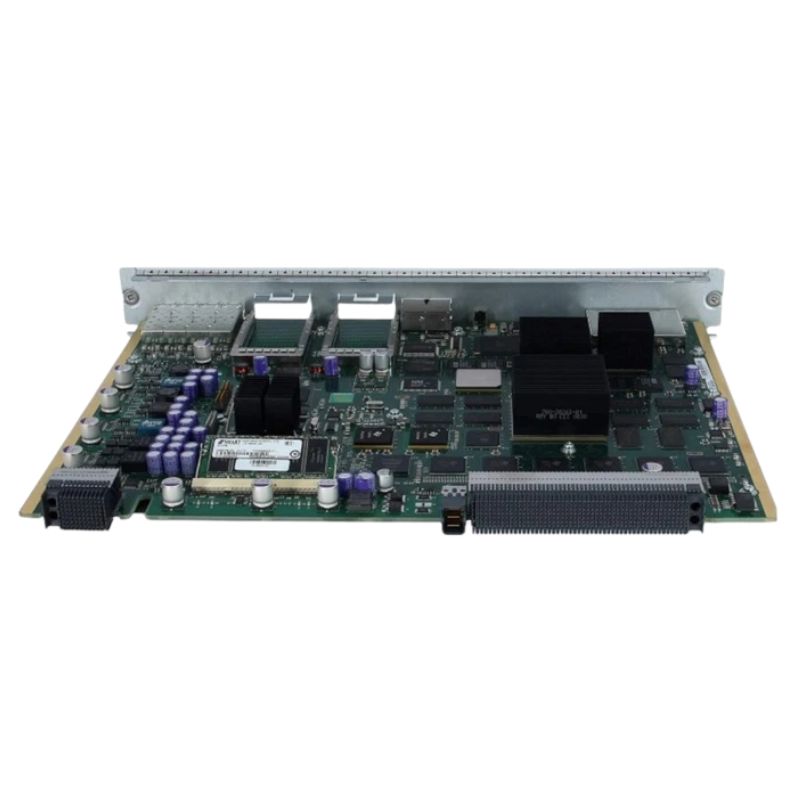

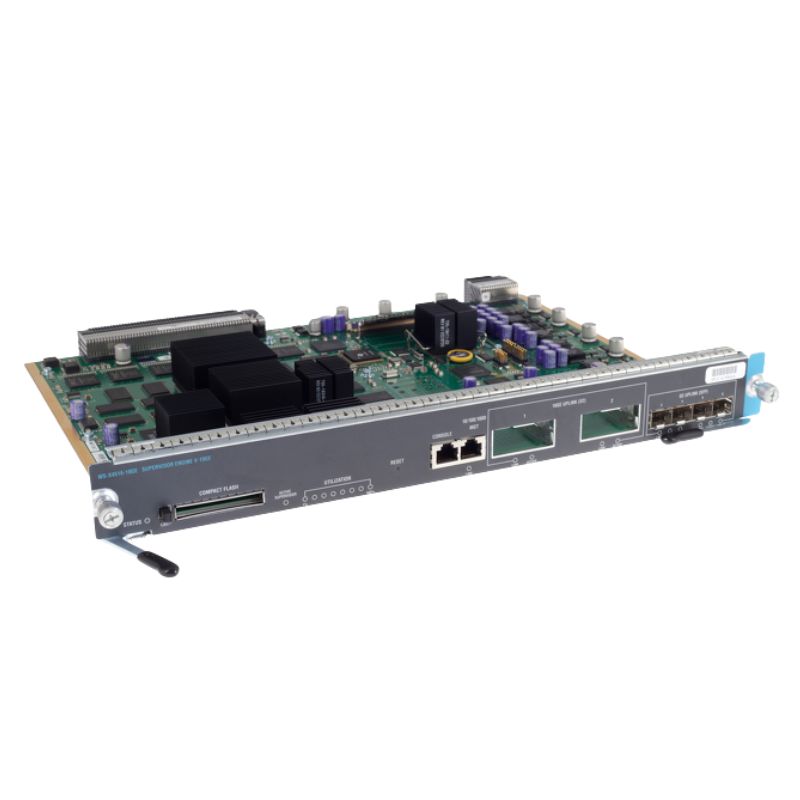

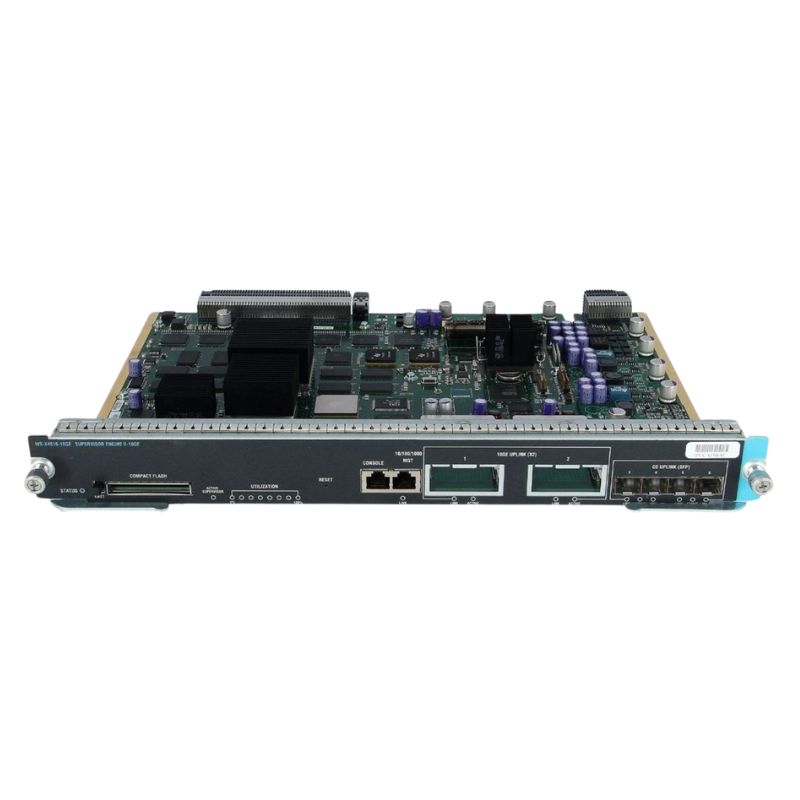

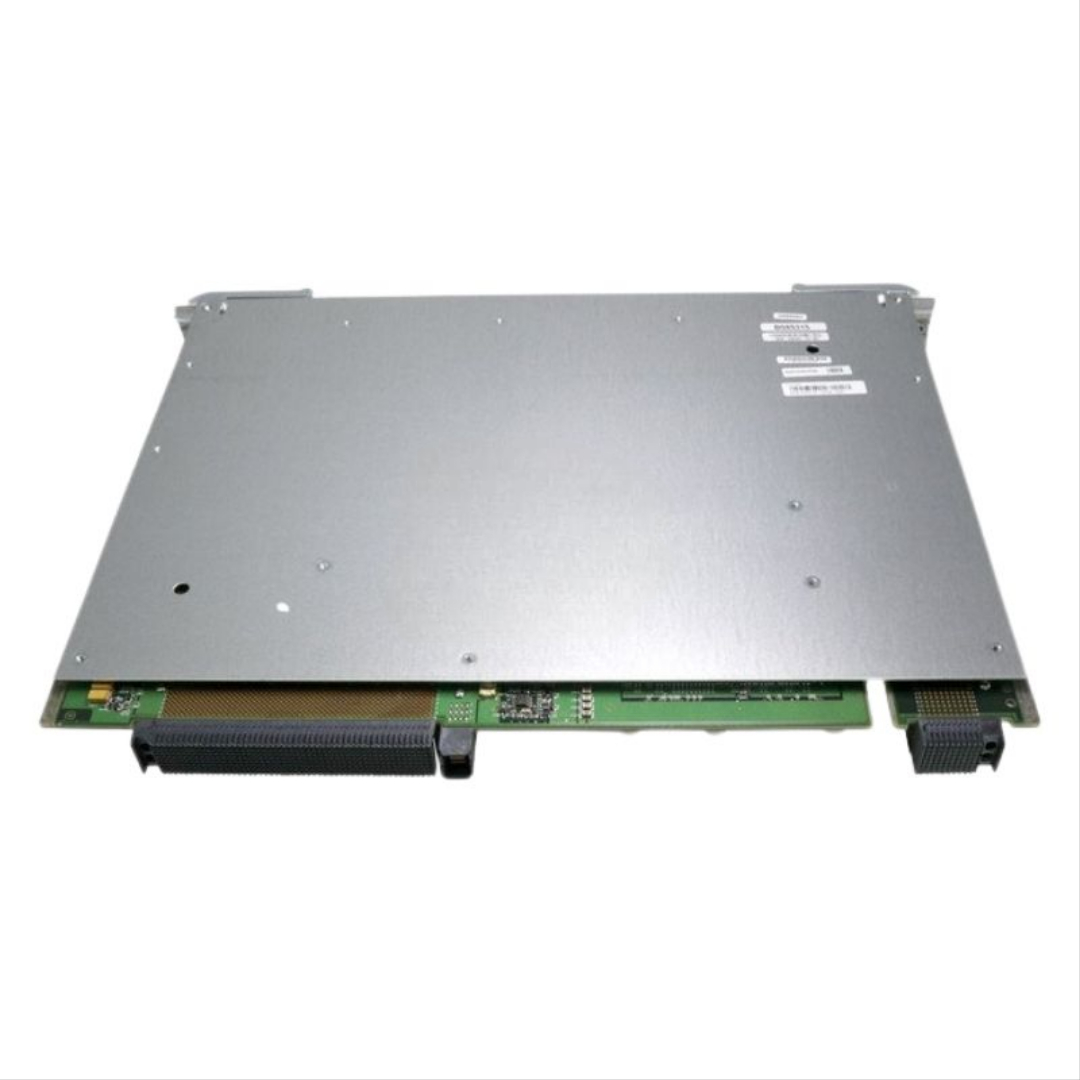

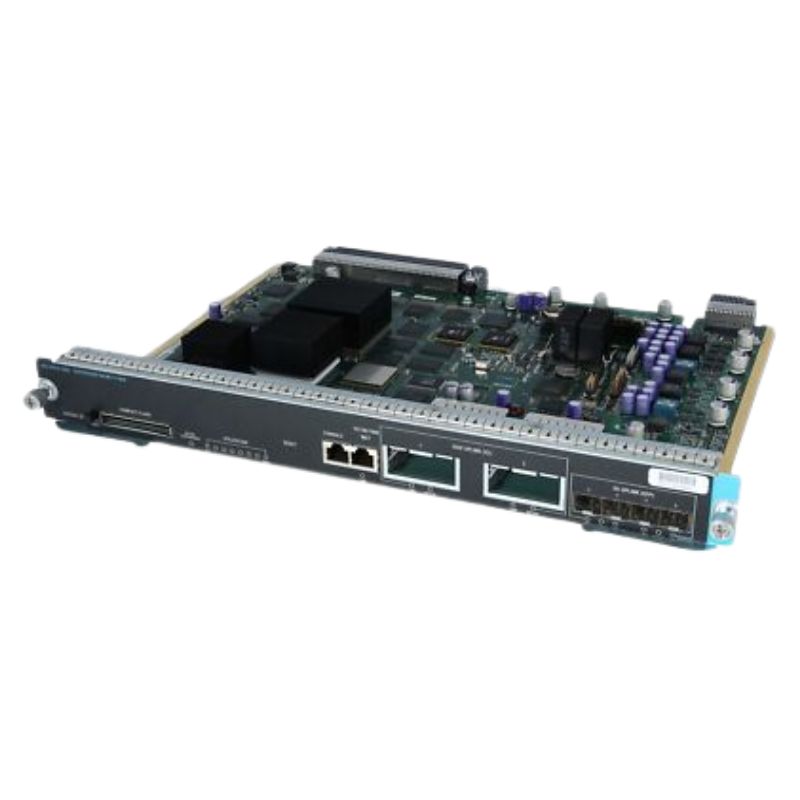

Cisco WS-X4516-10GE Supervisor Engine V-10GE Overview

The Cisco WS-X4516-10GE Catalyst Supervisor Engine V-10GE is a powerful management module designed for advanced enterprise switching environments. Built to deliver high-speed control, scalability, and reliable network intelligence, this supervisor engine enhances Catalyst switch performance while ensuring efficient traffic handling and centralized management capabilities.

General Information

• Manufacturer: Cisco
• Part Number: WS-X4516-10GE
• Device Type: Management Module
• Product Series: Catalyst Supervisor Engine V-10GE

Available Ports and Interfaces

• 1 x RJ-45 Console port (RS-232 serial management access)
• 1 x RJ-45 10/100Base-TX network management port

Operational Connectivity Advantages

• Direct CLI-based administration support
• Remote network monitoring and troubleshooting capability
• Reliable out-of-band management access

Expansion Slots Overview

• 2 x X2 uplink slots for high-speed optical connectivity
• 4 x SFP (mini-GBIC) slots for flexible fiber/copper networking
• 1 x CompactFlash card slot for storage and firmware management

Scalability Benefits

• Supports modular network growth
• Enables high-bandwidth backbone integration
• Allows flexible deployment in enterprise core networks

Key Performance Specifications

• Centralized Switching Capacity: 136 Gbps
• Throughput: 102 million packets per second (mpps)
• SDRAM Memory: 512 MB
• Onboard Flash Memory: 64 MB

Performance Optimization Features

• Efficient traffic forwarding for large-scale networks
• Low-latency packet processing
• Optimized bandwidth utilization across multiple ports

Supported Management Platforms

• CiscoWorks LAN Management Solution (LMS)
• CiscoView graphical monitoring tool
• Cisco Network Assistant for simplified administration

Supported Networking Protocols

• IEEE 802.1Q VLAN tagging
• IEEE 802.1p Quality of Service (QoS)
• SNMP (Simple Network Management Protocol)
• CLI (Command Line Interface)
• DHCP support
• Telnet remote access

Temperature and Humidity Range

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 104°F (40°C)
• Operating Humidity Range: 10% – 90% (non-condensing)

Environmental Reliability Benefits

• Stable performance in controlled IT environments
• Suitable for enterprise data centers
• Designed for long-term operational reliability

Cisco WS-X4516-10GE Supervisor Engine Management Module

The Cisco WS-X4516-10GE Catalyst Supervisor Engine V-10GE Management Module represents a high-performance switching control and management solution designed for modular Catalyst 4500 Series chassis environments. As a core supervisory component, this engine is responsible for centralized switching intelligence, advanced traffic management, system resiliency, and integrated hardware control functions across large-scale enterprise network infrastructures. It is engineered to support high-density deployments where scalability, redundancy, and operational efficiency are critical to maintaining uninterrupted network performance.

This supervisor engine is widely deployed in campus backbone environments, data aggregation layers, and enterprise distribution networks where predictable throughput and deterministic switching behavior are essential. By integrating 10 Gigabit Ethernet uplink capability, the module significantly enhances inter-switch communication performance while enabling high-bandwidth uplinks for aggregation and core routing layers.

Core Functional Role in Catalyst 4500 Series Architecture

Within the Cisco Catalyst 4500 ecosystem, the supervisor engine functions as the primary intelligence hub of the chassis. The WS-X4516-10GE module handles centralized forwarding decisions, MAC address learning, VLAN management, and routing protocol computation. It also coordinates hardware forwarding tables that ensure line cards operate under unified policies and consistent forwarding logic.

In addition to switching intelligence, the module manages system-level diagnostics, power allocation, redundancy coordination, and environmental monitoring. This integrated approach allows network administrators to maintain a single point of control over multiple distributed line cards, reducing operational complexity and increasing system reliability.

High-Speed 10GE Uplink Capabilities and Performance Optimization

Enhanced Bandwidth for Modern Network Demands

The inclusion of 10 Gigabit Ethernet uplinks in the WS-X4516-10GE Supervisor Engine V-10GE ensures that enterprises can meet the increasing demand for high-speed data transfer across converged network environments. These uplinks are optimized for backbone aggregation, enabling seamless communication between core switches, distribution layers, and data center interconnects.

This high-throughput architecture supports latency-sensitive applications, virtualization workloads, and real-time data processing environments. The supervisor engine ensures that packet forwarding is handled efficiently, minimizing bottlenecks while maintaining deterministic performance under heavy traffic loads.

Traffic Management and Switching Intelligence

Advanced traffic management capabilities are embedded into the supervisor engine’s architecture, allowing it to dynamically allocate bandwidth based on network conditions and policy-driven configurations. Quality of Service (QoS) mechanisms ensure that critical applications receive priority forwarding, while less time-sensitive traffic is managed appropriately to maintain overall network balance.

The switching engine also supports hardware-based forwarding, reducing CPU overhead and enabling line-rate performance across multiple ports. This ensures that even in large-scale deployments, packet processing remains efficient and consistent.

Scalability and Modular Chassis Integration

Designed for Cisco Catalyst 4500 Modular Systems

The WS-X4516-10GE Supervisor Engine is engineered specifically for integration within Cisco Catalyst 4500 Series modular chassis. This compatibility allows organizations to build scalable switching infrastructures that can evolve over time without requiring complete system replacement.

The modular architecture supports hot-swappable line cards, redundant supervisor configurations, and flexible uplink expansion options. This enables enterprises to adapt network capacity based on evolving business needs while maintaining operational continuity.

Chassis Resource Management and Optimization

Resource management is a core function of the supervisor engine, ensuring efficient distribution of system power, memory allocation, and backplane bandwidth utilization. The module continuously monitors chassis health, balancing workloads across available hardware components to maintain optimal performance.

This intelligent resource coordination minimizes downtime risks and ensures that all installed modules operate within defined performance thresholds. It also enhances fault tolerance by enabling rapid failover mechanisms in redundant configurations.

Advanced Network Services and Layer 2/Layer 3 Capabilities

Integrated Routing and Switching Functions

The Cisco WS-X4516-10GE Supervisor Engine supports both Layer 2 switching and Layer 3 routing capabilities, making it suitable for complex enterprise network topologies. It enables inter-VLAN routing, dynamic routing protocol support, and policy-based forwarding mechanisms.

By integrating routing intelligence directly into the supervisor engine, network performance is significantly improved, as traffic does not need to be offloaded to external routing devices for internal network communication.

VLAN and Segmentation Management

VLAN segmentation is a key feature supported by the supervisor engine, allowing administrators to logically divide network traffic into isolated broadcast domains. This improves security, enhances traffic control, and optimizes network efficiency in multi-department enterprise environments.

The system supports dynamic VLAN assignment, trunking configurations, and advanced tagging mechanisms that ensure seamless communication between distributed network segments.

Policy-Based Network Control

Policy-based network control allows administrators to define granular rules governing how traffic is processed, prioritized, and forwarded across the network. These policies are enforced at the hardware level, ensuring consistent application regardless of traffic load or network complexity.

Network Management and Operational Efficiency

Centralized Administration and Monitoring Capabilities

Network administrators benefit from centralized management capabilities provided by the supervisor engine. Through integrated management interfaces, operators can configure system parameters, monitor traffic patterns, and analyze performance metrics across the entire chassis.

The module supports remote management protocols, enabling secure access for configuration and monitoring tasks without requiring physical access to network hardware.

Security and Access Control Integration

Enterprise-Grade Network Protection Mechanisms

Security is a fundamental component of the WS-X4516-10GE Supervisor Engine architecture. It integrates multiple layers of access control, authentication protocols, and traffic inspection mechanisms to safeguard network infrastructure from unauthorized access and malicious activity.

The module supports role-based access control, ensuring that administrative privileges are appropriately segmented based on user roles and responsibilities.

Secure Management and Protocol Support

Secure communication protocols are implemented to protect management traffic and configuration data. Encryption mechanisms ensure that sensitive network information remains protected during transmission and remote administration sessions.

These security features align with enterprise compliance requirements, making the supervisor engine suitable for regulated industries and high-security environments.

Deployment Scenarios and Enterprise Use Cases

Campus Networks and Enterprise Backbone Infrastructure

The WS-X4516-10GE Supervisor Engine is commonly deployed in enterprise campus networks where high-speed connectivity and centralized control are required. It serves as the backbone of large-scale switching architectures, connecting multiple access and distribution layers.

In these environments, the module ensures efficient traffic flow between departments, data centers, and external network connections while maintaining high availability and performance consistency.

Data Center Aggregation and High-Density Switching

In data center environments, the supervisor engine plays a critical role in aggregating traffic from multiple server racks and storage systems. Its high-speed uplink capabilities enable efficient data movement between compute resources and external networks.

This makes it suitable for virtualization environments, cloud infrastructure deployments, and high-performance computing clusters where bandwidth and reliability are essential.
