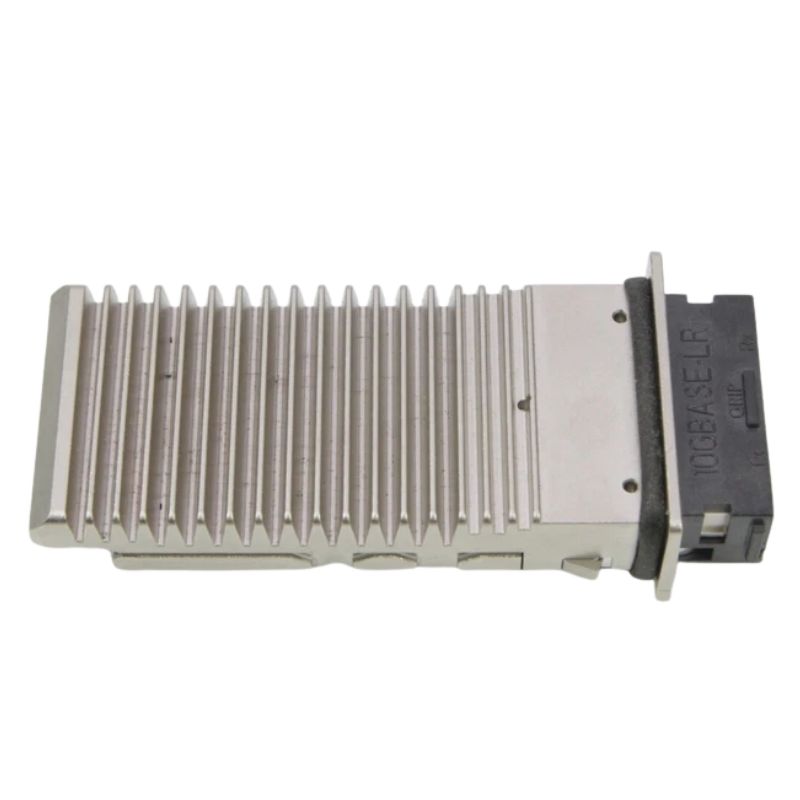

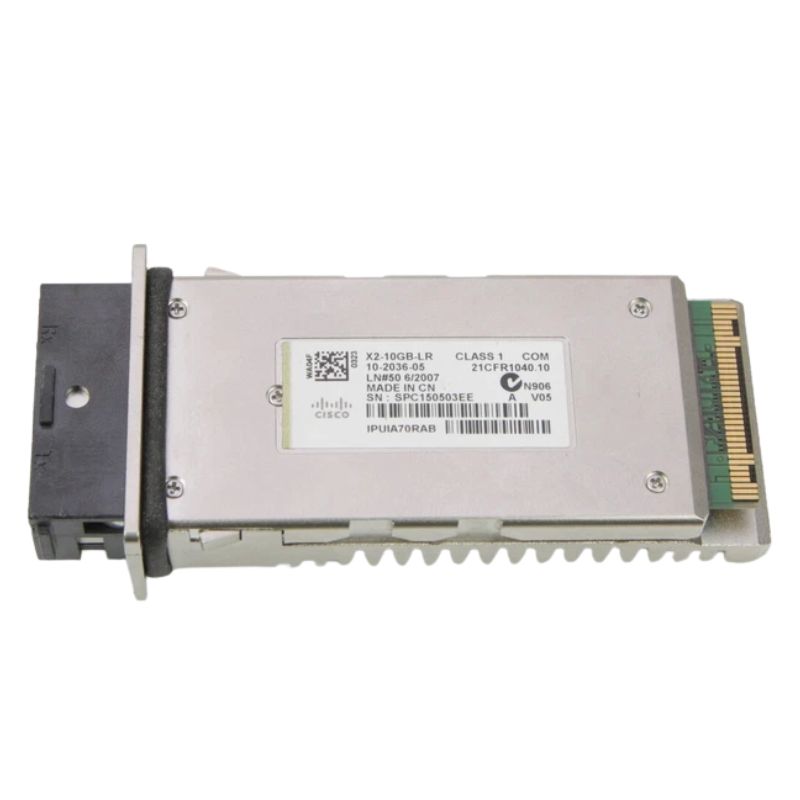

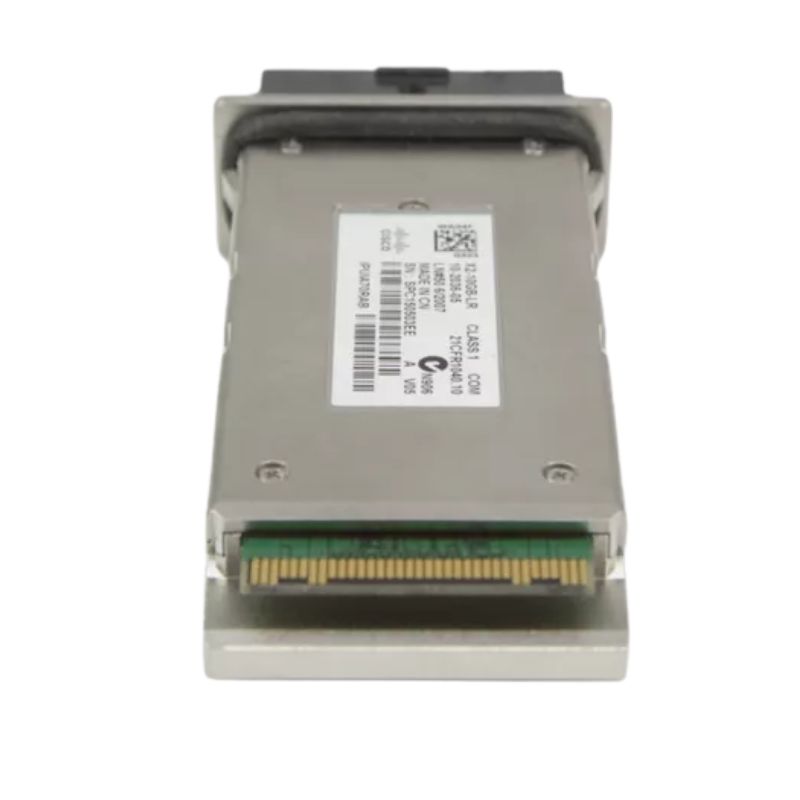

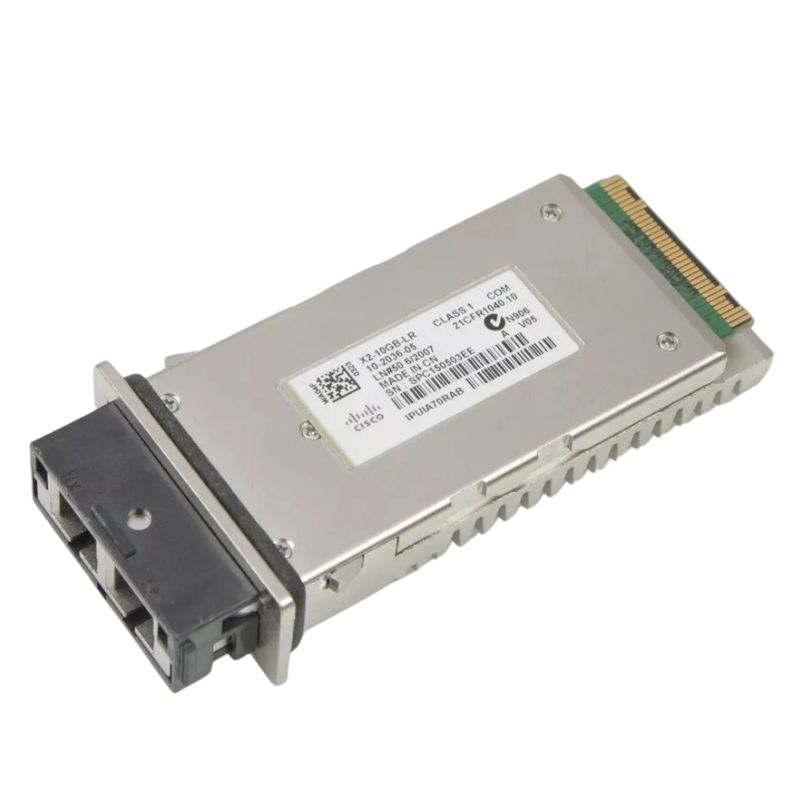

X2-10GB-LR Cisco 10GBASE-LR SMF Transceiver SC Duplex

Cisco 10GBASE-LR Transceiver Module

The Cisco X2-10GB-LR 10GBASE-LR Transceiver is a high-performance optical networking module designed for reliable long-distance data communication. This Cisco plug-in transceiver provides high-speed 10 Gigabit Ethernet connectivity over single-mode fiber (SMF) cabling, making it an ideal choice for enterprise networks, data centers, and advanced communication infrastructures.

Manufacturer Details

• Brand: Cisco
• Part Number: X2-10GB-LR
• Product Type: Optical Transceiver Module

Technical Specifications

• Device Type: Optical Transceiver Module
• Form Factor: Plug-in Module
• Interface Type: X2
• Connector Type: Duplex SC Connector
• Supports 10 Gigabit Ethernet networking
• Designed for single-mode fiber (SMF) applications
• Long-range optical transmission capability
• Hot-swappable plug-in module design
• Suitable for enterprise and data center deployments

Physical Dimensions

• Width: 3.6 cm
• Depth: 9.1 cm
• Height: 1.3 cm

Network Performance

• Network Standard: 10 Gigabit Ethernet
• Data Link Protocol: 10GbE
• Transfer Rate: Up to 10 Gbps
• Cabling Type: 10GBASE-LR Single-Mode Fiber
• Maximum Transmission Distance: Up to 10 km

IEEE Compliance

• Standard Support: IEEE 802.3ae
• Compatible with 10 Gigabit Ethernet environments
• Designed according to industry networking specifications

Cisco X2-10GB-LR SMF Transceiver Duplex SC Overview

The Cisco X2-10GB-LR 10GBASE-LR SMF Transceiver Duplex SC Connector is a high-performance optical transceiver module designed to deliver reliable 10 Gigabit Ethernet connectivity across single-mode fiber networks. Built for enterprise, data center, carrier, and service provider environments, this optical module provides long-distance network communication while maintaining the performance, stability, and compatibility expected from professional Cisco networking solutions. The transceiver operates according to the 10GBASE-LR standard, making it suitable for applications where extended transmission distance, low signal loss, and dependable optical performance are essential.

This category represents a specialized class of 10Gbps optical networking components focused on single-mode fiber connectivity. The Cisco X2-10GB-LR module uses a duplex SC connector interface and is engineered to support high-speed data transmission over standard single-mode fiber cabling. It is commonly used in network switches, routers, aggregation platforms, and other compatible networking hardware where optical uplinks are required to connect buildings, server rooms, data centers, and remote network segments.

The X2 form factor provides a modular approach to network expansion by allowing organizations to install optical interfaces according to their infrastructure requirements. Instead of replacing entire networking systems, administrators can upgrade connectivity by selecting the appropriate transceiver technology. The Cisco X2-10GB-LR is designed for users who need a balance between transmission distance, optical reliability, and compatibility with existing fiber installations.

Understanding the 10GBASE-LR Optical Technology

10GBASE-LR is a widely adopted Ethernet optical standard that supports 10 Gigabit Ethernet communication over single-mode fiber. The LR designation refers to “Long Reach,” indicating that this technology is optimized for longer-distance connections compared with short-range multimode fiber solutions. The standard is commonly deployed in environments where network equipment must communicate across larger physical spaces without sacrificing bandwidth.

The Cisco X2-10GB-LR transceiver typically operates using a 1310nm wavelength, which is a preferred optical wavelength for long-distance single-mode fiber communication. This wavelength provides efficient transmission characteristics and helps reduce signal degradation over extended fiber links. By using single-mode fiber, the module allows optical signals to travel with minimal dispersion, supporting stable communication between network devices.

For modern organizations, 10Gbps connectivity remains an important foundation for high-speed networking. Although many environments have moved toward faster interfaces, 10 Gigabit Ethernet continues to be widely used for server connections, backbone links, storage networks, and infrastructure upgrades. The Cisco X2-10GB-LR provides a practical solution for expanding network capacity without requiring complete hardware replacement.

Single-Mode Fiber Connectivity Benefits

Single-mode fiber, often abbreviated as SMF, is a fiber optic medium designed to carry light signals through a very small core. Unlike multimode fiber, which allows multiple light paths, single-mode fiber uses a single transmission path that reduces modal dispersion. This design enables longer distances and improved signal integrity, making SMF an ideal choice for applications requiring dependable optical communication.

The Cisco X2-10GB-LR is optimized for single-mode fiber environments where consistent performance is required. It supports duplex fiber connections, meaning the optical link uses two fiber strands, one for transmitting data and one for receiving data. This full-duplex communication method allows simultaneous two-way data transfer, improving network efficiency and reducing communication delays.

Organizations using single-mode fiber infrastructure can benefit from the flexibility of this transceiver category. It can support connections between network closets, campus buildings, core switches, distribution layers, and remote facilities. The combination of 10Gbps speed and long-range optical capability makes it suitable for both enterprise and service provider deployments.

Cisco X2-10GB-LR Module Design and Interface Features

The Cisco X2-10GB-LR is part of the X2 family of modular optical transceivers. The X2 form factor was developed for networking equipment that requires removable optical interfaces. This modular design allows technicians to install, replace, or upgrade optical connectivity components without changing the entire network device.

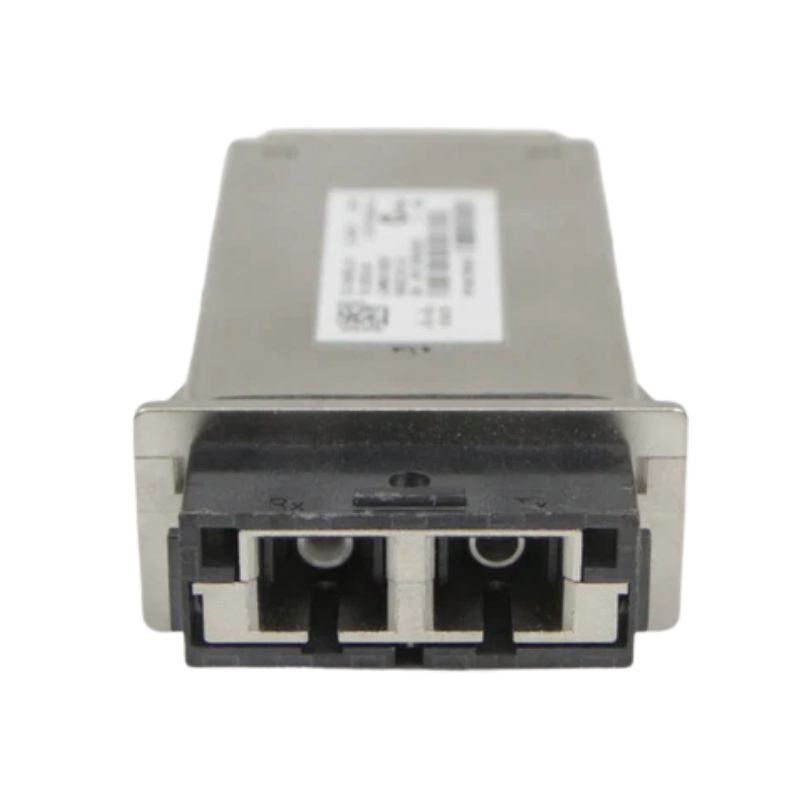

The duplex SC connector interface is one of the defining characteristics of this transceiver. SC connectors are widely recognized in fiber networking because of their secure push-pull connection mechanism and reliable alignment. The duplex configuration combines two SC fiber connections into a single optical interface, supporting both transmitting and receiving channels.

Duplex SC Connector Technology

SC connectors have been used throughout fiber optic networks because they provide consistent optical alignment and straightforward installation. Their keyed design helps prevent incorrect connections and supports reliable maintenance practices in professional networking environments. For the Cisco X2-10GB-LR, the duplex SC connector enables compatibility with existing fiber cabling systems that use standard SC interfaces.

The connector design also contributes to easier troubleshooting and network management. Technicians can quickly identify transmit and receive paths, inspect fiber connections, and replace cabling components when required. Proper fiber handling and connector maintenance help maintain optical performance and reduce potential connectivity issues.

In large-scale deployments, connector consistency is important because network infrastructure often includes hundreds or thousands of fiber links. A standardized interface such as duplex SC helps simplify installation procedures and supports organized cable management practices.

Optical Performance Characteristics

The performance of the Cisco X2-10GB-LR depends on several optical characteristics, including wavelength operation, transmission power, receiver sensitivity, and fiber quality. The module is designed to provide stable 10Gbps communication over appropriate single-mode fiber connections. These characteristics make it suitable for demanding networking environments where uptime and bandwidth availability are critical.

Optical transceivers convert electrical data signals from networking equipment into optical signals that travel through fiber. At the receiving end, the optical signal is converted back into electrical data. This conversion process enables high-speed communication across distances that traditional copper connections cannot efficiently support.

The Cisco X2-10GB-LR category is particularly valuable in networks where copper-based solutions may face distance limitations or electromagnetic interference concerns. Fiber optic connections provide immunity to many common electrical interference issues, making them suitable for industrial, enterprise, and telecommunications environments.

Applications of Cisco X2-10GB-LR 10GBASE-LR Transceivers

The Cisco X2-10GB-LR 10GBASE-LR SMF Transceiver Duplex SC Connector is used across many networking applications that require reliable high-speed optical communication. Its primary purpose is to create long-distance 10 Gigabit Ethernet links between compatible network devices.

In enterprise environments, this transceiver is often used for backbone connections between network switches and routing equipment. Large organizations frequently separate their networks into access, distribution, and core layers. The Cisco X2-10GB-LR can support communication between these layers, helping maintain fast data flow throughout the organization.

Data Center Networking Use Cases

Data centers rely on high-bandwidth connections to support servers, storage systems, virtualization platforms, and cloud applications. The Cisco X2-10GB-LR provides an optical networking option for connecting critical infrastructure components. Its single-mode fiber capability makes it useful when equipment locations are separated by longer distances within or between facilities.

Many data center architectures require scalable uplinks that can handle large volumes of traffic. Network administrators may use 10Gbps optical links for aggregation points, storage connectivity, or connections between different sections of a facility. The Cisco X2-10GB-LR helps provide the necessary bandwidth while maintaining a reliable optical path.

Campus and Enterprise Fiber Networks

Universities, corporate campuses, healthcare facilities, and government organizations often operate fiber-based networks across multiple buildings. In these environments, optical transceivers provide the connection between distributed networking equipment. The Cisco X2-10GB-LR supports these scenarios by enabling long-distance Ethernet connectivity through single-mode fiber infrastructure.

Campus networks frequently require stable communication between central data facilities and remote buildings. Fiber links provide the distance capability and bandwidth required for applications such as video communication, cloud access, centralized storage, and large-scale data transfer.

Fiber Infrastructure Compatibility Considerations

When deploying a Cisco X2-10GB-LR transceiver, network planners consider factors such as fiber type, cable quality, connector condition, and link distance. Single-mode fiber cabling must be properly installed and maintained to achieve optimal performance. Clean connectors, correct polarity, and appropriate fiber handling practices help ensure reliable operation.

Compatibility between the transceiver and networking equipment is also important. The Cisco X2-10GB-LR is designed for specific Cisco platforms that support X2-based interfaces. Before deployment, administrators verify device compatibility, software support, and interface requirements to ensure successful integration.

Advantages of Choosing Cisco X2-10GB-LR Optical Modules

The Cisco X2-10GB-LR offers several advantages for organizations seeking dependable 10Gbps optical networking. Its long-range single-mode fiber capability provides flexibility when designing network layouts. Instead of limiting equipment placement based on short copper runs, organizations can position devices where operational needs require while maintaining high-speed connectivity.

Another advantage is the modular nature of optical transceivers. Network equipment can be customized with different interface types depending on deployment requirements. This reduces unnecessary infrastructure costs and allows gradual network expansion as bandwidth demands increase.

The optical design also supports cleaner and more efficient network environments. Fiber cabling is lightweight, supports high bandwidth, and can operate effectively across distances where copper solutions become less practical. These characteristics make optical transceiver solutions an important part of modern networking strategies.

Supporting Network Scalability

Network traffic continues to increase due to cloud computing, remote collaboration, streaming services, large databases, and connected devices. A scalable infrastructure requires components that can support current needs while allowing future growth. The Cisco X2-10GB-LR provides a 10Gbps connectivity option that can help organizations expand their network capacity.

By using optical modules, administrators can upgrade specific links instead of replacing entire systems. This approach allows organizations to manage infrastructure investments efficiently while improving network performance.

Reliable Optical Communication for Professional Networks

Professional networks require consistent performance because downtime can affect productivity, customer services, and critical operations. Optical transceivers such as the Cisco X2-10GB-LR are designed to support stable communication between network devices. Proper installation, monitoring, and maintenance contribute to long-term reliability.

The use of standardized optical technologies also simplifies network planning. Engineers can design structured fiber networks with predictable performance characteristics, making troubleshooting and future expansion easier.

Importance of Proper Fiber Management

Fiber management plays a major role in maintaining network performance. Excessive bending, poor routing, or unsecured cables can affect optical signals. Organized cable pathways and appropriate fiber management systems help protect infrastructure and simplify future changes.

In large deployments, documentation of fiber connections is also valuable. Accurate records allow technicians to quickly identify link paths, connected devices, and available capacity when performing upgrades or troubleshooting activities.

Cisco X2-10GB-LR in Modern Network Upgrades

Many organizations continue to upgrade their network infrastructure to support higher data demands. While newer technologies continue to emerge, 10 Gigabit Ethernet remains an important networking standard because of its broad adoption and compatibility with existing systems. The Cisco X2-10GB-LR provides a practical upgrade path for compatible Cisco environments.

This transceiver category supports organizations that need dependable optical connectivity without immediately transitioning to higher-speed platforms. It can help extend the operational life of existing network equipment while improving communication capacity.
