X2-10GB-LR Cisco Transceiver Module X2 Duplex SC Connector

Cisco X2-10GB-LR 10GBASE-LR SMF Transceiver Overview

The Cisco X2-10GB-LR 10GBASE-LR SMF Transceiver Duplex SC Connector represents a high-performance optical networking solution designed for organizations requiring reliable 10 Gigabit Ethernet connectivity over long-distance fiber optic infrastructure. This transceiver belongs to the Cisco X2 optical module family and is engineered to support data communication environments where speed, stability, and extended transmission distance are essential. Built for compatibility with Cisco networking equipment that supports X2 form factor interfaces, this optical transceiver provides a dependable method for expanding network capacity while maintaining efficient signal transmission across single-mode fiber (SMF) cabling.

The X2-10GB-LR module uses 10GBASE-LR technology, which is part of the IEEE 802.3ae standard for 10 Gigabit Ethernet over fiber optic networks. The LR designation refers to Long Reach capability, making this transceiver suitable for applications that require communication over significantly greater distances compared with short-range optical modules. By utilizing single-mode fiber and a duplex SC connector interface, the module delivers consistent optical performance for enterprise networks, data centers, telecommunications environments, campus networks, and other demanding infrastructure deployments.

Designed with a focus on performance and interoperability, the Cisco X2-10GB-LR transceiver enables network administrators to build scalable and flexible high-speed connections. It supports full-duplex communication, allowing simultaneous data transmission and reception through separate fiber strands. This architecture improves network efficiency and ensures that high-volume applications such as cloud services, virtualization platforms, video transmission, storage networks, and large-scale data transfers can operate smoothly.

Understanding the 10GBASE-LR Optical Technology

10GBASE-LR is one of the most widely adopted optical standards for 10 Gigabit Ethernet connectivity. It is specifically developed for long-range communication using single-mode fiber cabling. Unlike multimode fiber solutions that are commonly used for shorter distances, single-mode fiber provides a narrower optical path that reduces signal dispersion and allows data to travel much farther with improved reliability.

The Cisco X2-10GB-LR module operates using a wavelength of approximately 1310 nanometers, which is optimized for long-distance single-mode fiber transmission. This wavelength provides an effective balance between transmission distance, optical efficiency, and network reliability. The module is commonly deployed in backbone connections, inter-building links, metropolitan area networks, and other applications where maintaining strong connectivity across extended fiber runs is required.

Long Distance Fiber Connectivity Advantages

One of the key benefits of the Cisco X2-10GB-LR 10GBASE-LR SMF Transceiver is its ability to support long-distance optical communication. The module is designed for networks that require stable connections beyond the limitations of copper cabling or short-range optical solutions. Through single-mode fiber technology, the transceiver helps reduce attenuation and signal degradation, providing a dependable foundation for high-speed data transmission.

Long-distance optical connectivity is especially valuable for modern organizations that operate distributed infrastructure. Businesses with multiple buildings, large campuses, remote facilities, or centralized data resources can use this type of transceiver to establish high-capacity network links. The extended reach capability allows network designers to create efficient layouts without requiring excessive intermediate equipment or signal regeneration points.

Cisco X2 Form Factor and Hardware Compatibility

The Cisco X2-10GB-LR transceiver uses the X2 form factor, a modular optical interface developed for certain generations of Cisco high-performance networking hardware. X2 modules are designed to provide a secure connection between network switches, routers, and optical fiber systems. They feature a robust mechanical design that supports reliable installation and removal while maintaining proper alignment between the optical components and fiber connectors.

The X2 form factor was created to address the requirements of early 10 Gigabit Ethernet deployments by offering a hot-swappable optical interface. This allows network administrators to replace or install optical modules without shutting down the entire networking system, helping reduce maintenance time and minimize service interruptions.

Integration with Enterprise Networking Environments

The Cisco X2-10GB-LR module is commonly used in enterprise networking environments where high bandwidth and dependable communication are critical. Organizations rely on optical transceivers like this to connect core switches, distribution layers, aggregation points, and high-performance network devices. By providing a flexible optical interface, the module helps support evolving network architectures and increasing bandwidth requirements.

As applications continue to demand faster access to centralized resources, enterprises require network components capable of handling large amounts of traffic. The Cisco X2-10GB-LR transceiver supports these requirements by delivering 10 Gigabit Ethernet performance over fiber infrastructure that can accommodate future expansion and increased data consumption.

Single-Mode Fiber Performance Characteristics

Single-mode fiber is a critical component of the Cisco X2-10GB-LR optical solution. Unlike multimode fiber, which allows multiple light paths to travel through the core, single-mode fiber uses a smaller core diameter that enables a single light path. This design significantly reduces modal dispersion, allowing signals to maintain quality over longer distances.

The use of single-mode fiber makes the X2-10GB-LR suitable for applications where consistent optical performance is required. It provides a reliable transmission medium for high-speed networking and helps organizations maximize the value of their existing fiber infrastructure. When properly installed with compatible fiber cables and connectors, single-mode fiber links can deliver stable performance for many years.

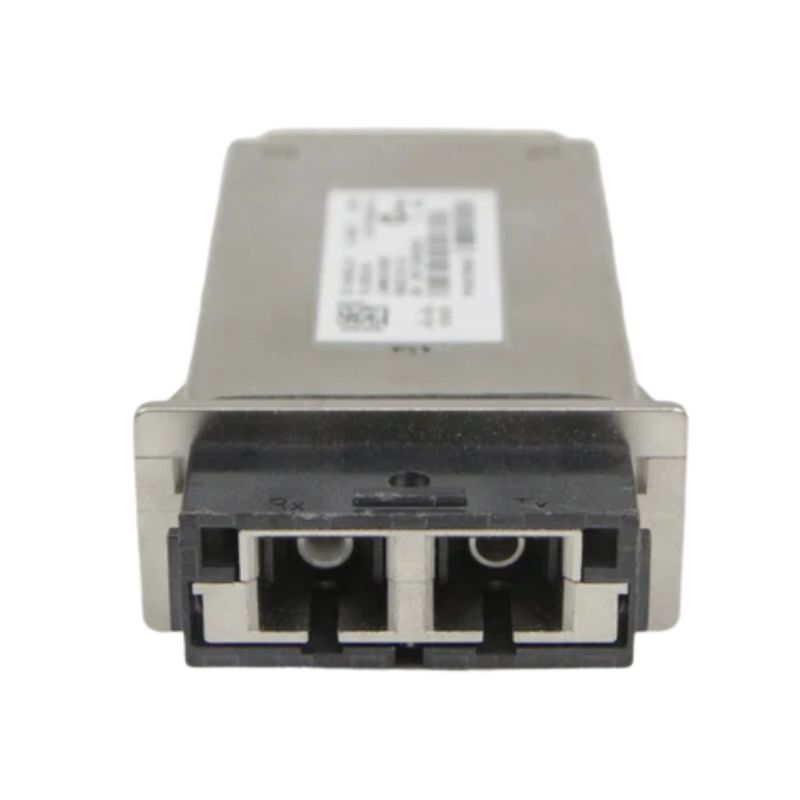

Duplex SC Connector Design and Fiber Interface

The Cisco X2-10GB-LR transceiver features a duplex SC connector interface, a widely recognized fiber optic connector type used in many professional networking installations. Duplex SC connectors contain two separate fiber channels, one for transmitting optical signals and one for receiving optical signals. This design supports full-duplex communication and enables continuous two-way data exchange between connected network devices.

The SC connector design is known for its push-pull coupling mechanism, which provides secure attachment while allowing straightforward installation and removal. This makes it practical for network environments where technicians need a reliable connector that can be managed efficiently during deployment and maintenance activities.

Benefits of Duplex Fiber Communication

Duplex fiber communication plays an important role in modern Ethernet networks because it allows simultaneous upstream and downstream traffic. The transmitting fiber sends data from one network device while the receiving fiber accepts incoming information at the same time. This approach improves communication efficiency and supports the performance requirements of bandwidth-intensive applications.

With the Cisco X2-10GB-LR module, duplex fiber connectivity enables smooth operation for applications including enterprise data exchange, storage replication, network virtualization, multimedia services, and large-scale file transfers. The optical design helps maintain reliable communication even under demanding network conditions.
