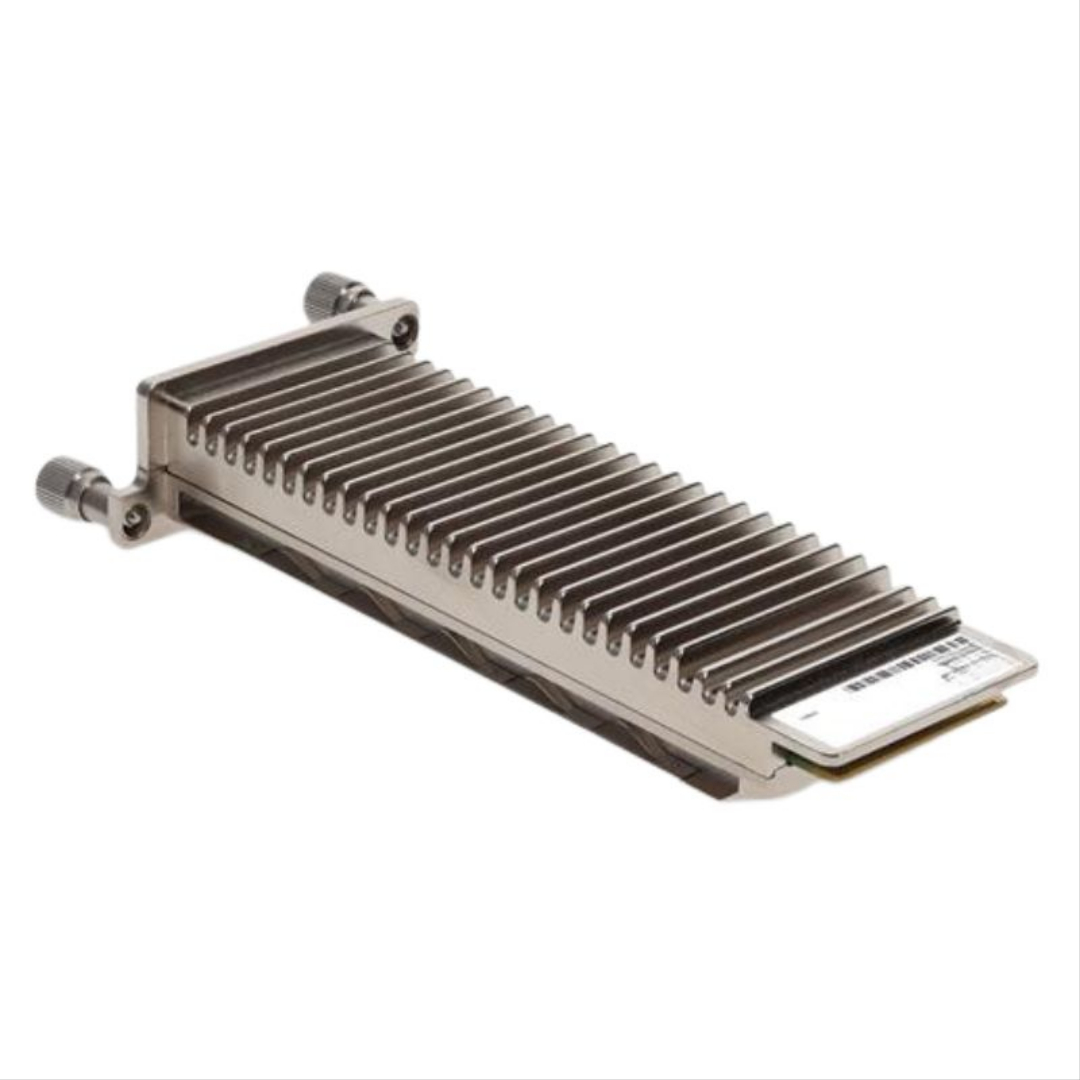

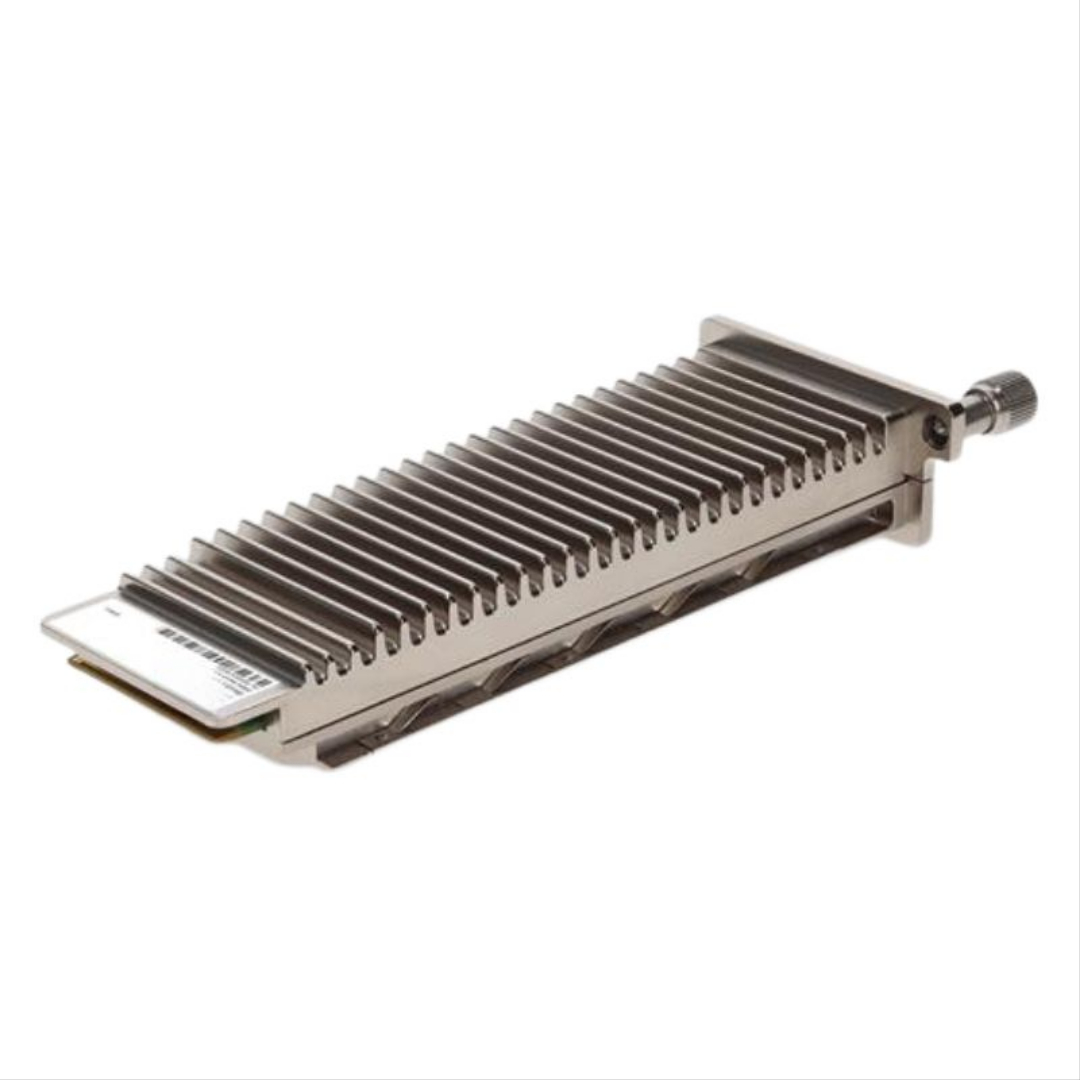

XENPAK-10GB-LR+ Cisco Transceiver Module 10GBPS SC Connector

Overview of XENPAK-10GB-LR+ 10GBPS SC Transceiver Module

The XENPAK-10GB-LR+ Cisco 10Gbps 10GBase-LR single-mode fiber optical transceiver module represents a critical component in high-speed enterprise and carrier-grade networking infrastructures. Designed under the IEEE 802.3ae 10 Gigabit Ethernet standard, this module operates at a wavelength of 1310nm and supports long-reach data transmission up to 10 kilometers over duplex single-mode fiber (SMF). It belongs to the XENPAK form factor family, one of the earliest standardized pluggable 10G optical modules engineered for robust performance, thermal stability, and interoperability in demanding network environments.

Within the broader category of 10 Gigabit Ethernet optical modules, the LR+ variant stands out for its optimized balance between transmission distance, cost efficiency, and compatibility with legacy and modern switching platforms. It is widely used in campus backbones, enterprise aggregation layers, metro Ethernet networks, and data center interconnects where stable long-distance optical connectivity is required without signal degradation.

Role of XENPAK Modules in High-Speed Networking Infrastructure

XENPAK modules were among the first generations of 10G optical transceivers introduced for enterprise switching systems. Their larger form factor compared to later standards such as SFP+ and XFP allows for enhanced thermal dissipation and robust electrical interfacing. The XENPAK-10GB-LR+ variant specifically supports long-range optical transmission, making it ideal for connecting geographically separated network nodes such as buildings within a campus or aggregation points in metropolitan fiber networks.

This category of optical module is engineered to provide consistent performance under continuous high-throughput traffic conditions, ensuring minimal packet loss and stable optical signal integrity over extended distances.

Optical Technology and 1310nm Transmission Principles

Understanding 1310nm Wavelength Operation

The 1310nm wavelength used in the XENPAK-10GB-LR+ module falls within the second optical transmission window of fiber optics, which is widely utilized for medium to long-range communication. This wavelength is optimized for reduced chromatic dispersion in single-mode fiber, allowing signals to travel up to 10km without requiring regeneration.

The laser source used in this module is typically an internally modulated distributed feedback (DFB) laser, which ensures stable output power and narrow spectral width. This enhances transmission accuracy and reduces jitter, which is essential for high-speed Ethernet communication at 10Gbps.

Signal Propagation Over Single-Mode Fiber

Single-mode fiber is engineered with a small core diameter that allows only one propagation mode of light, effectively eliminating modal dispersion. This characteristic is essential for long-distance high-bandwidth transmissions. In the XENPAK-10GB-LR+ module category, this ensures that optical signals maintain integrity over distances up to 10 kilometers without significant attenuation or distortion.

The use of duplex SC connectors provides separate transmission and reception channels, ensuring full-duplex communication. This design enables simultaneous bidirectional data flow, which is fundamental for modern Ethernet networking architectures.

Cisco XENPAK Architecture and Design Characteristics

Physical Structure and Form Factor Advantages

The XENPAK form factor is significantly larger than newer optical module designs, which provides improved heat dissipation and mechanical durability. This is particularly beneficial in environments where network equipment operates under heavy loads and sustained high traffic conditions. The internal structure includes integrated optics, signal conditioning circuits, and diagnostic monitoring components.

The Cisco implementation of the XENPAK-10GB-LR+ module ensures tight integration with Cisco switching platforms, allowing for seamless communication between optical and electrical domains. The module also includes advanced digital diagnostics monitoring (DDM) capabilities, which provide real-time feedback on optical power levels, temperature, laser bias current, and voltage.

Electrical Interface and Host System Integration

The electrical interface of the XENPAK module is designed to support 10Gbps serial data transmission with high signal integrity. It connects directly to the host switch or router through a standardized connector interface that ensures low latency and minimal signal loss. This makes it suitable for mission-critical networking environments where uptime and performance are essential.

Fiber Compatibility and Cabling Infrastructure

Single-Mode Fiber (SMF) Requirements

The XENPAK-10GB-LR+ module is specifically designed for use with single-mode fiber optic cabling. SMF cables typically have a core diameter of approximately 8 to 10 microns, allowing only a single light propagation path. This minimizes dispersion and enables long-distance transmission with high bandwidth efficiency.

In structured cabling environments, SMF deployment is commonly used for backbone connections between buildings, data centers, and network aggregation points. The module's compatibility with 10km transmission distances makes it highly suitable for metropolitan area networks (MANs) and campus-wide deployments.

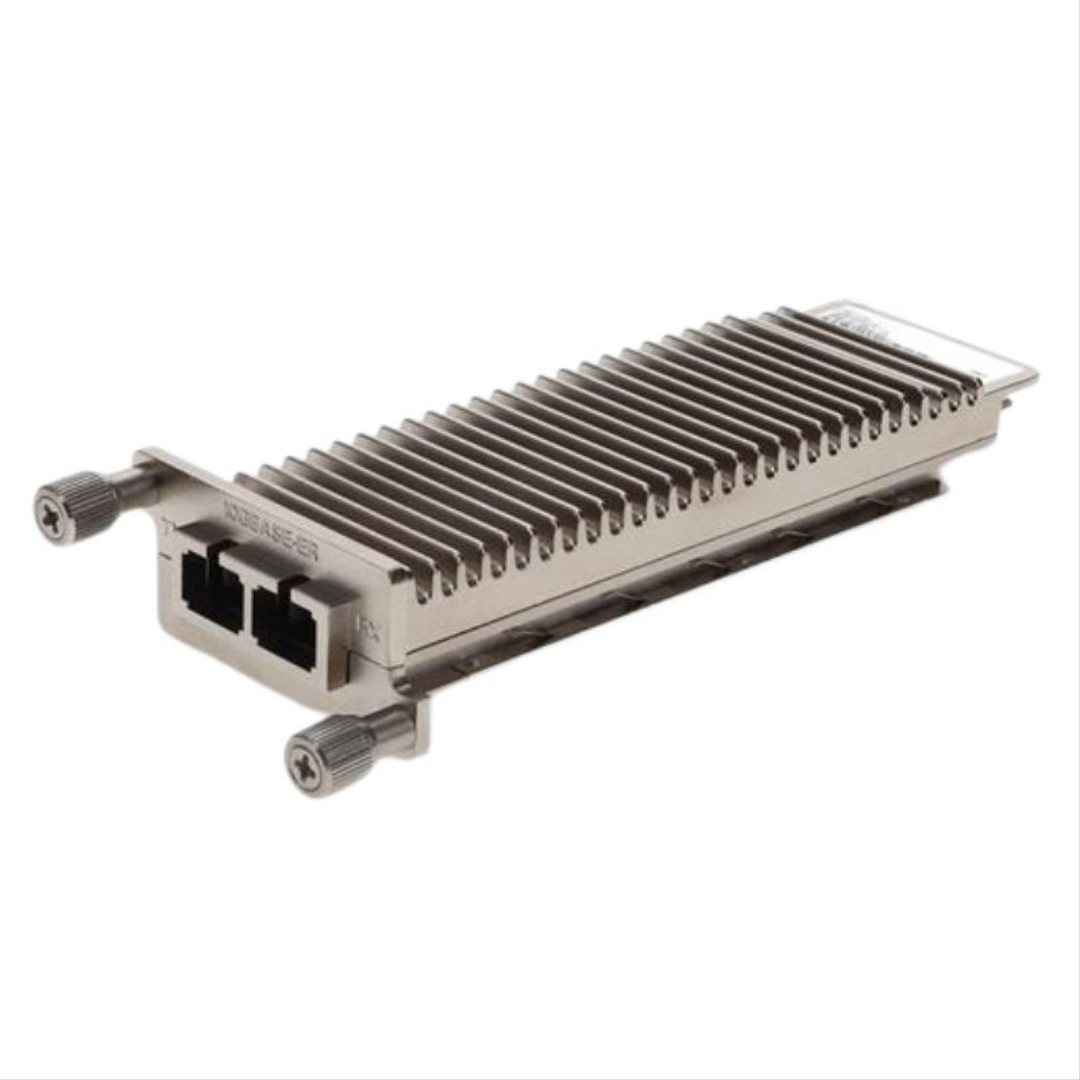

Duplex SC Connector Interface

The duplex SC connector used in this module category is a widely adopted fiber optic interface known for its snap-in locking mechanism and reliable optical alignment. It consists of two fiber strands, one for transmission and one for reception, enabling full-duplex communication over a single physical interface.

The SC interface ensures low insertion loss and high return loss performance, which are essential parameters in maintaining signal quality over long distances. Proper connector cleaning and inspection are critical for maintaining optimal performance in this category of optical transceivers.

Performance Characteristics and Transmission Efficiency

10Gbps Data Rate Stability

The XENPAK-10GB-LR+ module operates at a consistent 10Gbps line rate, supporting full-duplex Ethernet traffic. This level of throughput is essential for backbone network links, high-performance computing clusters, and enterprise data centers that require reliable and predictable bandwidth.

The module maintains stable bit error rates (BER) under recommended operating conditions, ensuring data integrity across long-distance fiber links. Advanced error correction mechanisms implemented at the network layer further enhance transmission reliability.

Optical Power Budget and Link Distance

The optical power budget is a critical parameter in evaluating the performance of long-range transceivers. The XENPAK-10GB-LR+ category is engineered to support a power budget sufficient for 10km single-mode fiber links. This ensures that even with connector losses, fiber attenuation, and environmental factors, the signal remains within acceptable thresholds.

Environmental Stability and Operating Conditions

This module category is designed to operate across a wide temperature range, making it suitable for both controlled data center environments and more variable telecom installations. Thermal stability is enhanced by the XENPAK form factor, which allows efficient heat dissipation during continuous operation.

Network Applications and Deployment Scenarios

Enterprise Backbone Connectivity

In enterprise environments, the XENPAK-10GB-LR+ module is commonly used to interconnect core switches across multiple buildings or floors. This ensures high-speed data exchange between departments, servers, and storage systems. The long reach capability reduces the need for intermediate signal regeneration equipment, simplifying network design.

Data Center Interconnect (DCI)

Data centers often require reliable interconnects between separate facilities. This module category supports such deployments by providing high-bandwidth, low-latency optical links over distances up to 10 kilometers. It is especially useful in disaster recovery architectures and distributed cloud environments.

Metro Ethernet and Service Provider Networks

Service providers utilize XENPAK-10GB-LR+ modules in metro Ethernet infrastructures to deliver high-speed connectivity between customer sites and central offices. The 1310nm wavelength and SMF compatibility make it ideal for scalable metropolitan deployments.

Interoperability and IEEE Standards Compliance

IEEE 802.3ae Compliance

The module fully complies with the IEEE 802.3ae standard for 10 Gigabit Ethernet over optical fiber. This ensures interoperability with a wide range of networking equipment from different manufacturers, provided that compatibility matrices are followed.

Standard compliance guarantees consistent performance characteristics, including encoding schemes, modulation techniques, and physical layer signaling requirements.

Cross-Vendor Compatibility Considerations

While Cisco modules are optimized for Cisco networking equipment, many deployments require interoperability with third-party switches and routers. Proper configuration and compatibility validation ensure that the XENPAK-10GB-LR+ module can function effectively in heterogeneous network environments.

Digital Diagnostics Monitoring and Signal Integrity

Real-Time Optical Monitoring Capabilities

The module supports Digital Diagnostics Monitoring (DDM), which allows network administrators to track critical parameters such as transmit power, receive power, temperature, and laser bias current. This real-time visibility helps in proactive maintenance and fault detection.

Monitoring these parameters is essential for maintaining long-term network stability and identifying potential issues before they impact service quality.

Signal Degradation and Loss Detection

Signal degradation can occur due to fiber bending, dirty connectors, or excessive distance beyond specification. The diagnostic capabilities of the module allow for early detection of such issues, enabling corrective action before significant network disruption occurs.

Power Consumption and Thermal Management

Energy Efficiency in XENPAK Modules

Due to its larger physical design, the XENPAK module consumes more power compared to modern SFP+ transceivers. However, this trade-off provides enhanced thermal stability and robustness, making it suitable for high-density switching environments where reliability is prioritized over minimal power consumption.

Heat Dissipation Mechanisms

Efficient heat dissipation is achieved through the module's metallic housing and internal thermal design. This ensures stable performance even under continuous 10Gbps traffic loads, reducing the risk of overheating and performance degradation.

Installation Guidelines and Network Integration

Physical Installation Process

Proper installation of the XENPAK-10GB-LR+ module involves careful insertion into the compatible Cisco switch or router port. The module must be securely seated to ensure optimal electrical contact and optical alignment. Fiber optic cables should be connected with attention to polarity and cleanliness.

Fiber Handling Best Practices

Handling single-mode fiber requires precision and care to avoid micro-bending losses and contamination. Proper cable management ensures long-term signal integrity and reduces the likelihood of transmission errors.
