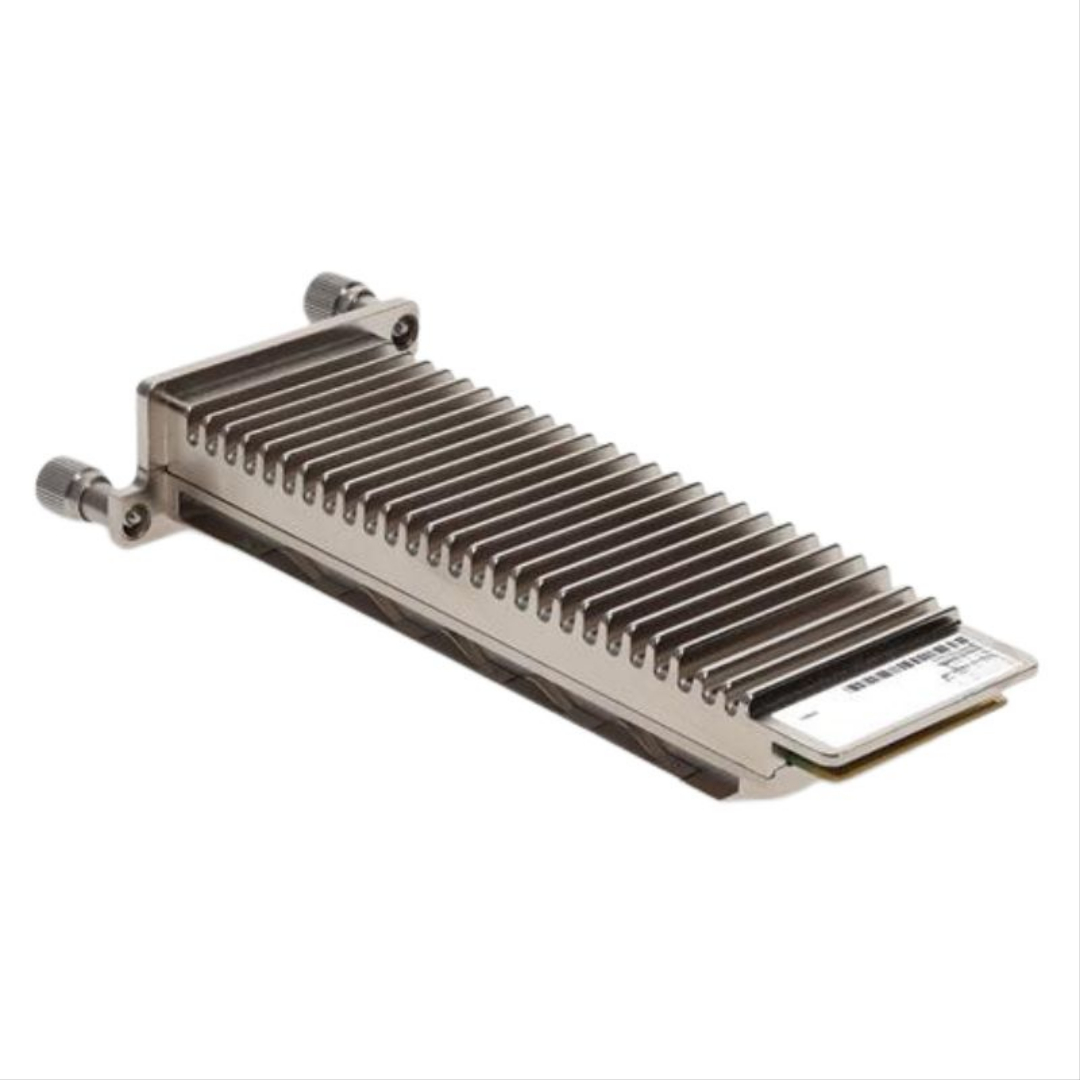

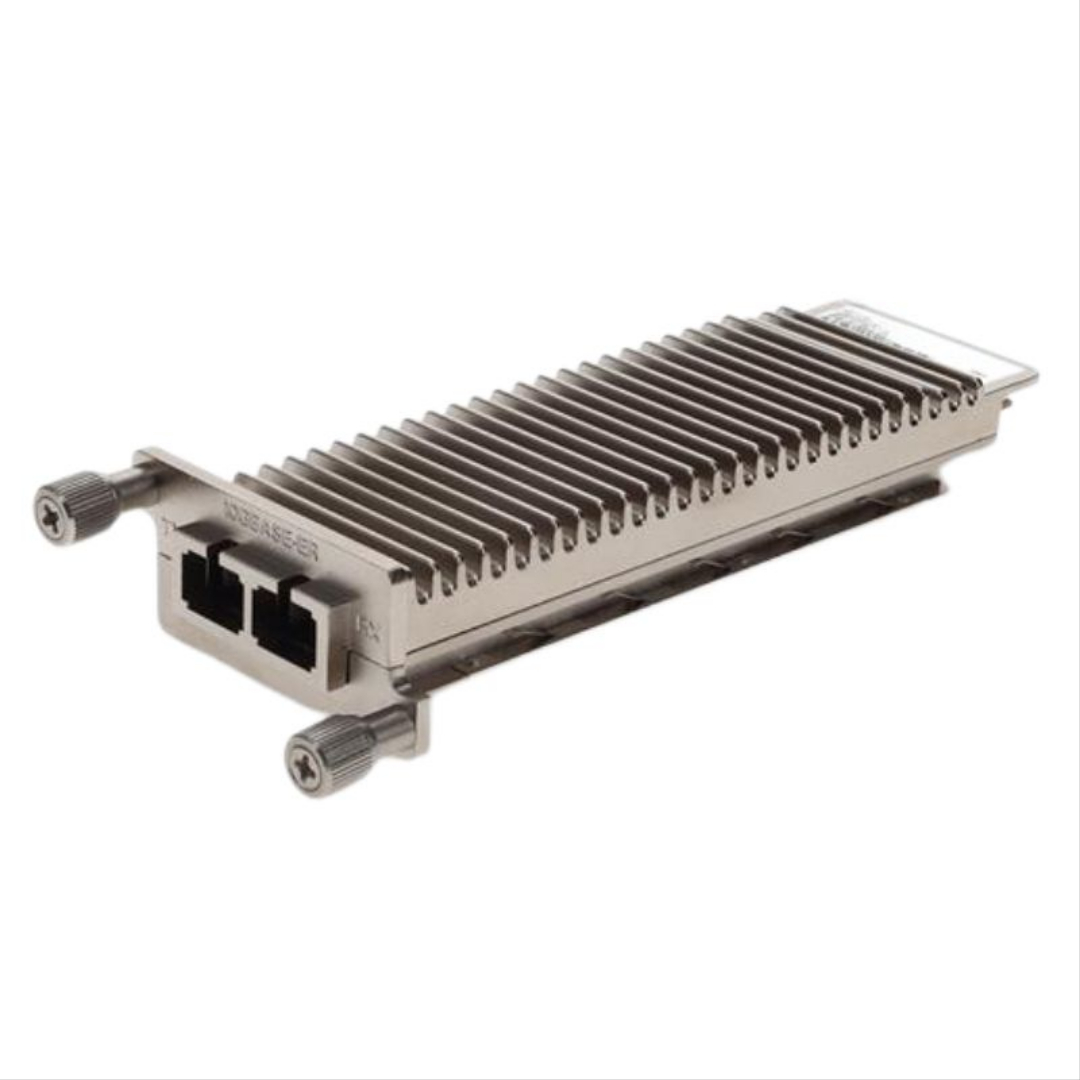

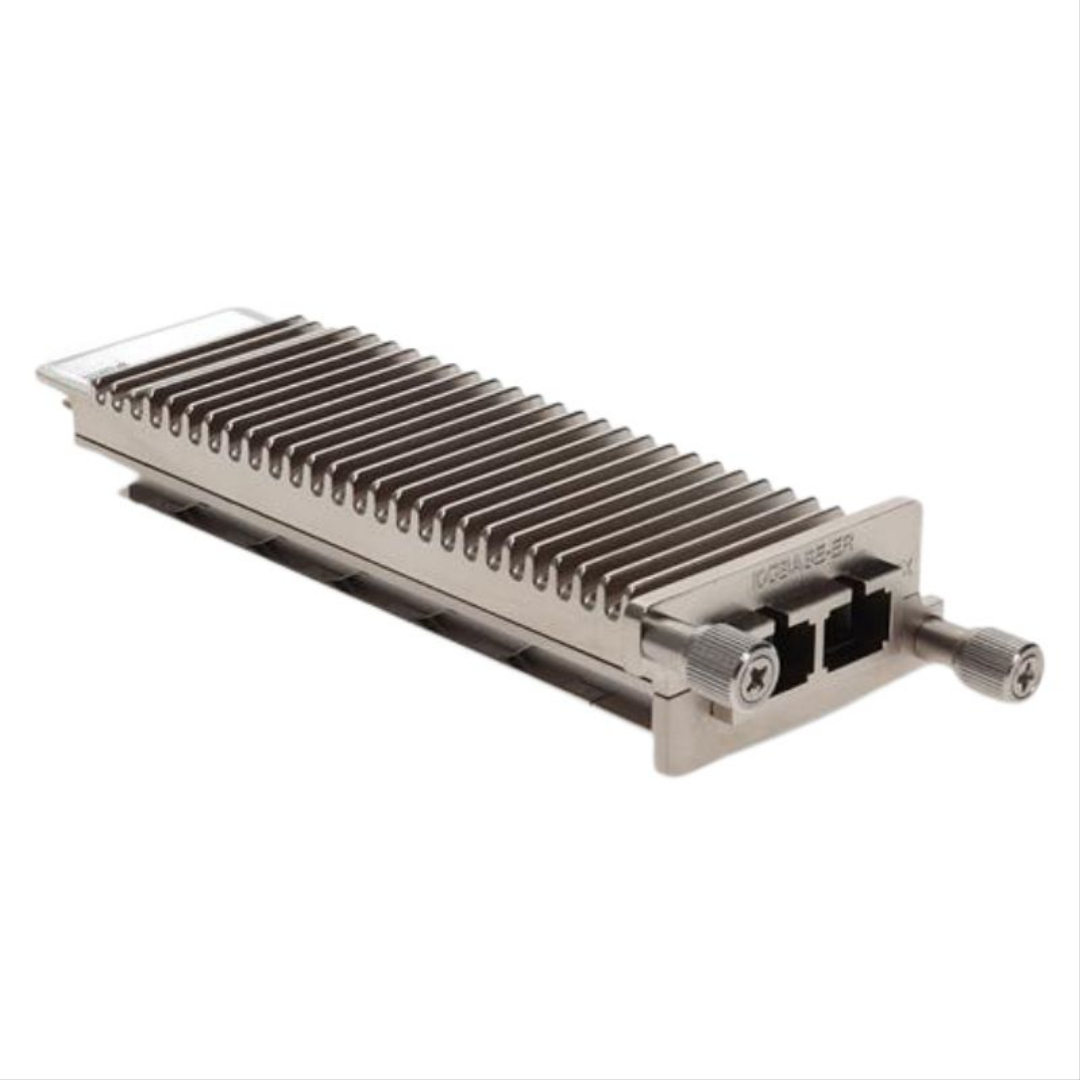

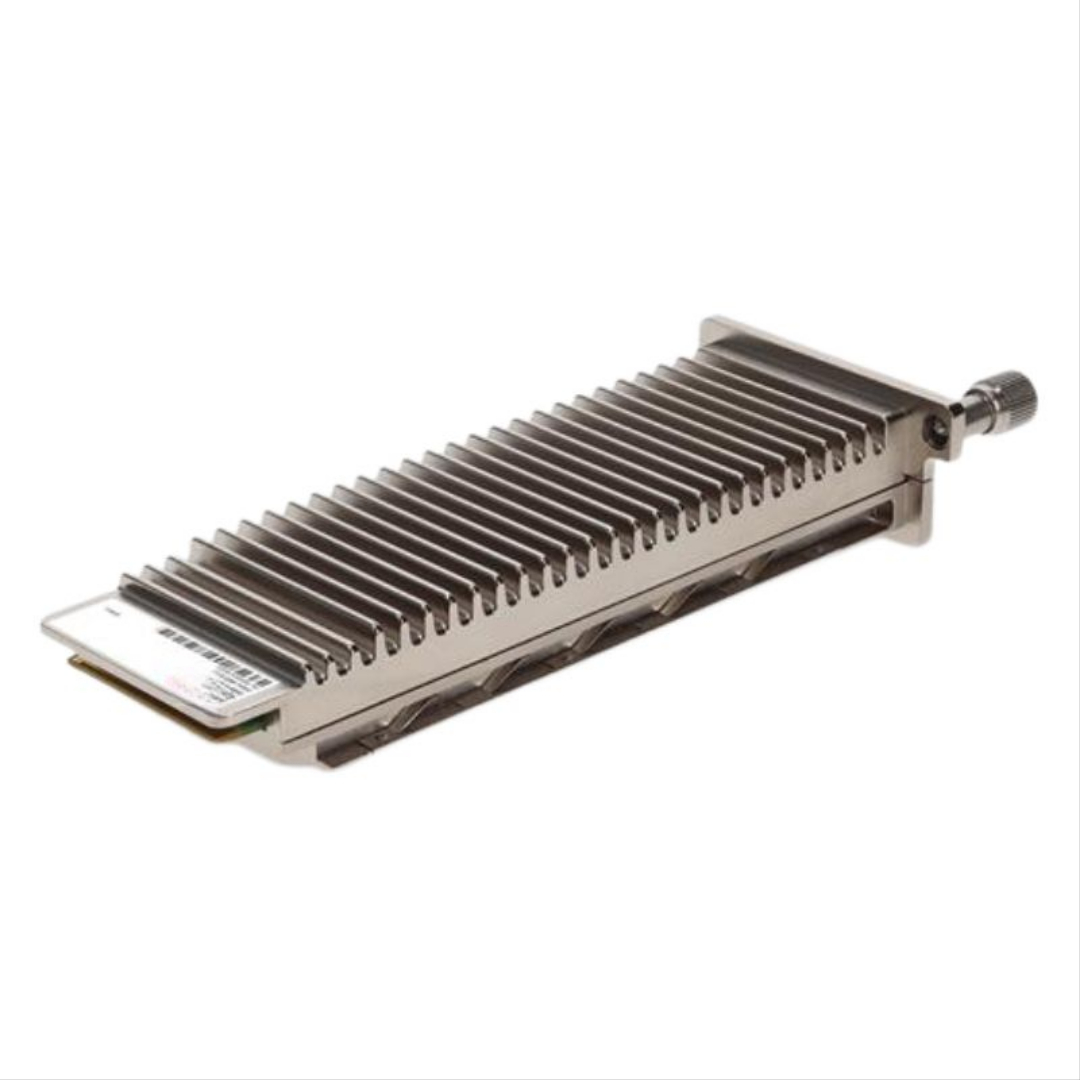

XENPAK-10GB-LR+ Cisco Transceiver Module Duplex SC Connector

Highlights of Cisco 10GBPS Single-Mode Transceiver

The Cisco XENPAK-10GB-LR+ is a high-performance 10Gbps Xenpak transceiver module. Designed for single-mode fiber communication, this optical device ensures reliable long-distance Ethernet connectivity with advanced compliance and efficient data transfer for enterprise-grade infrastructures.

Product Identification

• Brand: Cisco
• Model Number: XENPAK-10GB-LR+
• Product Type: Transceiver Module

Technical Highlights

• Plug-in module design
• Compact and hot-swappable for seamless integration
• Interface (bus) Type: Xenpak
• Dimensions: 1.4 in × 4.8 in × 0.7 in

Cabling Type

• Ethernet 10GBase-LR
• Supports single-mode fiber (SMF)

Data Link Protocol

• 10 Gigabit Ethernet
• Stable and efficient throughput

Performance Features

• Data Transfer Rate: 10 Gbps
• Maximum Transfer Distance: 6.2 miles (10 km)

Optical Characteristics

• Wavelength: 1310 nm
• Connector Type: Duplex SC

Compliance and Standards

• IEEE 802.3ae compliant
• Meets industry standards for safety and performance

Key Benefits

• High-speed 10Gbps Ethernet connectivity
• Reliable long-distance transmission up to 10 km
• Energy-efficient optical performance
• Hot-swappable plug-in design for easy deployment
• Compliance with IEEE 802.3ae standards

Cisco XENPAK-10GB-LR+ 10GBase-LR Transceiver Overview

The XENPAK-10GB-LR+ Cisco 10Gbps 10GBase-LR Single-mode Fiber 10km 1310nm Duplex SC Connector Xenpak Transceiver Module category represents a high-performance class of optical networking hardware designed for long-reach enterprise and service provider environments. Built around the IEEE 802.3ae 10 Gigabit Ethernet standard, this category focuses on delivering stable, high-bandwidth optical transmission over single-mode fiber (SMF) infrastructure, enabling reliable data communication across metropolitan, campus, and data center backbone networks.

Within modern optical networking ecosystems, XENPAK modules are recognized for their robust physical form factor, integrated optical-electrical conversion capabilities, and compatibility with legacy and enterprise-grade switching platforms. The 10GBase-LR variant specifically emphasizes long-range reach capability up to 10 kilometers over 1310nm wavelength transmission, making it suitable for inter-building links and core network aggregation layers.

Architecture of XENPAK-10GB-LR+ Optical Modules

Optical and Electrical Signal Conversion Mechanism

The XENPAK-10GB-LR+ module operates by converting 10 Gigabit Ethernet electrical signals into optical signals using a laser transmitter operating at 1310nm wavelength. The optical signal is transmitted through single-mode fiber and received by a photodetector that converts the signal back into electrical form. This bidirectional conversion process ensures minimal signal degradation over long distances and supports consistent throughput performance required for mission-critical applications.

Integrated Circuit and Signal Processing Design

At the core of the module is a high-speed serializer/deserializer (SerDes) architecture that manages data encoding and decoding. The module incorporates clock data recovery (CDR) functionality to maintain signal integrity across long-distance transmissions. Advanced modulation techniques ensure that jitter, attenuation, and dispersion effects are minimized, particularly in high-density network deployments.

Thermal and Power Management System

The XENPAK form factor includes built-in thermal dissipation structures designed to handle higher power consumption compared to smaller optical transceivers such as SFP+ or XFP modules. Efficient heat spreaders and integrated thermal monitoring circuits help maintain operational stability in high-temperature data center environments.

10GBase-LR Standard and Industry Compliance

IEEE 802.3ae Standard Alignment

The 10GBase-LR specification follows the IEEE 802.3ae standard for long-reach optical Ethernet transmission. This ensures interoperability with a wide range of network switches, routers, and optical transport equipment that adhere to the same protocol standards. Compliance guarantees that the module supports consistent 10Gbps full-duplex transmission with predictable latency and error control mechanisms.

Protocol Transparency and Network Layer Integration

The module is protocol-transparent at the physical layer, supporting Ethernet frames without modification. This allows seamless integration into Layer 2 and Layer 3 network architectures. It is commonly deployed in aggregation switches, core routers, and optical distribution networks where deterministic performance is required.

XENPAK Form Factor Engineering and Design Characteristics

Physical Structure and Module Dimensions

The XENPAK form factor is one of the earliest standardized 10G optical module designs. It features a relatively large housing compared to modern compact modules, which allows for enhanced thermal handling and integrated circuitry. The robust mechanical structure supports hot-swappable installation, enabling network administrators to replace or upgrade modules without powering down equipment.

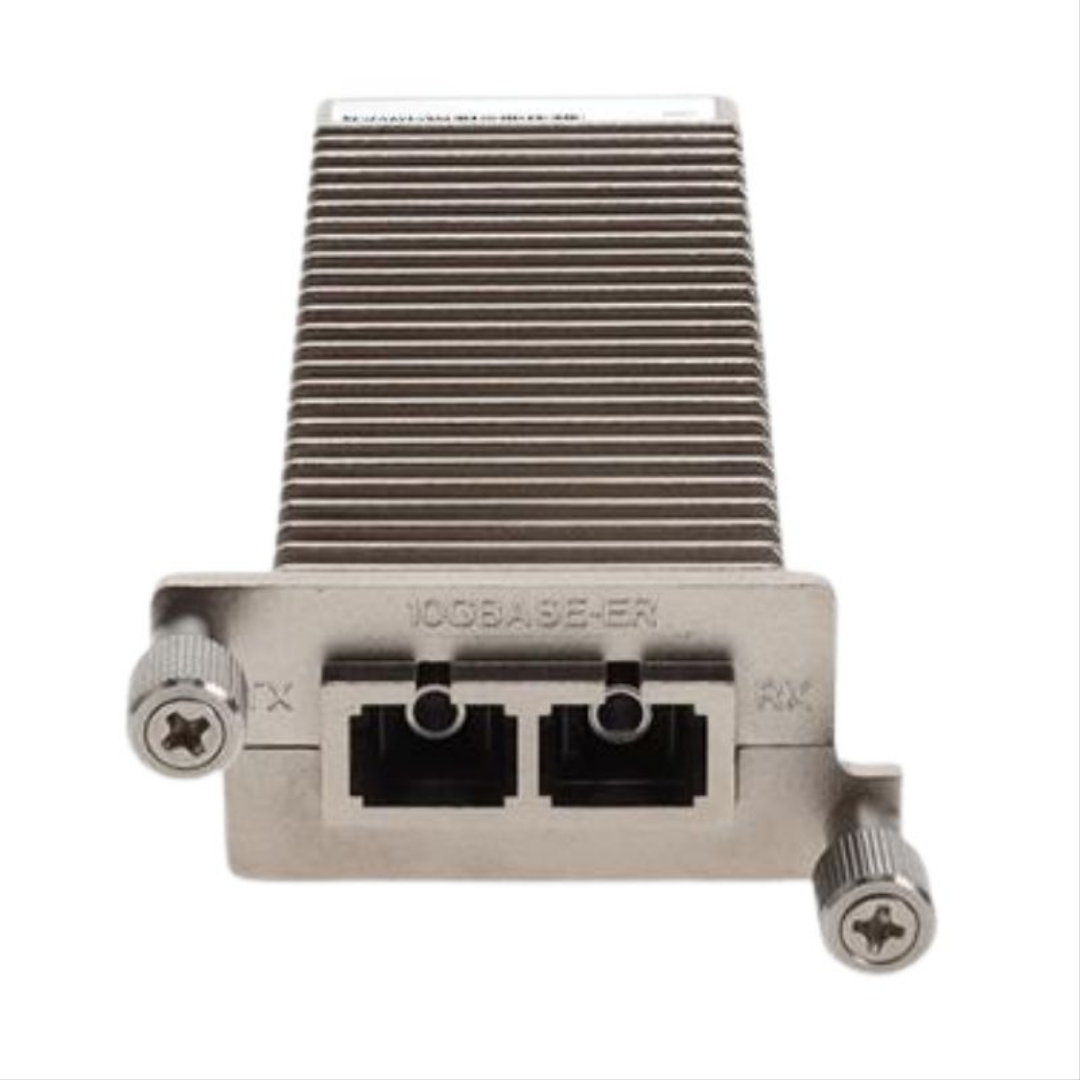

SC Duplex Connector Interface

This category utilizes a duplex SC connector interface, which provides secure, snap-in fiber termination for both transmit and receive channels. The SC connector design ensures low insertion loss and stable alignment, reducing signal reflection and improving optical performance consistency across long distances.

Mechanical Durability and Hot-Swap Capability

Engineered for enterprise-grade environments, the module supports repeated insertion cycles and maintains stable optical alignment over time. The hot-swappable design reduces network downtime and supports scalable infrastructure upgrades in live production environments.

1310nm Wavelength Transmission Characteristics

Optimal Signal Propagation in Single-Mode Fiber

The 1310nm wavelength is widely used in long-reach optical communication due to its low chromatic dispersion characteristics in standard single-mode fiber. This allows signals to travel up to 10 kilometers without requiring regeneration or amplification under typical conditions, making it highly efficient for backbone network links.

Attenuation and Dispersion Control

At 1310nm, optical attenuation is minimized compared to shorter wavelengths, resulting in more stable signal transmission across extended distances. This wavelength also reduces modal dispersion, ensuring cleaner signal reconstruction at the receiver end.

Compatibility with Optical Infrastructure

The module is compatible with standard ITU-T G.652 single-mode fiber infrastructure, which is widely deployed in enterprise and telecommunications networks. This ensures easy integration into existing optical cabling systems without requiring infrastructure redesign.

10km Transmission Reach and Network Deployment Scenarios

Metropolitan Area Network Connectivity

The 10km reach capability makes the XENPAK-10GB-LR+ suitable for metropolitan area network (MAN) deployments where multiple buildings or network nodes must be interconnected across urban environments. It provides a cost-effective alternative to leased line services while maintaining high bandwidth performance.

Campus and Enterprise Backbone Links

Large enterprise campuses frequently rely on this module category to interconnect data centers, administrative buildings, and network distribution hubs. The extended reach ensures uninterrupted high-speed communication across geographically distributed infrastructure.

Data Center Interconnect Applications

In data center environments, XENPAK-10GB-LR+ modules are used for inter-rack and inter-building connectivity where high throughput and low latency are essential. They support virtualization clusters, storage replication systems, and distributed computing workloads.

Optical Performance and Signal Integrity Engineering

Bit Error Rate Optimization

The module is designed to maintain extremely low bit error rates (BER) even under high traffic loads. This is achieved through advanced error correction compatibility and precise laser modulation control, ensuring consistent data integrity across long distances.

Receiver Sensitivity and Dynamic Range

High receiver sensitivity enables the module to detect weak optical signals after long-distance transmission. The dynamic range is optimized to handle varying optical power levels without signal distortion or loss of synchronization.

Laser Transmitter Stability

The integrated 1310nm distributed feedback (DFB) laser provides stable wavelength output with minimal drift. This ensures that optical signal quality remains consistent under varying environmental conditions such as temperature fluctuations and electromagnetic interference.

Network Compatibility and Cisco Ecosystem Integration

Switch and Router Platform Support

This module category is designed for compatibility with a wide range of Cisco networking equipment supporting XENPAK interfaces. It integrates seamlessly into enterprise switches and routers that require 10Gbps uplink connectivity.

Interoperability with Optical Networking Standards

The module supports interoperability with other 10GBase-LR compliant devices, allowing mixed-vendor network environments to operate efficiently. This flexibility is particularly valuable in large-scale enterprise deployments where heterogeneous infrastructure is common.

Digital Diagnostic Monitoring (DDM)

Built-in digital diagnostic monitoring capabilities provide real-time data on optical power levels, temperature, laser bias current, and voltage conditions. This enables proactive maintenance and reduces the risk of unexpected network failures.

Enterprise and Carrier-Grade Applications

Telecommunications Backbone Networks

Telecom operators utilize XENPAK-10GB-LR+ modules for backbone transport networks that require reliable high-capacity data transmission between switching centers. The long-reach capability reduces the need for intermediate signal regeneration equipment.

Cloud Computing Infrastructure

Cloud service providers deploy these modules to support distributed computing environments where data must move rapidly between storage clusters and compute nodes across geographically separated facilities.

High-Frequency Trading and Financial Systems

In financial trading environments, ultra-low latency and deterministic performance are critical. The module supports high-speed transaction processing between trading servers and data aggregation systems.

Installation, Configuration, and Operational Considerations

Physical Installation Process

The module is designed for plug-and-play installation into compatible XENPAK slots. Proper alignment of the SC duplex connectors is essential to ensure optimal signal transmission and avoid insertion loss.

Configuration in Network Devices

Once installed, network devices automatically detect the module and configure it based on supported 10GBase-LR parameters. Manual configuration may be required in advanced routing or VLAN segmentation scenarios.

Fiber Cable Selection and Management

Single-mode fiber patch cables with appropriate SC connectors must be used to ensure signal integrity. Proper cable management practices, including bend radius control and labeling, help maintain long-term network reliability.

Comparative Analysis with Other 10G Optical Modules

XENPAK vs XFP and SFP+ Technologies

Compared to smaller form factors such as XFP and SFP+, XENPAK modules offer higher power tolerance and enhanced thermal management but require more physical space. SFP+ modules are more commonly used in modern high-density deployments, while XENPAK remains relevant in legacy systems.

Performance Trade-offs and Deployment Decisions

Organizations choose XENPAK-10GB-LR+ modules when compatibility with existing infrastructure outweighs the need for compact design. The performance characteristics remain consistent with IEEE 10G standards, ensuring no compromise in throughput.

Cost Efficiency in Legacy Network Expansion

Using XENPAK modules in existing networks avoids the cost of complete hardware replacement. This makes them a cost-effective solution for incremental upgrades and capacity expansion.
