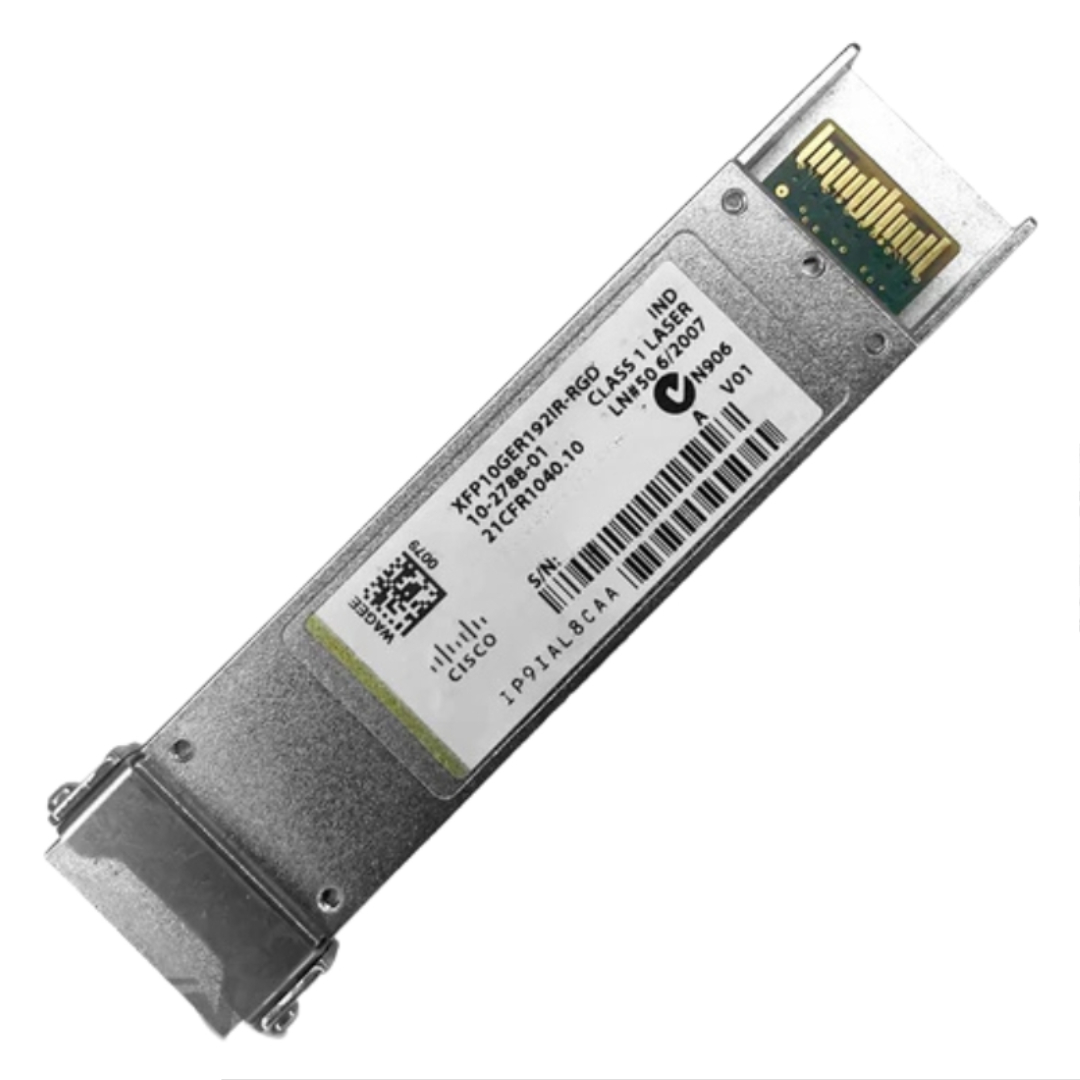

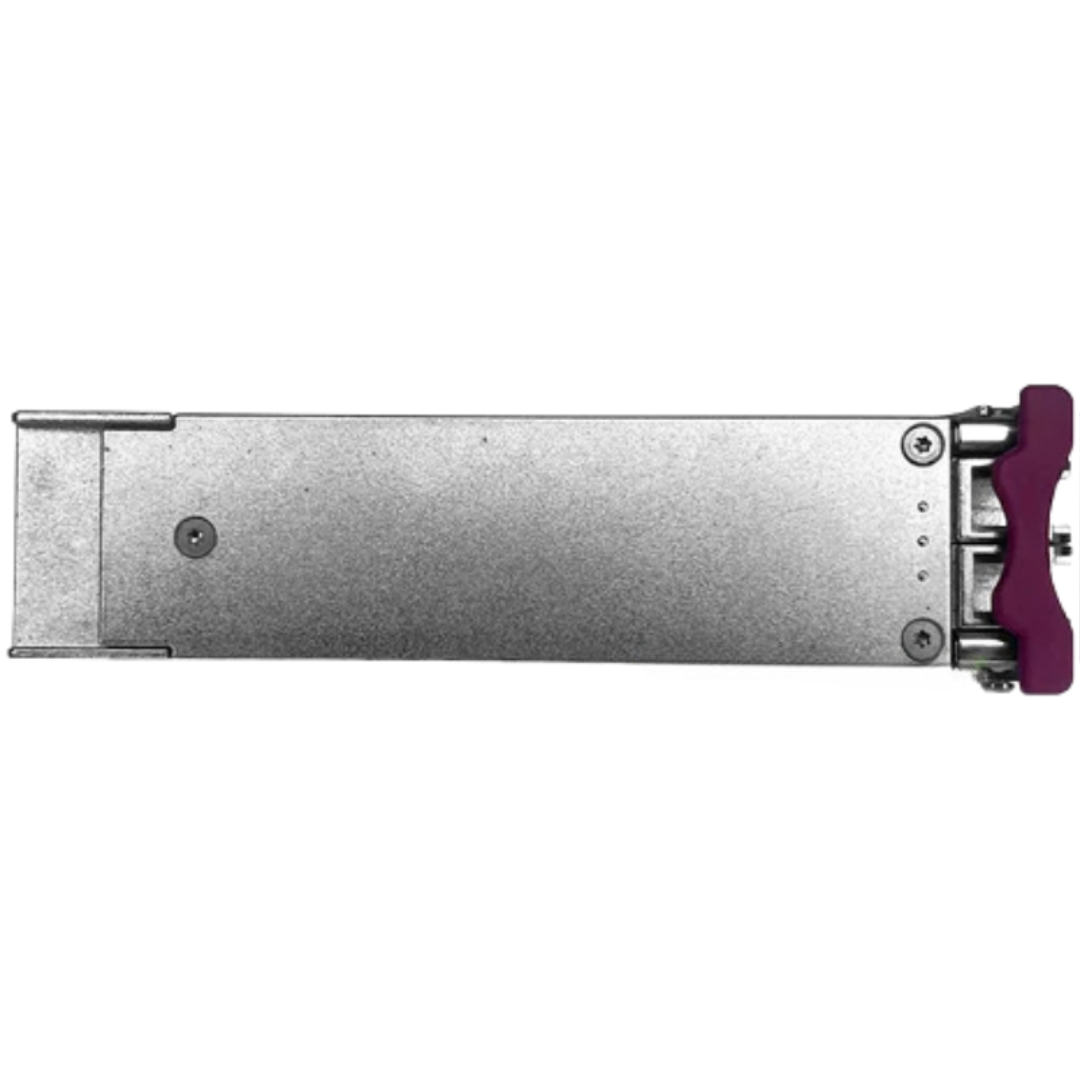

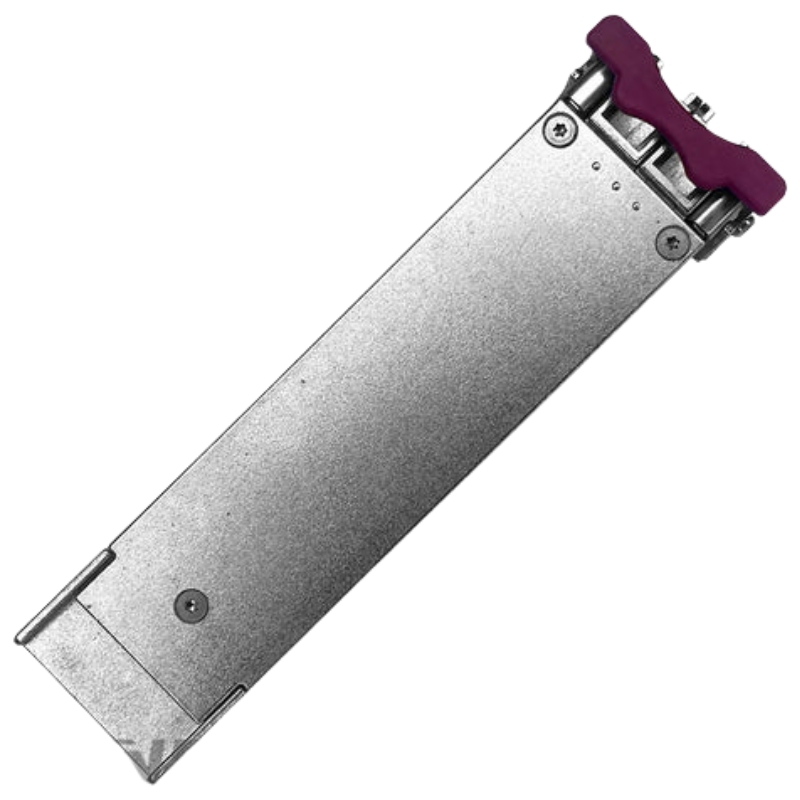

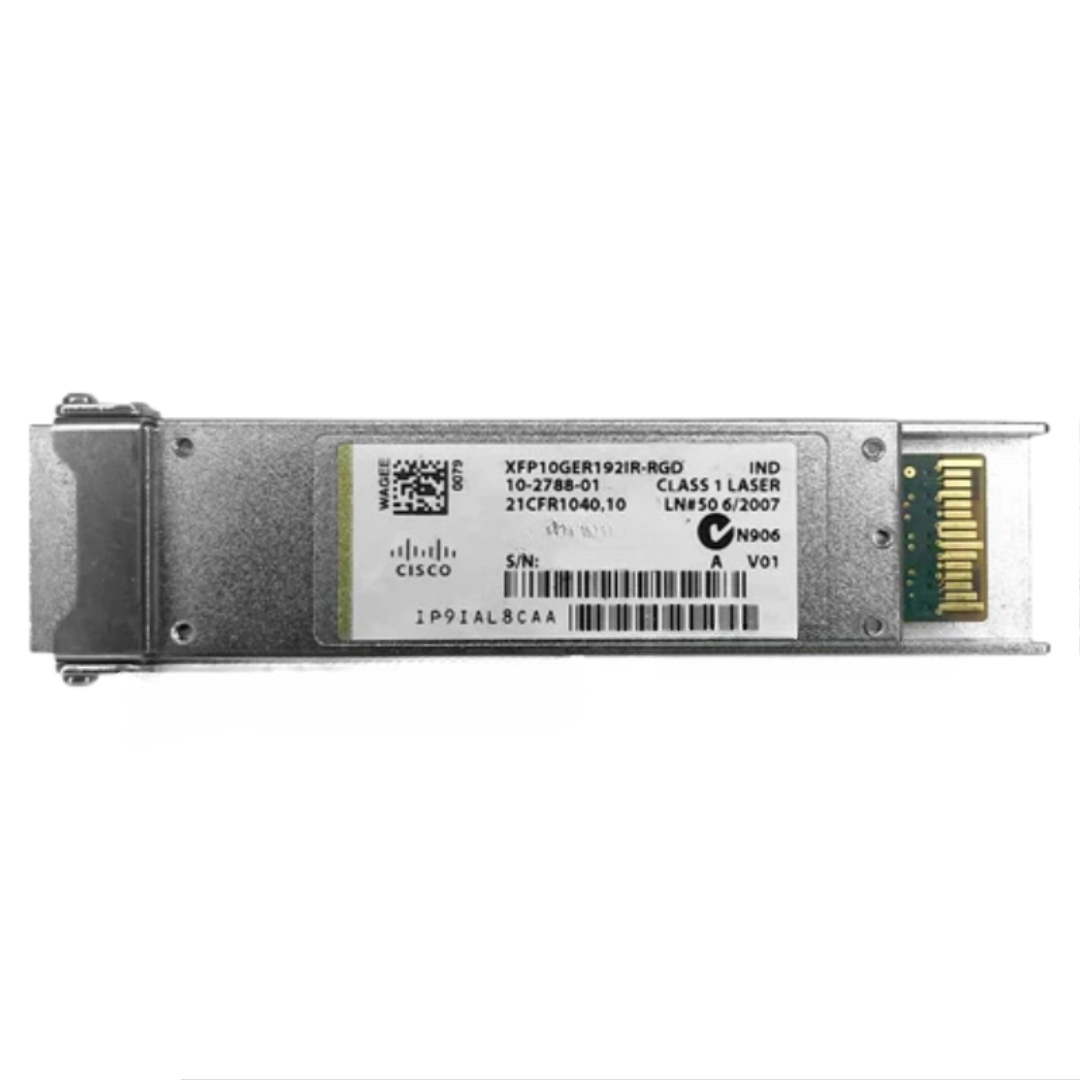

XFP10GER192IR-RGD Cisco Optical Fiber Transceiver Module

Highlights of Cisco Optical Fiber Transceiver Module

The Cisco XFP10GER192IR-RGD is a high‑performance 10Gbps optical transceiver module engineered for long‑reach data transmission. Designed for OC‑192/STM‑64 IR‑2 and 10GBase‑ER/EW applications, this single‑mode fiber module supports distances up to 40km using a 1550nm wavelength and a duplex LC connector, making it ideal for advanced networking infrastructures.

Product Identification

• Brand: Cisco Systems
• Part Number: XFP10GER192IR-RGD
• Device Type: Optical Transceiver Module

Technical Details

• Plug‑in Module
• Connectivity Technology: Wired
• Cabling Type: 10GBASE‑ER, 10GBASE‑EW
• Data Link Protocols: SONET/SDH, 10 Gigabit Ethernet
• Data Transfer Rate: 10 Gbps
• Optical Wavelength: 1550 nm
• Line Rate: OC‑192 / STM‑64
• Maximum Transmission Distance: 24.9 miles (40km)
• Features: POS (Packet Over SONET)
• Compliance Standards: IEEE 802.3ae

Expansion & Connectivity

• 1 x Ethernet 10GBASE‑ER / 10GBASE‑EW
• LC Single‑Mode Fiber (Duplex)

Power Specifications

• 3.5 Watts

Key Advantages

• Long‑distance optical transmission up to 40km
• High‑speed 10Gbps data throughput
• Reliable single‑mode fiber connectivity
• Ideal for enterprise, telecom, and carrier‑grade networks
• Compact plug‑in form factor for easy deployment

Cisco XFP10GER192IR-RGD 10GBPS LC Transceiver Overview

The XFP10GER192IR-RGD Cisco 10Gbps XFP transceiver module represents a high-performance optical networking solution engineered for long-reach, carrier-grade, and enterprise backbone connectivity. Designed to support OC-192/STM-64 optical transport standards along with 10G Ethernet ER/EW applications, this module delivers reliable high-speed data transmission over single-mode fiber infrastructure. Its architecture is optimized for telecom operators, internet service providers, metropolitan area networks, and large-scale data center interconnect environments that require stable 10 Gigabit per second throughput across extended distances reaching up to 40km.

Built around a 1550nm wavelength laser source, the module ensures low attenuation and superior signal integrity across long-distance fiber deployments. The integration of duplex LC connectors enables efficient bi-directional communication while maintaining compact physical footprint and compatibility with modern high-density networking equipment.

Core Technology Architecture of Cisco XFP10GER192IR-RGD

Advanced XFP Optical Form Factor Design

The XFP form factor is a standardized hot-pluggable optical module architecture designed specifically for 10 Gigabit applications. Unlike earlier optical standards, XFP integrates the entire physical layer functionality into a compact module, eliminating the need for external PHY components. This allows seamless interoperability with routers, switches, and optical transport platforms supporting XFP interfaces.

The Cisco XFP10GER192IR-RGD leverages this architecture to deliver a fully integrated optical transceiver solution that supports both Ethernet and SONET/SDH protocols. This dual-protocol compatibility makes it highly versatile in converged network environments where legacy and modern systems coexist.

1550nm Wavelength Transmission Efficiency

Operating at a 1550nm wavelength, the module is optimized for long-haul optical communication. This wavelength range is widely used in dense wavelength division multiplexing systems due to its minimal fiber attenuation characteristics. As a result, the transceiver can maintain signal integrity over distances up to 40 kilometers without requiring excessive signal regeneration.

The use of 1550nm also allows compatibility with erbium-doped fiber amplifiers, making it suitable for extended backbone networks and metropolitan optical ring architectures where signal amplification is required.

10Gbps Data Rate Performance

The module supports a nominal data rate of 10 Gigabits per second, ensuring high-throughput transmission for bandwidth-intensive applications. This includes cloud computing traffic, high-definition video streaming backbones, virtualization clusters, and inter-data center synchronization systems. The stable throughput performance minimizes latency and packet loss, which is critical for mission-critical enterprise applications.

Support for OC-192 and STM-64 Optical Standards

SONET and SDH Integration

The Cisco XFP10GER192IR-RGD is compliant with OC-192 and STM-64 standards, which represent the highest levels of synchronous optical networking and synchronous digital hierarchy respectively. OC-192 is commonly used in North American telecom infrastructure, while STM-64 is widely adopted in international carrier networks.

This dual compliance ensures interoperability across global telecommunications infrastructures, enabling seamless integration into multi-vendor optical transport environments.

Carrier-Class Reliability

OC-192/STM-64 support ensures that the module is capable of delivering carrier-grade reliability, with built-in tolerance for jitter, latency variation, and optical dispersion. These characteristics are essential for maintaining high-quality voice, video, and data transmission across long-distance fiber routes.

10GBase-ER/EW Ethernet Compatibility

Extended Reach Ethernet Capability

The 10GBase-ER and 10GBase-EW standards define extended reach Ethernet transmission over single-mode fiber. The Cisco XFP10GER192IR-RGD is engineered to meet these specifications, enabling Ethernet connectivity over distances up to 40 kilometers depending on fiber quality and link conditions.

This extended reach capability makes it ideal for campus interconnects, metropolitan area networks, and service provider aggregation layers where long-distance Ethernet transmission is required without signal degradation.

Interoperability Across Network Layers

By supporting both Ethernet and SONET/SDH protocols, the module ensures seamless integration across layered network architectures. This flexibility allows network engineers to deploy a single optical solution across multiple transmission environments, reducing hardware complexity and operational overhead.

Physical Design and Connector Interface

Duplex LC Connector Standard

The module utilizes a duplex LC connector interface, which is widely recognized for its compact size, high precision alignment, and low insertion loss characteristics. The duplex configuration enables simultaneous transmission and reception of optical signals, ensuring full-duplex communication over a single pair of fibers.

This connector type is particularly suited for high-density networking environments where space optimization is critical.

Hot-Swappable Module Functionality

The XFP10GER192IR-RGD supports hot-swapping, allowing installation or replacement without powering down the host system. This feature is essential for maintaining network uptime in enterprise and carrier-grade environments where continuous availability is mandatory.

Mechanical Durability and Housing

The transceiver is enclosed in a robust metallic housing designed to protect internal optical components from electromagnetic interference and physical damage. This ensures consistent performance even in electrically noisy environments such as data centers and telecom switching facilities.

40km Long-Reach Transmission Capability

Optical Budget Optimization

The module is engineered with an optimized optical power budget that enables transmission distances of up to 40 kilometers over single-mode fiber. This extended reach is achieved through precise laser calibration, receiver sensitivity optimization, and low-noise signal processing.

Such long-reach capability reduces the need for intermediate signal regeneration, thereby lowering infrastructure costs and simplifying network topology design.

Metropolitan Area Network Deployment

In metropolitan deployments, the 40km reach enables direct connectivity between geographically dispersed network nodes such as central offices, data centers, and aggregation hubs. This makes the module highly suitable for service providers operating large-scale metro fiber rings.

Signal Integrity and Performance Optimization

Dispersion Management

At high transmission distances and speeds, chromatic dispersion becomes a critical factor affecting signal integrity. The Cisco XFP10GER192IR-RGD is designed with dispersion tolerance mechanisms that minimize signal distortion over long fiber spans.

This ensures that data integrity is preserved even under challenging optical conditions.

Low Latency Transmission

The module provides ultra-low latency performance essential for real-time applications such as financial trading systems, cloud interconnects, and high-performance computing clusters.

Bit Error Rate Stability

Maintaining a low bit error rate is crucial for high-speed optical communication. The module incorporates advanced signal processing techniques to ensure consistent BER performance across varying environmental and operational conditions.

Digital Diagnostics Monitoring (DDM) Capabilities

Real-Time Optical Monitoring

The module supports Digital Diagnostics Monitoring functionality, enabling real-time tracking of optical parameters such as transmit power, receive power, temperature, and laser bias current. This provides network administrators with critical insights into module performance and fiber link health.

Predictive Maintenance Support

By analyzing DDM data trends, network operators can proactively identify potential failures and perform maintenance before service disruption occurs. This significantly improves network reliability and reduces downtime.

Compatibility and Network Integration

Cisco Networking Equipment Compatibility

The XFP10GER192IR-RGD is designed for seamless integration with Cisco routers and switches that support XFP interfaces. This ensures full interoperability within Cisco-based network infrastructures and guarantees optimal performance.

Multi-Vendor Network Environments

Although optimized for Cisco platforms, the module can also function in multi-vendor environments that adhere to standard XFP specifications. This enhances deployment flexibility across heterogeneous network infrastructures.

Application Scenarios

Telecommunication Backbone Networks

The module is widely used in telecom backbone infrastructures where long-distance, high-capacity optical transport is required. It supports high-volume traffic aggregation across regional and national networks.

Data Center Interconnect (DCI)

In modern cloud architectures, data center interconnectivity is essential for workload balancing and disaster recovery. The module enables high-speed optical links between geographically separated data centers.

Enterprise Campus Connectivity

Large enterprise campuses benefit from the module’s extended reach capability, enabling seamless connectivity between buildings without the need for intermediate active equipment.

Environmental and Operational Specifications

Temperature and Humidity Tolerance

The module is designed to operate reliably under a wide range of environmental conditions, including variable temperature and humidity levels commonly found in data center and telecom environments.

Energy Efficiency Considerations

Despite its high-performance capabilities, the module maintains efficient power consumption characteristics, contributing to reduced operational costs and improved energy efficiency in large-scale deployments.

Reliability Engineering and Lifecycle Performance

Long-Term Operational Stability

The Cisco XFP10GER192IR-RGD is built for long-term deployment scenarios where continuous operation is required. Its components are selected to ensure durability and stability under sustained high-speed data transmission conditions.

Failure Resistance Design

The internal architecture minimizes susceptibility to signal degradation, thermal stress, and electromagnetic interference, ensuring consistent performance over extended operational lifecycles.

Network Optimization and Deployment Strategies

High-Density Network Scaling

The compact XFP design allows network engineers to scale high-density optical ports within limited rack space, making it suitable for modern modular networking architectures.

Backbone Traffic Optimization

By enabling high-capacity 10Gbps links over long distances, the module plays a critical role in optimizing backbone traffic distribution and reducing network congestion.

Advanced Optical Engineering Characteristics

Laser Modulation Efficiency

The transmitter laser is engineered for efficient modulation performance, ensuring accurate signal encoding with minimal distortion across long fiber spans.

Receiver Sensitivity Enhancement

The optical receiver is designed to detect weak signals effectively, allowing reliable data recovery even in low-power transmission scenarios over extended distances.

Signal-to-Noise Ratio Optimization

The module maintains a high signal-to-noise ratio, ensuring that transmitted data remains clean and free from interference-induced corruption.
