DS-SFP-GE-T Cisco 1Gbps SFP Transceiver Module

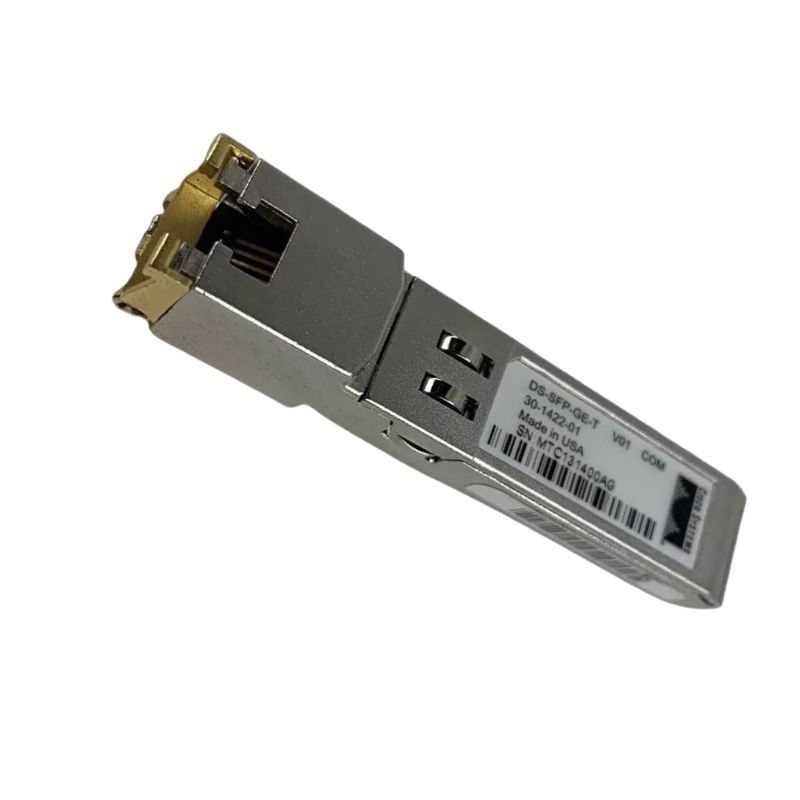

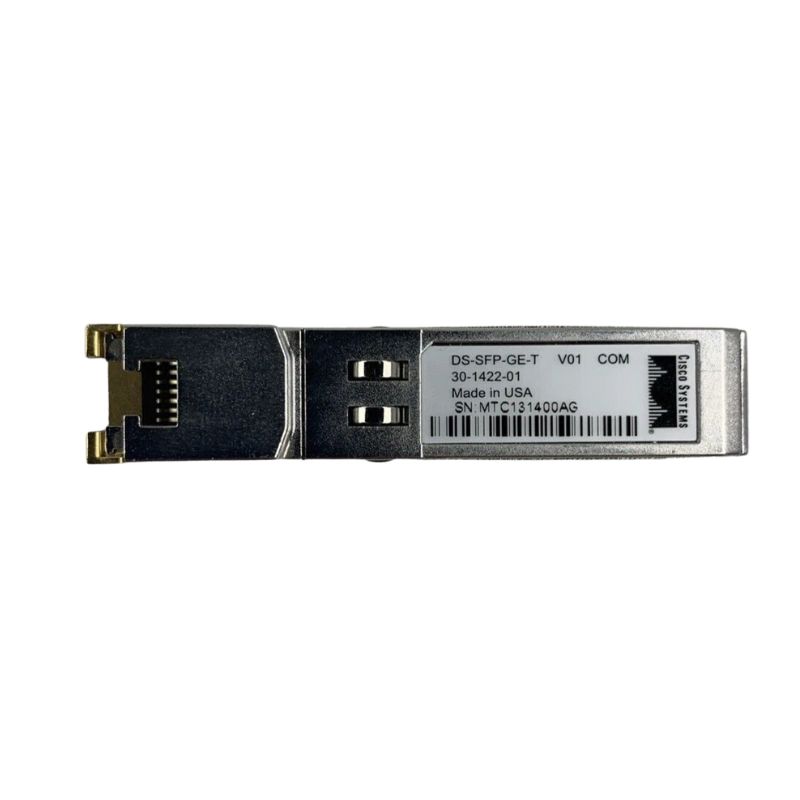

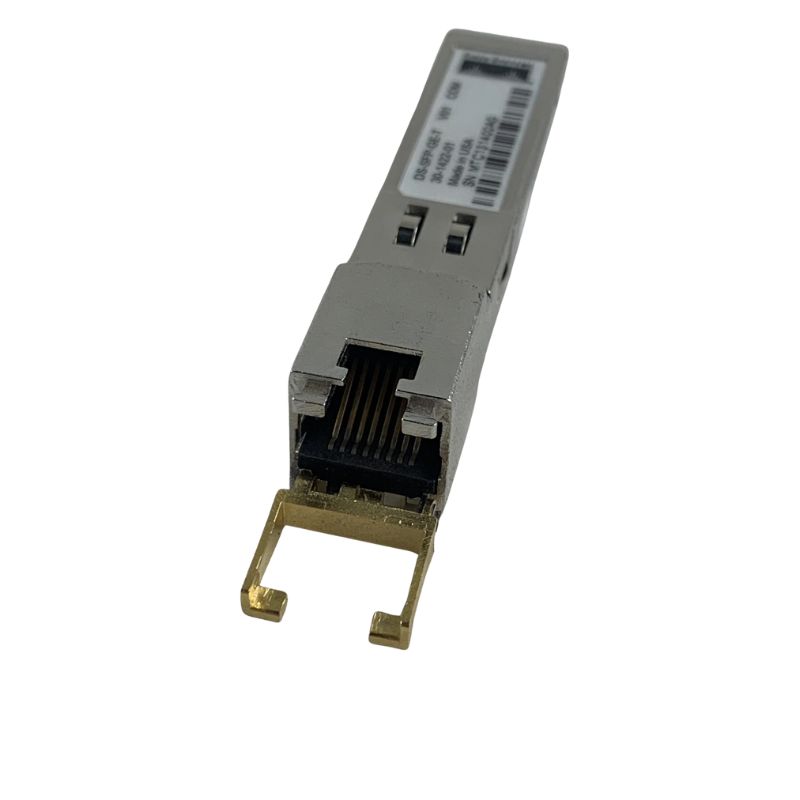

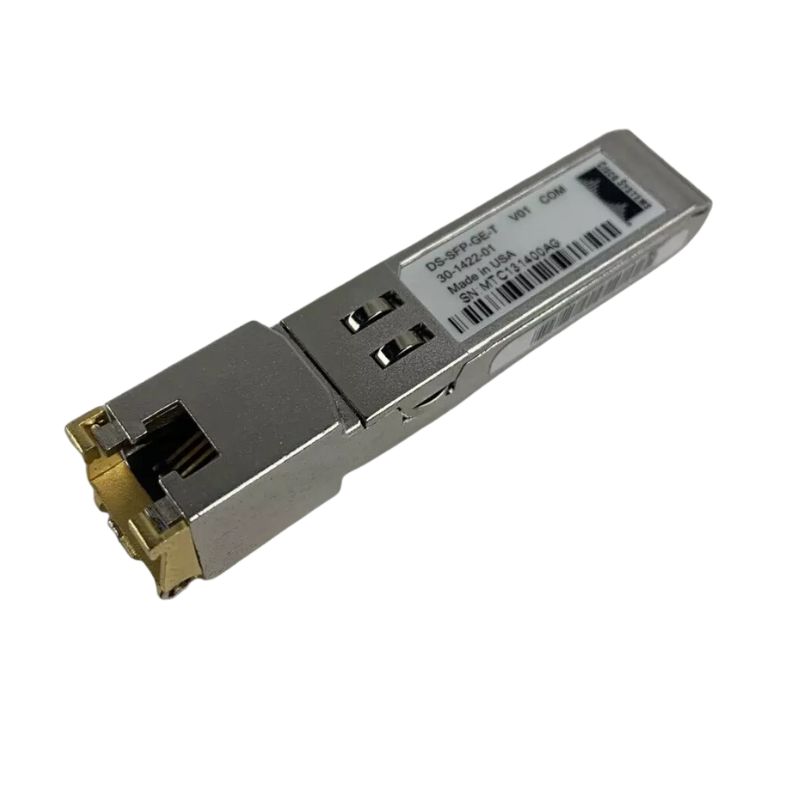

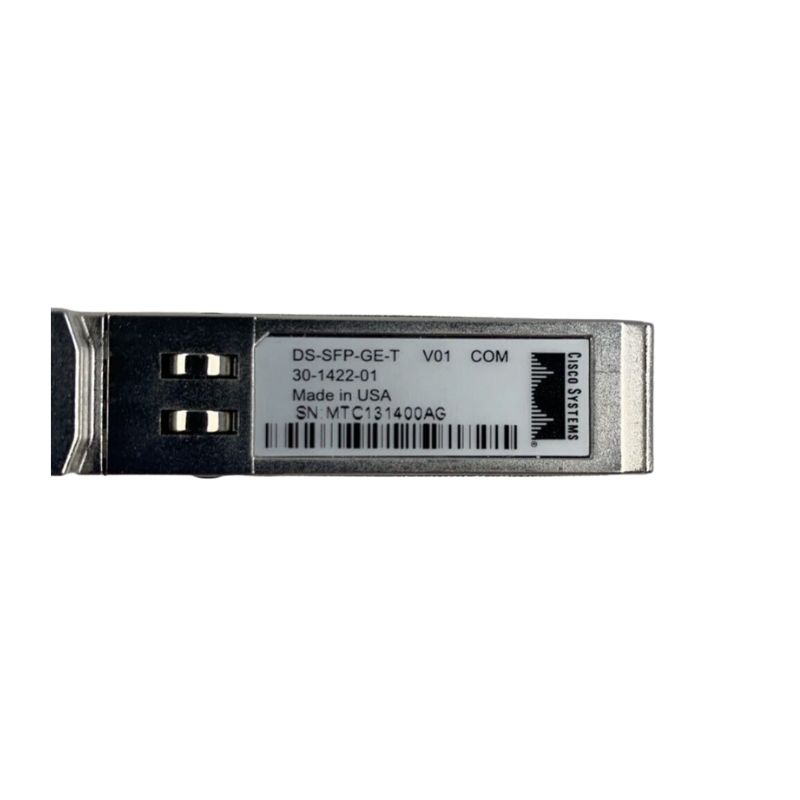

Cisco DS-SFP-GE-T 1Gbps SFP RJ45 Copper Transceiver Module

The Cisco DS-SFP-GE-T is a high-performance 1 Gigabit Ethernet SFP transceiver engineered to provide dependable copper connectivity for enterprise networking environments. This hot-pluggable module enables seamless Gigabit Ethernet communication over standard twisted-pair cabling, making it an economical solution for expanding network infrastructure without requiring fiber optic cables.

Product Overview

• Manufacturer: Cisco
• Model Number: DS-SFP-GE-T
• Product Category: Gigabit Ethernet Transceiver Module
• Module Type: SFP (Mini-GBIC)
• Installation: Hot-swappable Plug-in Module

Technical Specifications

• Form Factor: Plug-in SFP Module
• Interface Type: SFP (Mini-GBIC)
• Connectivity Technology: Wired
• Supported Ethernet Standard: 1000BASE-T
• Maximum Data Transfer Speed: 1 Gbps (1000 Mbps)
• Maximum Transmission Distance: Up to 100 meters
• Network Connector: RJ-45
• Compatible Cable Types: Cat5, Cat5e, and Cat6 Ethernet cables

Easy Deployment and Maintenance

• Supports plug-and-play installation
• Hot-swappable for simplified maintenance
• Reduces network downtime during upgrades
• Compatible with existing copper Ethernet infrastructure

Key Features

• Supports 1000BASE-T Gigabit Ethernet networking
• Provides data rates up to 1000 Mbps
• Operates over standard RJ-45 copper connections
• Transmission range of up to 100 meters
• Works with Cat5, Cat5e, and Cat6 network cables
• Compact SFP (Mini-GBIC) form factor
• Hot-pluggable design for easy installation and replacement
• Built for reliable enterprise networking applications

Common Deployment Scenarios

The Cisco DS-SFP-GE-T is well suited for organizations seeking to expand Gigabit Ethernet connectivity using existing copper cabling. It can be deployed in data centers, enterprise campuses, branch offices, server rooms, and managed network environments where dependable RJ-45 connectivity is required.

Typical Applications

• Enterprise LAN infrastructure
• Gigabit switch uplinks
• Router-to-switch connections
• Server network interfaces
• Office network expansion
• Data center copper Ethernet connectivity

Cisco DS-SFP-GE-T 1Gbps Transceiver Module Category

The Cisco DS-SFP-GE-T 1Gbps SFP Transceiver Module category represents a specialized segment of Gigabit Ethernet connectivity solutions designed for high-performance networking environments where copper-based SFP (Small Form-Factor Pluggable) interfaces are required. This category is primarily associated with hot-swappable transceiver modules that enable seamless integration of RJ-45 copper cabling into enterprise-grade Cisco switching and routing infrastructure. The DS-SFP-GE-T module is engineered to support 10/100/1000BASE-T Ethernet standards, making it a versatile solution for mixed-speed networks that require backward compatibility and operational flexibility.

Within structured network deployments, this category is widely recognized for enabling cost-effective Gigabit connectivity over standard Category 5e, Category 6, or higher-rated Ethernet cables. The DS-SFP-GE-T module is commonly deployed in access-layer switching, data aggregation points, and enterprise backbone extensions where fiber optics may not be strictly necessary. Its significance lies in bridging traditional copper infrastructure with modern modular networking systems, ensuring scalability and interoperability across heterogeneous environments.

Role in Modern Networking Infrastructure

The Cisco DS-SFP-GE-T category plays a critical role in enterprise and service provider networks by offering a flexible copper connectivity option that complements fiber-based SFP modules. It supports plug-and-play installation into SFP ports of compatible Cisco switches, routers, and network appliances, allowing network administrators to quickly adapt infrastructure to evolving connectivity demands. Its widespread adoption is driven by its ability to reduce deployment costs while maintaining Gigabit-level throughput performance across standard Ethernet cabling systems.

Integration with Cisco Switching Platforms

This transceiver category is specifically designed for compatibility with a wide range of Cisco networking devices, including Catalyst switches, Nexus series platforms (in supported modules), and integrated routing systems. The DS-SFP-GE-T module is recognized by Cisco hardware through intelligent identification protocols, ensuring proper configuration and operational stability without requiring manual tuning. This seamless integration reduces configuration overhead and improves deployment efficiency in enterprise environments.

Enterprise Network Optimization

In enterprise network architectures, DS-SFP-GE-T modules are frequently deployed to optimize port utilization and reduce dependency on expensive fiber infrastructure where copper cabling is sufficient. This allows IT departments to allocate fiber resources to backbone or inter-building connectivity while utilizing copper SFP modules for desktop-level or rack-level device interconnections. The result is a balanced, cost-efficient network topology that supports scalability and high availability.

Technical Architecture of Cisco DS-SFP-GE-T Modules

The technical architecture of the Cisco DS-SFP-GE-T module is built around a compact electrical-to-RJ45 interface conversion system that enables Gigabit Ethernet transmission over twisted-pair copper cables. Unlike optical SFP transceivers, which rely on laser-based transmission, this module uses integrated PHY (Physical Layer) circuitry to convert electrical signals into Ethernet-compatible data streams. This makes it ideal for environments where fiber optics are impractical or cost-prohibitive.

Copper-Based SFP Design Structure

The copper-based SFP design within this category includes a built-in PHY chip that handles signal encoding, decoding, and transmission over copper media. This design ensures compatibility with IEEE 802.3ab standards, which define 1000BASE-T Gigabit Ethernet over twisted-pair cabling. The module supports full-duplex communication and automatic speed negotiation, ensuring optimal performance across various network conditions.

RJ-45 Interface Implementation

The RJ-45 interface integrated into the DS-SFP-GE-T module enables direct connection to standard Ethernet cables. This eliminates the need for fiber patch cords and optical patch panels, simplifying installation and maintenance. The RJ-45 port is engineered for durability and consistent signal integrity, supporting cable lengths up to 100 meters depending on cable quality and installation environment.

Auto-Negotiation and Signal Processing

A key feature of the DS-SFP-GE-T architecture is its support for auto-negotiation, which allows the module to dynamically adjust link speed and duplex settings based on connected device capabilities. This ensures backward compatibility with 10/100 Mbps devices while maintaining optimal Gigabit performance when connected to compatible hardware. Advanced signal processing techniques help reduce crosstalk and electromagnetic interference in dense networking environments.

Key Features of Cisco DS-SFP-GE-T Category

The Cisco DS-SFP-GE-T category is defined by a set of high-performance features that make it suitable for enterprise networking applications. These features include hot-swappability, low power consumption, broad compatibility, and support for standard Ethernet cabling infrastructure. Its design focuses on simplifying network expansion while maintaining reliability and stability across high-density deployments.

Hot-Swappable Design Capability

One of the most important features of this module category is its hot-swappable functionality, allowing network administrators to insert or remove modules without powering down the host device. This feature is critical in mission-critical environments where downtime must be minimized. It supports continuous network operations while enabling rapid hardware upgrades and replacements.

Low Power Consumption Efficiency

Compared to optical transceivers, copper SFP modules typically consume more power due to onboard PHY processing; however, the DS-SFP-GE-T is optimized for energy-efficient operation. Cisco engineering ensures that power draw remains within acceptable limits for high-density switch environments, preventing excessive thermal load and reducing overall energy costs in data centers and enterprise networks.

Wide Cabling Compatibility

The module supports standard Category 5e, Category 6, and Category 6a Ethernet cables, providing flexibility in network design and infrastructure reuse. This backward compatibility allows organizations to leverage existing cabling systems without requiring costly rewiring or infrastructure upgrades. It is especially beneficial in legacy network environments transitioning toward Gigabit Ethernet.

Compatibility and Supported Network Devices

The Cisco DS-SFP-GE-T category is widely compatible with Cisco networking hardware that supports SFP transceiver slots. Compatibility extends across multiple product families, ensuring consistent deployment across different layers of network architecture. Proper compatibility ensures reliable link establishment, error-free data transmission, and optimized performance.

Supported Cisco Hardware Platforms

This module is commonly used in Cisco Catalyst switches, Cisco Nexus platforms (where supported), and Cisco integrated service routers equipped with SFP ports. Each compatible platform is designed to recognize the DS-SFP-GE-T module through Cisco's digital optical monitoring and identification system, ensuring seamless integration and reduced configuration complexity.

Cross-Platform Interoperability

In multi-vendor environments, the DS-SFP-GE-T module can often interoperate with non-Cisco devices that support standard SFP interfaces and IEEE Ethernet protocols. However, optimal performance and full feature support are typically achieved within Cisco-certified environments where firmware and hardware integration are tightly controlled.

Common Use Cases for Cisco DS-SFP-GE-T Modules

The DS-SFP-GE-T category is widely used across enterprise, campus, and small-to-medium business networking environments. Its flexibility and cost efficiency make it suitable for a variety of applications where Gigabit Ethernet over copper is required.

Enterprise Access Layer Connectivity

At the enterprise access layer, DS-SFP-GE-T modules are frequently used to connect end-user devices, edge switches, and aggregation switches. This allows organizations to extend Gigabit connectivity without requiring fiber optics to every endpoint, reducing deployment complexity and cost.

Data Center Rack Interconnects

In data center environments, these modules are used for short-range rack-to-rack or within-rack switch connections where copper cabling is sufficient. They help reduce latency and simplify cable management while maintaining high throughput performance.

Network Expansion and Upgrade Scenarios

The module is also widely used in network upgrade projects where organizations transition from Fast Ethernet to Gigabit Ethernet. Instead of replacing entire cabling infrastructures, administrators can deploy DS-SFP-GE-T modules to achieve higher speeds over existing copper cabling.

Comparison with Fiber SFP Transceiver Modules

Compared to fiber-based SFP modules, the DS-SFP-GE-T offers a more cost-effective solution for short-range connectivity but lacks the long-distance capabilities of optical transceivers. Fiber modules are preferred for backbone and inter-building connections, while copper modules excel in access-layer deployments.

Cost Efficiency vs Performance Trade-offs

Copper SFP modules generally provide lower upfront costs due to the use of existing Ethernet infrastructure. However, fiber modules offer superior distance and bandwidth scalability, making each technology suitable for different network layers.

Enterprise and Data Center Deployment Strategies

In enterprise and data center environments, DS-SFP-GE-T modules are strategically deployed to balance performance, cost, and scalability. They are often used in hybrid architectures that combine fiber and copper technologies to optimize network efficiency.

Hybrid Network Architecture Implementation

Hybrid architectures leverage copper SFP modules for endpoint connectivity while utilizing fiber optics for core network infrastructure. This approach maximizes flexibility and ensures efficient resource allocation across the network.

Scalability Considerations in Large Networks

As network demands grow, DS-SFP-GE-T modules provide a scalable solution for expanding Gigabit connectivity without requiring major infrastructure overhauls. Their modular design allows for incremental upgrades aligned with business growth.
