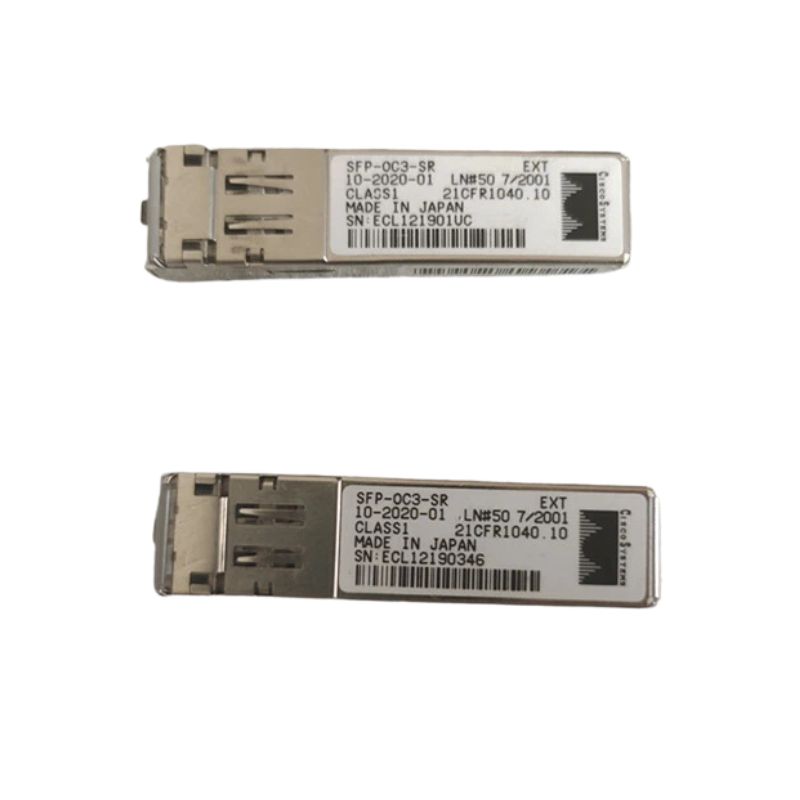

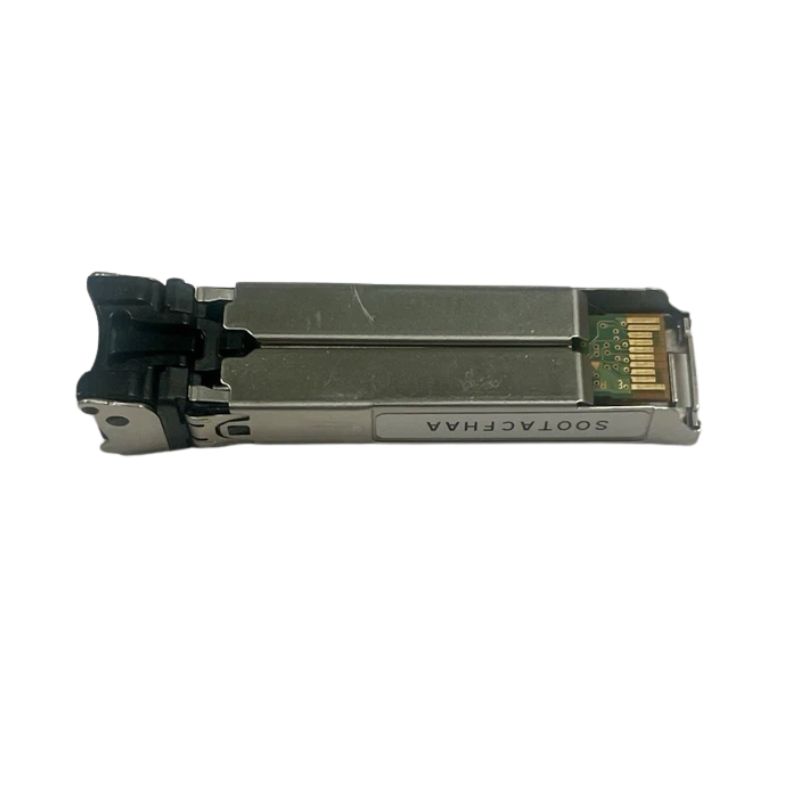

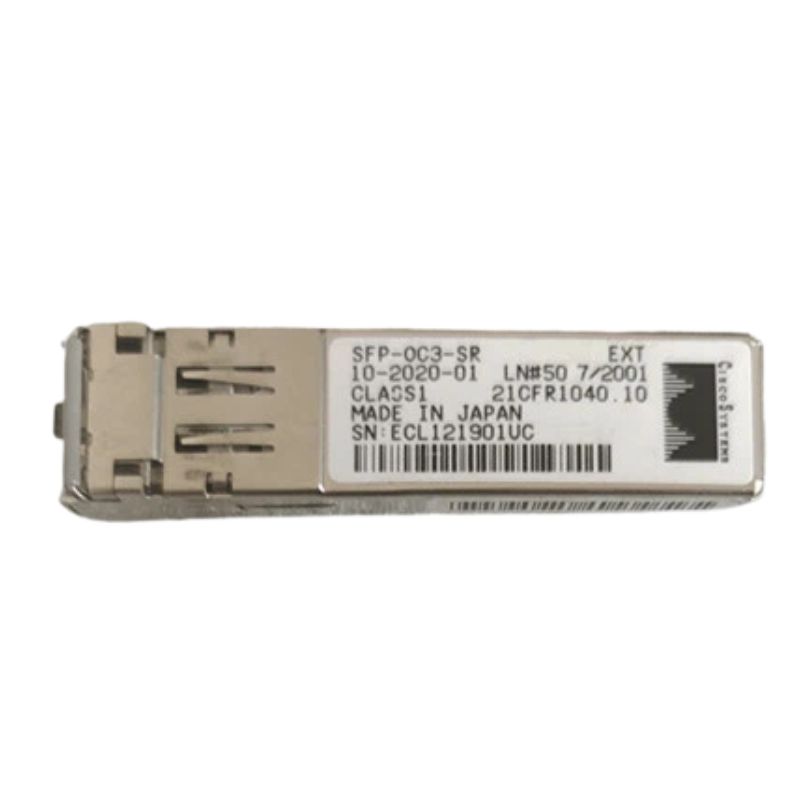

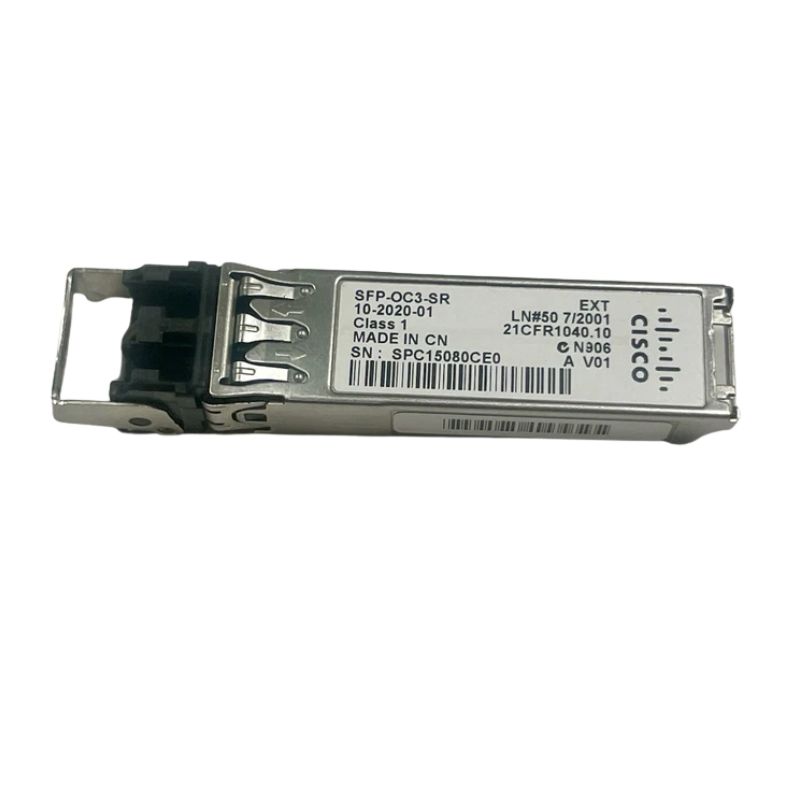

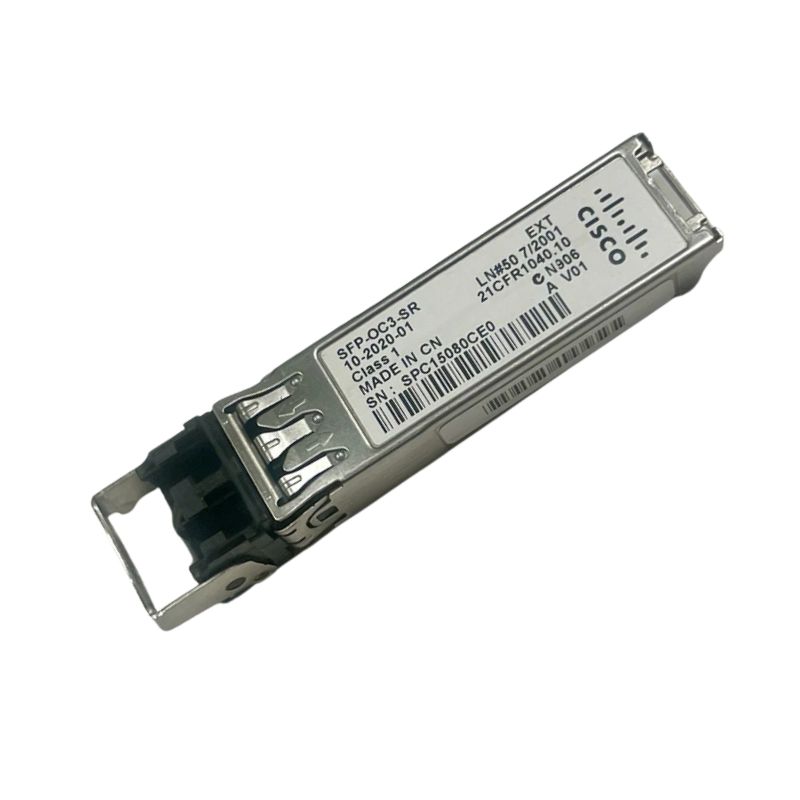

SFP-OC3-SR Cisco SFP Transceiver Small Form Factor Pluggable

Overview of the SFP Transceiver

The SFP-OC3-SR Cisco Small Form Factor Pluggable 155Mbps Transceiver continues to serve as a foundational component in optical networking where OC-3 connectivity is required. Its consistent performance, compatibility with Cisco platforms, and adherence to SONET/SDH standards make it a reliable choice for infrastructure modernization and maintenance of legacy optical systems.

General Information

• Brand: Cisco
• Part Number: SFP-OC3-SR
• Product Type: SFP Transceiver Module

Technical Features of  the Module

• Form Factor: Small Form-Factor Pluggable (SFP).
• Data Rate: 155.52 Mbps.
• Line Rate: OC-3 / STM-1.
• Wavelength: 1310 nm.
• Fiber Type: Single-Mode Fiber (SMF).
• Max Distance: Up to 2 kilometers.
• Connector Type: LC Duplex.
• Polishing Type: Physical Contact (PC).
• Transmitter Power: -15 to -8 dBm.
• Receiver Sensitivity: Less than -23 dBm.
• Supply Voltage: 3.3V single power supply.
• Compliance: SFP MSA and GR-253-CORE compliant.
• Digital Diagnostics: Supports SFF-8472 digital optical monitoring (DOM).

Compatibility

• Network Protocols: Fully supports SONET, SDH, and ATM standards.
• Interface Types: Built for Packet-over-SONET/SDH (POS) interfaces.
• Hardware Slot: Fits into any standard SFP mini-GBIC slot.
• Cisco Platforms: Compatible with Cisco 7600 and 7304 routers.
• Module Support: Integrates with Cisco Shared Port Adapters (SPA).
• Switch Support: Compatible with Cisco Catalyst 6500 series switches.
• Vendor Compatibility: Works with MSA-compliant hardware from other vendors.
• Software Support: Requires compatible Cisco IOS software versions.

The Cisco Small Form-Factor Pluggable Transceiver

The SFP-OC3-SR Cisco Small Form-Factor Pluggable 155Mbps Transceiver is a high-reliability optical networking module designed for enterprise-grade and carrier-class data communication systems. It operates at OC-3 (Optical Carrier level 3) / STM-1 (Synchronous Transport Module level 1) speeds, delivering a stable 155 Mbps data transmission rate over multimode fiber infrastructure. As part of Cisco’s trusted SFP portfolio, this transceiver enables seamless optical connectivity for legacy SONET/SDH networks while maintaining interoperability with modern switching and routing platforms that support SFP interfaces.

This category of optical modules is widely deployed in telecommunications networks, metro Ethernet environments, enterprise backbone systems, and service provider infrastructures. The SR (Short Reach) classification indicates optimized performance over short-distance multimode fiber links, making it a cost-effective and efficient solution for intra-building and campus networking environments.

Core Functional Role in Optical Networking Infrastructure

The SFP-OC3-SR module serves as a compact optical interface that converts electrical signals from networking equipment into optical signals transmitted through fiber optic cabling, and vice versa. This bidirectional conversion is essential for enabling high-speed, low-latency communication between routers, switches, multiplexers, and optical transport devices.

Within SONET and SDH architectures, OC-3/STM-1 is a foundational transport rate that supports voice, video, and data services. The Cisco SFP-OC3-SR transceiver ensures that these legacy services continue to operate efficiently in hybrid network environments where modern IP-based systems coexist with traditional optical transport frameworks.

Technical Specifications and Key Performance Attributes

The Cisco SFP-OC3-SR transceiver is engineered to meet stringent optical and electrical performance standards, ensuring consistent signal integrity across supported distances and network conditions. Its design is optimized for multimode fiber (MMF) applications, typically using an 850nm wavelength for short-range optical transmission. These specifications make the module suitable for high-density networking environments where reliability and modular flexibility are essential.

SONET and SDH Compatibility and Standards Compliance

The SFP-OC3-SR Cisco transceiver is fully aligned with SONET (Synchronous Optical Network) and SDH (Synchronous Digital Hierarchy) standards, specifically supporting OC-3 and STM-1 transmission formats. These protocols are widely used in telecommunications systems for synchronized, time-division multiplexed data transport.

SONET/SDH systems rely on highly accurate timing synchronization to ensure deterministic data delivery. The SFP-OC3-SR module maintains strict adherence to optical power levels, jitter tolerance, and bit error rate thresholds defined by ITU-T standards. This ensures compatibility with legacy telecom equipment while supporting seamless integration into modern converged networks.

Optical Performance Characteristics and Signal Integrity

The optical design of the SFP-OC3-SR module focuses on minimizing signal degradation over short-range multimode fiber links. The 850nm vertical-cavity surface-emitting laser (VCSEL) technology used in the transmitter provides stable optical output with low dispersion characteristics.

On the receiving side, a high-sensitivity photodetector ensures accurate signal recovery even in environments with moderate attenuation or connector losses. This balance between transmission power and receiver sensitivity is critical for maintaining signal integrity in dense cabling infrastructures.

Compatibility with Cisco Networking Platforms

The Cisco SFP-OC3-SR module is designed for seamless integration with a wide range of Cisco routers, switches, and optical transport platforms that support SFP interfaces. These include carrier-grade aggregation routers, enterprise edge devices, and metro Ethernet switches. Its hot-swappable design allows network administrators to install or replace modules without powering down equipment, significantly reducing downtime during maintenance or upgrades. This feature is especially valuable in mission-critical environments such as financial institutions, telecom providers, and data centers.

Typical Use Cases and Deployment Scenarios

The SFP-OC3-SR Cisco transceiver is widely deployed in environments where reliable short-distance optical communication is required. Its applications span across multiple industries and network architectures. These use cases highlight the flexibility of the module in supporting both traditional and modern networking environments.

Network Architecture and Design Considerations

When integrating the SFP-OC3-SR transceiver into a network architecture, several design considerations must be taken into account to ensure optimal performance. Fiber type selection, connector cleanliness, and link budget calculations are essential factors in achieving reliable communication.

Because the module is designed for multimode fiber, it is best suited for short-distance applications within buildings or campus environments. Engineers must ensure that fiber cable lengths do not exceed recommended limits to avoid signal degradation or increased bit error rates.

Performance Reliability and Operational Stability

Reliability is a core attribute of the SFP-OC3-SR Cisco transceiver category. It is engineered for long-term operational stability under continuous network loads. Built-in diagnostics and monitoring capabilities allow administrators to track optical performance parameters such as transmit power, receive power, and temperature.

These diagnostic capabilities help in predictive maintenance, enabling early detection of potential link degradation before it impacts network performance. The module’s robust design ensures resistance to environmental variations commonly found in enterprise and telecom installations.

Comparison with Other Cisco SFP Optical Transceivers

The SFP-OC3-SR module belongs to a broader ecosystem of Cisco optical transceivers, each designed for specific distance and bandwidth requirements. Compared to long-reach (LR) and extended-reach (ER) modules, the SR variant focuses on short-distance multimode applications. This positioning makes the SFP-OC3-SR ideal for internal network links rather than wide-area optical transport systems.

Advantages in Modern Hybrid Networking Environments

Despite being designed for OC-3/STM-1 rates, the SFP-OC3-SR module continues to play a significant role in hybrid networking environments. Many organizations still rely on legacy SONET/SDH systems for mission-critical services, and this transceiver ensures continued interoperability while enabling gradual migration to IP-based architectures.

Its compatibility with Cisco’s modular networking platforms ensures that enterprises can extend the life of existing infrastructure while incrementally upgrading bandwidth and network capabilities.

Engineering Design and Build Quality Considerations

Cisco’s engineering standards ensure that the SFP-OC3-SR module meets rigorous quality benchmarks. Each unit undergoes extensive testing for optical performance, thermal stability, and electromagnetic compliance. This ensures consistent behavior across deployments and minimizes variability in network performance.

The ruggedized design allows the module to operate reliably in a wide range of environmental conditions, including data center racks, telecom closets, and enterprise wiring rooms.

Operational Efficiency and Cost Optimization Benefits

From a cost perspective, the SFP-OC3-SR transceiver provides a balance between performance and affordability. Its multimode fiber compatibility reduces infrastructure costs compared to single-mode deployments, making it an economical choice for short-range optical networking. Organizations benefit from reduced cabling complexity, lower installation costs, and simplified maintenance procedures while maintaining high-quality optical communication standards.

Advanced Network Integration Capabilities

The module supports advanced integration with Cisco IOS-based systems, enabling seamless configuration and monitoring through standard network management protocols. Administrators can access diagnostic data and performance metrics to optimize network health and efficiency. This level of integration enhances visibility into optical layer performance, contributing to improved troubleshooting and network optimization strategies.

Future-Ready Role in Legacy Network Support

While newer high-speed optical technologies dominate modern networking, the SFP-OC3-SR Cisco transceiver continues to serve a critical role in supporting legacy infrastructure. Many industries, including telecommunications, transportation, and financial services, still depend on OC-3/STM-1 systems for stable, predictable communication. By maintaining compatibility with these systems, the module ensures that organizations can extend operational continuity without immediate large-scale infrastructure replacement.

Advantage of Functional Importance in Optical Networking

The SFP-OC3-SR Cisco Small Form-Factor Pluggable 155Mbps Transceiver represents a vital component in short-reach optical networking solutions. Its combination of reliability, compatibility, and efficient design makes it a foundational element in both legacy SONET/SDH systems and modern enterprise optical networks.
