C9400-LC-24S Cisco Expansion Module Catalyst 9400 Series

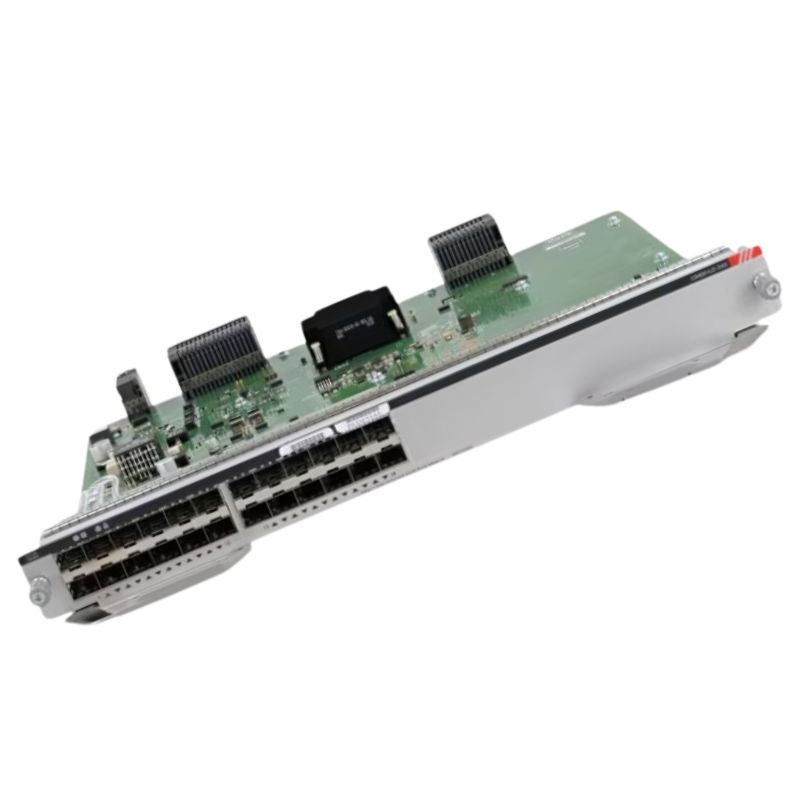

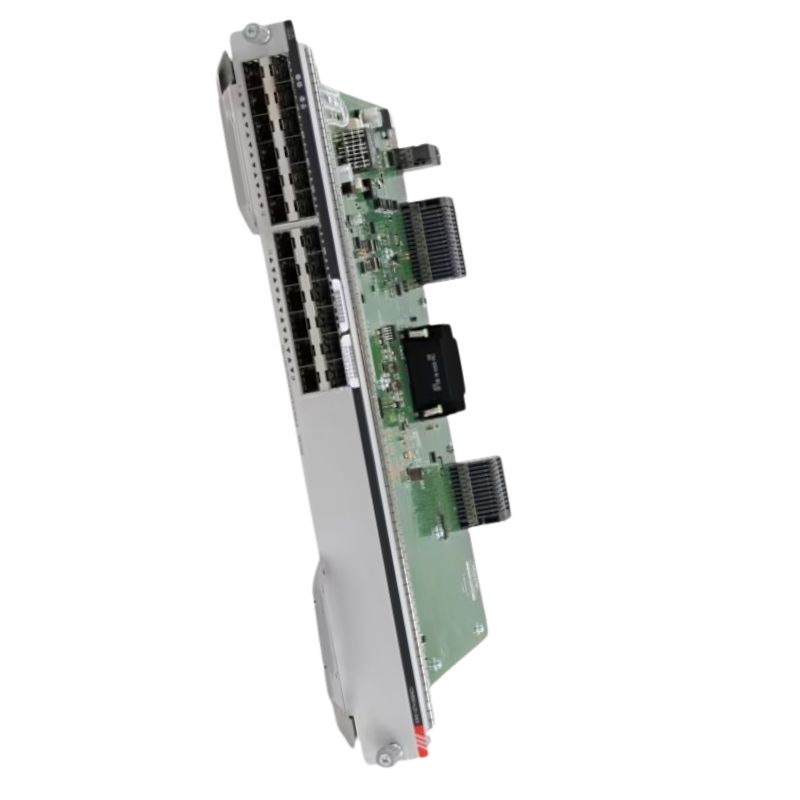

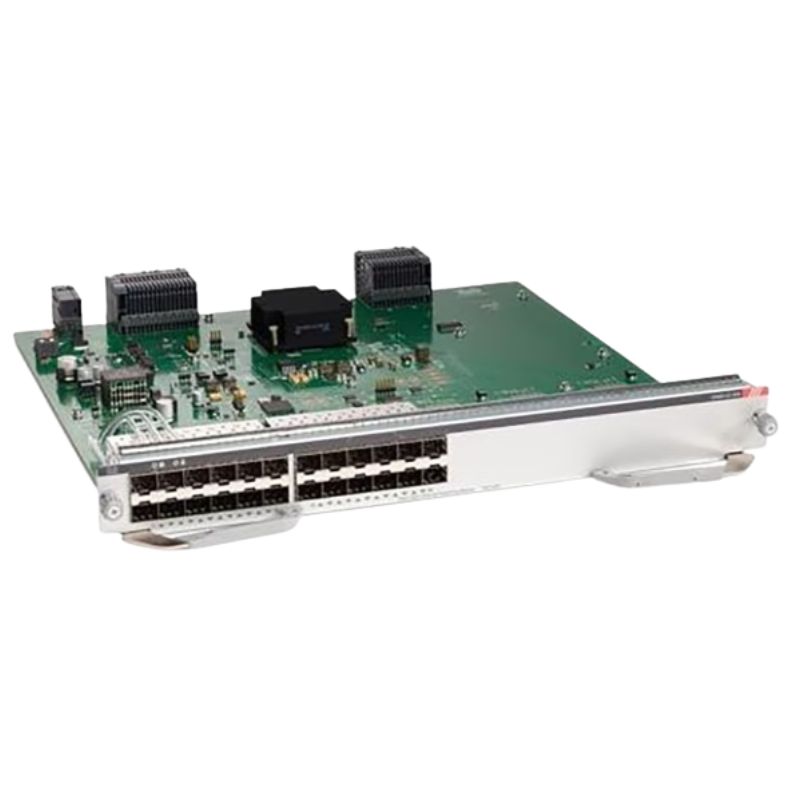

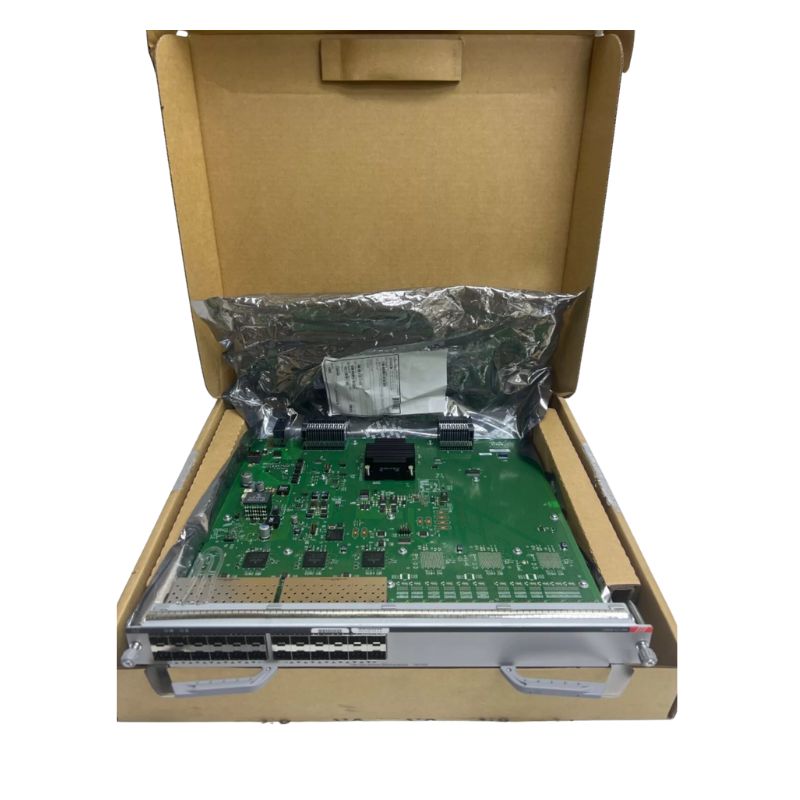

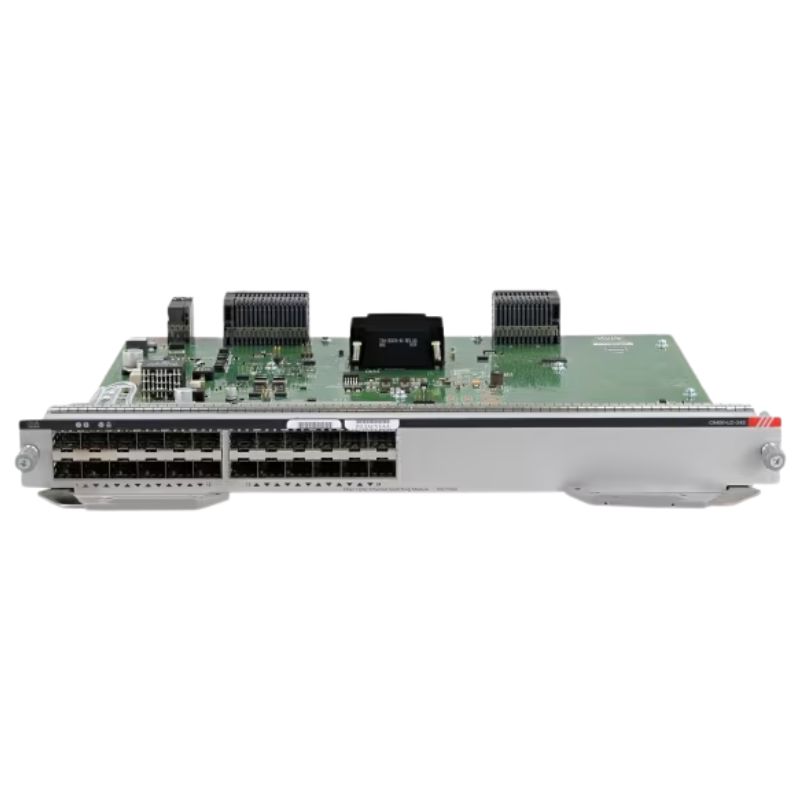

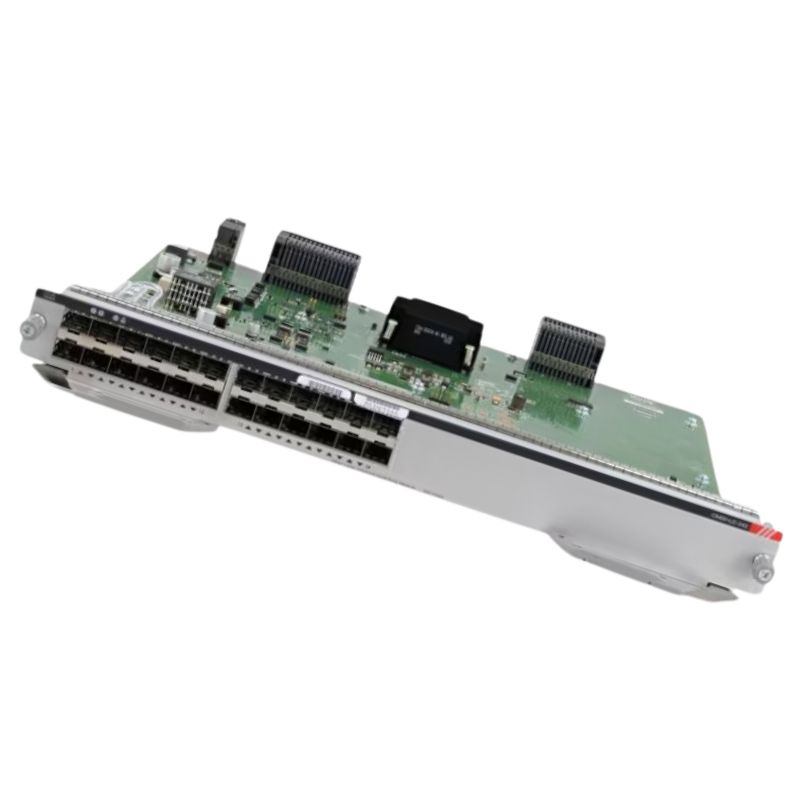

Cisco C9400-LC-24S Catalyst 9400 Series 24-Port Line Card

The Cisco C9400-LC-24S Catalyst 9400 Series 24-Port 1 Gigabit Ethernet (SFP) Line Card is a high-performance modular networking component designed for enterprise-grade campus switching infrastructures. Built for the Cisco Catalyst 9400 Series chassis, this expansion module delivers scalable fiber connectivity, robust switching capacity, and flexible deployment options for modern enterprise access and distribution layers. It is engineered to support mission-critical applications, high-density environments, and evolving digital transformation requirements where reliable fiber-based connectivity is essential.

As part of the Catalyst 9400 modular switching platform, this line card extends the capabilities of the core chassis by enabling 24 ports of 1 GE SFP connectivity, making it ideal for organizations that require stable, high-speed, and secure fiber uplinks or access links. The architecture is optimized for resiliency, performance, and operational simplicity, ensuring seamless integration into enterprise LAN environments.

Enterprise-Class Modular Architecture for Catalyst 9400 Series

The Cisco Catalyst 9400 Series is known for its chassis-based modular design, and the C9400-LC-24S line card plays a crucial role in expanding switching density while maintaining operational efficiency. This modular approach enables enterprises to scale network capacity without replacing the entire switching infrastructure. Instead, organizations can incrementally upgrade their networks by adding or replacing line cards as requirements evolve.

The line card integrates directly into the Catalyst 9400 chassis backplane, ensuring high-speed communication between switching modules and supervisor engines. This architecture provides predictable performance, low latency, and consistent throughput even under heavy network loads.

Scalability and Network Expansion Capabilities

The scalability offered by the Cisco C9400-LC-24S is a key advantage for enterprise IT environments. With 24 SFP-based 1 Gigabit Ethernet ports, organizations can connect a large number of fiber-enabled endpoints, aggregation switches, or distribution devices. This makes it suitable for campus networks, enterprise branches, and data-centric environments where fiber connectivity is preferred for reliability and distance coverage.

Network administrators can deploy this line card in mixed environments where copper and fiber coexist, enabling gradual migration toward full fiber infrastructure. This flexibility ensures cost efficiency while supporting long-term network modernization strategies.

High-Density Fiber Connectivity Design

The 24-port SFP interface design allows for dense fiber termination within a single line card slot. This is particularly valuable in environments such as large enterprise campuses, universities, hospitals, and government networks where multiple high-speed links must be consolidated into a centralized switching platform.

Each port supports standard 1 Gigabit Ethernet SFP transceivers, offering compatibility with a wide range of Cisco-certified optical modules. This enables support for multimode and single-mode fiber deployments depending on distance and bandwidth requirements.

Performance Optimization and Switching Efficiency

The Cisco C9400-LC-24S is designed with performance efficiency in mind, ensuring that high traffic loads do not compromise network stability. The line card leverages advanced Cisco switching architecture to maintain wire-speed performance across all ports simultaneously. This ensures consistent throughput for latency-sensitive applications such as voice, video conferencing, virtualization traffic, and cloud-based services.

The integration with Catalyst 9400 supervisor engines ensures centralized forwarding intelligence, policy enforcement, and traffic optimization. This allows the network to handle complex routing and switching decisions efficiently while maintaining operational simplicity.

Low Latency Switching for Enterprise Applications

Latency reduction is a critical design objective in enterprise switching, and the C9400-LC-24S contributes significantly to this goal. By utilizing high-speed backplane connectivity and optimized forwarding pathways, the line card ensures minimal delay between ingress and egress traffic flows.

This makes it suitable for environments where real-time responsiveness is essential, including financial systems, collaborative enterprise platforms, and industrial control networks.

Advanced Traffic Handling and QoS Support

The line card supports advanced Quality of Service (QoS) mechanisms that allow network administrators to prioritize critical traffic over less time-sensitive data streams. This ensures that mission-critical applications receive the necessary bandwidth and priority, even during peak network utilization periods.

Traffic classification, scheduling, and congestion management are handled efficiently within the Catalyst 9400 architecture, providing predictable performance for enterprise workloads.

Hardware Design and Physical Characteristics

The Cisco C9400-LC-24S line card is engineered for durability and long-term operational stability. Its physical design aligns with Cisco’s enterprise hardware standards, ensuring secure installation, thermal efficiency, and reliable operation in data center and campus environments.

The module is designed for hot-swappable operation within the Catalyst 9400 chassis, allowing IT teams to replace or upgrade line cards without shutting down the entire system. This minimizes downtime and ensures continuous network availability.

Thermal Management and Energy Efficiency

Efficient thermal management is a key component of the line card’s design. The Cisco Catalyst 9400 chassis provides integrated cooling mechanisms that regulate airflow and maintain optimal operating temperatures. This ensures stable performance even in high-density deployments where multiple line cards operate simultaneously.

Energy efficiency is also optimized through intelligent power management features, reducing overall power consumption without compromising performance or port availability.

Build Quality and Reliability Standards

Cisco enterprise hardware is known for its stringent quality standards, and the C9400-LC-24S is no exception. It is designed to meet high reliability requirements for 24/7 network operations. This includes resistance to hardware failure, consistent port performance, and long operational lifecycle support.

The robust construction ensures that the module can withstand demanding enterprise environments where uptime and reliability are critical business requirements.

Deployment Scenarios and Enterprise Use Cases

The Cisco C9400-LC-24S is suitable for a wide range of enterprise deployment scenarios. Its flexibility and high-density fiber support make it ideal for campus backbone networks, enterprise aggregation layers, and distribution switch architectures.

Organizations that require scalable fiber connectivity for inter-building communication, high-speed data transfer, and secure network segmentation benefit significantly from this line card’s capabilities.

Campus Network Core and Distribution Layers

In campus environments, the line card can be used to connect multiple access layer switches to a central Catalyst 9400 chassis. This creates a high-speed aggregation point that improves network efficiency and simplifies management.

The fiber-based connectivity ensures long-distance communication between buildings or floors without signal degradation, making it suitable for large academic institutions and corporate campuses.

Enterprise Data Transport and Backbone Connectivity

The C9400-LC-24S is also widely used in enterprise backbone networks where high-speed and reliable data transport is essential. It supports aggregation of multiple network segments into a unified switching infrastructure, enabling centralized control and monitoring.

This improves network visibility and simplifies troubleshooting while ensuring efficient data flow across the organization.

High-Availability Network Environments

In high-availability deployments, redundancy and failover capabilities are critical. The Catalyst 9400 platform supports redundant supervisor engines and power supplies, and the C9400-LC-24S integrates seamlessly into this architecture to ensure continuous service availability.

This makes it suitable for industries such as finance, healthcare, and government where downtime is not acceptable.

Compatibility with Cisco Catalyst Ecosystem

The Cisco C9400-LC-24S is fully compatible with the Catalyst 9400 Series chassis and integrates with Cisco’s broader enterprise networking ecosystem. This includes support for Cisco DNA Center for centralized management, automation, and policy enforcement.

The module works in conjunction with Cisco IOS XE software, enabling advanced features such as segmentation, automation, analytics, and enhanced security controls.

Software Integration and Network Automation

Cisco IOS XE provides a programmable network operating system that allows administrators to automate configuration tasks, monitor network performance, and enforce security policies across the infrastructure. The C9400-LC-24S benefits from these capabilities by enabling consistent configuration and simplified operations.

Automation reduces manual intervention and improves operational efficiency, especially in large-scale deployments with multiple line cards and switching modules.

Security Features and Network Protection

Security is a fundamental aspect of enterprise networking, and the Cisco Catalyst 9400 platform incorporates multiple layers of protection. The C9400-LC-24S supports advanced security features including segmentation, access control, and encrypted communications depending on network configuration.

These capabilities help protect enterprise data from unauthorized access and ensure compliance with organizational security policies.

Long-Term Value and Network Modernization Strategy

The Cisco C9400-LC-24S line card represents a strategic investment for organizations planning long-term network modernization. Its modular nature allows businesses to scale gradually without replacing entire switching infrastructures.

This reduces capital expenditure while ensuring that the network remains adaptable to future technological advancements and increasing bandwidth demands.

Future-Ready Network Expansion

As enterprise networks continue to evolve toward higher speeds and greater automation, the Catalyst 9400 platform provides a foundation for future upgrades. The C9400-LC-24S supports this evolution by offering flexible fiber connectivity that can be integrated into next-generation architectures.
