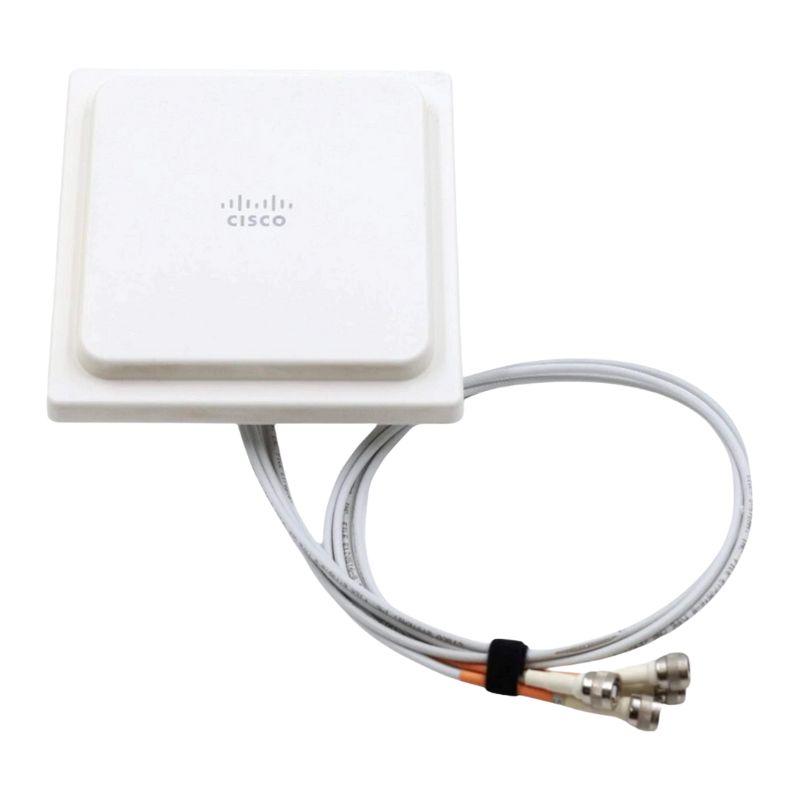

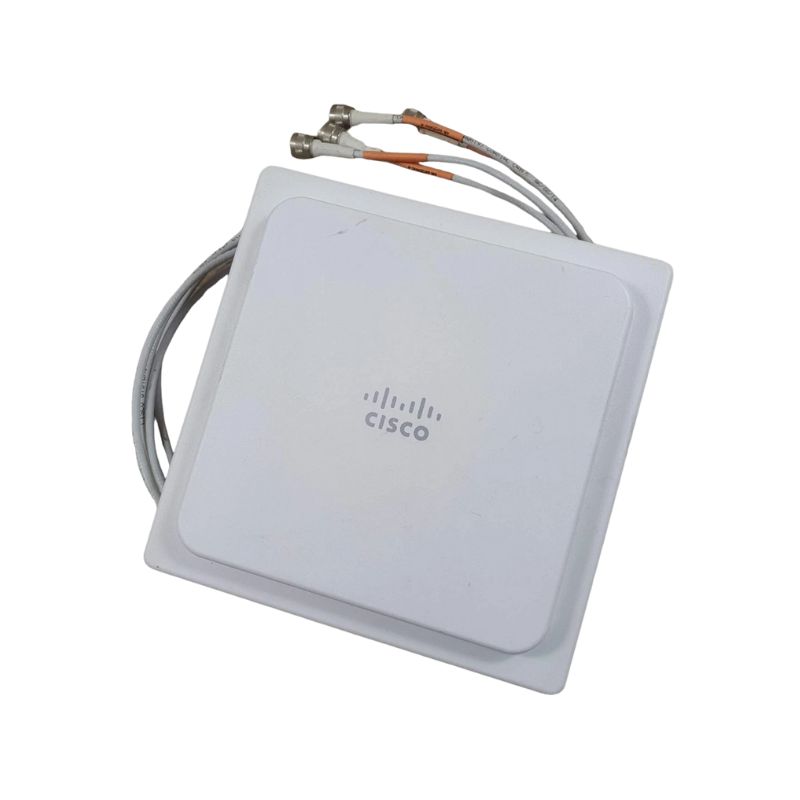

AIR-ANT2566D4M-R Cisco Aironet Dual Band Directional Array Antenna

Overview of the Cisco Aironet Dual Band Antenna

The Cisco AIR-ANT2566D4M-R Aironet Dual Band Directional Array Antenna is a professional-grade wireless networking antenna designed to improve the performance, coverage, and reliability of compatible Cisco Aironet wireless access point deployments. Built for enterprise wireless environments, this dual-band directional antenna supports both 2.4 GHz and 5 GHz frequency ranges, allowing organizations to optimize wireless communication across modern Wi-Fi networks. The antenna is engineered to provide focused signal transmission and reception, making it a practical choice for applications where targeted coverage, reduced interference, and stronger wireless links are required.

General Information

• Manufacturer: Cisco
• Part Number: AIR-ANT2566D4M-R
• Device Type: Antenna

Technical Features

• Antenna Design: Configured as a 4-port polarization-diverse directional array patch system.
• Dual-Band Usage: Operates concurrently on both 2.4 GHz and 5 GHz frequencies.
• Frequency Boundaries: Encompasses ranges of 2400–2500 MHz and 5150–5925 MHz bands.
• Uniform Gain: Achieves a peak nominal gain of 6 dBi across all bands.
• Horizontal Beamwidth: Measures 65 degrees at 2.4 GHz and 55 degrees at 5 GHz.
• Vertical Beamwidth: Measures 65 degrees at 2.4 GHz and 60 degrees at 5 GHz.

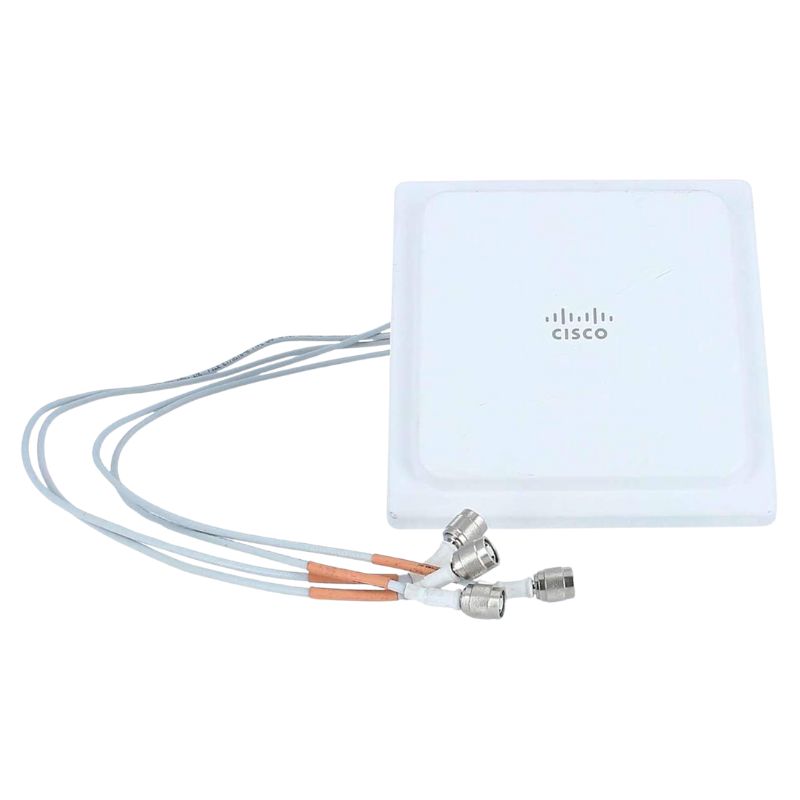

• Connector Core: Features four separate integrated RP-TNC male high-quality RF connectors.
• Cable Footprint: Equipped with a 36-inch attached low-loss flexible antenna cable bundle.
• Physical Profile: Measures a compact, low-profile ten inches by ten inches square footprint.
• Environmental Build: Rated for safe operation inside indoor rooms and rugged outdoor environments.
• Thermal Limits: Operates safely between extreme temperature thresholds of -40°F to 158°F.
• Radome Customization: Supports safe field painting using approved non-conductive, plastic-safe spray paints.

Compatibility

• Aironet Infrastructure: Integrates with Aironet 1830, 1850, 2800, and 3800 access points.
• Catalyst Support: Pairs directly with Catalyst 9115AX, 9120AX, and 9130AX access points.
• Hardware Interface: Matches any external-antenna Cisco access point using four RP-TNC ports.

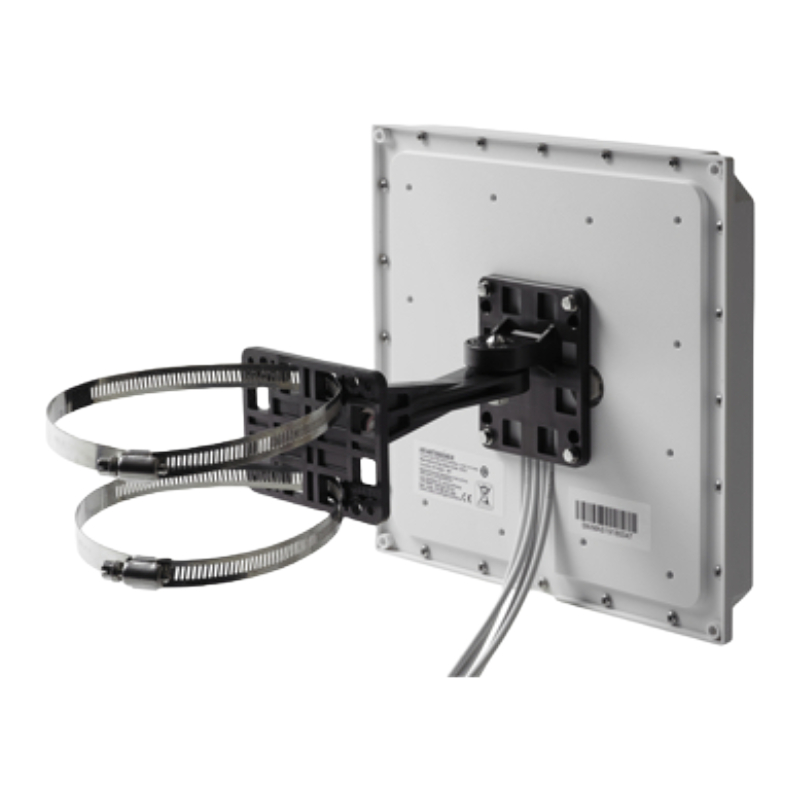

• Mounting Integration: Ships with a fully adjustable articulating mount for masts and walls.

Peak Gain

• 6 dBi on 2.4 GHz
• 6 dBi on 5 GHz

Beamwidth Characteristics

• Azimuth (Horizontal): 65° at 2.4 GHz / 55° at 5 GHz
• Elevation (Vertical): 65° at 2.4 GHz / 60° at 5 GHz

Enclosure Protection

• IP67 certified dustproof
• Waterproof immersion rating

Compact Design

• Engineered for space-efficient installation
• Optimized for both indoor and outdoor deployments

Cisco AIR-ANT2566D4M-R Directional Antenna

Unlike standard omnidirectional antennas that distribute wireless signals in a circular pattern, the Cisco AIR-ANT2566D4M-R uses a directional array design to concentrate radio frequency energy toward a specific area. This directional approach helps extend wireless coverage in selected zones while minimizing unnecessary signal dispersion. It is especially valuable in environments such as warehouses, manufacturing facilities, large offices, educational campuses, healthcare buildings, and public spaces where precise wireless coverage planning is essential.

The Cisco Aironet dual band directional array antenna category represents a range of networking accessories designed to enhance wireless infrastructure performance. These antennas work together with compatible Cisco access points to deliver improved connectivity, stronger client communication, and more efficient wireless capacity. The AIR-ANT2566D4M-R model is designed to support enterprise-level Wi-Fi deployments where consistent connectivity and predictable coverage patterns are important requirements.

Dual Band 2.4 GHz and 5 GHz Wireless Performance

The major advantage of the Cisco AIR-ANT2566D4M-R Aironet antenna is its dual-band capability. Modern wireless networks rely on multiple frequency bands to balance range, speed, and device compatibility. The 2.4 GHz band provides broader coverage and better penetration through obstacles, while the 5 GHz band offers access to more channels and higher performance for bandwidth-intensive applications.

By supporting both frequency ranges in a single antenna solution, this Cisco Aironet antenna helps network administrators create flexible wireless environments. Devices that require wider coverage can benefit from the 2.4 GHz spectrum, while newer wireless clients can take advantage of the 5 GHz band for faster data rates and reduced congestion. This dual-band design supports efficient wireless planning and helps businesses maintain reliable connectivity across different areas.

The antenna’s directional characteristics allow network designers to focus wireless energy where it is needed most. In large facilities, this can help overcome challenges caused by distance, physical barriers, and radio interference. The combination of dual-band operation and directional coverage makes the AIR-ANT2566D4M-R suitable for targeted wireless expansion projects.

Directional Array Antenna Technology for Enterprise Networks

A directional array antenna uses multiple internal antenna elements arranged to create a focused radiation pattern. This design allows the antenna to provide stronger signal concentration in a specific direction compared with general-purpose antennas. The result is improved wireless efficiency, especially when connecting users or devices located within a defined coverage area.

The Cisco AIR-ANT2566D4M-R is developed for environments where wireless coverage needs to be carefully controlled. Network engineers can position the antenna to direct signals toward work areas, production floors, conference spaces, corridors, or outdoor zones. This approach supports better wireless planning by allowing coverage to be shaped according to the physical layout of the location.

Directional antennas are often used when access points need to communicate across longer distances or through areas with challenging layouts. The focused signal pattern can help reduce interference from unwanted directions, improving the overall quality of wireless connections. For organizations operating high-density wireless networks, antenna selection plays an important role in achieving consistent performance.

Cisco Aironet Antenna Applications and Deployment Scenarios

The Cisco AIR-ANT2566D4M-R Aironet Dual Band Directional Array Antenna is designed for a wide variety of enterprise networking applications. Organizations use directional antennas when they require predictable coverage patterns and improved wireless communication in specific areas. This category of antenna is commonly associated with professional Wi-Fi installations where standard wireless equipment may not provide sufficient coverage control.

Large commercial buildings often experience wireless challenges because of building materials, floor layouts, and user density. Concrete walls, metal structures, and long distances can affect signal quality. A directional antenna helps network teams overcome these limitations by directing radio frequency energy toward intended areas rather than distributing it evenly in every direction.

In warehouses and logistics centers, wireless connectivity is essential for barcode scanners, inventory systems, mobile terminals, and operational devices. The Cisco Aironet directional antenna category provides solutions that support stable communication across large indoor spaces. By focusing coverage toward specific sections of a facility, businesses can improve connectivity without excessive access point deployment.

Enterprise Office Wireless Networking

Modern offices depend heavily on wireless connectivity for laptops, mobile devices, video conferencing systems, cloud applications, and collaboration platforms. A reliable wireless network requires careful planning to maintain performance for many users at the same time. The Cisco AIR-ANT2566D4M-R supports these environments by helping administrators create targeted coverage zones.

Directional antennas are particularly useful in offices with unusual layouts, separate wings, meeting spaces, or areas where signal strength must be enhanced. They allow wireless engineers to adapt network design according to building structure instead of relying only on standard coverage patterns.

Industrial and Commercial Wireless Environments

Industrial environments often require wireless networks that can handle demanding conditions. Manufacturing floors, distribution centers, and large facilities may contain equipment and materials that interfere with wireless signals. The Cisco AIR-ANT2566D4M-R helps address these challenges by providing a focused antenna solution designed for enterprise wireless infrastructure.

Businesses can use directional coverage to connect important operational zones while reducing unnecessary signal overlap. This can contribute to better channel management and more efficient use of available wireless spectrum. When combined with properly configured Cisco access points, the antenna supports a reliable and scalable network foundation.

Features of the Cisco AIR-ANT2566D4M-R Aironet Antenna

The Cisco AIR-ANT2566D4M-R offers several characteristics that make it suitable for professional wireless deployments. Its dual-band support allows compatibility with both traditional and newer wireless devices. Its directional array structure provides controlled coverage, helping organizations design networks around their specific requirements.

The antenna category is focused on improving wireless communication quality rather than simply increasing signal strength. A well-designed antenna solution helps create balanced wireless performance by considering coverage area, interference, and device distribution. Cisco Aironet accessories are developed to integrate with Cisco networking equipment, providing a coordinated approach to wireless infrastructure.

The compact enterprise-oriented design allows the antenna to be installed in locations where space and placement flexibility are important. Network administrators can position antennas strategically to achieve desired coverage outcomes. Proper installation and configuration help maximize the benefits of the directional design.

Improving Wi-Fi Reliability with Antenna Selection

Antenna selection is a critical part of wireless network engineering. The wrong antenna type can result in weak coverage, inconsistent connections, or unnecessary interference. The Cisco AIR-ANT2566D4M-R provides a directional solution for environments where wireless signals need to travel toward specific areas.

Reliable Wi-Fi depends on maintaining strong communication between access points and client devices. Directional antennas can help create stronger wireless links by focusing energy where devices are located. This makes them valuable tools for network upgrades, expansions, and specialized deployments.

Supporting Modern Wireless Infrastructure

As organizations continue adopting cloud services, mobile applications, Internet of Things devices, and wireless communication systems, network infrastructure must support increasing demands. The Cisco AIR-ANT2566D4M-R fits into this broader wireless ecosystem by providing an antenna option designed for performance-focused installations.

Enterprise wireless networks require flexibility because every building has different coverage requirements. Some locations need broad coverage, while others need targeted connections. Directional antennas provide an additional design option that allows wireless professionals to create more efficient network layouts.

The Cisco Aironet Directional Antennas

Proper installation is essential to achieve the expected performance from the Cisco AIR-ANT2566D4M-R. The antenna should be positioned according to the desired coverage direction and the surrounding environment. Factors such as walls, equipment, user locations, and interference sources should be considered during deployment planning.

Wireless professionals typically evaluate the physical layout of a facility before selecting antenna placement. Directional antennas work best when aimed toward the areas requiring improved connectivity. Careful positioning ensures that the antenna’s focused signal pattern provides maximum benefit.

Configuration and testing are also important steps after installation. Network teams can analyze signal strength, coverage quality, and client performance to verify that the wireless design meets operational requirements. A properly installed directional antenna can significantly improve wireless consistency.

Cisco AIR-ANT2566D4M-R for Professional Wi-Fi Expansion

The Cisco AIR-ANT2566D4M-R Aironet Dual Band Directional Array Antenna is a specialized networking accessory designed for organizations that need controlled, reliable, and efficient wireless coverage. With support for 2.4 GHz and 5 GHz operation, it provides a balanced solution for enterprise wireless environments where performance and coverage planning are priorities.

From offices and campuses to industrial facilities and large commercial spaces, this directional antenna category supports a wide range of wireless deployment requirements. Its focused signal design, dual-band functionality, and compatibility with Cisco Aironet infrastructure make it a valuable option for improving wireless connectivity.

Network administrators seeking enhanced wireless performance often rely on directional antenna technology to solve coverage challenges. The Cisco AIR-ANT2566D4M-R demonstrates how the right antenna choice can help create a more dependable and efficient Wi-Fi environment.
