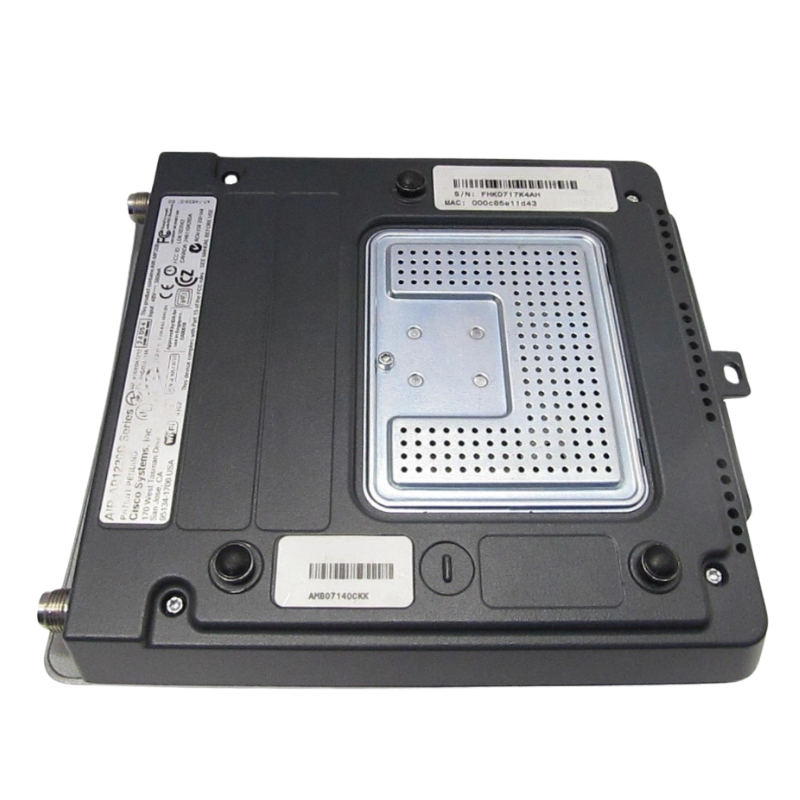

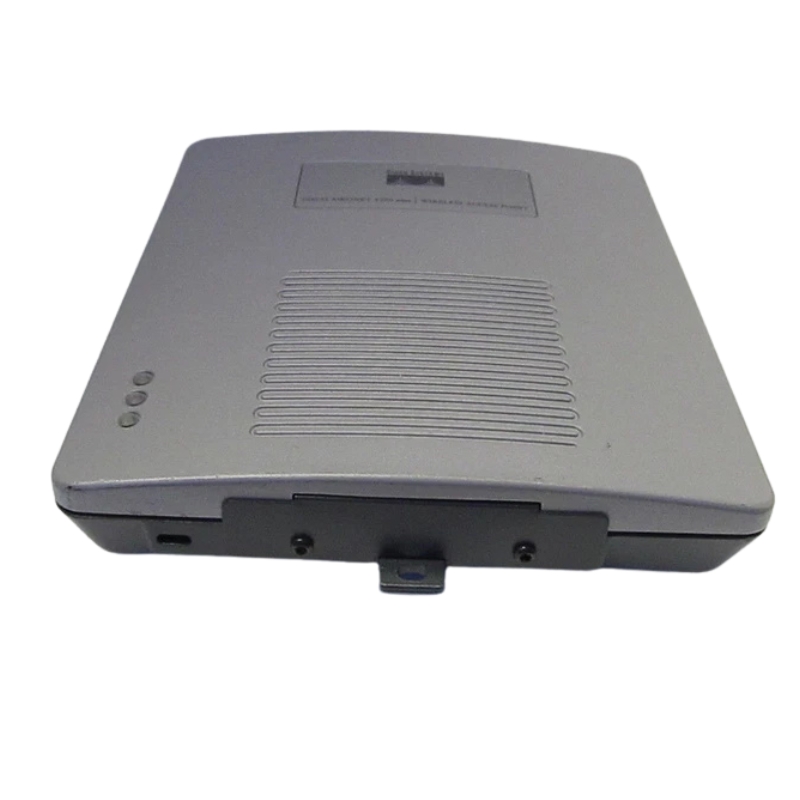

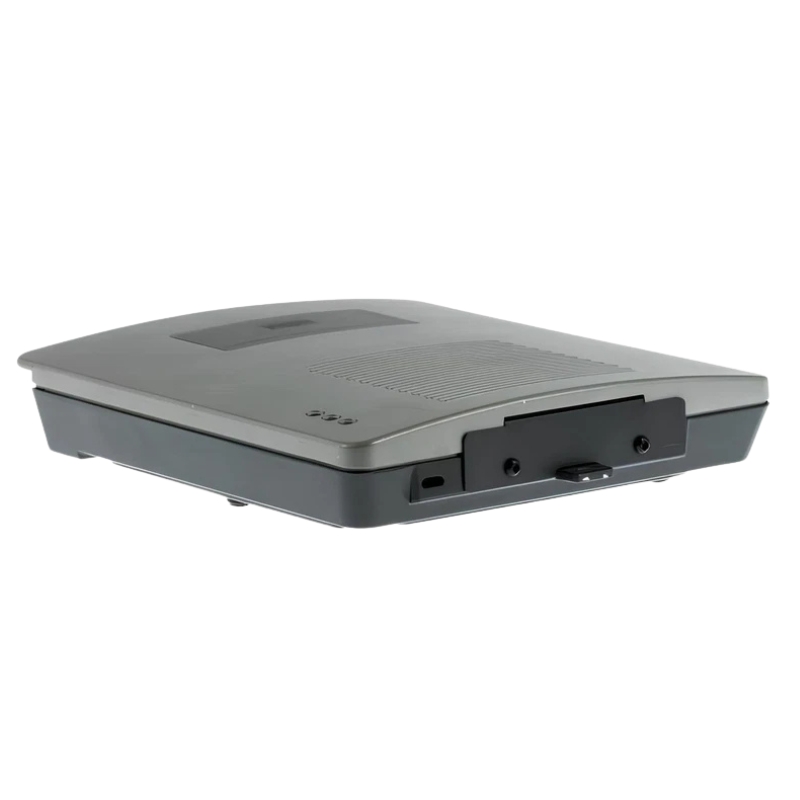

AIR-AP1232AG-A-K9 Cisco Aironet 1232AG Wireless Access Point

Cisco AIR-AP1232AG-A-K9 Aironet Wireless Access Point

The Cisco AIR-AP1232AG-A-K9 Aironet 1232AG Wireless Access Point delivers dependable dual‑band 802.11a/b/g connectivity, offering stable indoor and outdoor performance for enterprise, commercial, and institutional environments. Built for secure communication, flexible deployment, and consistent throughput, it provides reliable coverage across a wide range of professional networking applications.Equipped with dual RP‑TNC antenna connectors and extended range capabilities, this access point supports both indoor and outdoor deployments with reliable performance and consistent signal distribution.

General information

• Manufacturer: Cisco
• Part Number: AIR-AP1232AG-A-K9
• Product Type: Wireless Access Point

Technical specifications

Wireless standards

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g

Frequency bands

• ISM Band: Yes
• UNII Band: Yes
• ISM Frequency Range: 2.41 GHz (Min) – 2.40 GHz (Max)
• UNII Frequency Range: 5.15 GHz (Min) – 5 GHz (Max)

Connectivity features

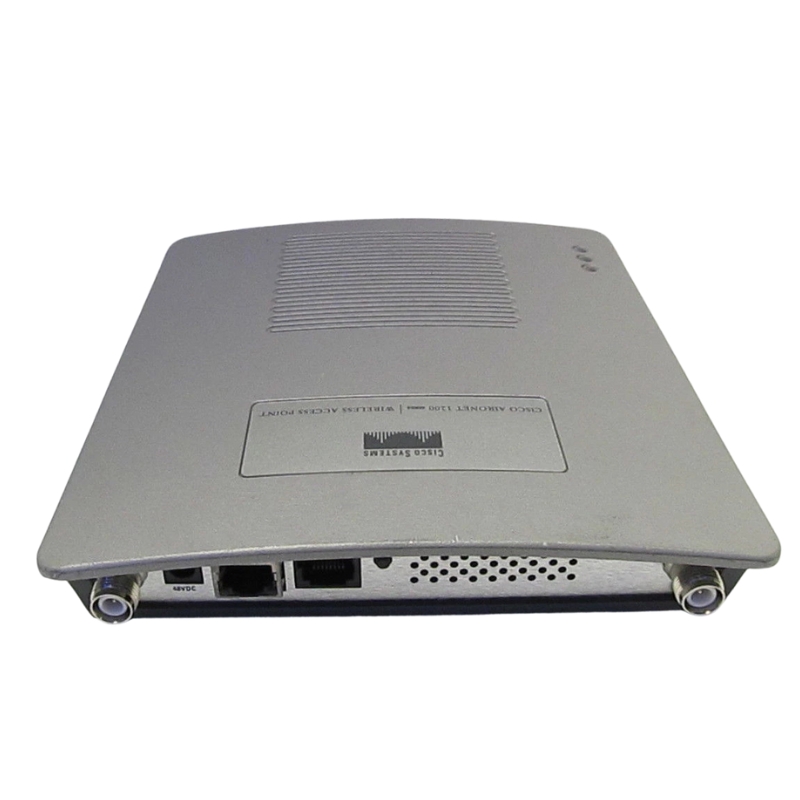

• Antenna Connector: Dual RP‑TNC
• Indoor Range: Up to 500 ft
• Outdoor Range: Up to 950 ft
• Wireless Speed: 54 Mbit/s

Security features

• WPA, WPA2 (802.11i)
• IEEE 802.11 WEP
• 802.1X EAP
• AES, TKIP

Interface and management

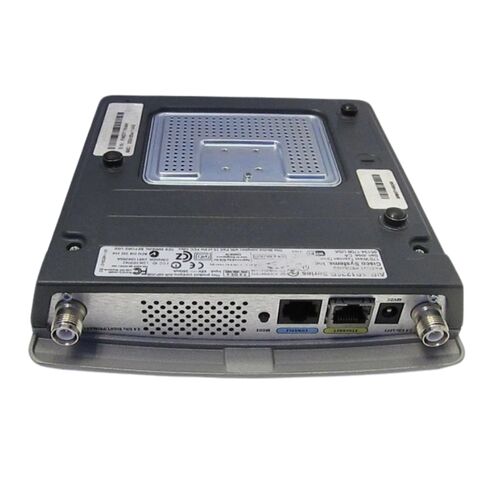

• Fast Ethernet Port: Yes
• Management Protocols: BootP, SSH, HTTPS, TFTP, FTP, Telnet, Console Port
• SNMP Support
• Cisco Works RME, SWIM, Campus Manager, Cisco View, WLSE

Power specifications

• Input Voltage: 110 V AC / 220 V AC / 48 V DC
• Power Source: Power Supply

Physical dimensions

• Height: 1.6 inches
• Depth: 7.2 inches
• Weight: Approx. 1.72 lbs

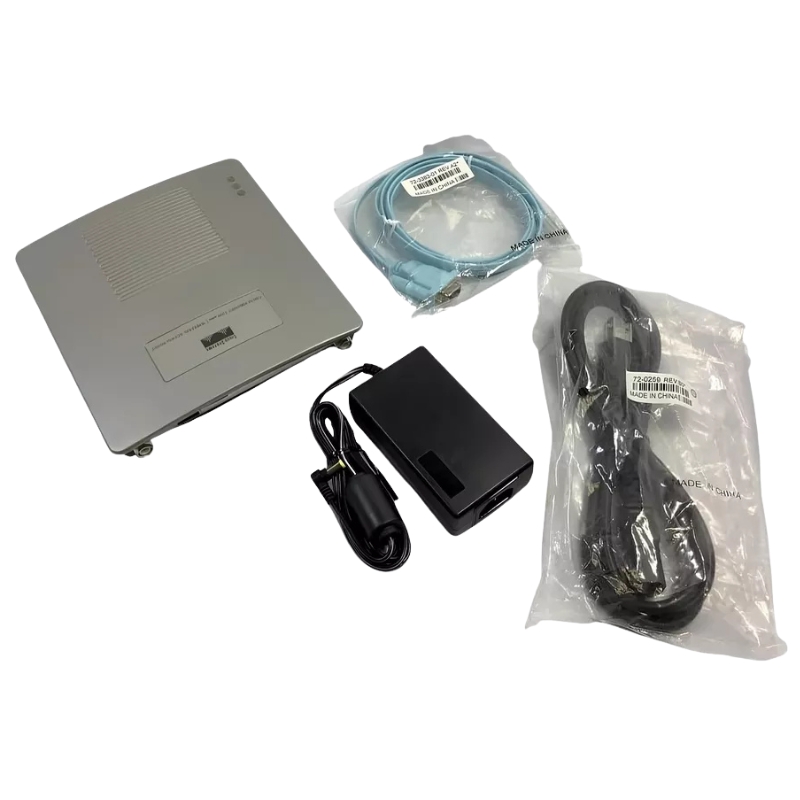

Package contents

• Access Point
• Power Pack
• Mounting Bracket
• Mounting Hardware Kit
• Quick Start Guide
• Product Registration Card

Safety certifications

• UL 60950‑1, CAN/CSA‑C22.2 No. 60950‑1
• IEC 60950‑1, EN 60950‑1
• UL 2043
• NIST FIPS 140‑2 Level 2 Validation
• Common Criteria (Cisco IOS Software Only)

Radio approvals

• FCC Part 15.247
• RSS‑210 (Canada)
• EN 300.328, EN 301.893 (Europe)
• ARIB‑STD 33 (Japan)
• AS/NZS 4771, 4268.2 (Australia & New Zealand)

Security standards

• 802.11i, WPA2, WPA
• 802.1X Authentication
• AES, TKIP Encryption

Other compliance

• IEEE 802.11a/b/g
• FCC Bulletin OET‑65C
• RSS‑102

Compatibility

Network and ecosystem compatibility

• Compatible with Cisco Aironet wireless controllers and management platforms
• Supports mixed 802.11a/b/g wireless environments
• Ideal for enterprise indoor and outdoor deployments requiring stable connectivity

Deployment scenarios

• Enterprise WLAN installations
• Schools and training centers
• Retail and commercial environments
• Hospitality and guest‑access networks
• Outdoor point‑to‑point or point‑to‑multipoint deployments

Cisco Aironet 1232AG Wireless Access Point Architecture

The Cisco Aironet 1232AG Wireless Access Point represents a foundational enterprise wireless networking device engineered to deliver dual-band connectivity across 2.4 GHz and 5 GHz spectrums. Designed for organizations requiring reliable wireless coverage in high-density environments, this access point integrates seamlessly into legacy and modern network infrastructures. Its architecture is built around robust radio frequency engineering, enabling simultaneous support for IEEE 802.11a and IEEE 802.11g standards, which allows network administrators to extend wireless access while maintaining compatibility with diverse client devices. The platform is particularly recognized for its stability in mission-critical environments where consistent wireless performance is essential for operational continuity.

The device is widely deployed in enterprise campuses, public institutions, and industrial environments where structured wireless coverage is necessary. Its modular design and external antenna support enable flexible RF shaping, allowing administrators to fine-tune signal propagation based on physical building layouts. The Aironet 1232AG also integrates advanced Cisco wireless intelligence features that contribute to optimized roaming, reduced interference, and improved spectral efficiency in congested environments.

Dual Band Wireless Operation and Frequency Utilization

A defining characteristic of the Cisco Aironet 1232AG is its ability to operate across both 2.4 GHz and 5 GHz frequency bands simultaneously. The 2.4 GHz band, typically associated with IEEE 802.11g, provides broader coverage and improved penetration through walls and structural barriers, making it suitable for general-purpose connectivity. In contrast, the 5 GHz band, aligned with IEEE 802.11a, delivers higher throughput and reduced interference due to its wider channel availability and lower device congestion.

This dual-band capability allows network architects to strategically distribute wireless load across frequency ranges, improving overall network efficiency. Devices requiring higher bandwidth, such as video streaming endpoints or enterprise applications, can be directed to the 5 GHz spectrum, while general connectivity tasks can remain on 2.4 GHz. This balanced approach helps reduce bottlenecks and enhances the user experience in environments with high device density.

IEEE 802.11a and IEEE 802.11g Standards

The Cisco Aironet 1232AG Wireless Access Point is engineered to comply with IEEE 802.11a and IEEE 802.11g standards, ensuring interoperability with a wide range of wireless clients. IEEE 802.11g operates within the 2.4 GHz band and supports backward compatibility with earlier 802.11b devices, making it suitable for mixed-device environments. IEEE 802.11a, operating in the 5 GHz band, provides increased data rates and improved resistance to interference, particularly in environments with dense wireless traffic.

The integration of these standards within a single hardware platform enables organizations to maintain legacy device compatibility while progressively transitioning toward higher-performance wireless networks. This flexibility is particularly valuable in enterprise environments where hardware refresh cycles vary across departments and operational units.

RF Engineering and Signal Propagation Optimization

Radio frequency design is central to the performance of the Cisco Aironet 1232AG. The device incorporates advanced RF engineering techniques that allow for adaptive signal distribution across complex physical environments. Its support for external antennas provides significant flexibility in shaping wireless coverage, enabling directional or omnidirectional deployment strategies depending on environmental requirements.

In environments such as office buildings, warehouses, and educational campuses, RF optimization is critical to minimizing dead zones and ensuring consistent connectivity. The access point supports adjustable transmit power levels, allowing administrators to fine-tune signal strength to avoid overlap and interference between adjacent access points. This contributes to a more stable and predictable wireless infrastructure, particularly in large-scale deployments.

The Aironet 1232AG’s external antenna system is one of its most adaptable features. By supporting multiple antenna types, including omnidirectional and directional configurations, the device can be customized to meet specific coverage requirements. Omnidirectional antennas are typically used in open office environments where uniform coverage is desired, while directional antennas are suited for corridors, storage facilities, or point-to-point wireless bridging scenarios.

This flexibility enables precise RF planning, allowing organizations to extend wireless coverage into challenging architectural spaces. The ability to physically position antennas independently from the access point hardware also improves installation versatility, especially in environments with mounting constraints or signal obstructions.

Enterprise Deployment Scenarios and Industry Applications

The Cisco Aironet 1232AG Wireless Access Point is widely used across multiple industries due to its reliability and adaptability. In enterprise campus environments, it supports high-density user connectivity, ensuring that employees and guests maintain consistent access to corporate networks. The device is often deployed in conjunction with centralized wireless controllers to enable unified management and seamless roaming.

In large campus deployments, the Aironet 1232AG serves as a foundational access layer component. Its ability to handle multiple simultaneous connections ensures that users moving between buildings or floors experience uninterrupted connectivity. The integration of roaming capabilities allows devices to transition between access points without session drops, which is essential for voice and real-time applications.

In warehouse environments, wireless coverage is often challenged by metallic structures, shelving systems, and moving equipment. The Aironet 1232AG addresses these challenges through adjustable RF output and external antenna configurations. This ensures consistent connectivity for inventory management systems, handheld scanners, and automated logistics platforms that rely on continuous wireless communication.

Wireless Security Architecture and Data Protection

Security is a critical component of the Cisco Aironet 1232AG design. The access point supports multiple encryption protocols and authentication mechanisms that help protect wireless communications from unauthorized access. Enterprise-grade security features allow administrators to implement secure authentication frameworks that integrate with centralized directory services.

The device supports layered security models that include encryption at the data link layer, access control policies, and network segmentation. These mechanisms help ensure that only authorized users and devices can access network resources. In addition, the platform supports secure roaming, which maintains encryption continuity as devices move between access points within the same network infrastructure.

Network Integration and Cisco Management Ecosystem

The Aironet 1232AG integrates into Cisco’s broader network management ecosystem, enabling centralized configuration, monitoring, and optimization. Administrators can manage multiple access points through unified control systems, allowing for consistent policy enforcement and simplified network administration. This centralized approach reduces operational complexity and improves scalability in large deployments.

The device also supports detailed monitoring of wireless performance metrics, enabling proactive identification of interference, congestion, and coverage gaps. This visibility is essential for maintaining high-performance wireless networks in dynamic enterprise environments.

Firmware Capabilities and System-Level Functionality

The Cisco Aironet 1232AG operates on Cisco IOS-based firmware that provides extensive configuration and control capabilities. This includes support for advanced routing integration, wireless bridging, and dynamic frequency management. Firmware updates allow for performance enhancements, security improvements, and expanded compatibility with evolving network standards.

System-level functionality includes support for diagnostics, event logging, and performance analytics. These tools enable administrators to maintain operational visibility and ensure long-term network stability.

Environmental Requirements and Operational Stability

The Cisco Aironet 1232AG is engineered for stable operation across a range of environmental conditions. It is designed to function reliably in typical indoor enterprise settings, including offices, educational facilities, and controlled industrial environments. Its thermal and electrical design ensures consistent performance under continuous operation.

Power delivery options support enterprise infrastructure standards, allowing integration into structured cabling and power management systems. This ensures that the device can be deployed at scale without requiring specialized power configurations.
