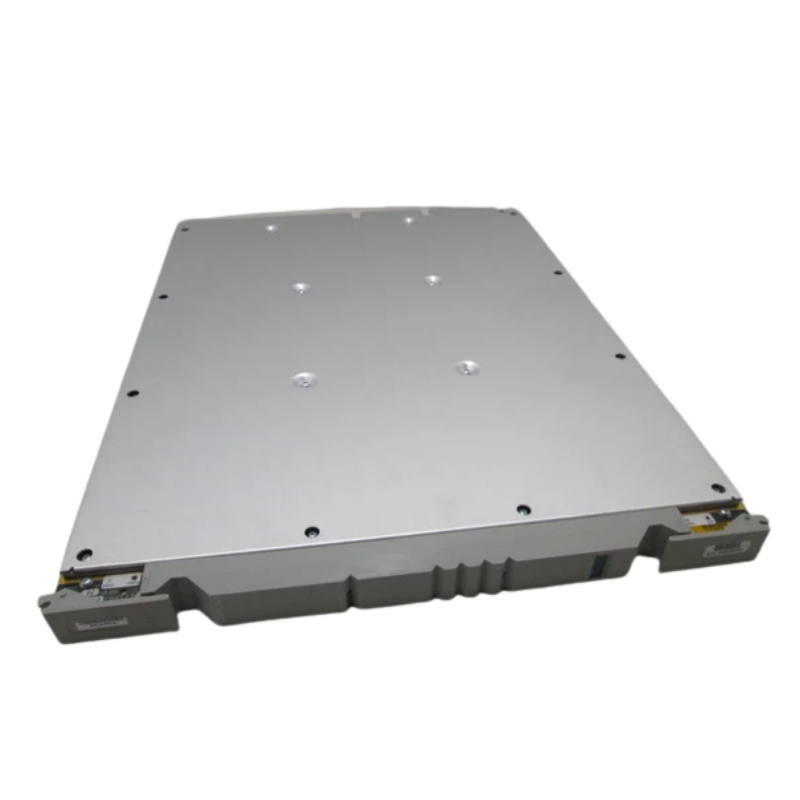

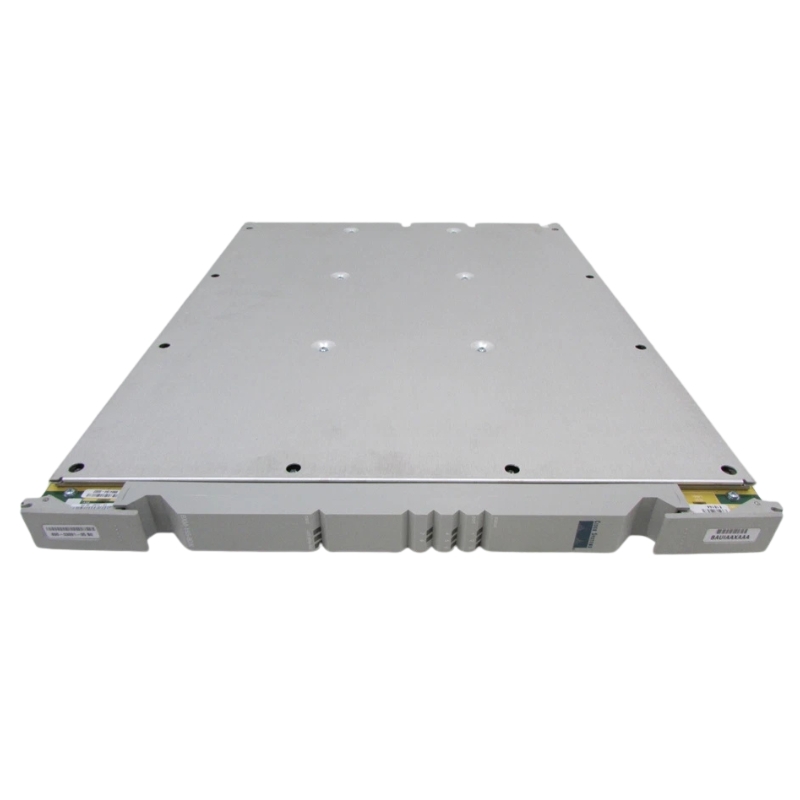

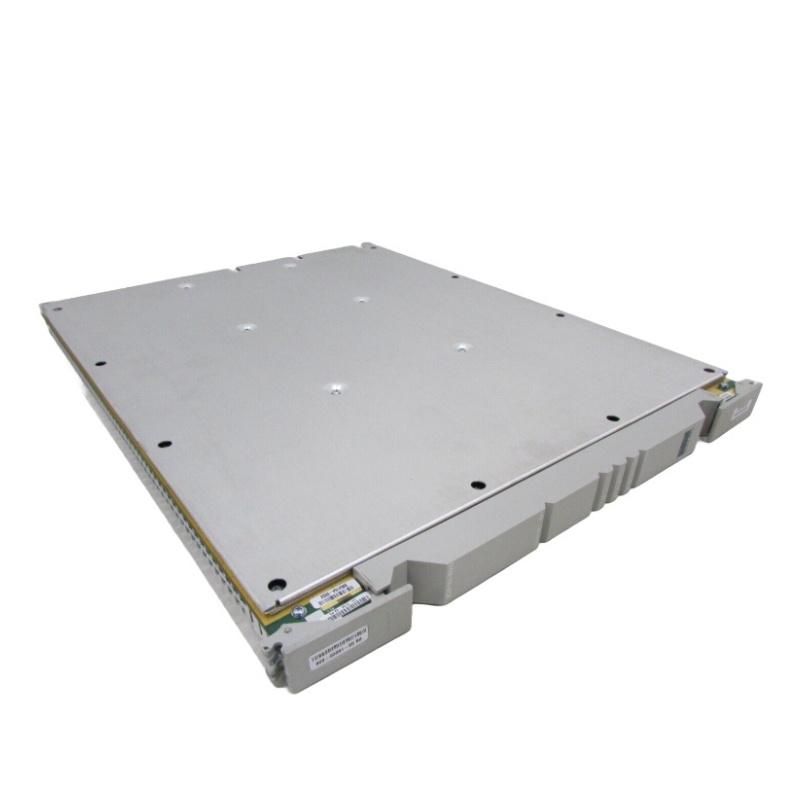

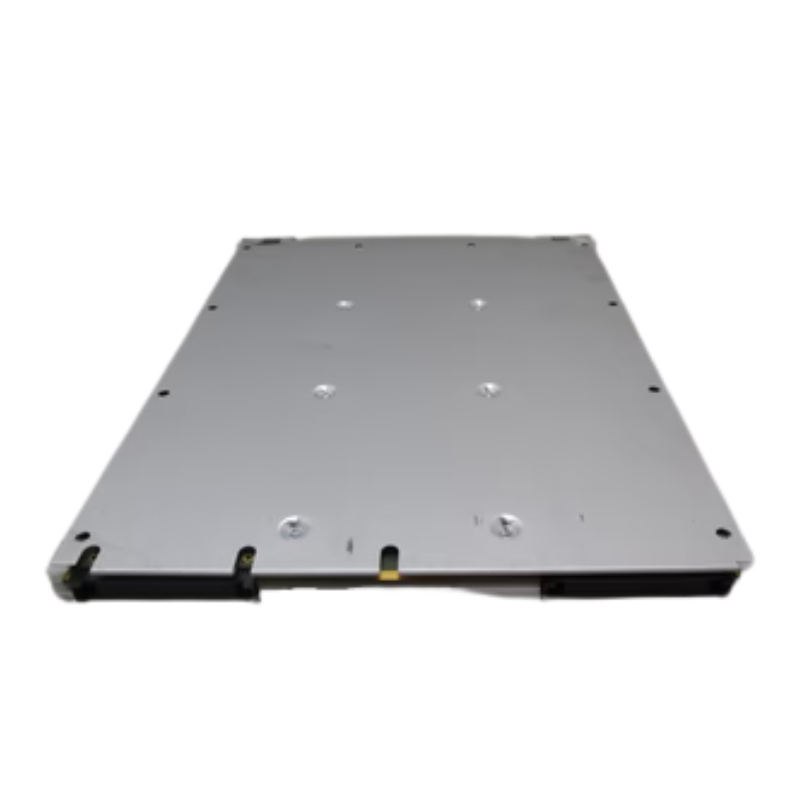

BPX-BXM-155-8DX Cisco 8-Ports Enhanced BXM Card

Overview of the Card

The BPX-BXM-155-8DX Cisco 8-Ports Enhanced BXM Card is a high-performance broadband switching module designed for carrier-class networking environments that require scalable ATM (Asynchronous Transfer Mode) switching capabilities. As part of Cisco’s BPX 8600 series architecture, this enhanced BXM (Broadband Switch Module) card plays a crucial role in delivering high-speed packet transport, optimized traffic management, and reliable backbone connectivity across wide-area networks. It is widely deployed in telecom infrastructures, enterprise backbone networks, and service provider switching systems where deterministic performance and fault tolerance are essential.

Main Information

• Manufacturer: Cisco Systems, Inc.
• Part Number: BPX-BXM-155-8DX
• Product Type: Network Accessories

Key Features

• Card Type: Broadband Switch Module (BXM)
• Design Gen: Enhanced "DX" series module
• Form Factor: Hot-swappable modular blade
• Predecessor Root: Legacy StrataCom engineering

Port & Transmission Specs

• Port Count: 8 physical ports
• Port Speed: 155.52 Mbps per port
• Optical Rating: OC-3c (Optical Carrier)
• SDH Standard: STM-1 (Synchronous Transport)
• Signaling Medium: ATM fiber optic interface

 Capacity & Buffering

• Active Connections: 64,000 (64K) concurrent channels
• Packet Memory: 1 Million cells buffer depth
• Processing Engine: Dedicated custom network ASICs
• Congestion Fix: Built-in cell scheduling algorithms

 Protocols & Switching

• ATM Mode: Permanent Virtual Circuits (PVC)
• Dynamic Mode: Switched Virtual Circuits (SVC)
• Hybrid Mode: Smart-Permanent Virtual Circuits (S-PVC)
• Core Protocol: Multi-Protocol Label Switching (MPLS)
• LVC Support: MPLS Label Virtual Circuits
• VC Merging: Hardware-driven circuit optimization

 Hardware Compatibility

• Chassis Support: Cisco BPX 8600 switches
• Co-Chassis Support: Cisco BPX 8620 switches
• Redundancy Card: Matches BPX-RDNT-SM-155-8
• Failover Engine: Automated Protection Switching (APS)

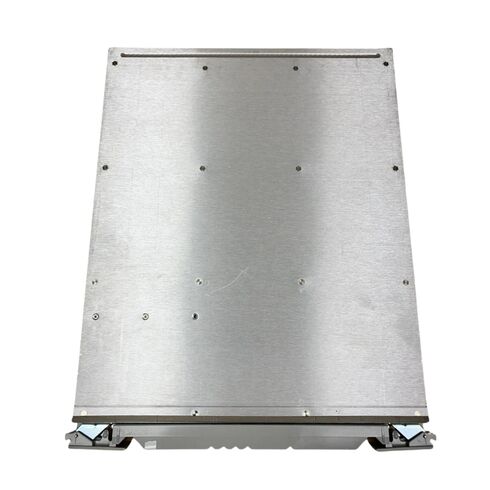

BPX-BXM-155-8DX Cisco 8-Ports Enhanced BXM Card

Built to support advanced ATM switching and routing operations, the BPX-BXM-155-8DX integrates eight high-capacity ports optimized for OC-3/STM-1 (155 Mbps) interfaces, making it suitable for aggregating multiple traffic streams into a unified switching fabric. Its enhanced architecture ensures improved throughput, reduced latency, and superior traffic engineering capabilities compared to earlier-generation BXM modules.

Architectural Design and System Integration

The BPX-BXM-155-8DX is engineered around Cisco’s modular switching framework, allowing seamless integration into the BPX high-capacity switching chassis. Each module functions as an independent processing unit responsible for handling ATM cell switching, traffic prioritization, and congestion management. The modular design ensures that network expansion can be achieved without disrupting existing services, making it ideal for scalable carrier-grade deployments.

Backplane Connectivity and Fabric Efficiency

Within the BPX system, the card connects to a high-speed switching fabric via a centralized backplane architecture. This enables non-blocking data transfer between multiple BXM cards and service modules. The enhanced fabric utilization of the BPX-BXM-155-8DX ensures minimal packet loss even under heavy traffic loads, maintaining deterministic latency for real-time applications such as voice and video transmission.

Hardware Acceleration and Processing Power

The card incorporates dedicated hardware-based forwarding engines that accelerate ATM cell processing. This reduces dependency on software-based routing decisions and significantly increases throughput efficiency. Hardware acceleration also improves quality of service (QoS) enforcement by ensuring traffic shaping and policing are executed at wire speed.

Features of Cisco 8-Port Enhanced BXM Card

Featuring eight OC-3/STM-1 ports, the BPX-BXM-155-8DX supports high-density traffic aggregation. Each port is capable of handling 155 Mbps throughput, making the module suitable for large-scale ATM switching environments where multiple circuits must be consolidated efficiently.

Advanced Traffic Management

The module provides sophisticated traffic management mechanisms including traffic shaping, policing, and congestion avoidance. These capabilities ensure that bandwidth is allocated dynamically based on service priority, reducing packet loss and improving overall network performance.

Quality of Service (QoS) Optimization

QoS is a fundamental feature of the BPX-BXM-155-8DX, enabling differentiated handling of voice, video, and data traffic. By classifying ATM cells into service categories, the module ensures latency-sensitive applications receive priority treatment over best-effort traffic.

Fault Tolerance and Redundancy

Designed for carrier-grade reliability, the card supports redundancy configurations within the BPX chassis. In the event of a module failure, traffic can be rerouted to standby modules without service interruption, ensuring continuous network availability.

Performance Capabilities and Optimization

The BPX-BXM-155-8DX is optimized for high-throughput environments where large volumes of ATM cells must be processed in real time. Its architecture supports sustained data transfer rates across all eight ports without degradation in performance.

Low Latency Processing

Low latency is critical in telecom backbone networks. This module minimizes processing delays through hardware-based switching mechanisms, ensuring near-instantaneous forwarding of ATM cells across the network fabric.

Scalability for Growing Networks

As network demand increases, additional BXM modules can be added to the BPX chassis without reconfiguring the entire system. This scalability makes the BPX-BXM-155-8DX suitable for evolving network infrastructures that require incremental expansion.

Telecommunications and Enterprise Applications

Telecom operators rely on the BPX-BXM-155-8DX for backbone switching between regional and national network nodes. Its ability to handle high-density ATM traffic makes it essential for long-distance data transmission and inter-office connectivity.

Enterprise WAN Connectivity

Large enterprises use this module to connect geographically distributed offices over ATM-based WANs. The card ensures stable bandwidth allocation and consistent service quality across multiple branches.

Voice, Video, and Data Integration

The convergence of voice, video, and data traffic is efficiently managed through ATM QoS mechanisms. The BPX-BXM-155-8DX ensures that voice calls remain clear, video streams remain uninterrupted, and data transfers remain reliable.

ISP and Data Center Deployments

Internet service providers and data centers utilize this module for aggregating customer traffic and distributing it across high-capacity backbone links. Its reliability and throughput capabilities make it suitable for mission-critical hosting environments.

Compatibility with Cisco BPX Systems

The BPX-BXM-155-8DX is fully compatible with Cisco BPX 8600 series switching systems. It integrates seamlessly into the existing chassis architecture and communicates with other switching modules through the high-speed backplane.

Interoperability with Service Modules

This card works alongside other service modules such as voice compression units, broadband interface modules, and control processors. This interoperability enables flexible network design tailored to specific operational requirements.

Legacy Network Support

Despite being an enhanced module, the BPX-BXM-155-8DX maintains backward compatibility with legacy ATM infrastructures. This allows network operators to upgrade selectively without replacing entire systems.

System Verification

After configuration, diagnostic tests are performed to verify port functionality, switching performance, and redundancy readiness. This ensures that the module operates within expected performance parameters.

Reliability, Redundancy, and Fault Management

The BPX-BXM-155-8DX is designed for environments where uptime is critical. Carrier-grade reliability ensures that the module can operate continuously under high traffic loads without failure.

Redundant Path Switching

In redundant configurations, traffic can automatically switch to backup modules in the event of hardware failure. This ensures uninterrupted service delivery across the network.

Fault Detection Mechanisms

Advanced fault detection systems continuously analyze performance data to detect anomalies. Early warning systems help prevent major network disruptions.

Comparative Advantages Over Standard BXM Modules

Compared to standard BXM modules, the BPX-BXM-155-8DX offers improved port density and better traffic handling efficiency, allowing more connections per module.

Improved Processing Architecture

The enhanced processing engine delivers faster ATM cell switching and reduced latency, improving overall network responsiveness.

Greater Scalability Potential

This module supports larger-scale deployments, making it suitable for growing telecom infrastructures and enterprise WAN expansion strategies.

Operational Use Cases in Modern Network Environments

Used extensively in backbone networks, the BPX-BXM-155-8DX ensures efficient data aggregation and distribution across long-distance communication channels.

Mission-Critical Data Transport

For industries requiring uninterrupted data flow such as finance, healthcare, and government networks, this module provides stable and predictable performance.

Multi-Service Network Integration

The module supports integration of multiple services including voice, data, and video, allowing operators to consolidate infrastructure and reduce operational complexity.

Network Optimization and Traffic Engineering Strategies

Dynamic bandwidth allocation ensures efficient utilization of available resources. The BPX-BXM-155-8DX adjusts traffic flows based on real-time demand conditions.

Congestion Control Mechanisms

Congestion control features prevent network overload by regulating traffic admission and prioritizing critical data streams.

Load Balancing Across Ports

Load balancing distributes traffic evenly across all eight ports, preventing bottlenecks and optimizing system performance.

Long-Term Network Evolution and Relevance

The BPX-BXM-155-8DX continues to maintain relevance in specialized telecom environments where ATM-based switching is still deployed. Its robust architecture and scalable design ensure that it remains a valuable component in legacy network systems while supporting gradual migration strategies toward newer technologies.
