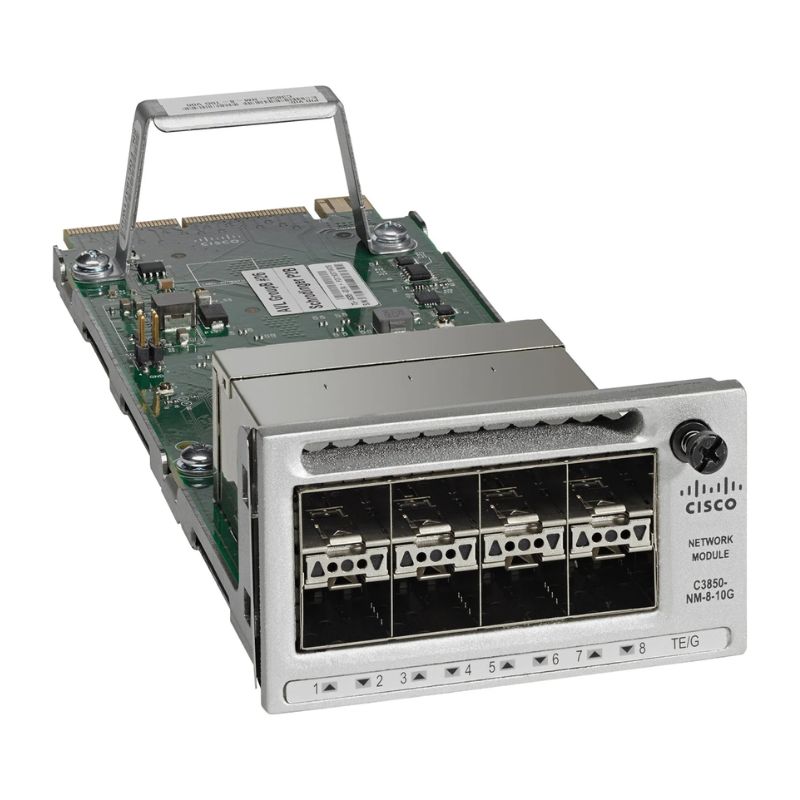

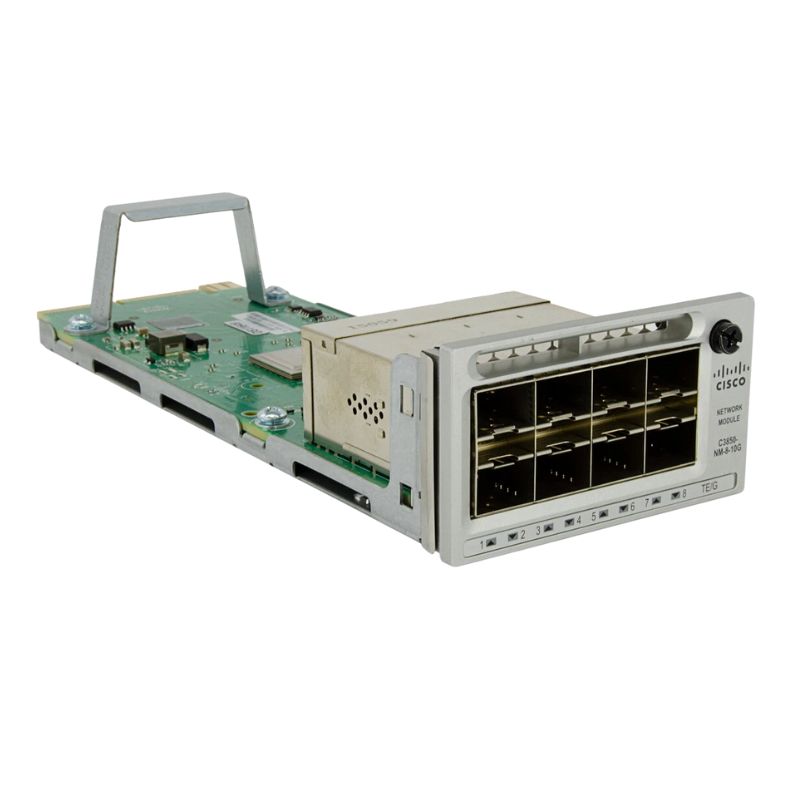

C3850-NM-8-10G Cisco Catalyst 3850 10GBPS Network Expansion Module

Overview of the Cisco Expansion Module

The Cisco C3850-NM-8-10G Network Expansion Module is designed to provide high-speed connectivity to your network infrastructure. With a blazing-fast speed of 10Gbps, this expansion module ensures that your network can handle the most demanding applications and data transfers.

Details Information

• Brand: Cisco
• Model Number: C3850-NM-8-10G
• Type: Expansion Module

Technical Features

• Primary Use: Data Networking, Optical Networking
• Data Transfer Speed: 10 Gbps
• Form Factor: Plug-in Module
• Data Link Protocols: GigE, 10 GigE
• Port Configuration: 8 x 10 Gigabit SFP+ / SFP (mini-GBIC)
• Total Number of Slots: 8
• Slot Types: SFP (mini-GBIC), SFP+

Compatible Switch Models

• WS-C3850-24XS: 24-Port 10G SFP+ Aggregation switch.
• WS-C3850-12X48U: 48-Port Multigigabit UPOE switch.
• WS-C3850-24XU: 24-Port Multigigabit UPOE switch

Incompatible Switch Models

• Standard 1G Copper Switches: Incompatible with WS-C3850-24T, 24P, 48T, 48P, 48F models.
• WS-C3850-12XS: Incompatible with the 12-port fiber aggregation model.
• Other Platforms: Incompatible with Catalyst 3650, 9200, or 9300 series platforms

The Catalyst 3850 8 Ports 10 Gigabits Expansion Module

The C3850-NM-8-10G Cisco Catalyst 3850 8 Ports 10 Gigabits Expansion Module is a high-performance network expansion module designed specifically for the Cisco Catalyst 3850 Series switches. It provides an advanced 8-port 10 Gigabit Ethernet capability, enabling enterprise-grade scalability, enhanced uplink flexibility, and high-speed aggregation for modern campus and data center networks. This module plays a critical role in transforming a standard access-layer switch into a powerful aggregation or distribution-layer device capable of handling bandwidth-intensive workloads such as virtualization, cloud computing, high-density wireless deployments, and large-scale enterprise traffic flows.

Built with Cisco’s proven hardware engineering and modular architecture, the C3850-NM-8-10G supports seamless integration into existing Catalyst 3850 chassis environments. Its hot-swappable design ensures minimal network disruption during installation or replacement, making it ideal for mission-critical enterprise environments that demand high availability and zero downtime upgrades.

High-Speed 10 Gigabit Ethernet Architecture

The core advantage of the C3850-NM-8-10G expansion module lies in its eight dedicated 10 Gigabit Ethernet SFP+ ports. These ports significantly increase uplink capacity compared to traditional Gigabit uplinks, enabling smoother traffic flow between access switches and core or distribution layers. With the increasing adoption of bandwidth-heavy applications such as video conferencing, cloud-based ERP systems, and real-time analytics platforms, 10G connectivity is no longer optional but essential for scalable network design.

Each port on the module is optimized for low latency and high throughput performance, ensuring that packet loss is minimized even under heavy network load. The module integrates deeply with Cisco’s switching fabric, enabling efficient forwarding and intelligent traffic management across all connected devices.

Cisco Catalyst 3850 Series Integration

The C3850-NM-8-10G module is engineered exclusively for the Cisco Catalyst 3850 Series, a widely deployed enterprise switching platform known for its convergence of wired and wireless networking capabilities. When installed in a Catalyst 3850 switch, the module expands uplink density and allows the switch to support higher aggregation demands in enterprise networks.

This integration supports Cisco’s Unified Access Data Plane (UADP) architecture, which enables consistent policy enforcement across wired and wireless traffic. As a result, network administrators can maintain unified security, QoS, and traffic management policies across the entire infrastructure without needing separate management systems for different network types.

Enterprise Network Scalability and Performance Benefits

One of the primary reasons organizations deploy the C3850-NM-8-10G expansion module is its ability to dramatically improve network scalability. With eight additional 10G ports, network architects can design multi-layer topologies that reduce bottlenecks and improve redundancy. This is particularly beneficial in environments where multiple access switches must connect to core aggregation switches with high throughput requirements.

The module supports link aggregation technologies such as EtherChannel, allowing multiple 10G links to be bundled into a single logical connection. This not only increases bandwidth but also enhances fault tolerance. If one link fails, traffic is automatically redistributed across remaining active links without service interruption.

Data Center and Campus Deployment Scenarios

The C3850-NM-8-10G module is widely deployed in enterprise campus networks, branch office aggregations, and light data center environments. In campus deployments, it enables high-speed interconnection between access layer switches and distribution switches, ensuring seamless communication between departments, services, and users.

In data center edge scenarios, the module provides reliable 10G uplinks for servers, storage systems, and virtualization clusters. It supports high-volume east-west and north-south traffic flows, which are essential for modern application architectures such as microservices and containerized workloads.

Wireless Infrastructure Optimization

Modern enterprise wireless networks generate substantial traffic due to the proliferation of mobile devices, IoT endpoints, and high-definition multimedia applications. The C3850-NM-8-10G module plays a key role in supporting Cisco’s unified wired-wireless architecture by providing high-speed backhaul connectivity for wireless controllers and access point aggregations.

With increasing adoption of Wi-Fi 5 and Wi-Fi 6 technologies, access points can easily saturate traditional Gigabit uplinks. By upgrading to 10 Gigabit uplinks using this module, organizations ensure that wireless performance is not constrained by the wired infrastructure.

Advanced Switching Capabilities and Intelligent Traffic Handling

The module benefits from Cisco’s advanced switching intelligence, which includes features such as hardware-based forwarding, deep packet buffering, and intelligent congestion management. These capabilities allow the switch to maintain stable performance even under unpredictable traffic bursts.

Additionally, integration with Cisco IOS XE provides support for advanced routing protocols, automation features, and programmability. Network administrators can leverage APIs and automation tools to streamline configuration, monitoring, and troubleshooting processes.

Security Features and Network Protection

Security is a fundamental component of the C3850-NM-8-10G module’s operational design. When combined with Catalyst 3850 switches, it supports multiple layers of security including port security, DHCP snooping, dynamic ARP inspection, and IP source guard. These features help prevent unauthorized access, man-in-the-middle attacks, and IP spoofing.

Cisco TrustSec integration further enhances security by enabling policy-based segmentation across the network. This ensures that sensitive data flows are isolated from general traffic, reducing the risk of lateral movement in case of a security breach.

Quality of Service (QoS) Optimization

The module supports advanced Quality of Service (QoS) mechanisms that allow administrators to prioritize critical traffic types such as voice, video, and real-time applications. By classifying and marking traffic at the ingress points, the system ensures that latency-sensitive applications receive higher priority over less critical data transfers.

This capability is especially important in converged networks where multiple service types coexist on the same infrastructure. The C3850-NM-8-10G ensures consistent performance across all applications without compromising user experience.

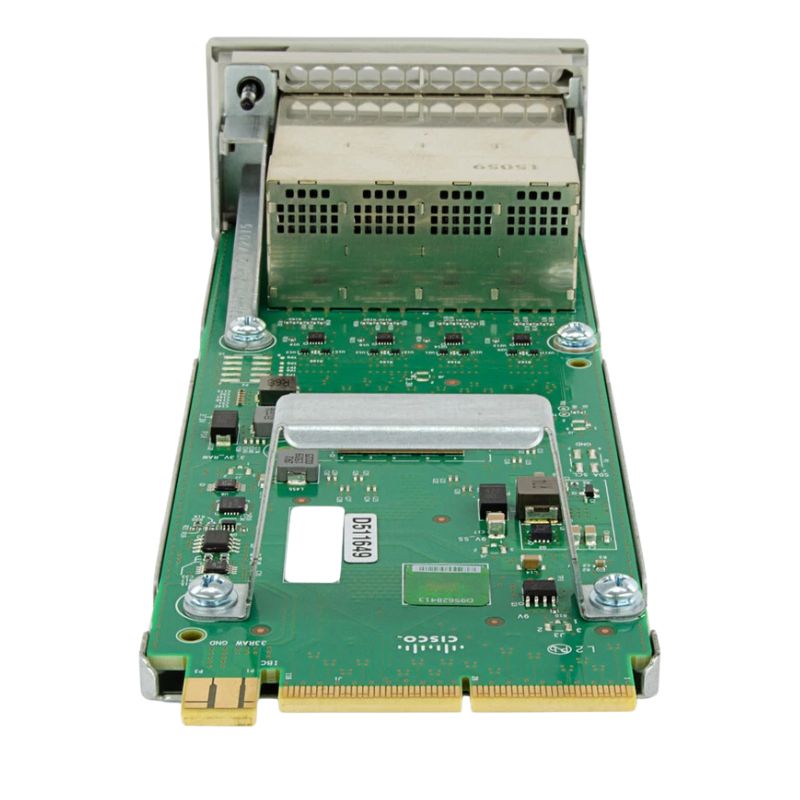

Hardware Design and Build Quality

The physical design of the module emphasizes durability, efficiency, and ease of installation. It is built with enterprise-grade components that ensure long-term reliability under continuous operation. The hot-swappable nature of the module allows IT teams to upgrade or replace it without shutting down the switch, thereby maintaining network uptime.

The compact form factor ensures efficient use of chassis space while still delivering high port density. This makes it ideal for environments where rack space is limited but performance demands are high.

Performance Optimization and Bandwidth Efficiency

The module is designed to maximize bandwidth utilization across all active links. With intelligent load balancing and adaptive traffic distribution, it ensures that no single link becomes a bottleneck. This is essential for environments with unpredictable traffic patterns or heavy application usage.

By enabling 10G connectivity, organizations can future-proof their network infrastructure and reduce the need for frequent hardware upgrades. This leads to lower total cost of ownership and improved operational efficiency.

Compatibility and Interoperability

The C3850-NM-8-10G module is fully compatible with a wide range of Catalyst 3850 switch models. It supports interoperability with Cisco optics and third-party SFP+ modules that meet industry standards. This flexibility allows organizations to design hybrid network environments without sacrificing performance or reliability.

It also supports backward compatibility with Gigabit Ethernet environments, ensuring smooth integration into existing infrastructures during phased upgrades.

Use Cases in Modern IT Environments

This expansion module is widely used across various industries including education, healthcare, finance, government, and large enterprise IT environments. In educational institutions, it supports high-density student access networks. In healthcare, it ensures fast and reliable transmission of critical patient data and imaging systems.

Financial institutions rely on its low latency and high reliability for real-time transaction processing, while government agencies utilize it for secure communication networks and mission-critical infrastructure.

Comparison with Standard Gigabit Expansion Modules

Compared to standard Gigabit Ethernet expansion modules, the C3850-NM-8-10G provides a significant leap in performance. While Gigabit modules are sufficient for basic connectivity, they often become bottlenecks in high-demand environments. The 10G capability of this module eliminates such constraints and ensures smoother traffic flow across the network.

Additionally, its ability to support higher aggregation levels makes it more suitable for modern enterprise architectures that rely heavily on virtualization and cloud-based services.

Future-Proof Networking with 10G Expansion

As enterprise networks continue to evolve, the demand for higher bandwidth and lower latency will continue to grow. The C3850-NM-8-10G module ensures that organizations are well-prepared for future requirements by providing scalable 10G connectivity options. Its modular design allows businesses to upgrade existing infrastructure without replacing entire switching systems, thereby extending hardware lifecycle and reducing capital expenditure.
