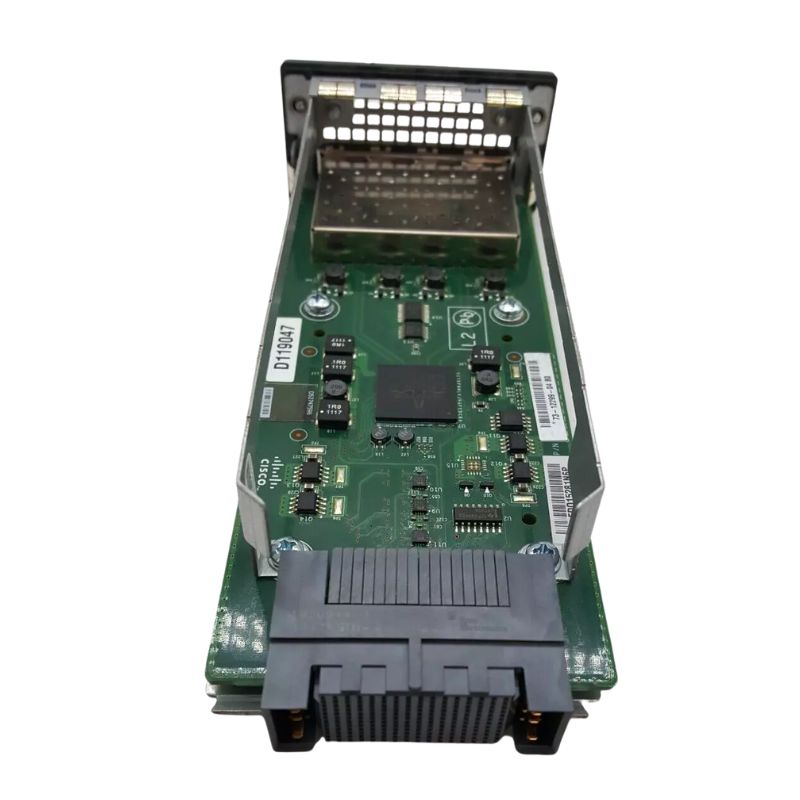

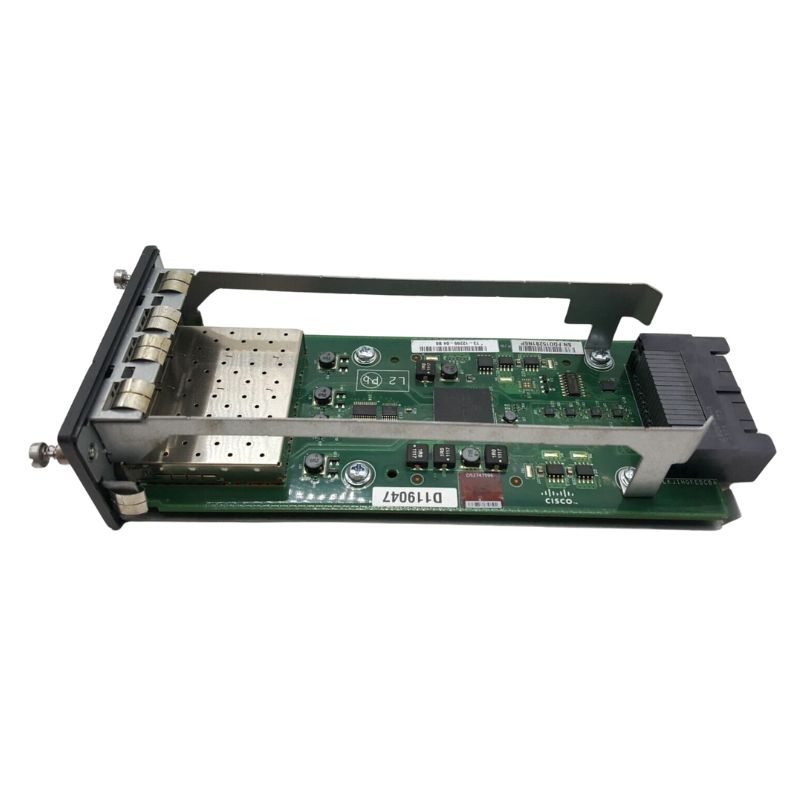

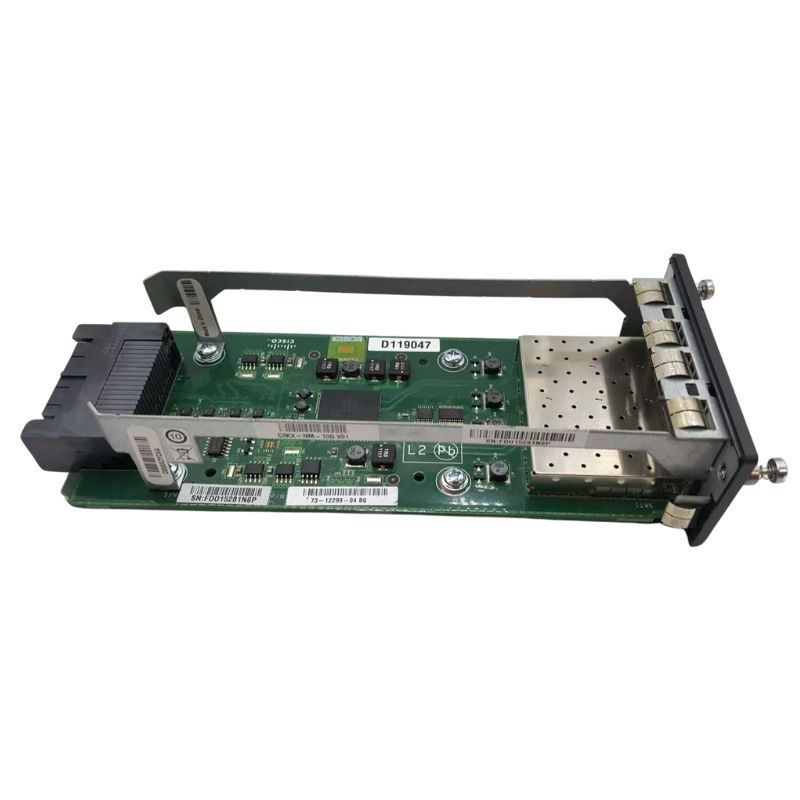

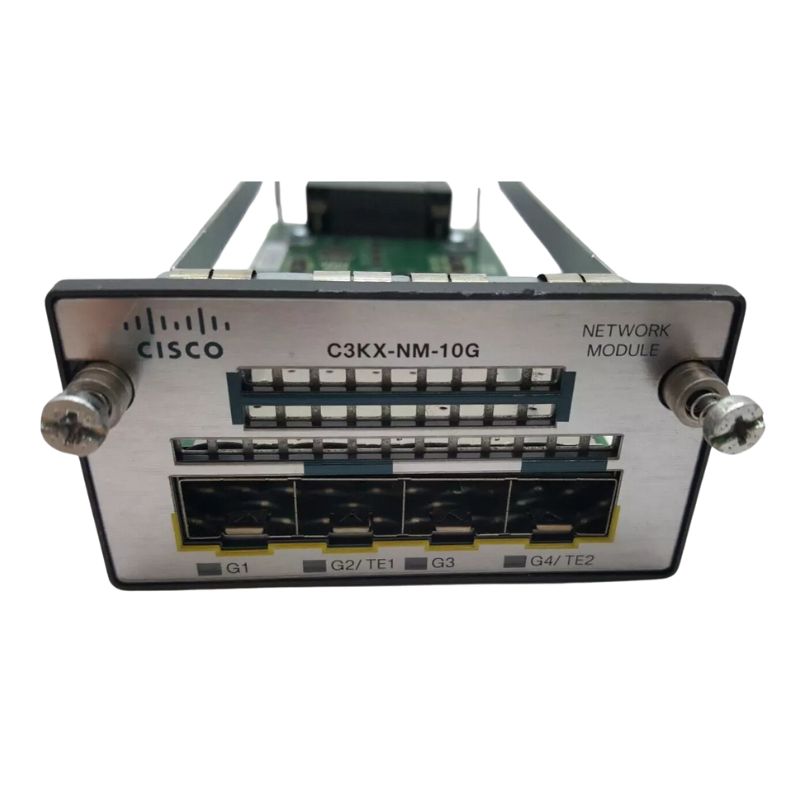

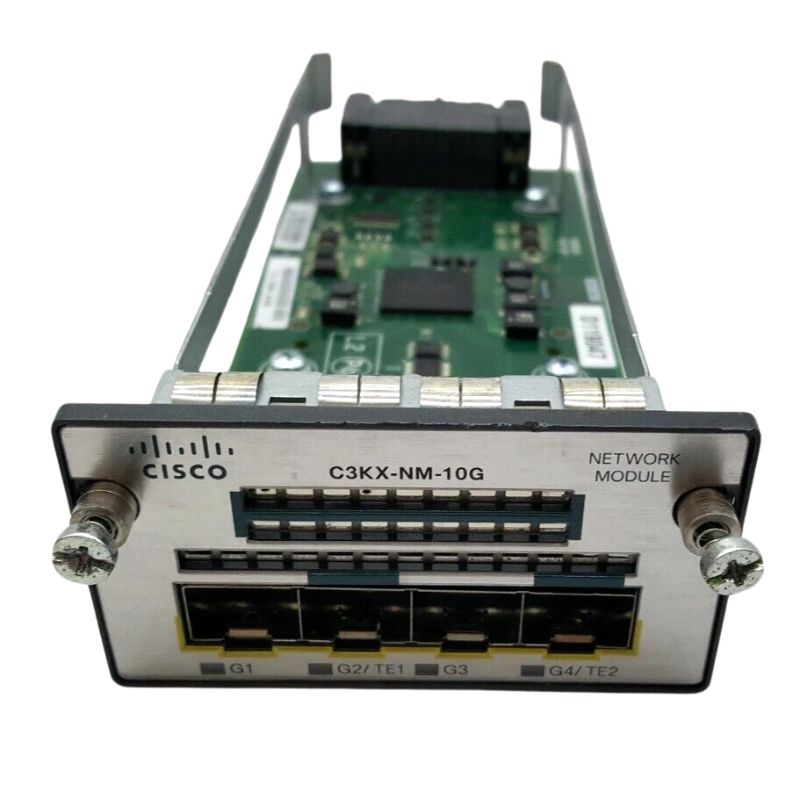

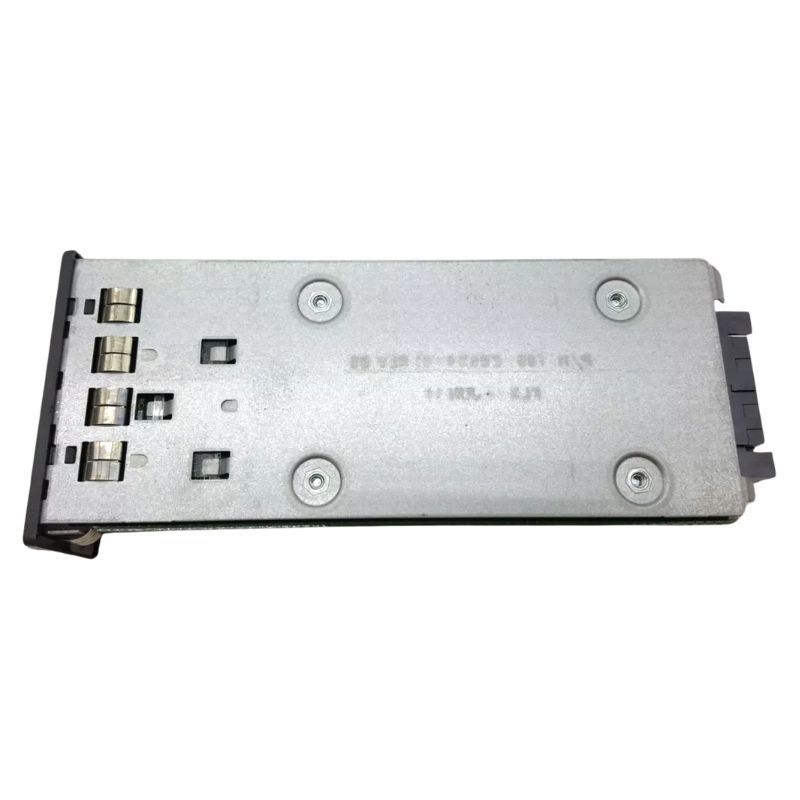

C3KX-NM-10G= Cisco Catalyst 3K-X 10 Gbps Network Module

Overview of the Network Module

The Cisco Catalyst C3KX-NM-10G= Network Module is designed to provide users with an exceptional speed of 10 Gbps. This high-speed capability allows for lightning-fast data transfer and enhances overall network performance. In this section, we will explore the various benefits and importance of this incredible feature. The Cisco C3KX-NM-10G= is a top-tier network module designed to enhance your data networking setup. As a high-performance component, it ensures seamless connectivity and robust performance across your network infrastructure.

Specifications of the Module

• Brand: Cisco
• Part Number: C3KX-NM-10G=
• Product Type: Network Module

Technical Information

• Interface Type: 10 Gigabit Ethernet.
• Number of Ports: Two.
• Supported Standards: SFP and SFP+.
• Deployment Type: Hot-swappable.
• Compatible Switch Families: Catalyst 3560-X and Catalyst 3750-X.
• Application: Enterprise and data center networking.
• Hot-Swappable: Yes
• Supported Media Types: Cisco SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, 1G SFP, and compatible 10G SFP+ direct-attach copper cables (DAC)

Compatibility

• Cisco Catalyst 3560X-24T.
• Cisco Catalyst 3560X-24P.
• Cisco Catalyst 3560X-48T.
• Cisco Catalyst 3560X-48P.
• Cisco Catalyst 3750X-24T.
• Cisco Catalyst 3750X-24P.
• Cisco Catalyst 3750X-48T.
• Cisco Catalyst 3750X-48P.
• Additional Catalyst 3560-X and 3750-X models.

The Cisco Catalyst Ethernet Network Module

The C3KX-NM-10G= Cisco Catalyst Ethernet Network Module category represents a critical class of high-performance uplink expansion modules designed for enterprise-grade switching environments. These modules are engineered to enhance the uplink capacity, scalability, and flexibility of compatible Cisco Catalyst switches, enabling organizations to transition from Gigabit Ethernet aggregation to high-speed 10 Gigabit Ethernet connectivity. Within modern enterprise LAN and campus architectures, these modules play a pivotal role in ensuring seamless bandwidth expansion, low-latency data transfer, and robust network resilience.

Understanding the Role of Cisco Catalyst Network Modules

Cisco Catalyst network modules are designed to extend the functionality of fixed-configuration and modular switches. The C3KX-NM-10G= specifically serves as a high-speed uplink module, providing 10 Gigabit Ethernet connectivity options that significantly enhance network backbone performance. These modules are installed into dedicated expansion slots on supported Catalyst switches, enabling flexible architecture upgrades without replacing entire switching systems.

The importance of such modules lies in their ability to bridge the gap between access layer devices and core network infrastructure. As organizations experience exponential growth in data consumption, traditional Gigabit uplinks can become bottlenecks. The C3KX-NM-10G= resolves this limitation by offering higher throughput and improved aggregation capabilities, making it an essential component in enterprise network scaling strategies.

Core Architecture of C3KX-NM-10G= Module

The architecture of the C3KX-NM-10G= module is built around high-speed packet forwarding and optimized switching fabric integration. It is designed to operate seamlessly with Catalyst switch backplanes, ensuring minimal latency and maximum throughput efficiency. The module typically supports multiple 10G Ethernet interfaces, enabling redundant and load-balanced uplink configurations.

Hardware Design and Interface Structure

The hardware design of the module emphasizes compactness, thermal efficiency, and high signal integrity. It incorporates advanced ASIC-based processing capabilities that allow for rapid packet inspection and forwarding. The interface structure is optimized for fiber-based connectivity, commonly using SFP+ transceiver slots to support diverse optical and copper-based 10G connections.

Each port within the module is engineered to handle high traffic loads while maintaining low power consumption. This ensures that the module remains energy efficient even under sustained enterprise workloads. Additionally, built-in diagnostics and monitoring capabilities help network administrators track performance metrics in real time.

Backplane Integration

A key architectural advantage of the C3KX-NM-10G= module is its tight integration with the Catalyst switch backplane. This integration allows the module to leverage internal switching capacities without introducing external bottlenecks. As a result, data packets are transferred efficiently between access ports and uplink interfaces, improving overall network responsiveness.

C3KX-NM-10G= Cisco Catalyst Ethernet Network Module

The module offers a range of features that make it suitable for enterprise, campus, and data center edge deployments. These features are designed to support scalability, redundancy, and high-speed connectivity.

10 Gigabit Ethernet Uplinks

One of the primary features is support for 10 Gigabit Ethernet uplinks, which significantly increases bandwidth availability between switches and upstream network devices. This is essential for environments with high traffic density, such as virtualization clusters, cloud service endpoints, and large enterprise campuses.

Flexible Deployment Options

The module supports flexible deployment in various Catalyst switch models, allowing organizations to tailor their network infrastructure without major hardware overhauls. This modularity ensures cost efficiency and operational adaptability.

High Availability and Redundancy

Redundancy is a core design principle of the C3KX-NM-10G= module. By supporting multiple uplink paths, it enables failover mechanisms that maintain network uptime even during hardware or link failures. This is crucial for mission-critical environments where downtime is not acceptable.

Energy Efficient Operation

Energy efficiency is another important feature, with the module designed to optimize power consumption based on traffic load and operational state. This contributes to reduced operational costs and supports green IT initiatives within enterprises.

Performance Characteristics and Network Efficiency

The performance of the C3KX-NM-10G= module is defined by its ability to handle high-throughput data streams with minimal latency. It is optimized for packet forwarding efficiency and supports advanced switching mechanisms that reduce congestion in heavily utilized networks.

Low Latency Switching

Low latency is critical in modern network environments, especially for applications such as VoIP, real-time analytics, and video streaming. The module ensures that data packets are processed and forwarded with minimal delay, improving application performance and user experience.

High Throughput Aggregation

By enabling 10G uplinks, the module significantly enhances aggregation performance between access layer switches and distribution/core layers. This allows multiple Gigabit connections to be consolidated into fewer high-speed uplinks, simplifying network topology and improving efficiency.

Traffic Optimization

Advanced traffic handling mechanisms ensure that bandwidth is distributed effectively across all active connections. This prevents congestion and ensures fair resource allocation across multiple network services.

Compatibility with Cisco Catalyst Switch Platforms

The C3KX-NM-10G= module is designed for compatibility with select Cisco Catalyst switch models, particularly those in the Catalyst 3K-X series. Its modular design allows it to be inserted into supported chassis without requiring extensive configuration changes.

Compatibility considerations include hardware slot availability, firmware version support, and backplane capacity. Network administrators must ensure that the switch platform supports 10G uplink modules before deployment to guarantee optimal performance.

Software Integration

The module integrates with Cisco IOS software environments, allowing administrators to configure interfaces, monitor performance, and apply security policies through familiar management tools. This seamless integration reduces operational complexity and improves network manageability.

Deployment Scenarios for C3KX-NM-10G= Modules

The versatility of the C3KX-NM-10G= module makes it suitable for a wide range of deployment scenarios across enterprise and service provider networks.

Enterprise Campus Networks

In campus environments, the module is commonly used to connect access layer switches to distribution switches, enabling high-speed data transfer across departments, buildings, and network segments. This improves internal communication and supports bandwidth-intensive applications.

Data Center Edge Connectivity

At the data center edge, the module provides high-speed uplinks that connect server access switches to core switching infrastructure. This is essential for handling virtualization traffic, storage replication, and cloud service integration.

High-Density Workgroup Environments

Organizations with high-density user environments, such as universities or corporate headquarters, benefit from the module’s ability to handle large volumes of simultaneous network traffic without degradation in performance.

Network Security and Policy Enforcement

Security is an integral part of any network module deployed in enterprise environments. The C3KX-NM-10G= supports advanced security features when integrated with Catalyst switch security frameworks.

Access Control Integration

The module supports integration with access control policies that regulate traffic flow between network segments. This ensures that only authorized users and devices can access sensitive resources.

Secure Data Transmission

By supporting encrypted communication protocols and secure tunneling mechanisms at the switch level, the module contributes to maintaining data confidentiality and integrity across uplinks.

Threat Mitigation

When used in conjunction with Cisco security features, the module helps mitigate network threats such as unauthorized access attempts, denial-of-service attacks, and traffic anomalies.

Quality of Service (QoS) Capabilities

Quality of Service is essential in ensuring that critical applications receive priority over less time-sensitive traffic. The C3KX-NM-10G= module supports QoS policies that allow administrators to classify and prioritize traffic effectively.

Traffic Prioritization

The module enables prioritization of voice, video, and critical data traffic to ensure optimal performance in real-time communication environments. This is particularly important in unified communication systems and collaborative platforms.

Bandwidth Management

Administrators can allocate bandwidth resources based on application requirements, ensuring that high-priority services maintain consistent performance even during peak usage periods.

Configuration Steps

Configuration involves assigning interface parameters, enabling VLAN tagging where necessary, and applying routing or switching policies. Cisco IOS provides a command-line interface for detailed configuration and monitoring of module interfaces.

Scalability and Future-Proofing

One of the primary advantages of the C3KX-NM-10G= module is its ability to future-proof network infrastructure. By enabling 10G connectivity, organizations can prepare for increasing bandwidth demands without requiring complete hardware replacement. This scalability ensures that enterprises can gradually evolve their network architecture in line with technological advancements and business growth, maintaining long-term operational efficiency.
