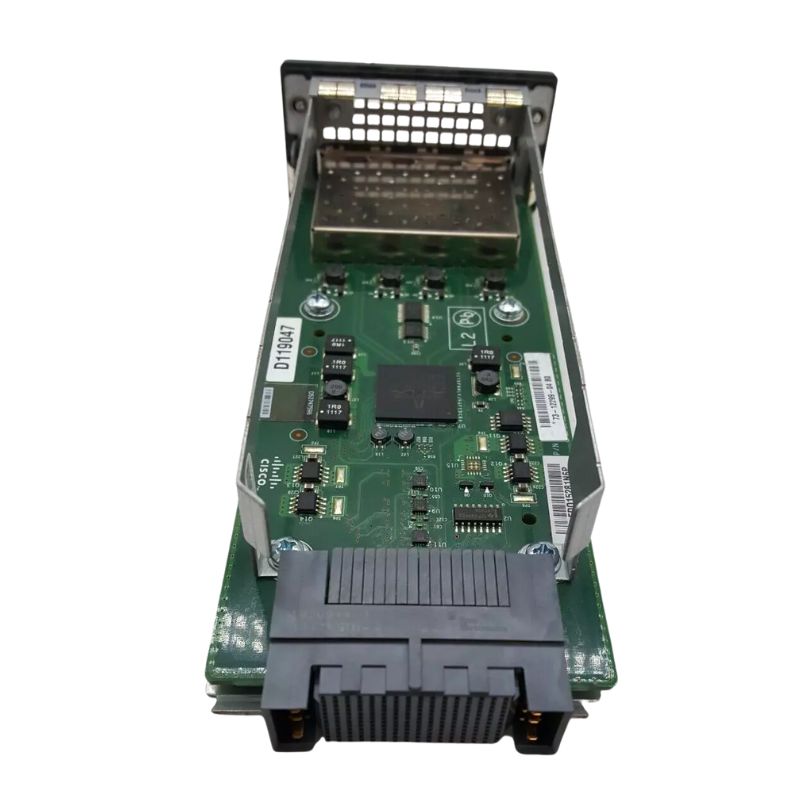

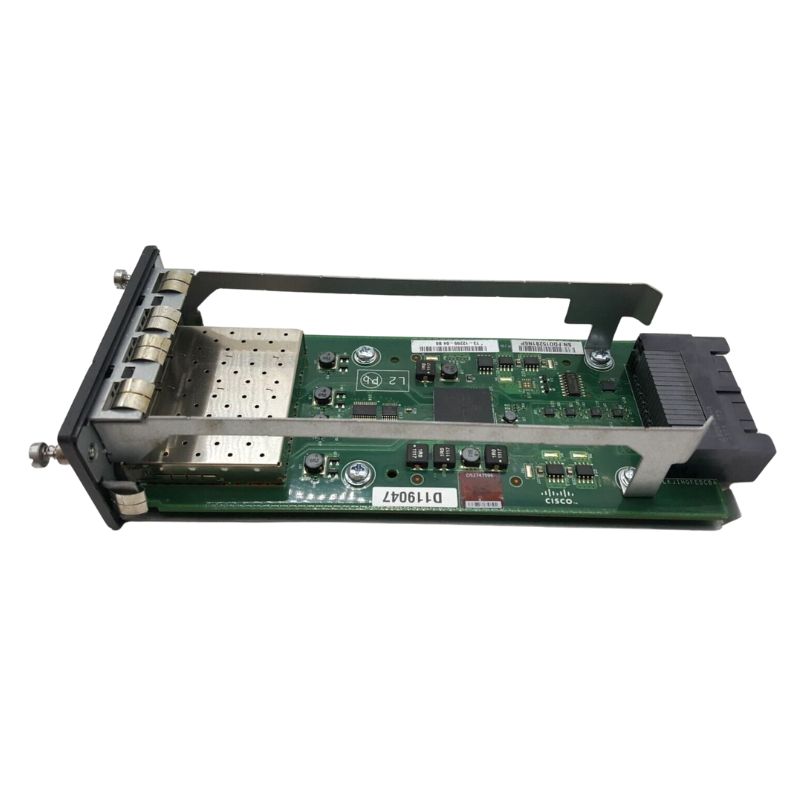

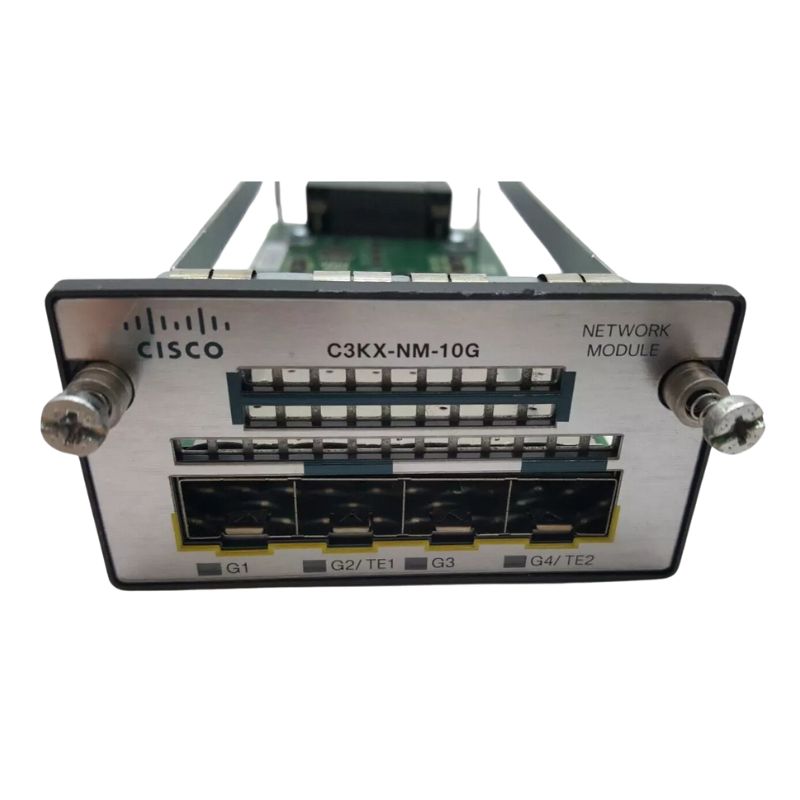

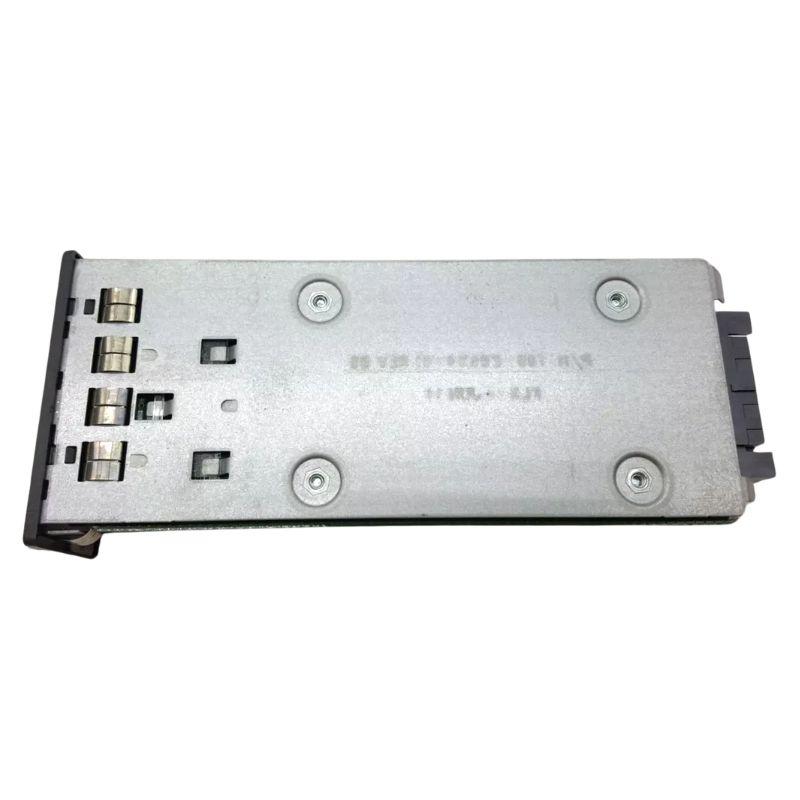

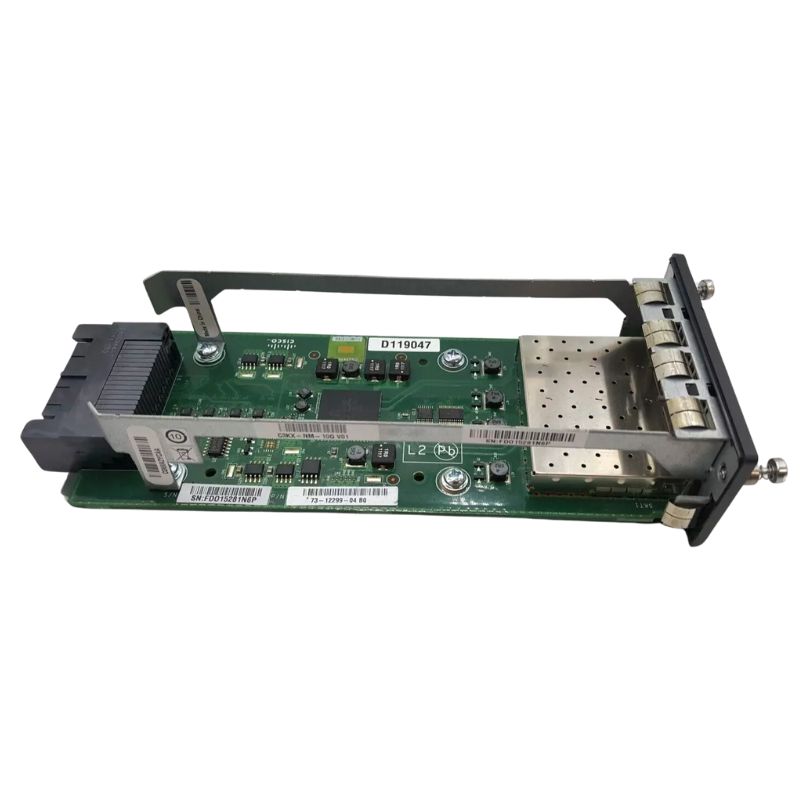

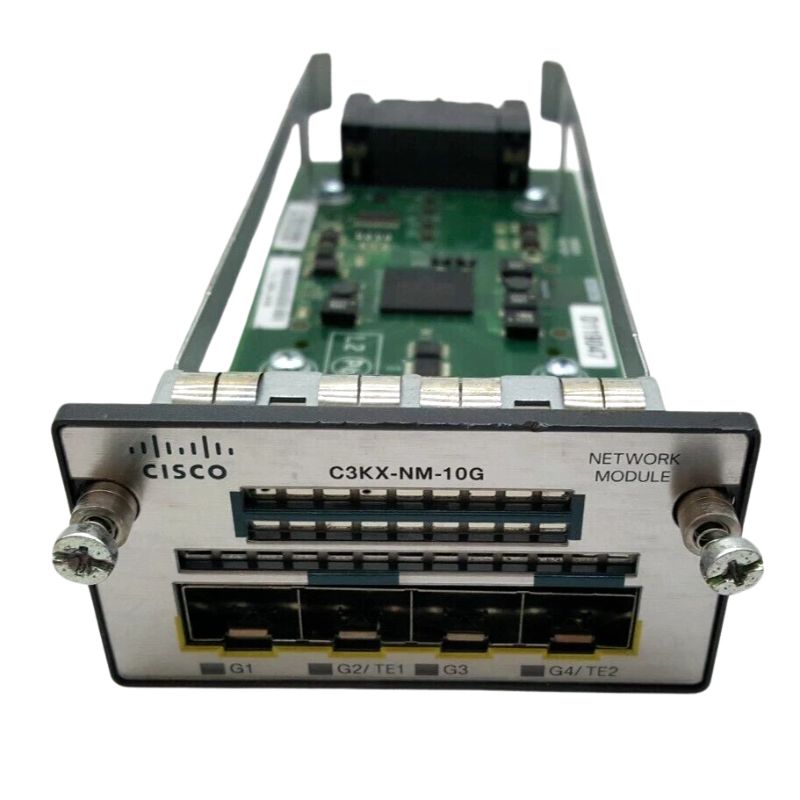

C3KX-NM-10G= Cisco Catalyst Ethernet Network Module

Overview of the Cisco Network Module

The Cisco Catalyst C3KX-NM-10G= Ethernet Network Module is designed to provide users with the flexibility to expand their network capacity by adding additional 10 Gigabit Ethernet ports to their Cisco Catalyst switches. With the ever-increasing demand for high-speed data transmission and the growing number of network-connected devices, having additional 10 Gigabit Ethernet ports is essential for businesses to meet their networking requirements. This feature allows users to easily connect high-performance servers, storage devices, and other bandwidth-intensive applications, ensuring smooth and efficient data transfer within the network.

Main Information

• Brand: Cisco
• Part Number: C3KX-NM-10G=
• Product Type: Network Module

Technical Features

• Interface Type: 10 Gigabit Ethernet.
• Number of Ports: Two.
• Supported Standards: SFP and SFP+.
• Deployment Type: Hot-swappable.
• Compatible Switch Families: Catalyst 3560-X and Catalyst 3750-X.
• Application: Enterprise and data center networking.
• Hot-Swappable: Yes
• Supported Media Types: Cisco SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, 1G SFP, and compatible 10G SFP+ direct-attach copper cables (DAC)

Compatibility

• Cisco Catalyst 3560X-24T.
• Cisco Catalyst 3560X-24P.
• Cisco Catalyst 3560X-48T.
• Cisco Catalyst 3560X-48P.
• Cisco Catalyst 3750X-24T.
• Cisco Catalyst 3750X-24P.
• Cisco Catalyst 3750X-48T.
• Cisco Catalyst 3750X-48P.
• Additional Catalyst 3560-X and 3750-X models.

The Cisco Catalyst Ethernet Network Module

The C3KX-NM-10G= Cisco Catalyst Ethernet Network Module is a high-performance, modular uplink expansion component designed for enterprise-grade Cisco Catalyst switches. It is widely used in scalable network infrastructures where flexibility, high-speed connectivity, and modular expansion are essential. This network module belongs to the Cisco Catalyst 3750-X and 3560-X series ecosystem and enables organizations to extend their switching capabilities with high-bandwidth 10 Gigabit Ethernet uplinks.

As enterprise networks continue to evolve toward cloud integration, virtualization, and high-throughput applications, modules such as the C3KX-NM-10G= play a crucial role in ensuring seamless data flow between access, distribution, and core network layers. It supports modern enterprise requirements including high availability, redundancy, and optimized traffic engineering.

Architecture and Design Philosophy

The architecture of the Cisco Catalyst C3KX-NM-10G= module is built around modular scalability. Instead of requiring a full switch replacement, network administrators can enhance existing infrastructure by inserting this module into compatible Catalyst switches. This design reduces operational costs while increasing network longevity.

At its core, the module is engineered for high-speed uplink aggregation, enabling multiple 10 Gigabit Ethernet connections. It integrates seamlessly with Cisco’s switching ASICs, ensuring low latency forwarding, high throughput, and optimized packet processing performance.

Modular Expansion Concept

Cisco’s modular expansion approach allows organizations to adapt their infrastructure without complete hardware overhauls. The C3KX-NM-10G= module is a prime example of this philosophy, offering the ability to transition from Gigabit Ethernet uplinks to 10 Gigabit Ethernet uplinks as network demands grow.

This approach is particularly beneficial in environments experiencing rapid data growth, such as cloud computing infrastructures, enterprise data centers, and large campus networks.

Key Features of C3KX-NM-10G= Module

The C3KX-NM-10G= Cisco Catalyst Ethernet Network Module includes a range of features that make it suitable for enterprise-grade deployments. These features are designed to enhance both performance and reliability in mission-critical environments. These features collectively ensure that organizations can maintain high-performance connectivity while minimizing downtime and operational complexity.

Supported Interfaces and Connectivity Options

The module provides multiple uplink configurations that allow network engineers to tailor connectivity based on operational requirements. Depending on deployment needs, the module may support a combination of SFP and SFP+ interfaces, enabling both Gigabit and 10 Gigabit Ethernet connectivity.

10 Gigabit Ethernet Uplinks

The primary function of the C3KX-NM-10G= module is to deliver 10G uplink performance. These uplinks are essential for high-bandwidth applications such as virtualization, video streaming, cloud services, and large-scale data transfers.

Flexible Port Configurations

The module is designed with flexibility in mind, allowing network administrators to configure uplink ports based on current infrastructure requirements. This flexibility supports phased network upgrades, enabling gradual transition from lower-speed to higher-speed networks.

Enterprise Network Deployment Scenarios

The C3KX-NM-10G= Cisco Catalyst Ethernet Network Module is widely used across various enterprise deployment scenarios. Its adaptability makes it suitable for multiple industries including finance, healthcare, education, and government sectors.

Campus Network Deployments

In campus environments, the module enhances connectivity between access layer switches and distribution layer switches. This ensures smooth traffic flow between departments, buildings, and centralized data centers.

Data Center Edge Connectivity

At the data center edge, the module provides high-speed uplinks that connect server farms to core switching infrastructure. This improves application performance and reduces latency for mission-critical workloads.

Cloud Integration Environments

With increasing adoption of hybrid cloud models, enterprises rely on high-speed uplinks to connect on-premises infrastructure with cloud platforms. The C3KX-NM-10G= module supports these requirements by delivering reliable and scalable bandwidth.

Performance Advantages

Performance is a defining characteristic of the Cisco Catalyst C3KX-NM-10G= module. It is engineered to handle high traffic volumes without packet loss or congestion issues.

The integration with Cisco switching architecture ensures efficient load balancing and traffic prioritization. This results in improved application responsiveness and reduced network bottlenecks.

Low Latency Forwarding

One of the key performance benefits is low latency forwarding. This is especially important in environments such as financial trading systems, real-time communication platforms, and large-scale enterprise applications.

High Throughput Capacity

The module supports high throughput capacity, enabling simultaneous handling of multiple data streams without degradation in performance. This is essential for modern enterprises dealing with large datasets and cloud-based workloads.

High Availability and Redundancy

The C3KX-NM-10G= module supports high availability configurations that ensure continuous network operation even in the event of hardware or link failures.

Link Redundancy

By configuring multiple uplinks, network administrators can create redundant paths that automatically take over in case of failure. This ensures uninterrupted connectivity for critical applications.

Failover Mechanisms

Cisco’s failover mechanisms are integrated into the module’s design, enabling seamless transition between active and standby links without impacting network performance.

System Recognition and Initialization

After installation, Cisco IOS detects the module and initializes its interfaces. Network administrators can then configure uplink settings based on operational requirements.

Configuration and Management

Configuration of the C3KX-NM-10G= module is handled through Cisco IOS command-line interface or network management tools. This allows administrators to define VLANs, trunking configurations, and routing policies.

VLAN Integration

The module supports VLAN segmentation, enabling logical separation of network traffic for improved security and performance.

Trunking Capabilities

Trunking allows multiple VLANs to traverse a single physical link, optimizing bandwidth utilization and simplifying network design.

Performance Monitoring

Administrators can monitor real-time traffic statistics to identify congestion points and optimize network performance.

Use Cases Across Industries

The versatility of the C3KX-NM-10G= Cisco Catalyst Ethernet Network Module makes it suitable for multiple industry applications.

Financial Institutions

Banks and financial institutions use high-speed uplinks to support trading platforms, transaction processing systems, and secure data exchanges.

Healthcare Systems

Hospitals rely on stable and fast networks for electronic health records, imaging systems, and telemedicine applications.

Educational Institutions

Universities and schools use the module to support digital learning platforms, research networks, and campus-wide connectivity.

Government Infrastructure

Government agencies deploy the module in secure environments where reliable communication and data protection are critical.

Comparison with Other Network Modules

Compared to standard Gigabit Ethernet modules, the C3KX-NM-10G= provides significantly higher bandwidth and scalability. While Gigabit modules are suitable for small to medium networks, 10 Gigabit uplinks are essential for modern high-performance environments.

Additionally, its compatibility with Cisco Catalyst switches ensures better integration and management compared to third-party solutions.

Scalability and Future-Proofing

One of the major advantages of the C3KX-NM-10G= module is its ability to future-proof network infrastructure. As data consumption continues to grow, organizations can scale their network capacity without replacing entire switching systems. This makes it a cost-effective investment for long-term enterprise network planning.

Integration and Relevance

The C3KX-NM-10G= Cisco Catalyst Ethernet Network Module is commonly associated with keywords such as Cisco Catalyst module, 10 Gigabit uplink module, enterprise network expansion, switch network module, Cisco 3750-X uplink, and Catalyst 3560-X expansion module. These keywords reflect its role in enterprise networking and high-performance infrastructure.

Operational Efficiency and Cost Benefits

By deploying the C3KX-NM-10G= module, organizations can significantly reduce capital expenditure by upgrading existing hardware rather than purchasing entirely new switching systems. This modular approach enhances return on investment while maintaining high performance standards. Operational efficiency is further improved through centralized management and reduced downtime during upgrades or maintenance procedures.

Advanced Network Optimization Capabilities

The module contributes to advanced network optimization strategies by enabling efficient traffic segmentation, load balancing, and bandwidth allocation. These capabilities are essential for maintaining consistent application performance in large-scale environments.

Traffic Prioritization

Quality of Service configurations allow prioritization of critical traffic such as voice, video, and mission-critical data.

Load Distribution

The module supports intelligent load distribution across multiple uplinks, preventing congestion and improving efficiency.
