CRS-16-FANTRAY Cisco 16 Slot Fan Tray

Cisco CRS-16-FANTRAY 16-Slot High-Performance Fan Tray

The Cisco CRS-16-FANTRAY is a mission-critical cooling component designed for Cisco Carrier Routing System (CRS) 16-slot chassis environments. Engineered for high-availability networking infrastructure, this advanced fan tray ensures optimal thermal management, consistent airflow distribution, and reliable system performance in demanding telecom and enterprise data center deployments.

Product Information

• Manufacturer: Cisco
• Part Number: CRS-16-FANTRAY
• Product Type: Enterprise Cooling Fan Tray
• Compatible Platform: Cisco CRS 16-Slot Chassis
• Cooling Design: High-speed multi-fan redundant system

High-Efficiency Cooling Architecture

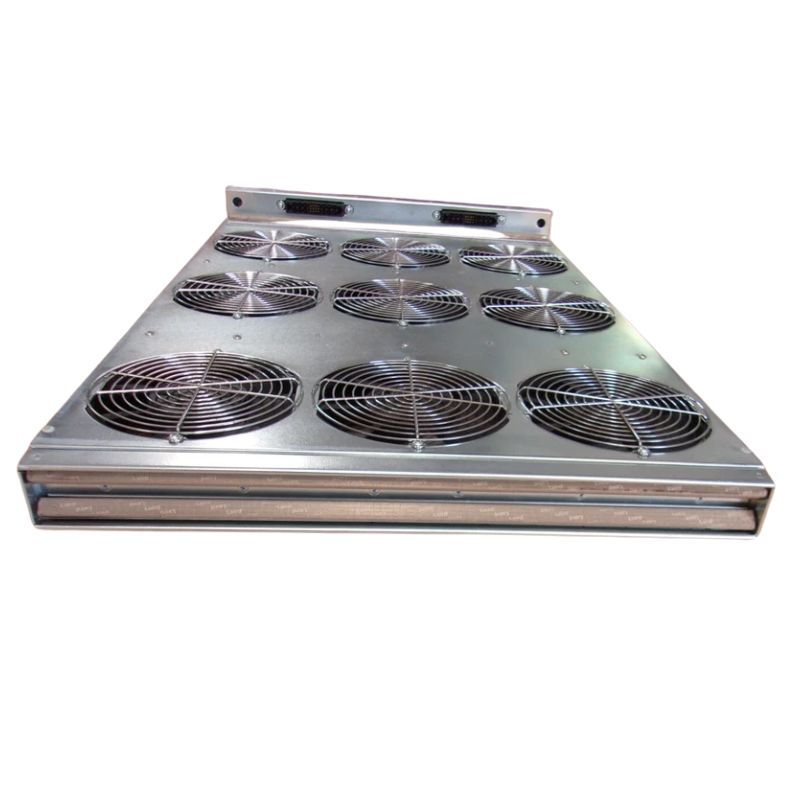

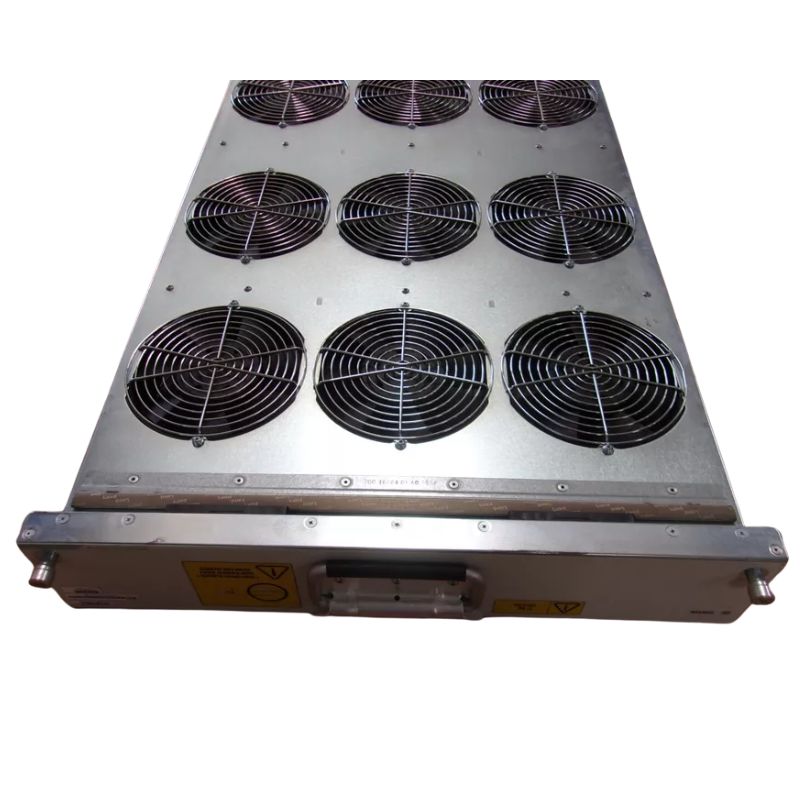

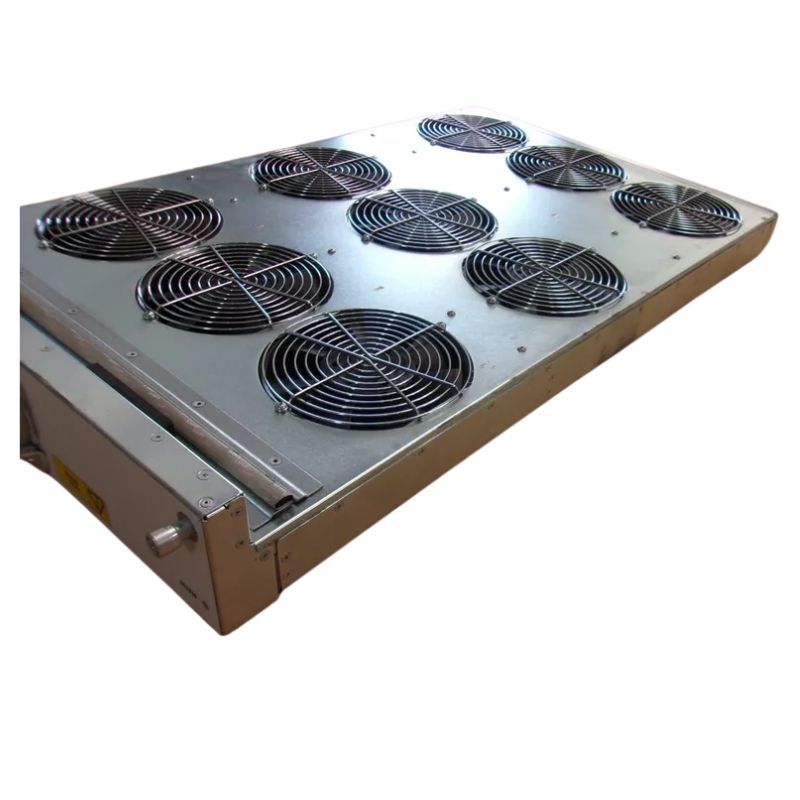

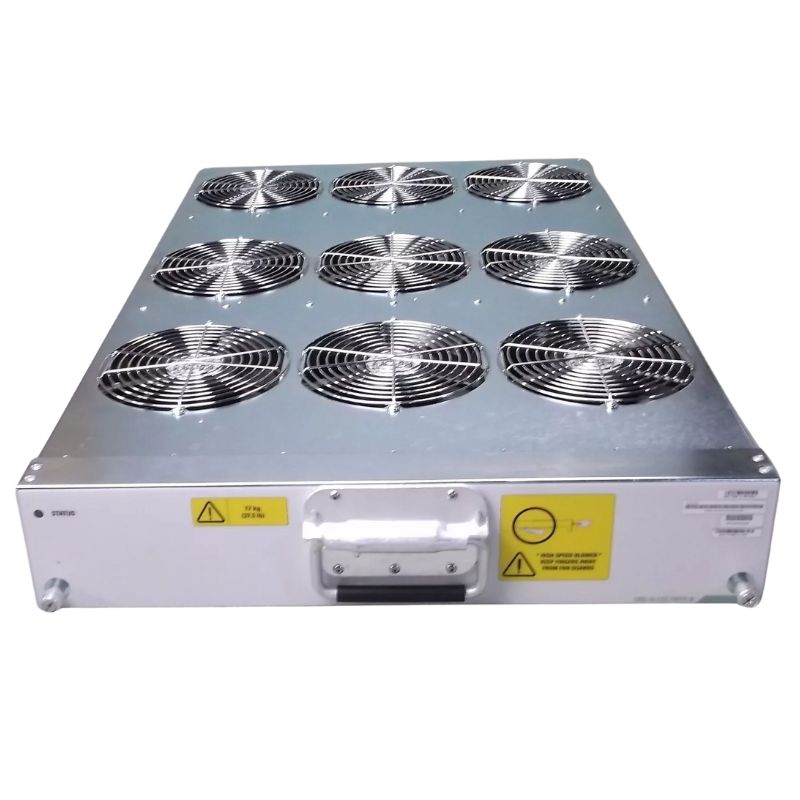

• Integrated 9 high-speed cooling fans per tray
• Dynamic airflow adjustment based on thermal load
• Redundant cooling for uninterrupted operation
• Optimized heat dissipation for telecom environments

Rotational Speed Performance

• Minimum speed: 3,300 RPM
• Maximum speed: 5,150 RPM
• Automatic speed scaling based on system load

Airflow Direction Pattern

• Cold air intake from front (PLIM side)
• Hot air exhaust through rear (MSC side)
• Balanced airflow distribution across all modules

Cooling Performance Advantages

• Enhanced airflow distribution across chassis
• Redundant cooling to prevent system failure
• High-efficiency heat removal from critical components
• Stable performance under peak network load

Mechanical Specifications

• Total Depth: 30.9 inches (78.5 cm)
• Tray Body Height: 2.5 inches (6.2 cm)
• Front Panel Height: 4.0 inches (10.2 cm)
• Front Panel Depth: 1.0 inch (2.5 cm)
• Unit Weight: 44 lbs (20 kg)

Supported Hardware Platforms

• Cisco CRS 16-Slot Line Card Chassis
• Carrier-grade routing systems
• High-capacity service provider networks

Cisco CRS-16-FANTRAY 16 Slot Fan Tray Cooling Overview

Critical Role of High-Performance Cooling

The Cisco CRS-16-FANTRAY 16 Slot Fan Tray is a mission-critical cooling subsystem designed specifically for high-density carrier routing platforms operating within large-scale telecommunications and enterprise backbone environments. Developed to support the demanding thermal requirements of the Cisco Carrier Routing System (CRS) architecture, this fan tray ensures optimal airflow management, thermal balance, and sustained operational stability for 16-slot chassis configurations. As modern networks scale toward higher throughput and increased packet processing loads, thermal regulation becomes a foundational requirement for system reliability and hardware longevity.

Within carrier-grade infrastructure, continuous uptime is not optional but essential. The CRS-16-FANTRAY plays a pivotal role in maintaining system integrity by preventing overheating of line cards, route processors, fabric modules, and power components. Its engineered airflow design ensures that heat generated by densely packed routing hardware is efficiently expelled, maintaining a stable operating environment even under peak traffic conditions.

Advanced Thermal Engineering in Cisco CRS Platforms

Precision Airflow Distribution for 16-Slot Architecture

The 16-slot chassis environment in Cisco CRS systems demands carefully balanced airflow across multiple hardware zones. The fan tray is designed with strategically positioned high-speed fan modules that distribute air evenly across all slots. This ensures that no single component experiences thermal concentration, which could otherwise degrade performance or shorten equipment lifespan.

The airflow system operates in a front-to-back or side-to-side cooling configuration depending on chassis design, ensuring compatibility with data center hot aisle and cold aisle containment strategies. This structured airflow design significantly improves heat dissipation efficiency across densely populated routing environments.

Redundant Cooling Architecture for Continuous Operation

The Cisco CRS-16-FANTRAY is engineered with redundancy principles that are fundamental to carrier-grade systems. In environments where downtime can lead to service disruptions across entire metropolitan or global networks, redundant cooling ensures continuous system operation even in the event of partial fan degradation. The modular fan tray design allows seamless replacement without shutting down the entire chassis, preserving service continuity.

Role in Cisco Carrier Routing System Ecosystem

Integration with Cisco CRS Modular Platforms

As part of the advanced routing ecosystem developed by Cisco, the CRS-16-FANTRAY is specifically designed for integration with CRS-1 and CRS-3 series platforms supporting 16-slot configurations. These systems are widely deployed in service provider backbones, internet exchange points, and large-scale enterprise WAN infrastructures. The fan tray ensures that these systems maintain stable thermal conditions under heavy routing, switching, and packet-forwarding loads.

The cooling subsystem directly supports high-performance route processors and line cards that handle terabits of aggregated traffic. Without reliable cooling, such dense hardware configurations would face performance throttling or hardware failure due to excessive heat buildup.

Alignment with Carrier-Class Design Principles

Carrier-class design emphasizes fault tolerance, scalability, and continuous uptime. The CRS-16-FANTRAY adheres to these principles by offering high availability cooling, modular replacement capability, and intelligent airflow consistency. These characteristics make it indispensable for service providers managing backbone networks and critical infrastructure environments.

High-Efficiency Fan Technology and Airflow Dynamics

High-Speed Fan Modules for Maximum Heat Dissipation

The fan tray integrates multiple high-performance fan modules engineered to operate at variable speeds based on system thermal load. These fans dynamically adjust rotational speed to balance energy efficiency and cooling effectiveness. When system temperature rises due to increased traffic processing or environmental conditions, fan speed increases automatically to maintain optimal thermal thresholds.

This adaptive cooling mechanism ensures that energy consumption remains efficient during low-load conditions while delivering maximum cooling capacity during peak operational periods.

Optimized Air Pressure and Directional Cooling

Effective cooling in dense routing systems requires controlled air pressure zones. The CRS-16-FANTRAY maintains consistent air pressure across all chassis sections, ensuring that airflow reaches every critical component including power supplies, switching fabrics, and optical modules. This reduces thermal hotspots and enhances overall system stability.

Thermal Zoning Optimization

The chassis design incorporates thermal zoning principles where each section of the system is cooled based on its heat output profile. High-heat components receive targeted airflow, while lower-heat zones maintain moderate cooling levels to optimize overall energy efficiency.

Enterprise and Service Provider Deployment Scenarios

Core Network Backbone Infrastructure

The CRS-16-FANTRAY is widely deployed in core network environments where high-speed routing and uninterrupted connectivity are essential. Backbone routers handling massive data aggregation rely heavily on consistent cooling to maintain throughput and minimize packet loss. The fan tray ensures that routing hardware operates within safe thermal limits even during sustained peak traffic conditions.

Internet Exchange Points and Carrier Hotels

Internet exchange facilities require extremely dense routing systems capable of handling large volumes of inter-ISP traffic. In such environments, the CRS-16-FANTRAY ensures stable cooling performance across continuously active routing platforms, preventing thermal overload in shared infrastructure environments.

Enterprise WAN Aggregation Systems

Large enterprises operating multi-branch WAN architectures depend on centralized routing systems for traffic management and security enforcement. The fan tray supports these deployments by ensuring that routing equipment remains operational and thermally stable across geographically distributed network operations.

Reliability and Fault-Tolerant Cooling Design

Continuous Operation Under High Load Conditions

Carrier-grade routing systems often operate under near-maximum utilization for extended periods. The CRS-16-FANTRAY is engineered to maintain continuous cooling performance even under sustained high-load conditions, ensuring that critical routing functions remain uninterrupted.

This reliability is crucial for service providers delivering SLAs (Service Level Agreements) that require near-perfect uptime and consistent network performance.

Hot-Swappable Maintenance Capability

One of the key features of the fan tray is its hot-swappable design, allowing technicians to replace or service the unit without powering down the chassis. This capability significantly reduces downtime and ensures uninterrupted network service during maintenance operations.

Minimized Service Disruption

Hot-swapping allows administrators to address fan degradation or failure proactively without affecting active network traffic. This is essential for maintaining continuous service in mission-critical environments.

Thermal Monitoring and System Intelligence

Integration with System-Level Monitoring

The CRS-16-FANTRAY operates in conjunction with system sensors and monitoring tools that track temperature levels across the chassis. This integration allows for real-time feedback and dynamic fan speed adjustment based on system conditions.

Network administrators can monitor thermal performance through network management systems, ensuring proactive identification of potential cooling issues before they impact system performance.

Automated Fan Speed Control

The intelligent control system adjusts fan speeds automatically based on workload and environmental temperature conditions. This ensures optimal balance between energy efficiency and cooling effectiveness, reducing unnecessary power consumption during low-load scenarios.

Scalability in Large Network Architectures

Support for Expanding Routing Demands

As network traffic continues to grow exponentially due to cloud computing, streaming services, and IoT expansion, routing systems must scale accordingly. The CRS-16-FANTRAY supports this scalability by ensuring that additional load does not compromise thermal stability.

Adaptation to Evolving Data Center Standards

Modern data centers adopt increasingly dense rack configurations and energy-efficient cooling strategies. The fan tray aligns with these standards by supporting optimized airflow management within high-density environments.

Compatibility with Hot and Cold Aisle Containment

The airflow design of the fan tray integrates effectively with modern hot aisle and cold aisle containment systems, ensuring that cooled air is efficiently directed toward hardware components while minimizing thermal recirculation.

Operational Efficiency and Energy Optimization

Power Consumption and Cooling Output

The CRS-16-FANTRAY is engineered to deliver high cooling performance while maintaining efficient energy usage. Variable-speed fan technology ensures that energy is only consumed at levels necessary to maintain safe operating temperatures.

Reduced Total Cost of Ownership

Efficient thermal management contributes directly to reduced operational costs by minimizing energy consumption and preventing hardware failures caused by overheating. This results in improved lifecycle value for carrier routing systems.

Hardware Protection and System Longevity

Preventing Thermal Stress on Routing Components

Excessive heat can significantly degrade electronic components over time. The fan tray mitigates this risk by maintaining stable internal temperatures across all chassis components, extending hardware lifespan and reducing failure rates.

Improved Reliability of High-Density Line Cards

Line cards and optical modules operating at high throughput levels generate significant heat. The CRS-16-FANTRAY ensures consistent cooling across these modules, preserving signal integrity and maintaining optimal packet processing performance.

Service Provider Network Stability and Performance Assurance

Supporting SLA Compliance

Service providers rely on strict SLA agreements to guarantee uptime and performance metrics. The fan tray plays a direct role in maintaining compliance by ensuring that routing systems remain operational under all conditions.

Ensuring Continuous Packet Flow

Stable thermal conditions directly impact packet forwarding efficiency. By preventing overheating, the CRS-16-FANTRAY ensures uninterrupted packet flow across high-speed routing systems, maintaining network performance consistency.
