DS-SFP-FCGE-SW Cisco SFP Short Wave Transceiver MMF

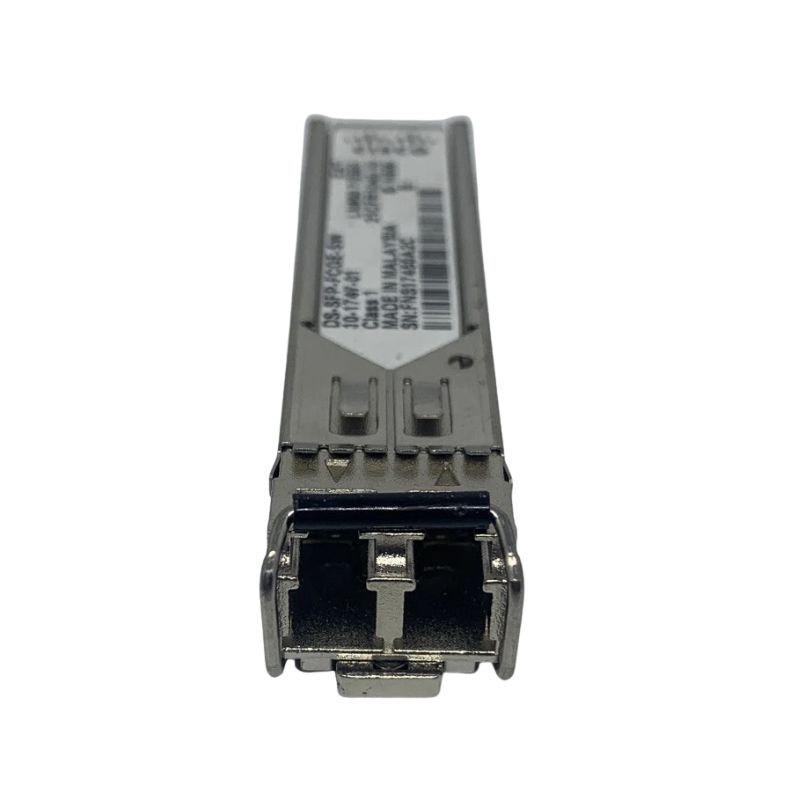

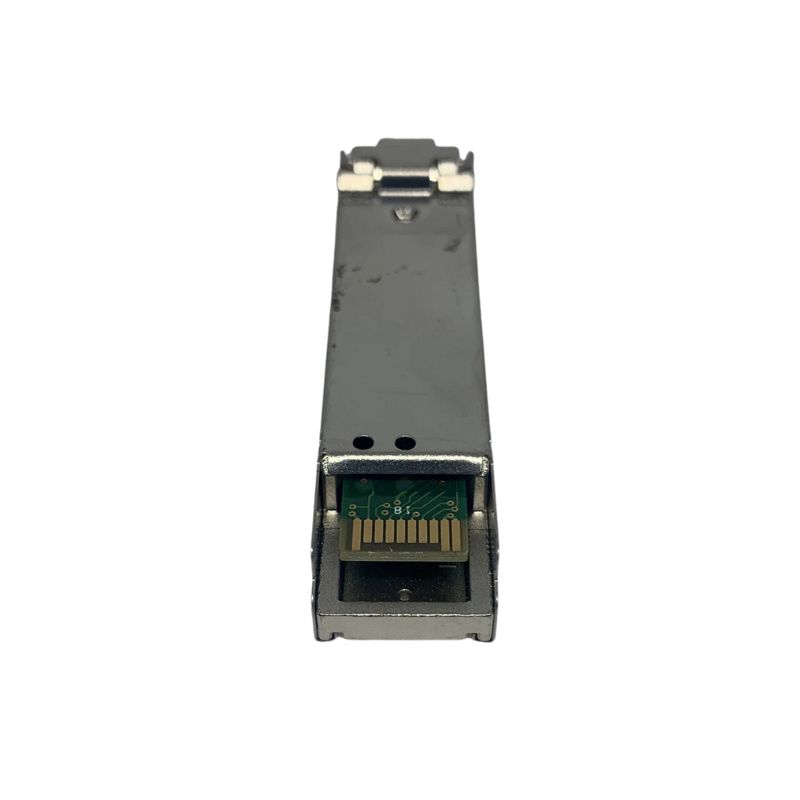

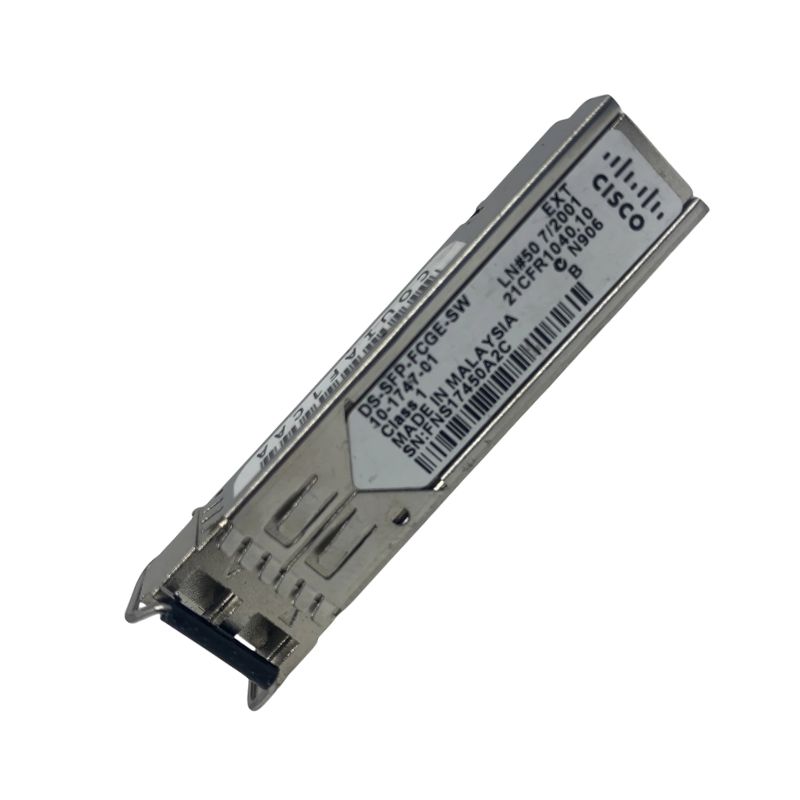

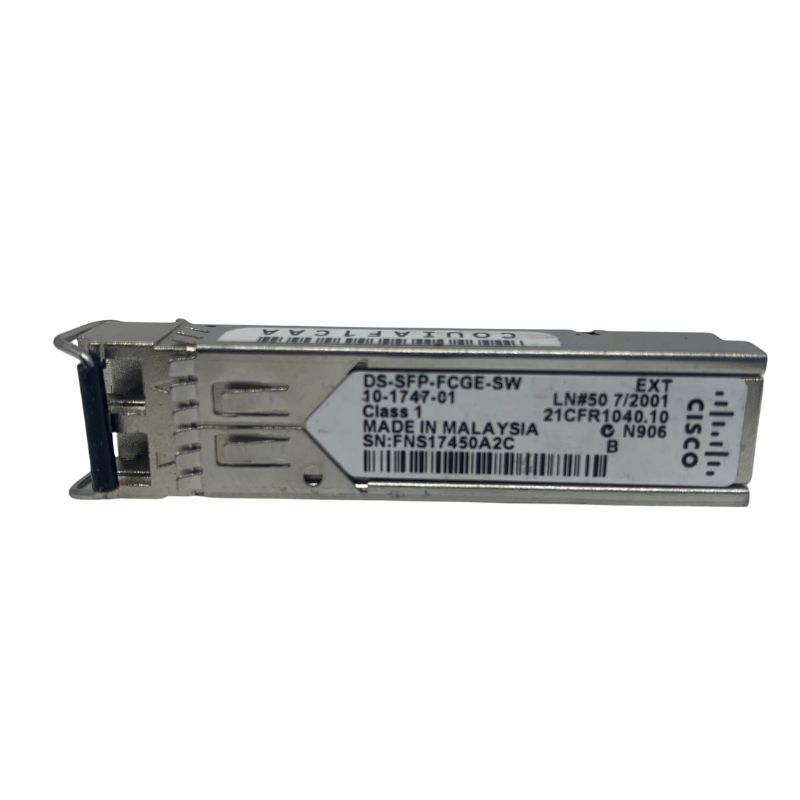

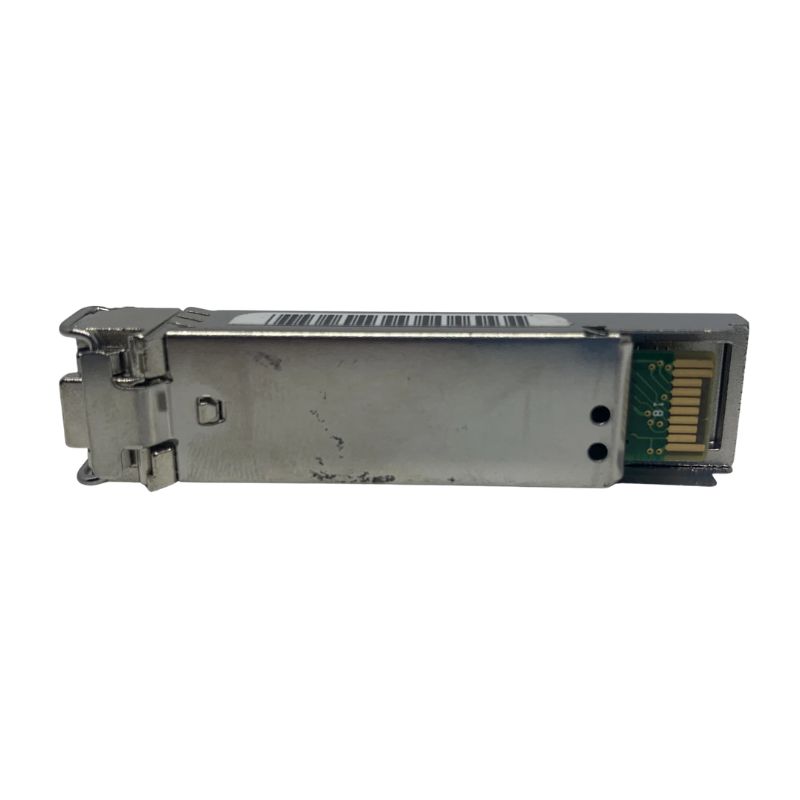

Cisco DS-SFP-FCGE-SW Fibre Channel SFP Transceiver Module

The Cisco DS-SFP-FCGE-SW is a high-performance short-wave Small Form-Factor Pluggable (SFP) transceiver designed for dependable Gigabit Ethernet and Fibre Channel networking. Built for multi-mode fiber (MMF) deployments, this hot-pluggable optical module delivers reliable data transmission, making it an excellent choice for enterprise networks, storage environments, and high-speed communication infrastructures.

General Information

• Manufacturer: Cisco
• Model Number: DS-SFP-FCGE-SW
• Product Category: Optical Transceiver Module
• Sub-Type: GBIC-SFP

Physical Characteristics

• Compact plug-in module design
• Small Form-Factor Pluggable (SFP) Mini-GBIC interface
• Hot-swappable for simplified upgrades and maintenance
• Optimized for Cisco networking hardware

Technical Features

Optical Performance

• Connectivity Technology: Wired
• Ethernet Standard: 1000BASE-SX
• Operating Wavelength: 850 nm
• Supported Fiber Type: Multi-Mode Fiber (MMF)
• Maximum Reach: Up to 500 meters
• Data Transfer Rate: Up to 2 Gbps

Network Interface

• 1 × Ethernet 1000BASE-SX network interface
• Dual LC multi-mode optical connectors
• Compatible with standard SFP (Mini-GBIC) slots

Ideal Applications

Enterprise Networking

• Corporate LAN infrastructure
• Gigabit Ethernet backbone connections
• Campus network deployments
• Branch office connectivity

Storage Networking

• Storage Area Networks (SAN)
• Server-to-switch optical links
• Network storage connectivity
• High-speed data communication environments

Compatibility Information

Supported Interface

• Compatible with standard SFP (Mini-GBIC) ports
• Supports Gigabit Ethernet 1000BASE-SX environments
• Designed for multi-mode fiber optic networks

Connector Details

• LC duplex optical connector
• Multi-mode fiber support
• 850 nm short-wave optical transmission

Product Highlights

• Original Cisco SFP optical transceiver module
• Supports Gigabit Ethernet 1000BASE-SX connectivity
• Short-wave laser operating at an 850 nm wavelength
• Compatible with multi-mode fiber optic cabling
• Maximum transmission distance of up to 500 meters
• Plug-and-play installation with hot-swappable functionality
• LC duplex optical connector interface
• Reliable performance for enterprise networking applications

Cisco DS-SFP-FCGE-SW Multi-mode Transceiver Module Overview

The Cisco DS-SFP-FCGE-SW Short Wave Multi-mode Fiber Optic Transceiver Module is a high-performance Small Form-Factor Pluggable (SFP) optical transceiver designed for reliable, high-speed data transmission over multimode fiber infrastructure. This module is engineered to support Gigabit Ethernet and Fibre Channel applications, providing scalable, flexible, and cost-efficient connectivity solutions for data centers, enterprise networks, and storage area networks (SANs).

This category of short-wave SFP modules plays a critical role in modern optical networking environments where high bandwidth, low latency, and stable signal integrity are essential. The DS-SFP-FCGE-SW is particularly optimized for short-range optical communication using multimode fiber (MMF), typically operating at an 850 nm wavelength using Vertical Cavity Surface Emitting Laser (VCSEL) technology.

Short Wave SFP Multi-mode Fiber Optic Technology

Fundamentals of SFP Optical Transceivers

Small Form-Factor Pluggable (SFP) transceivers are compact, hot-swappable devices used in networking equipment to convert electrical signals into optical signals and vice versa. These modules allow network administrators to customize connectivity options without replacing entire switches or routers. The DS-SFP-FCGE-SW belongs to the short-wave category, designed specifically for multimode fiber environments where transmission distances are relatively short but bandwidth requirements are high.

SFP modules support various protocols such as Gigabit Ethernet, Fibre Channel, SONET, and others, making them highly versatile. The Cisco DS-SFP-FCGE-SW is primarily used in 1 Gbps environments and is widely adopted in enterprise backbone networks and storage systems.

Short Wave Optical Transmission Principles

Short wave optical transceivers operate in the 850 nm wavelength range. This range is optimal for multimode fiber due to its compatibility with VCSEL light sources, which provide high efficiency, low power consumption, and stable signal modulation. The DS-SFP-FCGE-SW uses this technology to ensure reliable data transmission over distances typically ranging from 220 meters to 550 meters, depending on the fiber type (OM1, OM2, OM3, or OM4).

VCSEL Laser Technology in SFP Modules

Vertical Cavity Surface Emitting Lasers (VCSELs) are a key component in short-wave SFP modules. Unlike edge-emitting lasers, VCSELs emit light perpendicular to the surface of the semiconductor wafer, allowing for lower production costs, improved energy efficiency, and reduced heat generation. These characteristics make them ideal for high-density networking environments where multiple transceivers operate simultaneously.

Technical Specifications of Cisco DS-SFP-FCGE-SW

Data Rate and Protocol Support

The DS-SFP-FCGE-SW module supports data rates up to 1.25 Gbps, making it suitable for Gigabit Ethernet (1000BASE-SX) and Fibre Channel applications. It ensures low latency and high throughput, which are critical for mission-critical enterprise applications, including virtualization, cloud computing, and storage networking.

Wavelength and Optical Characteristics

Operating at an 850 nm wavelength, the DS-SFP-FCGE-SW is optimized for short-range multimode fiber communication. The use of short-wavelength light reduces dispersion and allows for efficient signal propagation through multimode fiber cores. This wavelength is standard for most short-reach SFP modules in enterprise environments.

Fiber Type Compatibility

The module is compatible with several multimode fiber standards, including OM1, OM2, OM3, and OM4 fibers. Each fiber type supports different maximum transmission distances:

OM1 fiber typically supports up to 275 meters, OM2 up to 550 meters, OM3 up to 300 meters for Gigabit Ethernet, and OM4 offers extended reach and improved bandwidth capabilities for high-speed networks.

Connector Type and Interface

The DS-SFP-FCGE-SW uses LC duplex connectors, which are widely adopted in high-density fiber optic installations. LC connectors provide a secure, low-loss connection with a compact footprint, making them ideal for modern networking hardware where space optimization is essential.

Key Features and Advantages of DS-SFP-FCGE-SW Modules

Hot-Swappable Design

One of the primary advantages of SFP modules is their hot-swappable capability. The DS-SFP-FCGE-SW can be installed or removed without powering down the network device, ensuring continuous operation and minimizing downtime during maintenance or upgrades.

High Reliability and Performance Stability

Designed for enterprise environments, the module delivers consistent optical performance with minimal signal degradation. Built-in diagnostics and Digital Optical Monitoring (DOM) capabilities allow real-time monitoring of temperature, optical power, and voltage levels.

Low Power Consumption

The use of VCSEL technology and efficient circuit design results in low power consumption, making the module suitable for large-scale deployments where energy efficiency is a priority.

Interoperability Across Cisco Platforms

As a Cisco-branded optical transceiver, the DS-SFP-FCGE-SW is fully tested for interoperability with a wide range of Cisco switches, routers, and network devices. This ensures seamless integration within existing infrastructure and reduces compatibility concerns often associated with third-party transceivers.

Compatibility and Supported Cisco Networking Devices

Enterprise Switch Compatibility

The DS-SFP-FCGE-SW is commonly used in Cisco Catalyst series switches, Nexus data center switches, and other enterprise-grade networking equipment. Its compatibility with Gigabit Ethernet interfaces makes it suitable for both access layer and distribution layer deployments.

Data Center Integration

In data center environments, this module is frequently deployed for server-to-switch connectivity, storage area networks (SANs), and high-speed inter-switch links. Its short-wave multimode design ensures efficient internal data center communication.

Storage Area Network (SAN) Usage

Fibre Channel SAN environments benefit significantly from the DS-SFP-FCGE-SW module due to its low latency and high reliability. It supports rapid data transfer between storage arrays and servers, ensuring optimal performance for database systems and enterprise applications.

Applications of Cisco DS-SFP-FCGE-SW Modules

Enterprise Networking Environments

Enterprise networks rely heavily on SFP modules for scalable connectivity. The DS-SFP-FCGE-SW is used in corporate LANs to interconnect switches across different floors, buildings, or campus environments where multimode fiber is installed.

Cloud Computing Infrastructure

Cloud data centers require high-density, high-speed optical interconnects. This module supports virtualization environments by ensuring fast and reliable data transfer between compute nodes, storage systems, and network fabrics.

Telecommunications Backbone Networks

Telecom operators use short-wave SFP modules in aggregation layers where short-distance high-bandwidth transmission is required. The DS-SFP-FCGE-SW provides stable connectivity in metro and regional network infrastructures.

Performance Considerations and Network Optimization

Signal Integrity and Loss Budget

Maintaining signal integrity is critical in multimode fiber deployments. The DS-SFP-FCGE-SW module is designed to operate within defined optical loss budgets, ensuring stable transmission even in environments with multiple patch panels or connectors.

Distance Limitations and Fiber Quality

The effective transmission distance depends on fiber grade and installation quality. Higher-grade OM3 and OM4 fibers allow longer reach and higher bandwidth performance compared to older OM1 and OM2 standards.

Bandwidth-Distance Tradeoff

As distance increases, bandwidth availability may decrease due to modal dispersion. Proper network design ensures that the DS-SFP-FCGE-SW is deployed within its optimal operating range for maximum efficiency.

Network Design Best Practices

Structured Cabling Design

A structured cabling approach ensures optimal performance of optical transceivers. Proper labeling, cable management, and standardized installation practices reduce signal loss and improve maintainability.

Redundancy and Failover Planning

In mission-critical environments, redundancy is essential. The DS-SFP-FCGE-SW can be deployed in redundant link configurations to ensure continuous network availability in case of hardware or fiber failures.

Comparison with Long Wave SFP Modules

Short Wave vs Long Wave Technology

Short-wave SFP modules like the DS-SFP-FCGE-SW are optimized for multimode fiber and shorter distances, whereas long-wave modules operate at 1310 nm or 1550 nm wavelengths and are designed for single-mode fiber and long-distance transmission.

Cost and Deployment Differences

Short-wave modules are generally more cost-effective for short-range deployments due to the lower cost of multimode fiber infrastructure. Long-wave modules, while more expensive, are necessary for inter-city or long-haul communications.
