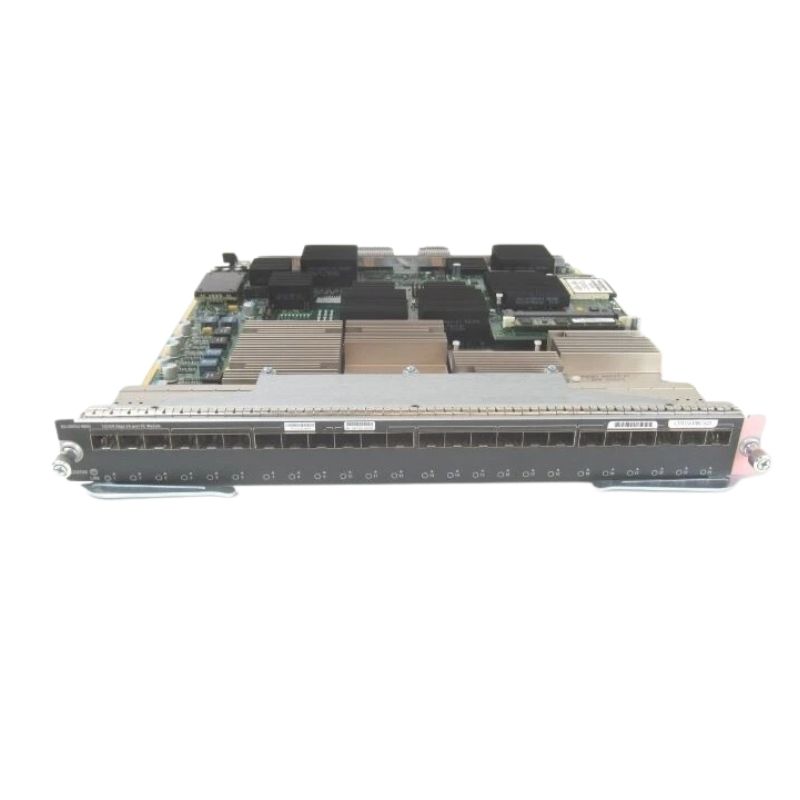

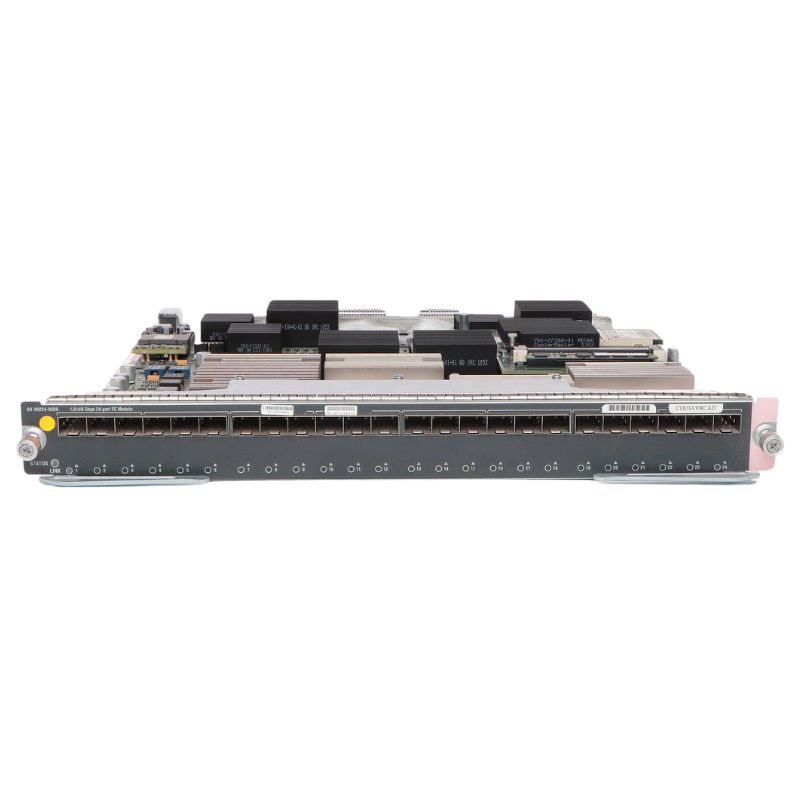

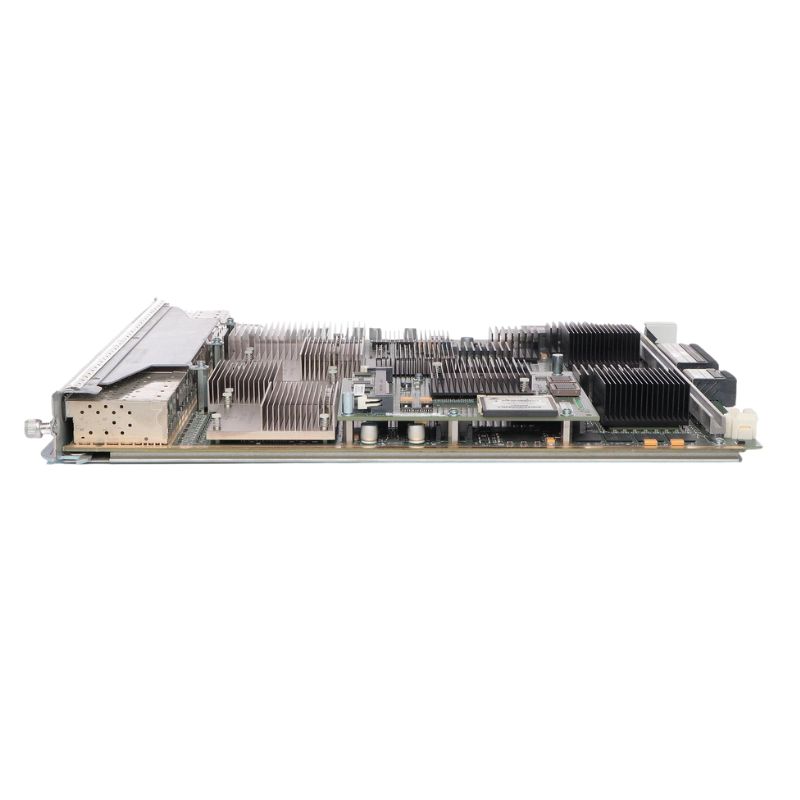

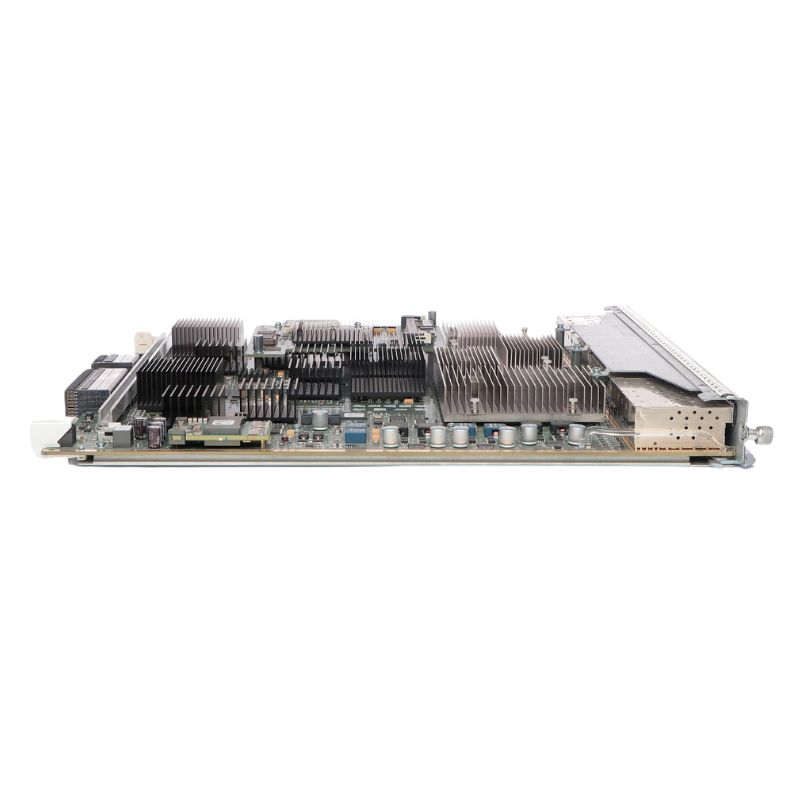

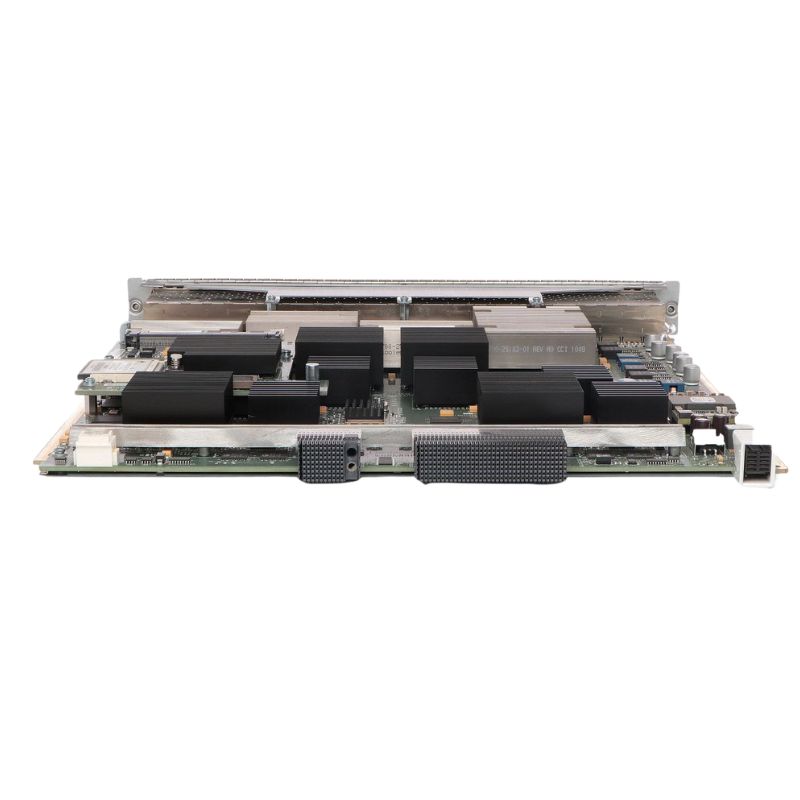

DS-X9224-96K9 Cisco 24-Port 8Gbps FC Switch Module

Highlight of Cisco 24 Ports Fibre Channel Expansion Module

The MDS 9000 Series expansion architecture is engineered to enhance storage networking environments with scalable, high-speed Fibre Channel switching capabilities. The DS-X9224-96K9 module is a robust plug-in component designed to extend SAN (Storage Area Network) performance while maintaining stability, security, and interoperability across enterprise infrastructures.

Main Characteristics

• Manufacturer: Cisco
• Part Number: DS-X9224-96K9
• Product Type: Fibre Channel switching module

Technical Specifications

• 24 × Fibre Channel ports supporting high-speed SAN communication
• SFP (Small Form-factor Pluggable / mini-GBIC) compatibility for flexible fiber deployment
• Duplex fiber connectivity support for stable bidirectional transmission

Key Product Highlights

• 24-port high-density Fibre Channel expansion module
• Delivers up to 8 Gbps per port for accelerated data throughput
• Compatible with multiple Fibre Channel standards for broad integration
• Hot-swappable plug-in design for simplified installation and maintenance
• Optimized for mission-critical data center deployments

Protocol Compatibility List

• FC-AL, FC-AL-2, FC-BB, FC-FS, FC-LS
• FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-4
• FC-SW-2 through FC-SW-5 switching architectures
• FCP, FCP-2, FCP-3 for SCSI over Fibre Channel transport
• FC-GS-3 through FC-GS-6 service and generic standards
• FC-VI, FC-MI, FC-MI-2 for management and interconnect compatibility

Physical Dimensions

• Width: 14 inches
• Depth: 16 inches
• Height: 1.2 inches

Space-Efficient Engineering Benefits

• Improves rack utilization in enterprise data centers
• Enables scalable SAN expansion without redesigning infrastructure
• Reduces physical clutter in high-performance switching environments

Supported Management Protocols

• SNMPv3 for secure monitoring and network management
• SSH-2 for encrypted remote access sessions

Authentication and Access Control

• RADIUS authentication for centralized user verification
• TACACS+ support for advanced administrative control
• Secure Shell v2 encryption for protected communication channels

Security Advantages in Enterprise Environments

• Protects sensitive storage traffic from unauthorized access
• Enables role-based administrative control
• Ensures compliance with enterprise security policies

Typical Application Environments

• Enterprise data centers requiring high-speed storage access
• Virtualized infrastructure with heavy I/O workloads
• Cloud storage backend switching layers
• High-availability disaster recovery systems

Performance Optimization Benefits

• Reduces data bottlenecks in large-scale storage networks
• Enhances throughput for database-intensive applications
• Improves redundancy and network resilience

Compatibility

• Plug-and-play compatibility with supported MDS chassis
• Unified management across Cisco SAN environments
• Scalable architecture for future network expansion

Operational Efficiency Improvements

• Simplifies network scaling strategies
• Reduces configuration complexity in large deployments
• Enhances long-term infrastructure flexibility

Overview of Cisco MDS 9000 Series Storage Module

The Cisco DS-X9224-96K9 MDS 9000 Series 8-Gbps 24 Ports Expansion Module is designed for enterprise-grade storage networking environments that demand high performance, scalability, and resilient Fibre Channel connectivity. As part of the broader Cisco MDS 9000 family, this expansion module plays a critical role in enhancing storage area network (SAN) architectures by delivering additional port capacity and supporting mission-critical data center operations. Built to integrate seamlessly with existing Cisco MDS director-class switches, this module ensures organizations can scale their storage networks without compromising performance, stability, or security.

In modern data-driven infrastructures, storage demands continue to grow exponentially. Virtualization, cloud computing, and big data analytics have significantly increased the need for robust SAN expansion solutions. The Cisco DS-X9224-96K9 addresses these challenges by providing high-density 8-Gbps Fibre Channel connectivity across 24 ports, allowing enterprises to expand SAN fabrics efficiently while maintaining predictable performance levels across workloads.

Enterprise Storage Networking Architecture Integration

Seamless Compatibility with Cisco MDS Platforms

The module is engineered specifically for integration within Cisco MDS 9000 Series directors, ensuring compatibility with existing SAN infrastructures. It supports seamless interoperability with other Cisco MDS switching modules, enabling organizations to build unified storage fabrics across multiple tiers of enterprise environments. This compatibility reduces operational complexity and helps IT administrators manage storage networks with improved efficiency.

Within large-scale data centers, integration flexibility is essential. The DS-X9224-96K9 supports plug-and-play expansion within supported chassis, making it easier for enterprises to extend SAN capacity without redesigning their existing infrastructure. This approach reduces downtime and eliminates the need for disruptive hardware replacements.

Scalability for Growing Data Center Demands

As organizations scale their operations, storage traffic increases across virtualization clusters, backup systems, and application workloads. The Cisco DS-X9224-96K9 provides a scalable architecture that allows enterprises to expand port density as needed. With 24 additional 8-Gbps Fibre Channel ports, IT teams can distribute storage traffic more efficiently and prevent bottlenecks within the SAN fabric.

Scalability is further enhanced by the modular design of the Cisco MDS 9000 Series. This enables administrators to incrementally upgrade their storage network without replacing entire switching systems. The result is a cost-effective approach to infrastructure expansion that aligns with evolving business requirements.

High-Performance Fibre Channel Connectivity

8-Gbps Speed for Optimized Data Throughput

At the core of the Cisco DS-X9224-96K9 expansion module is its support for 8-Gbps Fibre Channel technology. This high-speed capability ensures that storage traffic is transmitted with minimal latency and maximum efficiency. In environments where rapid data access is critical, such as financial services, healthcare systems, and cloud data centers, this performance level is essential.

The 8-Gbps throughput allows the module to handle intensive workloads including database replication, virtual machine migration, and large-scale backup operations. By maintaining consistent data transfer rates, it helps reduce latency-sensitive application delays and improves overall system responsiveness.

Low Latency Data Transfer Architecture

Latency reduction is a critical factor in SAN design. The Cisco DS-X9224-96K9 is optimized to minimize hop delays and ensure that storage packets are processed efficiently across the fabric. This is achieved through advanced switching mechanisms within the MDS architecture, allowing data to flow with predictable performance characteristics.

Low latency operation is particularly important in high-availability environments where application uptime depends on fast and reliable storage access. The module supports deterministic performance, ensuring that workloads remain stable even under heavy traffic conditions.

Advanced SAN Fabric Management Capabilities

Intelligent Traffic Routing and Load Distribution

The Cisco DS-X9224-96K9 contributes to intelligent SAN fabric operations by supporting advanced traffic management features inherent in Cisco MDS platforms. These capabilities ensure that storage traffic is evenly distributed across available paths, preventing congestion and optimizing resource utilization.

In large SAN deployments, uneven traffic distribution can lead to performance degradation. The module helps mitigate this risk by enabling efficient routing of Fibre Channel frames across multiple paths, ensuring consistent throughput and reliability across the network.

Enhanced Fault Isolation and Resiliency

Reliability is a key requirement in enterprise storage systems. The module is designed with fault isolation mechanisms that help detect and contain network issues without impacting the entire fabric. This improves system resilience and minimizes downtime during hardware or link failures.

By integrating with Cisco MDS diagnostics and monitoring systems, administrators can quickly identify issues and take corrective actions. This proactive approach enhances overall SAN stability and reduces operational risks.

Data Center Optimization and Virtualization Support

Support for Virtualized Storage Environments

Virtualization has transformed modern IT infrastructures, requiring storage networks to adapt to dynamic workload demands. The Cisco DS-X9224-96K9 supports virtualized environments by providing flexible and high-capacity connectivity for virtual machine storage traffic. This ensures that virtualization platforms can scale efficiently without encountering storage bottlenecks.

In environments such as VMware or similar virtualization stacks, storage traffic can fluctuate significantly. The module’s high-density port architecture allows administrators to allocate resources dynamically based on workload requirements, ensuring consistent performance across virtual machines.

Optimized Backup and Disaster Recovery Operations

Backup and disaster recovery systems require high-throughput and reliable storage connectivity. The DS-X9224-96K9 enhances these operations by providing sufficient bandwidth for large-scale data replication processes. Enterprises can schedule backups without impacting production workloads, thanks to the module’s ability to handle simultaneous data streams efficiently.

Disaster recovery environments benefit from the module’s stable and predictable performance characteristics. Replication between primary and secondary storage sites can be maintained with minimal latency, ensuring business continuity in case of system failures.

Hardware Design and Physical Architecture

High-Density Port Configuration

The Cisco DS-X9224-96K9 is engineered with a 24-port high-density configuration, making it ideal for large-scale SAN deployments where port availability is a critical requirement. This density allows organizations to maximize chassis utilization while minimizing physical space requirements in data center racks.

High-density configurations reduce cabling complexity and improve manageability within the data center environment. By consolidating multiple storage connections into a single module, enterprises can streamline infrastructure design and reduce operational overhead.

Robust Hardware Reliability Standards

Built to meet enterprise-grade reliability standards, the module is designed for continuous operation in demanding environments. It incorporates redundant hardware pathways and enterprise-class components that ensure long-term durability and consistent performance under heavy workloads.

Cisco’s engineering approach emphasizes reliability across all MDS components, and this expansion module is no exception. It is designed to operate within mission-critical systems where downtime is not acceptable.

Storage Network Protection

Fabric-Level Security Integration

Security is an essential component of modern storage networks. The Cisco DS-X9224-96K9 integrates with Cisco MDS security frameworks to provide fabric-level protection against unauthorized access and configuration changes. This ensures that sensitive data remains secure within the SAN environment.

Zoning capabilities and access control mechanisms help administrators define strict communication policies between storage devices. This reduces the risk of unauthorized data exposure and strengthens overall network integrity.

Centralized Administration in SAN Environments

One of the key advantages of the Cisco MDS 9000 Series architecture is centralized management. The DS-X9224-96K9 benefits from this design by allowing administrators to manage storage networks through a unified interface. This reduces complexity and improves operational efficiency across large deployments.

Centralized administration enables IT teams to configure, monitor, and troubleshoot SAN components without needing to manage each module independently. This approach reduces administrative overhead and ensures consistent policy enforcement across the storage fabric.

Enterprise Use Cases and Deployment Scenarios

Large Data Center Storage Expansion

The module is ideal for enterprises expanding their data center storage capacity. It allows organizations to scale SAN infrastructure in response to increasing data demands without redesigning existing systems. This makes it suitable for industries such as finance, healthcare, telecommunications, and cloud service providers.

High-Availability Application Environments

In environments where application uptime is critical, the DS-X9224-96K9 provides the necessary redundancy and performance to support continuous operations. High-availability clusters rely on stable storage connectivity, which this module delivers through consistent Fibre Channel performance.

Cloud Infrastructure Storage Backbone

Cloud environments require scalable and resilient storage networking. The module supports cloud infrastructure by enabling flexible expansion of SAN fabrics, ensuring that storage resources can keep up with dynamic workload demands in multi-tenant environments.

Performance Optimization in Enterprise SAN Deployments

Traffic Prioritization and Quality of Service

Quality of Service mechanisms within Cisco MDS environments allow administrators to prioritize critical storage traffic. The DS-X9224-96K9 supports these mechanisms, ensuring that high-priority workloads receive the necessary bandwidth even during peak usage periods.

Balanced Workload Distribution Across Ports

Efficient workload distribution across the 24 ports helps prevent congestion and ensures consistent performance. This balanced approach allows enterprises to optimize resource utilization and maintain predictable storage performance across all connected devices.

Long-Term Infrastructure Efficiency

By enabling scalable expansion and efficient traffic management, the module contributes to long-term infrastructure efficiency. Organizations can extend the lifespan of their existing SAN investments while gradually increasing capacity as business needs evolve.
