DWDM-XFP-C Cisco Transceiver Module LC Connector XFP 10 Gbps

Cisco DWDM-XFP-C 10GBPS Transceiver Module

The Cisco DWDM-XFP-C 10Gbps 10GBase-DWDM Single-Mode Fiber 80km Duplex LC Connector XFP Transceiver Module is a high-performance optical networking component designed for dense wavelength division multiplexing (DWDM) environments. Developed for carrier-grade and enterprise-grade optical transport systems, this module enables long-distance, high-capacity data transmission across single-mode fiber infrastructures. As part of advanced optical networking ecosystems provided by Cisco, this transceiver supports reliable 10 Gigabit Ethernet connectivity with optimized signal integrity over extended distances.

DWDM Optical Technology and Signal Multiplexing

Dense Wavelength Division Multiplexing Principles

DWDM technology operates by transmitting multiple optical carrier signals through a single optical fiber by using different wavelengths (colors) of laser light. The Cisco DWDM-XFP-C module is engineered to operate within tightly spaced ITU-T standardized DWDM channels, allowing network operators to significantly expand bandwidth without laying additional fiber infrastructure. This approach maximizes spectral efficiency and supports scalable optical backbone deployment.

10GBase-DWDM Signal Transmission Standard

The 10GBase-DWDM standard ensures compatibility with high-speed Ethernet protocols operating at 10Gbps. The module translates electrical signals from network equipment into precisely modulated optical signals. These signals are then transmitted over single-mode fiber with minimal attenuation, maintaining data integrity across metropolitan and long-haul networks. The DWDM framework ensures stable wavelength isolation, reducing channel interference and improving transmission quality.

XFP Form Factor Design and Physical Integration

Hot-Pluggable XFP Module Architecture

The XFP form factor used in the Cisco DWDM-XFP-C module is a standardized hot-swappable optical interface designed for high-density networking environments. This allows network engineers to install or replace the module without powering down the system, minimizing service interruptions. The compact design ensures efficient use of switch and router chassis space while maintaining robust thermal and electrical performance.

Duplex LC Connector Interface

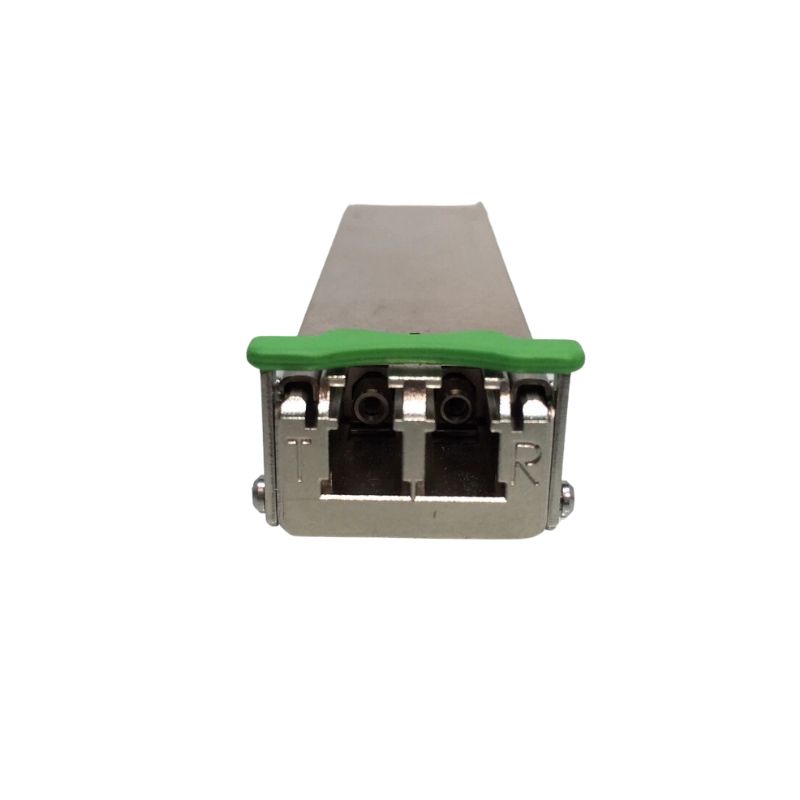

The module utilizes a Duplex LC connector interface, which provides a compact and secure fiber connection mechanism. LC connectors are widely adopted in high-speed optical systems due to their low insertion loss and high precision alignment. In DWDM applications, maintaining connector cleanliness and alignment is critical for ensuring optimal signal quality and minimizing optical return loss.

Electrical Interface and Power Efficiency

The electrical interface of the module supports high-speed serial data transmission with integrated signal conditioning. Power efficiency is a critical design consideration, ensuring minimal heat generation even under continuous high-bandwidth operation. This contributes to overall system stability and reduces cooling requirements in dense network deployments.

80km Long-Distance Transmission Capability

Extended Reach Optical Design

One of the defining features of the Cisco DWDM-XFP-C module is its ability to support transmission distances of up to 80 kilometers over single-mode fiber. This extended reach capability is achieved through advanced optical amplification compatibility and high-performance laser modulation techniques. It is particularly suited for metropolitan area networks (MANs) and regional backbone infrastructures.

Optical Power Budget and Signal Integrity

The module is engineered with a carefully balanced optical power budget that ensures signal strength remains within acceptable thresholds over long distances. This includes considerations for fiber attenuation, connector losses, and dispersion effects. The high-quality optical components used in the module help maintain bit error rates at extremely low levels, ensuring reliable data delivery.

Chromatic Dispersion Management

Chromatic dispersion is a key challenge in long-haul optical communication. The Cisco DWDM-XFP-C module is designed to operate within systems that incorporate dispersion compensation techniques, allowing it to maintain signal clarity over extended fiber spans. This ensures that high-speed data streams remain synchronized and free from distortion.

Enterprise and Carrier Network Applications

Telecommunications Backbone Infrastructure

In telecommunications environments, this DWDM XFP module is used to support backbone transmission systems that require high bandwidth density and long-distance connectivity. It enables service providers to scale their optical networks efficiently while maintaining consistent performance across multiple wavelength channels.

Data Center Interconnect Solutions

Modern data centers rely heavily on high-speed interconnectivity between geographically distributed facilities. The Cisco DWDM-XFP-C module plays a crucial role in enabling data center interconnect (DCI) solutions, allowing seamless synchronization and replication of large-scale data sets across distances up to 80km.

Enterprise Wide Area Network Optimization

Enterprises with distributed branch offices benefit from the deployment of DWDM XFP modules to enhance WAN performance. By leveraging optical multiplexing, organizations can consolidate multiple communication channels into a single fiber link, reducing infrastructure complexity while improving bandwidth availability.

Compatibility and Ecosystem Integration

The Cisco DWDM-XFP-C module is fully optimized for integration with a wide range of optical networking platforms provided by Cisco. This ensures seamless interoperability with routers, switches, and optical transport systems designed for carrier-grade performance. The module is engineered to meet strict compatibility standards, ensuring stable operation within Cisco’s optical networking ecosystem.

System-Level Interoperability

Interoperability is a key requirement in modern optical networks. This module supports standardized interfaces and protocols that allow it to function efficiently in mixed-vendor environments, although optimal performance is achieved within Cisco-certified systems. This ensures predictable behavior across complex network topologies.

Hot-Swap Functionality

Hot-swappable capability ensures that the module can be inserted or removed while the host system remains operational. This is particularly important in carrier networks and enterprise backbones where continuous uptime is required. The XFP interface ensures safe electrical isolation during insertion and removal.

Performance Optimization

Low Latency Optical Transmission

The Cisco DWDM-XFP-C module is designed for ultra-low latency data transmission, making it suitable for time-sensitive applications such as financial trading networks, real-time analytics, and high-performance computing interconnects.

Error Rate Minimization Techniques

Advanced laser modulation and signal conditioning technologies are implemented to minimize bit error rates. These enhancements ensure that data integrity is preserved even in challenging optical environments with high channel density and long transmission distances.

Thermal Stability in Dense Deployments

The module is engineered to maintain stable operation across a wide range of environmental conditions. Efficient thermal dissipation ensures consistent performance even in high-density switch and router configurations where multiple optical modules operate simultaneously.

Industrial-Grade Reliability Standards

Built for carrier and enterprise environments, the module adheres to stringent reliability standards that ensure long operational lifecycles. This makes it suitable for mission-critical infrastructure where downtime is not acceptable.

Upgrade Path for High-Capacity Networks

As network demands increase, the Cisco DWDM-XFP-C module provides a scalable foundation for upgrading optical infrastructure without requiring complete system redesigns. Its compatibility with DWDM multiplexing allows incremental expansion of bandwidth capacity.

Long-Term Operational Efficiency

By reducing the need for additional fiber deployment, the module contributes to long-term cost efficiency in network operations. Its durability and stability make it a strategic component in sustainable optical network design.
