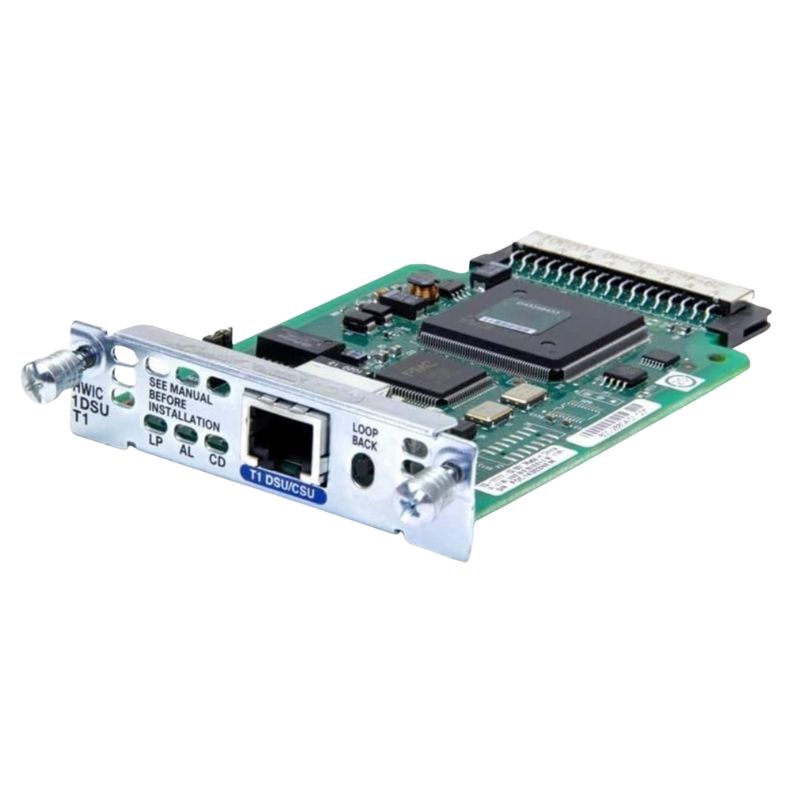

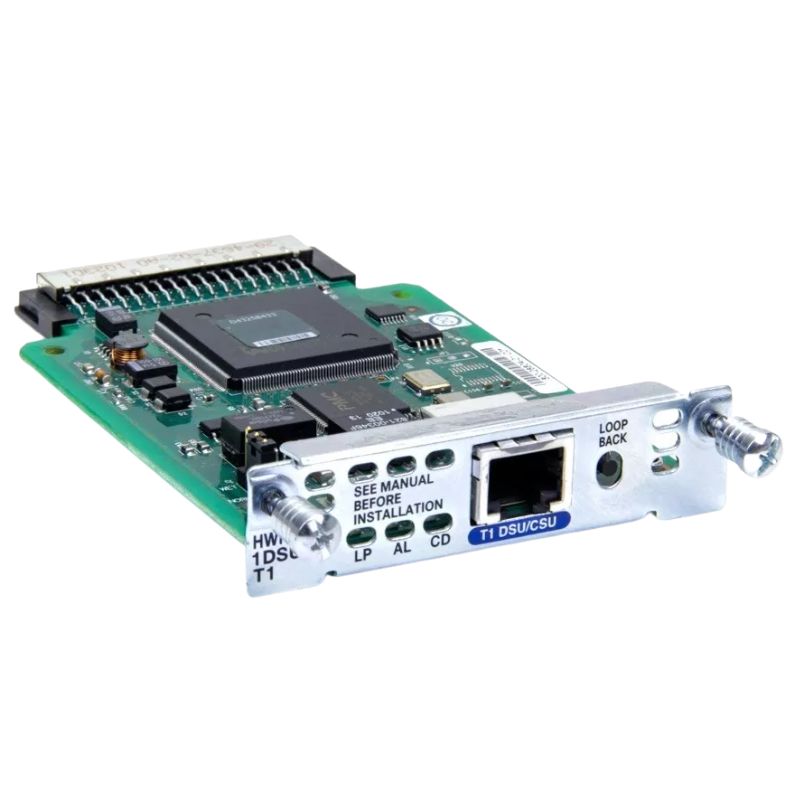

HWIC-1DSU-T1 Cisco One-Port Ethernet WAN Interface Card

Cisco HWIC-1DSU-T1 One-Port Ethernet WAN Interface Card

The Cisco HWIC-1DSU-T1 Interface Card is a high-performance WAN connectivity module designed for Cisco Integrated Services Routers (ISR). Built to deliver reliable T1 and fractional T1 WAN access, this interface card integrates CSU/DSU functionality directly into the router, eliminating the need for external termination devices and improving network efficiency in enterprise.

Manufacturer and Identification

• Manufacturer: Cisco
• Part Number: HWIC-1DSU-T1
• Product Type: WAN Interface Card

Technical Specifications

• Interface Type: 1 x RJ-48C physical port
• Line Rate: Full T1 (1.544 Mbps)
• Fractional T1 Support: 56 Kbps or 64 Kbps increments (Nx64 Kbps scaling)

Benefits of Integrated CSU/DSU

• Eliminates external CSU/DSU devices
• Reduces cabling and rack space usage
• Improves network deployment efficiency

Supported Line Coding Options

• Alternate Mark Inversion (AMI)
• Bipolar with 8-Zero Substitution (B8ZS)

Framing Format Support

• Super Frame (SF / D4)
• Extended Super Frame (ESF)

Physical Characteristics

• Form Factor: Single-wide HWIC module

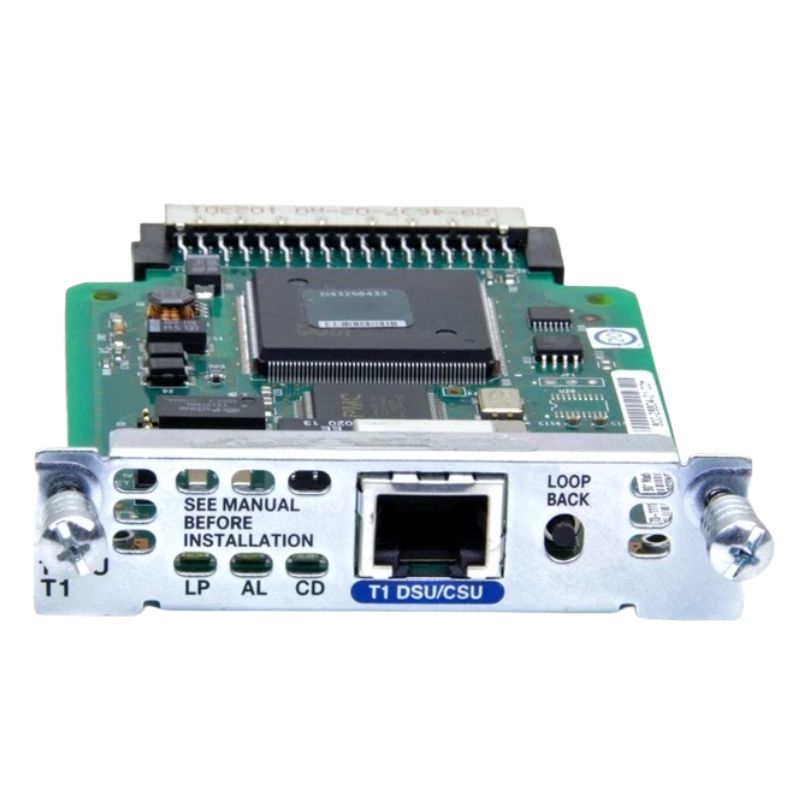

• LED Indicators: ALARM, LOOP, Carrier Detect (CD)
• Design Focus: High-density enterprise integration

Supported ISR G1 Series

• Cisco 1841
• Cisco 2801, 2811, 2821, 2851
• Cisco 3825, 3845

Supported ISR G2 Series

• Cisco 1921, 1941
• Cisco 2901, 2911, 2921, 2951
• Cisco 3925, 3945

Network Management Features

• Remote loopback testing
• Bit Error Rate Testing (BERT)
• Real-time line statistics monitoring

Supported Protocols

• Point-to-Point Protocol (PPP)
• Multilink PPP (MLPPP)
• Frame Relay

Main Benefits

• Space-saving design with integrated CSU/DSU functionality
• Reduced hardware dependency and lower maintenance costs
• Improved network scalability and flexibility
• High reliability for mission-critical WAN connections

LED Functions

• ALARM: Indicates line or connectivity issues
• LOOP: Shows loopback mode status
• CD (Carrier Detect): Confirms active carrier signal

Cisco HWIC-1DSU-T1 One-Port Ethernet WAN Card Overview

The Cisco HWIC-1DSU-T1 One-Port Ethernet WAN Interface Card is a high-performance WAN connectivity module designed for enterprise-class Cisco routing environments. It is widely used in branch office deployments, service provider edge networks, and enterprise WAN infrastructures where reliable T1 digital connectivity and Ethernet integration are required. This interface card enhances router functionality by enabling seamless WAN access through T1 circuits while maintaining stable Ethernet-based data transmission capabilities.

Engineered for modular Cisco Integrated Services Routers (ISR), the HWIC-1DSU-T1 card extends network flexibility by allowing organizations to deploy dedicated WAN interfaces without replacing entire routing systems. This modular design approach supports scalable network expansion, cost efficiency, and simplified infrastructure management in evolving enterprise environments.

Enterprise WAN Connectivity Architecture

The Cisco HWIC-1DSU-T1 module is designed to provide a single-port WAN interface that supports T1 digital signaling. This allows organizations to connect remote branch networks to centralized data centers or service provider infrastructures using reliable leased line connectivity. The integration of Ethernet WAN capabilities ensures compatibility with modern IP-based networking environments.

By combining T1 DSU/CSU functionality with Ethernet-based routing integration, the module acts as a bridge between legacy telecom infrastructure and modern enterprise IP networks. This hybrid capability makes it suitable for organizations transitioning from traditional WAN systems to fully IP-driven architectures.

Hybrid WAN Integration Capability

The HWIC-1DSU-T1 interface supports hybrid WAN environments where legacy T1 circuits are still in use alongside modern Ethernet backbones. This ensures continuity of service while allowing gradual migration toward more advanced WAN technologies.

Organizations can maintain existing telecom investments while expanding network capacity, ensuring operational stability during infrastructure upgrades.

Legacy Network Support Strategy

Many enterprise environments still rely on T1-based WAN circuits for branch connectivity. The Cisco HWIC-1DSU-T1 module enables continued utilization of these circuits, preserving legacy investments while ensuring compatibility with modern routing platforms.

Cisco ISR Router Compatibility and Integration

The HWIC-1DSU-T1 card is designed for seamless integration with Cisco Integrated Services Routers that support HWIC expansion slots. This includes a wide range of enterprise and branch-level router platforms, enabling flexible deployment across multiple network tiers.

Modular Router Expansion Design

Modular architecture is a key advantage of Cisco ISR platforms. The HWIC-1DSU-T1 module leverages this design by allowing administrators to add WAN interfaces without replacing core routing hardware. This reduces capital expenditure while extending network functionality.

The modular approach also simplifies upgrades and maintenance, as individual interface cards can be replaced or upgraded independently of the router chassis.

Flexible Network Scaling Model

As organizations grow, network demands increase. The HWIC-1DSU-T1 module supports scalable WAN expansion, enabling IT teams to deploy additional connectivity options without redesigning the entire network architecture.

T1 WAN Interface Functionality

The Cisco HWIC-1DSU-T1 module provides a dedicated T1 WAN interface that supports digital circuit connectivity over leased telecom lines. This ensures consistent bandwidth allocation and predictable network performance across enterprise WAN links.

Dedicated Digital Signal Processing

The integrated DSU/CSU functionality ensures proper signal conditioning between the router and telecom provider infrastructure. This improves transmission stability and reduces data loss across long-distance WAN connections.

Reliable signal processing is essential for maintaining uptime in mission-critical applications such as financial transactions, remote office connectivity, and enterprise resource access.

Stable WAN Transmission Characteristics

The module is engineered to maintain stable transmission performance across T1 circuits, ensuring consistent packet delivery and minimal latency variation. This supports applications that require predictable WAN behavior.

Enterprise Network Performance Optimization

Performance optimization is a critical aspect of WAN interface design. The Cisco HWIC-1DSU-T1 module enhances routing efficiency by providing dedicated bandwidth allocation for WAN traffic, reducing congestion and improving overall network responsiveness.

Improved WAN Traffic Handling

The module enables efficient handling of WAN-bound traffic by separating it from internal LAN processes. This ensures smoother routing operations and improved throughput in multi-site environments.

By isolating WAN traffic, organizations can maintain consistent performance even during peak usage periods.

Low Latency Routing Performance

The HWIC-1DSU-T1 module supports low-latency communication across WAN links, ensuring fast response times for distributed applications. This is particularly important for real-time services such as VoIP, remote database access, and cloud-based enterprise applications.

Hardware Design and Engineering Reliability

The Cisco HWIC-1DSU-T1 One-Port Ethernet WAN Interface Card is built with enterprise-grade hardware engineering standards to ensure long-term operational stability. It is designed for continuous deployment in demanding networking environments.

Compact Modular Form Factor

The compact HWIC design allows the module to fit directly into supported Cisco router chassis without requiring additional external equipment. This reduces physical infrastructure complexity and improves rack space efficiency.

The streamlined design ensures compatibility with high-density networking environments where space optimization is critical.

Durability for Continuous Operation

The module is engineered for 24/7 operation in enterprise environments. Its robust components ensure stable performance even under continuous network load conditions, making it suitable for mission-critical WAN deployments.

Operational Benefits in Enterprise Networking

The Cisco HWIC-1DSU-T1 module provides significant operational advantages by simplifying WAN deployment and improving network manageability. IT administrators can deploy and manage WAN connectivity through a unified Cisco routing platform.

Centralized Network Management

By integrating WAN functionality directly into the router, the module enables centralized control of network traffic. This simplifies configuration, monitoring, and troubleshooting across distributed network environments.

Centralized management reduces operational complexity and improves response time during network incidents.

Reduced Infrastructure Complexity

The use of modular WAN interface cards reduces the need for external WAN termination equipment. This simplifies network architecture and reduces maintenance overhead associated with multiple hardware components.

Security and Network Control Features

Security is a fundamental requirement in enterprise WAN environments. The Cisco HWIC-1DSU-T1 module supports secure routing and controlled access to WAN links through Cisco’s integrated security framework.

Secure WAN Connectivity

The module operates within Cisco’s secure routing environment, ensuring that WAN traffic is protected through established network security protocols. This helps safeguard enterprise communications across external networks.

Traffic Isolation and Control

The interface supports traffic segmentation, ensuring that WAN data flows are properly managed and isolated from internal network processes. This improves both performance and security posture.

Deployment Scenarios and Use Cases

The Cisco HWIC-1DSU-T1 One-Port Ethernet WAN Interface Card is widely used in enterprise branch offices, remote connectivity solutions, and service provider edge deployments.

Branch Office Connectivity

Branch offices rely on stable WAN connections to communicate with headquarters and centralized systems. The HWIC-1DSU-T1 module provides reliable T1-based connectivity for distributed business environments.

Enterprise WAN Infrastructure

In large enterprise environments, the module supports scalable WAN deployment across multiple locations, ensuring consistent communication between distributed systems.

Service Provider Integration

Service providers use T1 interfaces to support customer connectivity solutions, making the module suitable for managed network services and telecom infrastructure deployments.

Network Scalability and Future Expansion

The Cisco HWIC-1DSU-T1 module supports scalable WAN expansion strategies, enabling organizations to adapt network infrastructure as business needs evolve. Its modular design ensures compatibility with future Cisco router platforms and WAN technologies.
