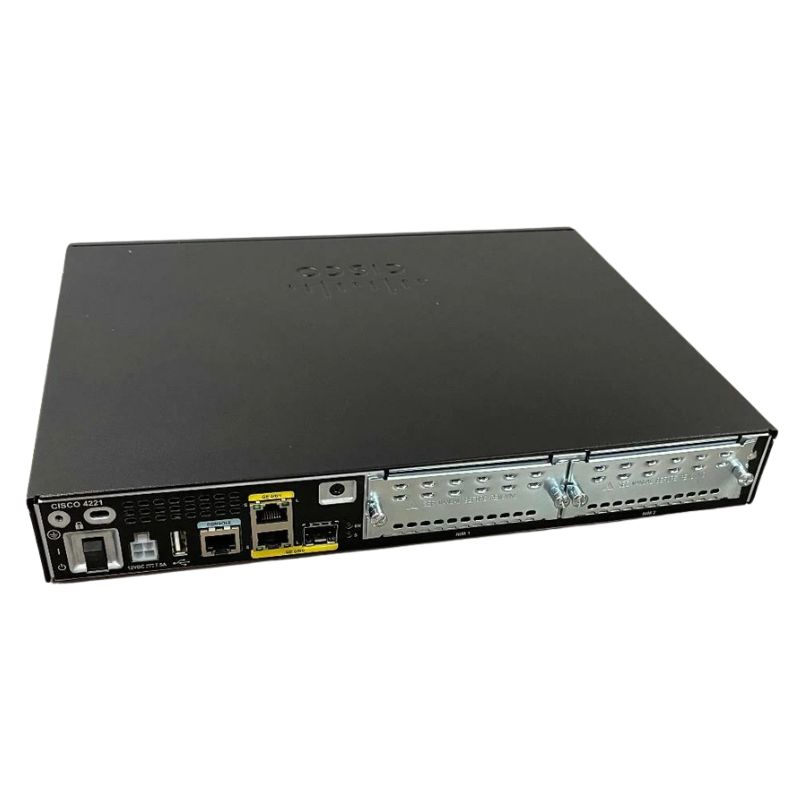

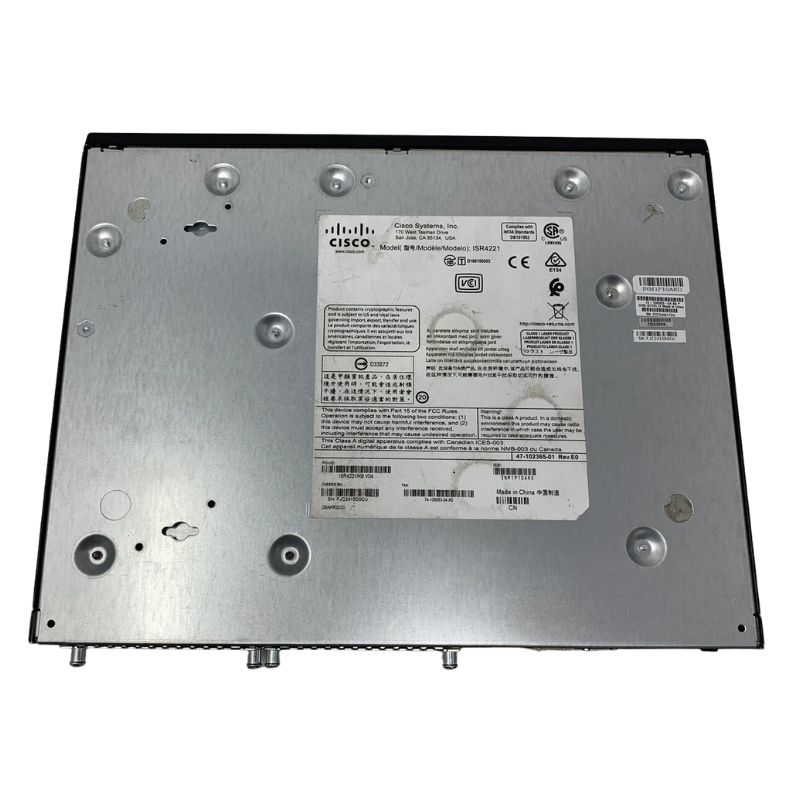

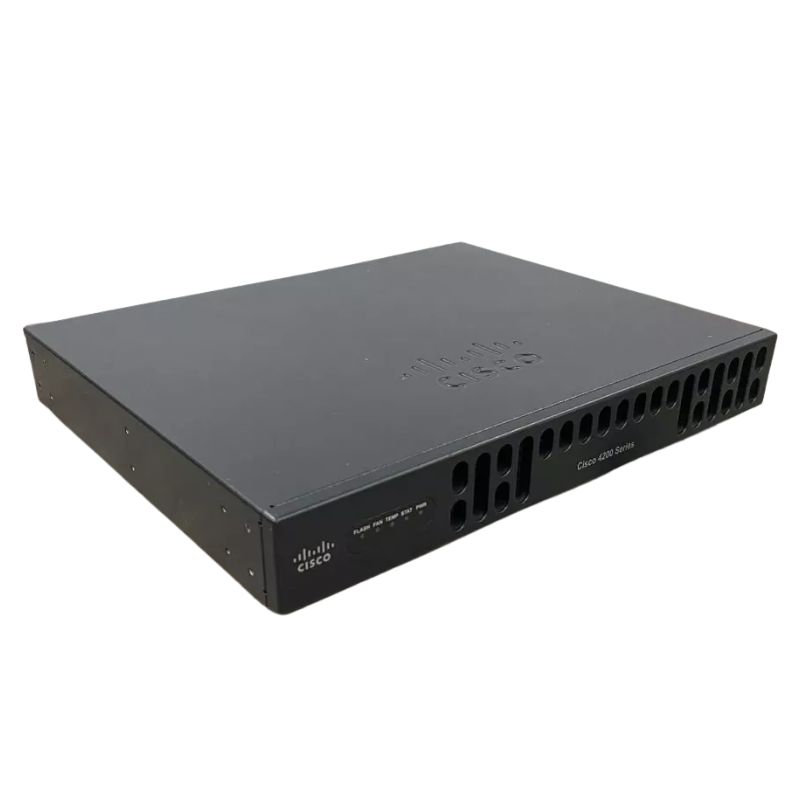

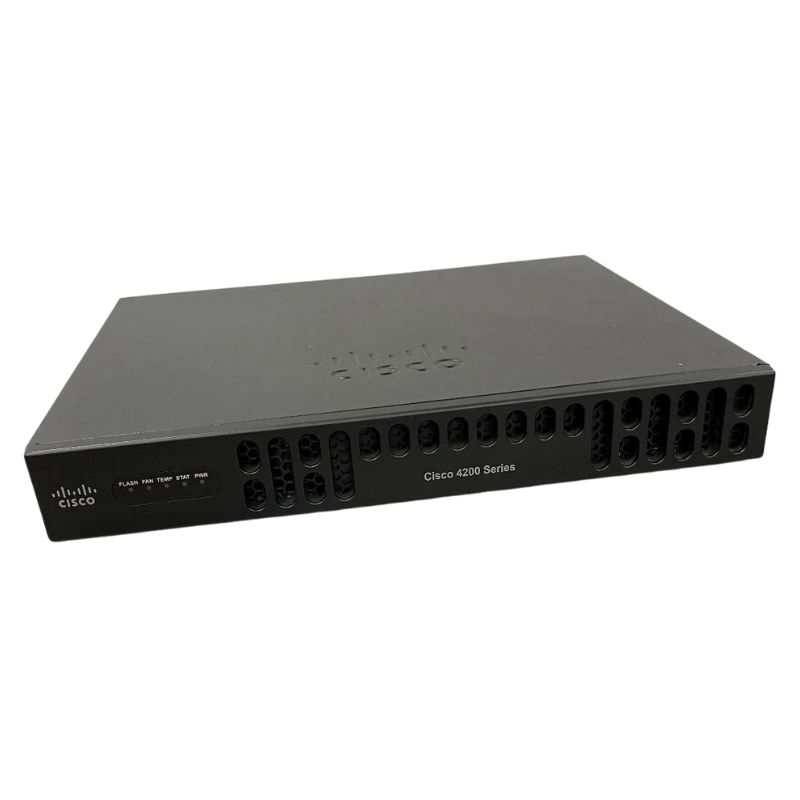

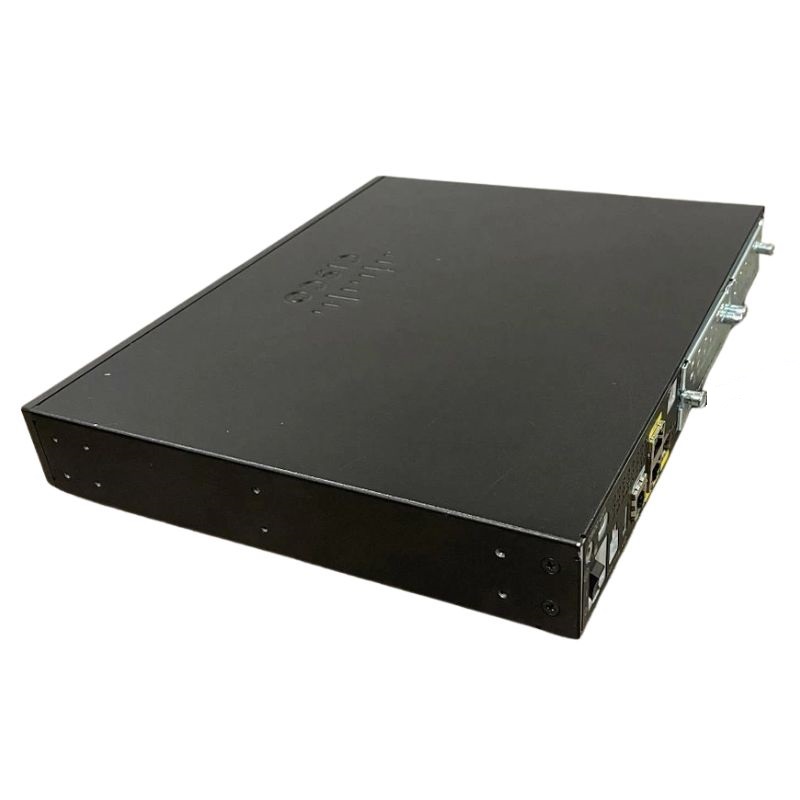

ISR4221-SEC/K9 Cisco ISR 4221 Integrated Service Router

Highlights of Cisco ISR4221-SEC/K9 Router

The Cisco ISR4221-SEC/K9 is a high-performance integrated services router designed for small to medium-sized enterprises. This router delivers secure connectivity, advanced network services, and flexible expansion options, making it ideal for businesses requiring robust network infrastructure.

General Information

• Manufacturer: Cisco
• Model Number: ISR4221-SEC/K9
• Product Type: Integrated Service Router

Technical Specifications

Network Interfaces

• 2 x 10/100/1000 Gigabit Ethernet (GE) ports for high-speed connectivity.
• 1 x SFP combo port providing flexible fiber or copper connection options.

Expansion Capabilities

• 2 x Network Interface Module (NIM) slots for modular upgrades and enhanced network functionality.

Management Ports

• 1 x RJ-45 combined console/auxiliary port for device configuration and management.
• 1 x USB 2.0 Type A port to support external storage or simplify staging processes.

Memory and Storage

• DRAM: 4 GB DDR3 ECC memory shared across control, services, and data planes.
• Flash Memory: 8 GB fixed memory for software and configuration storage.

Security and Advanced Features

SEC License and Security Enhancements

• Advanced SEC license enables IPsec VPN, SSL VPN, and Zone-Based Firewall features.
• Supports Snort IPS (Intrusion Prevention System) and content filtering for threat protection.

Advanced Services Compatibility

• Compatible with Cisco Umbrella Branch for secure cloud-based networking.
• Supports Stealthwatch Learning Networks to detect anomalous traffic patterns.

Physical Design and Power Requirements

Form Factor

• 1 Rack Unit (RU) compact desktop or rack-mountable design suitable for various deployments.

Power Specifications

• External AC power supply only; does not include Power over Ethernet (PoE) support.
• Typical power consumption ranges from 24W (no modules installed) up to 90W maximum.

Dimensions

• Height: 1.72 inches (43.7 mm)
• Width: 12.7 inches (322.6 mm)
• Depth: 10 inches (254 mm)

Overview of Cisco ISR4221-SEC/K9 2 Ports Service Router

The Cisco ISR4221-SEC/K9 2 Ports Integrated Service Router represents a robust solution for small to medium-sized enterprise networks, delivering high-performance routing, security, and connectivity features in a single, compact device. Designed to meet the increasing demands of modern network infrastructure, this router combines advanced WAN and LAN capabilities with built-in security services, ensuring seamless data flow and reliable network performance. With its dual integrated Ethernet ports and enhanced processing power, the ISR4221-SEC/K9 is particularly suited for branch offices and remote locations that require secure, high-speed connectivity without compromising on reliability.

Key Features and Capabilities of Cisco ISR4221

Integrated Routing and Switching

The Cisco ISR4221 integrates both routing and switching functionalities, allowing organizations to manage their network efficiently from a single device. It supports multiple WAN interfaces, enabling flexible deployment options and simplified network management. The router’s modular design allows for future scalability, ensuring that it can adapt to evolving network demands without the need for frequent hardware upgrades. This integration reduces hardware clutter and minimizes operational complexity, which is especially beneficial for organizations operating in geographically dispersed locations.

Advanced Security Services

Security is a core component of the Cisco ISR4221-SEC/K9. It includes features such as VPN support, firewall capabilities, and intrusion prevention systems, providing comprehensive protection against cyber threats. The built-in Cisco IOS XE software allows for dynamic security policy enforcement, while real-time threat detection ensures that network traffic remains secure. By consolidating security functions into the router itself, businesses can reduce the dependency on external security appliances, leading to lower operational costs and simplified network architecture. The router’s security capabilities are particularly essential for branch offices that handle sensitive data or connect to multiple remote locations over the Internet.

High-Performance Processing and Scalability

The ISR4221 is equipped with a high-performance multicore CPU, optimized for concurrent routing and security tasks. This processing power ensures low latency and high throughput, even under heavy network loads. In addition, the router supports software-defined WAN (SD-WAN) features, enabling organizations to optimize network performance dynamically and efficiently. The modular architecture of the device allows for future expansion through additional interface modules, providing long-term flexibility for growing enterprise networks. With the ISR4221, organizations can deploy advanced network services without compromising on performance or scalability.

Connectivity Options and WAN Capabilities

Dual Ethernet Ports

The Cisco ISR4221-SEC/K9 comes with two integrated Gigabit Ethernet ports, allowing organizations to establish multiple connections simultaneously. These ports support both LAN and WAN interfaces, providing the flexibility to connect branch offices, data centers, and remote users without requiring additional networking hardware. The dual-port design ensures redundancy, enabling continuous network operation even if one port fails. This level of connectivity is essential for mission-critical applications and ensures uninterrupted business operations in all circumstances.

WAN Interface Flexibility

Supporting a variety of WAN interface types, including T1/E1, DSL, and Ethernet, the ISR4221 facilitates seamless integration with existing network infrastructure. Its ability to support multiple WAN connections simultaneously ensures optimal load balancing and network reliability. Organizations can leverage these capabilities to maintain high availability and performance, even during peak traffic periods. WAN interface flexibility also allows businesses to deploy the router in diverse geographical locations, accommodating different service provider requirements without additional configuration complexity.

Support for VPN and Secure Tunnels

The Cisco ISR4221-SEC/K9 includes robust VPN functionality, enabling secure connections between branch offices and the central network. With support for IPsec and SSL VPNs, the router ensures encrypted data transmission, protecting sensitive information from unauthorized access. This feature is particularly valuable for businesses with remote or mobile workforces, as it allows employees to connect securely to corporate resources from any location. The VPN capabilities are fully integrated into the router, streamlining deployment and reducing the need for external VPN appliances.

Performance Optimization and Traffic Management

Quality of Service (QoS) Features

To ensure optimal application performance, the ISR4221 offers comprehensive Quality of Service features. These capabilities allow network administrators to prioritize critical applications, such as voice over IP (VoIP) and video conferencing, ensuring that latency-sensitive traffic receives precedence over less critical data. The router’s advanced traffic shaping and policing mechanisms help maintain consistent performance across the network, even during periods of high traffic. By managing bandwidth effectively, businesses can guarantee a seamless user experience and maintain productivity across all departments.

Integrated WAN Optimization

The router’s integrated WAN optimization features enhance data transmission efficiency, reducing network congestion and improving overall throughput. This includes techniques such as compression, deduplication, and caching, which minimize the amount of data transmitted over the WAN. For organizations with multiple branch offices or remote sites, these optimization capabilities are critical for maintaining application responsiveness and reducing operational costs. Optimized WAN performance also ensures that cloud-based applications function smoothly, supporting the digital transformation initiatives of modern enterprises.

Intelligent Traffic Routing

The Cisco ISR4221 leverages intelligent routing algorithms to optimize network paths based on real-time conditions. Dynamic routing protocols, including OSPF, EIGRP, and BGP, enable the router to adapt quickly to changes in network topology or traffic patterns. This adaptability ensures that data is always transmitted via the most efficient path, reducing latency and preventing network bottlenecks. Intelligent traffic routing is particularly important for organizations with high volumes of mission-critical data, as it ensures consistent delivery of essential services without interruption.

Deployment Scenarios and Use Cases

Branch Office Networking

The Cisco ISR4221 is ideally suited for branch office deployments, offering a complete solution for routing, security, and connectivity in a single device. Its compact form factor and low power consumption make it easy to install in small office spaces, while its high-performance capabilities ensure reliable network operation. Branch offices can leverage the router’s VPN and firewall features to secure communication with the corporate network, while integrated WAN interfaces provide multiple options for connecting to Internet service providers. This makes the ISR4221 a versatile and cost-effective choice for distributed enterprises.

Small and Medium-Sized Enterprises

For small and medium-sized businesses (SMBs), the ISR4221 provides enterprise-grade networking capabilities without the complexity or expense of larger-scale solutions. Its integrated services reduce the need for multiple devices, simplifying network management and lowering total cost of ownership. SMBs can take advantage of advanced security features, QoS, and WAN optimization to support modern business applications, from cloud services to VoIP communication. The router’s scalability ensures that it can grow alongside the organization, accommodating increasing bandwidth requirements and evolving network needs over time.

Remote and Mobile Workforce Support

In today’s mobile work environment, secure remote access is essential. The ISR4221 supports secure VPN connections for remote employees, enabling them to access corporate resources safely from any location. Its advanced encryption and authentication mechanisms protect sensitive data, ensuring compliance with industry regulations. Organizations can deploy the router in combination with Cisco’s management tools to monitor remote connections, enforce security policies, and optimize network performance. This makes the ISR4221 a critical component in supporting flexible and mobile workforce strategies.

Integration with Cisco IOS XE and Software Ecosystem

Advanced Software Features

The Cisco ISR4221 operates on Cisco IOS XE, a modern network operating system that provides extensive routing, security, and automation capabilities. IOS XE supports programmability, allowing administrators to automate network tasks and deploy new services efficiently. The software also includes robust monitoring and diagnostic tools, enabling proactive network management and rapid troubleshooting. By leveraging IOS XE, organizations can extend the functionality of the ISR4221 and integrate it seamlessly into their broader network ecosystem.

Support for Network Automation and SD-WAN

The router is fully compatible with Cisco SD-WAN solutions, enabling centralized management and policy-based control over distributed networks. Organizations can define traffic policies, monitor network performance, and enforce security rules across multiple sites from a single management interface. This integration enhances operational efficiency, reduces manual configuration errors, and provides visibility into network performance across the enterprise. SD-WAN support is particularly valuable for organizations with multiple branch offices or remote locations, allowing them to optimize network resources dynamically.

Reliability, Redundancy, and Management

High Availability Features

The ISR4221 incorporates redundancy features to ensure continuous network operation. Dual integrated Ethernet ports, support for failover protocols, and robust hardware design contribute to high availability. These features are critical for mission-critical applications where network downtime can result in significant operational disruption. By providing reliable connectivity and failover mechanisms, the router ensures that business operations continue smoothly even in the event of hardware failure or network interruptions.

Centralized Management and Remote Configuration

Cisco provides tools for centralized management of the ISR4221, allowing network administrators to configure, monitor, and maintain multiple devices from a single interface. Remote configuration capabilities reduce the need for on-site IT support, saving time and operational costs. Integration with Cisco’s network management solutions enables organizations to apply consistent policies across all branch locations, enforce security protocols, and monitor network performance centrally. This centralized approach simplifies network management and enhances operational efficiency.

Energy Efficiency and Environmental Considerations

The ISR4221 is designed with energy efficiency in mind, consuming minimal power while delivering high-performance networking capabilities. Its compact form factor reduces physical space requirements, making it suitable for environments with limited rack or shelf space. The energy-efficient design aligns with modern corporate sustainability goals, reducing operational costs and environmental impact. Businesses can deploy the ISR4221 with confidence, knowing that it balances performance, reliability, and eco-friendly operation.
