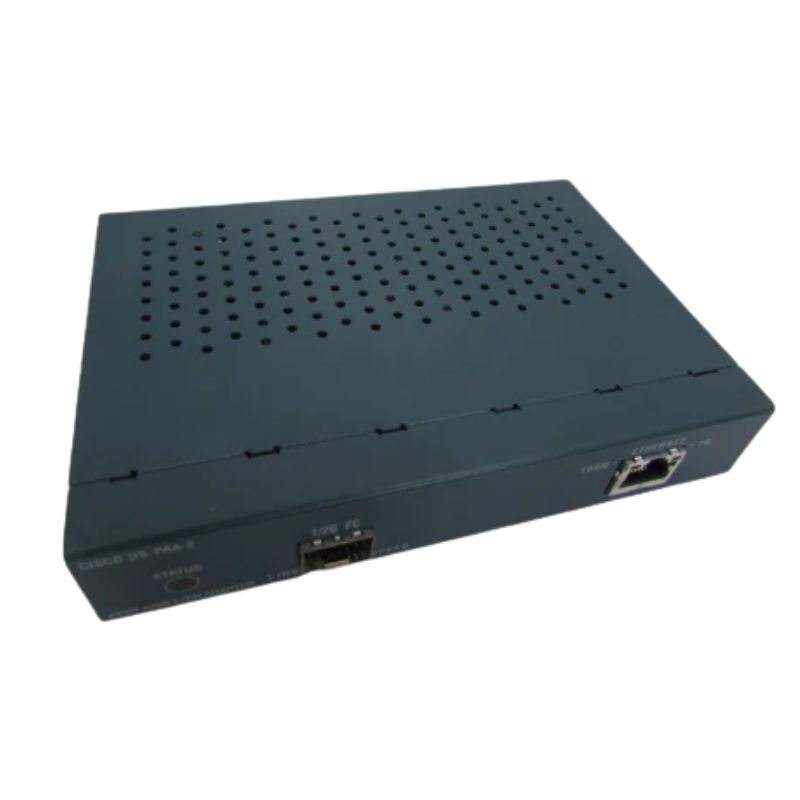

DS-PAA-2 Cisco MDS 9000 Port Analyzer Adapter

Cisco DS-PAA-2 MDS 9000 Port Analyzer Enhanced Adapter

High-Performance Network Monitoring Solution

The Cisco DS-PAA-2 MDS 9000 Port Analyzer Enhanced Adapter is a specialized network monitoring device engineered for advanced traffic analysis and high-speed data visibility. Designed for enterprise-grade environments, it delivers reliable connectivity and enhanced diagnostic capabilities for mission-critical infrastructure.

Core Product Identification

• Manufacturer: Cisco
• Part Number / SKU: DS-PAA-2
• Device Type: Network Adapter
• Sub-Type: Single Port Monitoring Module

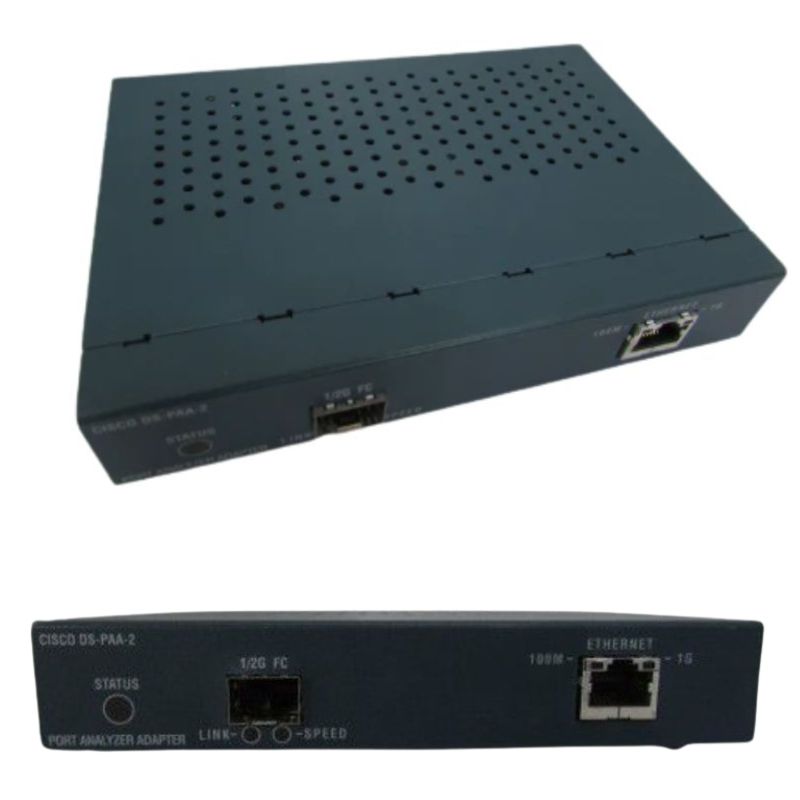

Connectivity Architecture and Interface Design

Available Network Interfaces

• 1 x RJ-45 Ethernet port for standard network integration
• 1 x LC fiber optic interface for high-speed optical communication

Media Support and Transmission Capability

This adapter supports optical fiber media, enabling low-latency and high-bandwidth data transfer across enterprise networks. It is optimized for environments requiring stable and efficient packet monitoring.

• Fiber-based transmission for improved signal integrity
• Enhanced throughput for network traffic analysis
• Stable performance in high-demand monitoring systems

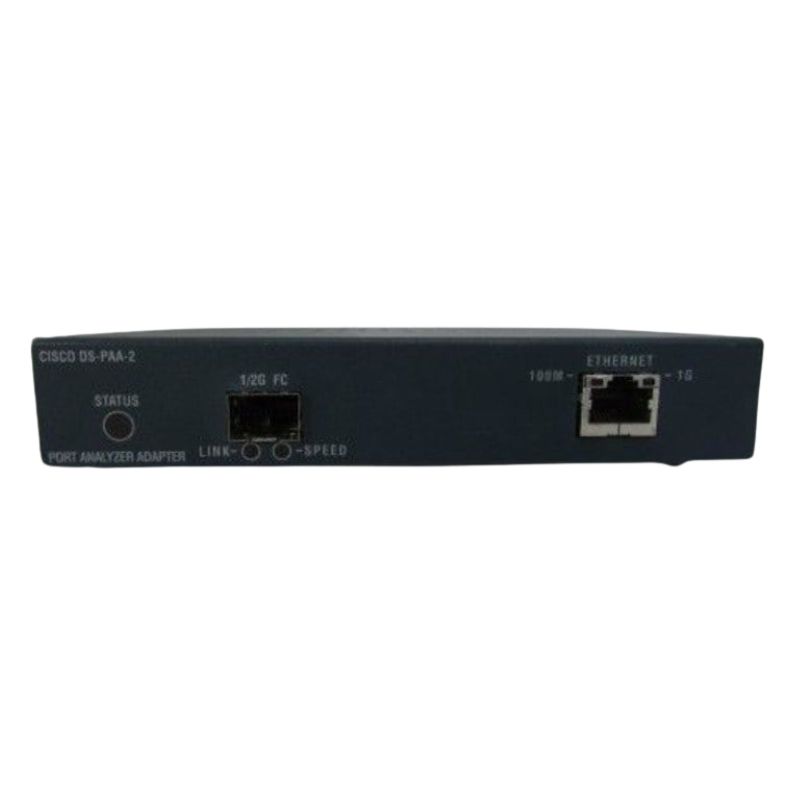

Status Indicators and Operational Feedback

System Health LED Indicators

• Green: Device operating normally
• Red: Fault or hardware issue detected
• Off: No power supply connected

Fibre Channel Activity Indicators

• Green: 2 Gbps active link status
• Off: 1 Gbps active connection mode

Link Status Monitoring

• Fibre Channel Link LED: Green indicates established link, off indicates disconnected state

Ethernet Port Activity (100 Mbps & 1 Gbps)

• Green: Active network link established
• Blinking Green: Data transmission in progress
• Off: No active link detected

Advanced Functional Benefits

Operational Advantages

• Real-time network traffic visibility for improved diagnostics
• Reliable dual-interface design supporting RJ-45 and LC connectivity
• Optimized for MDS 9000 series monitoring environments
• Enhanced fault detection through multi-level LED indicators

Included Components in the Package

Standard Package Contents

• MDS 9000 Port Analyzer Enhanced Adapter unit
• 1 x SFP Module (DS-SFP-FC-2G-SW)

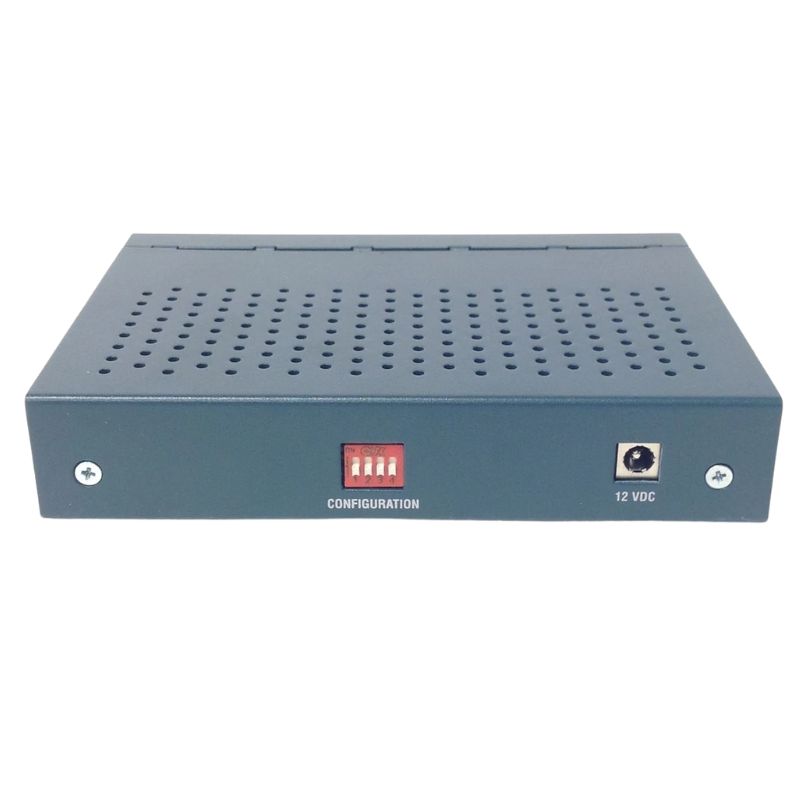

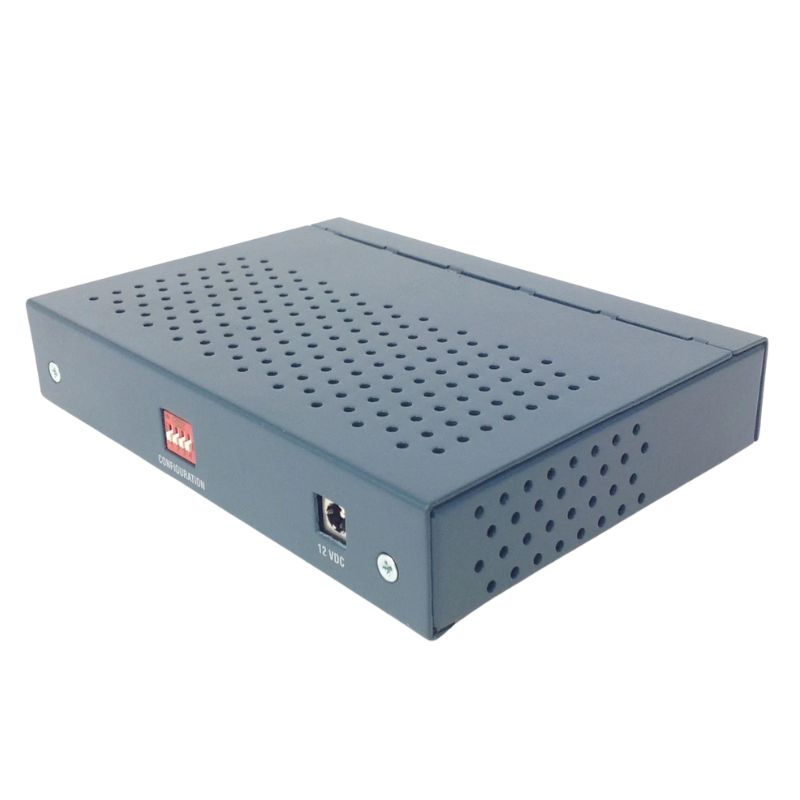

• 1 x AC to DC power converter adapter

Deployment Readiness Features

• Pre-integrated optical transceiver module for quick setup
• Power supply included for immediate installation
• Designed for seamless integration into Cisco MDS infrastructure

Cisco DS-PAA-2 MDS 9000 Single Port Adapter

The Cisco DS-PAA-2 MDS 9000 Port Analyzer Enhanced Adapter is a specialized network monitoring component designed for advanced storage area network (SAN) visibility and traffic analysis within Cisco MDS 9000 Series environments. This enhanced port analyzer adapter provides organizations with the ability to capture, replicate, and analyze Fibre Channel traffic with high precision while maintaining minimal impact on production workloads. It is commonly deployed in enterprise data centers where performance monitoring, troubleshooting, and security auditing are critical requirements.

As part of the Cisco MDS 9000 family, the DS-PAA-2 module integrates seamlessly into modular SAN switches, extending their capabilities by enabling advanced port analysis features. The adapter includes interfaces such as 1 x RJ-45 and 1 x LC optical connector, making it versatile for both Ethernet-based management access and Fibre Channel optical monitoring environments. Its architecture is designed to support scalable data capture, ensuring administrators can maintain visibility even in high-throughput storage networks.

Role in Modern Storage Area Networks (SAN)

In modern enterprise storage infrastructures, SAN visibility is essential for maintaining uptime, diagnosing latency issues, and ensuring optimal data flow between servers and storage arrays. The Cisco DS-PAA-2 MDS 9000 Port Analyzer Enhanced Adapter plays a critical role in this ecosystem by acting as a dedicated monitoring interface that can mirror traffic from production ports without disrupting operations.

By leveraging port analyzer functionality, administrators can inspect Fibre Channel frames, detect congestion points, and identify misconfigurations across the SAN fabric. This capability is particularly important in large-scale environments where multiple directors, switches, and storage arrays are interconnected through high-speed Fibre Channel links.

Technical Architecture of Cisco DS-PAA-2

The Cisco DS-PAA-2 MDS 9000 Port Analyzer Enhanced Adapter is built with a high-performance architecture that supports efficient packet replication and analysis. It is engineered to handle high-throughput Fibre Channel environments commonly found in data centers using Cisco MDS 9000 Series switches.

Interface Design and Connectivity

The adapter includes two primary interface types: an RJ-45 Ethernet port and an LC optical interface. The RJ-45 interface is typically used for management access, configuration, and control plane communication. The LC optical connector, on the other hand, is used for Fibre Channel traffic capture and monitoring.

RJ-45 Management Port Functionality

The RJ-45 interface allows administrators to connect to the adapter using standard Ethernet networking. Through this interface, network engineers can configure monitoring parameters, manage capture sessions, and integrate the adapter into centralized network management systems. The use of standard Ethernet connectivity simplifies deployment and reduces the need for specialized management hardware.

LC Optical Interface for Fibre Channel Monitoring

The LC optical port is the core monitoring interface of the DS-PAA-2 adapter. It supports optical Fibre Channel connections commonly used in SAN environments. By tapping into optical links, the adapter can replicate traffic for analysis without interfering with the original data stream. This ensures high fidelity monitoring of storage traffic patterns.

Integration with Cisco MDS 9000 Series

The DS-PAA-2 adapter is designed specifically for integration with Cisco MDS 9000 Series directors and modular switches. These platforms are widely deployed in enterprise SAN environments due to their scalability, redundancy, and advanced traffic management features.

When installed within an MDS chassis, the adapter extends the switch’s native capabilities, enabling enhanced port analyzer functionality. This integration allows administrators to perform deep packet inspection and SAN analytics directly within the switching infrastructure, eliminating the need for external monitoring appliances.

Compatibility and Deployment Scenarios

Typical deployment scenarios include large enterprise data centers, cloud infrastructure providers, and high-performance computing environments. The adapter is particularly useful in environments where Fibre Channel SANs are used for mission-critical workloads such as database clustering, virtualization storage backends, and large-scale backup systems.

Fibre Channel Monitoring and Traffic Analysis

Understanding Fibre Channel Traffic Behavior

Fibre Channel is a high-speed network technology designed specifically for storage networking. It operates at multiple speeds, including 4 Gbps, 8 Gbps, 16 Gbps, and beyond, depending on the generation of hardware deployed. The Cisco DS-PAA-2 MDS 9000 Port Analyzer Enhanced Adapter enables detailed observation of this traffic, providing visibility into frame-level communication between initiators and targets.

By analyzing Fibre Channel frames, administrators can detect issues such as frame drops, credit starvation, buffer congestion, and path failures. These insights are critical for maintaining the reliability and performance of storage networks.

Port Mirroring and SPAN Capabilities

The adapter supports advanced port mirroring techniques commonly associated with Switched Port Analyzer (SPAN) functionality. Through SPAN configurations, traffic from multiple SAN ports can be duplicated and sent to the analyzer adapter for inspection. This allows centralized monitoring without requiring direct access to each individual link.

Benefits of SPAN-Based Monitoring

SPAN-based monitoring simplifies network diagnostics by consolidating traffic streams into a single analysis point. This reduces operational complexity and allows network engineers to perform comprehensive troubleshooting from a unified interface. It also enhances security monitoring by enabling detection of unauthorized access or abnormal data flows within the SAN.

Advanced Traffic Analytics

With the DS-PAA-2 adapter, administrators can perform advanced traffic analytics, including latency measurement, throughput analysis, and error detection. These metrics are essential for capacity planning and performance optimization in enterprise storage environments.

The ability to analyze historical traffic patterns also supports predictive maintenance strategies, allowing organizations to identify potential issues before they impact production workloads.

Enterprise Use Cases for Cisco DS-PAA-2

Data Center Performance Monitoring

In large data centers, maintaining optimal SAN performance is essential for application reliability. The DS-PAA-2 adapter provides continuous visibility into storage traffic, enabling engineers to monitor performance trends and quickly identify bottlenecks.

Virtualized Infrastructure Support

Virtualization platforms such as VMware and Hyper-V rely heavily on underlying storage performance. The adapter helps ensure that storage latency does not impact virtual machine performance by providing granular visibility into SAN traffic behavior.

Security and Compliance Monitoring

Organizations operating in regulated industries often require detailed logging and monitoring of data flows. The DS-PAA-2 adapter supports compliance initiatives by enabling detailed capture of storage network activity, which can be used for auditing and forensic analysis.

Detecting Unauthorized Access

By analyzing Fibre Channel communication patterns, administrators can identify unusual access behavior or unauthorized initiator-target interactions. This is particularly important in environments handling sensitive financial, healthcare, or governmental data.

Disaster Recovery and Backup Optimization

Backup and replication systems rely heavily on SAN performance. The adapter enables administrators to analyze backup traffic patterns, ensuring that replication jobs do not interfere with production workloads. It also helps optimize backup windows by identifying periods of low network utilization.

Operational Benefits of Enhanced Port Analysis

Improved Troubleshooting Efficiency

The DS-PAA-2 adapter significantly improves troubleshooting efficiency by providing real-time access to SAN traffic data. Network engineers can quickly isolate issues related to latency, packet loss, or misconfiguration without requiring disruptive diagnostics.

Reduced Downtime Risk

Because the adapter operates passively, it eliminates the risk of introducing downtime during monitoring activities. This is especially important in 24/7 enterprise environments where service availability is critical.

Scalability in Large SAN Environments

The Cisco MDS ecosystem is designed for scalability, and the DS-PAA-2 adapter aligns with this principle by supporting deployment across large switch fabrics. Whether used in a single director or across multiple interconnected switches, it maintains consistent monitoring capabilities.

Hardware Reliability and Performance Engineering

Designed for Enterprise-Grade Durability

The DS-PAA-2 adapter is engineered to meet the reliability standards expected in enterprise environments. It is built to withstand continuous operation under high network loads without performance degradation.

Thermal and Power Efficiency

Efficient thermal design ensures stable operation even in densely populated switch environments. The adapter is optimized for low power consumption, reducing overall data center energy costs.

High-Speed Data Handling Capabilities

The architecture supports high-speed Fibre Channel traffic analysis, ensuring that even peak network loads can be accurately captured and analyzed. This is essential in environments where multiple storage arrays generate simultaneous traffic bursts.
