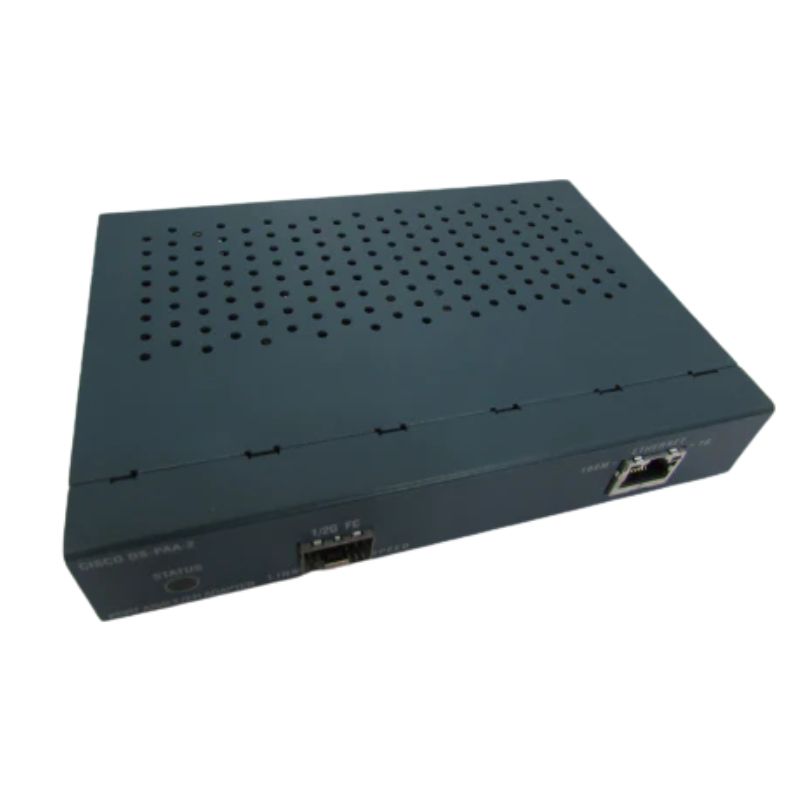

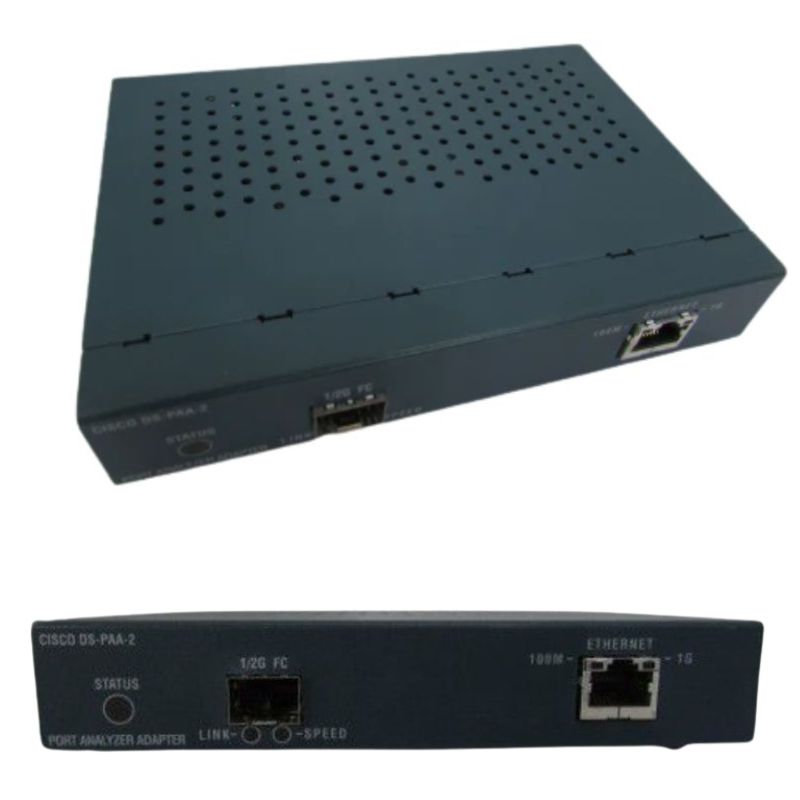

DS-PAA-2 Cisco MDS 9000 Port Analyzer Adapter

High-Performance Network Monitoring Adapter MDS 9000 Series

The Cisco DS-PAA-2 is a specialized port analyzer solution engineered for advanced network visibility and optical performance monitoring. Designed for enterprise-grade environments, it delivers reliable diagnostics, enhanced traffic analysis, and robust fiber-channel connectivity for mission-critical infrastructure.

Core Product Identification

Manufacturer & Model Details

• Brand: Cisco
• Part Number / SKU: DS-PAA-2
• Product Category: Network Adapter / Port Analyzer
• Design Type: Single-Port Monitoring Device

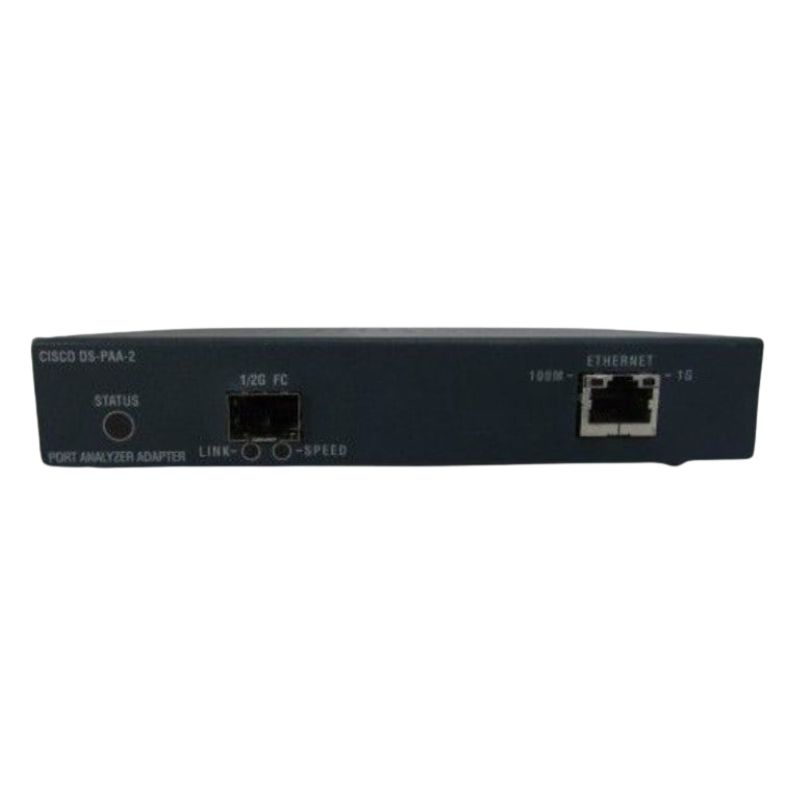

Connectivity Architecture & Interface Options

Network Port Configuration

• 1 x RJ-45 Ethernet interface for standard network connectivity
• 1 x LC optical fiber port supporting high-speed data transmission
• Optimized for mixed-media environments requiring copper and fiber integration

Supported Media & Transmission Capability

Optical Fiber Performance

• Supports fiber-based communication for enhanced throughput and stability
• Ideal for high-performance monitoring in enterprise data centers

Operational Indicators & System Status Monitoring

Device Status LED Indicators

• Green: Device operating normally
• Red: Hardware or system fault detected
• Off: No power supply detected

Fibre Channel Activity Indicators

Link Speed Monitoring

• Green: 2 Gbps active connection
• Off: 1 Gbps active state

Link Status Feedback System

• Green: Link successfully established
• Off: Link not detected or down

Ethernet Port LED Behavior

100 Mbps Mode

• Green: Connection active and stable
• Blinking Green: Data transmission in progress
• Off: No active link

1 Gbps Mode

• Green: High-speed link established
• Blinking Green: Active data exchange
• Off: Connection inactive

Included Components & Packaging Details

Standard Package Contents

• MDS 9000 Port Analyzer Enhanced Adapter unit
• 1 x SFP Module (DS-SFP-FC-2G-SW) for fiber channel support

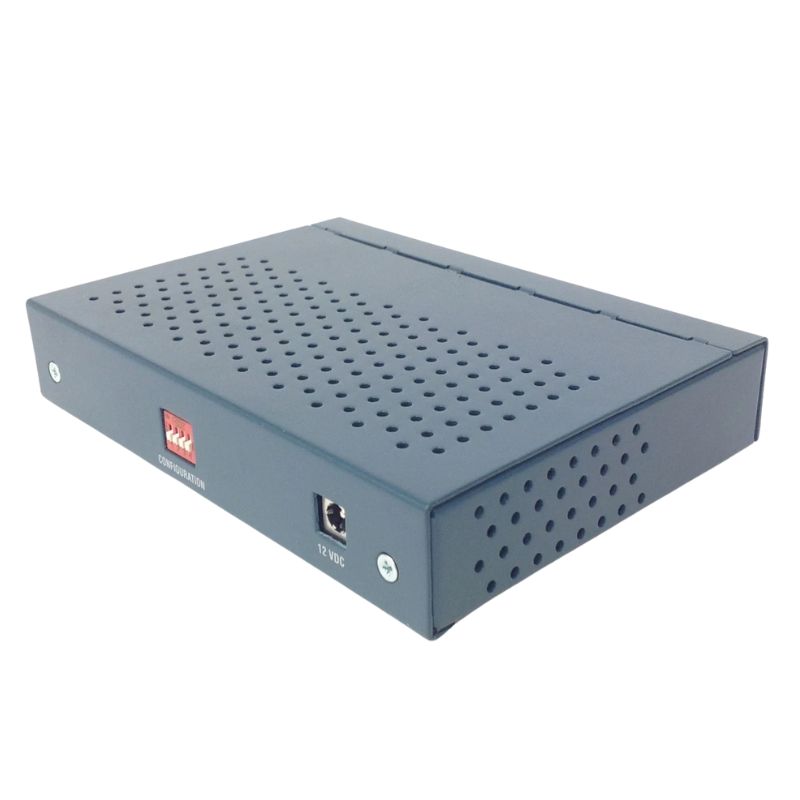

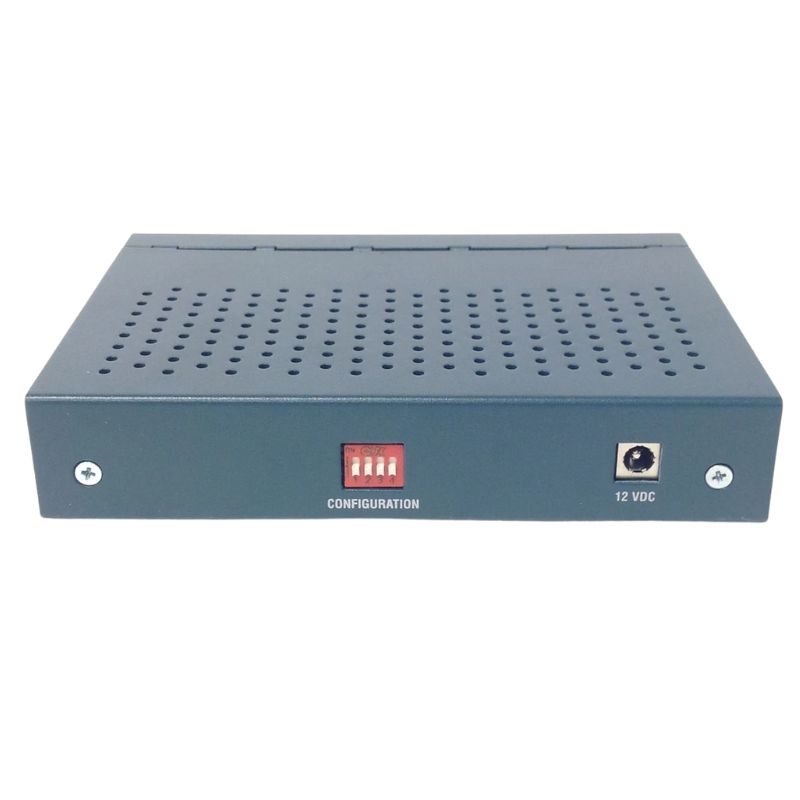

• AC to DC power conversion supply for stable operation

Enterprise-Level Benefits & Use Cases

Network Visibility Enhancement

• Improves real-time traffic monitoring in complex IT infrastructures
• Assists in diagnosing network performance issues efficiently

Data Center Optimization

Performance Advantages

• Supports scalable monitoring for enterprise environments
• Enables accurate fiber channel data analysis
• Reduces downtime through proactive network diagnostics

Deployment Compatibility

MDS 9000 Series Integration

• Seamless compatibility with Cisco MDS 9000 infrastructure
• Designed for high-availability storage networking environments

Cisco DS-PAA-2 MDS 9000 Port Analyzer Enhanced Adapter

The Cisco DS-PAA-2 MDS 9000 Port Analyzer Enhanced Adapter 1 x RJ-45 1 x LC Network Monitoring Device is a specialized hardware component designed for advanced storage area network (SAN) monitoring, traffic analysis, and diagnostic visibility within Cisco MDS 9000 Series environments. It is engineered to provide high-fidelity packet capture, intelligent traffic mirroring, and enhanced analysis capabilities for enterprise-grade data centers that rely heavily on Fibre Channel and Ethernet-based storage communication. As modern infrastructures scale toward hybrid and multi-cloud architectures, the need for precise network observability becomes increasingly critical, and this adapter plays a central role in achieving that objective.

Role of the Cisco DS-PAA-2 in SAN Monitoring Architectures

Within a Storage Area Network (SAN), visibility into traffic flow is essential for maintaining performance, ensuring reliability, and diagnosing latency or congestion issues. The Cisco DS-PAA-2 functions as an enhanced port analyzer adapter that integrates directly into Cisco MDS 9000 Series switches, enabling administrators to mirror, capture, and analyze Fibre Channel traffic without disrupting production workloads. Unlike basic monitoring tools, this adapter provides deep-level insight into frame-level communication, making it suitable for mission-critical environments where downtime or performance degradation can result in significant operational impact.

The adapter serves as an intelligent intermediary that collects network traffic from multiple switch ports and forwards it to dedicated analysis tools. This enables IT teams to perform root cause analysis, bandwidth utilization tracking, and anomaly detection in real time. The integration of both RJ-45 and LC interfaces ensures flexibility in connecting to different types of monitoring equipment and network configurations.

Key Hardware Design and Interface Components

RJ-45 Ethernet Interface Functionality

The inclusion of a 1 x RJ-45 port provides standard Ethernet connectivity for management, configuration, and control plane communication. This interface is typically used to connect the adapter to management stations, network monitoring servers, or diagnostic tools. It supports reliable out-of-band communication, ensuring that monitoring tasks do not interfere with production SAN traffic. The RJ-45 interface is essential for administrative access, allowing engineers to configure monitoring policies, update firmware, and retrieve performance logs.

LC Optical Interface for Fibre Channel Monitoring

The 1 x LC optical interface is designed specifically for high-speed Fibre Channel traffic capture. LC connectors are widely used in SAN environments due to their compact size and ability to support high bandwidth optical transmission. This interface allows the Cisco DS-PAA-2 to tap into live SAN traffic streams, ensuring accurate and lossless data capture for analysis. The optical nature of the LC port ensures minimal latency and high signal integrity, making it suitable for enterprise-grade data centers where precision is critical.

Enhanced Adapter Architecture

The enhanced adapter architecture of the Cisco DS-PAA-2 is designed to handle high-throughput data environments. It incorporates optimized buffering mechanisms, intelligent packet filtering, and hardware-assisted traffic replication. This ensures that even under heavy network load, the adapter can maintain accurate monitoring without dropping frames or introducing performance bottlenecks. The architecture is tightly integrated with Cisco MDS 9000 Series switches, enabling seamless communication between switching hardware and monitoring systems.

Advanced Network Monitoring Capabilities

Real-Time Traffic Analysis

One of the most critical capabilities of the Cisco DS-PAA-2 is real-time traffic analysis. By capturing live data from SAN environments, the adapter allows administrators to monitor bandwidth usage, detect congestion points, and identify unusual traffic patterns as they occur. This real-time visibility is essential for maintaining uptime in environments that rely on continuous data availability, such as financial institutions, healthcare systems, and large-scale cloud providers.

Frame-Level Inspection and Diagnostics

The adapter supports deep frame-level inspection, allowing network engineers to analyze individual Fibre Channel frames for errors, retransmissions, or protocol violations. This level of detail is crucial for diagnosing complex SAN issues that cannot be identified through high-level monitoring tools alone. By providing granular insight into network behavior, the Cisco DS-PAA-2 enhances troubleshooting efficiency and reduces mean time to resolution (MTTR).

Traffic Mirroring and Port Analyzer Functionality

The port analyzer capability enables traffic mirroring from selected switch ports to the monitoring interface. This ensures that a complete copy of network traffic is available for analysis without affecting production workloads. The mirrored data can then be forwarded to external analysis tools or storage systems for long-term retention and forensic investigation.

Deployment Scenarios in Enterprise Data Centers

High-Availability Storage Environments

In high-availability storage environments, the Cisco DS-PAA-2 is used to ensure continuous monitoring of SAN performance. Enterprises that rely on uninterrupted data access, such as banking systems and e-commerce platforms, deploy this adapter to detect early warning signs of network degradation and prevent outages before they occur.

Virtualized Infrastructure Monitoring

As virtualization becomes more prevalent, SAN traffic complexity increases significantly. The adapter supports monitoring of virtualized storage networks, helping administrators understand how virtual machines interact with shared storage resources. This visibility is crucial for optimizing performance and ensuring balanced resource allocation across virtual environments.

Cloud and Hybrid Infrastructure Integration

In hybrid cloud environments, where on-premises SANs are integrated with cloud storage solutions, the Cisco DS-PAA-2 provides consistent monitoring across distributed infrastructures. It enables organizations to maintain visibility into data flows that span multiple environments, ensuring seamless performance management and security compliance.

Compatibility with Cisco MDS 9000 Series

The Cisco DS-PAA-2 is specifically engineered for integration with Cisco MDS 9000 Series multilayer directors and fabric switches. This tight integration ensures optimal performance and compatibility with Cisco’s SAN operating systems. The adapter leverages built-in APIs and hardware interfaces within the MDS platform to deliver accurate and synchronized monitoring data.

Compatibility extends across various MDS models, allowing enterprises to deploy the adapter in both legacy and modern environments. This backward compatibility ensures that organizations can enhance their monitoring capabilities without requiring a complete infrastructure overhaul.

Performance Optimization and Throughput Handling

High-Speed Data Capture

The Cisco DS-PAA-2 is optimized for high-speed data capture in environments where Fibre Channel traffic can reach multiple gigabits per second. Its internal processing mechanisms ensure that packets are captured and forwarded without loss, even during peak network utilization periods.

Load Balancing and Traffic Distribution

The adapter supports intelligent load balancing techniques that distribute monitoring workloads efficiently across available processing resources. This prevents bottlenecks and ensures consistent performance even when multiple ports are being monitored simultaneously.

Latency Minimization Techniques

Minimizing latency is critical in SAN monitoring. The Cisco DS-PAA-2 employs hardware-level optimization to reduce delays introduced during traffic capture and forwarding. This ensures that analytics tools receive near real-time data for immediate processing and response.
