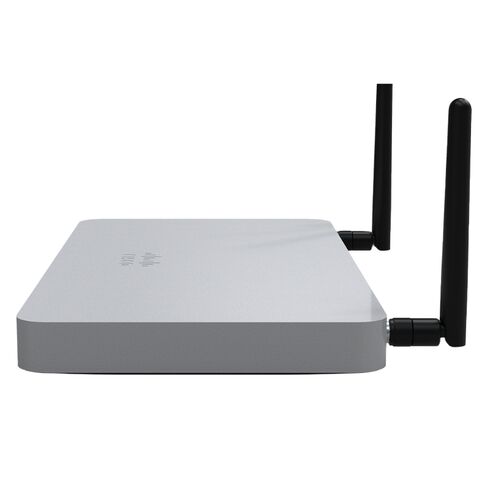

MX68CW-HW-NA Cisco Meraki Security Appliance 10 Ports

Highlight of Cisco MX68CW-HW-NA Meraki Security Appliance

The Cisco MX68CW-HW-NA Meraki MX68CW is an advanced cloud-managed security appliance designed to deliver reliable networking, wireless connectivity, and comprehensive threat protection for small and medium-sized businesses, branch offices, retail locations, and distributed enterprise environments. Combining enterprise-grade firewall capabilities, integrated Wi-Fi 5 technology, intelligent traffic management, and simplified cloud administration, this desktop security appliance provides a powerful solution for organizations seeking secure and scalable network infrastructure.

Built with a compact desktop form factor, the Cisco Meraki MX68CW provides flexible wired and wireless connectivity through multiple Gigabit Ethernet interfaces and dual-band wireless support. It integrates security, routing, switching, VPN functionality, and wireless access into a single platform, reducing deployment complexity while improving overall network visibility. With Cisco Meraki cloud management, administrators can configure, monitor, and maintain network operations remotely through an intuitive web-based dashboard.

General Specification

• Brand: Cisco
• Part Number: MX68CW-HW-NA
• Device Type: Ethernet Security Appliance

Technical Specification

Connectivity Options

• Technology: Wireless, Wired
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11 standards
• Network Protocols: L2TP, IPsec, PPPoE, DHCP
• Compliant Standards: IEEE 802.11b/a/g/n/ac
• Ports Available: 10
• Data Transfer Rate: Up to 1.3 Gbps
• Remote Management: HTTP

Capacity Specifications

• Maximum Users: 50
• Configured SSIDs: Up to 4
• Routing Protocol: Static IP Routing, MPLS
• Frequency Bands: 2.4 GHz and 5 GHz

Performance Metrics

• Firewall Throughput: 450 Mbps
• VPN Throughput: 200 Mbps
• Advanced Security Throughput: 300 Mbps
• Cloud Management: Yes

Enterprise-Grade Network Security and Protection Features

• Stateful firewall protection for controlling inbound and outbound network traffic.
• Integrated intrusion detection system (IDS) and intrusion prevention system (IPS) for identifying and blocking suspicious activity.
• Advanced security inspection capabilities for protecting business applications and sensitive data.
• Content filtering functionality to restrict unwanted or harmful online resources.
• IP security support with encrypted VPN connectivity for secure remote communication.
• DMZ support for separating public-facing services from internal network resources.

Dual-Band Wi-Fi 5 Wireless Connectivity

• Supports IEEE 802.11ac Wave 2 wireless technology.
• Operates on both 2.4 GHz and 5 GHz frequency ranges.
• Provides secure wireless access for employees, guests, and connected devices.
• Supports up to four configured SSIDs for network segmentation.

Remote Network Monitoring and Control

• Centralized cloud-based configuration management.
• Remote troubleshooting and diagnostics.
• Automatic firmware upgrade capabilities.
• Real-time network performance monitoring.
• Easy deployment across multiple locations.

Intelligent Traffic Control and Optimization

• Traffic shaping for optimized bandwidth allocation.
• Quality of Service (QoS) for application prioritization.
• Layer 7 switching for application-aware traffic control.
• VLAN support for improved network segmentation.
• Link aggregation for enhanced connectivity efficiency.

Security and VPN Performance

• Firewall throughput: up to 450 Mbps.
• VPN throughput: up to 200 Mbps.
• Advanced security throughput: up to 300 Mbps.
• Maximum supported users: up to 50.
• Maximum configured SSIDs: 4.

Available Interfaces

• 2 x 1000Base-T RJ-45 WAN interfaces for internet connectivity.
• 8 x 1000Base-T RJ-45 LAN interfaces for connected devices.
• 2 x 1000Base-T RJ-45 PoE+ ports for powered network equipment.
• 1 x USB 2.0 Type-A port for additional connectivity options.
• 1 x SIM card expansion slot supporting cellular connectivity options.

Power Specifications

• External power adapter included.
• Operational power consumption: 89 watts.
• Power supply capacity: 100 watts.
• Supports Power over Ethernet (PoE).
• Single installed power unit configuration.

Ideal Applications

• Small and medium-sized business networks.
• Branch office connectivity solutions.
• Retail and hospitality environments.
• Remote office deployments.
• Secure wireless network installations.
• Distributed enterprise locations requiring centralized management.

Cisco MX68CW-HW-NA Meraki MX68CW LTE 802.11ac Router

The Cisco MX68CW-HW-NA Meraki MX68CW LTE 802.11ac Router Security Appliance represents an advanced cloud-managed networking solution designed for organizations that require secure, reliable, and flexible connectivity across branch offices, retail locations, small business environments, and distributed enterprise networks. As part of the Cisco Meraki MX security appliance family, this integrated router combines enterprise-grade firewall protection, wireless networking capabilities, LTE cellular connectivity, and centralized cloud management into a single compact platform. The device provides a simplified approach to deploying secure networks while reducing operational complexity through intuitive management tools and automated monitoring features.

Built for modern businesses that depend on uninterrupted connectivity, the Cisco Meraki MX68CW provides multiple networking functions within one efficient appliance. It integrates secure routing, next-generation firewall capabilities, wireless access, VPN connectivity, and cellular failover support to help maintain business continuity even when primary internet connections experience disruptions. The inclusion of LTE connectivity makes this appliance particularly valuable for locations where wired broadband availability is limited or where backup connectivity is essential for maintaining critical operations.

The MX68CW model combines the reliability of Cisco networking technology with the simplicity of the Meraki cloud-managed architecture. Administrators can configure, monitor, and troubleshoot networks remotely through a centralized dashboard without requiring complex command-line interfaces or extensive on-site technical expertise. This cloud-first approach allows organizations to quickly deploy secure network infrastructure, apply consistent policies, and gain visibility into network performance from virtually anywhere.

Enterprise Cloud Managed Security and Networking Platform

The Cisco MX68CW-HW-NA is engineered as a comprehensive security and connectivity platform rather than a traditional standalone router. It delivers a wide range of networking services that support secure communication between branch offices, headquarters locations, cloud applications, remote users, and internet-based resources. By combining routing, security inspection, and wireless connectivity, the appliance reduces the need for multiple independent networking devices while creating a streamlined infrastructure environment.

The Meraki dashboard provides centralized control over configuration, security settings, firmware updates, performance analysis, and network monitoring. Administrators can easily manage multiple MX appliances deployed across different geographical locations from a single interface. This capability is especially beneficial for businesses with distributed offices that require consistent security standards and simplified IT management.

Cloud Based Management for Simplified Administration

One of the defining characteristics of the Cisco Meraki MX68CW security appliance is its cloud-managed design. Traditional network hardware often requires local configuration and specialized knowledge for deployment and maintenance. The Meraki platform changes this approach by allowing administrators to manage devices through a secure web-based dashboard. Configuration changes, security policy updates, and network adjustments can be performed remotely without requiring physical access to the appliance.

The cloud management system provides real-time visibility into network activity, allowing IT teams to identify potential issues, review usage patterns, and optimize performance. Automatic firmware updates help ensure that the appliance remains equipped with the latest improvements and security enhancements. This reduces administrative workload and allows organizations to maintain a reliable network environment with fewer resources.

Centralized Visibility and Remote Network Control

The MX68CW enables administrators to monitor connected devices, analyze bandwidth consumption, review security events, and evaluate overall network health through the Meraki dashboard. The centralized interface provides valuable insights into network behavior while simplifying troubleshooting processes. IT teams can quickly identify unusual traffic patterns, manage access policies, and respond to potential security concerns without needing to travel to remote locations.

This remote management capability is highly beneficial for organizations operating multiple branches, temporary offices, distributed workspaces, or locations with limited technical staff. By utilizing cloud-based administration, businesses can improve operational efficiency while maintaining strong security controls across their entire network infrastructure.

Advanced Wireless Connectivity with 802.11ac Technology

The Cisco MX68CW-HW-NA includes integrated wireless functionality based on IEEE 802.11ac technology, providing fast and dependable Wi-Fi connectivity for business users and connected devices. Wireless networking has become a critical component of modern business operations, and this appliance delivers a convenient solution for supporting employee devices, guest access, mobile applications, and wireless-enabled business systems.

The 802.11ac wireless standard enhances network performance by supporting higher throughput, improved efficiency, and better handling of multiple connected devices compared with previous wireless generations. Organizations can provide reliable wireless access while maintaining centralized control over authentication, security policies, and user connectivity.

Secure Wireless Access for Modern Business Environments

The integrated wireless capabilities of the MX68CW allow businesses to deploy secure Wi-Fi networks without requiring a separate wireless controller or additional access point hardware. This integrated approach reduces equipment requirements while simplifying installation and ongoing management. Administrators can configure wireless settings, create access policies, and manage user permissions through the same cloud dashboard used for security and routing functions.

Wireless security is a critical concern for organizations, and the MX68CW supports enterprise-focused security features designed to protect wireless communication. Network administrators can establish secure authentication methods, separate guest networks from internal resources, and apply appropriate access controls based on organizational requirements.

Reliable Wi-Fi Performance for Branch and Small Business Networks

The combination of wireless connectivity and security functionality makes the Cisco MX68CW an ideal solution for small and medium-sized business locations. Instead of deploying separate routers, firewalls, and wireless systems, organizations can use one integrated appliance to manage essential networking requirements. This reduces installation complexity while providing a professional-grade networking foundation.

The device supports environments where users rely heavily on wireless connectivity for daily operations, including retail stores, professional offices, healthcare facilities, educational locations, and remote branch sites. Its compact design allows deployment in locations where space efficiency and simplified infrastructure are important considerations.

Integrated LTE Connectivity for Business Continuity

A major advantage of the Cisco MX68CW-HW-NA is its integrated LTE capability, which provides an additional connectivity option for organizations that require dependable internet access. Cellular connectivity can serve as a primary connection in locations without traditional broadband services or as a backup connection that automatically supports business operations during internet outages.

Reliable connectivity is essential for organizations that depend on cloud applications, online communication platforms, payment systems, remote collaboration tools, and other internet-based services. The LTE functionality of the MX68CW helps reduce downtime by providing an alternative path for network traffic when the primary WAN connection becomes unavailable.

LTE Failover Support for Uninterrupted Operations

Network downtime can negatively impact productivity, customer experience, and business performance. The Cisco Meraki MX68CW addresses this challenge by supporting cellular failover capabilities that help maintain connectivity when wired internet services experience interruptions. The appliance can automatically transition network traffic to LTE connectivity, allowing essential applications and services to continue operating.
