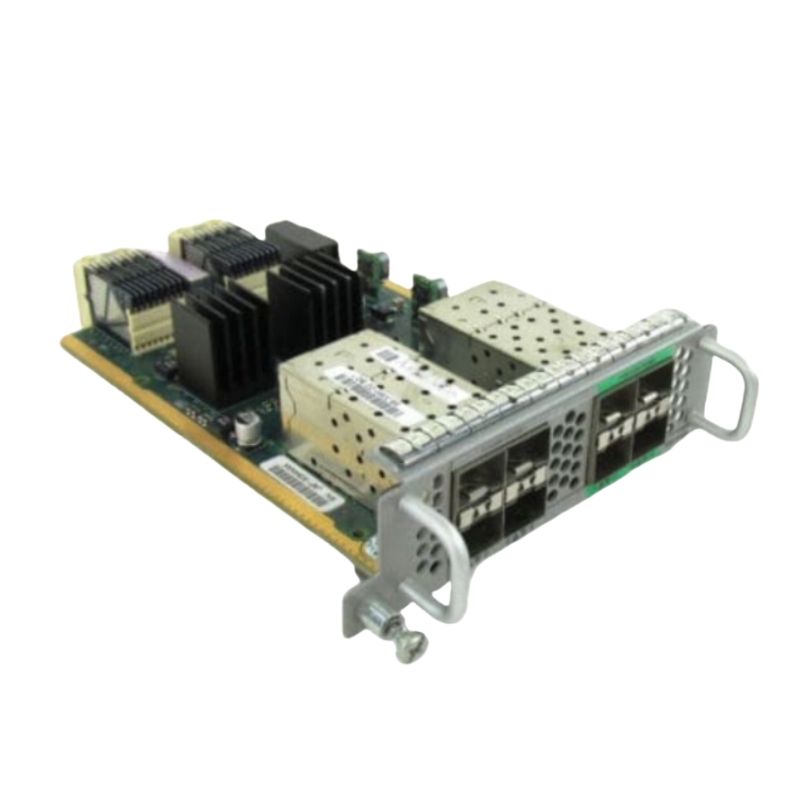

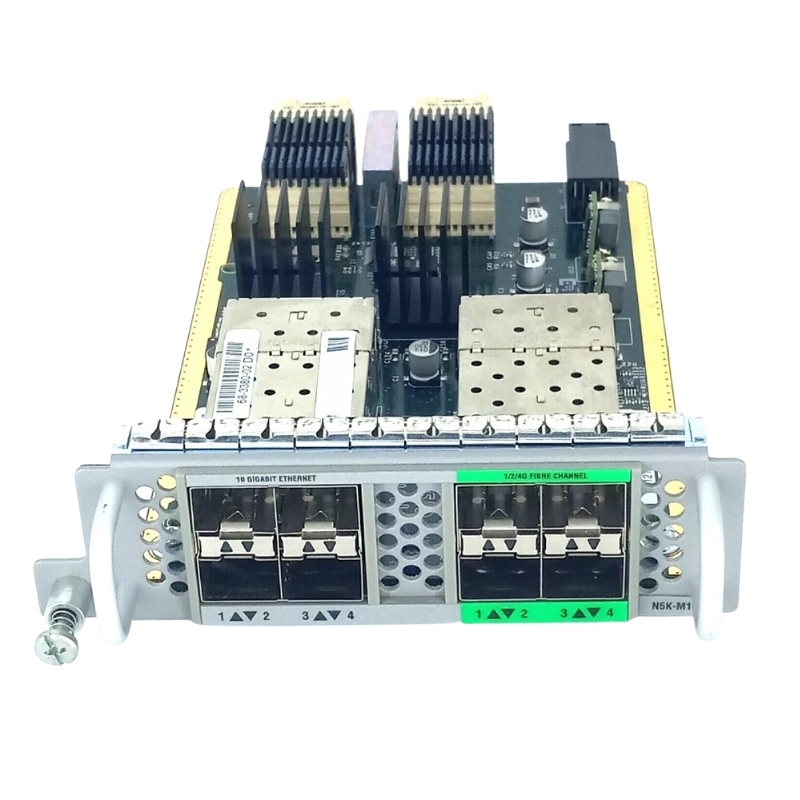

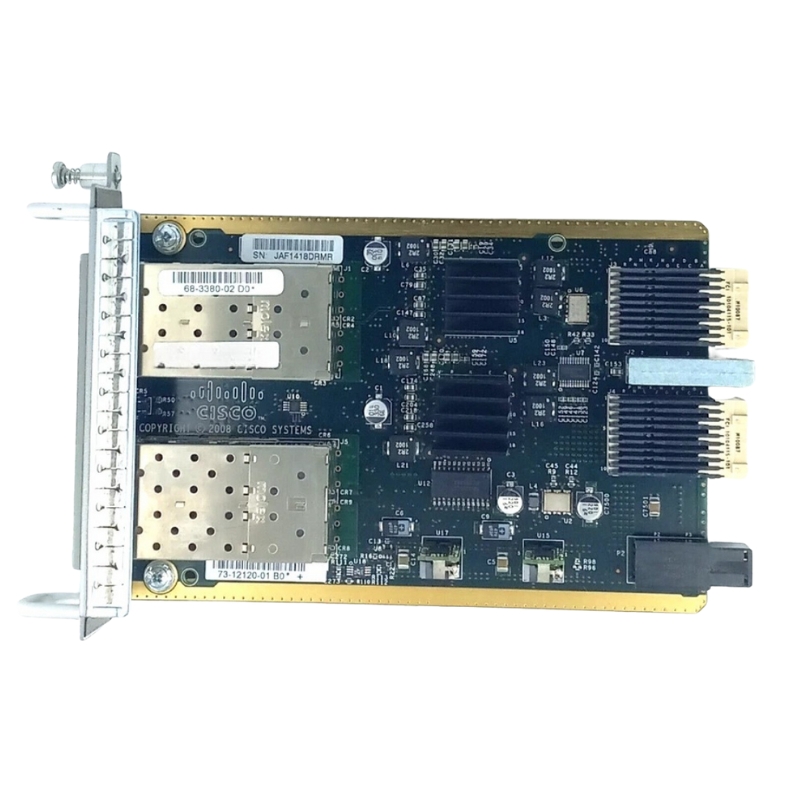

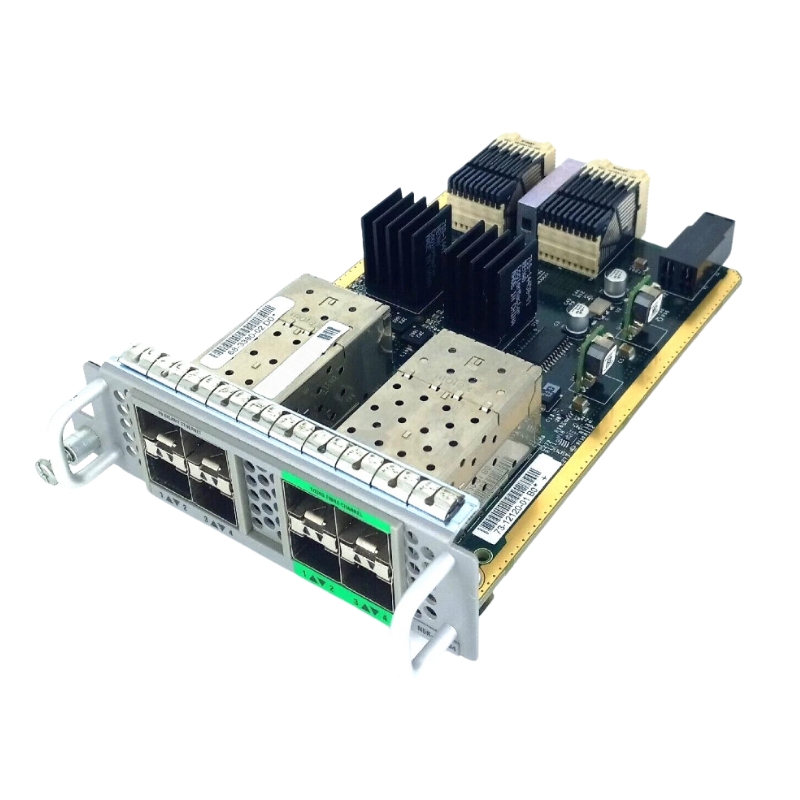

N5K-M1404 Cisco Nexus 8 Ports Expansion Module

Overview of the Expansion Module

The N5K-M1404 Cisco Nexus 5000 Series Expansion Module is a high-performance connectivity component designed to extend the capabilities of Cisco Nexus 5000 Series data center switches. Built for organizations that require scalable, flexible, and efficient network expansion, this expansion module provides additional interface capacity to support evolving infrastructure requirements. It helps data centers improve port density, simplify network architecture, and accommodate increasing demands from virtualization, cloud applications, storage networking, and enterprise workloads.

Main Specifications

• Brand: Cisco Systems, Inc
• Model Number: N5K-M1404
• Product Type: Expansion Module

Technical Information

• Total Port Count: 8 physical communication ports.
• Ethernet Ports: 4 ports allocated for high-speed network traffic.
• Ethernet Speed: Supports 10-Gigabit Ethernet line rates.
• Ethernet Protocols: Supports standard Ethernet and Fibre Channel over Ethernet (FCoE).
• Ethernet Interface: Utilizes SFP+ transceiver slots.
• Fibre Channel Ports: 4 ports dedicated to native storage array connectivity.
• Fibre Channel Speeds: Supports 4-Gbps, 2-Gbps, and 1-Gbps line rates.
• Fibre Channel Interface: Utilizes standard SFP transceiver slots.
• Hardware Availability: Features a hot-swappable architecture for live replacements.

Compatibility

• Switch Series: Specifically designed for first-generation Cisco Nexus 5000 series switches.
• Nexus 5010 Chassis: Fully compatible with the 1-RU Nexus 5010 switch.
• Nexus 5020 Chassis: Fully compatible with the 2-RU Nexus 5020 switch.
• Nexus 5010 Slot Limit: Fits inside the single available module slot.
• Nexus 5020 Slot Limit: Fits inside both available expansion module slots.
• Ethernet Transceivers: Accepts certified Cisco 10G SFP+ optical transceivers and Twinax cables.
• Fibre Channel Transceivers: Accepts certified Cisco 4G, 2G, and 1G SFP storage transceivers.

The Cisco Nexus 5000 Series Expansion Module

As part of the Cisco Nexus switching ecosystem, the N5K-M1404 expansion module enables administrators to expand their existing switching environments without replacing their core hardware investment. This approach allows businesses to increase network capacity while maintaining operational consistency, reducing deployment complexity, and improving long-term infrastructure efficiency. The module is commonly used in enterprise data centers, server environments, and high-availability network designs where reliable connectivity and scalability are essential.

Features of the N5K-M1404 Cisco Nexus 5000 Series Expansion Module

The N5K-M1404 Cisco Nexus 5000 Series Expansion Module delivers a range of features designed to enhance the performance and flexibility of compatible Cisco Nexus 5000 Series switches. Its modular design allows network teams to adapt their infrastructure according to changing business requirements. Instead of deploying additional standalone switches, organizations can expand existing systems with an integrated module that works seamlessly within their current architecture.

Designed for Modern Data Center Networking

Modern data centers require networking solutions that can handle large volumes of traffic while maintaining reliability and operational simplicity. The N5K-M1404 Cisco Nexus 5000 Series Expansion Module supports these objectives by extending the functionality of compatible Nexus platforms. It allows organizations to create more efficient network layouts that support servers, storage systems, and virtualization platforms.

Data center environments continue to evolve as businesses adopt advanced technologies such as virtualization, software-defined networking, hybrid cloud solutions, and high-density computing. Expansion modules such as the N5K-M1404 help organizations prepare for these changes by providing a flexible path for increasing network capacity. This makes it a valuable component for businesses seeking to maximize the lifespan and performance of their Cisco Nexus infrastructure.

N5K-M1404 Expansion Module Applications

Enterprise organizations depend on stable and scalable network infrastructure to support business-critical applications. The N5K-M1404 expansion module can be deployed in enterprise data centers where additional connectivity is required for growing numbers of servers, applications, and users. By expanding existing Cisco Nexus switching capabilities, companies can improve network organization while maintaining consistent management practices.

Server Connectivity and Virtualization Environments

Virtualized environments require efficient networking because multiple workloads often share the same physical resources. The N5K-M1404 Cisco Nexus 5000 Series Expansion Module helps provide the connectivity foundation needed for server-intensive environments. It supports network designs where performance, availability, and predictable traffic handling are important considerations.

Organizations running virtualization platforms benefit from modular network expansion because it enables them to scale resources as application requirements increase. The ability to expand switch capabilities without redesigning the entire network architecture can reduce downtime and simplify future upgrades.

Storage and High-Bandwidth Networking

Storage traffic has become increasingly important in modern IT environments. Businesses rely on fast and dependable connections between servers, storage systems, and network infrastructure. The N5K-M1404 module supports expansion strategies for environments where high-throughput communication and reliable data transfer are required.

By integrating additional connectivity into Cisco Nexus switching platforms, organizations can create more efficient pathways for data movement. This can contribute to improved resource utilization and a more organized approach to managing complex data center networks.

Benefits of Using the N5K-M1404 Cisco Nexus Expansion Module

Investing in the N5K-M1404 Cisco Nexus 5000 Series Expansion Module provides several advantages for organizations looking to enhance their networking infrastructure. Modular expansion allows companies to grow their networks according to demand rather than investing in unnecessary hardware capacity from the beginning.

Improved Scalability

Scalability is one of the most important considerations in enterprise networking. The N5K-M1404 allows organizations to increase available connectivity while continuing to use their existing Cisco Nexus switching platforms. This makes it easier to support future growth, new applications, and increasing traffic requirements.

Efficient Infrastructure Management

Maintaining fewer hardware platforms can simplify network management. Expansion modules provide an efficient way to enhance existing systems while keeping administration processes consistent. Network teams can continue using familiar management tools and operational procedures instead of introducing completely new platforms.

Cost-Effective Network Expansion

Replacing entire switching systems whenever additional capacity is needed can increase expenses and create unnecessary complexity. The N5K-M1404 Cisco Nexus 5000 Series Expansion Module offers a practical alternative by allowing organizations to expand their current investments. This approach can help reduce capital costs and improve the overall return on existing infrastructure.

Compatibility and Integration Considerations

Before deploying the N5K-M1404 Cisco Nexus 5000 Series Expansion Module, organizations should verify compatibility with their specific Cisco Nexus 5000 Series switch model and existing network configuration. Proper compatibility planning ensures smooth installation, reliable operation, and optimal performance.

Network administrators should also evaluate factors such as available chassis capacity, software compatibility, deployment requirements, and future expansion plans. Careful planning helps organizations achieve the best results from their modular networking investment.

The N5K-M1404 Cisco Nexus 5000 Series Expansion Module

The N5K-M1404 represents a practical solution for organizations that need additional network capacity while maintaining the reliability and operational advantages of Cisco Nexus technology. Its modular approach supports flexible growth and allows businesses to adapt their infrastructure as technology demands change.

Whether used in enterprise data centers, virtualization environments, or high-performance networking applications, the N5K-M1404 Cisco Nexus 5000 Series Expansion Module helps deliver the flexibility required for modern IT operations. It supports organizations that prioritize efficient resource usage, simplified management, and scalable network design.

Technical Value for Growing Network Environments

Network growth is an ongoing challenge for many organizations. Applications generate more traffic, users demand faster access, and infrastructure requirements continue to expand. The N5K-M1404 provides a pathway for addressing these challenges by enabling additional connectivity within an established Cisco Nexus environment.

With a focus on modularity and expansion, this component supports long-term planning for businesses that want to avoid frequent infrastructure replacements. By extending the capabilities of existing switching systems, organizations can maintain a stable foundation while preparing for future networking requirements.
