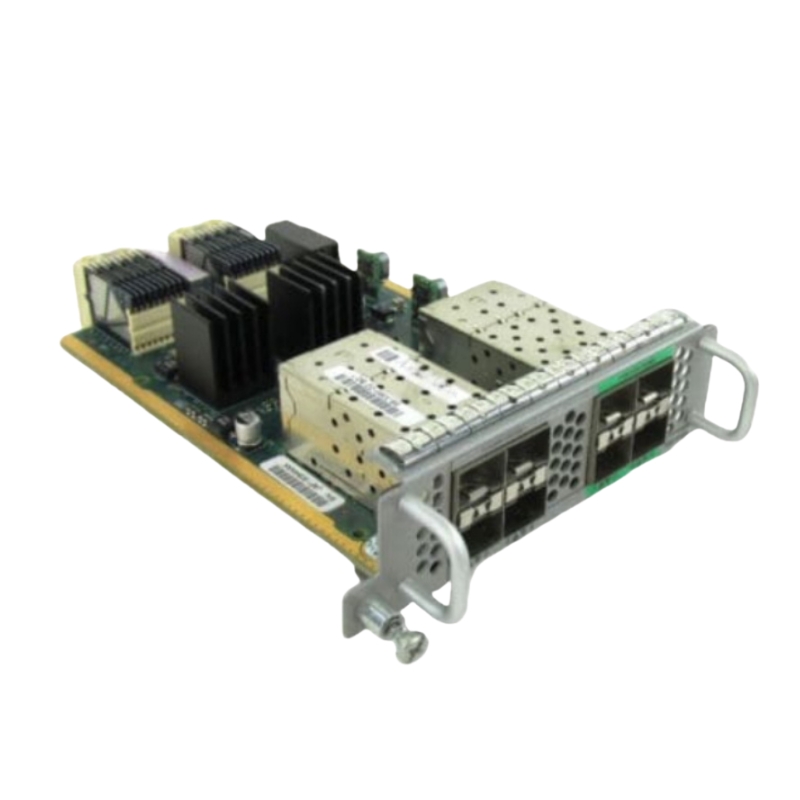

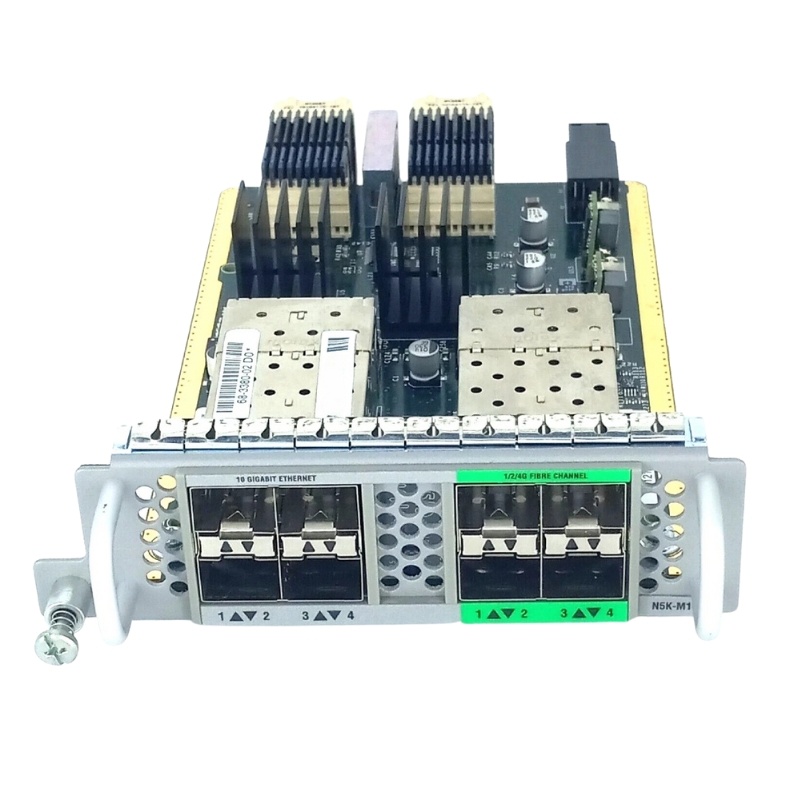

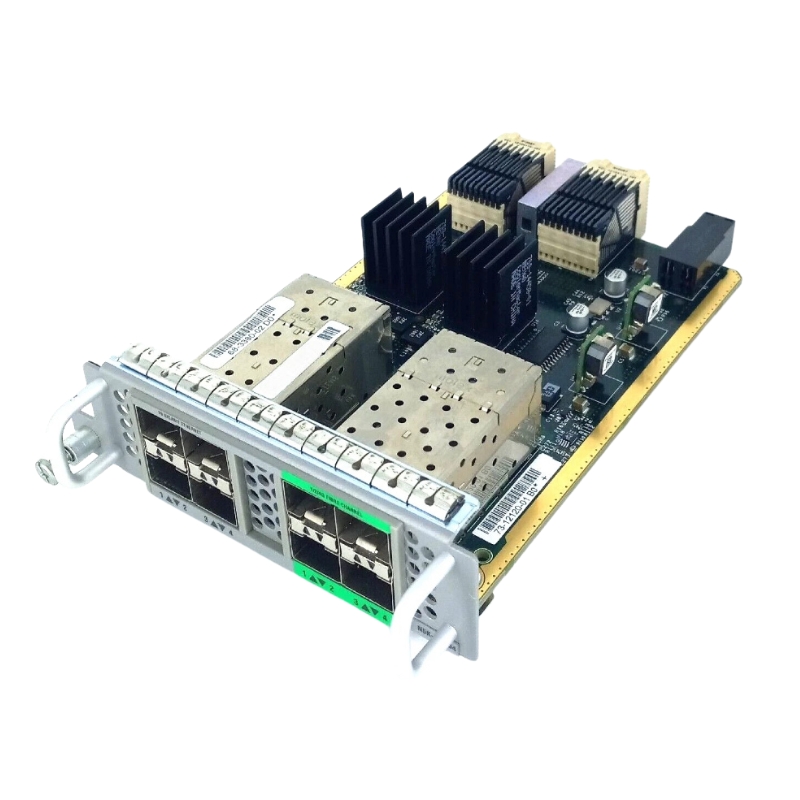

N5K-M1404 Cisco Nexus 5000 Series Expansion Module

Overview of the Nexus 5000 Expansion Module

The N5K-M1404 Cisco Nexus 5000 Series Expansion Module is a high-performance networking component designed to expand the connectivity capabilities of Cisco Nexus 5000 Series switches. This expansion module category provides organizations with additional interface capacity, flexible deployment options, and improved scalability for demanding data center environments. Built for enterprise networking requirements, the N5K-M1404 helps extend the functionality of compatible Cisco Nexus platforms by adding high-density connectivity while maintaining the reliability, performance, and operational consistency expected from the Nexus family.

General Specifications

• Brand: Cisco Systems, Inc
• Model Number: N5K-M1404
• Product Type: Expansion Module

Technical Information

• Total Port Count: 8 physical communication ports.
• Ethernet Ports: 4 ports allocated for high-speed network traffic.
• Ethernet Speed: Supports 10-Gigabit Ethernet line rates.
• Ethernet Protocols: Supports standard Ethernet and Fibre Channel over Ethernet (FCoE).
• Ethernet Interface: Utilizes SFP+ transceiver slots.
• Fibre Channel Ports: 4 ports dedicated to native storage array connectivity.
• Fibre Channel Speeds: Supports 4-Gbps, 2-Gbps, and 1-Gbps line rates.
• Fibre Channel Interface: Utilizes standard SFP transceiver slots.
• Hardware Availability: Features a hot-swappable architecture for live replacements.

Compatibility

• Switch Series: Specifically designed for first-generation Cisco Nexus 5000 series switches.
• Nexus 5010 Chassis: Fully compatible with the 1-RU Nexus 5010 switch.
• Nexus 5020 Chassis: Fully compatible with the 2-RU Nexus 5020 switch.
• Nexus 5010 Slot Limit: Fits inside the single available module slot.
• Nexus 5020 Slot Limit: Fits inside both available expansion module slots.
• Ethernet Transceivers: Accepts certified Cisco 10G SFP+ optical transceivers and Twinax cables.
• Fibre Channel Transceivers: Accepts certified Cisco 4G, 2G, and 1G SFP storage transceivers.

N5K-M1404 Cisco Nexus 5000 Series Expansion Module

Modern data centers require network infrastructures that can support increasing traffic volumes, virtualization workloads, cloud applications, storage communication, and mission-critical services. Expansion modules such as the N5K-M1404 Cisco Nexus 5000 Series Expansion Module allow network administrators to adapt existing switch environments without replacing the entire hardware platform. By adding additional ports and improving connectivity options, this module supports a more efficient approach to network growth and infrastructure modernization.

Key Features of the Cisco N5K-M1404 Expansion Module

The N5K-M1404 Cisco Nexus 5000 Series Expansion Module is designed with enterprise-grade features that support flexible data center networking. It enables businesses to increase available interfaces, simplify network expansion, and maintain consistent performance across connected devices. The module is commonly used in environments where additional bandwidth capacity and reliable connections are essential for server, storage, and network infrastructure.

A major advantage of this expansion module is its ability to integrate with existing Cisco Nexus 5000 Series deployments. Instead of investing in entirely new switching systems, organizations can enhance current hardware with additional connectivity resources. This approach helps reduce operational complexity while extending the useful life of existing network equipment.

Technical Role of N5K-M1404 in Data Center Networks

Data center networks depend on efficient communication between servers, storage systems, applications, and management platforms. The N5K-M1404 expansion module plays an important role by increasing the connection density of Cisco Nexus 5000 Series switches. This additional capacity allows network teams to connect more devices while maintaining organized cabling structures and streamlined network management.

In environments with growing virtualization requirements, additional network interfaces are often necessary to support virtual machines, distributed applications, and high-volume data transfers. The N5K-M1404 helps provide the connectivity foundation required for these workloads. Its modular design supports gradual infrastructure growth, allowing companies to expand their networks based on business requirements rather than replacing equipment prematurely.

Benefits of Using Cisco Nexus 5000 Series Expansion Module

One of the primary benefits of the N5K-M1404 Cisco Nexus 5000 Series Expansion Module is improved scalability. As organizations add more servers, applications, and connected systems, network capacity must grow accordingly. Expansion modules provide a practical solution by increasing available interfaces and supporting larger network designs without requiring major infrastructure changes.

Scalable networking solutions are especially important for businesses operating large data centers, private cloud environments, and high-performance computing platforms. The ability to expand switch capabilities helps reduce downtime, simplify upgrades, and create a more adaptable infrastructure.

Enhanced Data Center Efficiency

Efficient data center operations depend on hardware that can support high levels of connectivity while remaining manageable. The N5K-M1404 contributes to improved efficiency by enabling administrators to consolidate networking resources and optimize switch utilization. A properly expanded Cisco Nexus environment can help reduce unnecessary hardware deployments and improve overall network organization.

Modular expansion also supports better planning for future requirements. Network teams can evaluate current workloads, identify connectivity needs, and add expansion modules when additional capacity is required. This flexible approach allows organizations to balance performance needs with budget considerations.

Reliable Cisco Nexus Integration

The N5K-M1404 is part of the Cisco Nexus 5000 Series ecosystem, which is widely recognized for data center networking applications. Integration with compatible Nexus platforms allows organizations to maintain familiar management processes, operational procedures, and network configurations.

Businesses that already use Cisco Nexus infrastructure can benefit from maintaining a consistent hardware environment. Using compatible expansion modules helps simplify maintenance activities, reduces training requirements, and allows network administrators to continue using established management practices.

Enterprise Data Centers

Enterprise data centers require dependable networking solutions to support business applications, databases, communication systems, and internal services. The N5K-M1404 expansion module can be used in enterprise environments where additional switch connectivity is needed to support expanding infrastructure.

Large organizations often experience continuous growth in network demand. Additional servers, storage platforms, and application environments require more physical connections. Expansion modules provide an effective way to address these requirements while preserving existing investments in Cisco Nexus switching technology.

Virtualization and Cloud Infrastructure

Virtualized environments create unique networking challenges because multiple workloads share physical resources. The N5K-M1404 helps support these environments by providing additional connectivity capacity for virtualized servers and related infrastructure.

Cloud-oriented businesses depend on flexible networking architectures that can adapt quickly to changing workload demands. Modular switch expansion supports this flexibility by allowing organizations to increase network capacity as cloud deployments become larger and more complex.

Storage Networking Environments

Storage systems require consistent and reliable network communication for applications that depend on fast access to information. The N5K-M1404 Cisco Nexus 5000 Series Expansion Module can support storage-focused deployments by expanding available switch connectivity and helping organizations build efficient network designs.

Proper storage networking improves application responsiveness, simplifies infrastructure management, and supports the increasing data requirements of modern businesses. Expansion modules contribute to these goals by providing additional connection flexibility within existing switch environments.

Compatibility and Deployment Considerations

Before deploying the N5K-M1404 Cisco Nexus 5000 Series Expansion Module, organizations should verify compatibility with their existing Cisco Nexus 5000 Series hardware and software environment. Proper compatibility checks help ensure successful installation, reliable operation, and expected performance levels.

Network administrators should review hardware specifications, supported configurations, and deployment requirements before adding expansion modules to production environments. Careful planning helps prevent configuration issues and supports smoother network upgrades.

Planning and Best Practices

Successful deployment of an expansion module requires proper preparation. Network teams should evaluate available switch capacity, connectivity requirements, rack organization, power considerations, and future expansion plans. A structured installation approach helps maintain network reliability and minimizes disruption.

Best practices include documenting existing configurations, confirming supported hardware combinations, and testing connectivity after installation. These steps help ensure that the expanded Cisco Nexus environment operates effectively and continues supporting business-critical applications.

Investment Protection for Existing Infrastructure

Organizations invest significant resources in enterprise networking equipment, making upgrade flexibility an important consideration. The N5K-M1404 provides a way to enhance existing Cisco Nexus 5000 Series deployments without requiring complete infrastructure replacement.

Extending the capabilities of existing switches can improve return on investment and provide additional time for strategic technology planning. Expansion modules offer a practical balance between performance improvements and infrastructure cost management.

Support for Growing Business Requirements

Business technology requirements continue to evolve as organizations adopt new applications, increase data usage, and expand digital operations. The N5K-M1404 Cisco Nexus 5000 Series Expansion Module supports these changing demands by providing additional connectivity resources that can adapt to network growth.

A flexible networking foundation allows companies to respond more effectively to operational changes. Whether supporting additional users, applications, servers, or storage systems, expansion capabilities help create a more future-ready data center environment.

The Cisco Nexus 5000 Series Expansion Module

The N5K-M1404 Cisco Nexus 5000 Series Expansion Module represents a valuable solution for organizations seeking to enhance their Cisco Nexus switching environments. By providing additional connectivity, supporting scalable architectures, and enabling efficient infrastructure expansion, this module helps businesses maintain reliable and adaptable data center networks.

Network professionals selecting expansion solutions should consider factors such as compatibility, performance requirements, deployment objectives, and long-term scalability. With proper planning and configuration, the N5K-M1404 can contribute to a stronger networking foundation designed to support modern enterprise workloads and evolving technology demands.
