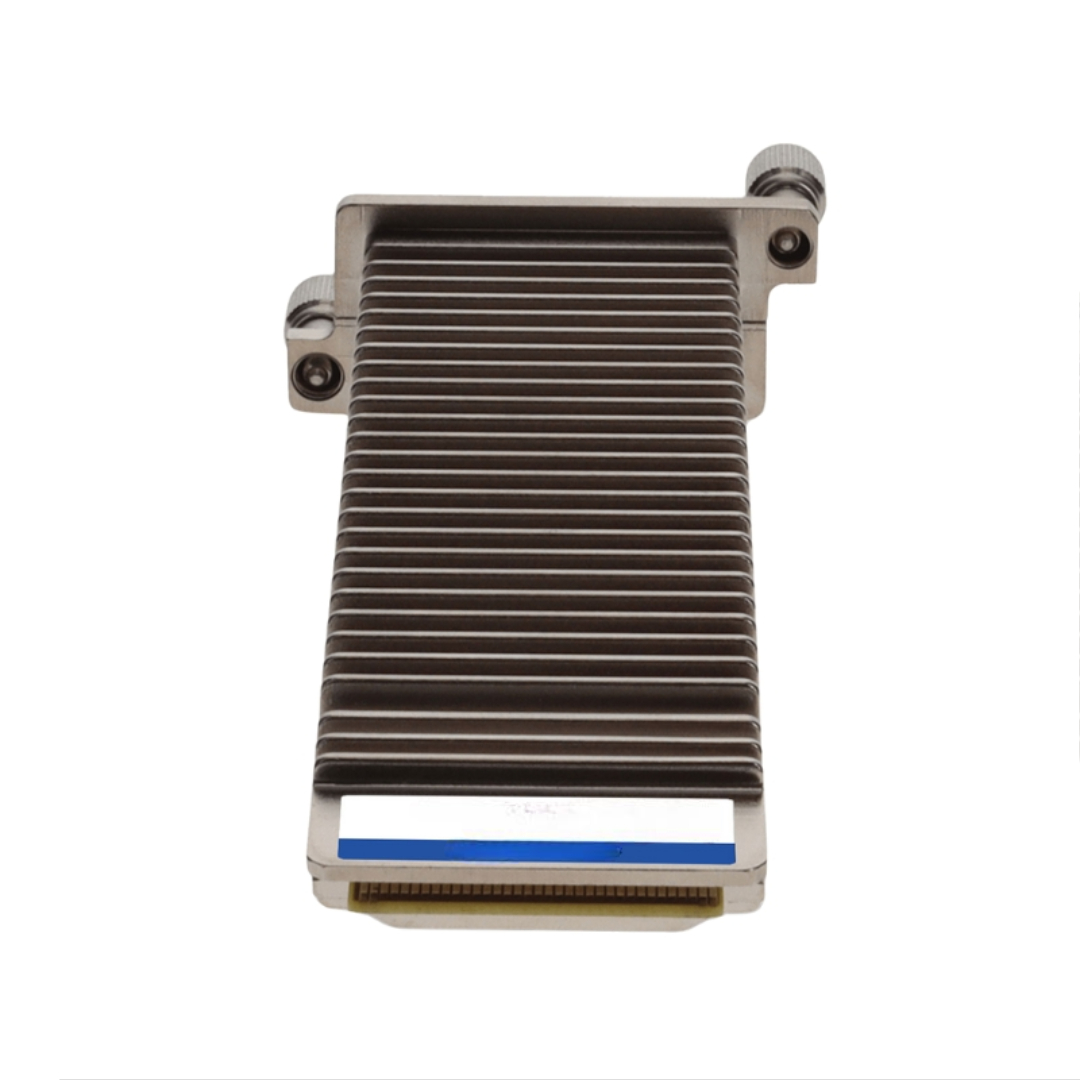

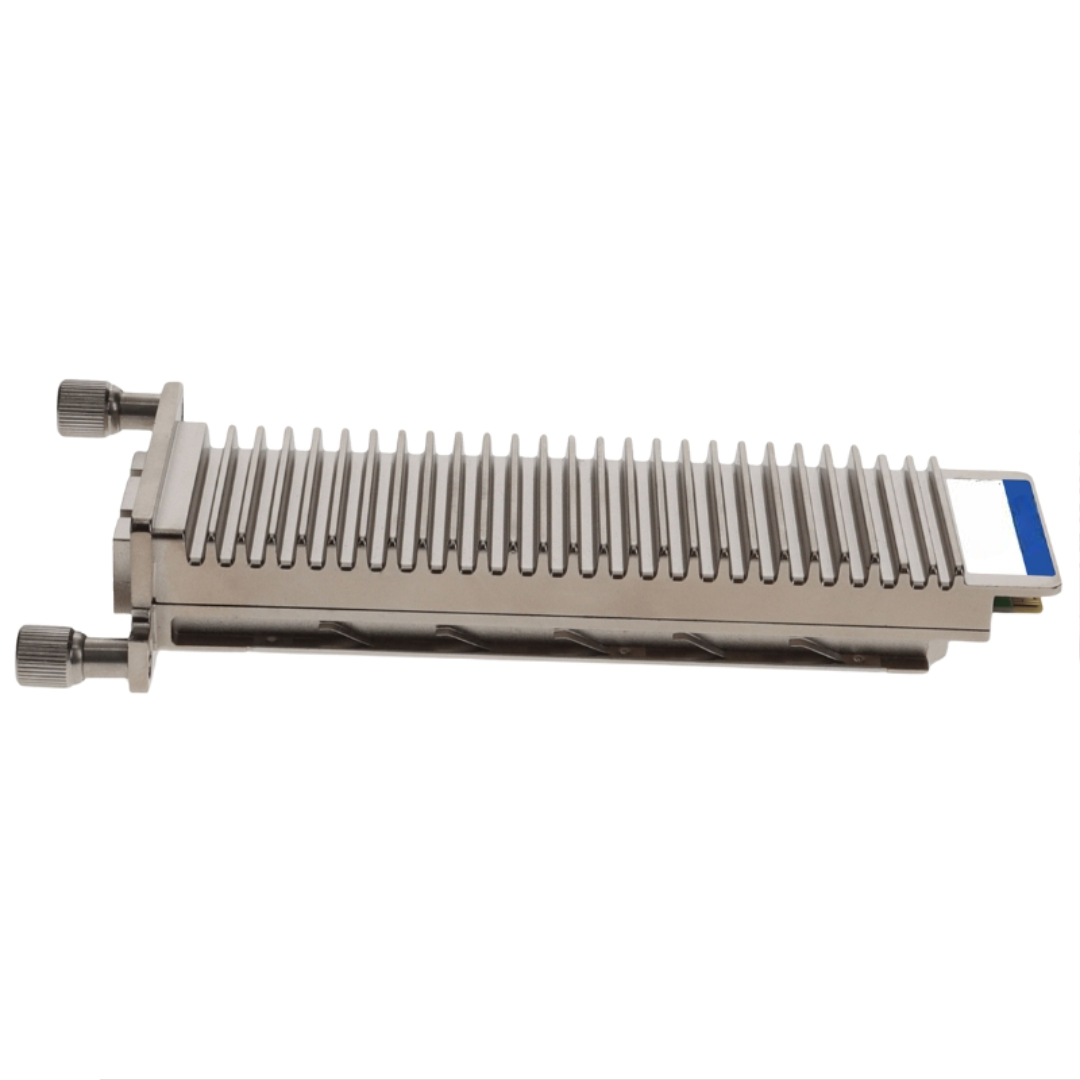

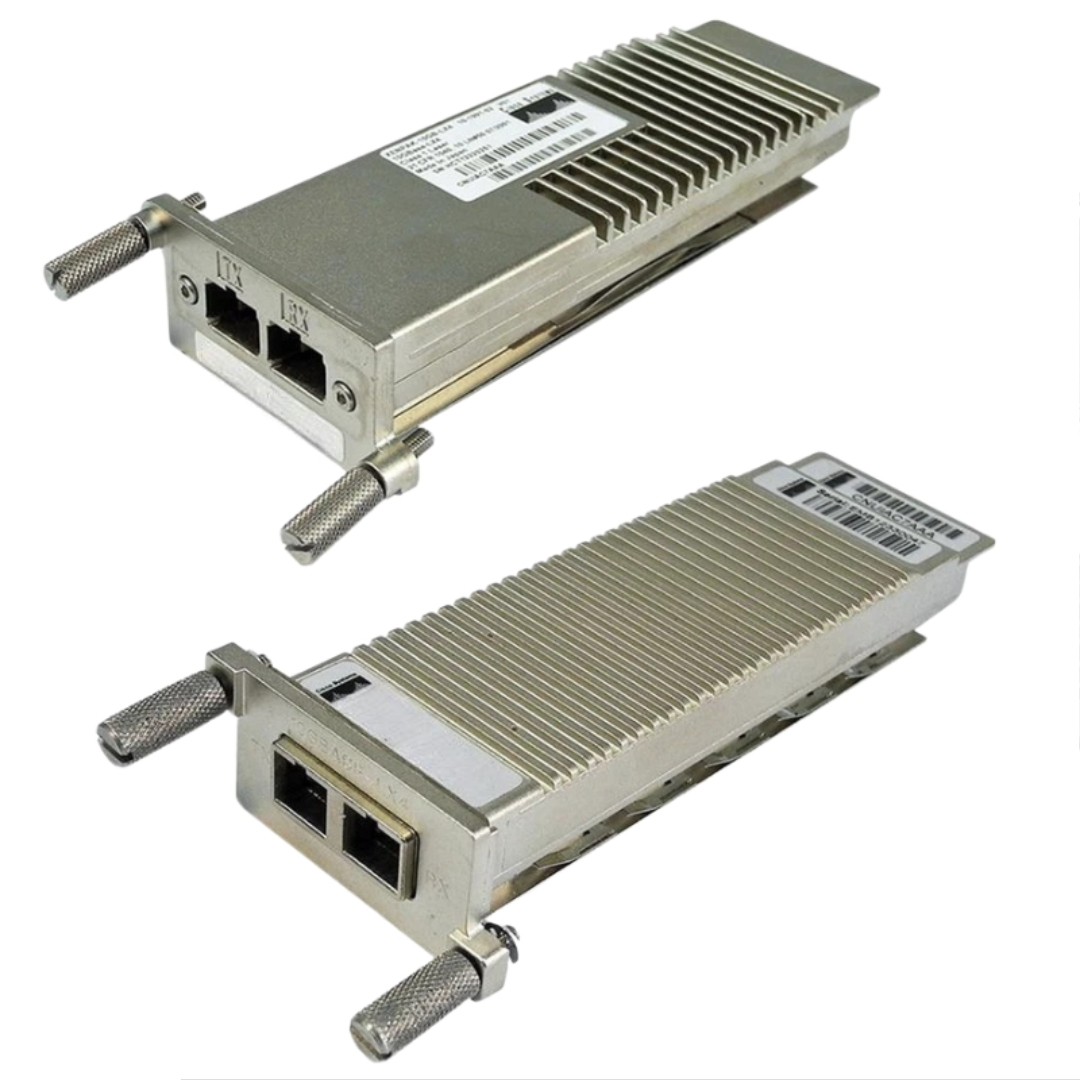

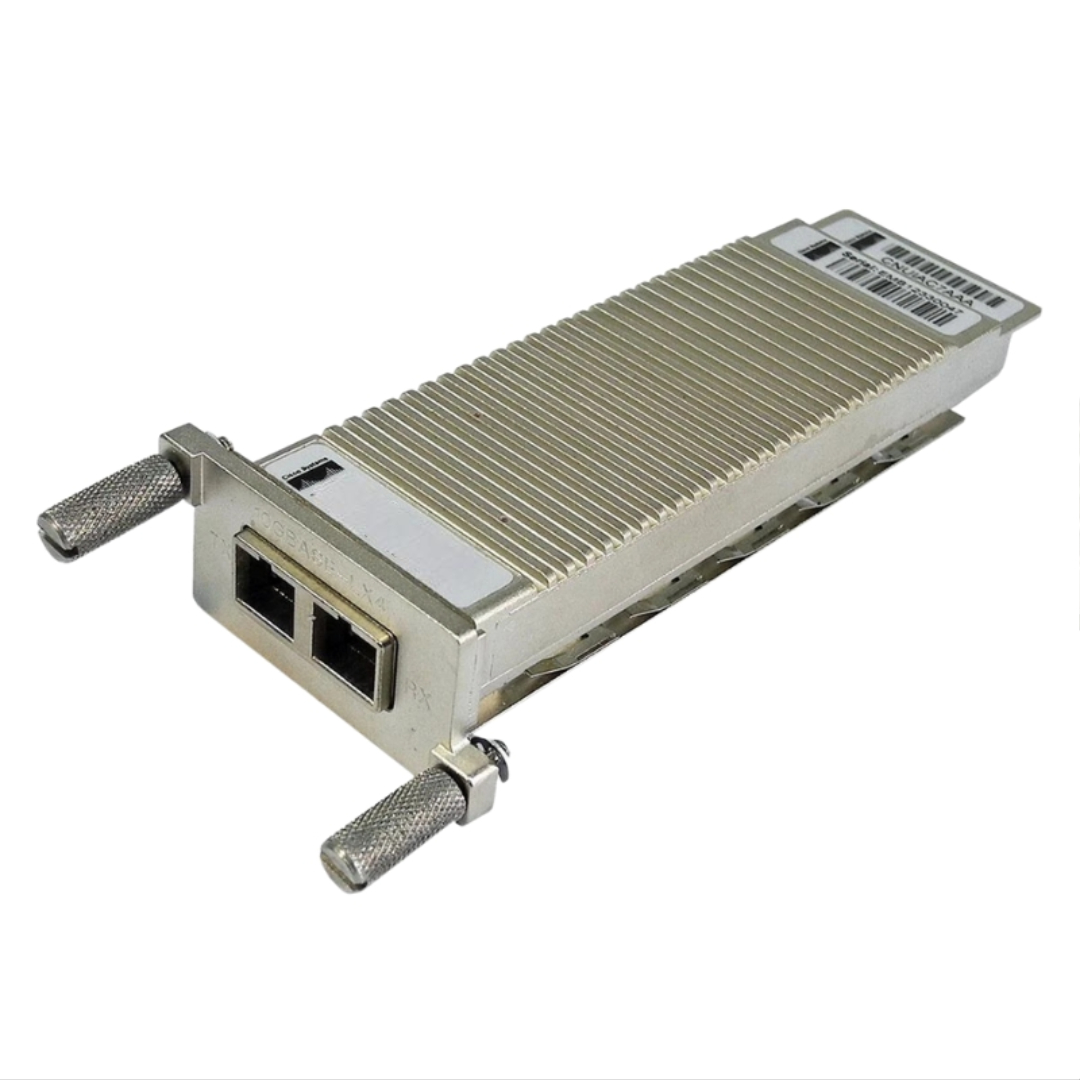

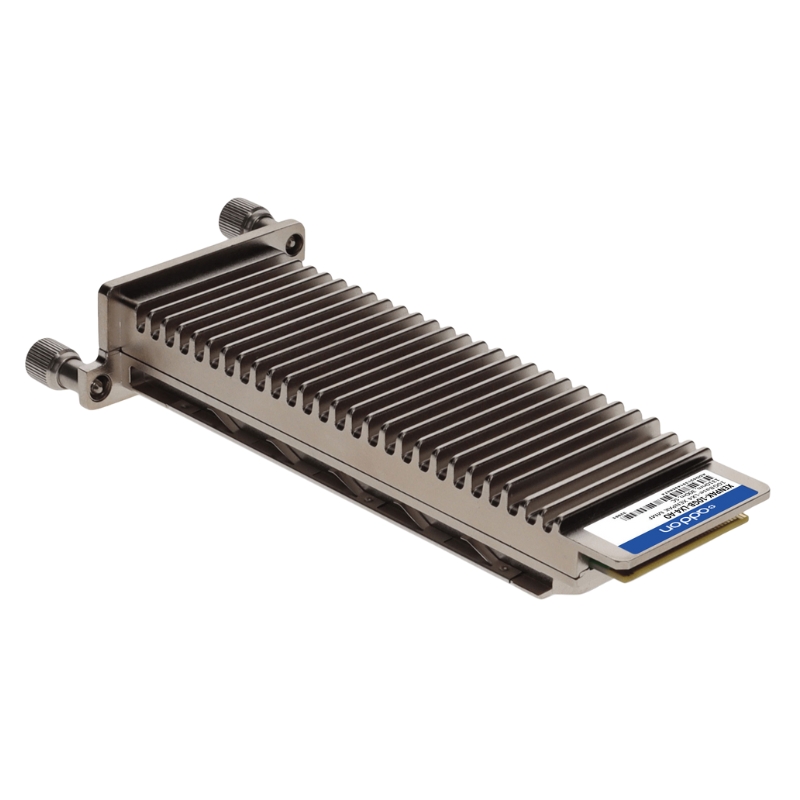

XENPAK-10GB-LX4 Cisco Transceiver Module 10GBPS

Details of Cisco 10GBPS Transceiver Module

The Cisco XENPAK-10GB-LX4 is a high-performance 10Gbps transceiver module. Designed for optical networking and data communication, this device ensures reliable multi-mode fiber connectivity with advanced compliance and efficient Ethernet transmission for enterprise-grade infrastructures.

Product Identification

• Brand: Cisco
• Model Number: XENPAK-10GB-LX4
• Product Type: Transceiver Module

Technical Specifications

• Optical Network integration
• Data Networking environments
• Total Number of Ports: 1
• Connector Type: SC
• Interface Details: 1 × SC 10GBase-LX4 Network

Media and Performance

• Media Type Supported: Optical Fiber
• Fiber Mode Supported: Multi-mode
• Ethernet Technology: 10 Gigabit Ethernet
• Network Technology: 10GBase-LX4
• Maximum Data Transfer Rate: 10 Gbps

Physical Characteristics

• Height: 1.5 inches
• Width: 5.5 inches
• Depth: 8 inches
• Weight: Approximately 0.90 lb

Compatibility

• MSA Compliant
• Cisco 7600 Series Router
• Cisco Catalyst 6500 Series

Key Benefits

• High-speed 10Gbps Ethernet connectivity
• Reliable optical fiber transmission
• Multi-mode fiber support for versatile deployment
• Compact design with SC connector interface
• Compatibility with Cisco enterprise networking equipment

Cisco XENPAK-10GB-LX4 10Gbps Transceiver Module Overview

The Cisco XENPAK-10GB-LX4 10Gbps transceiver module category represents a high-performance class of optical networking components designed for long-reach 10 Gigabit Ethernet communication across single-mode fiber infrastructure. Developed within the broader ecosystem of advanced optical interconnect solutions by this category is engineered to support scalable enterprise networks, service provider backbones, and high-density data center interconnect architectures where stable bandwidth, low latency, and signal integrity are essential. The LX4 designation indicates a specialized optical multiplexing approach that enables multiple wavelengths to be transmitted simultaneously, effectively increasing transmission efficiency over extended distances while maintaining compliance with 10GbE standards.

Role of XENPAK Form Factor in 10 Gigabit Networking

Structural Design and Interface Characteristics

The XENPAK form factor is one of the earliest standardized 10 Gigabit Ethernet transceiver designs, created to offer a robust, modular, and hot-swappable optical interface for enterprise-grade switching and routing equipment. Unlike smaller SFP+ modules, XENPAK devices are physically larger, allowing for more complex optical and thermal components to be integrated. This enables improved signal conditioning, stronger optical lasers, and enhanced support for long-distance transmission profiles such as LX4. The module interfaces directly with 10GbE ports through a standardized electrical and mechanical connector system, ensuring interoperability across compatible hardware platforms.

Thermal Management and Operational Stability

Due to the higher power requirements associated with 10Gbps optical transmission and wavelength multiplexing, XENPAK modules incorporate advanced thermal dissipation structures. These designs ensure stable performance even under continuous high-load network traffic conditions. The physical size of the module contributes significantly to heat dispersion, allowing it to operate reliably in dense networking environments such as core switches and aggregation routers. This thermal efficiency is critical in preventing signal degradation and maintaining long-term operational integrity.

10Gbps LX4 Optical Transmission Technology

Wavelength Multiplexing and Signal Distribution

The LX4 technology embedded within the Cisco XENPAK-10GB-LX4 category is based on coarse wavelength division multiplexing principles. Instead of relying on a single optical wavelength to carry the full 10Gbps data stream, LX4 divides the signal into multiple lower-rate channels transmitted simultaneously over separate wavelengths. These are recombined at the receiving end to reconstruct the original high-speed data stream. This architecture reduces dispersion issues and allows for reliable long-distance transmission across single-mode fiber.

Extended Reach Capabilities

One of the defining features of LX4-based transceivers is their ability to support extended transmission distances compared to traditional short-reach optical modules. By distributing signal load across multiple wavelengths, LX4 reduces the impact of chromatic dispersion and signal attenuation over fiber links. This makes the module suitable for metropolitan area networks, campus interconnects, and long-haul enterprise backbone deployments where distances exceed standard short-reach optical limitations.

Signal Integrity and Error Reduction

The multiplexed transmission design also contributes to improved signal integrity. By reducing the burden on a single optical channel, the system minimizes bit error rates and enhances overall transmission stability. This ensures that data packets maintain integrity across long distances and under varying environmental conditions. In mission-critical environments such as financial systems or cloud infrastructure, this level of reliability is essential for maintaining continuous service availability.

Enterprise Networking Applications

Core Data Center Connectivity

Within modern data centers, the Cisco XENPAK-10GB-LX4 module category plays a vital role in interconnecting high-capacity switching fabrics. Core switches rely on these transceivers to link aggregation layers and distribution nodes, enabling seamless data flow between compute clusters and storage systems. The high bandwidth capability ensures that virtualization workloads, database replication, and real-time analytics operations function without bottlenecks.

Service Provider Backbone Networks

Telecommunications and internet service providers utilize LX4 transceiver modules to support backbone routing infrastructure where long-distance fiber links are required. These modules facilitate the transport of aggregated traffic across regional or metropolitan networks, ensuring stable connectivity between central offices and distributed network nodes. Their ability to maintain performance across extended distances makes them suitable for carrier-grade deployments.

Enterprise Campus Networks

Large enterprise campuses with multiple buildings or distributed facilities benefit significantly from LX4-based optical connectivity. These modules enable high-speed inter-building communication without the need for intermediate signal regeneration equipment. This simplifies network design while maintaining high throughput and low latency between different organizational units.

Physical and Electrical Characteristics

Module Construction and Durability

The physical construction of XENPAK modules emphasizes durability and long-term operational reliability. Encased in a rugged metallic housing, the module protects sensitive optical components from electromagnetic interference and physical stress. This robust design ensures consistent performance in demanding enterprise environments where equipment may be subject to vibration, airflow variations, and continuous operation cycles.

Power Consumption and Efficiency

Due to the complexity of LX4 optical processing, these modules typically consume more power than newer compact transceiver formats. However, they compensate with superior reach and reliability. Power management systems integrated into compatible networking devices help regulate energy usage and ensure that the module operates within safe thermal and electrical parameters.

Hot-Swappable Functionality

A key operational advantage of XENPAK modules is their hot-swappable capability, allowing network administrators to replace or upgrade modules without shutting down networking equipment. This feature significantly reduces maintenance downtime and enhances operational continuity in critical infrastructure environments.

Fiber Compatibility and Cabling Infrastructure

Single-Mode Fiber Utilization

The Cisco XENPAK-10GB-LX4 module is primarily designed for use with single-mode fiber infrastructure. Single-mode fiber provides the low dispersion and high transmission quality required for long-distance 10Gbps communication. Its narrow core diameter allows light to travel in a single path, reducing modal distortion and ensuring cleaner signal propagation over extended distances.

Connector Standards and Integration

These modules typically interface through standardized optical connectors that ensure compatibility with a wide range of fiber patch panels, distribution frames, and optical cabling systems. This interoperability allows organizations to integrate LX4 modules into existing infrastructure without requiring extensive redesign of physical cabling layouts.

Optical Budget and Link Planning

Network engineers must consider optical budgets when deploying LX4 transceivers. This includes evaluating transmitter power, receiver sensitivity, and fiber attenuation across the full length of the link. Proper planning ensures that signal strength remains within acceptable thresholds, preventing data loss and maintaining consistent network performance.

Performance Optimization in High-Demand Environments

Latency Reduction Strategies

The use of 10Gbps LX4 modules contributes significantly to latency reduction in enterprise networks. By enabling direct optical transmission between network nodes, the need for multiple electrical conversions is minimized. This results in faster data propagation and improved responsiveness for latency-sensitive applications such as financial trading systems and real-time communication platforms.

Bandwidth Aggregation Support

These modules are often deployed in environments where bandwidth aggregation is required. By supporting high-throughput optical links, they enable the consolidation of multiple lower-speed connections into a single high-speed backbone channel. This improves network efficiency and simplifies overall traffic management.

Redundancy and Failover Design

In mission-critical architectures, LX4 transceivers are often deployed in redundant configurations. This ensures that if one optical link fails, traffic can be rerouted through alternative pathways without disrupting network operations. Such redundancy is essential in environments requiring continuous uptime.

Installation and Deployment Considerations

Compatibility with Networking Hardware

Before deploying a Cisco XENPAK-10GB-LX4 module, compatibility with networking hardware must be verified. Supported platforms typically include high-end routers and switches designed to accommodate XENPAK form factors. Ensuring compatibility prevents configuration issues and maximizes performance efficiency.

Environmental Requirements

Proper environmental conditions are essential for optimal module performance. Temperature control, airflow management, and dust prevention all contribute to the longevity and stability of the module. Data center environments typically implement strict cooling and ventilation standards to support optical networking hardware.

Monitoring and Diagnostics Capabilities

Digital Optical Monitoring Integration

Many XENPAK modules support Digital Optical Monitoring functionality, enabling real-time tracking of optical parameters such as temperature, laser bias current, transmit power, and receive power. This data provides valuable insight into link health and allows proactive maintenance before failures occur.

Network Management System Integration

Integration with network management platforms allows administrators to monitor performance metrics across multiple transceiver modules simultaneously. This centralized visibility enhances operational control and simplifies troubleshooting processes in large-scale deployments.

Fault Detection and Troubleshooting

When network issues arise, diagnostic data from LX4 modules assists engineers in identifying whether problems originate from fiber infrastructure, module malfunction, or configuration errors. This accelerates resolution times and reduces network downtime.

Scalability and Future Network Integration

Legacy System Compatibility

Despite the emergence of smaller form factor transceivers, XENPAK-10GB-LX4 modules remain relevant in legacy infrastructure environments where existing hardware continues to operate. Their compatibility with established systems ensures continued support for long-term network investments.

Migration Pathways to Modern Architectures

Organizations transitioning to newer optical standards often integrate LX4 modules as part of hybrid network architectures. This allows gradual migration without disrupting existing services, ensuring operational continuity while upgrading infrastructure capabilities.

Role in Hybrid Optical Networks

In hybrid networks combining legacy and modern technologies, LX4 modules serve as bridging components that maintain connectivity across different generations of networking equipment. This ensures seamless interoperability and consistent performance across diverse network segments.
