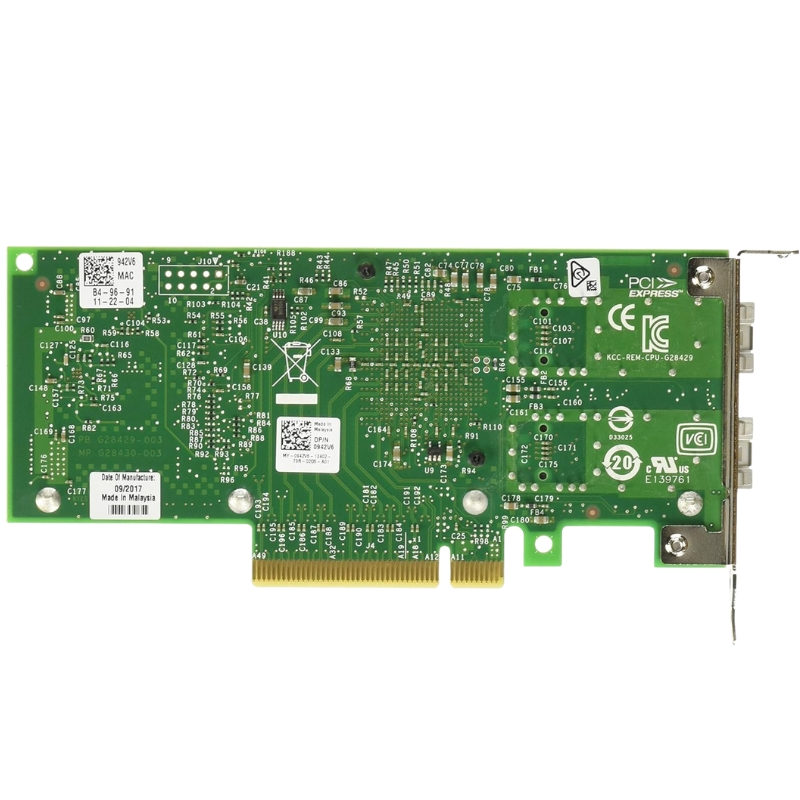

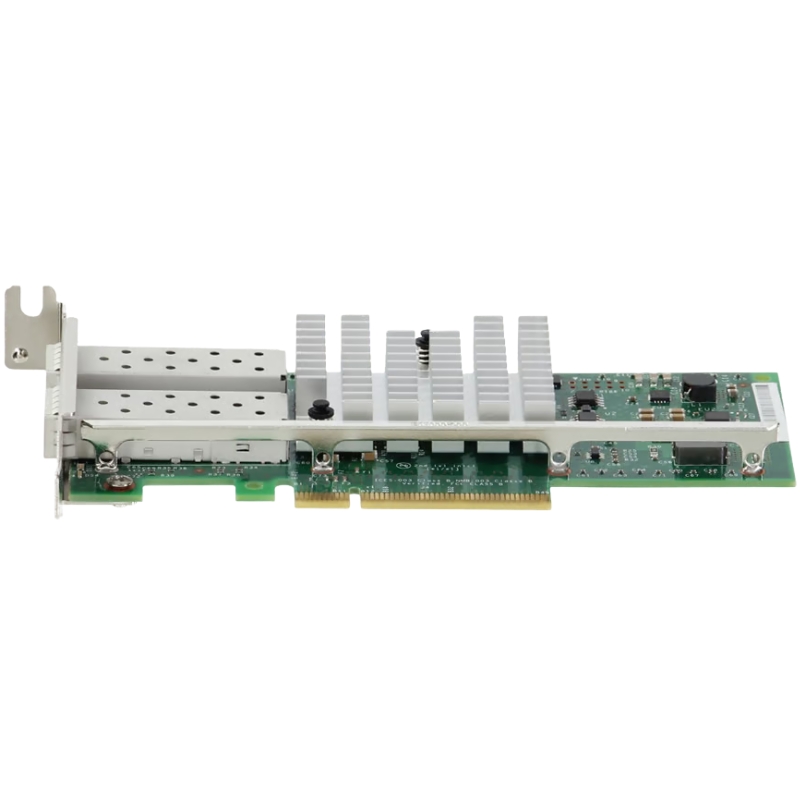

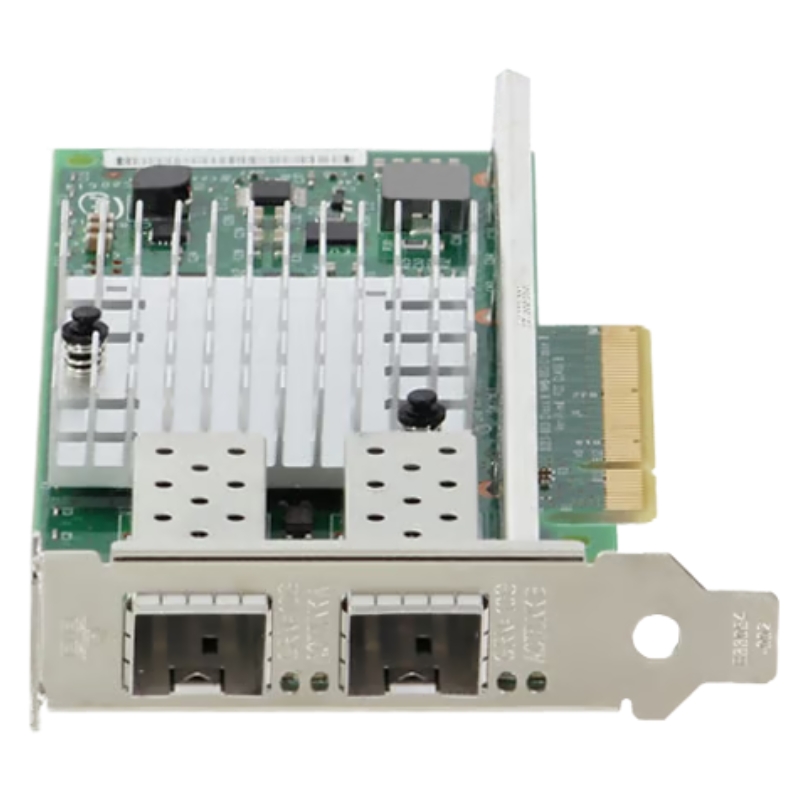

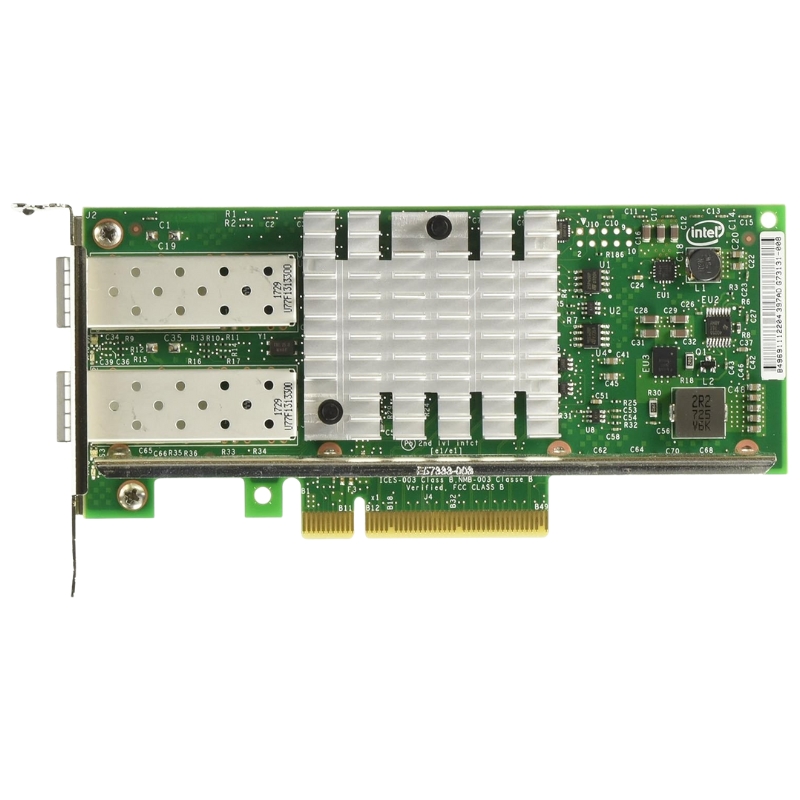

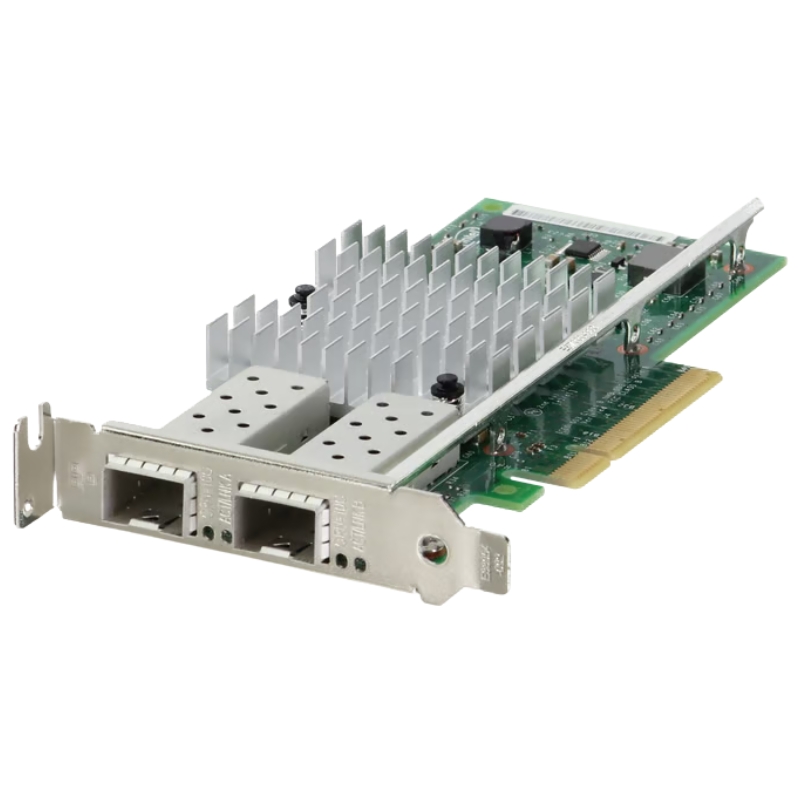

540-BBDW Dell X520 Dual Port 10GB DA/SFP+ Server Adapter

Comprehensive Product Overview

The Dell 540-BBDW X520 Server Adapter is equipped with a Dual Port feature, making it an exceptional choice for users who require high-speed network connectivity and enhanced performance. With two ports available, this adapter allows for simultaneous data transmission, enabling faster and more efficient communication between multiple devices or networks.

General Information

• Manufacturer: Dell
• Part Number: 540-BBDW
• Product Type: Network Interface Adapter

Technical Highlights

• Compact plug-in card engineered with a low-profile build
• PCI Express architecture ensures reliable performance
• Streamlined data pathways for enhanced throughput
• Wired connection technology for stable networking
• Supports 10 Gigabit Ethernet protocol
• Delivers consistent transfer speeds up to 10 Gbps

Expansion & Connectivity

Slot Availability

• Two expansion slots available (total: 2, free: 2)
• Compatible with SFP+ modules for flexible deployment

Networking Benefits

• High-speed data transmission for demanding workloads
• Scalable connectivity options for diverse infrastructures

Compatibility

Dell PowerEdge Server

• R620, R720, R720XD, R420, R820
• C6220, C6145, R320, R520
• R630, R730, R730XD, R640, R740
• R940, R740XD, R440, R540

Deployment Advantages

• Seamless integration across multiple Dell PowerEdge generations
• Reliable compatibility ensures smooth installation
• Ideal for data-intensive applications and virtualization environments

Dell 540-BBDW Intel PCI Express Server Network Adapter

The Dell 540-BBDW Intel X520 2-Port 10GbE Direct Attach SFP+ PCI Express Server Network Adapter is a high-performance enterprise-grade networking component designed for modern data center environments that require high bandwidth, low latency, and scalable connectivity. Built on Intel’s widely adopted X520 Ethernet controller architecture, this adapter delivers dual-port 10 Gigabit Ethernet (10GbE) performance over SFP+ interfaces, making it suitable for virtualization workloads, cloud infrastructure, storage networking, and high-throughput server communication.

This adapter is engineered in a low-profile form factor, ensuring compatibility with dense rack server systems where space optimization is critical. It supports PCI Express 2.0 x8 lanes, enabling stable and consistent data throughput between the server motherboard and network fabric. As part of Dell’s OEM networking lineup, the 540-BBDW is optimized for integration with Dell PowerEdge servers while maintaining broad compatibility with industry-standard operating systems and virtualization platforms.

High-Speed Dual 10GbE Port Architecture

At the core of the Dell 540-BBDW is the Intel X520 Ethernet controller, a proven silicon design widely deployed in enterprise networking infrastructure. The adapter provides two independent 10GbE SFP+ ports, allowing simultaneous high-speed data transmission and reception across multiple network paths. This dual-port configuration supports redundancy, load balancing, and network segmentation strategies commonly used in enterprise environments.

Each port operates independently, enabling administrators to dedicate one interface to storage traffic and another to application or management traffic. This architectural separation enhances network efficiency and ensures predictable performance in complex workloads such as virtualization clusters and distributed databases.

PCI Express 2.0 x8 Host Interface Efficiency

The PCI Express 2.0 x8 interface provides a theoretical bandwidth of up to 40 Gbps in full duplex mode, which is sufficient to handle dual 10GbE traffic without bottlenecks. This ensures that the network adapter can fully utilize both ports under heavy workloads, including large-scale data transfers, virtualization migrations, and real-time analytics processing.

The PCIe interface also contributes to reduced latency between CPU and network hardware, making the adapter suitable for latency-sensitive applications such as financial trading systems, high-frequency data processing, and real-time communication platforms.

Intel Virtualization Technology Integration

The Intel X520 controller integrates advanced virtualization technologies, including SR-IOV (Single Root I/O Virtualization), which allows multiple virtual machines to share a single physical network adapter with near-native performance. This capability reduces CPU overhead and improves VM density in virtualized environments.

By offloading network processing tasks from the host CPU, SR-IOV improves overall system efficiency, making the adapter ideal for cloud computing platforms and enterprise virtualization clusters powered by hypervisors such as VMware ESXi, Microsoft Hyper-V, and KVM-based solutions.

10GbE SFP+ Connectivity and Direct Attach Cable Support

SFP+ Optical and Copper Flexibility

The Dell 540-BBDW supports Small Form-Factor Pluggable Plus (SFP+) interfaces, enabling flexible connectivity options depending on infrastructure requirements. Administrators can deploy fiber optic transceivers for long-distance connections or use Direct Attach Copper (DAC) cables for short-range, high-efficiency server-to-switch interconnects.

This flexibility allows seamless integration into existing network architectures without requiring major hardware redesigns. It also ensures cost efficiency in data centers where high-density rack connectivity is essential.

Direct Attach Copper Optimization

Direct Attach Copper cables provide a low-latency and energy-efficient solution for connecting servers within the same rack or adjacent racks. The Intel X520-based architecture ensures optimal signal integrity and minimal packet loss when using DAC configurations, making it highly suitable for intra-data center communication.

By reducing the need for optical transceivers in short-range deployments, organizations can significantly lower operational costs while maintaining 10GbE performance standards.

Network Scalability in Data Center Environments

With dual SFP+ ports, the adapter supports scalable network topologies such as leaf-spine architectures commonly used in modern data centers. These architectures rely on high-speed, non-blocking interconnects to distribute traffic efficiently across compute and storage nodes.

The Dell 540-BBDW plays a crucial role in enabling horizontal scaling of server infrastructure, ensuring consistent throughput as workloads expand across clusters.

Low Profile Form Factor

The low-profile bracket design of the Dell 540-BBDW ensures compatibility with space-constrained server chassis. This is particularly important for dense rack-mounted systems where multiple PCIe devices must coexist within limited physical space.

The compact design does not compromise thermal performance, as the adapter is engineered to operate efficiently within high-temperature data center environments with controlled airflow systems.

PowerEdge Server Compatibility

This adapter is optimized for Dell PowerEdge server environments, ensuring seamless BIOS recognition, firmware integration, and driver support. It is commonly deployed in enterprise-grade PowerEdge systems used for virtualization, database hosting, and enterprise application workloads.

Integration with Dell management tools allows administrators to monitor network performance, update firmware, and configure adapter settings directly from centralized management consoles.

Firmware-Level Optimization and Stability

The firmware architecture of the Dell 540-BBDW is designed for stability and long-term enterprise use. It supports advanced error correction, link negotiation optimization, and power management features that reduce system instability and enhance uptime.

Firmware updates provided by Dell ensure ongoing compatibility with evolving operating systems and virtualization platforms, making the adapter a reliable long-term networking investment.

Cloud Infrastructure Integration

In cloud computing environments, network performance is a critical factor influencing scalability and service quality. The adapter supports high-throughput connectivity required for distributed computing, microservices architectures, and containerized workloads.

Its compatibility with cloud orchestration platforms ensures smooth deployment in both private and hybrid cloud infrastructures.

High-Performance Computing Environments

High-performance computing (HPC) environments benefit from the low latency and high bandwidth characteristics of the Dell 540-BBDW. Scientific computing, data modeling, and simulation workloads require fast inter-node communication, which this adapter supports effectively.

By minimizing network bottlenecks, the adapter contributes to faster computation cycles and improved overall system efficiency in HPC clusters.

Energy Efficiency

Low Power Consumption

The Dell 540-BBDW is designed with energy efficiency in mind, minimizing power consumption while maintaining high performance. This is particularly important in large-scale data centers where power efficiency directly impacts operational costs.

Advanced power management features allow the adapter to dynamically adjust power usage based on network load conditions.

Thermal Stability in Dense Environments

The adapter is engineered to operate reliably under high thermal loads typical of densely packed server racks. Efficient heat dissipation ensures consistent performance without thermal throttling.

Enterprise-Grade Reliability Standards

Built for enterprise deployment, the Dell 540-BBDW adheres to strict reliability standards required in data center hardware. It is designed to deliver consistent uptime, minimal packet loss, and stable long-term performance under heavy workloads.

Deployment Scenarios and Infrastructure Use Cases

Enterprise Data Centers

In enterprise data centers, the adapter supports core networking functions including server interconnects, storage networking, and application delivery. Its dual-port design enables redundancy and high availability configurations.

Storage Networking and iSCSI Performance

The high-bandwidth 10GbE connectivity is ideal for storage area networks (SAN) and iSCSI-based storage systems. It ensures fast data access and reliable storage replication across networked storage devices.

Enterprise Application Hosting

Applications such as ERP systems, CRM platforms, and large databases benefit from the high throughput and low latency provided by the adapter. It ensures smooth application performance even under peak user demand.

Virtual Desktop Infrastructure (VDI)

VDI environments require consistent network performance to deliver responsive user experiences. The Dell 540-BBDW supports these requirements by providing stable and high-speed connectivity between virtual desktops and backend servers.
