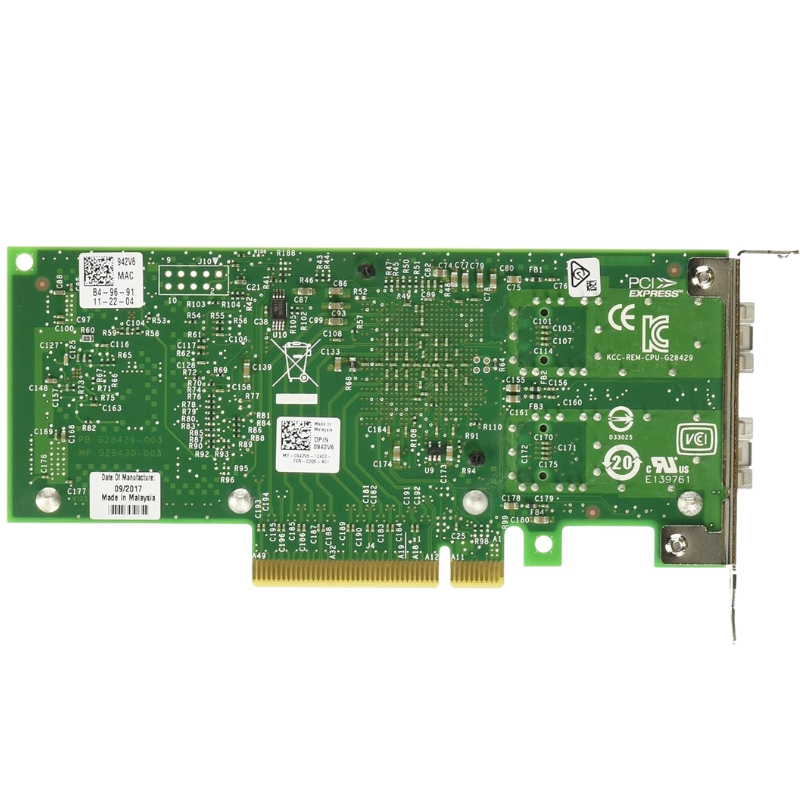

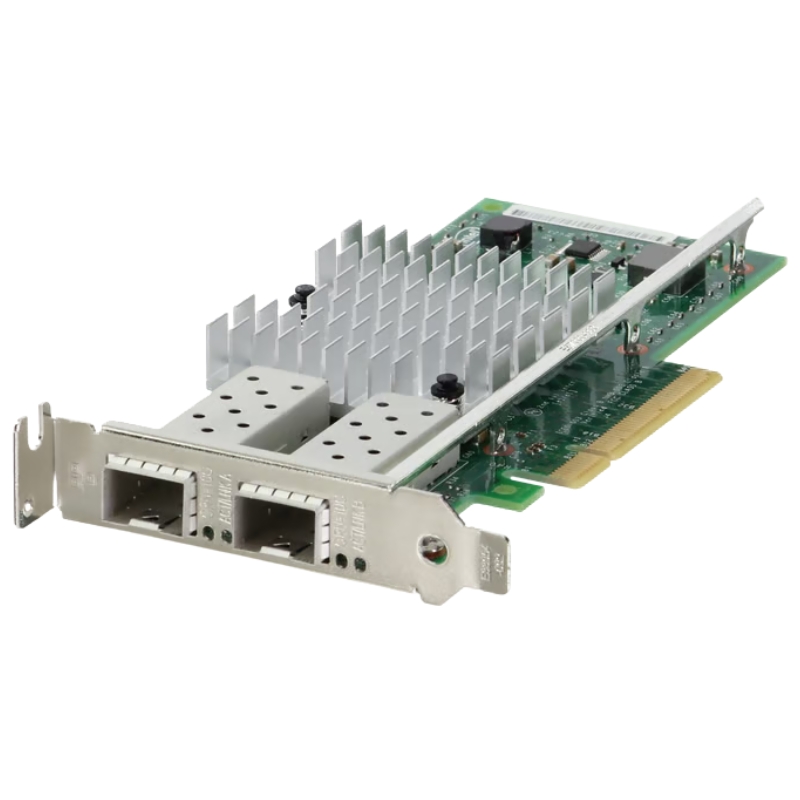

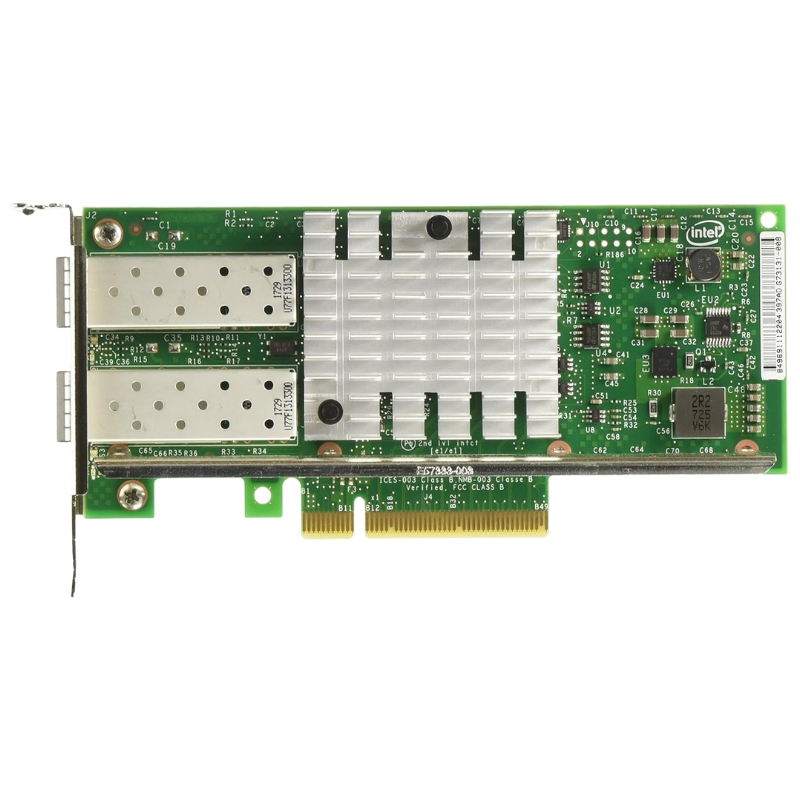

540-BBDW Dell X520 Dual Port 10GB DA/SFP+ Server Adapter

Dell 540-BBDW Intel X520 SFP+ PCI-E Network Adapter

The Dell 540-BBDW Intel X520 2 x Ports 10GbE Direct Attach SFP+ PCI Express 2.0 Server Network Adapter is a high-performance, low-profile networking solution designed for enterprise servers, data center infrastructures, virtualization environments, and high-throughput computing systems. Built on the proven Intel X520 controller architecture, this adapter delivers dual-port 10 Gigabit Ethernet connectivity through SFP+ interfaces, enabling direct attach copper (DAC) and fiber-based networking configurations for scalable and flexible deployment scenarios.

Engineered for efficiency, stability, and high bandwidth performance, this network interface card (NIC) supports advanced offloading features and low-latency communication, making it ideal for workloads that demand consistent throughput and minimal packet processing overhead. It is widely adopted in modern server architectures where virtualization, cloud computing, storage networking, and high-speed data transfer are critical requirements.

Intel X520 Controller Foundation

At the core of the Dell 540-BBDW adapter lies the Intel X520 Ethernet controller, a widely recognized chipset in enterprise networking environments. This controller is optimized for 10 Gigabit Ethernet operations and supports advanced packet processing capabilities, ensuring reduced CPU utilization and improved system efficiency. The X520 architecture enables seamless handling of high-bandwidth traffic while maintaining stable and predictable network performance.

Dual-Port 10GbE Interface

The adapter features two independent 10GbE SFP+ ports, allowing simultaneous multi-channel data transmission. This dual-port configuration is essential for redundancy, link aggregation, and load balancing in mission-critical environments. Each port operates independently, ensuring that network traffic can be distributed efficiently across multiple paths to prevent bottlenecks and maximize throughput.

SFP+ Direct Attach and Optical Compatibility

The SFP+ interface design supports both Direct Attach Copper (DAC) cables and optical transceivers, providing flexibility in deployment. DAC cables offer low-cost, low-latency short-range connections, while fiber optic modules enable long-distance connectivity across enterprise networks and data centers. This adaptability makes the adapter suitable for diverse infrastructure requirements.

Performance Optimization and Network Efficiency

10 Gigabit Ethernet Throughput Capabilities

The Dell 540-BBDW adapter delivers full line-rate 10GbE performance on both ports, ensuring that high-volume data transfers are handled without packet loss or congestion. This level of throughput is particularly important for applications such as virtualization clusters, database replication, and large-scale storage access systems where consistent bandwidth is required.

Low Latency

Designed for environments where latency sensitivity is critical, the adapter minimizes packet processing delays through hardware-based acceleration. This ensures that time-sensitive workloads, including financial trading platforms and real-time analytics systems, benefit from rapid data transmission and reduced network jitter.

Intelligent Offloading Capabilities

The network adapter supports multiple offloading technologies that reduce CPU overhead by delegating networking tasks to the hardware. These include checksum offload, TCP segmentation offload (TSO), and large receive offload (LRO). By shifting processing tasks away from the host CPU, system resources are preserved for application-level workloads, improving overall server efficiency.

PCI Express 2.0 Interface

High-Speed PCIe Connectivity

The Dell 540-BBDW adapter utilizes a PCI Express 2.0 interface, providing a high-bandwidth communication channel between the network card and the server motherboard. This ensures that the full potential of 10GbE throughput can be realized without interface bottlenecks. The PCIe architecture also enables efficient data handling with reduced latency and improved system responsiveness.

Low Profile Form Factor

Designed with a low-profile bracket, this network adapter is compatible with compact server chassis and rack-mounted systems. The reduced physical footprint allows integration into dense server environments where space optimization is essential. Despite its compact design, the adapter maintains full performance capabilities and robust thermal stability.

Server Compatibility and Deployment Flexibility

The adapter is engineered for compatibility with a wide range of Dell PowerEdge servers and other enterprise-grade systems supporting PCIe 2.0 slots. Its flexible design allows deployment across virtualization hosts, storage servers, and application servers without requiring significant hardware modifications.

Enterprise Networking Features

Virtualization

The adapter is optimized for virtualized environments, supporting technologies such as Single Root I/O Virtualization (SR-IOV) and multiple transmit and receive queues. These features allow virtual machines to directly access network resources, improving performance isolation and reducing hypervisor overhead.

Enhanced Data Center Networking Capabilities

In data center environments, the adapter supports advanced traffic management features such as VLAN tagging, priority-based flow control, and link aggregation. These capabilities ensure efficient traffic segmentation and improved network reliability in large-scale deployments.

Load Balancing and Failover Support

The dual-port configuration enables intelligent load balancing and failover mechanisms. In the event of a port or link failure, traffic is automatically redirected to the remaining active connection, ensuring continuous network availability and minimizing downtime risks.

Power Efficiency

Optimized Power Consumption

The Dell 540-BBDW adapter is designed to deliver high performance while maintaining energy efficiency. Its power-optimized architecture reduces unnecessary energy consumption during low network activity, contributing to overall data center efficiency and reduced operational costs.

Heat Dissipation and Stability

Advanced thermal management ensures stable operation under sustained high-load conditions. The adapter’s design allows efficient heat dissipation, preventing thermal throttling and maintaining consistent performance during continuous data transmission workloads.

Enterprise-Grade Reliability Standards

Built for 24/7 operation in mission-critical environments, the adapter adheres to strict enterprise reliability standards. Its components are engineered for long-term durability, ensuring stable performance across extended operational cycles.

Storage and High-Performance Computing Applications

iSCSI and Network Storage Optimization

The adapter supports high-speed storage networking protocols such as iSCSI, enabling efficient communication between servers and storage arrays. This makes it suitable for SAN (Storage Area Network) deployments where low latency and high throughput are essential.

Distributed Computing and HPC Workloads

In high-performance computing environments, the adapter provides the necessary bandwidth to support distributed processing workloads. Applications such as scientific simulations, big data analytics, and machine learning training benefit from its stable and high-speed data transfer capabilities.

Cloud Infrastructure Integration

The network adapter integrates seamlessly into cloud-based infrastructures, supporting scalable virtual environments and hybrid cloud architectures. Its performance characteristics ensure reliable connectivity across distributed cloud nodes.

Use Cases and Enterprise Deployment Scenarios

Data Center Server Connectivity

The adapter is widely deployed in data centers where high-speed server-to-server communication is essential. It supports aggregation of traffic across multiple virtual machines and physical hosts, ensuring efficient resource utilization.

Virtual Desktop Infrastructure (VDI)

In VDI environments, the adapter provides reliable bandwidth for delivering virtual desktops to end users. Its low latency and high throughput capabilities ensure smooth user experiences even under heavy concurrent access loads.

Enterprise Application Hosting

For enterprise applications such as ERP systems, CRM platforms, and large-scale databases, the adapter ensures consistent network performance, reducing latency and improving transaction processing efficiency.

Security and Network Management Features

Hardware-Level Security Enhancements

The adapter incorporates hardware-level security features that help protect network traffic integrity. These include checksum validation and secure packet handling mechanisms that reduce the risk of data corruption.

Manageability in Enterprise Environments

Centralized management support allows IT administrators to configure and monitor multiple adapters across large infrastructures. This simplifies network management and improves operational efficiency in enterprise-scale deployments.
