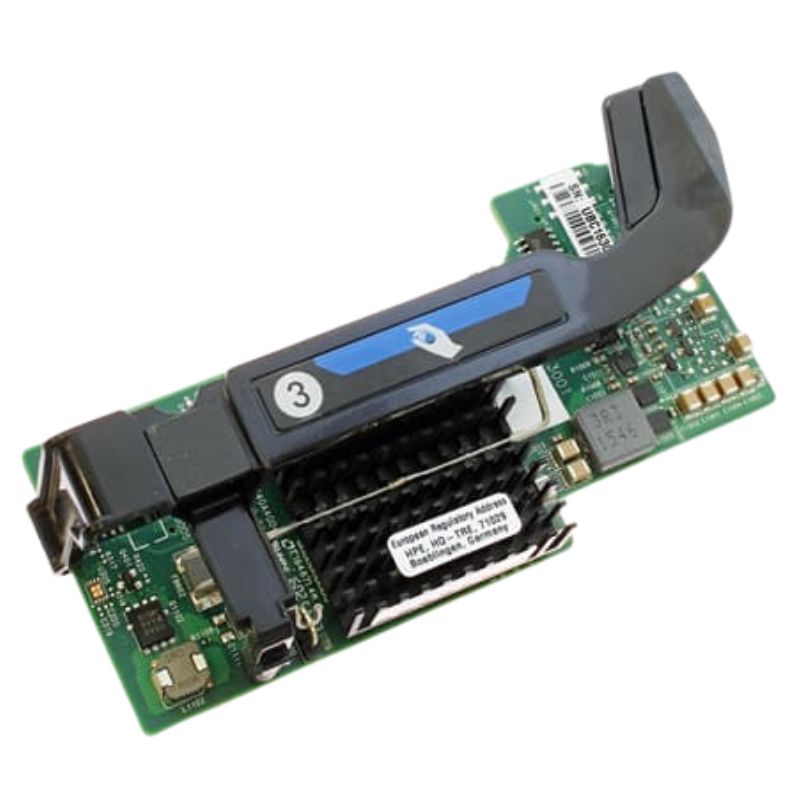

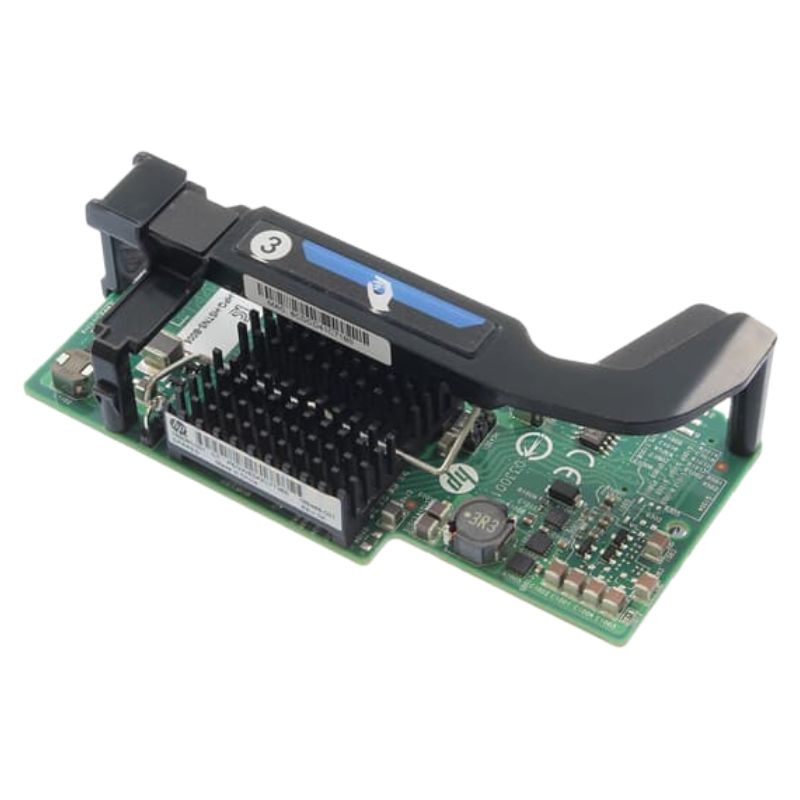

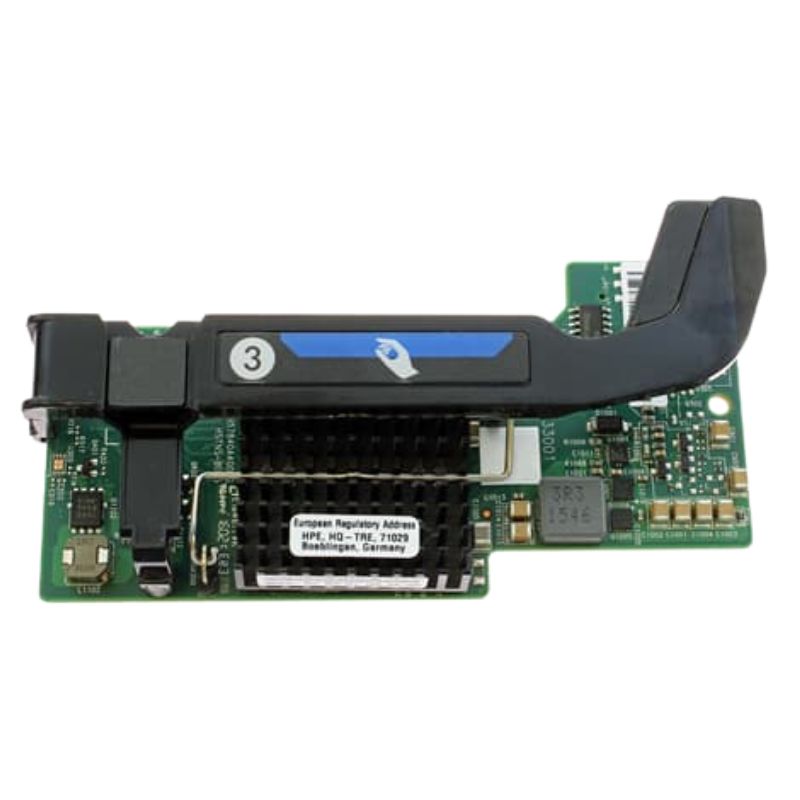

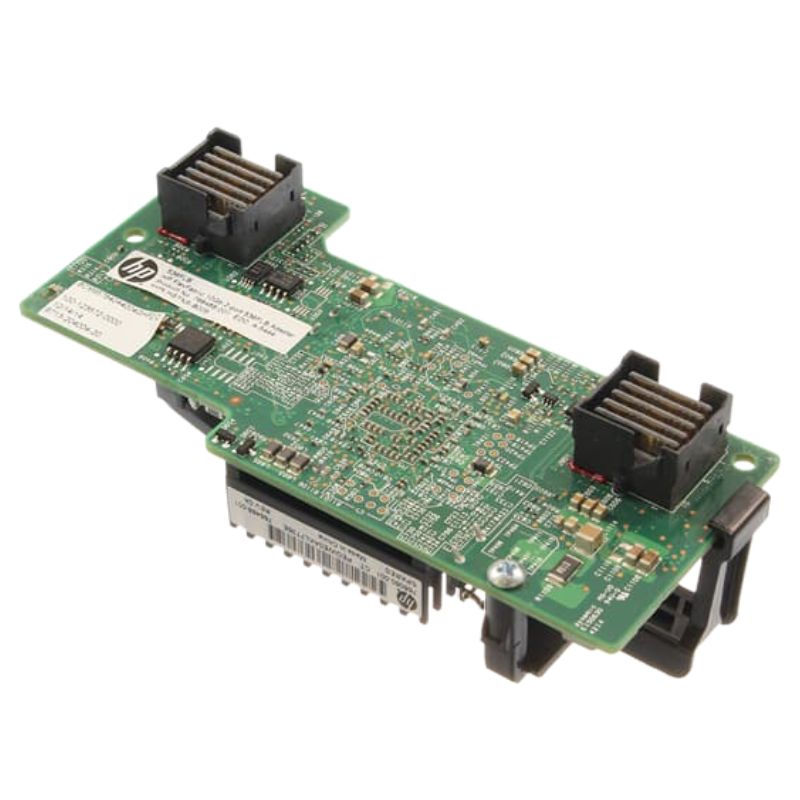

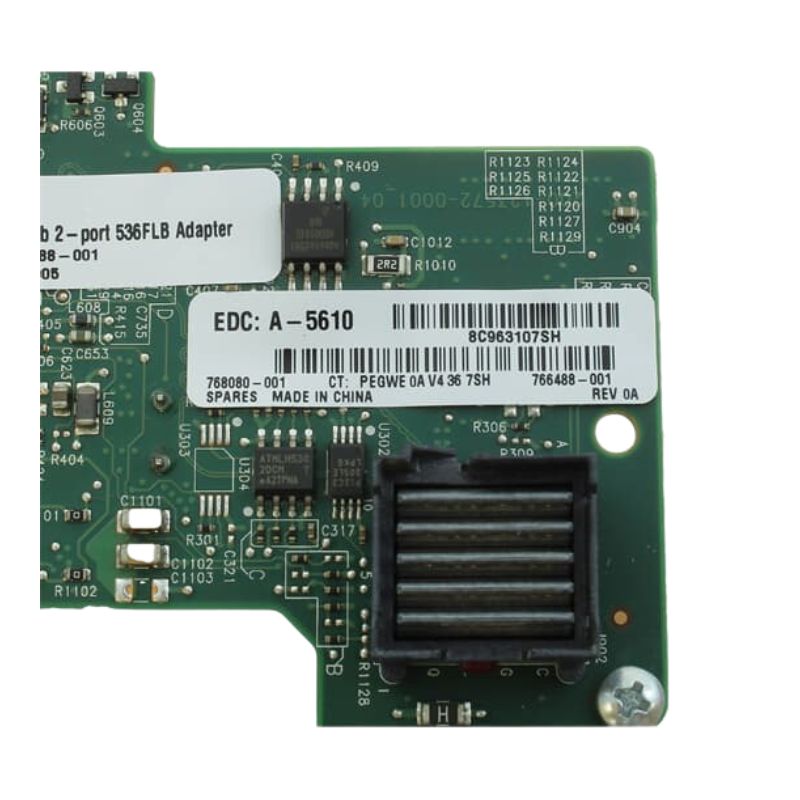

766488-001 HPE 536FLB 10GB 2-Port Flexfabric Adapter

Overview of HPE 766488-001 FlexFabric 10Gb 2-Port Adapter

The HPE 766488-001 FlexFabric 536FLB Adapter is a dual-port 10Gb Ethernet solution engineered for enterprise blade servers. With advanced virtualization, storage offload capabilities, and seamless integration with HPE ProLiant Gen9 and Gen10 systems, it ensures high-speed connectivity and optimized performance.

General Information

• Brand: HPE
• Part Number: 766488-001
• Device Type: Network Adapter
• Interface Type: PCI Express 3.0 x8

Networking Specifications

Port Configuration

• 2 x 10Gb Ethernet ports

Data Protocols

• 10 Gigabit Ethernet (10 GigE)
• Data Transfer Rate: 10 Gbps

Advanced Features

Storage Offloads

• Full hardware offload for iSCSI protocol processing
• Full hardware offload for FCoE protocol processing

Virtualization Support

Virtualization Technologies

• Single Root I/O Virtualization (SR-IOV)
• VLAN tagging (IEEE 802.1Q)
• Tunnel Offload (NVGRE, VXLAN)

Network Acceleration

• Data Plane Development Kit (DPDK) support
• Receive-Side Scaling (RSS)

Manageability

• Integrated with HPE Sea of Sensors 3D
• Active Health System monitoring

Compatibility

Supported Servers

• HPE ProLiant BL460c Gen9 / Gen10
• HPE ProLiant BL660c Gen9
• HPE ProLiant WS660c Gen9

HPE 766488-001 FlexFabric 10Gb 2-Port Adapter

The FlexFabric ecosystem is engineered to deliver high-performance, converged networking solutions for modern data centers that demand scalability, low latency, and high throughput. Within this architecture, the HPE 766488-001 FlexFabric 10GB 2-Port 536FLB Adapter plays a critical role in enabling seamless connectivity between server infrastructure and high-speed network backbones. Designed for virtualization-heavy workloads, cloud environments, and enterprise-grade computing clusters, this adapter provides reliable data transfer efficiency and optimized I/O performance.

The category of FlexFabric adapters is widely recognized for supporting converged network technologies, allowing organizations to reduce complexity while improving bandwidth utilization. The HPE 766488-001 model integrates advanced networking capabilities into a compact form factor designed specifically for blade server environments where space optimization and thermal efficiency are essential.

Core Engineering Design of HPE 766488-001 FlexFabric 10GB 2-Port 536FLB Adapter

The HPE 766488-001 FlexFabric 10GB 2-Port 536FLB Adapter is designed to deliver dual-port 10 Gigabit Ethernet connectivity, ensuring robust redundancy and load balancing across enterprise workloads. Built for compatibility with HPE BladeSystem infrastructures, it supports virtualization technologies that allow multiple virtual machines to share physical network resources without performance degradation.

This adapter is optimized for converged network environments, combining data, storage, and networking traffic over a single high-speed interface. This consolidation reduces infrastructure overhead while enhancing scalability for modern IT operations. Its architecture supports high I/O throughput, making it suitable for database clusters, virtual desktop infrastructures, and large-scale cloud deployments.

Hardware Architecture and Performance Efficiency

The internal architecture of the HPE 766488-001 FlexFabric adapter is engineered for maximum throughput efficiency. It incorporates advanced chipset technology that minimizes CPU overhead by offloading network processing tasks. This ensures that server resources are primarily dedicated to application processing rather than network management.

The dual-port configuration allows simultaneous data streams, increasing redundancy and improving fault tolerance. In enterprise environments where uptime is critical, this redundancy ensures continuous network availability even in the event of partial link failure. The adapter also supports dynamic load balancing, which distributes traffic intelligently across available ports.

Latency Optimization and Throughput Management

One of the defining features of this adapter is its ability to maintain extremely low latency across high-volume data transfers. This is particularly important in environments such as financial trading systems, cloud computing infrastructures, and high-performance computing clusters where microsecond-level delays can impact system efficiency.

Through advanced buffering techniques and intelligent packet scheduling, the adapter ensures smooth data flow without congestion. It also supports jumbo frames, which further enhances throughput by reducing packet overhead during large data transfers.

Integration in Blade Server Ecosystems

The HPE 766488-001 FlexFabric 10GB 2-Port 536FLB Adapter is specifically designed for blade server environments where compact design and high-density computing are essential. Its mezzanine card format allows it to be installed directly into compatible blade servers, eliminating the need for external network interface cards and reducing cabling complexity.

In enterprise deployments, blade servers equipped with this adapter benefit from streamlined networking architecture. The integration supports unified communication between compute nodes, storage systems, and virtualization platforms, making it ideal for private cloud deployments and hybrid infrastructure models.

Compatibility with Virtualized Environments

Virtualization plays a central role in modern IT infrastructure, and the HPE FlexFabric adapter is designed with full support for hypervisor-based environments. It ensures efficient traffic segmentation across virtual machines, allowing multiple workloads to operate independently on shared physical infrastructure.

The adapter supports virtual switching technologies that enable seamless communication between virtualized workloads without requiring excessive physical network resources. This improves operational efficiency while reducing hardware costs.

Support for Multi-Tenant Cloud Systems

In multi-tenant cloud environments, network isolation and performance consistency are essential. The HPE 766488-001 adapter provides logical segmentation capabilities that ensure secure and isolated traffic flow between tenants. This enhances both security and performance predictability in shared infrastructure environments.

Energy Efficiency and Thermal Optimization

Energy efficiency is a key consideration in modern data center design. The HPE FlexFabric adapter is engineered to minimize power consumption while maintaining high performance levels. Its optimized chipset architecture reduces energy usage during both idle and active states.

Thermal efficiency is also enhanced through advanced heat dissipation design, ensuring stable performance even under heavy workloads. This contributes to improved server longevity and reduced cooling requirements in densely populated data center environments.

Reduced Operational Overhead in Enterprise Deployments

By integrating multiple networking functions into a single adapter, organizations can significantly reduce hardware complexity. This leads to lower maintenance requirements and simplified infrastructure management.

IT administrators benefit from streamlined configuration processes, as the adapter supports centralized management tools that allow for efficient monitoring and optimization of network performance.

Scalability for Future Network Expansion

Scalability is a defining characteristic of the HPE FlexFabric ecosystem. The 10GB dual-port architecture ensures that enterprises can expand their network capacity without requiring extensive hardware replacement. This forward-compatible design supports long-term infrastructure planning and gradual system upgrades.

As enterprise workloads continue to grow in complexity, the ability to scale network performance without disrupting existing operations becomes increasingly valuable. The HPE 766488-001 adapter addresses this need through flexible deployment capabilities.

Security Features and Data Integrity Protection

Network security is a critical concern in enterprise environments. The HPE FlexFabric adapter incorporates multiple layers of security features designed to protect data integrity and prevent unauthorized access.

These features include secure data transmission protocols, hardware-level encryption support, and traffic segmentation capabilities that isolate sensitive workloads from general network traffic.

Secure Virtual Network Segmentation

Virtual network segmentation allows administrators to define isolated network zones within a shared infrastructure. This ensures that sensitive data remains protected even in multi-tenant environments.

The adapter supports advanced segmentation protocols that enhance security without compromising performance. This balance is essential for enterprise deployments requiring both high throughput and strict compliance adherence.

Deployment Scenarios in Modern IT Infrastructure

The HPE 766488-001 FlexFabric 10GB 2-Port 536FLB Adapter is suitable for a wide range of deployment scenarios, including private cloud environments, enterprise virtualization clusters, and high-performance computing systems. Its versatility makes it a preferred choice for IT infrastructures requiring reliable and scalable networking solutions.

In cloud computing environments, the adapter enables efficient workload distribution and seamless interconnectivity between virtual machines. In enterprise data centers, it enhances server-to-switch communication and improves overall network resilience.
