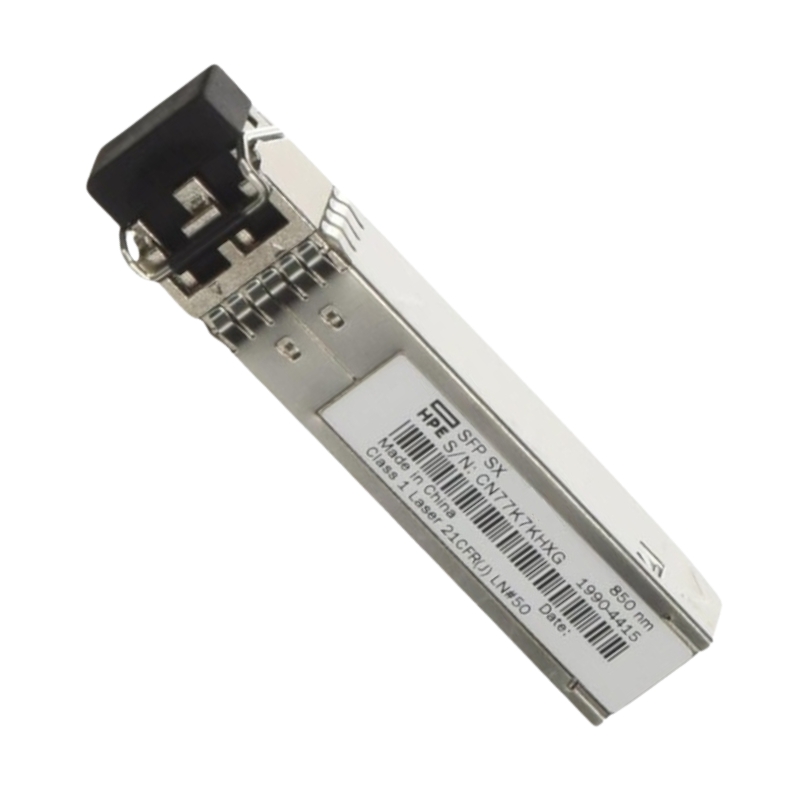

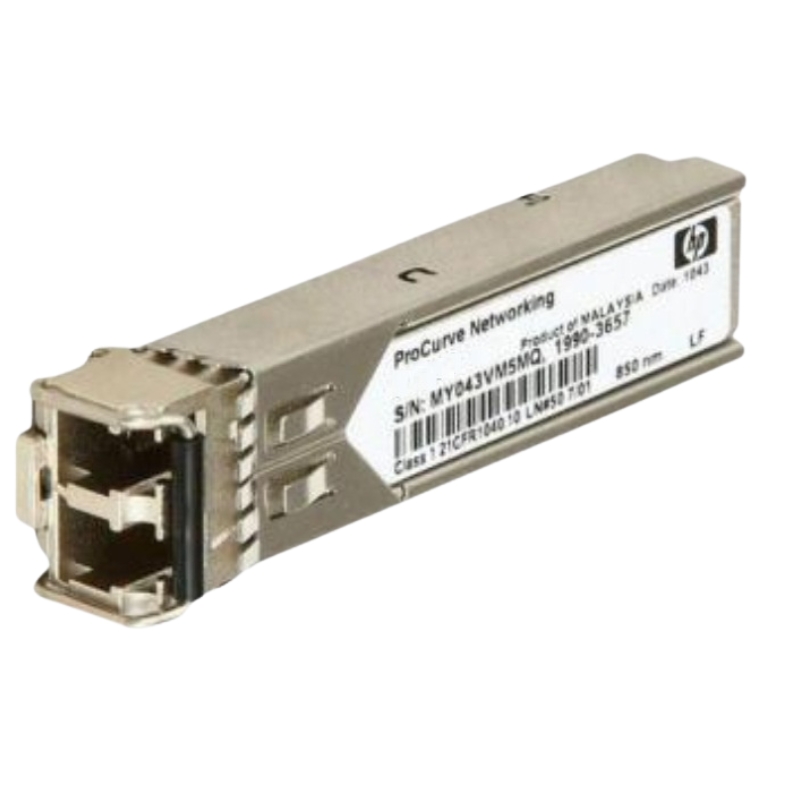

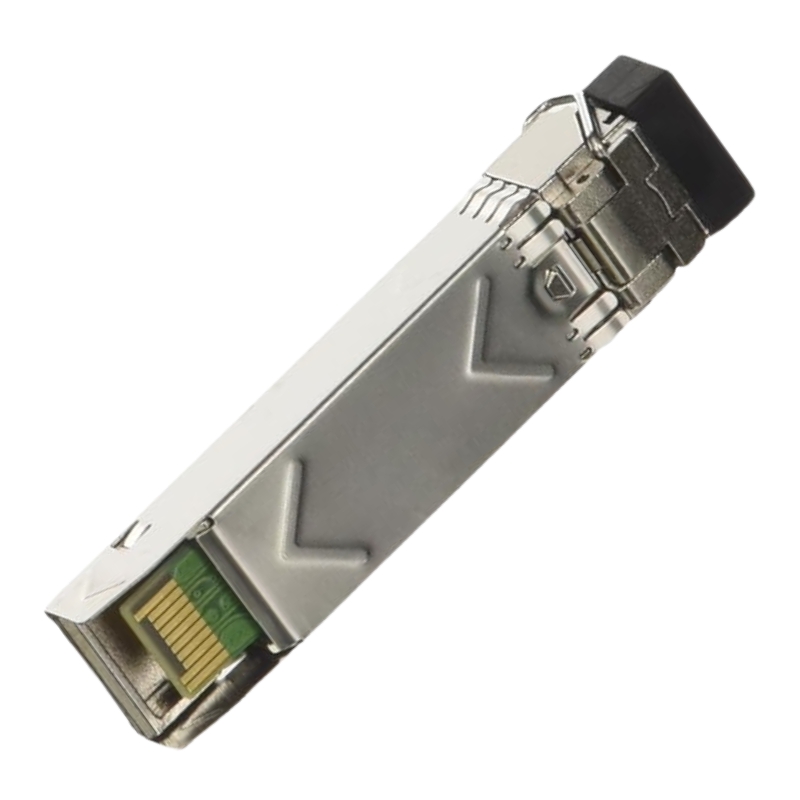

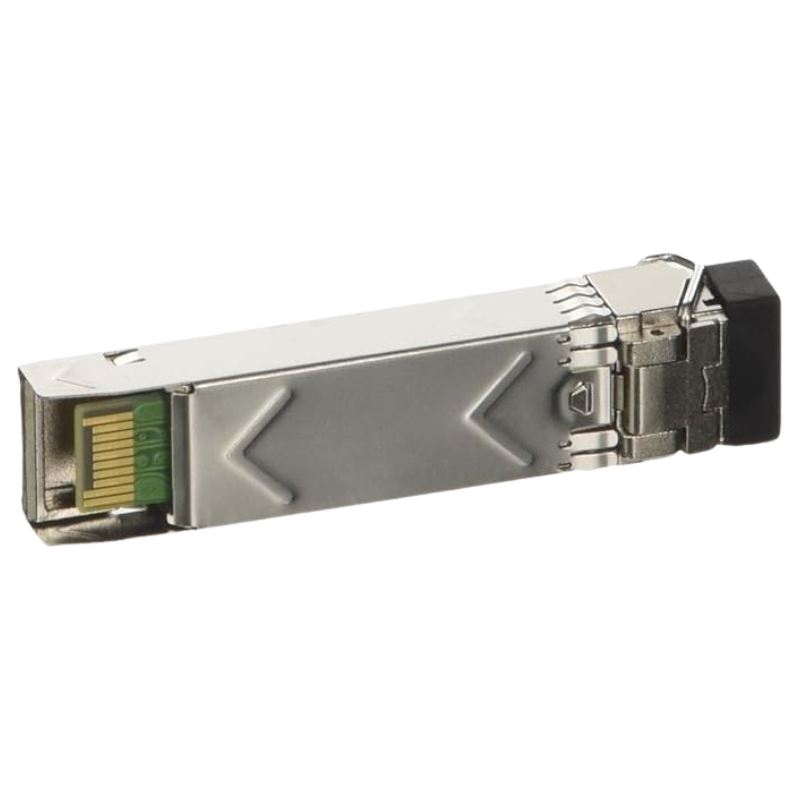

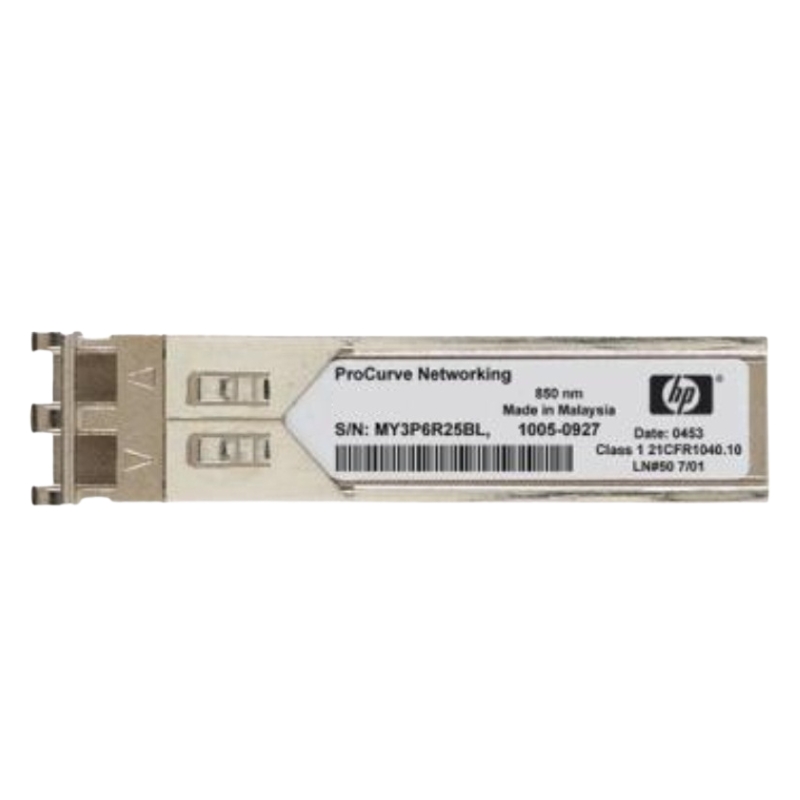

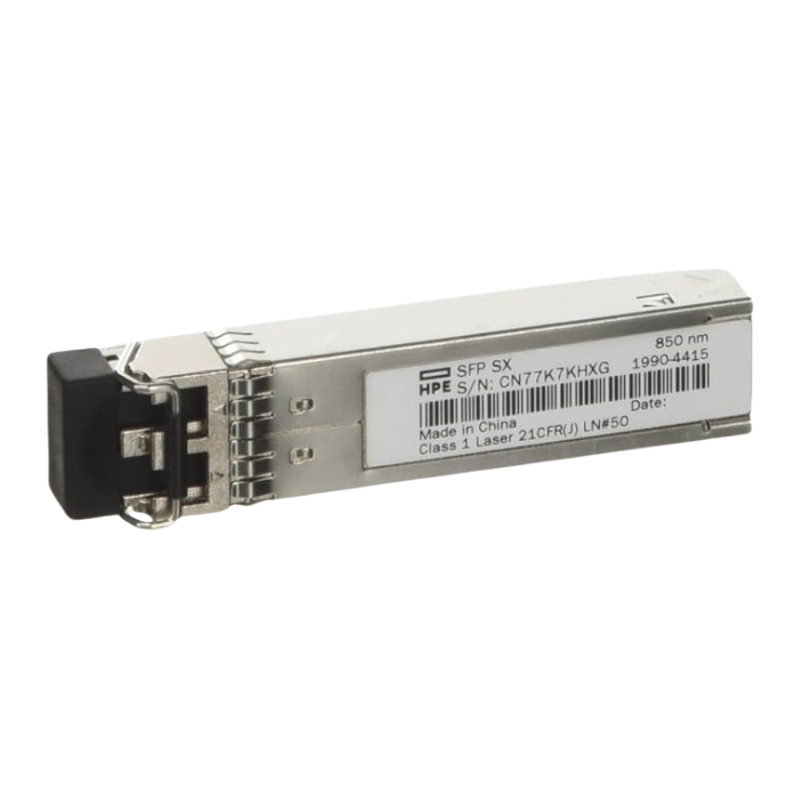

J4859-69301 HPE Procurve Gigabit-Lx-Lc Mini-Gbic Transceiver

Overview of the HPE Transceiver Module

The HPE J4859-69301 Transceiver is a top-notch networking solution that offers outstanding performance and reliability. This Procurve Gigabit-Lx-Lc Mini-Gbic 1000lx Transceiver is specifically designed for servers, making it an essential component for any high-speed network setup. With its advanced features and cutting-edge technology, this transceiver provides users with unparalleled benefits and ensures seamless communication within their network infrastructure.

Manufacturer Information

• Manufacturer: HPE
• Part Number / SKU: J4859-69301
• Device Type: Transceiver Module (GBIC-SFP)

Technical Specifications

• Form Factor: Plug-In Module
• Maximum Data Transfer Rate: 1000 Mbps
• Cabling Type: Ethernet 1000Base-LX
• Data Link Protocol: Gigabit Ethernet
• Status Indicators: Link OK, Link Activity
• Networking Standards: IEEE 802.3z
• Interface Type: SFP (Mini-GBIC)
• Features: Full Duplex Capability

Compatibility

• HPE ProCurve 2510 Series: 2510-24, 2510-48 switches.
• HPE ProCurve 2610 Series: 2610-24, 2610-48 switches.
• HPE ProCurve 2810 Series: 2810-24G, 2810-48G platforms.
• HPE ProCurve 2910al Series: 2910al-24G, 2910al-48G models.
• HPE ProCurve 3500yl Series: 3500yl-24G, 3500yl-48G switches.
• HPE Modular Chassis: 5400zl, 8200zl network systems.
• HPE OfficeConnect Lines: 1410, 1420, 1810, 1820 units.
• HPE OfficeConnect 1900: 1910, 1920, 1950 enterprise switches.
• Aruba OS-Switches: 2530, 2920, 2930F access hardware.
• Slot Requirements: Fits standard 1G SFP hardware interfaces.
• Speed Configuration Note: SFP+ slots must support 1G backward scaling.
• Incompatible Hard-wiring: Fails in fixed 10G-only uplink ports.

The HPE Mini-GBIC Gigabit-LX-LC Transceiver

The J4859-69301 HPE ProCurve Mini-GBIC Gigabit-LX-LC Transceiver is a high-performance optical networking module engineered for enterprise-grade switching environments where long-distance, high-reliability Gigabit Ethernet connectivity is essential. Designed for seamless integration with HPE ProCurve and HPE networking switches, this hot-swappable SFP (Small Form-Factor Pluggable) transceiver delivers robust Gigabit LX fiber connectivity over single-mode optical fiber using LC connectors.

Overview of HPE J4859-69301 Gigabit-LX-LC Transceiver

This transceiver module is part of the widely adopted HPE ProCurve networking ecosystem, enabling scalable, flexible, and cost-efficient fiber uplinks. The Gigabit LX standard supports long-range data transmission, typically up to 10 kilometers over single-mode fiber, making it ideal for campus networks, data center interconnects, and metropolitan area network (MAN) deployments.

Built with enterprise reliability in mind, the J4859-69301 module ensures stable optical signal conversion between electrical Ethernet signals and fiber-optic light pulses. Its LC duplex connector design ensures compact, high-density port usage while maintaining excellent signal integrity and low insertion loss.

Gigabit LX Optical Transmission Technology

The 1000BASE-LX standard used in the J4859-69301 module is designed for long-wavelength optical transmission, typically operating at 1310 nm. This wavelength is optimal for minimizing attenuation over long distances, especially in single-mode fiber environments.

Unlike short-range SX modules that use multimode fiber, LX modules are engineered for campus backbone connectivity and inter-building links. This makes them ideal for enterprise networks requiring reliable, low-latency communication across geographically distributed infrastructure.

LC Connector Design and Fiber Interface Efficiency

The LC duplex connector used in the J4859-69301 transceiver is one of the most widely adopted fiber connector types in modern networking. Its compact size allows higher port density on switches and patch panels while maintaining strong mechanical and optical performance.

The push-pull latch mechanism ensures secure connectivity and easy installation, reducing the risk of accidental disconnections. This design is especially beneficial in dense data center environments where cable management and space optimization are critical.

Compatibility with HPE Networking Devices

The J4859-69301 transceiver is designed for seamless integration with a wide range of HPE ProCurve switches and networking platforms. It ensures plug-and-play compatibility, eliminating complex configuration requirements in most supported devices.

This compatibility allows IT administrators to easily scale network infrastructure by adding fiber uplinks without replacing existing hardware. It is especially useful in hybrid environments where copper and fiber networking coexist.

Performance and Reliability Advantages

In enterprise networking, reliability is as important as speed. The J4859-69301 module is built with strict quality standards to ensure consistent uptime and minimal packet loss.

Its robust optical components reduce signal interference and maintain stable transmission even under high network loads. This ensures uninterrupted communication in mission-critical applications such as cloud computing, virtualization, and real-time data processing.

Scalability and Future Network Expansion

As organizations grow, network scalability becomes critical. The J4859-69301 module allows seamless expansion of fiber links without major infrastructure overhauls. Its standardized SFP interface ensures compatibility with evolving switch architectures and networking standards. This makes it a future-ready investment for enterprises planning long-term digital transformation and infrastructure modernization.

Signal Integrity and Optical Efficiency

Signal integrity is a core strength of the Gigabit LX transceiver. The use of high-quality optical components ensures minimal attenuation and distortion over long fiber runs. The module maintains consistent performance even in electrically noisy environments where copper-based networking solutions may fail. This makes it highly suitable for industrial and mission-critical applications.

Energy Efficiency and Thermal Performance

The J4859-69301 is engineered for low power consumption, reducing operational costs in large-scale deployments. Its efficient thermal design ensures stable performance even in high-density switch environments. Reduced heat output contributes to longer hardware lifespan and improved data center energy efficiency, aligning with modern green IT initiatives.

Network Optimization Benefits

Deploying Gigabit LX LC transceivers helps optimize network architecture by offloading backbone traffic from copper-based systems to fiber. This reduces congestion and improves overall network throughput. It also enables better segmentation of network traffic, enhancing performance, security, and manageability in enterprise environments.

Reliability in Mission-Critical Systems

For organizations operating mission-critical systems, downtime is not acceptable. The J4859-69301 module ensures continuous connectivity with minimal risk of failure. Its robust construction and adherence to industry standards make it a trusted component in high-availability network infrastructures where uptime is essential.
