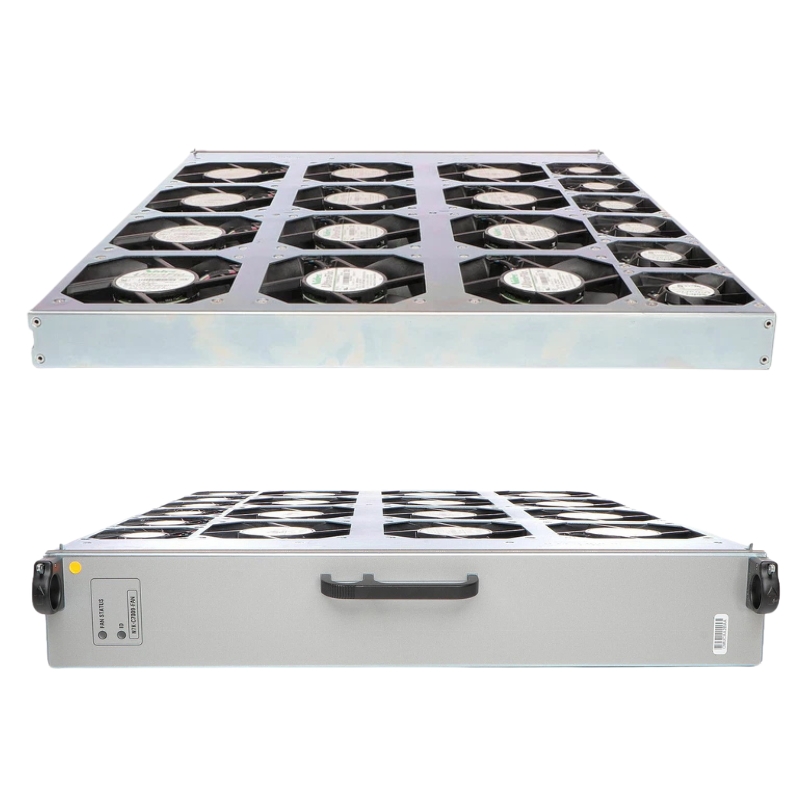

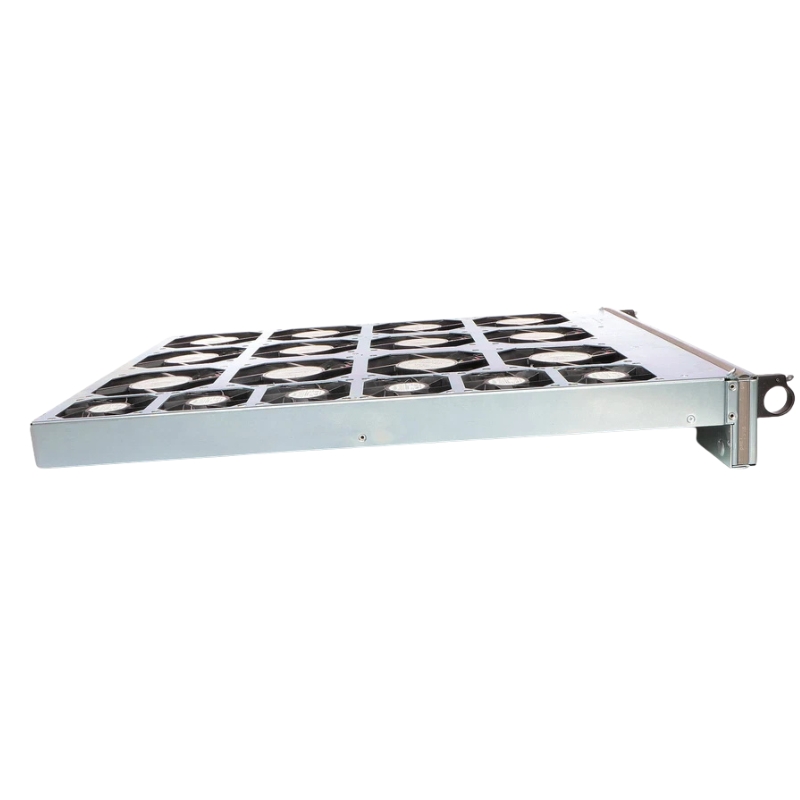

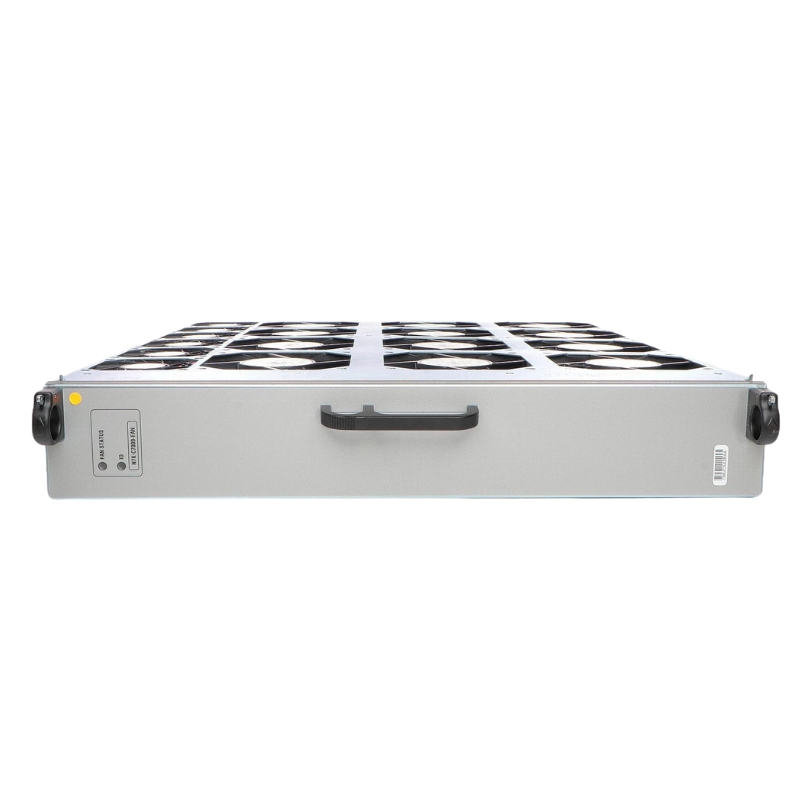

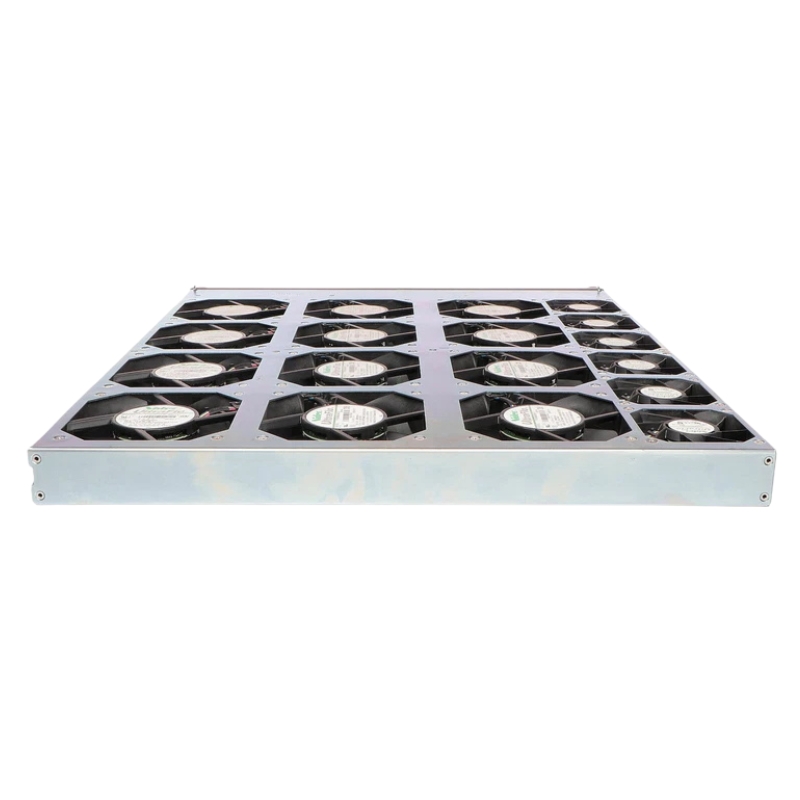

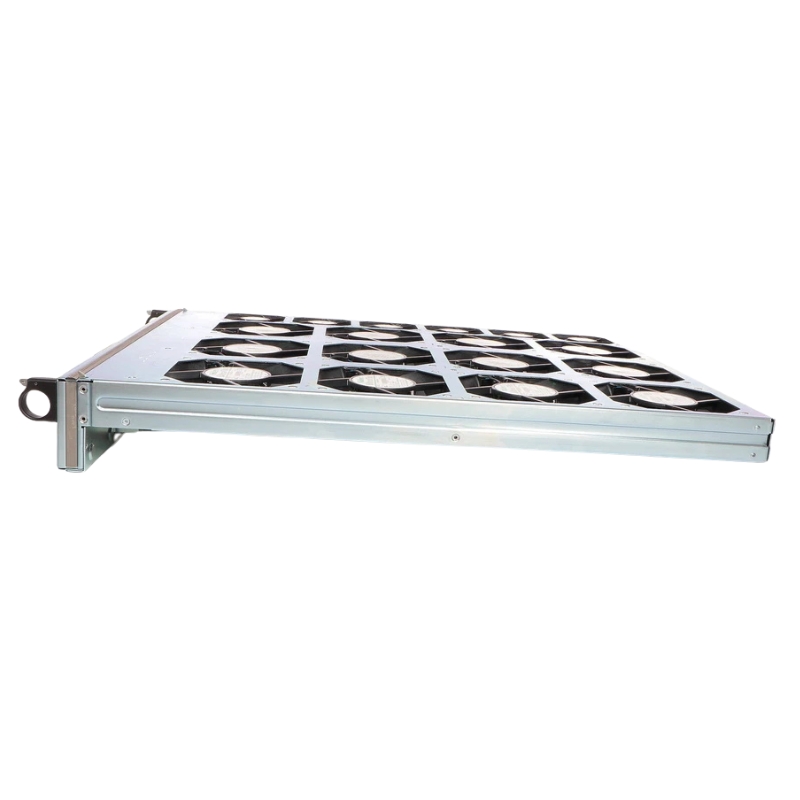

N7K-C7009-FAN Cisco Nexus 7000 9 Slot Fan Tray

Cisco N7K-C7009-FAN Nexus 7000 9-Slot Fan Tray

The N7K-C7009-FAN is a hot-swappable fan tray designed for the Cisco Nexus 7009 chassis. It provides the airflow required to keep internal components at safe operating temperatures, helping ensure reliable system performance. The fan tray supports redundant cooling, allowing the switch to continue operating even if a fan fails, and it can be replaced without powering down the system, reducing maintenance downtime. It is intended specifically for the Cisco Nexus 7009 platform and is an essential component for maintaining proper thermal management and hardware reliability.

General Information

• Manufacturer: Cisco
• Part Number: N7K-C7009-FAN
• Product Type: Hot-swappable Fan Tray

Technical Specifications

• Cooling Method: High-performance Air Cooling
• Airflow: High-volume airflow for enterprise-grade cooling
• Heat Dissipation: Optimized for maximum chassis temperature control
• Operation: Continuous 24×7 functionality
• Installation: Tool-less, hot-swappable replacement
• Reliability: High MTBF
• Noise Level: Enterprise-grade cooling with optimized airflow
• Maintenance: Supports online replacement without powering off the chassis

Construction and Build Quality

• Heavy-duty industrial-grade chassis fan assembly
• Replacement Type: Field Replaceable Unit

Compatibility

Supported Chassis

• Cisco Nexus 7009 9-Slot Chassis
• Cisco Nexus 7000 Series platform using the 7009 chassis

Supported Modules

• Supervisor 1 (SUP1)
• Supervisor 2 (SUP2)
• Supervisor 2E (SUP2E)
• Fabric-2 Modules (FAB2)
• All supported Nexus 7009 I/O Modules

Non-Compatible Models

• Cisco Nexus 7006
• Cisco Nexus 7010
• Cisco Nexus 7018
• Cisco Nexus 7700 Series

Cisco N7K-C7009-FAN Nexus 7000 9 Slot Fan Tray Overview

The Cisco N7K-C7009-FAN Nexus 7000 9 Slot Fan Tray is a critical cooling accessory engineered to maintain optimal airflow and thermal regulation within the Cisco Nexus 7009 chassis. Designed with precision, this fan tray ensures that enterprise-grade networking environments achieve consistent performance, reliability, and longevity. By integrating advanced cooling technology, the fan tray supports high-density deployments and sustains the demanding workloads of modern data centers.

Structural Composition

The Cisco N7K-C7009-FAN is built with durable materials that withstand continuous operation in mission-critical environments. Its modular design allows seamless integration into the Nexus 7009 chassis, ensuring compatibility and ease of installation. The tray is engineered to deliver front-to-back airflow, aligning with industry standards for efficient cooling in rack-mounted systems.

Hot-Swappable Functionality

One of the defining features of the Cisco N7K-C7009-FAN is its hot-swappable capability. This allows administrators to replace or service the fan tray without powering down the chassis, minimizing downtime and maintaining uninterrupted network operations. The Online Insertion and Removal support enhances operational flexibility and reduces maintenance complexity.

Airflow Management

The fan tray provides high-performance airflow designed to regulate temperature across all slots of the Nexus 7009 chassis. Automatic variable-speed fans adjust dynamically based on system temperature, ensuring efficient cooling while optimizing energy consumption. This intelligent control mechanism reduces noise levels and extends the lifespan of the hardware.

Temperature and Humidity Range

The Cisco N7K-C7009-FAN operates within a wide temperature range of 0°C to 40°C, making it suitable for diverse data center environments. It supports humidity levels from 5% to 90% non-condensing, ensuring resilience against environmental fluctuations. Storage conditions extend from -40°C to 70°C, safeguarding the fan tray during transport or inactive periods.

Supported Chassis

The Cisco N7K-C7009-FAN is specifically designed for the Cisco Nexus 7009 chassis, ensuring perfect alignment with the system’s architecture. It is not interchangeable with fan trays from other Nexus models, reinforcing the importance of using the correct accessory for optimal performance.

System Monitoring

Integration with Cisco NX-OS enables real-time monitoring of fan status. Administrators can leverage SNMP and system alarms to track performance, detect anomalies, and respond proactively to cooling issues. This monitoring capability enhances system reliability and ensures compliance with operational standards.

Dimensions and Form Factor

The fan tray measures approximately 61 × 421 × 302 mm, designed to fit seamlessly into the Nexus 7009 chassis. Its compact yet robust form factor ensures efficient space utilization while delivering powerful cooling performance.

Electrical Characteristics

Operating on 12 VDC internal chassis power, the fan tray aligns with the electrical design of the Nexus 7009 system. This ensures stable power delivery and consistent performance under varying workloads.

Reliability and Longevity

With a Mean Time Between Failures exceeding 500,000 hours, the Cisco N7K-C7009-FAN demonstrates exceptional reliability. This longevity reduces replacement frequency and contributes to lower total cost of ownership.

Noise Control

The fan tray is engineered to maintain noise levels within acceptable thresholds, supporting quiet operation in data center environments. Automatic speed adjustments further minimize acoustic impact while sustaining cooling efficiency.

Regulatory Certifications

The Cisco N7K-C7009-FAN complies with RoHS and CE standards, ensuring adherence to environmental and safety regulations. These certifications validate the product’s sustainability and compatibility with global deployment requirements.

Data Center Deployment

In enterprise data centers, the Cisco N7K-C7009-FAN plays a pivotal role in maintaining system stability. Its advanced cooling capabilities support high-availability infrastructures, ensuring that mission-critical applications run seamlessly without thermal interruptions.

High-Density Networking

As organizations scale their networking environments, the fan tray provides the necessary cooling to support high-density configurations. This makes it indispensable for enterprises managing large-scale workloads and complex networking topologies.

Tool-less Installation

The Cisco N7K-C7009-FAN features a tool-less plug-in design, simplifying installation and replacement. Administrators can quickly insert or remove the tray, reducing maintenance time and enhancing operational efficiency.

Hot-Swappable Maintenance

Maintenance procedures are streamlined through hot-swappable functionality. This ensures that cooling systems remain operational during servicing, eliminating downtime and preserving network continuity.

Integration with Cisco NX-OS

Through Cisco NX-OS, administrators gain comprehensive visibility into fan tray performance. Monitoring tools provide alerts for potential issues, enabling proactive management and reducing the risk of system failures.

SNMP Support

SNMP integration allows seamless communication with network management systems. This enhances the ability to track cooling performance, generate reports, and maintain compliance with operational standards.

Support for Expanding Networks

The Cisco N7K-C7009-FAN is designed to support the evolving needs of enterprise networks. As organizations expand their infrastructure, the fan tray ensures that cooling capacity scales accordingly, safeguarding performance and reliability.

Adaptability Changes

With its wide operating range, the fan tray adapts to diverse environmental conditions. This adaptability ensures consistent performance across global deployments, making it a versatile solution for multinational enterprises.
