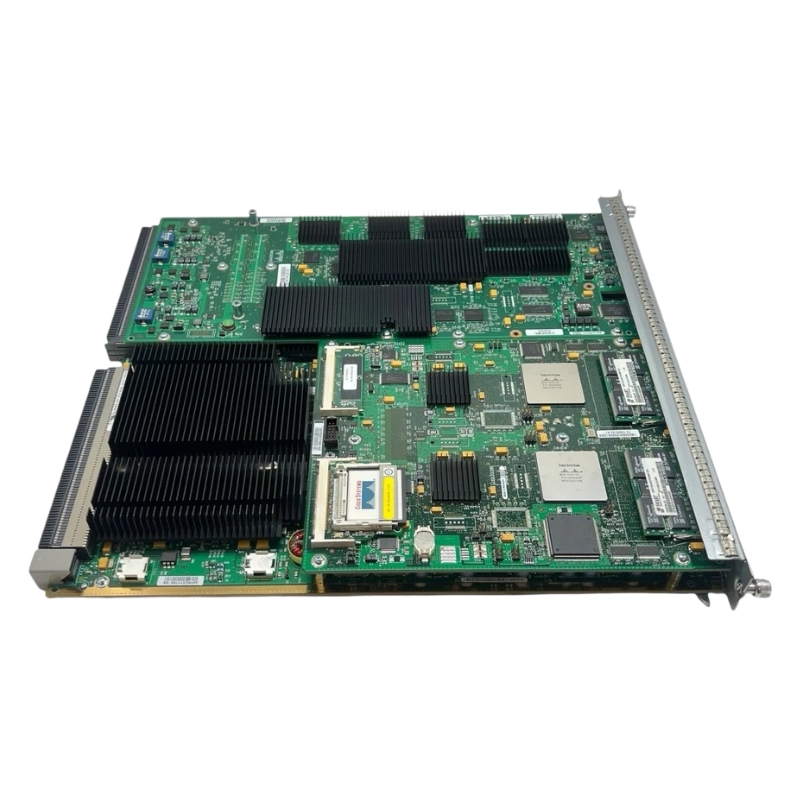

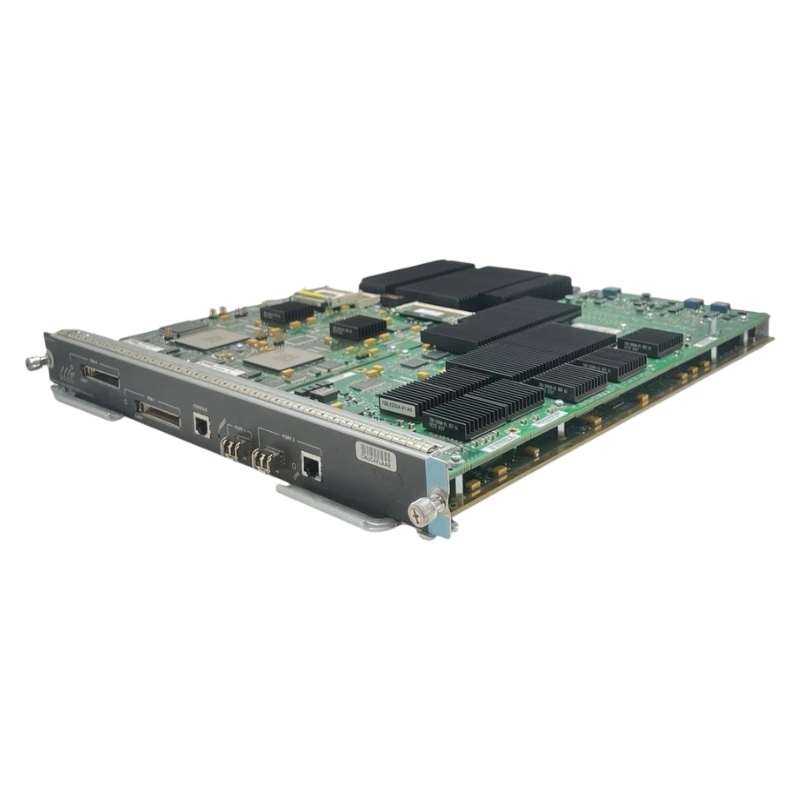

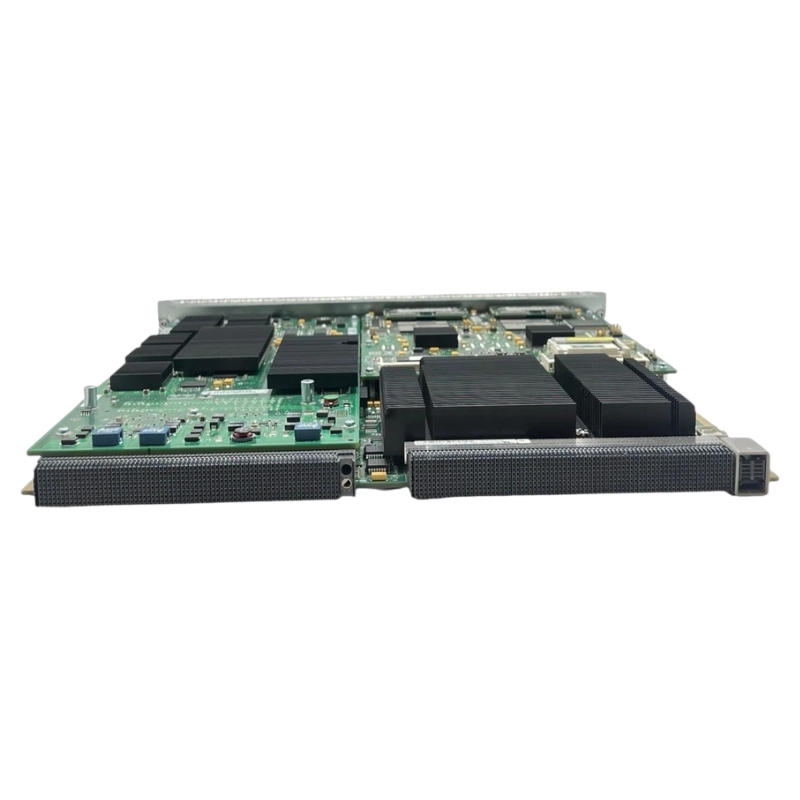

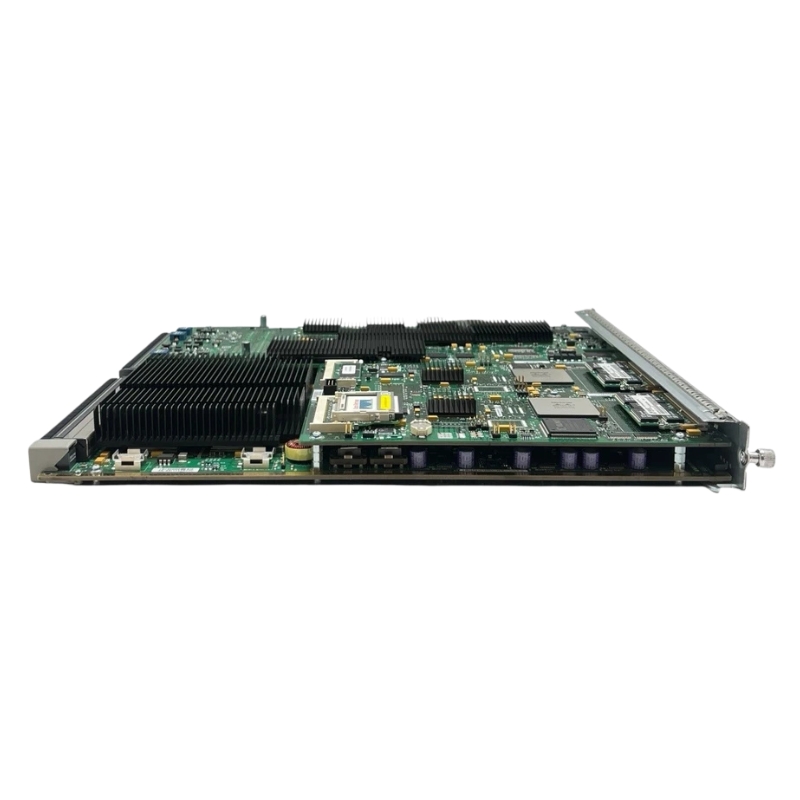

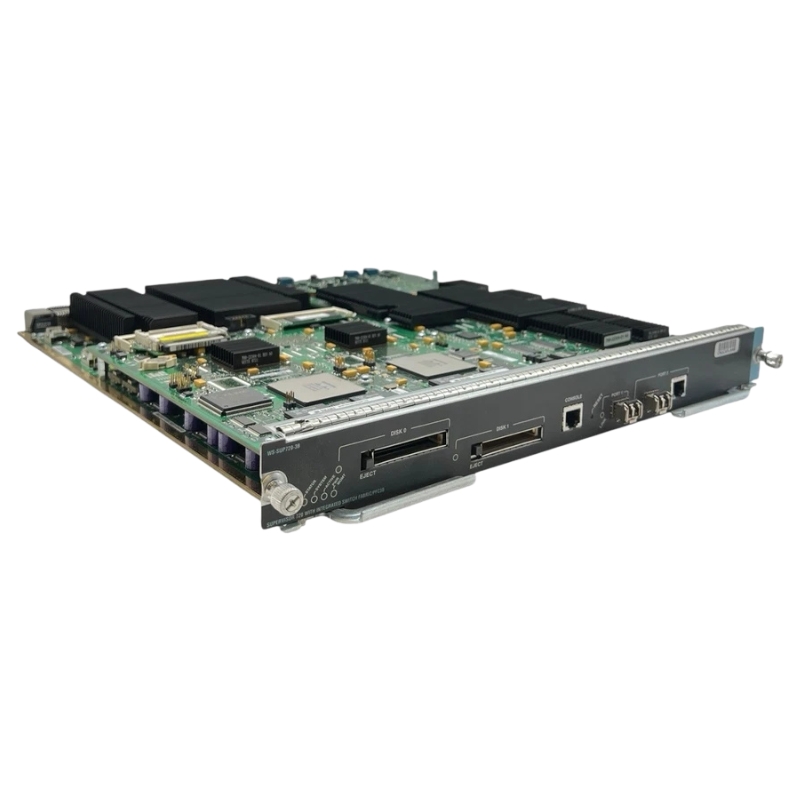

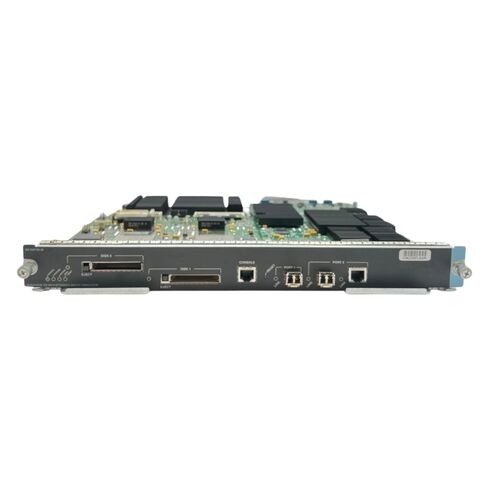

WS-SUP720-3BXL Cisco Engine 720 Fabric Feature Card

Cisco WS-SUP720-3BXL Supervisor Network Module

The Cisco WS-SUP720-3BXL Supervisor Engine 720 is an advanced switching and routing control module designed for enterprise-class Cisco Catalyst 6500 platforms. Engineered with a high-capacity 720-Gbps switch fabric, it delivers exceptional performance, intelligent traffic management, and scalable architecture for modern data networking environments.

Product Information

• Manufacturer: Cisco
• Part Number: WS-SUP720-3BXL
• Product Category: Supervisor Engine

Key Operational Advantages

• High-capacity 720 Gbps integrated switch fabric
• Advanced traffic routing and forwarding acceleration
• Efficient load distribution across network processors
• Enhanced scalability for enterprise infrastructure growth
• Optimized performance for mission-critical workloads

Uplink and Management Ports

• 1 × 10/100/1000Base-T uplink interface
• 1 × RJ-45 10/100/1000Base-T Ethernet uplink
• 1 × RJ-45 RS-232 console management port

Ethernet Standards

• 10 Mbps Ethernet support
• 100 Mbps Fast Ethernet compatibility
• 1 Gbps Gigabit Ethernet capability
• Twisted-pair cabling support for flexible deployment

Switching and Routing Efficiency

• 720 Gbps high-speed switching fabric architecture
• Hardware-based routing and forwarding acceleration
• Optimized packet processing via integrated PFC3BXL
• Enhanced throughput for large-scale enterprise networks

Memory and Processing Resources

• 1 GB DRAM allocated for routing processes
• 1 GB DRAM dedicated to switching operations
• 64 MB Bootflash for route processor (RP)
• 64 MB Bootflash for switch processor (SP)

Modular Architecture Features

• 1 × SFP (mini-GBIC) shared uplink slot
• 2 × CompactFlash storage interfaces
• Support for MSFC3 multilayer switching feature card
• Integrated PFC3BXL policy feature acceleration

Scalability Enhancements

• Flexible modular expansion for enterprise growth
• Support for high-density routing environments
• Upgradeable architecture for long-term deployment

Routing, Switching and Protocol

• Multiprotocol Label Switching (MPLS) support
• Advanced IP routing and switching capabilities
• Integrated VLAN and QoS management systems
• IEEE 802.1Q VLAN tagging support
• IEEE 802.1p Quality of Service prioritization

Security and Access Control

• Port-level security enforcement
• IEEE 802.1X authentication support
• ACLs for VLAN, router, and port-level filtering
• Enhanced enterprise-grade network protection

Administration and Control Systems

• Compatible with CiscoWorks network management platform
• RMON (Remote Monitoring) for traffic analysis
• Advanced diagnostics and performance tracking
• Centralized configuration and monitoring support

Operational Optimization

• Improved visibility into network performance
• Efficient troubleshooting and fault detection
• Streamlined administrative control functions

Enterprise Deployment Advantages

• Designed for large-scale enterprise switching environments
• Ideal for data centers and service provider networks
• Supports high-throughput campus backbone systems
• Reliable operation in mission-critical infrastructures

Key Product Highlights

• 720 Gbps integrated switch fabric performance
• Advanced Supervisor Engine 720 architecture
• Integrated MSFC3 and PFC3BXL processing modules
• Supports MPLS, VLAN, and QoS technologies
• Dual DRAM architecture for routing and switching
• Enterprise-grade Cisco Catalyst 6500 compatibility

Cisco WS-SUP720-3BXL Engine 720 Fabric Feature Card

The Cisco WS-SUP720-3BXL Engine 720 Fabric Feature Card is a high-capacity supervisor engine component designed for integration within the modular switching architecture of the Catalyst 6500 Series platform developed by this advanced engine is engineered to deliver enhanced forwarding performance, expanded routing scalability, and superior policy processing capabilities for enterprise, data center, and service provider network environments. It represents one of the most powerful iterations of the Supervisor Engine 720 family, optimized for high-density traffic aggregation and complex multi-layer network operations.

Role of WS-SUP720-3BXL in Catalyst 6500 Architecture

Within the Catalyst 6500 ecosystem, the WS-SUP720-3BXL functions as both a control plane supervisor and a high-performance fabric feature card. It is responsible for managing system-wide operations including routing protocol computation, hardware forwarding table distribution, and inter-module communication across the chassis backplane. The “3BXL” designation signifies expanded memory and enhanced forwarding capacity, making it suitable for large-scale enterprise deployments with demanding routing and switching requirements.

Integration with Switching Fabric Architecture

The Catalyst 6500 switching fabric is designed as a high-speed interconnect system that allows multiple line cards and supervisor engines to exchange traffic efficiently. The WS-SUP720-3BXL leverages this fabric to deliver deterministic packet forwarding with minimal latency. It ensures that data flows are distributed evenly across available resources, preventing congestion and maintaining consistent performance across all ports and modules.

Distributed Forwarding Model

A key architectural feature of the WS-SUP720-3BXL is its distributed forwarding model. Instead of relying solely on centralized processing, forwarding decisions are replicated across line cards and hardware-based forwarding engines. This model significantly enhances scalability and ensures that packet processing occurs at wire speed regardless of network complexity or traffic volume.

Hardware-Based Packet Processing Acceleration

The module utilizes specialized ASICs to accelerate packet forwarding, routing lookups, and policy enforcement. These hardware engines handle tasks such as access control list evaluation, quality of service classification, and next-hop resolution. By offloading these processes from the CPU, the system achieves higher throughput and improved stability under heavy load conditions.

Enhanced Memory and Forwarding Capacity

The WS-SUP720-3BXL is distinguished by its expanded memory architecture, which supports larger routing tables, more extensive access control lists, and higher numbers of concurrent network flows. This increased capacity makes it particularly suitable for large enterprise networks and service provider environments where routing complexity is significant.

Scalable Forwarding Information Base

The Forwarding Information Base (FIB) within the WS-SUP720-3BXL is optimized for large-scale routing environments. It stores precomputed forwarding decisions that enable rapid packet switching without requiring repeated software lookups. This ensures consistent performance even in networks with tens of thousands of routes.

Optimized Memory Allocation Architecture

The memory architecture of the WS-SUP720-3BXL is designed to dynamically allocate resources between routing tables, adjacency tables, and policy databases. This flexible allocation allows the system to adapt to varying network conditions and workload requirements without performance degradation.

Routing Protocol Processing

The control plane supports a wide range of dynamic routing protocols including OSPF, EIGRP, and BGP. These protocols enable the system to compute optimal paths across complex network topologies and dynamically adjust routing decisions based on network conditions.

High-Performance Switching Fabric Integration

The WS-SUP720-3BXL integrates seamlessly with the Catalyst 6500 switching fabric, enabling high-bandwidth communication between line cards and supervisor engines. This integration ensures that traffic is distributed efficiently and that no single point of congestion impacts overall system performance.

Fabric Throughput Optimization

The switching fabric is optimized to handle large volumes of traffic simultaneously, supporting multiple gigabits per second of aggregate throughput. The WS-SUP720-3BXL contributes to this performance by efficiently managing packet distribution and forwarding decisions across the fabric.

Campus Core and Distribution Layers

In enterprise campus environments, the module is commonly used in core and distribution layer switches where it aggregates traffic from multiple access layer devices. Its ability to handle large routing tables and high traffic volumes ensures efficient internal communication across organizational networks.

Data Center Aggregation Architecture

Within data centers, the WS-SUP720-3BXL plays a key role in aggregating traffic between server clusters, storage systems, and virtualization environments. It ensures low-latency communication between critical infrastructure components and supports high-bandwidth application workloads.

Hardware-Accelerated Access Control

Access control lists are processed directly in hardware, enabling the system to filter traffic efficiently without relying on CPU-intensive software processing. This ensures that security policies are enforced consistently across all interfaces.

Traffic Classification and Filtering

The module supports advanced traffic classification mechanisms that allow administrators to define granular security and quality of service policies. These classifications enable precise control over how different types of traffic are handled within the network.

Operational Efficiency and System Reliability

The WS-SUP720-3BXL is designed for continuous operation in mission-critical environments. Its redundant architecture and hardware-based processing ensure high availability and consistent performance even under extreme network conditions.

Redundant Supervisor Configurations

The module supports dual-supervisor configurations that provide failover capabilities in the event of hardware failure. This redundancy ensures uninterrupted network operation and minimizes downtime in enterprise environments.

Stateful Failover and Session Preservation

Stateful failover mechanisms ensure that active network sessions are preserved during supervisor transitions. This is critical for applications that require uninterrupted connectivity, such as voice, video, and transactional systems.

System Diagnostics and Monitoring

Comprehensive monitoring tools provide real-time visibility into system performance, including CPU utilization, memory usage, and interface statistics. These diagnostics enable proactive network management and troubleshooting.

Scalability and Long-Term Network Evolution

The WS-SUP720-3BXL supports long-term scalability within evolving network infrastructures. Its modular design allows organizations to expand capacity incrementally without replacing existing hardware, ensuring cost-effective growth strategies.

Incremental Infrastructure Expansion

Organizations can expand their network capacity by adding additional line cards and modules while maintaining the same supervisor engine. This modular approach reduces capital expenditure and simplifies network upgrades.

Hybrid Network Integration

The module supports integration with both legacy and modern networking technologies, enabling hybrid environments during infrastructure transitions. This ensures continuity of operations while upgrading network capabilities.

Enterprise Lifecycle Stability

The WS-SUP720-3BXL continues to provide stable and reliable performance in long-term deployments where consistency and predictability are essential. Its proven architecture supports sustained enterprise operations across extended lifecycle periods.
