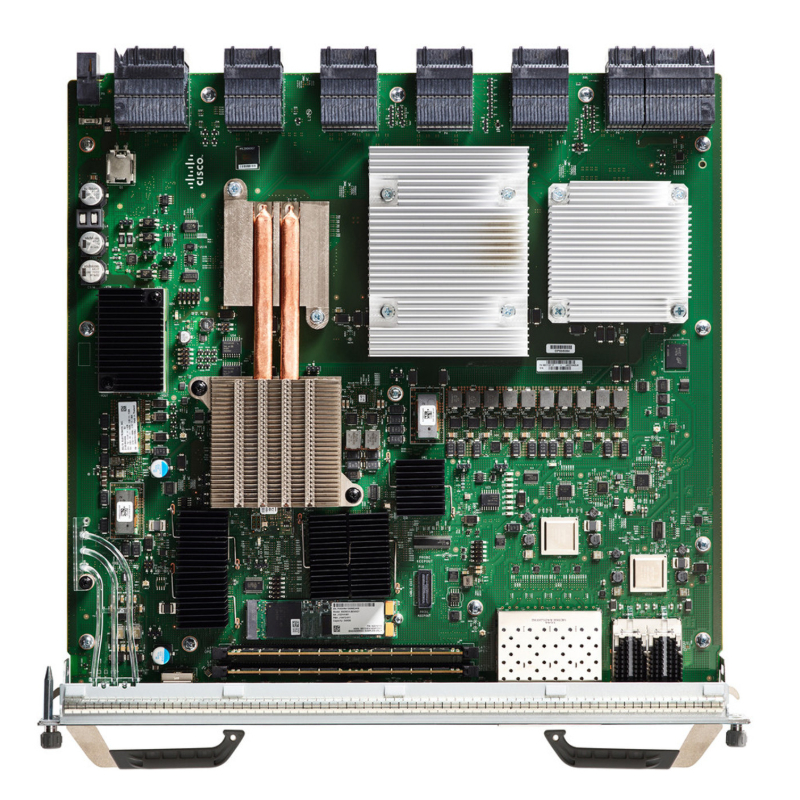

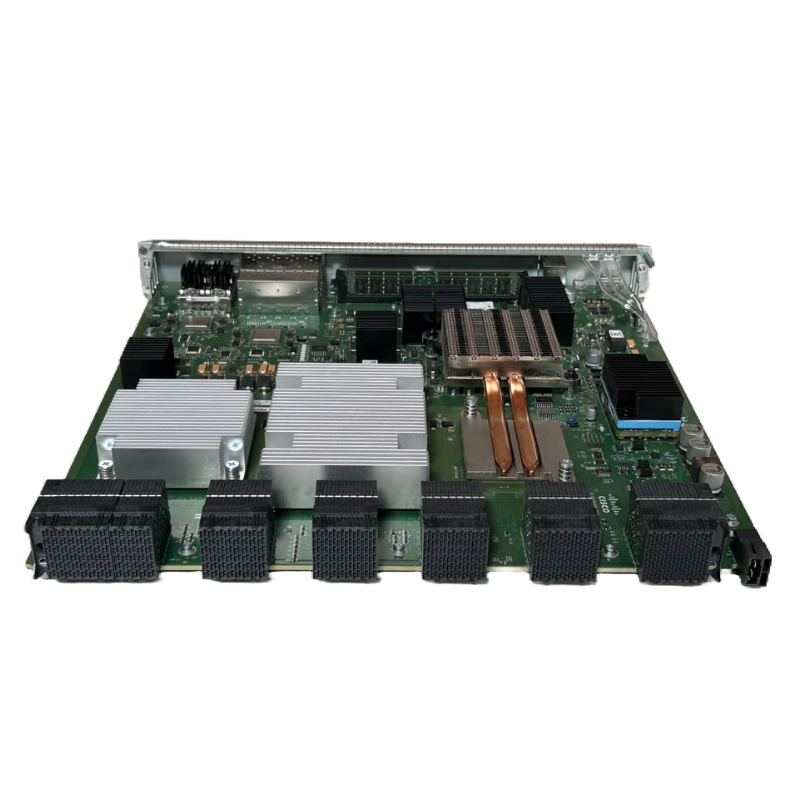

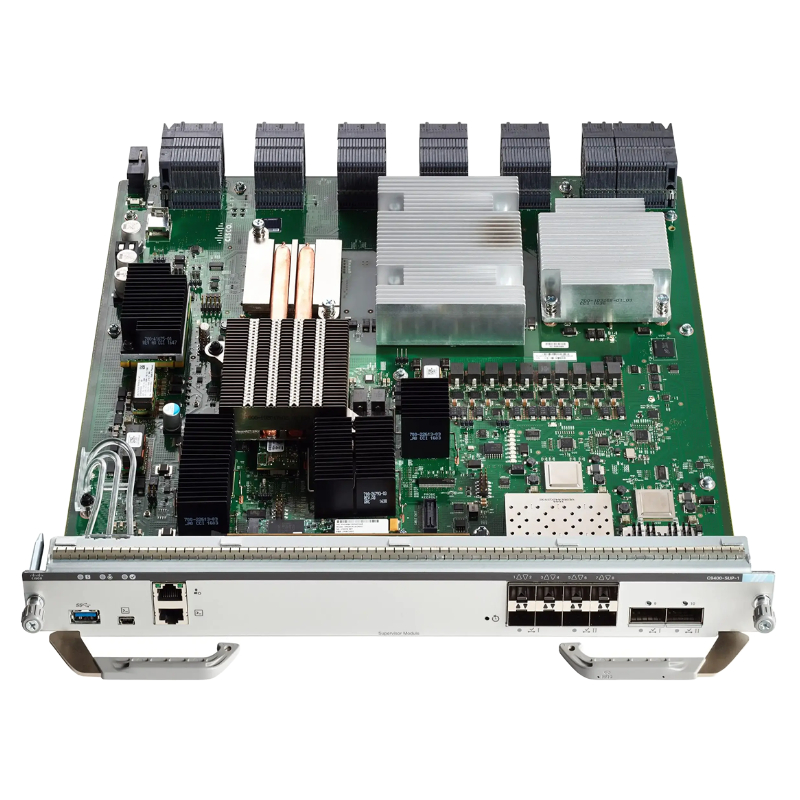

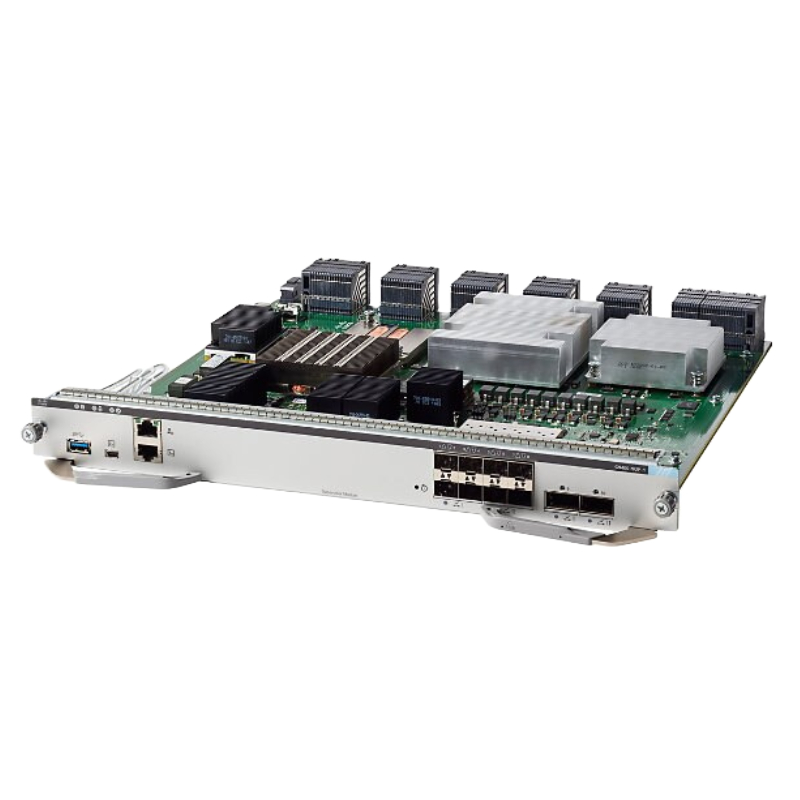

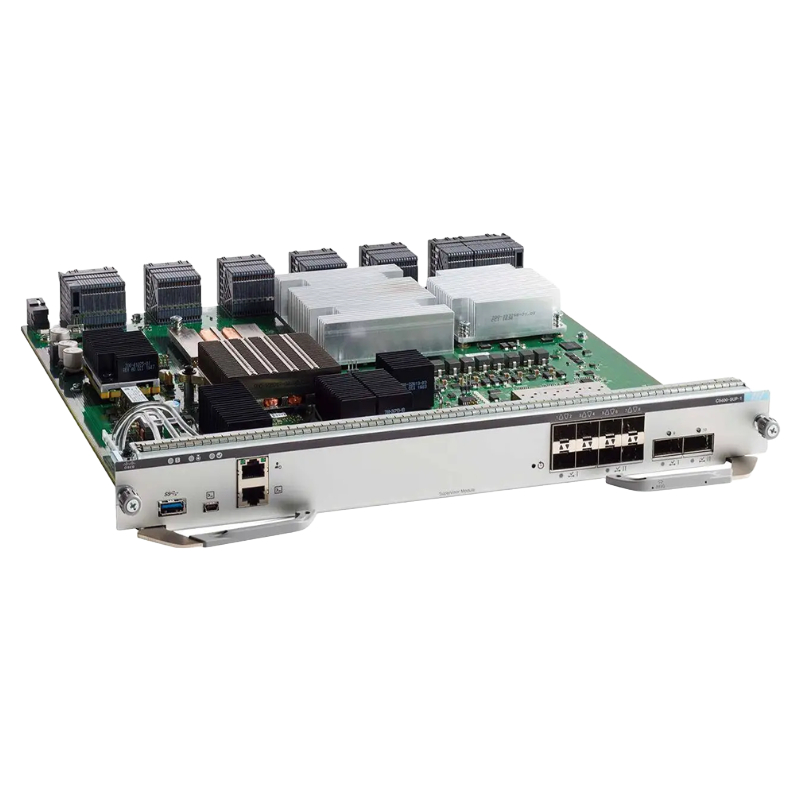

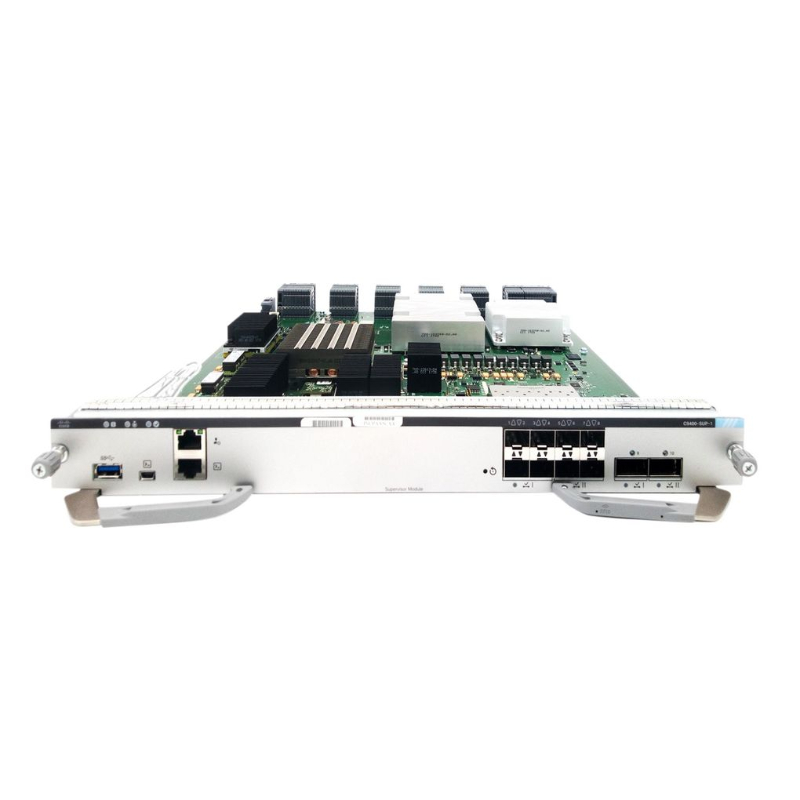

C9400-SUP-1= Cisco Catalyst 9400 1 Module Control Processor

Cisco C9400-SUP-1= Catalyst 9400 Supervisor Module Outline

The Cisco C9400-SUP-1= Supervisor Module is a high-performance control and management engine designed for the Catalyst 9400 Series modular switching platform. It delivers advanced scalability, superior forwarding capacity, and enterprise-grade reliability for modern campus networks, data centers, and large-scale business infrastructures.

General Information and Product Classification

• Brand: Cisco Systems
• Product Line: Catalyst 9400 Series
• Component Type: Supervisor Engine / Control Module
• Part Number: C9400-SUP-1=

Performance and Switching Capabilities

High-Speed System Throughput

• Total System Bandwidth: Up to 1.44 Tbps
• Per-Slot Capacity: 80 Gbps per slot scalability
• Forwarding Rate (IPv4): Up to 900 Mpps
• Forwarding Rate (IPv6): Up to 450 Mpps

Optimized Traffic Handling

• Low-latency switching for real-time applications
• High-density packet forwarding efficiency
• Stable performance under heavy network loads

Memory, Storage, and Hardware Architecture

System Memory Configuration

• DRAM: 16 GB DDR4 memory
• Internal Flash Storage: 10 GB
• Optional Storage: Up to 960 GB SATA SSD support

Application Hosting Capability

• Supports Cisco IOx application environment
• Enables edge computing workloads
• Improves network programmability and automation

Uplink Ports and Connectivity Options

Supported Uplink Configurations

• 8 x 10G SFP+ ports for high-speed Ethernet connectivity
• 2 x 40G QSFP+ ports for aggregated high-throughput links

Scalability Benefits

• Seamless integration with existing enterprise backbone networks
• Supports fiber-based high-speed uplinks
• Improved aggregation for data-intensive environments

Routing, MAC Addressing, and Network Scalability

Large-Scale Routing Support

• MAC Address Table: Up to 64,000 entries
• IPv4 Routes: 112,000 routes supported
• IPv6 Routes: 56,000 routes supported

Enterprise-Grade Scalability

• Supports high-density campus networks
• Efficient routing table management
• Enhanced IPv6 readiness for future expansion

Software Features and Programmability

Advanced Software Capabilities

• Full support for Cisco IOS XE feature set
• REST-based APIs for automation
• NETCONF and YANG data models support
• Full Flexible NetFlow (FNF) for traffic analytics

Automation and DevNet Support

• Enables infrastructure as code (IaC) deployments
• Supports programmable network management
• Integrates with SDN controllers and orchestration tools

High Availability and Redundancy Features

Redundant Supervisor Architecture

• Dual supervisor support for high availability
• Stateful Switchover (SSO) capability
• Nonstop Forwarding (NSF) for uninterrupted traffic flow

Benefits of Redundancy

• Eliminates downtime during hardware failures
• Ensures seamless failover between modules
• Maintains session persistence during switchover

Chassis Compatibility and Deployment Scenarios

Supported Catalyst 9400 Platforms

• C9404R chassis
• C9407R chassis
• C9410R chassis

Deployment Flexibility

• Enterprise campus switching infrastructure
• Data center aggregation switching
• Service provider edge networks

SD-Access and Digital Network Integration

DNA Architecture Integration

• Supports Cisco Digital Network Architecture (DNA)
• Enables intent-based networking policies
• Facilitates automated provisioning and lifecycle management

Network Transformation Benefits

• Simplified network operations
• Enhanced security segmentation
• Improved operational visibility and analytics

Cisco C9400-SUP-1= Catalyst 9400 Series Supervisor Module

The Cisco C9400-SUP-1= Catalyst 9400 Series Supervisor Module is a core intelligence and control component designed for the modular switching architecture of the Cisco Catalyst 9400 Series. This supervisor module plays a critical role in delivering high availability, advanced security, scalable performance, and intelligent network operations for enterprise campus networks. It is engineered to serve as the brain of the Catalyst 9400 chassis, enabling seamless management of switching fabrics, routing decisions, policy enforcement, and system-wide orchestration.

As part of the Catalyst 9400 platform, the C9400-SUP-1= is specifically designed for mission-critical environments that require continuous uptime and robust network reliability. It is widely deployed in enterprise campuses, large organizations, government infrastructures, and data-driven environments where network downtime is not acceptable. The supervisor module ensures that switching operations remain stable and optimized even under heavy traffic loads.

Architectural Role in Catalyst 9400 Series Systems

Centralized Control Plane Functionality

The supervisor module operates as the centralized control plane of the Catalyst 9400 chassis. It is responsible for maintaining routing tables, MAC address tables, and system-level policies. By handling all intelligent decision-making processes, it ensures that forwarding hardware modules can focus exclusively on high-speed packet processing without performance bottlenecks.

Intelligent Traffic Management

Within enterprise network environments, traffic patterns can become highly complex due to cloud integration, virtualization, and distributed applications. The C9400-SUP-1= enables intelligent traffic management by dynamically learning network topology changes and adapting forwarding decisions in real time. This capability is essential for maintaining consistent application performance across multiple network segments.

Adaptive Network Response Mechanisms

Adaptive response mechanisms embedded within the supervisor module allow it to respond to link failures, congestion events, and topology updates instantly. This ensures that traffic is rerouted efficiently without manual intervention, reducing downtime and improving network resilience.

Hardware Integration and System Coordination

The supervisor module integrates deeply with line cards within the Catalyst 9400 chassis. It coordinates communication between modular components, ensuring that data flows efficiently across the switching fabric. This tight integration reduces latency and enhances throughput, particularly in high-density enterprise deployments.

Backplane Communication Efficiency

The backplane architecture supported by the C9400-SUP-1= ensures high-speed communication between modules. This enables consistent data exchange between supervisor and line cards, reducing delays in packet forwarding and improving overall system responsiveness.

Fabric Optimization Techniques

Fabric optimization techniques implemented in the supervisor module help distribute traffic evenly across available resources. This reduces congestion points and ensures that all installed modules operate at maximum efficiency.

Performance Capabilities and Scalability

High-Speed Processing Architecture

The Cisco Catalyst 9400 Supervisor Module is designed with a high-speed processing architecture that supports large-scale enterprise networking requirements. It can handle complex routing protocols, policy enforcement tasks, and security inspection processes simultaneously without degrading performance.

Support for Modern Enterprise Workloads

Modern enterprise networks require support for cloud applications, IoT devices, unified communications, and virtualized workloads. The C9400-SUP-1= is engineered to handle these demands by ensuring stable processing power and efficient resource allocation across all network services.

Multilayer Switching Optimization

Multilayer switching optimization allows the supervisor module to process both Layer 2 and Layer 3 traffic efficiently. This capability reduces latency and improves application responsiveness across enterprise environments where mixed traffic types are common.

Scalability for Growing Networks

Scalability is a key design principle of the Catalyst 9400 Series. The supervisor module supports expansion as network demands grow, making it suitable for organizations undergoing digital transformation or infrastructure scaling.

Modular Expansion Compatibility

The modular architecture allows network administrators to add or upgrade line cards without disrupting system operations. The supervisor module automatically integrates new components into the existing network topology, ensuring continuous service availability.

Future-Ready Infrastructure Design

Future-ready design principles ensure that the supervisor module remains relevant as networking technologies evolve. Its architecture supports emerging standards and protocols, allowing enterprises to extend the lifecycle of their infrastructure investments.

Security and Policy Enforcement Features

Integrated Network Security Controls

Security is a fundamental component of the Cisco C9400-SUP-1= supervisor module. It integrates advanced security controls that help protect enterprise networks from internal and external threats. These controls include authentication mechanisms, access control policies, and traffic inspection capabilities.

Policy-Based Access Management

Policy-based access management allows administrators to define granular rules for network access. The supervisor module enforces these policies consistently across all connected devices, ensuring that only authorized traffic is permitted within the network infrastructure.

Threat Detection and Response Coordination

The module supports coordination with security systems that detect anomalies and suspicious behavior. When threats are identified, it assists in implementing corrective actions such as traffic rerouting or access restriction to minimize risk exposure.

Data Protection and Integrity Assurance

Ensuring data integrity across enterprise networks is critical. The supervisor module includes mechanisms that protect data during transmission and prevent unauthorized modifications. This ensures that sensitive information remains secure as it moves through the network.

Secure Network Segmentation

Network segmentation capabilities help isolate sensitive workloads from general traffic. The supervisor module enforces segmentation policies to reduce the attack surface and improve overall network security posture.

Encrypted Communication Support

Encrypted communication support ensures that data transmitted between network nodes remains protected. This is particularly important in industries such as finance, healthcare, and government where data confidentiality is a priority.

Operational Management and System Intelligence

Advanced Network Monitoring

The C9400-SUP-1= supervisor module provides advanced monitoring capabilities that allow administrators to gain deep visibility into network performance. It collects telemetry data, analyzes traffic behavior, and provides insights into system health.

Real-Time Analytics Processing

Real-time analytics enable proactive decision-making by identifying potential network issues before they escalate. This improves operational efficiency and reduces downtime in enterprise environments.

Predictive Performance Optimization

Predictive optimization capabilities allow the supervisor module to anticipate network congestion and adjust resource allocation accordingly. This ensures consistent performance even during peak usage periods.

Automation and Configuration Management

Automation is a key feature of modern networking, and the supervisor module supports automated configuration management to simplify administrative tasks. This reduces human error and improves deployment efficiency.

Centralized Configuration Control

Centralized control allows administrators to manage multiple network devices from a single interface. The supervisor module ensures that configuration changes are applied consistently across the system.

Zero-Touch Provisioning Support

Zero-touch provisioning enables rapid deployment of new network devices without manual configuration. The supervisor module automatically applies predefined policies and settings to streamline installation processes.

Reliability and High Availability Design

Redundant System Architecture

Reliability is a core strength of the Catalyst 9400 Series. The supervisor module supports redundant configurations that ensure continuous operation even in the event of hardware or software failures.

Failover Mechanisms

Failover mechanisms allow the system to switch to backup components automatically when a primary module experiences issues. This ensures uninterrupted network services and minimizes downtime.

Stateful Synchronization Processes

Stateful synchronization ensures that network states are continuously replicated between active and standby systems. This allows seamless transition during failover events without disrupting active sessions.

System Resilience in Enterprise Environments

Enterprise networks require high levels of resilience to support critical operations. The supervisor module is engineered to withstand heavy workloads, environmental variations, and complex traffic conditions.

Continuous Uptime Optimization

Continuous uptime optimization ensures that system resources are managed effectively to maintain stable operations. This is essential for businesses that rely on uninterrupted connectivity for daily operations.

Self-Healing Network Capabilities

Self-healing capabilities allow the system to automatically detect and resolve certain types of network issues. This reduces the need for manual intervention and improves overall system reliability.

Deployment Scenarios and Enterprise Applications

Large-Scale Campus Networks

The Cisco C9400-SUP-1= is commonly deployed in large-scale campus networks where thousands of devices require reliable connectivity. It ensures that data flows efficiently between departments, buildings, and remote users.

Enterprise Connectivity Optimization

In enterprise environments, connectivity optimization is essential for maintaining productivity. The supervisor module helps manage network traffic to ensure consistent access to business applications.

Multi-Site Network Coordination

Multi-site coordination capabilities allow organizations to connect multiple physical locations under a unified network infrastructure, improving communication and data sharing.

Data-Driven Organizations

Organizations that rely heavily on data analytics and real-time processing benefit significantly from the performance capabilities of the supervisor module. It ensures that large volumes of data can be transmitted and processed efficiently.

Cloud Integration Support

Cloud integration features enable seamless connectivity between on-premises infrastructure and cloud platforms. This hybrid approach supports modern digital transformation strategies.

Application-Centric Networking

Application-centric networking ensures that critical applications receive prioritized network resources, improving performance for business-critical services.
