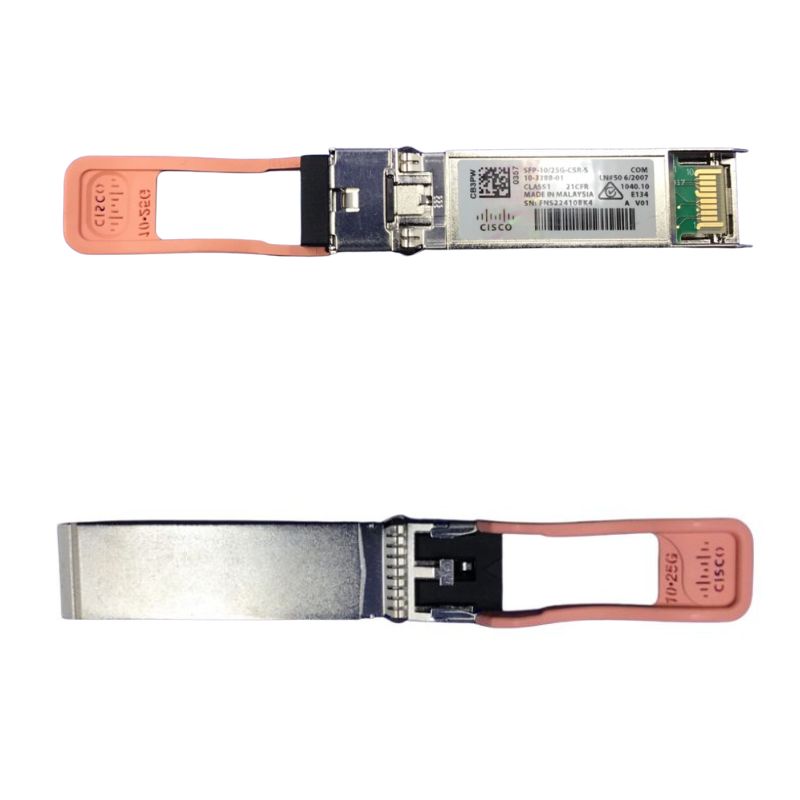

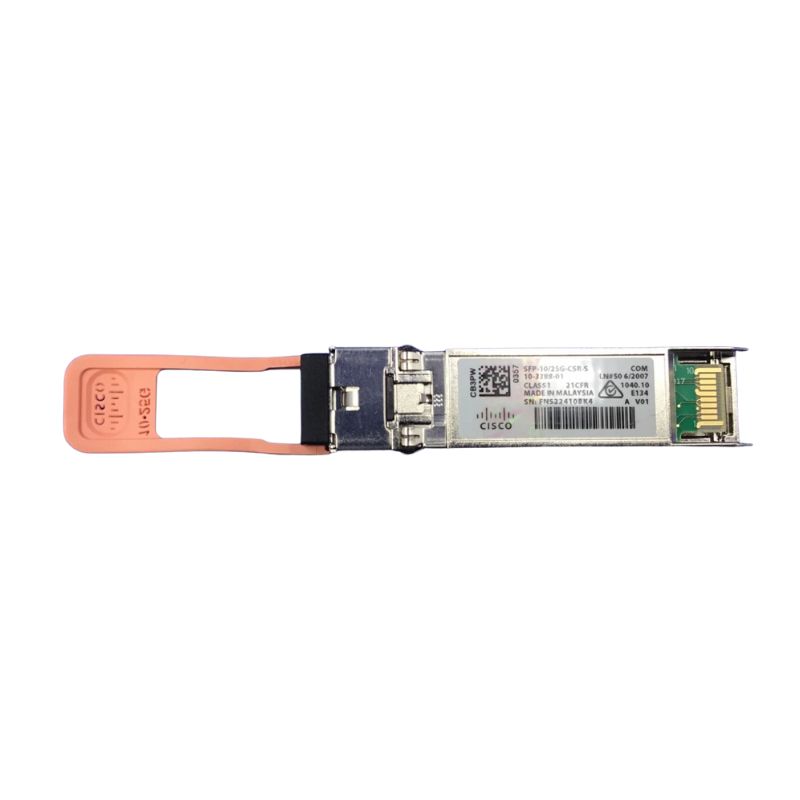

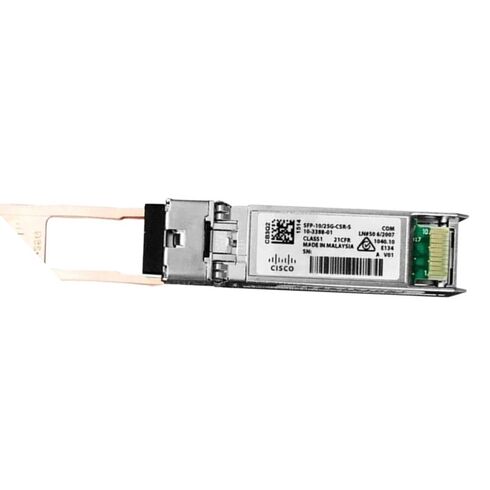

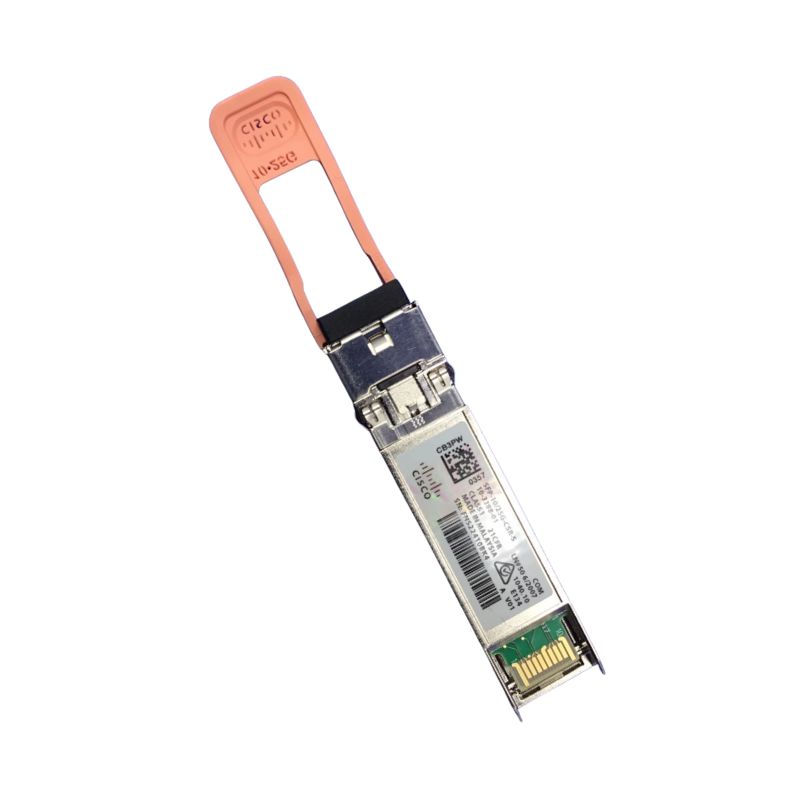

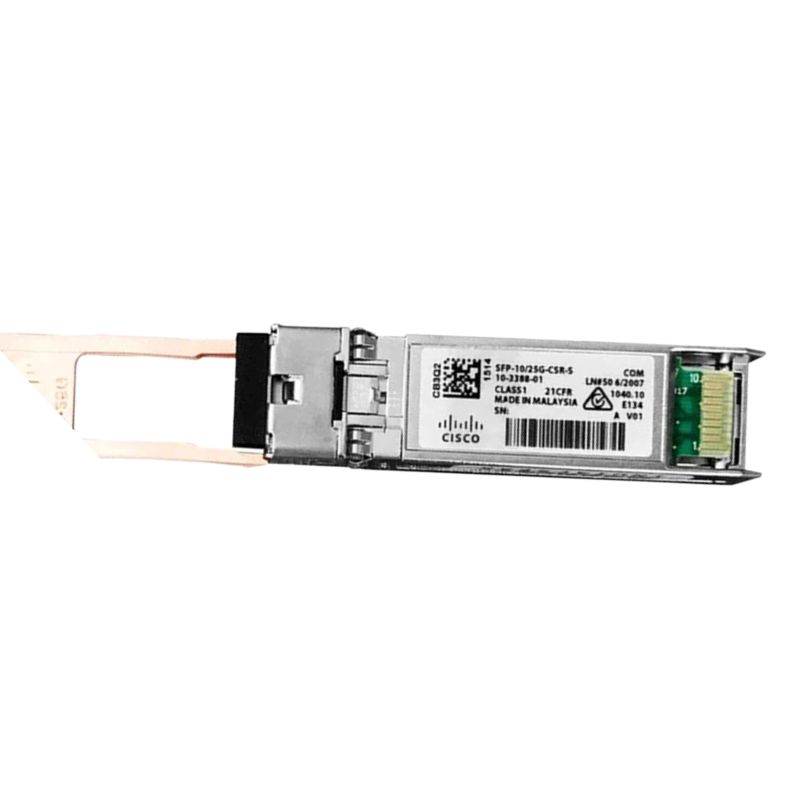

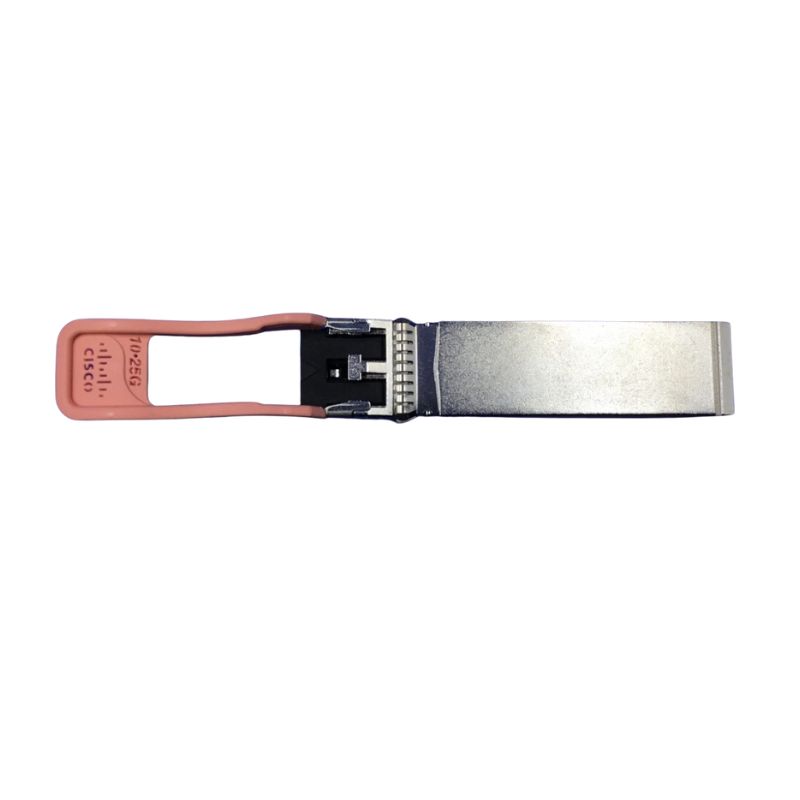

10-3388-01 Cisco LC Multi-Mode 25 GBPS Transceiver

Product Outline of Cisco 10-3388-01 LC Multi-Mode Transceiver

The Cisco 10-3388-01 25Gbps SFP28 transceiver module is a high-performance optical networking solution designed for modern data centers and enterprise-grade communication systems. Engineered for 25 Gigabit Ethernet connectivity, this module supports multi-mode fiber (MMF) transmission up to 400 meters, ensuring stable and efficient high-speed data transfer across short to medium-range optical links.

Manufacturer and Product Information

• Brand: Cisco
• Part Number: 10-3388-01
• Product Type: SFP28 Transceiver Module

Technical Specifications

Core Performance Details

• Data Rate: 25 Gbps
• Ethernet Standard: 25 Gigabit Ethernet
• Network Technology: 25GBASE-CSR
• Module Type: SFP28 Transceiver

Optical Interface and Media Support

• Connector Type: Dual LC/PC Duplex
• Fiber Type: Multi-mode Fiber (MMF)
• Supported Medium: Optical Fiber Cabling
• Reach: Up to 400 meters

Network Applications and Use Cases

Ideal Deployment Environments

• High-speed optical network backbones
• Data center interconnect systems
• Enterprise-grade data communication networks
• Cloud computing infrastructure

Usage Scenarios

• Short-range high-bandwidth data transfer
• Server-to-switch optical connectivity
• Switch-to-switch network expansion

Advantages of Cisco 25GBASE-CSR SFP28 Module

Performance Benefits

• Enhanced network speed and scalability
• Optimized for dense data center environments
• Energy-efficient optical transmission

Summary of Features

• 25Gbps high-speed optical transmission
• Multi-mode fiber compatibility (MMF)
• 25GBASE-CSR network standard support
• 400m reach for enterprise connectivity
• Dual LC/PC duplex connector interface
• Designed for data centers and optical networks

Key Product Highlights

• Supports 25 Gigabit Ethernet standard
• Optimized for high-throughput networking systems
• Low latency optical communication

Reliable Multi-mode Fiber Compatibility

• Compatible with Multi-mode Fiber (MMF)
• Duplex LC connector interface
• Stable transmission over optical fiber infrastructure

Cisco 10-3388-01 25Gbps Multi-mode Fiber Transceiver

The Cisco 10-3388-01 25Gbps 25GBase-CSR Multi-mode Fiber 400m Duplex LC Connector SFP28 Transceiver Module is a high-performance optical networking component designed for modern high-speed data center environments. It operates at 25Gbps data transmission rates and is engineered to support multi-mode fiber infrastructure with a reach of up to 400 meters, making it suitable for short-reach to medium-reach optical interconnects within enterprise and cloud-scale architectures. This SFP28 transceiver is part of Cisco’s advanced optical portfolio that supports scalable bandwidth expansion, low latency communication, and energy-efficient networking for next-generation IT infrastructures.

Understanding 25GBase-CSR Optical Technology

Definition of 25GBase-CSR Standard

The 25GBase-CSR standard refers to a 25 Gigabit Ethernet implementation optimized for short reach communication over multi-mode fiber using enhanced signaling techniques. The Cisco 10-3388-01 SFP28 module is built to comply with this architecture, ensuring reliable and efficient data transmission across high-density switching environments. The CSR designation typically indicates compatibility with structured cabling systems designed for short-range connectivity in enterprise data centers.

Role of SFP28 Interface in 25GbE Networks

The SFP28 form factor is a compact, hot-pluggable interface that supports 25Gbps per lane, representing a significant evolution from SFP+ 10Gbps modules. The Cisco 10-3388-01 leverages this interface to deliver enhanced bandwidth density while maintaining backward compatibility with existing optical infrastructure where applicable. This allows network administrators to upgrade performance without redesigning entire fiber networks.

Bandwidth Scaling Advantages

By transitioning from 10GbE to 25GbE, organizations can achieve a 2.5x increase in bandwidth per port. This scaling is essential for modern workloads such as virtualization, cloud computing, AI training clusters, and high-frequency data processing systems. The Cisco 10-3388-01 plays a critical role in enabling this transformation.

Physical and Optical Design Characteristics

Multi-Mode Fiber Compatibility

This transceiver is designed specifically for multi-mode fiber (MMF) networks, which are commonly deployed within enterprise data centers and campus environments. Multi-mode fiber allows multiple light modes to propagate simultaneously, making it ideal for short-range, high-bandwidth communication. The Cisco 10-3388-01 optimizes signal integrity across OM3 and OM4 fiber types, ensuring minimal attenuation and distortion.

400 Meter Transmission Capability

One of the defining characteristics of the Cisco 10-3388-01 is its ability to support transmission distances up to 400 meters over OM4 fiber. This extended reach enables flexible rack-to-rack and row-to-row connectivity in large-scale data centers. It provides sufficient range for top-of-rack (ToR) to aggregation switch architectures without requiring signal regeneration.

Duplex LC Connector Architecture

The module uses a Duplex LC connector, a widely adopted fiber connector standard known for its compact size and high reliability. The LC interface ensures low insertion loss and precise alignment of optical fibers, which is critical for maintaining signal quality at 25Gbps speeds. The duplex configuration supports simultaneous bidirectional communication, enabling full-duplex data transmission.

Connector Durability and Signal Integrity

The LC connector system used in the Cisco 10-3388-01 is engineered for repeated insertion cycles while maintaining optical performance stability. This durability is essential in dynamic data center environments where hardware is frequently reconfigured or upgraded. Proper alignment ensures minimal reflection and signal degradation.

Architecture of Cisco 10-3388-01 SFP28 Module

Internal Optical Engine Design

The internal architecture of the Cisco 10-3388-01 includes a high-efficiency laser transmitter and a sensitive photodiode receiver. These components work together to convert electrical signals into optical signals and vice versa. The laser system is optimized for 850nm wavelength operation, which is standard for short-range multi-mode fiber communication.

Signal Modulation Techniques

The module employs advanced modulation techniques to ensure accurate signal transmission at 25Gbps. These techniques reduce bit error rates and improve overall transmission reliability, particularly in high-density deployments where electromagnetic interference may be present.

Performance Optimization in Data Center Environments

Low Latency Communication

The Cisco 10-3388-01 is designed to deliver ultra-low latency communication, which is essential for latency-sensitive applications such as financial trading platforms, real-time analytics, and distributed computing systems. The reduced signal processing overhead of SFP28 modules contributes to faster data packet transmission across network nodes.

High-Density Switch Integration

In modern data centers, switch density is a critical factor. The compact SFP28 form factor allows multiple 25Gbps ports to be integrated into a single switch chassis, maximizing bandwidth per rack unit. This supports scalable architectures such as leaf-spine topologies commonly used in hyperscale environments.

Energy Efficiency Considerations

Energy efficiency is a key design goal for Cisco optical modules. The 10-3388-01 consumes significantly less power per gigabit compared to older 10Gbps modules when normalized for bandwidth. This contributes to reduced operational costs and lower cooling requirements in large data centers.

Thermal Management Features

The module incorporates advanced thermal regulation mechanisms to maintain stable operating temperatures under continuous load conditions. Efficient heat dissipation ensures consistent performance even in high-density deployment scenarios.

Deployment Scenarios and Use Cases

Enterprise Data Centers

In enterprise environments, the Cisco 10-3388-01 is commonly used for server-to-switch and switch-to-switch connectivity. Its ability to support 25Gbps throughput makes it ideal for virtualization clusters and storage area networks requiring high-speed data transfer.

Cloud Infrastructure Integration

Cloud service providers rely heavily on high-bandwidth interconnects to support distributed computing workloads. The Cisco 10-3388-01 enables seamless integration into cloud fabric architectures, supporting scalable and redundant network designs.

High-Performance Computing Clusters

High-performance computing (HPC) environments require extremely fast and reliable data exchange between compute nodes. The low latency and high bandwidth capabilities of the Cisco 10-3388-01 make it suitable for HPC clusters used in scientific simulations, AI training, and big data analytics.

Storage Networking Applications

Storage area networks (SANs) benefit significantly from 25Gbps connectivity, particularly when dealing with NVMe over Fabrics (NVMe-oF) implementations. The Cisco 10-3388-01 ensures fast data retrieval and efficient storage synchronization across distributed systems.

Compatibility and Interoperability

Cisco Network Hardware Ecosystem

The Cisco 10-3388-01 is designed to integrate seamlessly with Cisco switches and routers that support SFP28 interfaces. This ensures full compatibility across Cisco’s data center switching platforms, enabling consistent performance and simplified network management.

Multi-Vendor Environment Support

Although optimized for Cisco Systems, the module can operate in multi-vendor environments that support standard SFP28 25GbE interfaces. This flexibility allows enterprises to maintain heterogeneous infrastructure while still benefiting from high-speed connectivity.

Backward Compatibility Considerations

In some network configurations, SFP28 ports may support backward compatibility with SFP+ modules operating at 10Gbps. While the Cisco 10-3388-01 is optimized for 25Gbps operation, understanding compatibility layers is essential for phased upgrade strategies.

Fiber Optic Standards and Compliance

IEEE Ethernet Standards Alignment

The Cisco 10-3388-01 aligns with IEEE 802.3by specifications, which define 25GbE operation over various media types including multi-mode fiber. Compliance with these standards ensures interoperability and predictable performance across network infrastructures.

Industry Certification and Testing

Cisco transceivers undergo rigorous testing for optical performance, environmental durability, and interoperability. These tests ensure that the module performs reliably under real-world conditions, including temperature fluctuations and electromagnetic interference.

Scalability and Future Network Evolution

Transition Toward Higher-Speed Architectures

The Cisco 10-3388-01 plays a transitional role in the evolution toward 100GbE and beyond. By providing 25Gbps connectivity, it bridges the gap between legacy 10GbE systems and next-generation high-speed architectures.

Leaf-Spine Network Architecture Integration

Modern leaf-spine architectures rely heavily on 25GbE links to maintain non-blocking performance across data center fabrics. The Cisco 10-3388-01 is well-suited for deployment within these architectures, ensuring scalable and efficient data flow.

Future-Proof Networking Considerations

Investing in 25GbE infrastructure allows organizations to future-proof their networks while minimizing upgrade disruptions. The Cisco 10-3388-01 supports this strategic transition by offering high bandwidth and reliable optical performance.

Environmental and Operational Efficiency

Power Consumption Optimization

The module is designed to minimize power usage while maintaining high performance. This is particularly important in large-scale deployments where hundreds or thousands of transceivers may be in operation simultaneously.

Data Center Sustainability Impact

Reducing energy consumption contributes to overall sustainability goals in modern data centers. The Cisco 10-3388-01 helps organizations achieve greener IT operations by lowering per-port energy requirements.

Operational Lifecycle Longevity

Built with high-quality components, the transceiver is engineered for long operational lifecycles. This reduces replacement frequency and contributes to lower total cost of ownership over time.
