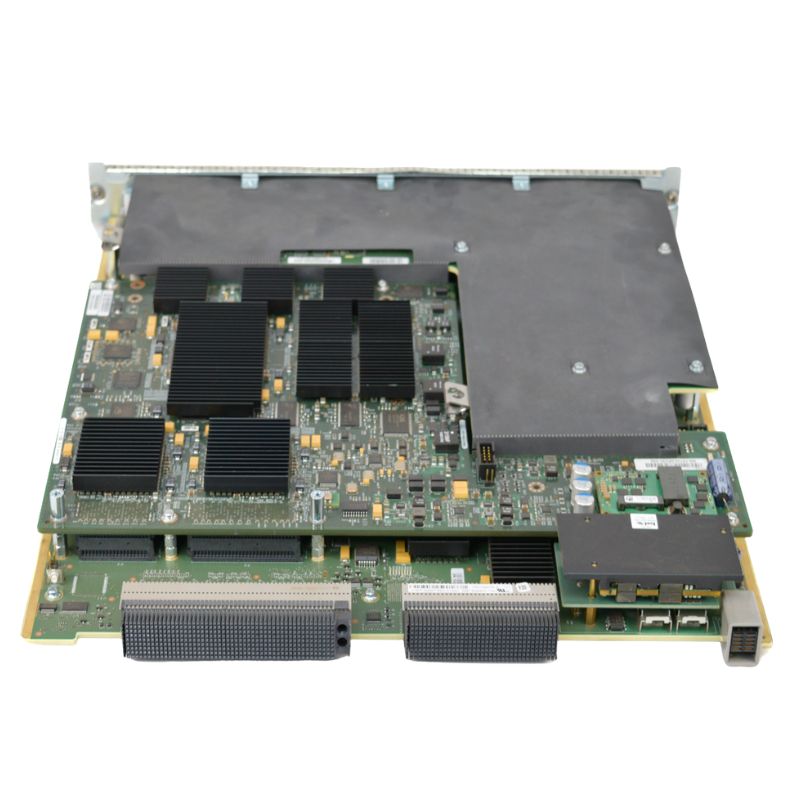

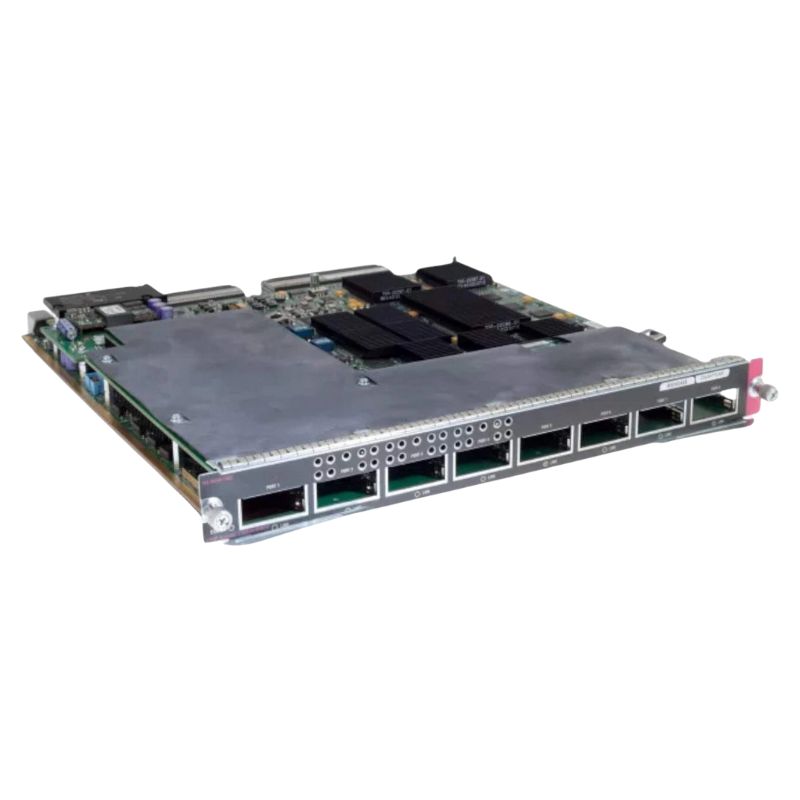

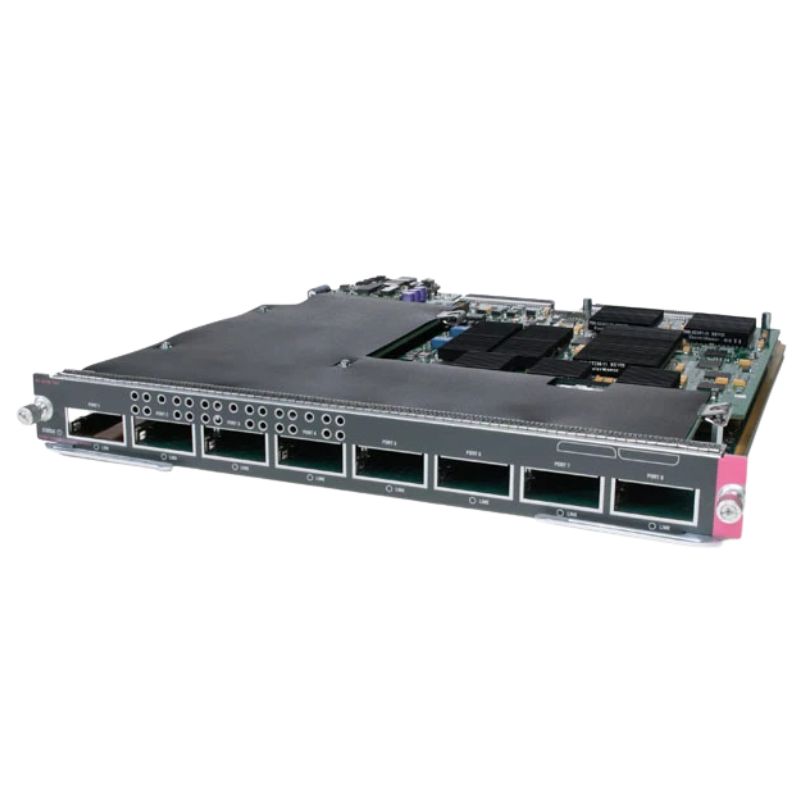

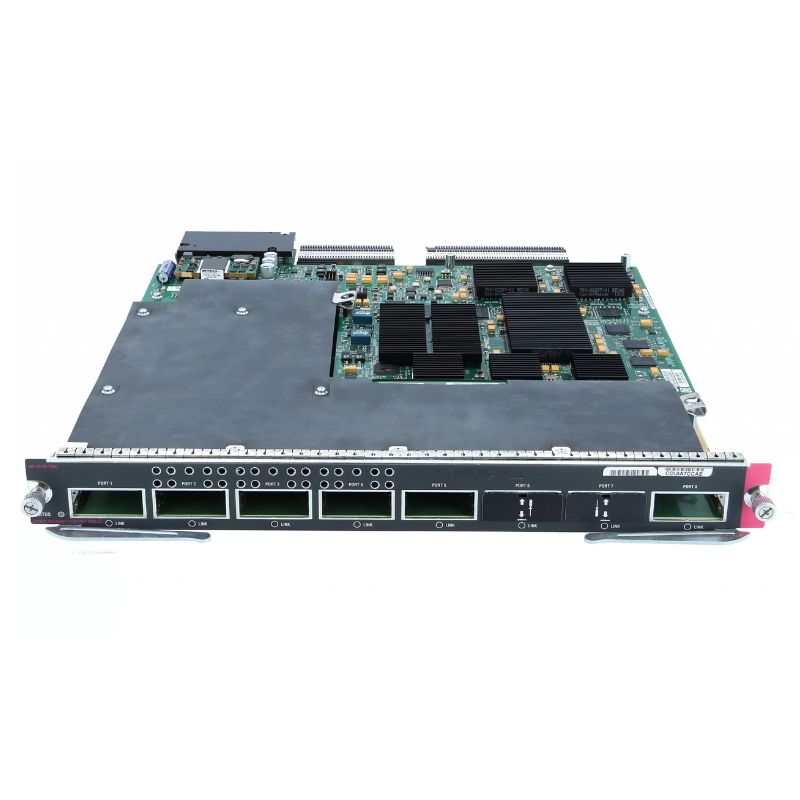

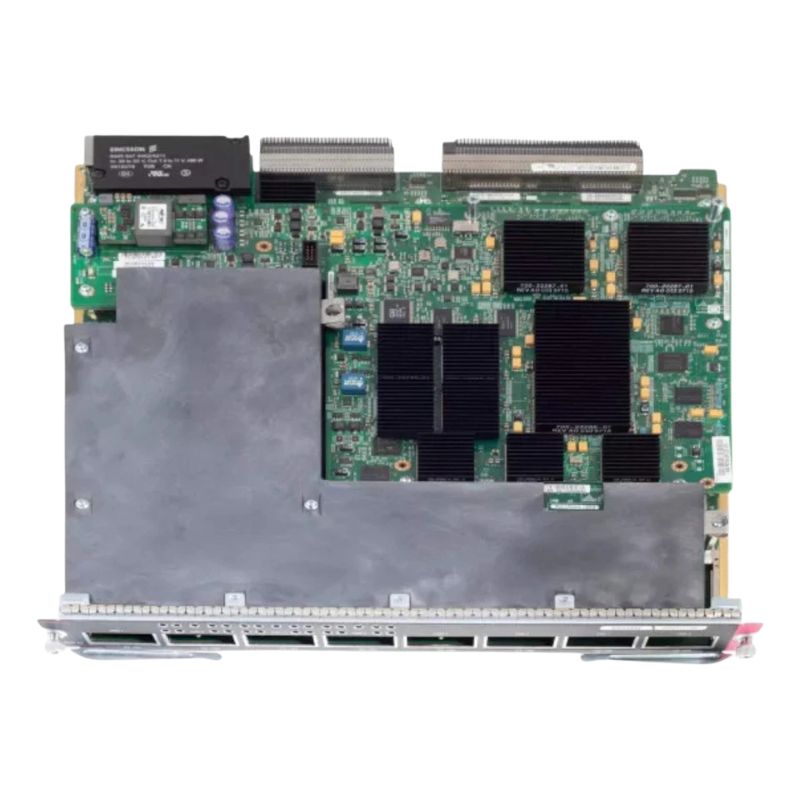

WS-X6708-10G-3CXL Cisco 8 Ports Ethernet Module

Cisco WS-X6708-10G-3CXL Expansion Module Overview

The Cisco WS-X6708-10G-3CXL is a high-performance 8-port 10 Gigabit Ethernet expansion module designed for scalable enterprise switching environments. Built for advanced data center and core network deployments, this module delivers enhanced switching capacity, flexible fiber connectivity, and distributed forwarding intelligence for mission-critical applications.

Product Identification

• Manufacturer: Cisco
• Part Number: WS-X6708-10G-3CXL
• Device Type: Ethernet Expansion Module
• Port Configuration: 8-Port 10 Gigabit Ethernet

Technical Specifications

• Multi-mode optical fiber support
• Single-mode optical fiber compatibility
• 10 Gbps Gigabit Ethernet standard support

High-Speed Data Performance

• Data Rate: Up to 10 Gbps per port
• Switch Fabric Connection: 40 Gbps full duplex
• Aggregate Throughput: Up to 80 Gbps bidirectional performance

I/O Expansion and Architecture

• 8 x X2 transceiver slots available
• Hot-swappable expansion design
• Flexible integration with Cisco Catalyst platforms

Integrated Daughter Card Support

• 1 x DFC3CXL (Distributed Forwarding Card)
• Hardware-accelerated packet processing
• Improved traffic distribution and load balancing

Management and Network Control Features

Supported Management Protocols

• SNMP (Simple Network Management Protocol)
• RMON (Remote Monitoring)
• VLAN configuration support
• SIMON network monitoring integration

Quality of Service and Traffic Handling

• CoS-based queue mapping for traffic prioritization
• Advanced congestion control mechanisms
• Optimized packet scheduling for enterprise workloads

Performance and System Capacity

Routing and Switching Power

• Supports up to 1 million routing entries via DFC3CXL
• Distributed forwarding architecture for high efficiency
• Enhanced packet processing performance

Memory and Buffer Allocation

• Onboard Memory: 1 GB default system memory
• Port Buffer: 200 MB per port allocation
• Optimized memory handling for high-speed traffic loads

Compatibility and Deployment

• Enterprise core network infrastructures
• High-performance data centers
• Cloud aggregation and routing layers
• Large-scale virtualization environments

Operational Advantages

• High-density 10GbE port expansion
• Advanced distributed forwarding capabilities
• Reliable fiber optic compatibility
• Scalable architecture for future network growth

Cisco WS-X6708-10G-3CXL 8-Port Ethernet Module

The Cisco WS-X6708-10G-3CXL 8 Ports Ethernet Module represents a high-performance switching expansion solution engineered for scalable enterprise and data center environments requiring dense 10 Gigabit Ethernet connectivity. Designed for modular chassis-based switching platforms, this advanced line card delivers optimized throughput, low latency packet forwarding, and resilient network integration capabilities for mission-critical workloads. As part of Cisco’s modular switching ecosystem, it extends switching capacity while maintaining operational consistency across large-scale deployments.

Built to support evolving network demands, this 10G Ethernet module enhances core backbone performance, enabling organizations to handle virtualization, cloud computing, unified communications, and high-bandwidth applications with predictable reliability and stability.

High-Density 10 Gigabit Ethernet Switching Capabilities

Port Architecture and Data Throughput Design

The module provides eight high-speed 10 Gigabit Ethernet ports, designed to support aggregated uplinks, server connectivity, and high-capacity backbone interconnections. Each port is optimized for full-duplex transmission, allowing simultaneous send and receive operations without performance degradation. This architecture ensures consistent throughput across demanding traffic patterns commonly found in enterprise core networks and data centers.

The switching fabric integration enables wire-speed forwarding, ensuring minimal latency and high packet processing efficiency. This makes the module ideal for environments requiring deterministic network performance, such as financial systems, virtualization clusters, and large-scale storage networks.

Backplane Integration and Fabric Optimization

The Cisco WS-X6708-10G-3CXL integrates seamlessly with high-capacity switching chassis backplanes, leveraging distributed forwarding architectures to reduce bottlenecks. The module is engineered to maximize fabric bandwidth utilization, enabling efficient packet distribution across multiple switching engines.

Through advanced load balancing mechanisms, traffic is dynamically distributed to maintain stability and optimize performance under variable network conditions. This ensures consistent service quality even during peak utilization periods.

Enterprise-Grade Network Performance and Scalability

High-Speed Data Processing and Low Latency Operation

This Ethernet module is optimized for environments requiring extremely low latency and high throughput. It supports rapid packet switching, enabling efficient handling of both small and large data flows. This is essential for latency-sensitive applications such as real-time analytics, high-frequency trading systems, and cloud-based workloads.

By leveraging hardware-based forwarding, the module reduces CPU dependency and ensures deterministic performance across all active ports.

Scalable Infrastructure for Growing Network Demands

The modular design allows network administrators to expand switching capacity without redesigning existing infrastructure. Additional modules can be added to compatible chassis systems, enabling seamless scalability in response to increasing bandwidth requirements.

This flexibility supports long-term network evolution strategies, reducing capital expenditure while improving operational efficiency in large enterprise deployments.

Advanced Switching Features and Intelligent Traffic Handling

Quality of Service (QoS) Optimization

The module incorporates advanced Quality of Service mechanisms that prioritize critical traffic streams and ensure bandwidth allocation aligns with application requirements. It supports classification, marking, and scheduling of network packets to maintain service integrity for voice, video, and data applications.

QoS policies can be configured to manage congestion, reduce jitter, and ensure consistent application performance across distributed network environments.

Multilayer Switching and Intelligent Routing Integration

The Cisco WS-X6708-10G-3CXL supports multilayer switching functionality, combining Layer 2 and Layer 3 processing capabilities. This enables efficient routing decisions at hardware speed, significantly improving network responsiveness and reducing processing overhead on centralized routing engines.

By integrating advanced routing intelligence, the module enhances inter-VLAN communication and optimizes internal traffic flows within enterprise networks.

Data Center and Enterprise Deployment Scenarios

High-Performance Server Connectivity

This Ethernet module is commonly deployed in data center environments to provide high-speed connectivity between servers, storage systems, and core switching infrastructure. Its 10G interfaces ensure that virtualization clusters and hyper-converged systems operate without network bottlenecks.

It is particularly suitable for blade server architectures, virtualization hosts, and cloud infrastructure platforms that require predictable network performance and low-latency communication paths.

Core and Aggregation Layer Integration

In enterprise campus networks, the module plays a critical role in aggregation and core layers. It consolidates traffic from multiple access switches and ensures efficient routing toward backbone infrastructure. This improves network hierarchy efficiency and simplifies large-scale traffic management.

Hardware Design and Engineering Excellence

High-Performance ASIC-Based Switching

The module utilizes application-specific integrated circuits (ASICs) designed for high-speed packet forwarding and advanced traffic processing. These ASICs enable deterministic performance, reducing reliance on software-based switching mechanisms and ensuring consistent throughput across all operational scenarios.

Thermal Management and Energy Efficiency

Efficient thermal design ensures stable operation under heavy workloads. The module is engineered with optimized airflow channels and heat dissipation structures to maintain performance consistency in high-density chassis environments.

Energy-efficient architecture helps reduce overall power consumption while maintaining high switching performance, making it suitable for sustainable data center deployments.

Network Security and Traffic Protection Capabilities

Integrated Security Mechanisms

The module supports advanced security features designed to protect network integrity and prevent unauthorized access. These include access control mechanisms, traffic filtering, and segmentation capabilities that enhance overall network security posture.

By isolating sensitive traffic flows and enforcing policy-based controls, the module helps organizations maintain compliance and reduce exposure to potential threats.

Segmentation and Isolation Strategies

Network segmentation capabilities allow administrators to divide infrastructure into secure logical zones. This improves traffic control and reduces the risk of lateral movement within enterprise environments.

Such segmentation is particularly useful in multi-tenant environments, where isolated workloads must operate securely on shared infrastructure.

Compatibility and System Integration

Chassis-Based Deployment Support

The Cisco WS-X6708-10G-3CXL is designed for integration with compatible modular Cisco switching chassis platforms. This ensures seamless communication with supervisor engines, power systems, and other installed line cards.

Its standardized architecture allows for straightforward installation and replacement without disrupting existing network configurations.

Interoperability with Network Infrastructure

The module supports interoperability with a wide range of Cisco networking technologies, enabling smooth integration into existing enterprise environments. It works efficiently alongside routing modules, supervisor engines, and other Ethernet line cards.

Virtualization and Cloud Infrastructure Support

Support for Virtualized Network Environments

The Cisco WS-X6708-10G-3CXL is well-suited for virtualized infrastructure where multiple virtual machines require high-speed network connectivity. It ensures consistent performance across virtual switching environments and supports dynamic workload allocation.

This capability is essential for cloud service providers and enterprises adopting software-defined data center architectures.

Cloud Data Center Optimization

In cloud environments, the module enhances east-west traffic flow between servers, improving application responsiveness and reducing latency. This is critical for distributed computing environments and microservices-based architectures.

Performance Optimization in High-Demand Environments

Traffic Load Distribution

The module employs intelligent load distribution techniques to balance network traffic across available ports. This prevents congestion and ensures efficient utilization of available bandwidth resources.

Latency Reduction Techniques

Hardware-based forwarding, optimized buffering strategies, and high-speed switching fabrics contribute to reduced latency, ensuring fast packet delivery across network segments.
