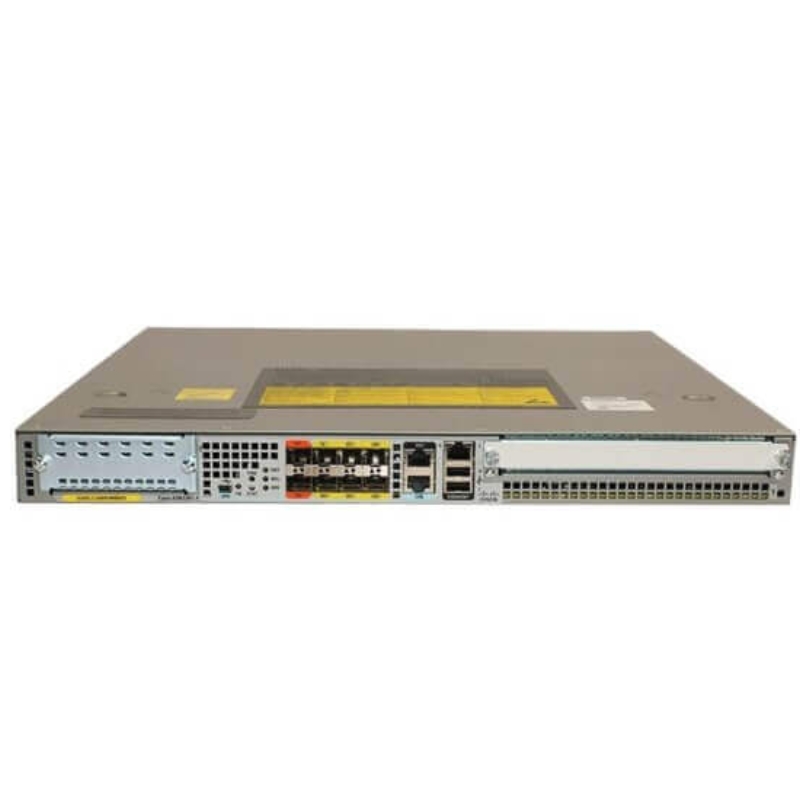

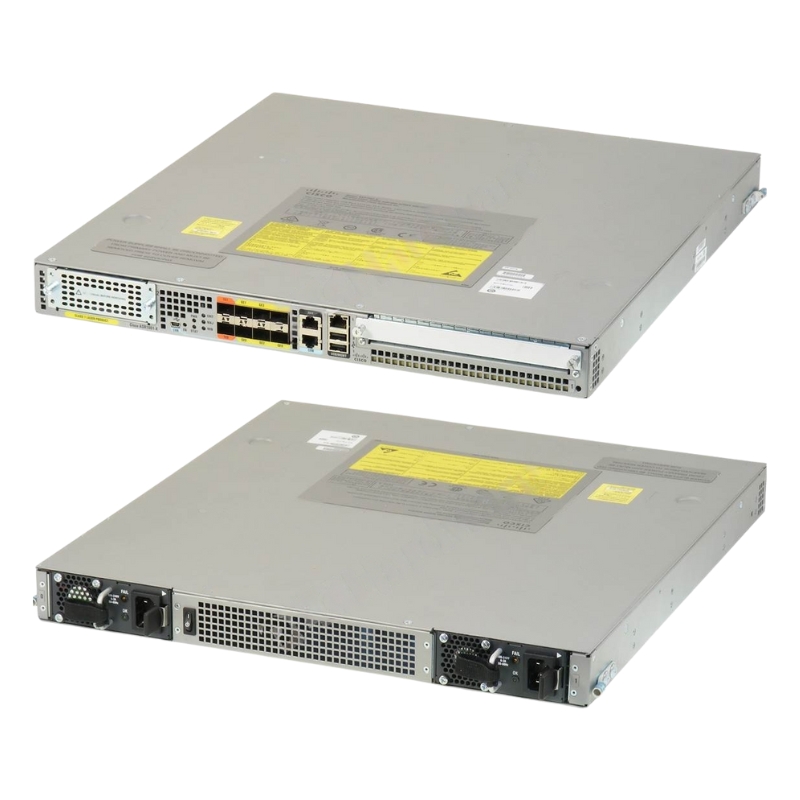

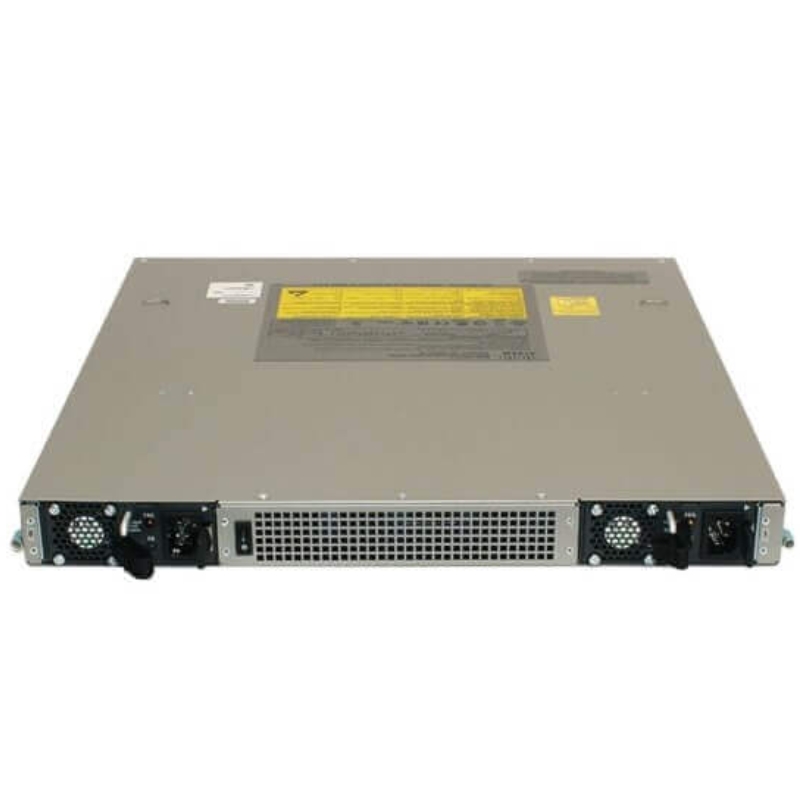

ASR1001X-2.5G-K9 Cisco Rack-Mountable Embedded Services Processor Router

Cisco ASR1001X-2.5G-K9 Services Processor Router Overview

The Cisco ASR1001X-2.5G-K9 router is a high-performance enterprise-grade networking solution designed to deliver scalable throughput, advanced security, and flexible connectivity. Built with a compact 1RU chassis, this routing platform integrates cutting-edge hardware acceleration and software-driven performance upgrades, making it ideal for branch offices, service providers, and data-driven organizations.

General Specifications of Cisco ASR1001X-2.5G-K9

• Brand: Cisco
• Model Number: ASR1001X-2.5G-K9
• Device Category: Enterprise Edge Router

System Throughput and Scalability

• Default throughput: 2.5 Gbps
• Upgradeable performance tiers:
• 5 Gbps
• 10 Gbps
• 20 Gbps

Benefits of Hardware Acceleration

• Enhanced application performance
• Reduced latency for mission-critical traffic
• Optimized bandwidth utilization

System Memory (DRAM)

• Default memory: 8 GB
• Maximum supported memory: 16 GB
• Shared architecture across route processor, ESP, and interface modules

Internal Flash Storage

• Onboard storage: 8 GB eUSB flash memory

Storage Capabilities

• Secure storage for IOS software images
• Configuration file management
• System logs and diagnostics retention

Connectivity and Interface Options

Built-in Network Interfaces

Gigabit Ethernet Ports

• 6 x Gigabit Ethernet SFP ports

10 Gigabit Ethernet Interfaces

• 2 x 10GE SFP+ ports

Important Note

• 10GE ports do not support 1 Gigabit operation

Expansion Capabilities

Modular Slot Options

• 1 x Shared Port Adapter (SPA) slot (half-height)
• 1 x Network Interface Module (NIM) slot

Advantages of Modular Expansion

• Flexible interface upgrades
• Support for additional connectivity modules
• Future-proof network scalability

Dedicated Management Interface

• 1 x RJ-45 10/100/1000 management port

Console Access

• RJ-45 console port
• Mini-USB console port

USB Connectivity

• 2 x USB 2.0 ports for external storage and configuration transfer

High Availability and Reliability

• Stable hardware architecture
• Efficient cooling in compact chassis
• Reliable uptime for critical operations

Enhanced Traffic Management

• Intelligent packet processing
• Application-aware routing
• Quality of Service (QoS) optimization

Cisco ASR1001X-2.5G-K9 Embedded Services 2.5Gbps Router

The Cisco ASR1001X-2.5G-K9 Embedded Services Processor 2.5Gbps Router represents a powerful segment within enterprise-grade networking hardware, designed to deliver high-performance routing, advanced security capabilities, and scalable service integration. This category focuses on compact yet highly capable aggregation services routers engineered to meet the demands of modern enterprise branch offices, service provider edge deployments, and hybrid cloud connectivity environments. Built on the robust architecture of Cisco’s ASR 1000 Series, the ASR1001X platform combines throughput efficiency, service flexibility, and operational simplicity within a single integrated chassis.

Architecture and Embedded Services Processor Design

The architecture of the Cisco ASR1001X-2.5G-K9 router is centered around the Embedded Services Processor, commonly referred to as ESP, which is responsible for handling packet forwarding, traffic management, and advanced service execution. The 2.5Gbps throughput license defines the baseline performance capability, ensuring reliable handling of enterprise traffic loads while maintaining low latency and consistent packet delivery.

Integrated Hardware Acceleration

The embedded processor integrates hardware-based acceleration technologies that offload complex tasks such as encryption, QoS enforcement, and deep packet inspection from the main CPU. This allows the system to maintain high performance even when multiple services are enabled simultaneously. The hardware acceleration ensures that features such as IPsec VPN, firewall policies, and application-aware routing do not degrade throughput.

Control and Data Plane Separation

The router utilizes a separation between the control plane and the data plane, ensuring stability and security. The control plane manages routing protocols and system operations, while the data plane handles packet forwarding. This separation enhances reliability by preventing data traffic surges from impacting routing decisions or system stability.

Scalability Through Software Licensing

The 2.5Gbps throughput can be upgraded through software licensing, allowing organizations to scale performance as their network requirements grow. This flexible licensing model ensures that businesses can protect their initial investment while adapting to increasing bandwidth demands without replacing hardware.

Performance Capabilities and Throughput Optimization

The Cisco ASR1001X-2.5G-K9 router is designed to deliver consistent performance across a wide range of network scenarios. Its throughput capabilities are optimized for enterprise WAN aggregation, internet edge routing, and secure branch connectivity.

Optimized Packet Processing

The router employs advanced packet processing techniques that enable efficient handling of both small and large packets. This ensures optimal performance for applications such as VoIP, video conferencing, and large data transfers. The system dynamically adjusts processing resources based on traffic patterns, maintaining consistent performance under varying loads.

Latency Reduction Mechanisms

Low latency is critical for real-time applications, and the ASR1001X incorporates mechanisms to minimize processing delays. These include fast-path forwarding, intelligent queue management, and priority-based traffic handling, all of which contribute to a smooth user experience.

High Availability and Redundancy

High availability features such as redundant power supplies and failover capabilities ensure continuous operation in mission-critical environments. The router supports graceful restart and nonstop forwarding, minimizing downtime during maintenance or unexpected failures.

Advanced Security Integration

Security is a core component of the Cisco ASR1001X-2.5G-K9 category, with built-in capabilities designed to protect network infrastructure from a wide range of threats. The router integrates multiple layers of security directly into the platform, eliminating the need for additional appliances.

Integrated VPN Services

The router supports secure connectivity through IPsec VPNs, enabling encrypted communication between branch offices, data centers, and cloud environments. The hardware-accelerated encryption ensures that security does not compromise performance.

Zone-Based Firewall Capabilities

The built-in firewall provides granular control over traffic flows using zone-based policies. Administrators can define security zones and enforce rules that regulate communication between them, enhancing overall network protection.

Threat Detection and Mitigation

Advanced threat detection mechanisms identify suspicious traffic patterns and potential attacks in real time. The router can automatically apply mitigation strategies, reducing the risk of network compromise.

Secure Segmentation

Network segmentation capabilities allow organizations to isolate sensitive data and applications, reducing the attack surface. This is particularly important in environments with strict compliance requirements.

Application Visibility and Traffic Management

The Cisco ASR1001X-2.5G-K9 router includes advanced application visibility and control features that enable organizations to monitor and manage network traffic effectively. These capabilities provide insights into application usage and performance, allowing for better resource allocation.

Deep Packet Inspection

Deep packet inspection technology enables the router to analyze traffic at the application level, identifying specific applications and protocols. This allows administrators to prioritize critical applications and limit non-essential traffic.

Quality of Service (QoS)

QoS features ensure that high-priority traffic such as voice and video receives the necessary bandwidth and low latency. The router supports multiple QoS policies, enabling fine-grained control over traffic prioritization.

Bandwidth Optimization

Bandwidth optimization techniques such as traffic shaping and policing help prevent congestion and ensure efficient use of available resources. These features are essential for maintaining performance in high-demand environments.

Cloud Connectivity and Hybrid Networking

Modern enterprises require seamless connectivity to cloud services, and the Cisco ASR1001X-2.5G-K9 router is designed to support hybrid networking environments. It provides secure and reliable connections to public and private cloud platforms.

Direct Cloud Integration

The router supports direct connectivity to cloud providers, enabling low-latency access to cloud-based applications and services. This improves performance and reduces dependency on traditional internet-based connections.

SD-WAN Compatibility

Software-defined WAN capabilities allow organizations to optimize traffic routing across multiple connections, including MPLS, broadband, and LTE. This enhances reliability and reduces costs.

Secure Cloud Access

Integrated security features ensure that cloud connections are protected against unauthorized access and data breaches. This is critical for maintaining data integrity and compliance.

Deployment Flexibility and Use Cases

The Cisco ASR1001X-2.5G-K9 router is suitable for a wide range of deployment scenarios, making it a versatile choice for various industries and network environments.

Enterprise Branch Offices

In branch office deployments, the router provides secure connectivity to headquarters and cloud services. Its compact form factor and integrated services make it an ideal solution for space-constrained environments.

Service Provider Edge

Service providers can use the ASR1001X as an edge router to deliver high-speed internet and managed services to customers. Its scalability and performance make it suitable for handling diverse traffic types.

Data Center Interconnect

The router can be used to connect data centers, ensuring high-speed and secure communication between locations. This is essential for disaster recovery and load balancing.

Remote Workforce Enablement

With the rise of remote work, the router supports secure remote access, enabling employees to connect to corporate resources from anywhere. This enhances productivity and flexibility.

Energy Efficiency and Hardware Optimization

The Cisco ASR1001X-2.5G-K9 router is designed with energy efficiency in mind, reducing operational costs while maintaining high performance.

Efficient Power Consumption

The router uses advanced power management technologies to optimize energy usage. This is particularly important for large-scale deployments where power consumption can significantly impact costs.

Compact Form Factor

The compact design allows for easy installation in various environments, including racks with limited space. Despite its size, the router delivers enterprise-grade performance.

Thermal Management

Effective thermal management ensures that the router operates within safe temperature ranges, enhancing reliability and extending hardware lifespan.
