C-NIM-8M Cisco Network Interface Module 8M

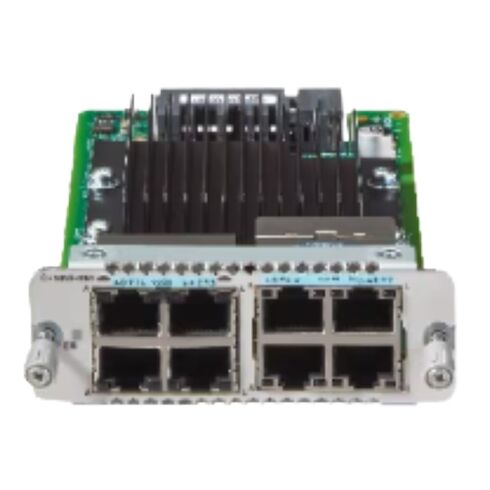

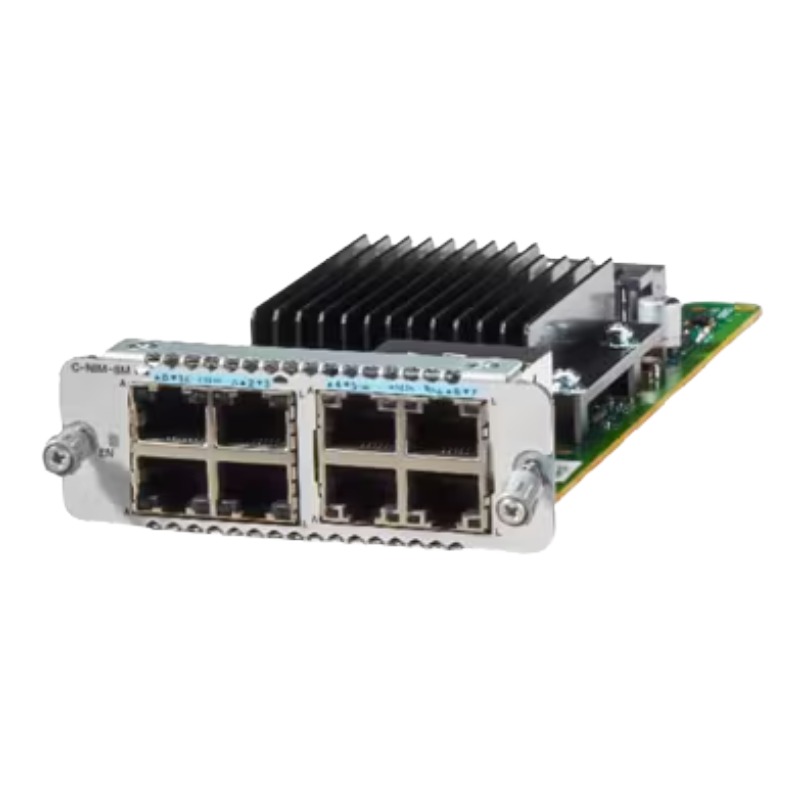

Cisco C-NIM-8M Interface Module

The Cisco C-NIM-8M plug-in module elevates network versatility with multi-speed support across 100M, 1G and 2.5G Ethernet. Designed for demanding data environments, it integrates Power over Ethernet (PoE) and IEEE 802.1AE MACsec encryption to ensure both performance and security within modern infrastructures.

Key Attributes and Core Specifications

• Brand: Cisco
• SKU / Part Number: C-NIM-8M
• Product Category: Interface / Network Expansion Module
• Series: Cisco Catalyst
• Model Name: 8-Port 100M/1G/2.5G LAN/WAN NIM with PoE & MACsec

Optimized for Professional Data Networking

Engineered for fast-paced network environments, this module offers reliable integration for enterprise-grade routing platforms. Whether used for branch connectivity, hybrid networks or multi-gigabit expansions, it delivers stable throughput and robust encryption.

Ideal Use Cases

• Corporate and enterprise-level networking
• Expanding LAN/WAN capacity with secure transmission
• High-bandwidth data applications relying on 2.5GBASE-T technology

Interface Architecture and Connectivity Options

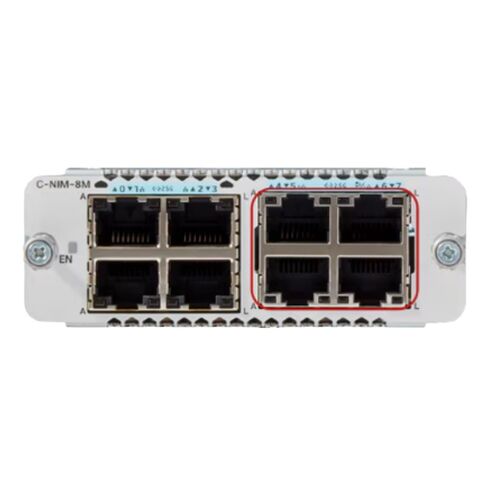

The Cisco C-NIM-8M provides eight fully functional multi-gig Ethernet ports built with RJ-45 connectors, enabling seamless copper-based network deployments. Its design focuses on performance, scalability and compatibility, delivering flexibility for evolving IT environments.

Port Configuration Highlights

• 8 × RJ-45 2.5GBASE-T LAN interfaces
• Twisted-pair media support for simplified installation
• Consistent port-level throughput for high-speed links

Multi-Gigabit Operational Standards

Supporting 2.5 Gigabit Ethernet, the module sustains data transfer speeds up to 2.50 Gbit/s, allowing organizations to easily transition from standard gigabit to multi-gig performance without rewiring.

Network Performance and Data Handling

Built to deliver stable multi-gigabit connectivity, this network interface module meets diverse performance demands across modern infrastructures. Its twisted-pair support simplifies deployments while maintaining signal clarity and reliability.

Performance Advantages

• 2.5GBASE-T network technology for enhanced bandwidth
• High-speed data transfer rate reaching 2.50 Gbit/s
• Secure communication enabled by IEEE 802.1AE MACsec
• PoE integration for powering compatible devices directly

Robust Media Support

The module works seamlessly with standard twisted-pair cabling, making it ideal for retrofitting or expanding existing network infrastructures without extensive upgrades.

Compatibility Across Cisco Catalyst Platforms

The C-NIM-8M is purpose-built for Cisco Catalyst 8000 Edge Platforms, ensuring smooth installation and optimized operation within enterprise and service provider ecosystems. Its forward-thinking design provides flexible scalability for future growth.

Supported Devices

• Cisco Catalyst 8000 Edge Platforms Family

Reliable Integration

When paired with compatible Catalyst systems, the module boosts overall throughput, strengthens encryption capabilities and broadens LAN/WAN expansion options for evolving business needs.

Cisco C-NIM-8M Overview — 2.5GBASE-T Performance for Modern Edge Networks

The Cisco C-NIM-8M 8 Ports 100m/1g/2.5g LAN/WAN NIM with PoE and IEEE 802.1AE MACsec is a plug-in module engineered to bring multi-gigabit copper connectivity to Cisco routers and modular switches. Designed for high-density enterprise edge environments, branch offices, and service provider aggregation points, this 2.5 Gigabit Ethernet 2.5GBASE-T RJ-45 module delivers a practical step up from traditional Gigabit Ethernet without requiring expensive fiber upgrades. The module balances performance, compatibility, and security by combining 2.5GBASE-T twisted pair support for up to eight copper ports, optional Power over Ethernet capabilities for powering edge devices, and hardware-assisted MACsec to protect data in transit at layer 2.

Key Value Propositions for Category Shoppers

For procurement teams and network architects evaluating a modular interface card for data networking, the C-NIM-8M category addresses several common priorities simultaneously: future-proofing copper links while controlling cost, consolidating device power and data delivery via PoE where appropriate, and enabling cryptographic integrity and confidentiality at line rate through IEEE 802.1AE MACsec. This category description highlights how the C-NIM-8M helps organizations upgrade last-mile copper links, support bandwidth-hungry edge services, and harden link-layer security without large-scale infrastructure changes.

Technical Capabilities and What They Mean in Real Deployments

The C-NIM-8M is centered on a bank of eight RJ-45 2.5G ports capable of operating at legacy speeds of 100Mbps and 1Gbps as well as the higher 2.5Gbps speed permitted by 2.5GBASE-T standards. This multi-rate support is critical for incremental upgrades: existing devices that support 1 Gigabit continue to operate, while newer endpoints or uplinks able to use 2.5 Gigabit can immediately take advantage of higher throughput. The familiar RJ-45 connector and twisted pair cabling maintain compatibility with copper infrastructure already installed in offices and wiring closets, reducing deployment time and cost.

Multi-Gigabit Advantage

Multi-gigabit Ethernet fills the gap between 1 Gigabit and 10 Gigabit Ethernet, enabling higher aggregate throughput on copper media without wholesale rewiring. For environments where fiber cabling is impractical or cost-prohibitive, upgrading to 2.5GBASE-T provides a straightforward lift in performance for bandwidth-sensitive applications such as high-density Wi-Fi access points, video conferencing gateways, IP surveillance, and edge virtualization platforms.

Power over Ethernet Options

Integrated PoE support in the module family simplifies deployments where access layer devices require both data and power over a single cable. Using Power over Ethernet reduces the need for separate power bricks and simplifies cabling for devices such as wireless access points, IP phones, and certain types of cameras and sensors. Where PoE is supported, the C-NIM-8M can be used to power devices while simultaneously delivering multi-gigabit throughput, enabling converged infrastructure designs in branch and campus scenarios.

Layer 2 Security with IEEE 802.1AE MACsec

MACsec hardware support provides link-layer encryption, offering protection for data in flight between devices that support the standard. For organizations that must meet regulatory or internal security requirements for data confidentiality and integrity across untrusted physical segments, MACsec provides a line-rate mechanism to reduce the risk of eavesdropping and man-in-the-middle attacks at layer 2. Implementing MACsec on copper uplinks is particularly valuable in co-location or multi-tenant environments where physical access to cabling may be a concern.

Compatibility, Form Factor and Interoperability

The C-NIM-8M is a Network Interface Module designed to plug into compatible Cisco platforms that accept NIM-style modules. When planning an upgrade, verify chassis and slot compatibility with the target router or switch model. NIM modules follow Cisco’s modularity strategy, allowing network teams to tailor I/O capacity by mixing interface types within the same chassis. This approach helps standardize on a preferred platform while scaling port count or media types as business needs change.

Backward Compatibility and Graceful Migration

Because the module supports 100Mbps and 1Gbps fallbacks, devices that are not yet multi-gig capable remain supported while new multi-gig endpoints are introduced. This backward compatibility ensures that upgrades can be phased rather than all-at-once, which is often a practical necessity for geographically distributed or budget-constrained organizations. Network administrators can incrementally enable higher speeds where needed without risking service disruption to legacy endpoints.

Interoperability Considerations

Interoperability with third-party devices is generally maintained when standards-based operation is in use, especially for link speed autonegotiation on twisted-pair signals. That said, network teams should validate PoE power budgets, autonegotiation behavior, and MACsec policy compatibility when integrating with mixed-vendor environments. A short proof-of-concept test is recommended for deployments that include a variety of access-layer hardware or third-party uplink devices to ensure consistent behavior under realistic traffic conditions.

Performance, Throughput and Real-World Benefits

In practical deployments the most visible benefit of upgrading to 2.5Gbps copper ports is reduced congestion at the access layer. High-density Wi-Fi 6 and Wi-Fi 6E access points, for example, can generate traffic well beyond 1 Gbit/s aggregate, and uplinks that remain constrained to 1 Gbit/s can become a bottleneck. With 2.5GBASE-T ports available on the module, each access point or group of devices can enjoy higher headroom, translating into lower latency, improved user experience, and more predictable performance.

Scalability and Port Density

The eight-port design allows a single NIM slot to support multiple access devices or smaller uplink clusters without consuming multiple slots. For deployments where slot availability is limited, an eight-port module maximizes the throughput per slot and can simplify cable management by concentrating multi-gig ports in predictable locations within the chassis.

Resiliency and QoS

To protect mission-critical services and prioritize delay-sensitive traffic, the C-NIM-8M works within Cisco platforms’ Quality of Service frameworks. When combined with intelligent QoS policies, the module helps ensure that voice, video and real-time collaboration traffic remain responsive even under heavy load. Resiliency features of the hosting platform, such as link redundancy and rapid failover, complement the module’s performance to produce robust edge networks.

Security and Compliance Benefits

Layer 2 encryption through MACsec enhances compliance posture for industries that require assured confidentiality of data traversing local and metro networks. Using MACsec at the copper link level prevents unauthorized visibility into packet contents and detects tampering attempts. When paired with existing higher-layer VPNs, MACsec gives a defense-in-depth approach that reduces attack surface and can simplify security architectures for short or physically exposed segments.

Policy and Access Control

Beyond encryption, the C-NIM-8M integrates into Cisco’s broader access-control ecosystem, including 802.1X authentication, dynamic VLAN assignment, and policy-based access control. These features help administrators enforce consistent access rules and segment traffic effectively, supporting both security and operational objectives like guest access separation and IoT device containment.

Operational Security Practices

Operators should apply secure configuration best practices when deploying any interface module. This includes ensuring firmware on the host platform is current, enabling only the features that are needed, and aligning MACsec key management with organizational cryptographic policies. Centralized management and monitoring make it easier to detect anomalies and maintain consistent security baselines across distributed modules and chassis.

Deployment Scenarios and Use Cases

There are several high-value deployment scenarios where the C-NIM-8M proves especially useful. In campus networks, the module can power and uplink Wi-Fi 6 access points, freeing IT teams from separate power runs and delivering aggregate capacity to meet contemporary wireless demands. In branch and remote offices, the module provides an economical path to higher uplink speeds for multi-tenant connectivity or cloud-centric applications. For telco and service provider edge nodes, the module offers an efficient way to offer multi-gig copper services to customers while maintaining centralized control and security features.

Branch and Distributed Edge

Branch offices with modest cabling infrastructure can benefit from the C-NIM-8M’s support of existing twisted-pair cabling. Rather than pay for expensive fiber drops to each location, IT teams can deploy multi-gig copper links where cabling quality and length requirements permit, achieving improved application performance and simpler operations.

Wireless Access Point Aggregation

High-performance wireless access points often require uplinks that exceed 1 Gigabit when many clients are active simultaneously. By providing 2.5 Gigabit uplinks with PoE, the module simplifies access point deployments and helps extract full value from modern Wi-Fi radios, particularly in high-density conference rooms, auditoriums and open office environments.
